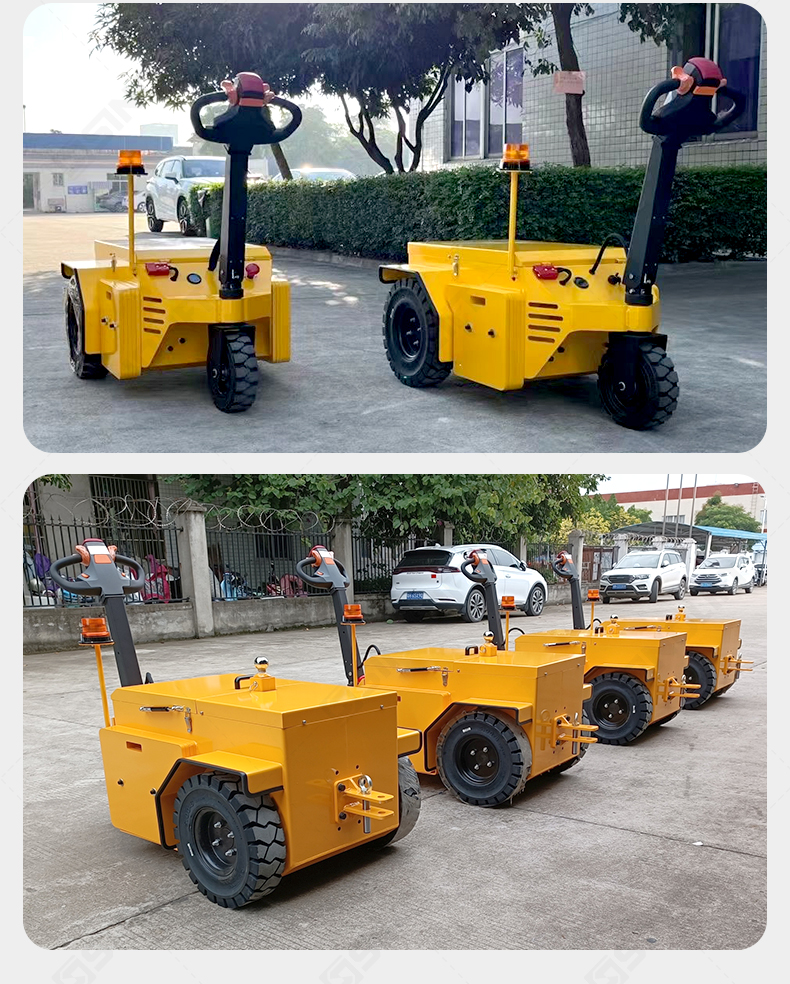

ML1000L ML1200L walkie electric tractor load capacity 12000kg
ML1000L ML1200L
Quantity:

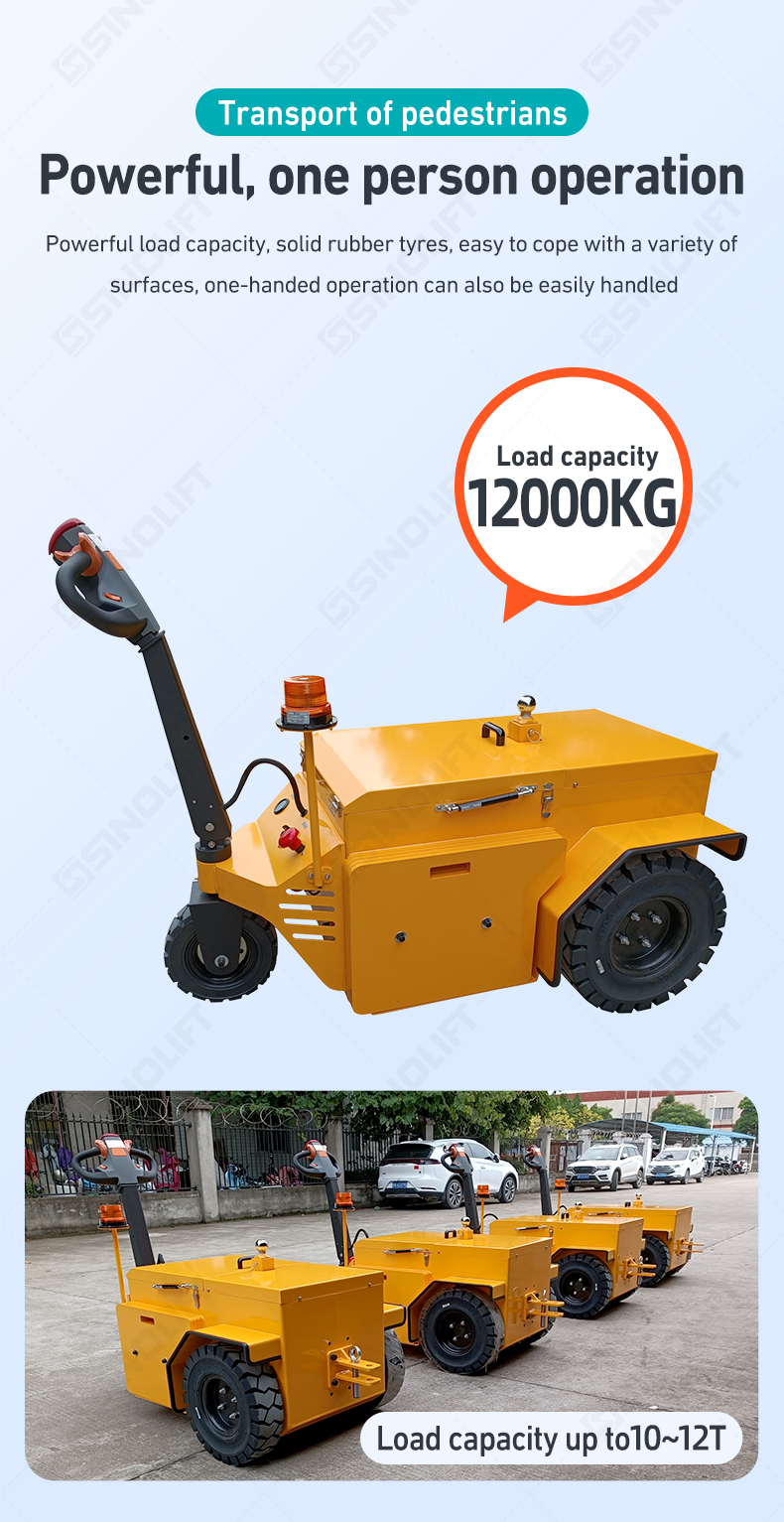

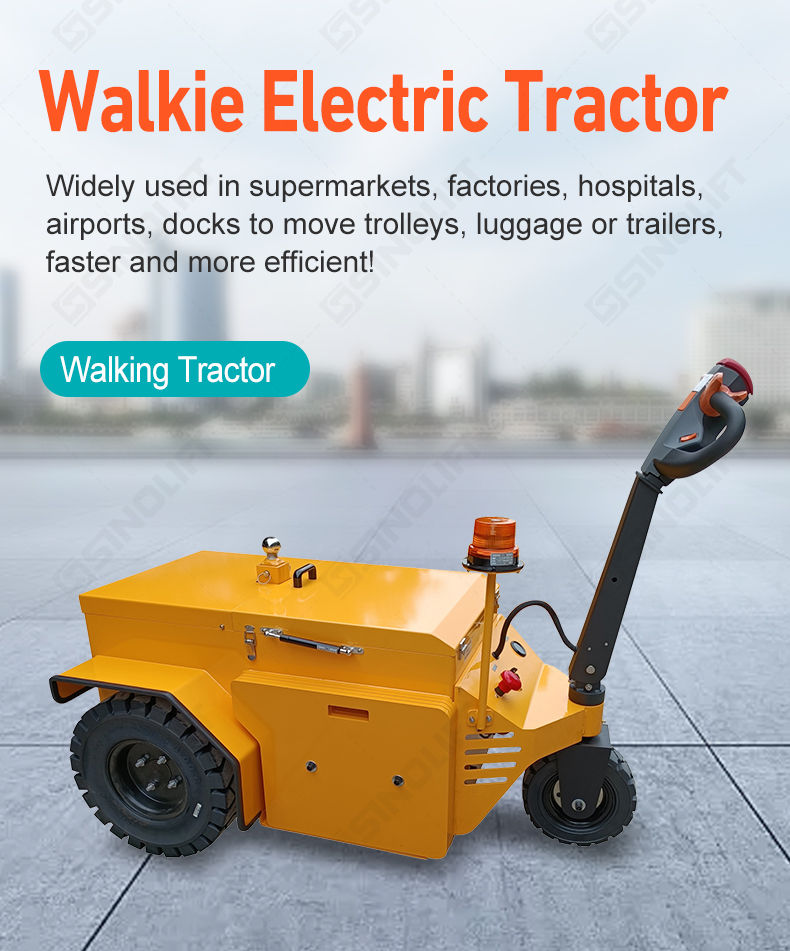

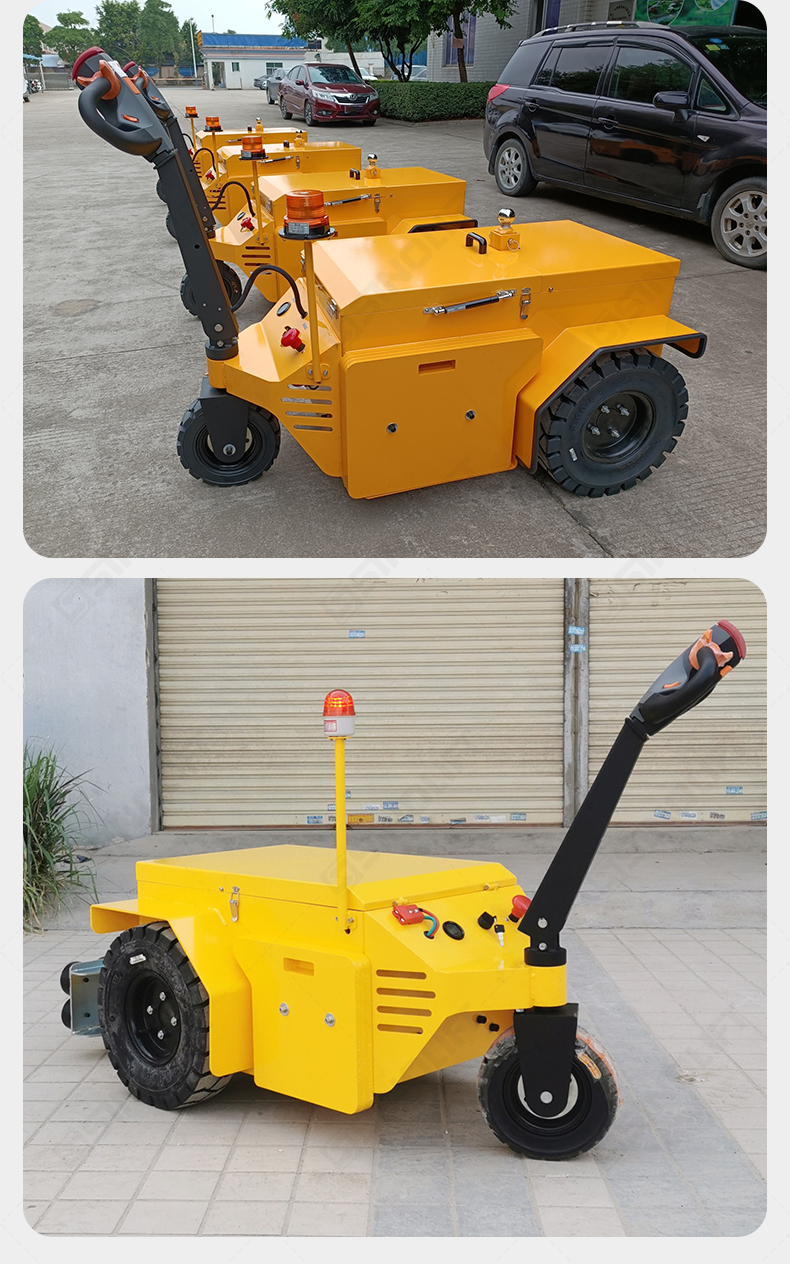

The Electric Tugger is ideal for pulling or pushing loads weighing up to 12000kg. Widely used in supermarket,factories,hospitals,airports,docks to move trolleys,luggage or trailers,faster and more efficient.

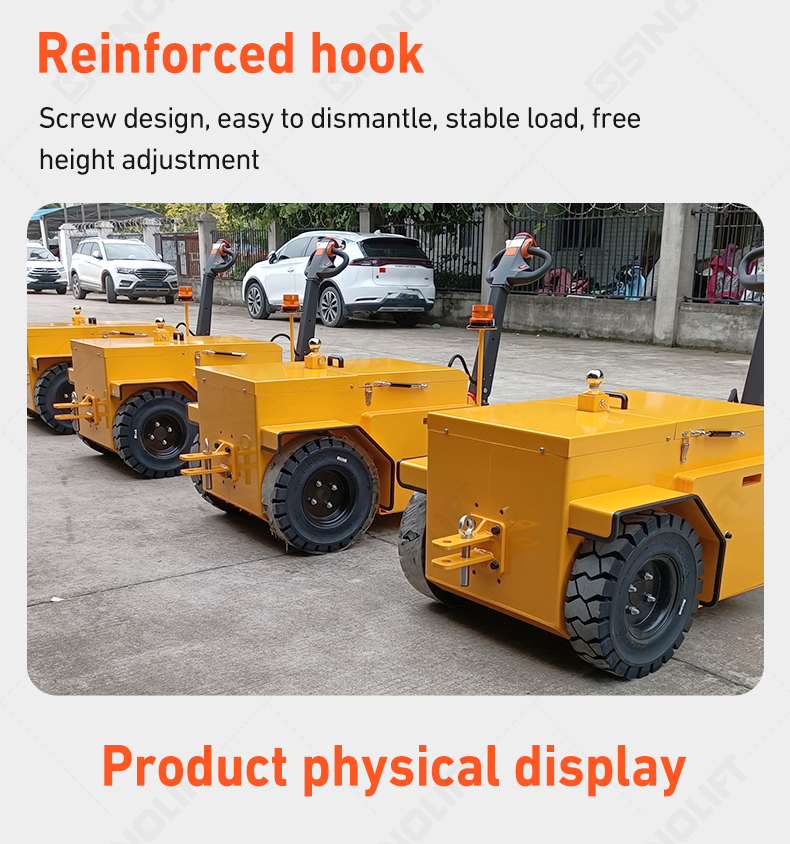

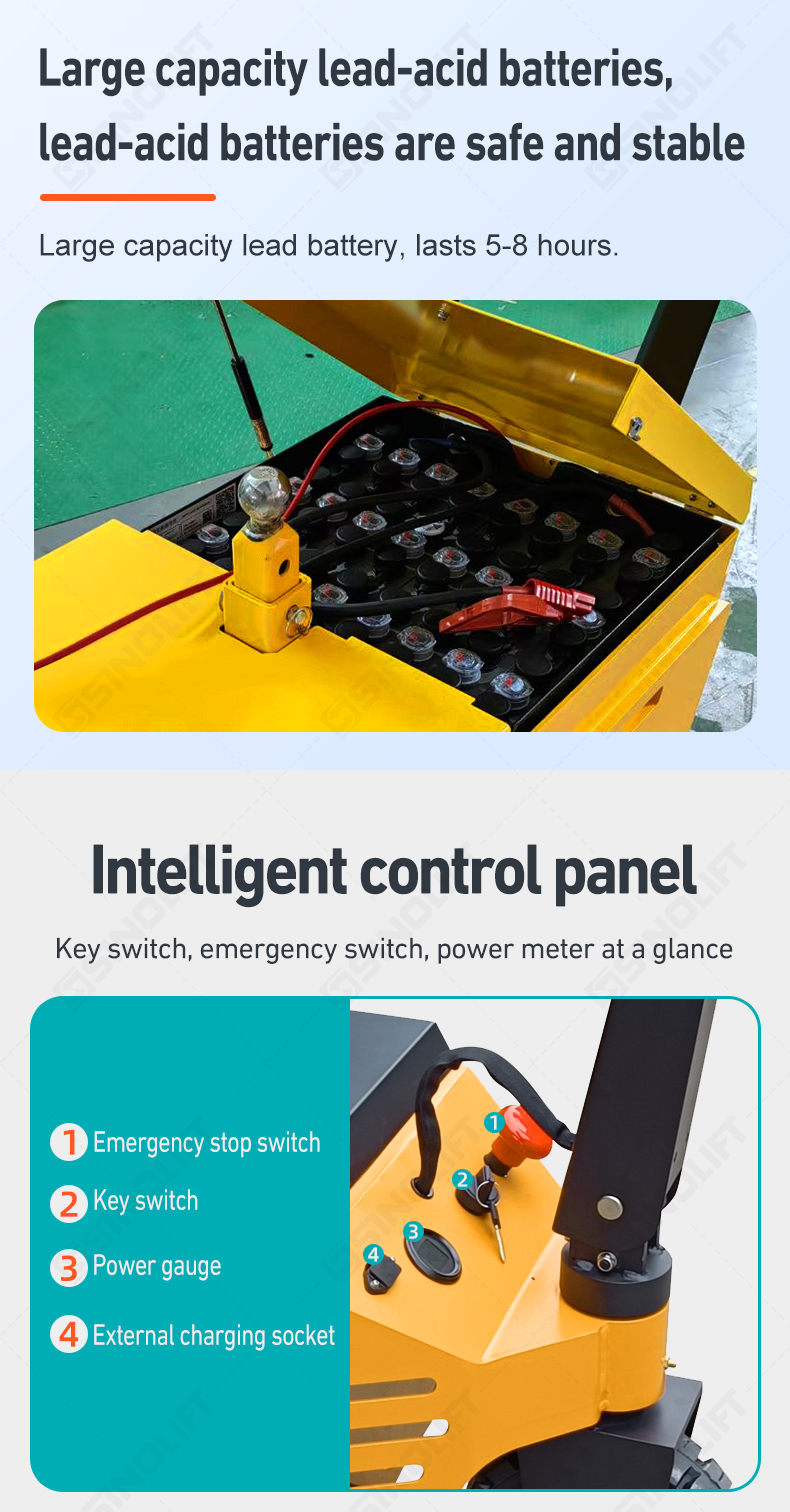

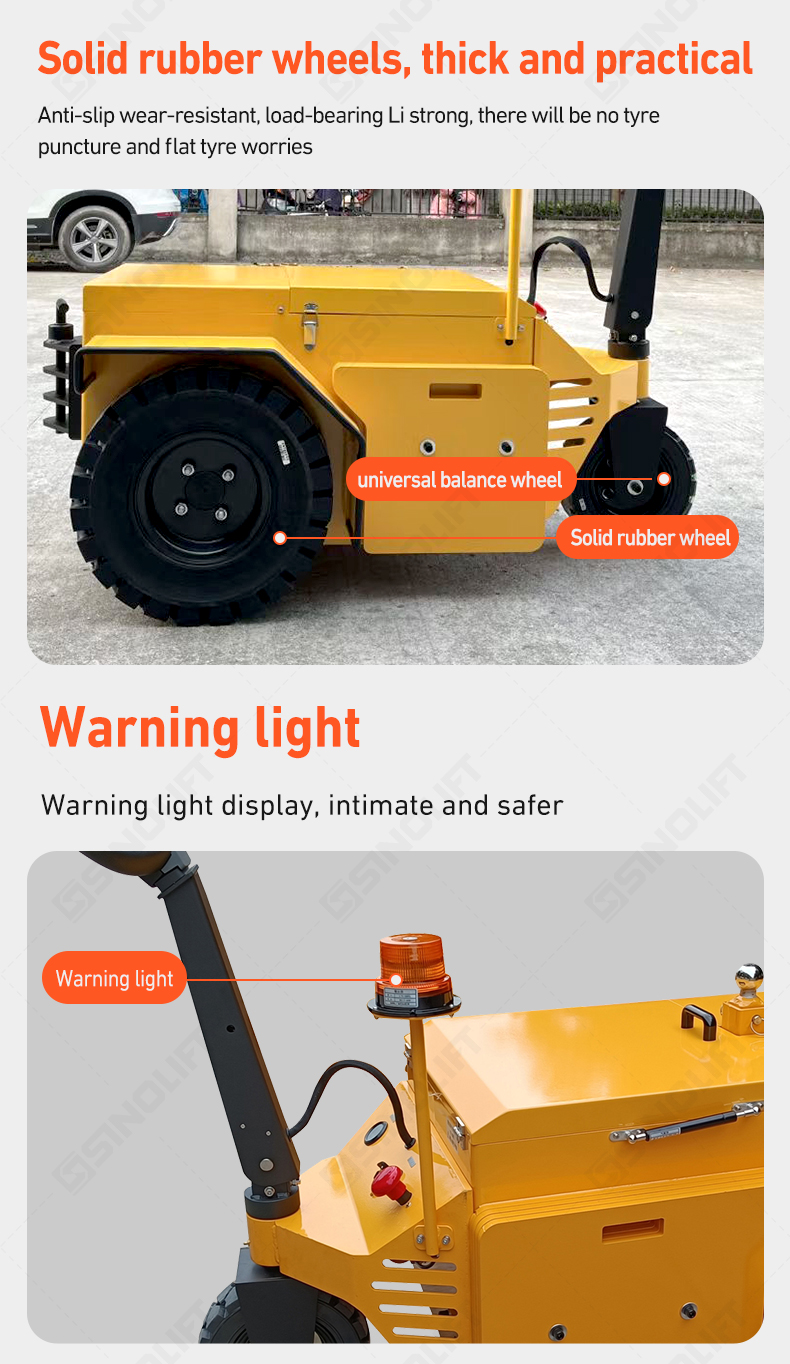

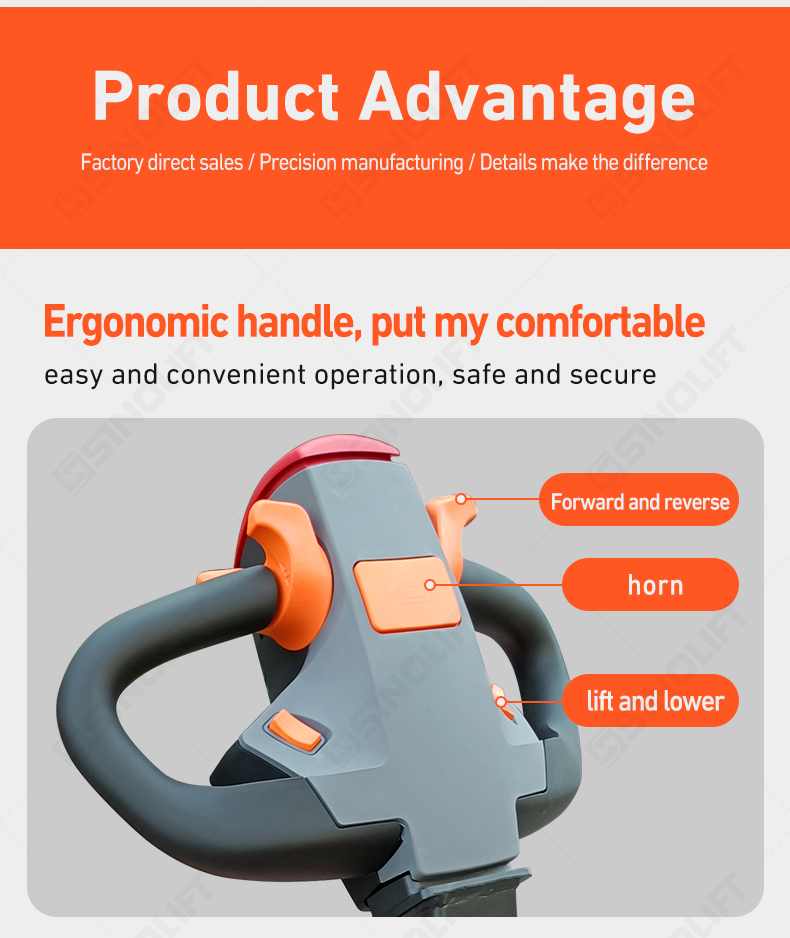

This industrial tugger aids in reducing worker injury caused by manual pushing and pulling required when using a manual cart. Features include rechargeable batteries, integral battery smart charger, color battery charge level indicator, foam filled drive tires, solid state regenerative braking, and a brake to hold the electric tugger in place when on an incline. The front mounting plate allows for the use of a wide range of standard and custom hitches.A unique ergonomic handle design adjusts to a wide range of operator heights.
| Model | ML1000L | ML1200L | |
| Rated Traction Load | kg | 10000 | 12000 |
| Rated Traction Force | N | 4000 | 5000 |
| Wheelbase | mm | 1070 | 1070 |
| Weight (including battery) | kg | 780 | 820 |
| Battery Weight | kg | 206 | 400 |
| Drive Wheel Size (Diameter x Width) | mm | 2XФ450X117 | 2XФ450X117 |
| Load Wheel Size (Diameter x Width) | mm | Ф300X100 | Ф300X100 |
| Number of Drive/Load Wheels (X = Drive Wheels) | mm | 2X/1 | 2X/1 |
| Front Track, Drive End | mm | 460 | 460 |
| Overall Height | mm | 1225 | 1225 |
| Handle Height at Operating Position | mm | 950/1200 | 950/1200 |
| Coupler Height Range | mm | 295/395 | 295/395 |
| Overall Length | mm | 1705 | 1705 |
| Overall Width | mm | 870 | 870 |
| Minimum Ground Clearance | mm | 100 | 100 |
| Turning Radius | mm | 1370 | 1370 |
| Travel Speed, Loaded/Unloaded | km/h | 2~3 | 2~3 |
| Maximum Traction Force | N | 7000 | 8000 |
| Gradeability, Loaded/Unloaded | % | 3/6 | 3/6 |
| Drive Motor Rated Power (5260 min) | V/kw | 48/3.0 | 48/3.5 |
| Charger (External) | V/A | 48/25 | 48/30 |
| Battery Voltage/Nominal Capacity (K20) | V/Ah | 48/157 | 48/210 |
| Battery Weight | kg | 206 | 400 |
| Drive Control Type | AC | AC | |
| Noise Level | dB(A) | <70 | <70 |
