ML600 ML800 ML1000 electric powered tuggers
ML600 ML800 ML1000
Quantity:
The Electric Powered Tuggers are are normally used for heavier load applications or heavy-use applications. suitable to use in airports, hospitals, and wholesale and retail stores. They can be used in a variety of applications like pulling industrial carts, hoppers, trash cans, trailers, and tow bars.
| Model | ML600-DC | ML600-AC | ML800-AC | ML1000-AC | |
| Power supply | Electric | ||||

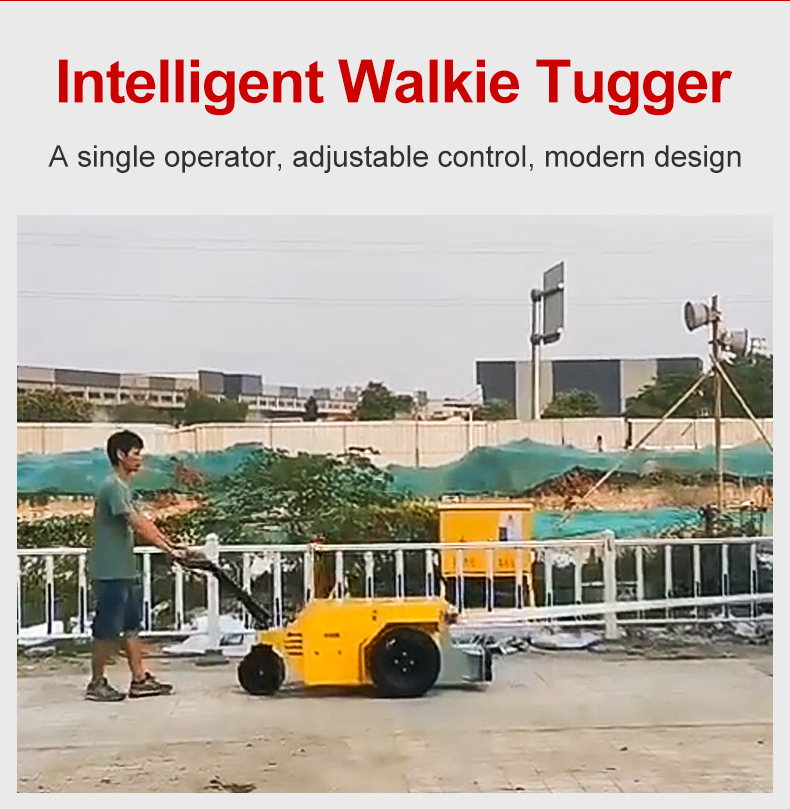

| Operating type | Walking style | ||||
| Max traction weight | kg | 6000 | 6000 | 8000 | 10000 |
| Rated pulling force | N | 1800 | 1900 | 2300 | 2900 |
| Truck weight（with battery） | kg | 550 | 550 | 620 | 680 |
| Tire type,Drive wheel/Bearing wheel | Rubber | ||||
| Overall height | mm | 1275 | 1275 | 1275 | 1275 |
| Height of tiller in drive position | mm | 950/1200 | 950/1200 | 950/1200 | 950/1200 |
| Hook height | mm | 235/285/335 | 235/285/335 | 235/285/335 | 235/285/335 |
| Overall length | mm | 1595 | 1595 | 1595 | 1595 |
| Overall width | mm | 850 | 850 | 850 | 850 |
| Ground clearance | mm | 100 | 100 | 100 | 100 |
| Turning radius | mm | 1320 | 1320 | 1320 | 1320 |
| Drive speed load/unload | km/h | 2.5/3.5 | 2.5/3.5 | 2.5/3.5 | 3/4 |
| Rated pulling force | N | 1800 | 1900 | 2300 | 2900 |
| Max pulling force | N | 2500 | 2600 | 2900 | 3500 |
| Max gradeability load/unload | % | 5/8 | 5/8 | 5/8 | 5/8 |
| Drive motor rating S2 60min | V/kw | 24/2.2 | 24/2.2 | 24/2.5 | 48/3.0 |

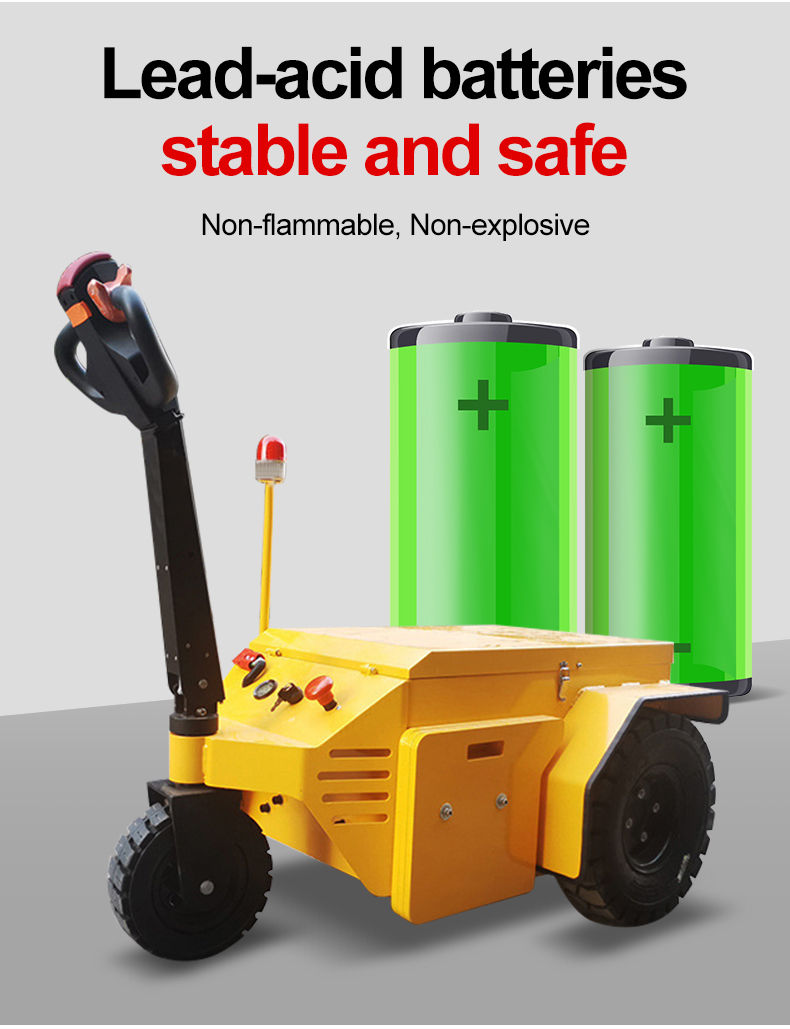

| Charger (external) | V/A | 24/30 | 24/30 | 24/30 | 48/15 |
