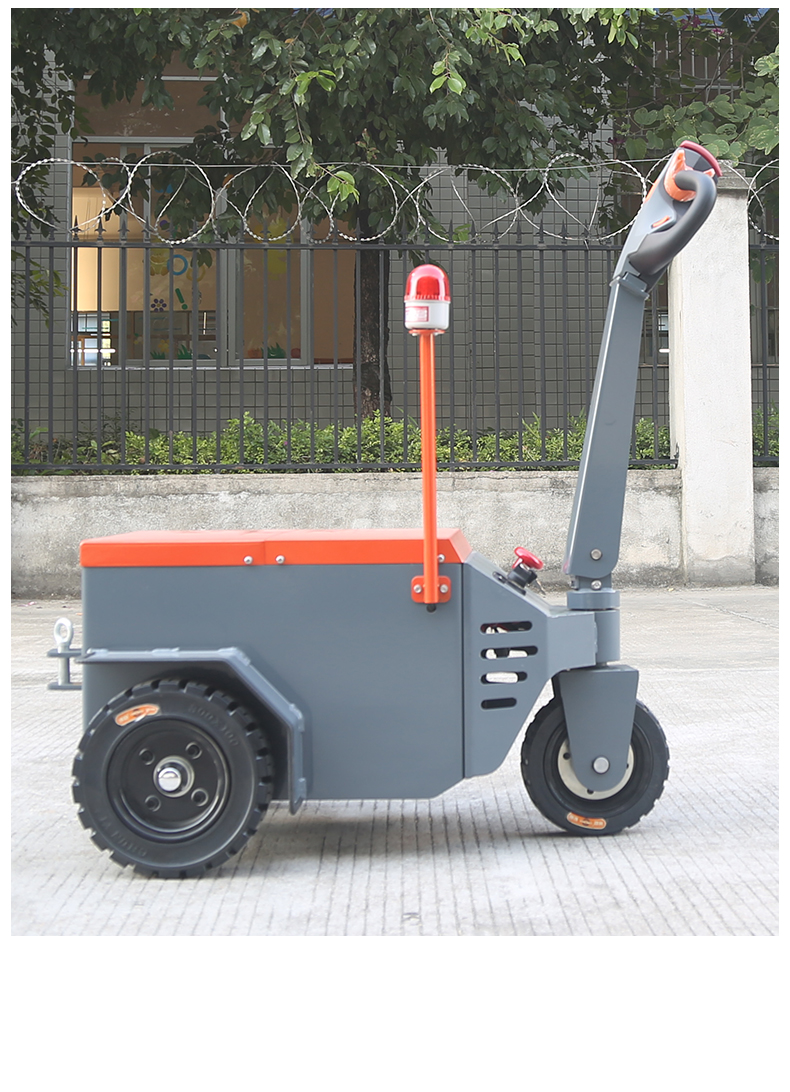

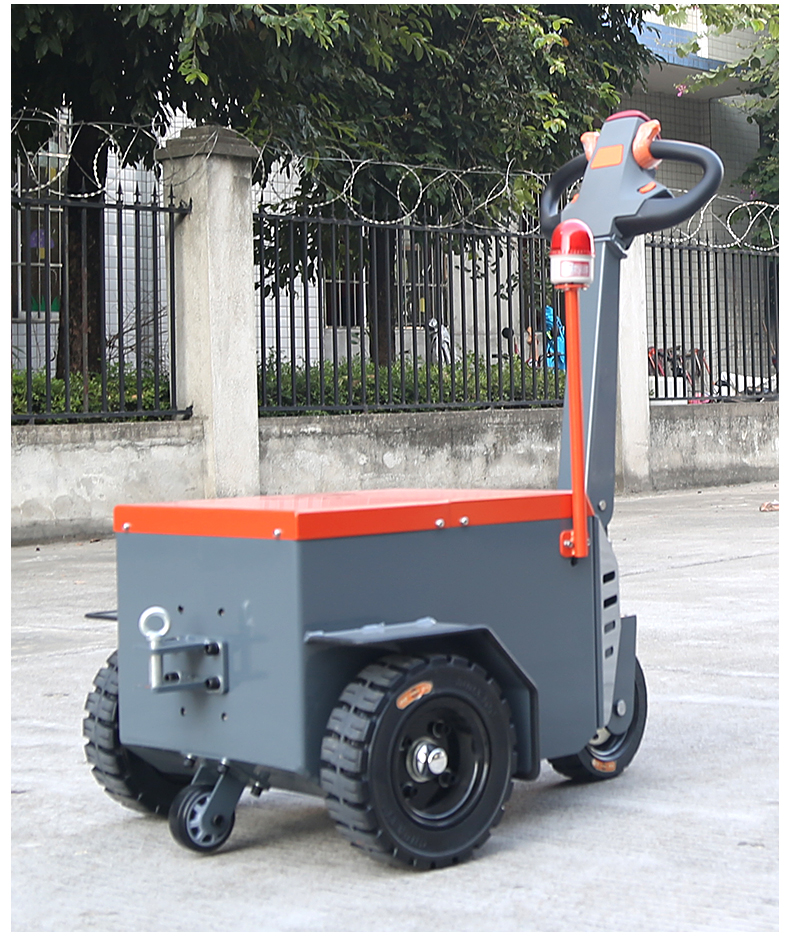

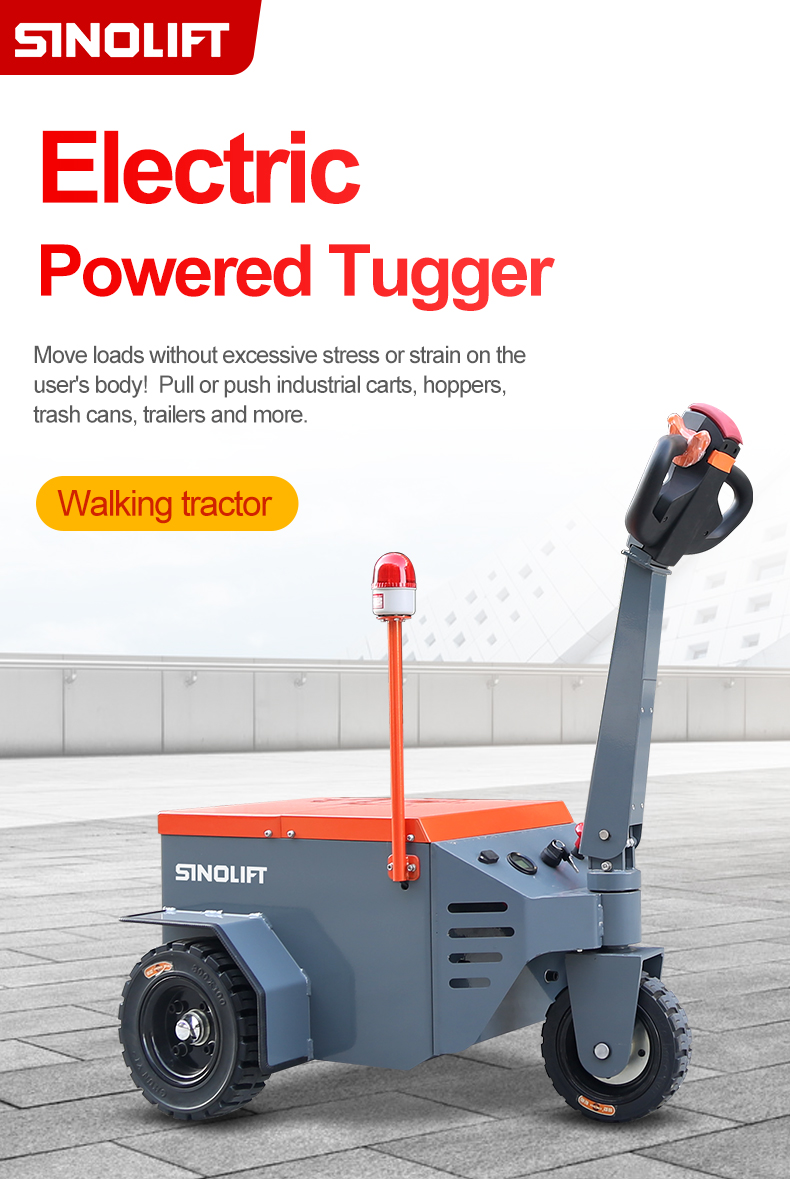

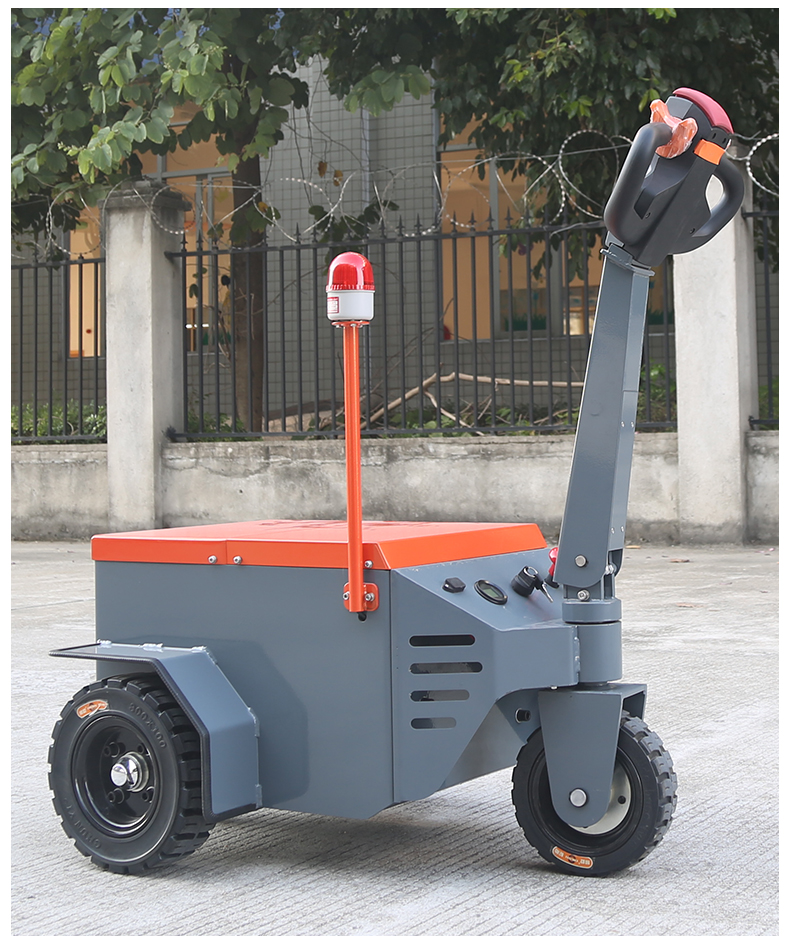

Electric powered towing tugger ML200A ML350A ML450A

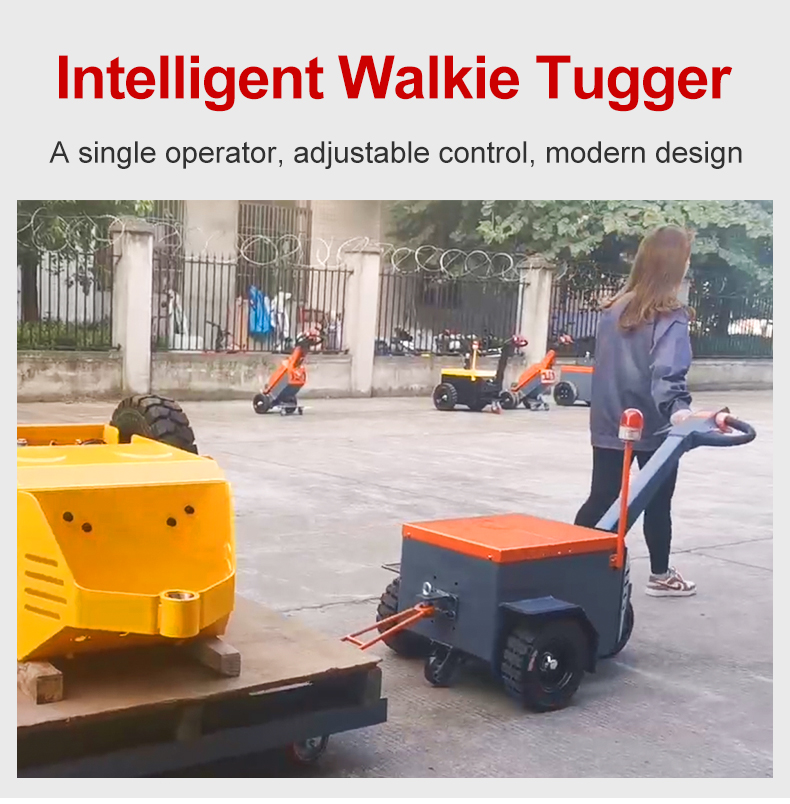

Move loads without excessive stress or strain on the user’s body, pull or push industrial carts,hoppers,trash cans,trailers and more. AS an intelligent walking tractor work on the various ground with ease,keeping your employees safe and convenient.
- Model: ML200A
- Operating type: Walking style
- Max traction weight: 4500kg
- Truck weight: 390kg
- Overall height: 1225mm
- Application: Workshop
- Hook height:340mm
- Condition: New
- Lift Drive / Actuation: Electric Motor
- Warranty: 1 Year
Model | ML200A | ML350A | ML450A | |
Power supply | Electric | Electric | Electric | |
Operating type | Walking style | Walking style | Walking style | |
Max traction weight | kg | 2000 | 3500 | 4500 |
Rated pulling force | N | 700 | 1100 | 1300 |
Truck weight（with battery） | kg | 230 | 350 | 390 |

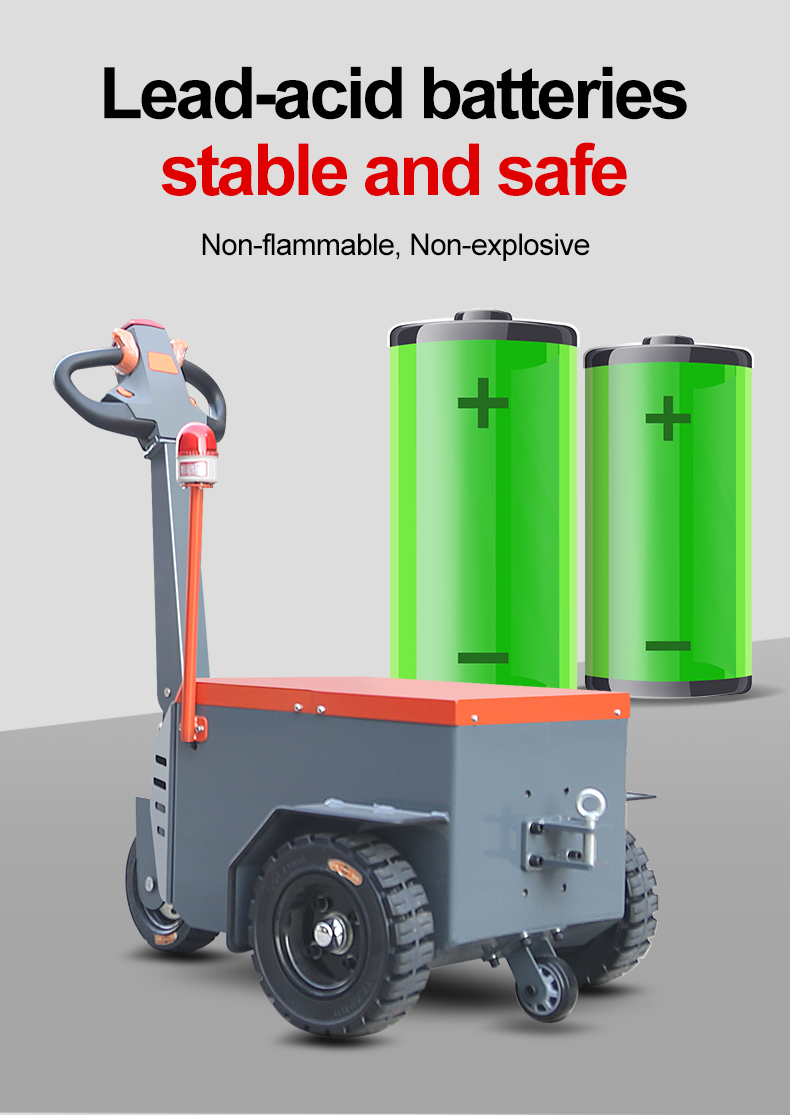

Battery weight | kg | 54 | 70 | 70 |

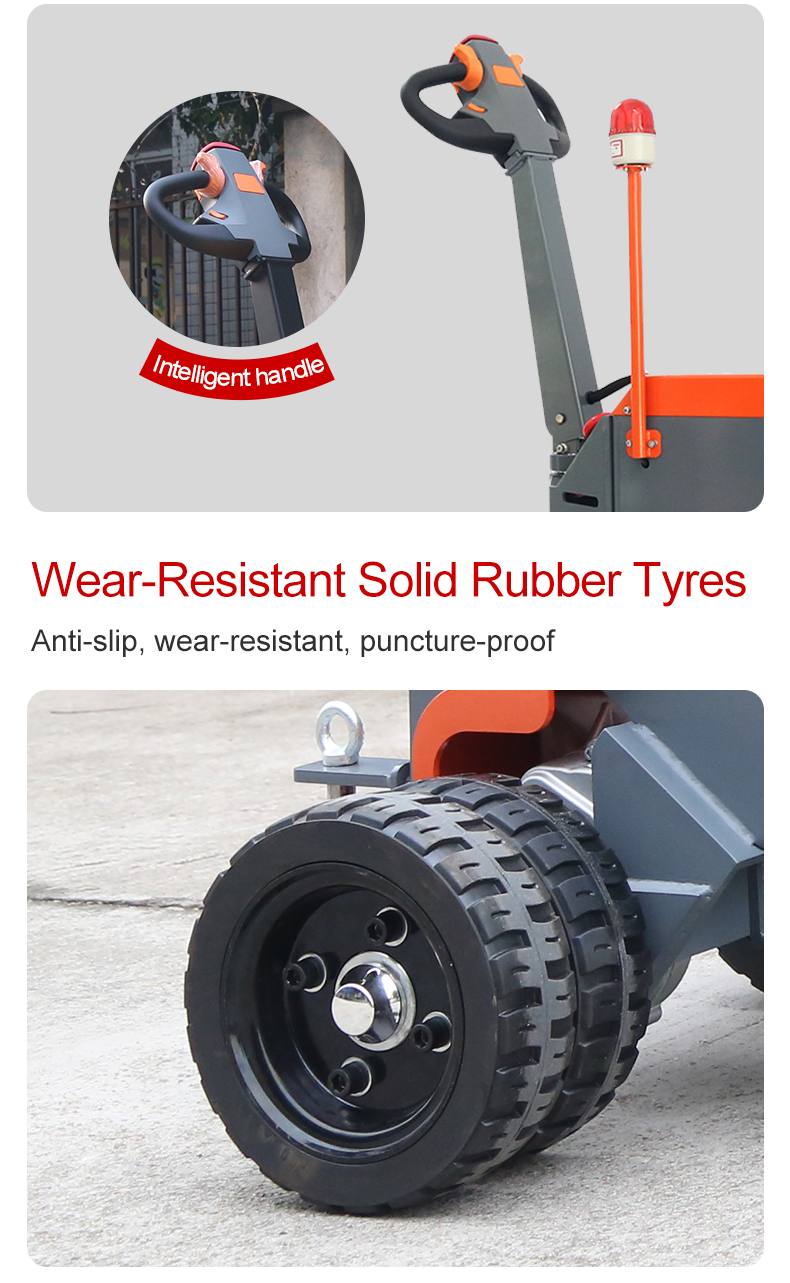

Tire type,Drive wheel/Bearing wheel | Rubber/PU | Rubber/PU | Rubber/PU | |

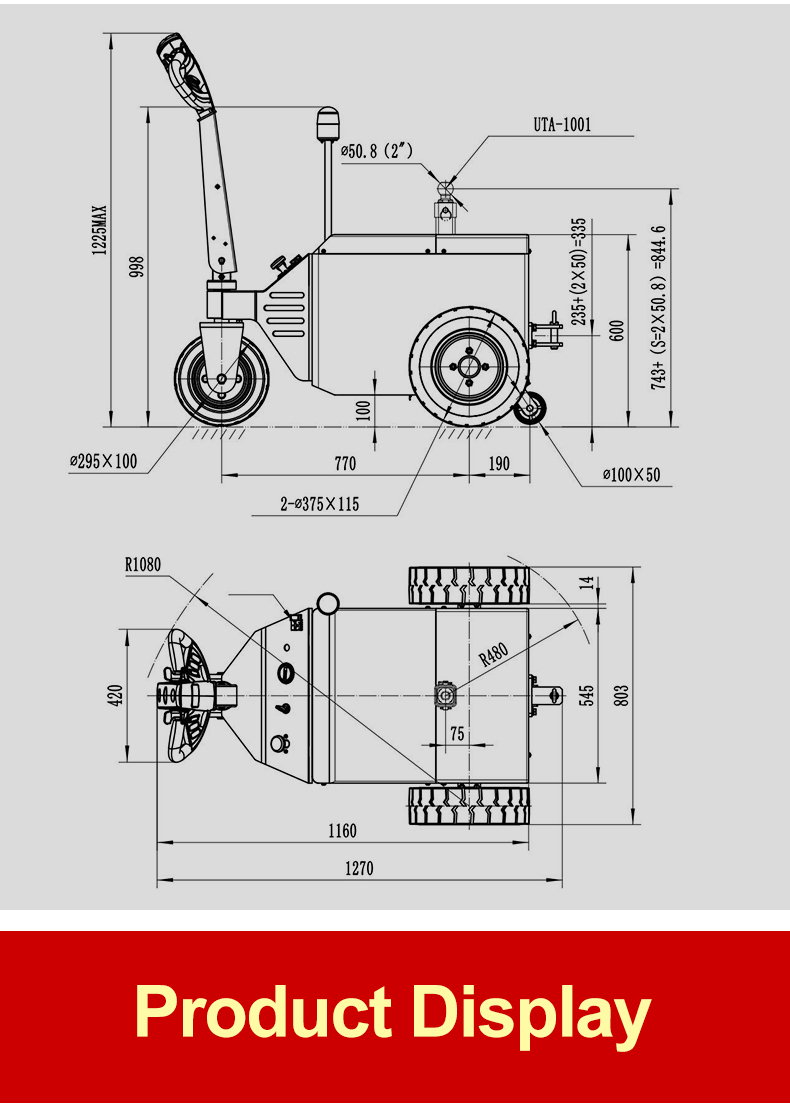

Overall height | mm | 1190 | 1225 | 1225 |
Height of tiller in drive position | mm | 900/1190 | 950/1225 | 950/1225 |

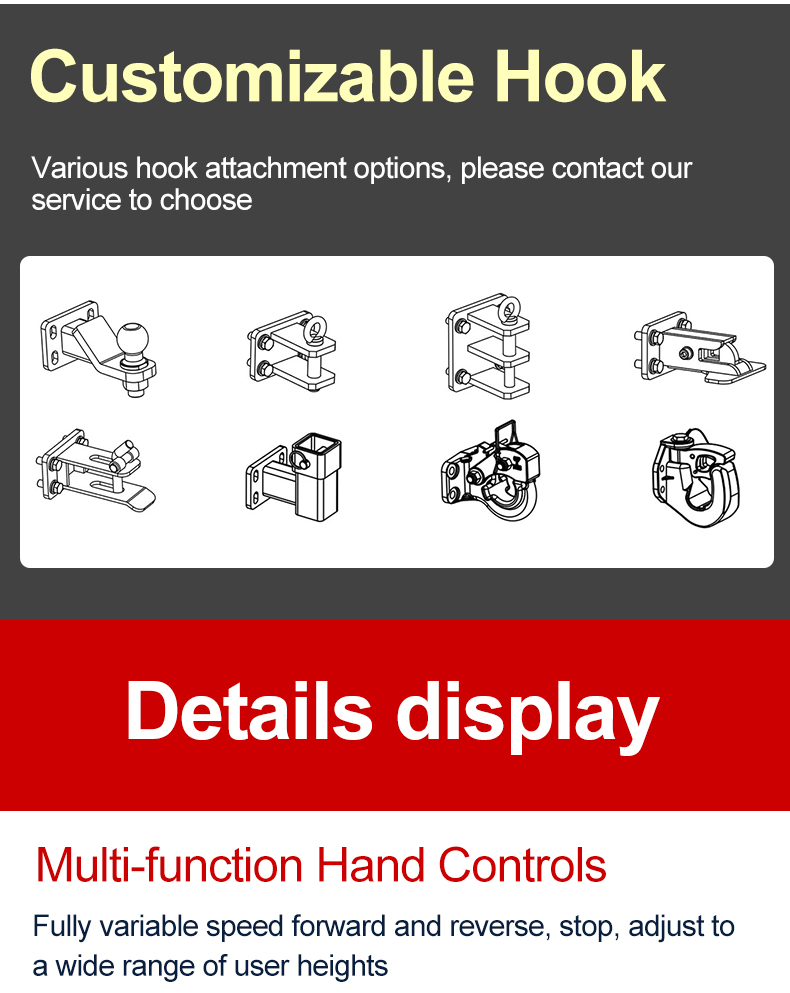

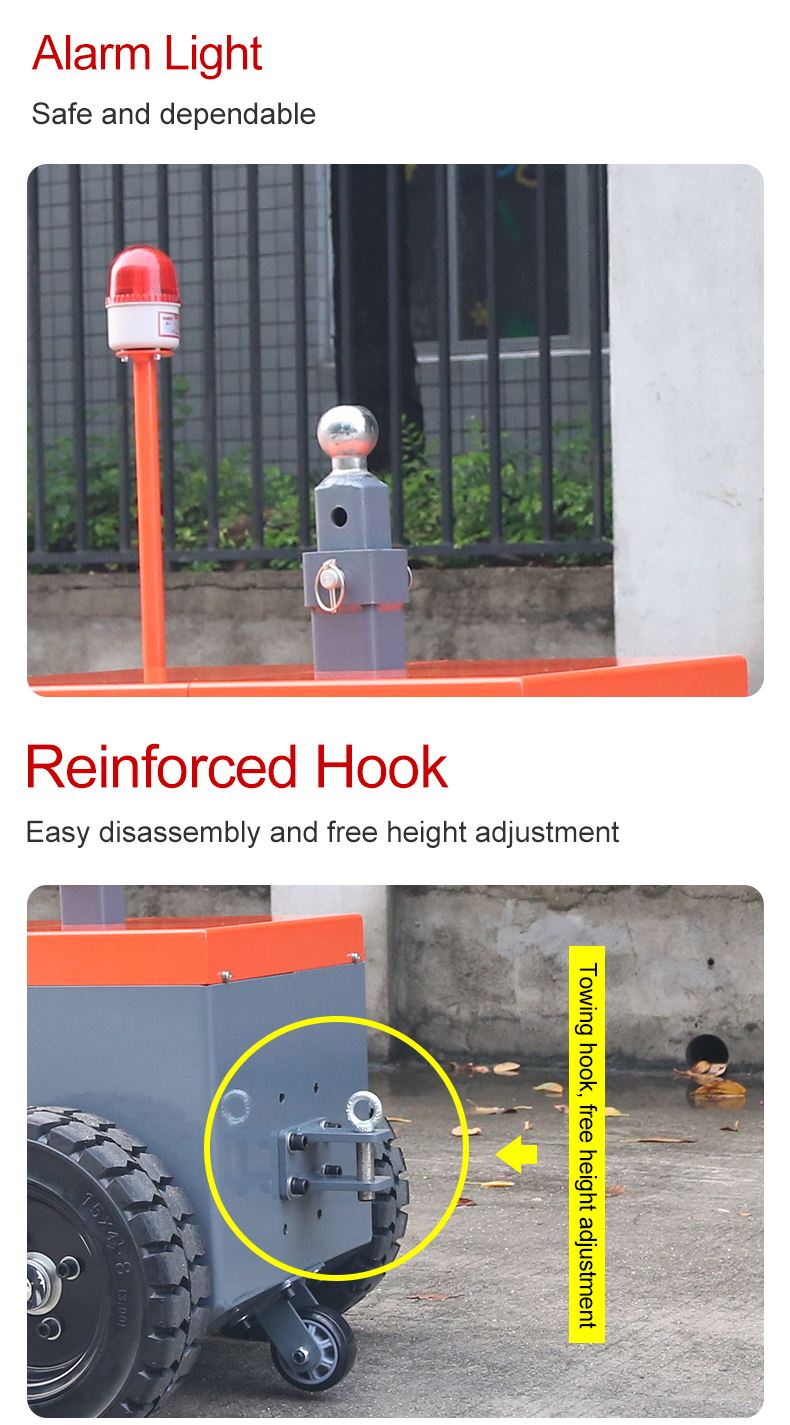

Hook height | mm | 240/340 | 235/285/335 | 235/285/335 |
Overall length | mm | 1165 | 1270 | 1270 |
Overall width | mm | 695 | 803 | 803 |
Ground clearance | mm | 100 | 100 | 100 |
Turning radius | mm | 850 | 1080 | 1080 |
Drive speed load/unload | km/h | 4～5 | 2.5～3.5 | 2～3 |
Rated pulling force | N | 700 | 1100 | 1300 |
Max pulling force | N | 900 | 1500 | 1800 |
Max gradeability load/unload | % | 10 | 10 | 5 |
Drive motor rating S2 60min | kw | 1.2 | 1.5 | 1.8 |
Charger (external) | V/A | 24/10 | 24/15 | 24/15 |
