Case Study: Custom Rotatable Lift Table Solution for Australian Logistics Partner

Our Australian partner approached Sinolift with a bottleneck in their client’s assembly line. Standard scissor lifts provided the vertical travel needed but lacked the ability to rotate goods for ergonomic positioning.

The core constraints were:

1. Stability: The base needed to be square to handle off-center loads.

2. Profile: The rotation mechanism could not add significant "stack height" to the unit.

3. Operation: Rotation needed to be effortless for a single operator even under 2,000kg loads.

Engineering Solution: The "Square-in-Circle" Architecture

While many competitors suggest a "bolted-on" turntable (which increases height and reduces stability), the Sinolift R&D team engineered a flush-mount integrated solution.

Key Technical Features:

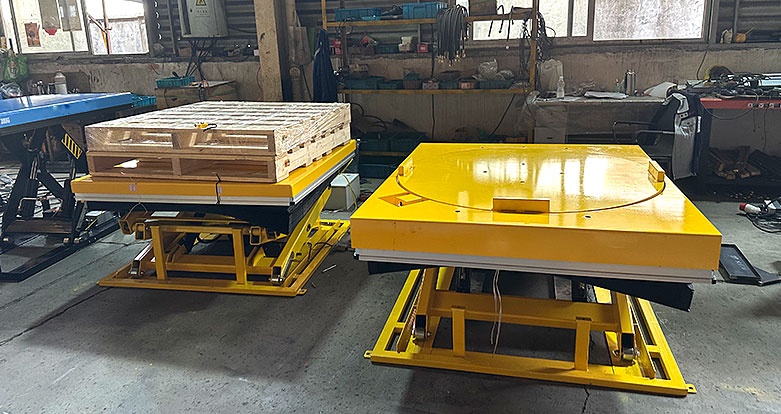

• Hybrid Platform: A heavy-duty 1500mm x 1500mm square platform acting as the structural foundation.

• Embedded Turntable: A precision-machined 1200mm circular disk recessed directly into the square top, creating a perfectly flat surface.

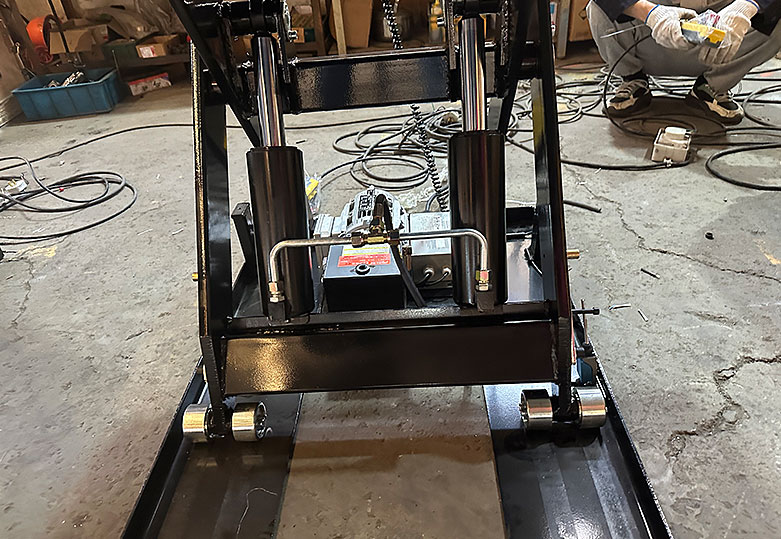

• High-Load Slewing Ring: Utilizing industrial-grade internal bearings to ensure 360° manual rotation with minimal friction.

• Safety Interlocks: Equipped with mechanical floor locks to prevent rotation during the lifting/lowering phase.

The Factory Acceptance Test (FAT)

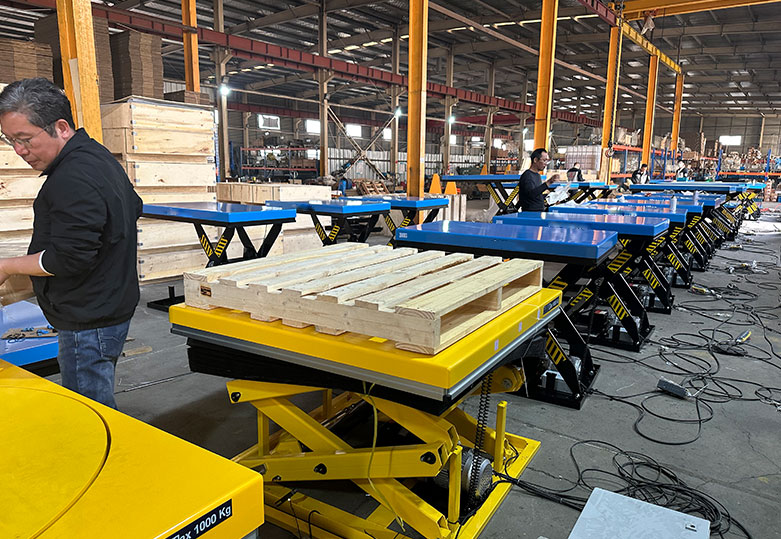

In late March 2026, the Australian delegation visited our Shanghai manufacturing base for a hands-on demonstration.

Key Performance Indicators (KPIs)Verified:

• Zero-Deflection Lift: The scissor mechanism showed <0.5% lateral movement at max height.

• Rotational Torque: The client successfully rotated a 1.5-ton test load with one hand.

• Safety Compliance: The unit met all AS/NZS 2359 (Australian Standards) for powered industrial trucks and lifting equipment.

"The 'Square-in-Circle' design is a game-changer for our client's workspace. It provides the stability of a pallet-sized lift with the maneuverability of a specialized workstation." — Lead Procurement Officer, Australia.

With the physical prototype approved and the client highly satisfied, Sinolift is moving into the mass production phase for the full fleet. This project reaffirms our position as a leader in Customized Material Handling Equipment (MHE) for the Oceania market.
