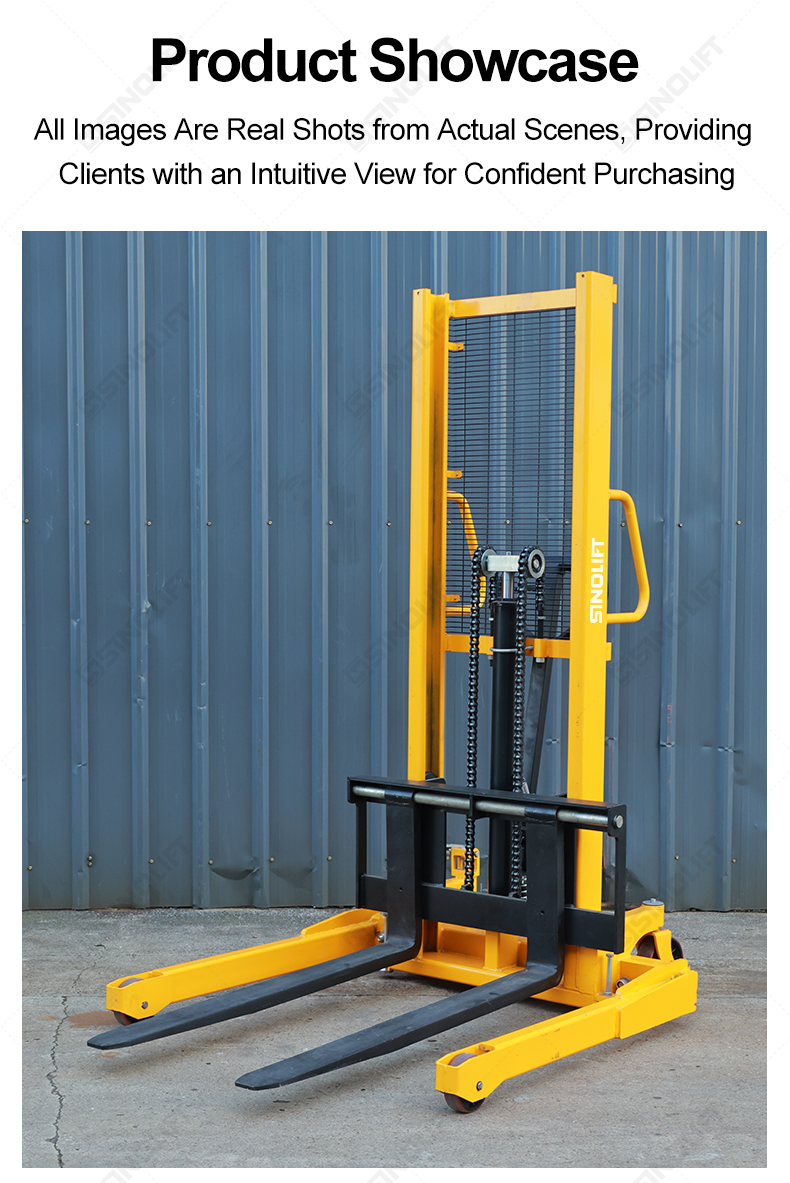

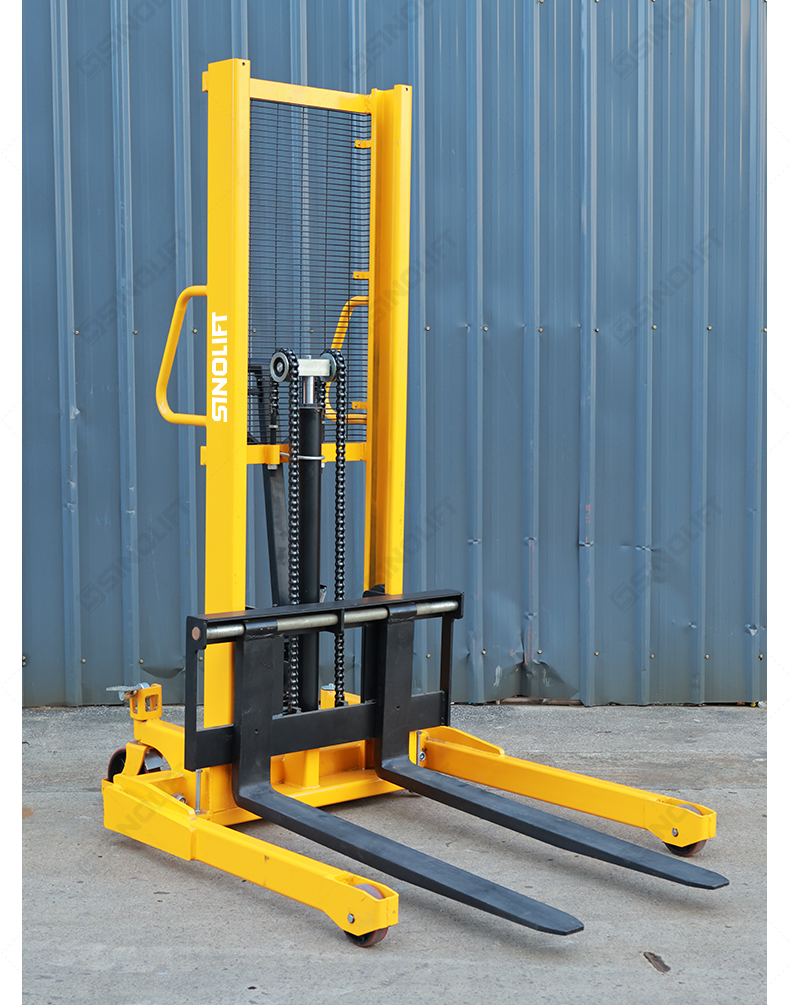

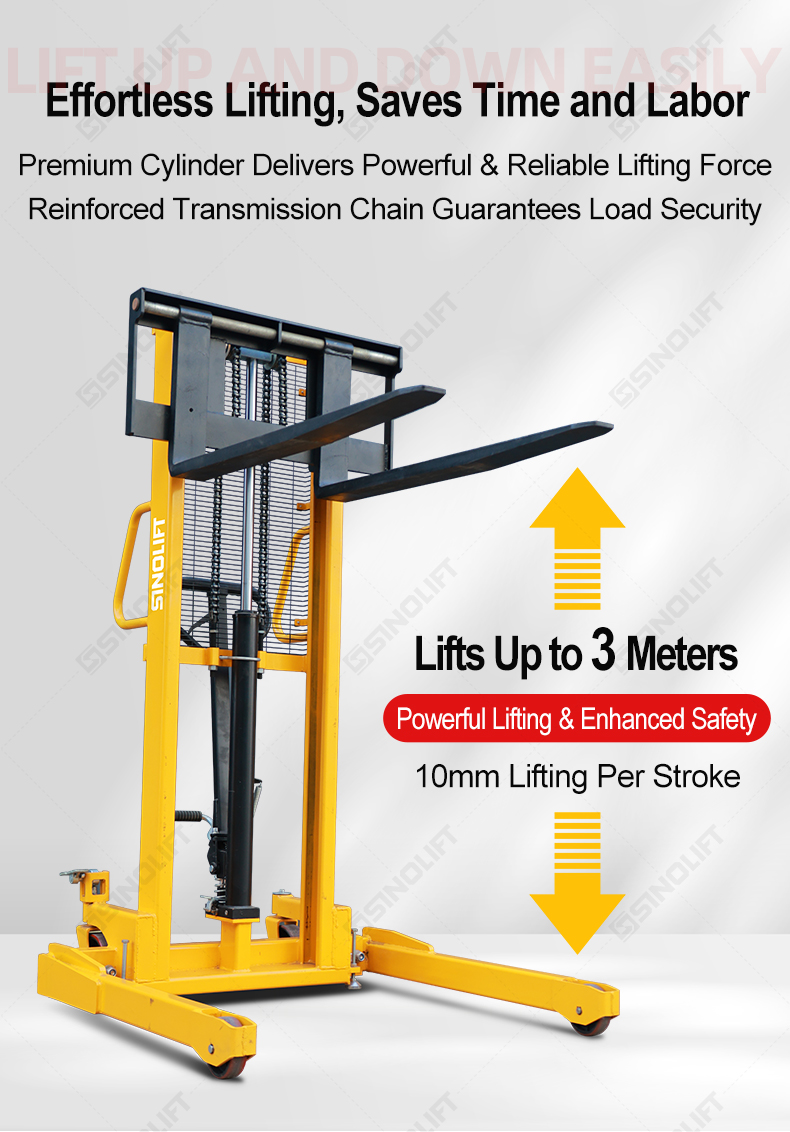

Sinolift SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs
SFH22AG
Quantity:
ThisManual Hydraulic Stacker delivers 1000KG robust lifting with reinforced steel construction and export-grade durability. Its adjustable straddle legs adapt to diverse pallet types, while the compact design excels in narrow aisles and warehouses. Ideal for manufacturing, logistics, and storage facilities seeking efficient, space-saving material handling.
| Model | SFH22-63 | SFH22-98 | SFH22-118 | |
| Load Capacity | kg | 1000 | 1000 | 1000 |
| Load Center Distance | mm | 500 | 500 | 500 |
| Max Lifting Height | mm | 1600 | 2500 | 3000 |
| Mast Type | 1 | 2 | 2 | |
| Lowered Height | mm | 70 | 70 | 70 |
| Fork Length | mm | 920 | 920 | 920 |
| Single Fork Width | mm | 100 | 100 | 100 |
| Adjustable Fork Width | mm | 215~850 | 215~850 | 215~850 |
| Inner Leg Width | mm | 915~1220 | 915~1220 | 915~1220 |
| Outer Leg Width | mm | 1090~1370 | 1090~1370 | 1090~1370 |
| Overall Length | mm | 1420 | 1420 | 1420 |
| Overall Width | mm | 1370 | 1370 | 1370 |
| Overall Height | mm | 2020 | 1770 | 2020 |
| Front Wheels | mm | Φ125x50 | Φ125x50 | Φ125x50 |
| Rear Wheels | mm | Φ180x50 | Φ180x50 | Φ180x50 |
| Net Weight | kg | 320 | 360 | 386 |
