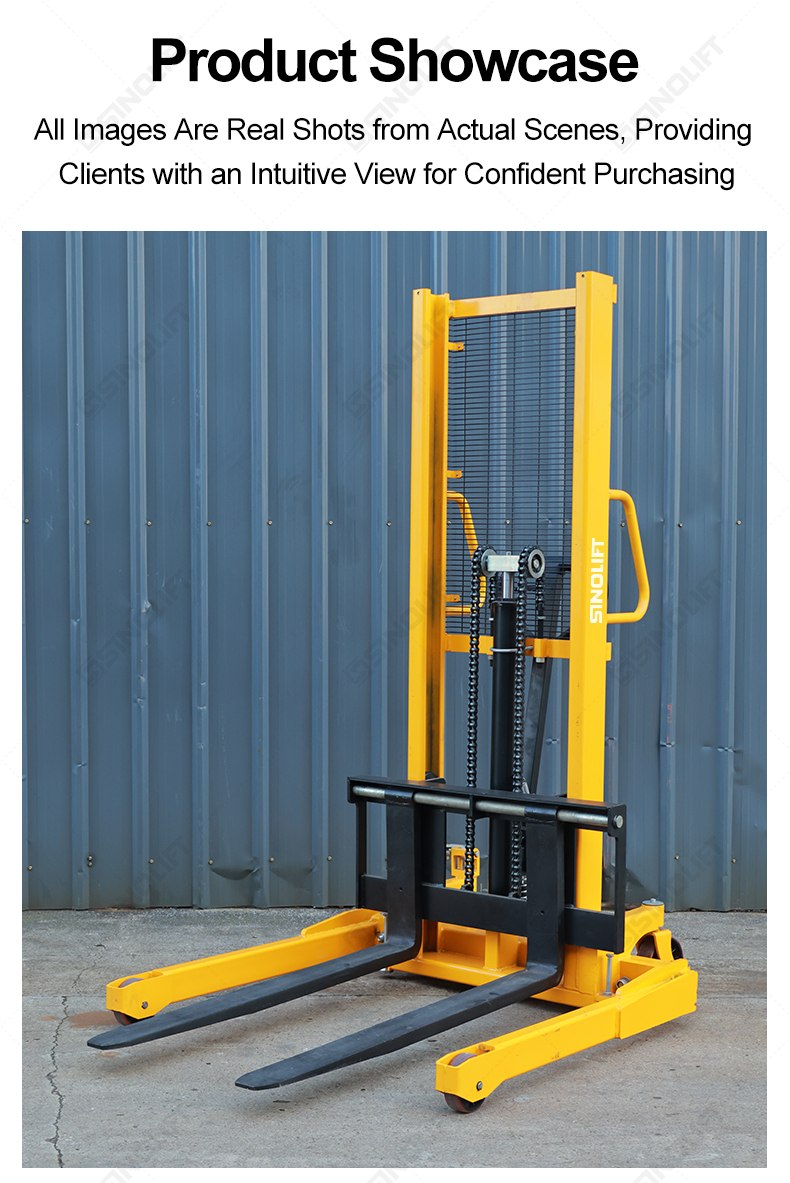

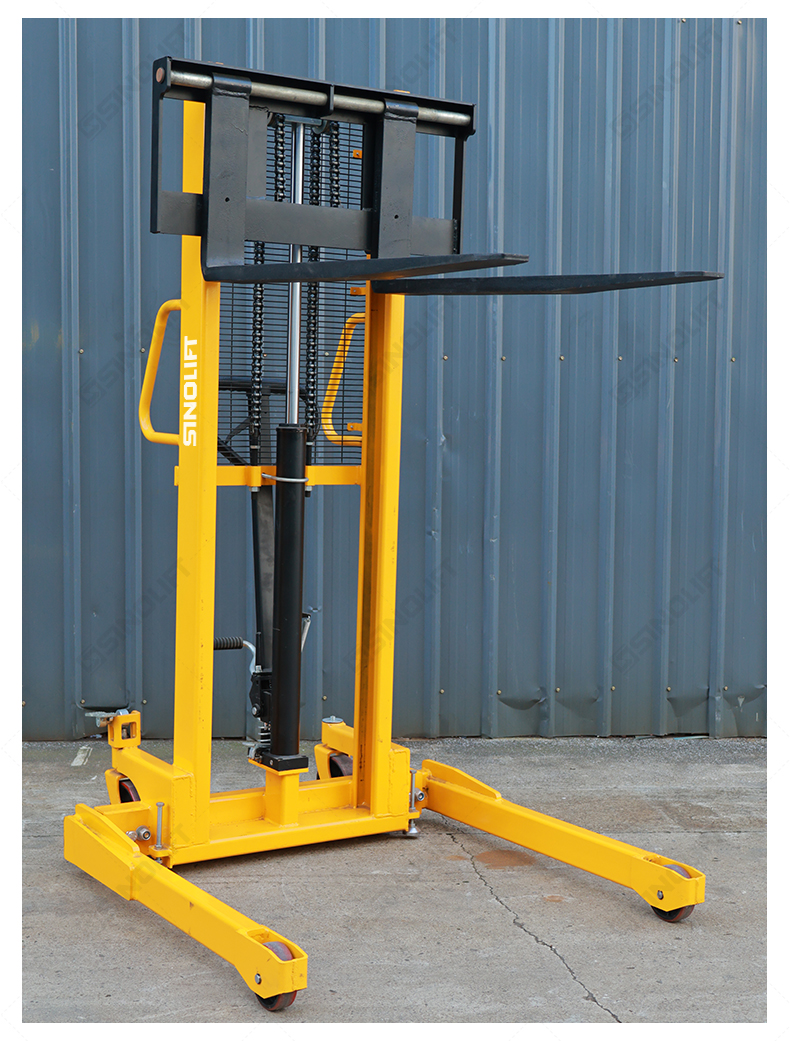

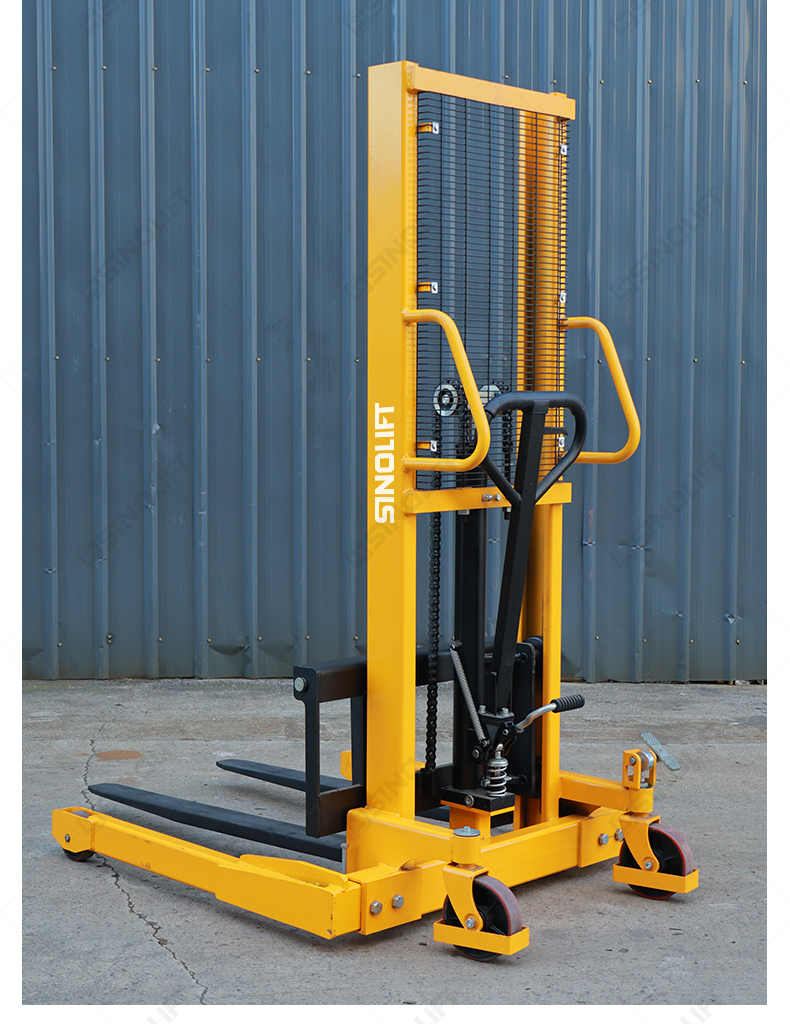

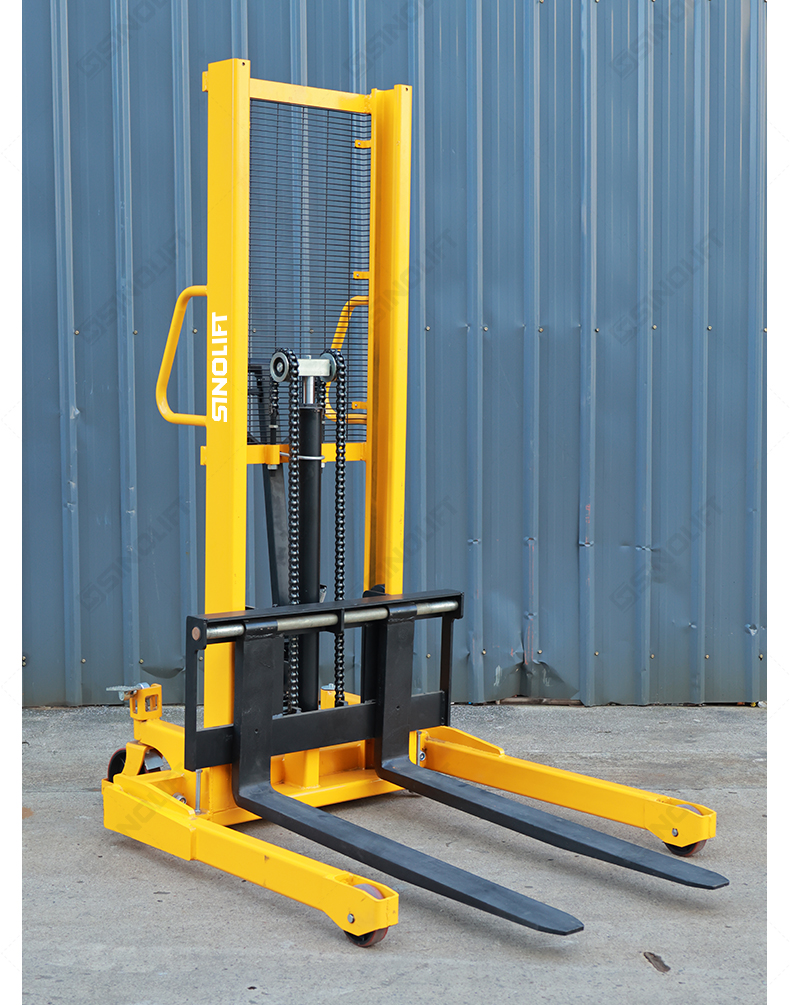

SINOLIFT SFH1016AG Manual Hydraulic Stacker with Adjustable Straddle Legs
Flexible Manual Stacking Solution for Various Pallet Sizes
TheSINOLIFT SFH22AG Manual Hydraulic Stacker with Adjustable Straddle Legs is a versatile and cost-effective material handling solution designed for lifting, transporting, and stacking palletized loads in warehouses, workshops, retail stores, and logistics centers. Featuring an adjustable straddle leg design, the SFH22AG can easily accommodate different pallet widths and working environments, providing greater flexibility than standard manual stackers.
Powered by a reliable manual hydraulic lifting system, this stacker offers safe and efficient pallet handling without the need for electricity, making it an ideal choice for facilities seeking a low-maintenance and economical lifting solution.

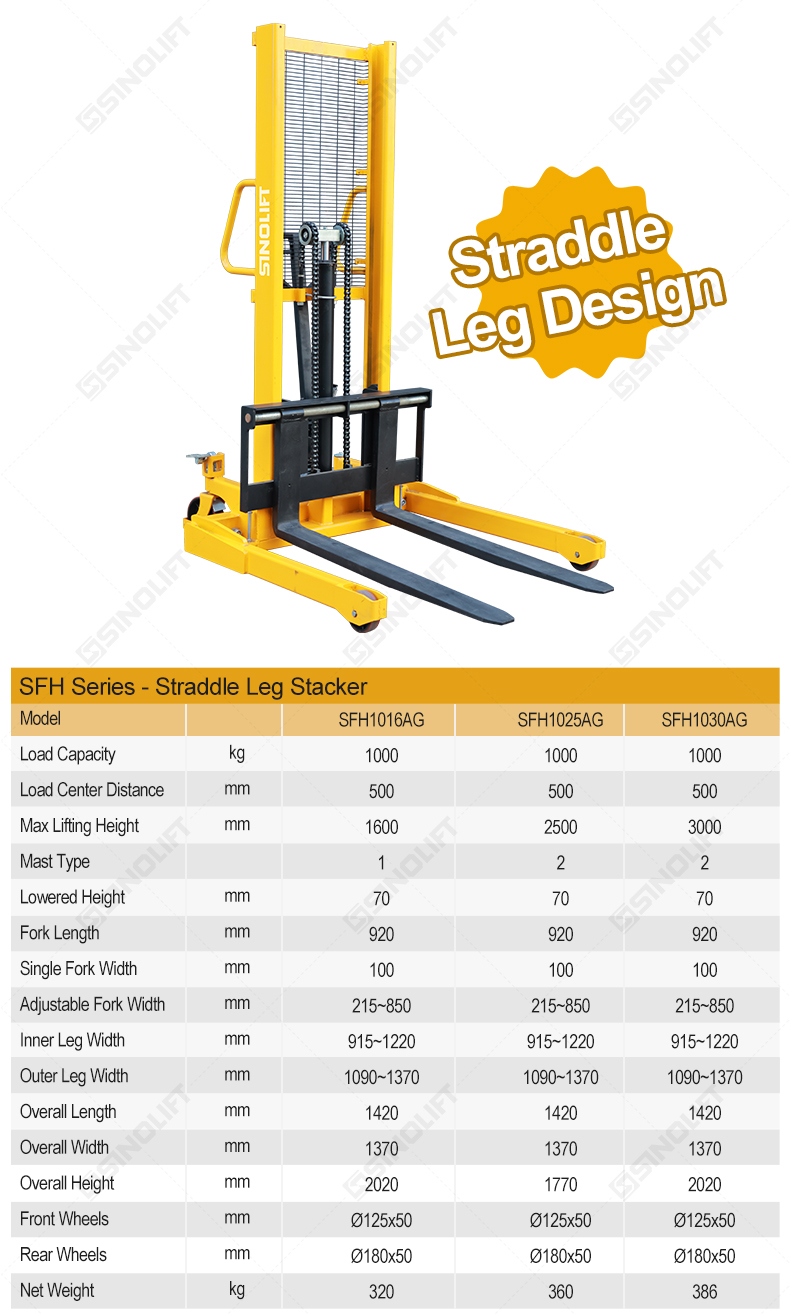

| Model | SFH1016AG | SFH1025AG | SFH1030AG |
| Load Capacity (kg) | 1000 | 1000 | 1000 |
| Load Center Distance (mm) | 500 | 500 | 500 |
| Max Lifting Height (mm) | 1600 | 2500 | 3000 |
| Mast Type | 1 | 2 | 2 |
| Lowered Height (mm) | 70 | 70 | 70 |
| Fork Length (mm) | 920 | 920 | 920 |
| Single Fork Width (mm) | 100 | 100 | 100 |
| Adjustable Fork Width (mm) | 215–850 | 215–850 | 215–850 |
| Inner Leg Width (mm) | 915–1220 | 915–1220 | 915–1220 |
| Outer Leg Width (mm) | 1090–1370 | 1090–1370 | 1090–1370 |
| Overall Length (mm) | 1420 | 1420 | 1420 |
| Overall Width (mm) | 1370 | 1370 | 1370 |
| Overall Height (mm) | 2020 | 1770 | 2020 |
| Front Wheels (mm) | Ø125×50 | Ø125×50 | Ø125×50 |
| Rear Wheels (mm) | Ø180×50 | Ø180×50 | Ø180×50 |
| Net Weight (kg) | 320 | 360 | 386 |
Key Features
Adjustable Straddle Legs
The adjustable support legs can be widened or narrowed to fit different pallet sizes and operating conditions, making the stacker suitable for a wider range of applications.
Heavy-Duty Load Capacity
Designed for daily material handling operations, the SFH22AG provides reliable lifting performance for palletized goods, machinery parts, and industrial materials.

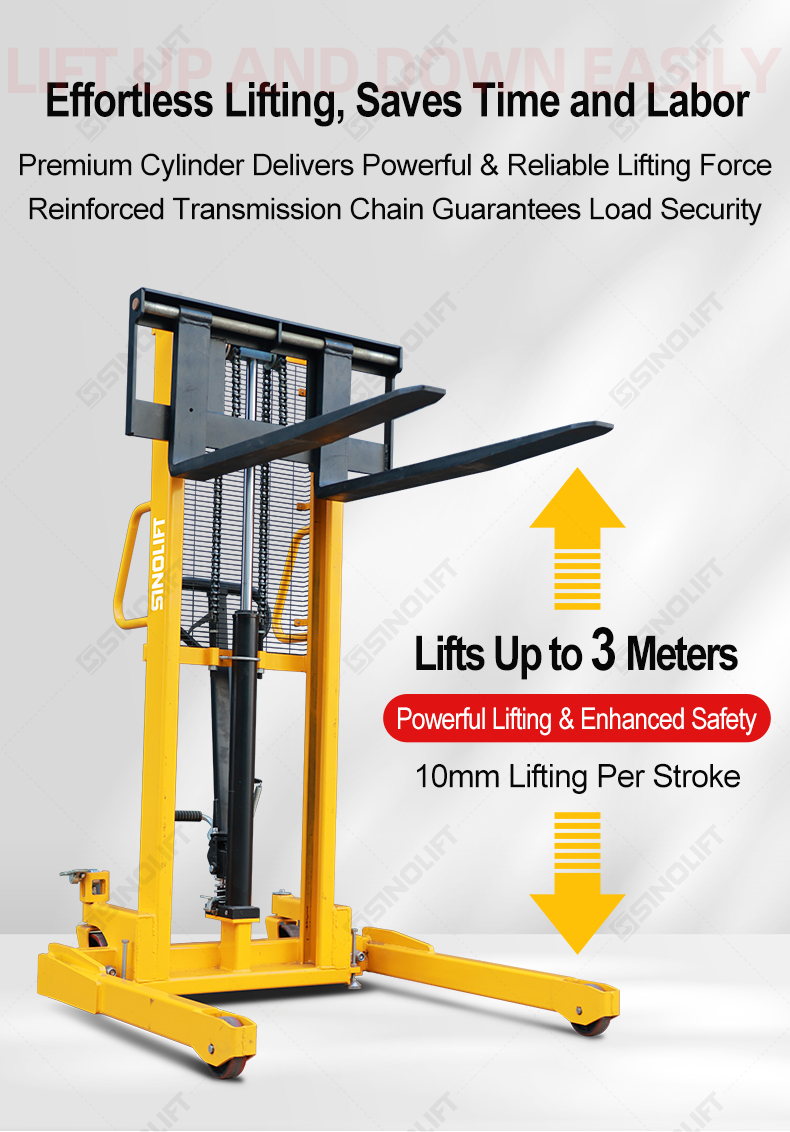

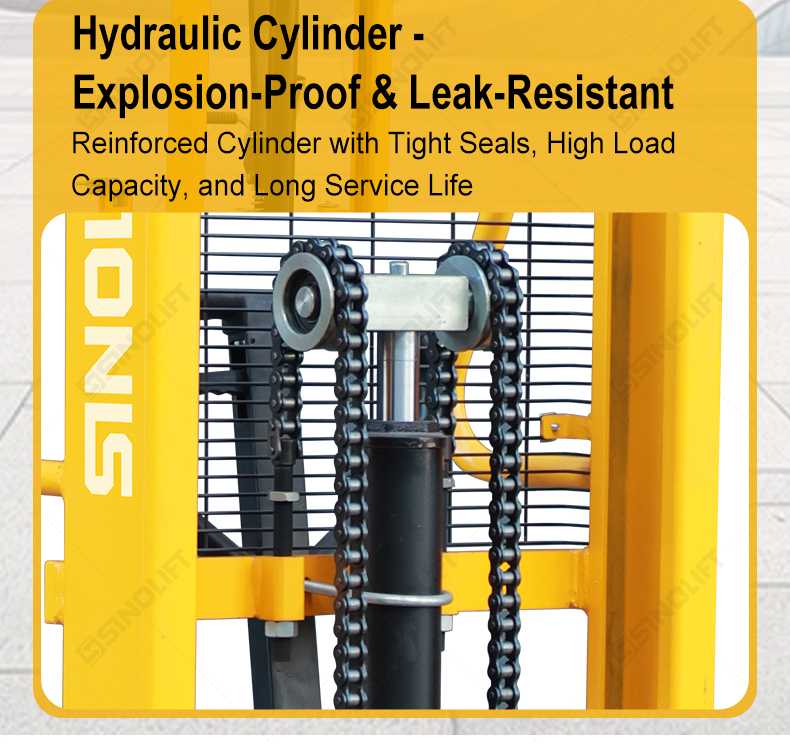

Manual Hydraulic Lifting System

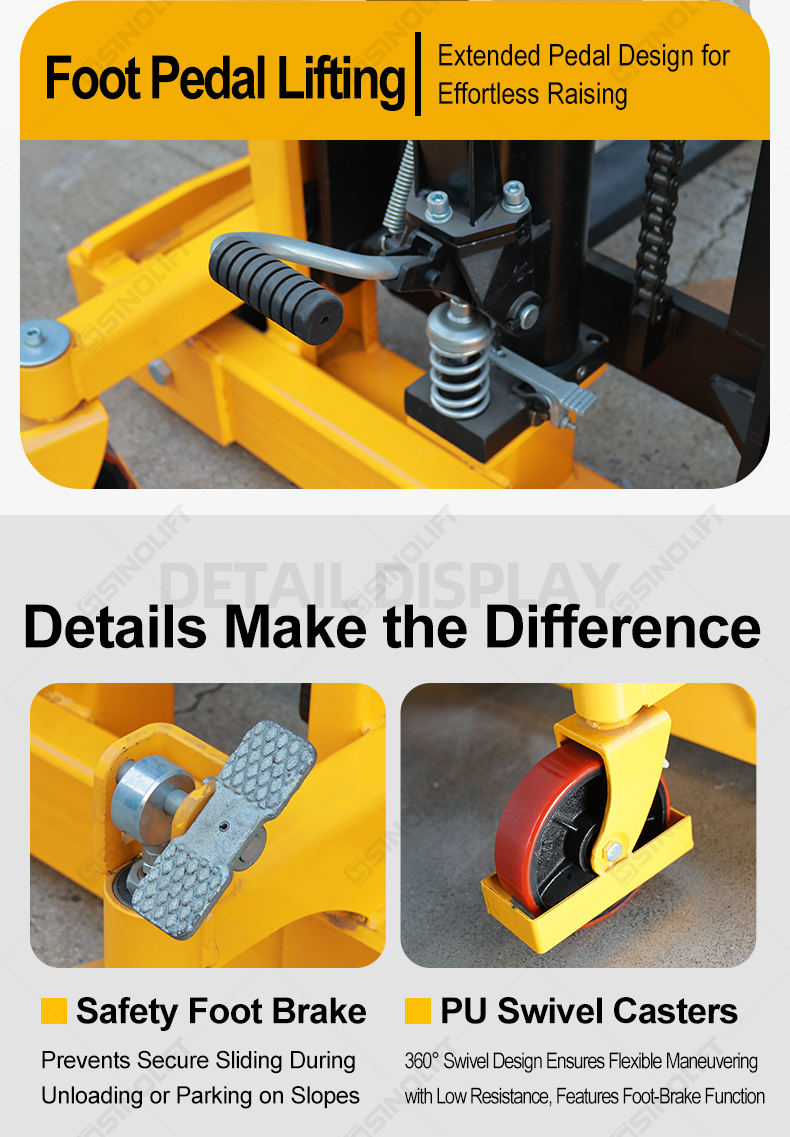

The foot-pedal hydraulic pump and hand-operated control lever allow smooth and efficient lifting and lowering with minimal operator effort.

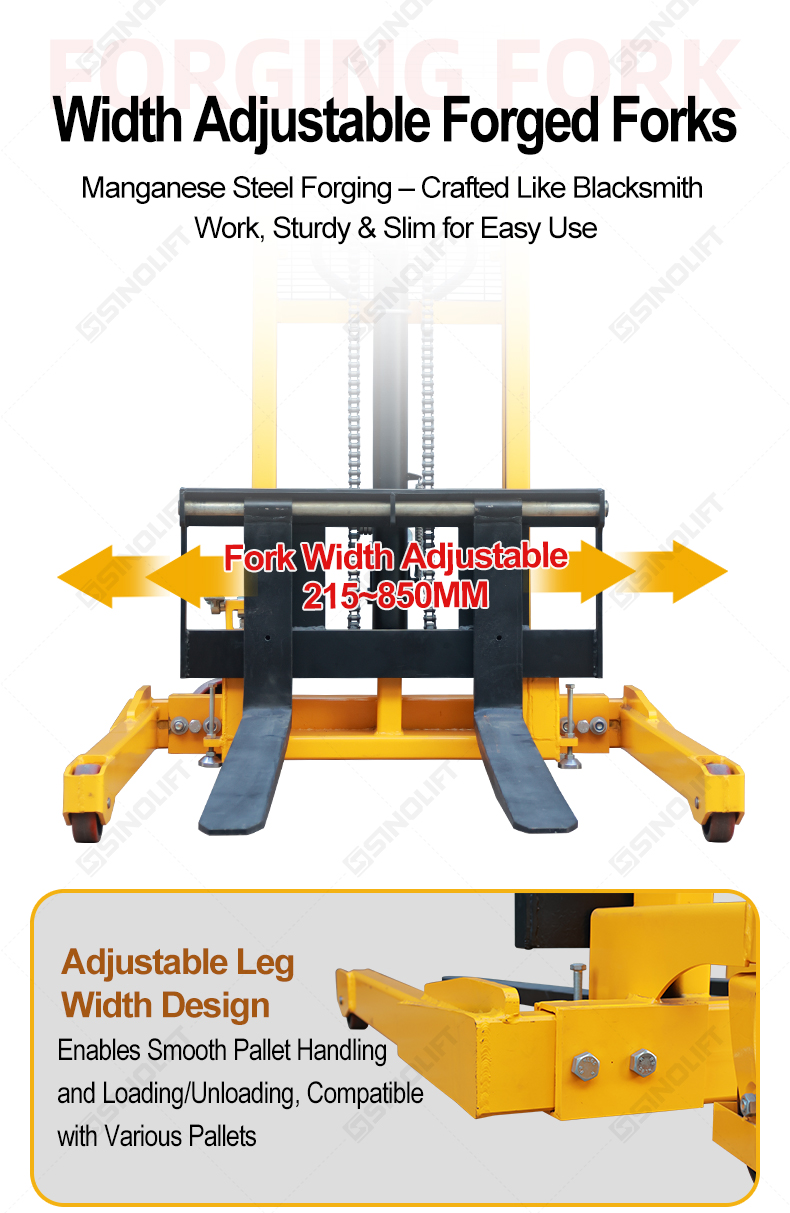

Adjustable Fork Width
The forks can be adjusted to accommodate various pallet dimensions, improving versatility and handling efficiency.
Robust Steel Construction
Manufactured from high-strength steel with a durable powder-coated finish, the stacker delivers excellent durability and long service life in demanding industrial environments.

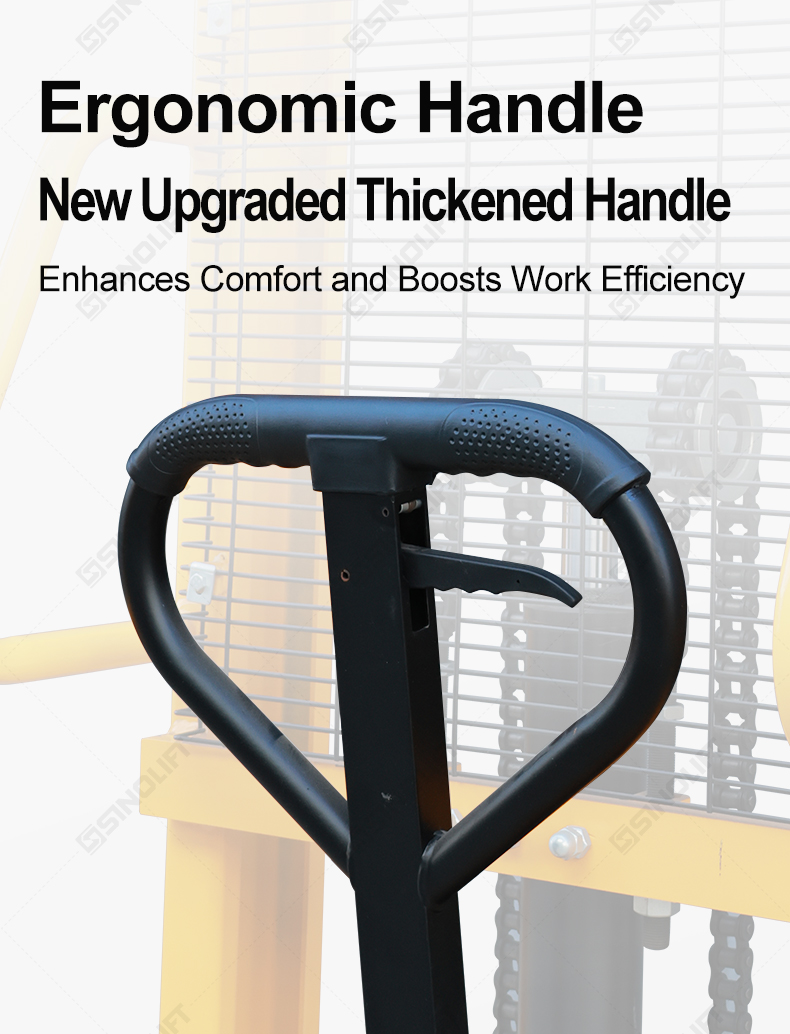

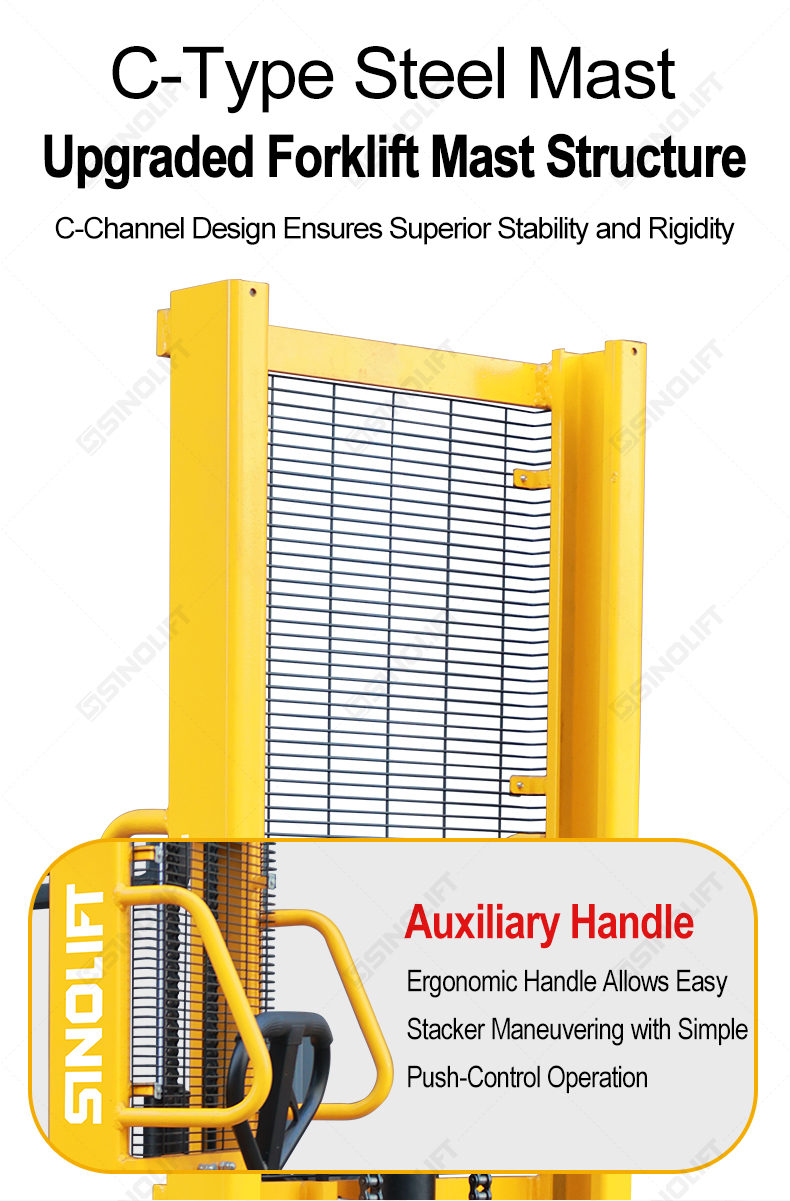

Ergonomic Operation
The user-friendly handle design and smooth steering system provide comfortable operation and precise load positioning.
Maintenance-Free Design
Without batteries, motors, or electronic components, the SFH22AG requires minimal maintenance and offers low operating costs.
Smooth Mobility
Equipped with durable nylon or polyurethane wheels, the stacker provides stable movement and easy maneuverability on warehouse and factory floors.
