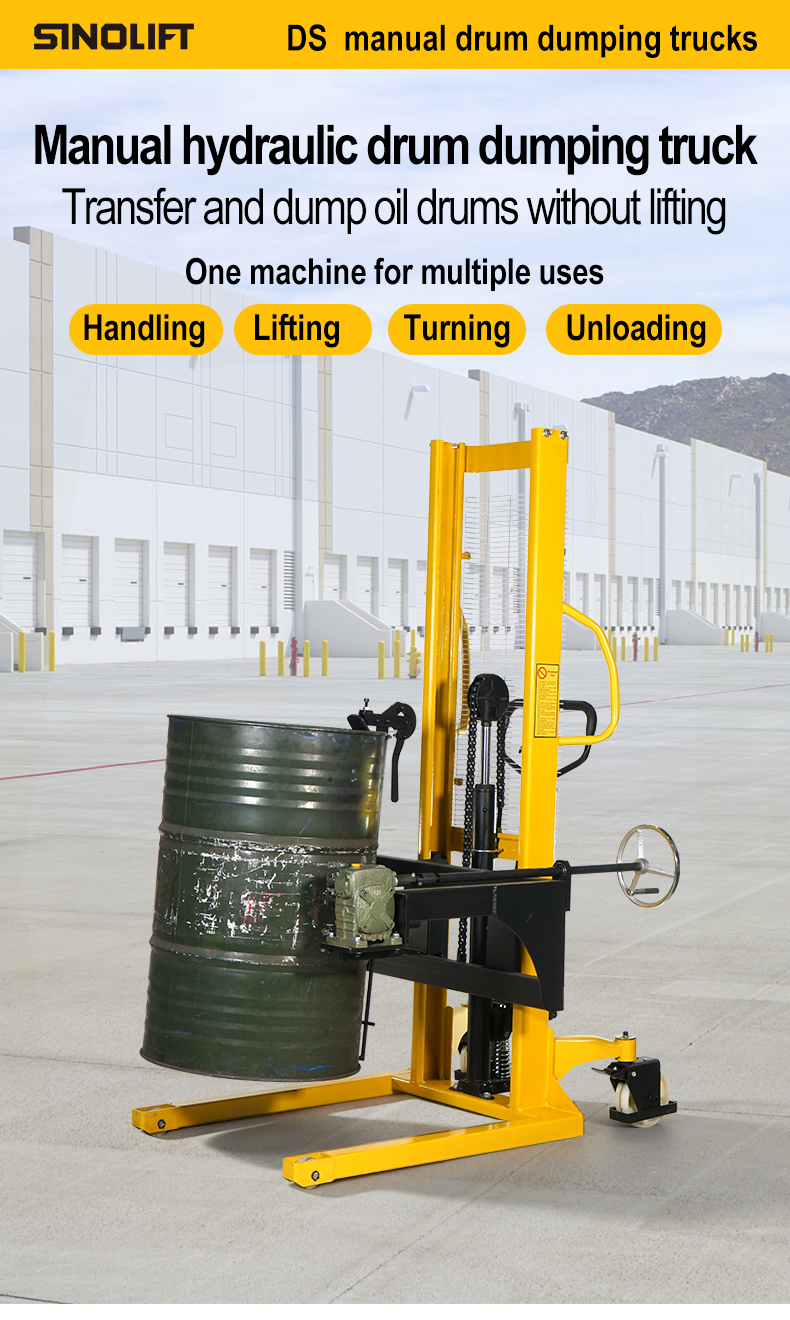

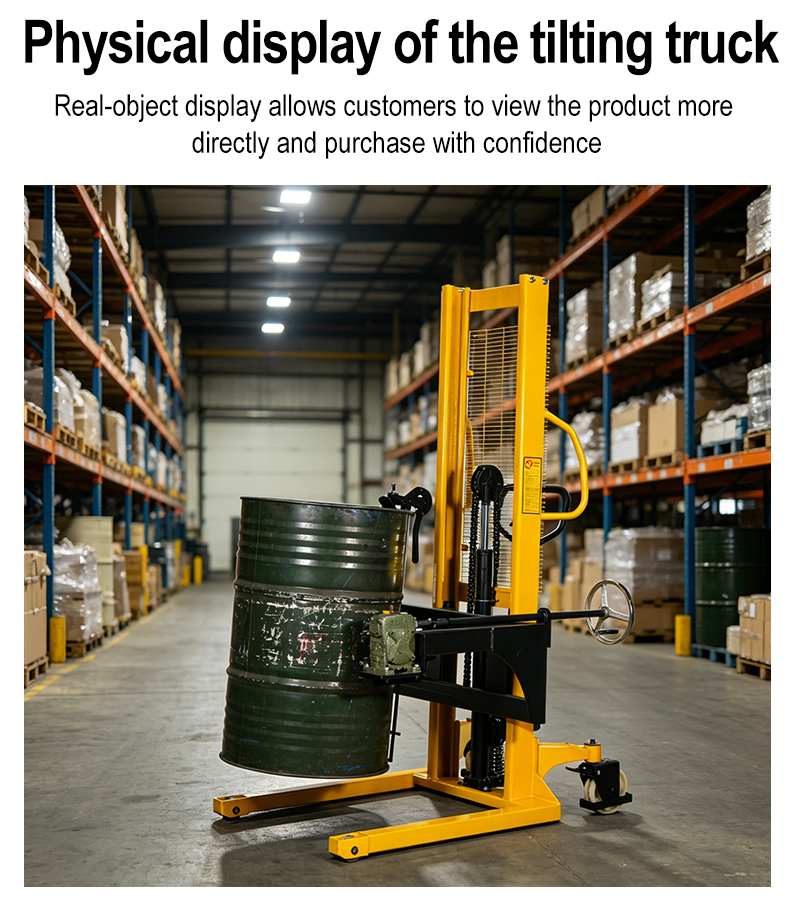

SINOLIFT DS500 Manual Hydraulic Drum Dumper for industrial drum handling
Heavy-Duty Drum Lifting, Transporting and 180° Dumping Solution
TheSINOLIFT DS500 Manual Hydraulic Drum Dumper is a heavy-duty drum handling solution designed for lifting, transporting, rotating, and unloading industrial drums safely and efficiently.
With a 500 kg rated capacity, manual hydraulic lifting system, foot-pedal operation, and hand-cranked 180° rotation mechanism, the DS500 helps operators handle heavy steel drums with reduced physical effort while improving workplace safety and productivity.
Unlike standard drum trucks that only move drums, the DS500 provides a complete drum handling process:
Lift → Move → Rotate → Dump
making it ideal for industries requiring controlled material pouring, feeding, batching, and dispensing operations.

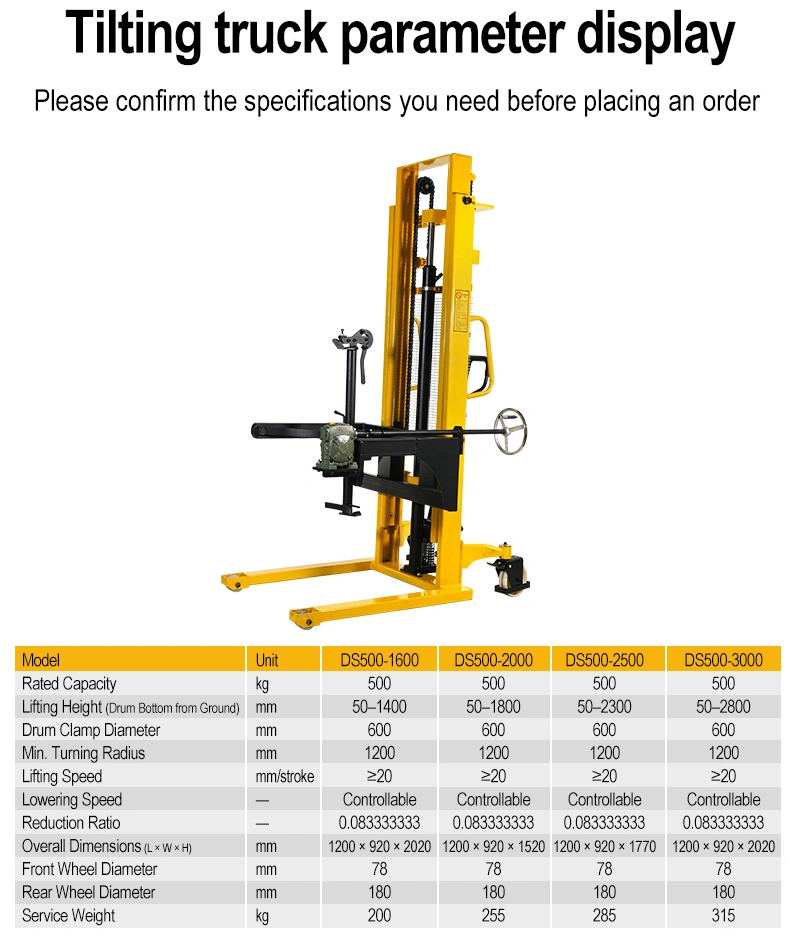

| Parameter | Unit | DS500-1600 | DS500-2000 | DS500-2500 | DS500-3000 |
| Model | DS500-1600 | DS500-2000 | DS500-2500 | DS500-3000 | |
| Rated Capacity | kg | 500 | 500 | 500 | 500 |
| Lifting Height (Drum Bottom from Ground) | mm | 50–1400 | 50–1800 | 50–2300 | 50–2800 |
| Drum Clamp Diameter | mm | 600 | 600 | 600 | 600 |
| Min. Turning Radius | mm | 1200 | 1200 | 1200 | 1200 |
| Lifting Speed | mm/stroke | ≥20 | ≥20 | ≥20 | ≥20 |
| Lowering Speed | — | Controllable | Controllable | Controllable | Controllable |
| Reduction Ratio | — | 0.083333333 | 0.083333333 | 0.083333333 | 0.083333333 |
| Overall Dimensions (L × W × H) | mm | 1200 × 920 × 2020 | 1200 × 920 × 1520 | 1200 × 920 × 1770 | 1200 × 920 × 2020 |
| Front Wheel Diameter | mm | 78 | 78 | 78 | 78 |
| Rear Wheel Diameter | mm | 180 | 180 | 180 | 180 |
| Service Weight | kg | 200 | 255 | 285 | 315 |
Key Features
1. 500 kg Heavy-Duty Load Capacity
The DS500 is designed for demanding industrial drum handling applications with a maximum load capacity of 500 kg.
It is suitable for:
- Heavy steel oil drums
- Industrial chemical drums
- Production material containers
- Fluid material handling applications
The robust structure ensures reliable performance during lifting, transportation, and dumping operations.

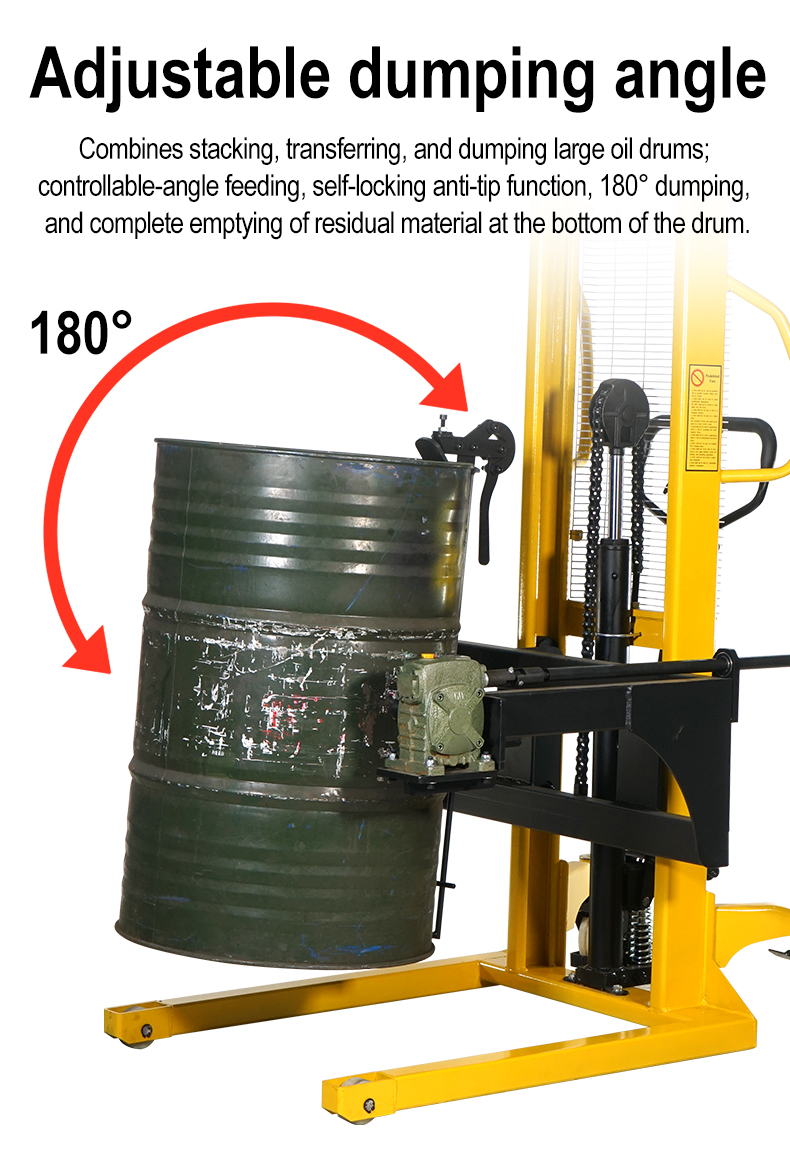

2. 180° Controlled Drum Rotation

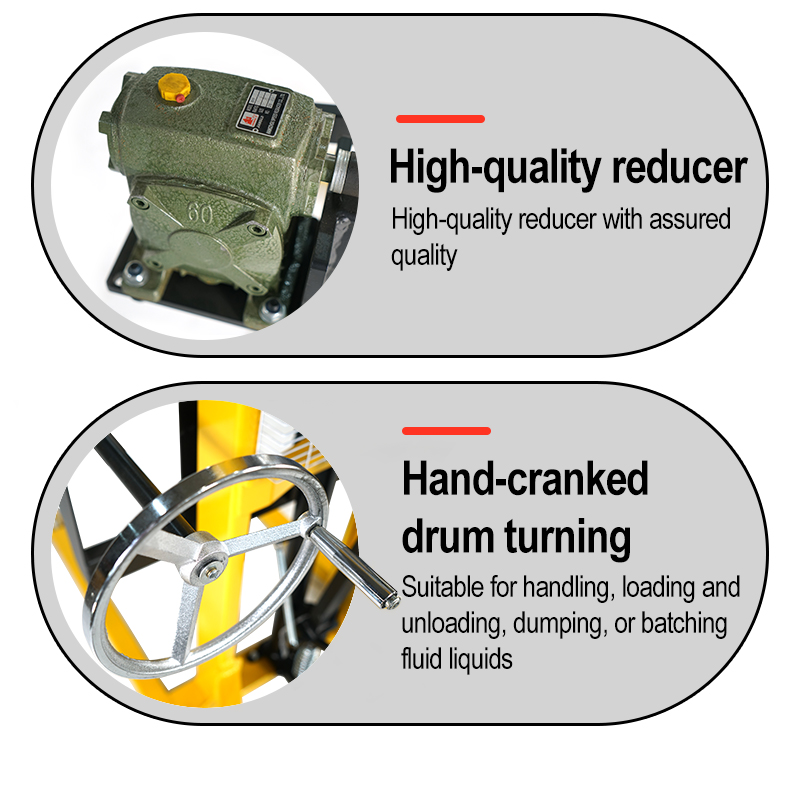

Unlike conventional drum lifters, the DS500 provides 180-degree controlled drum rotation through a manual hand-cranked mechanism.
This function allows operators to safely:
- Pour liquids
- Transfer materials
- Feed production lines
- Empty drums into containers
- Perform controlled batching operations
The controlled rotation reduces manual drum tilting risks and improves operational efficiency.

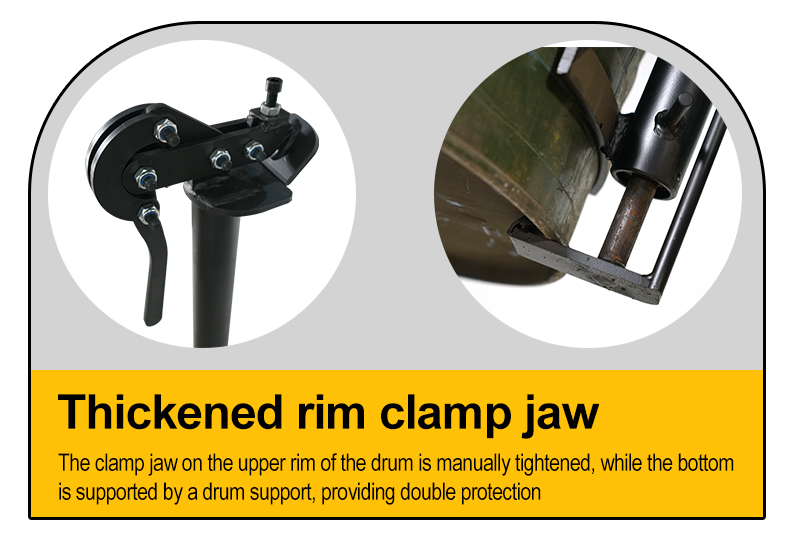

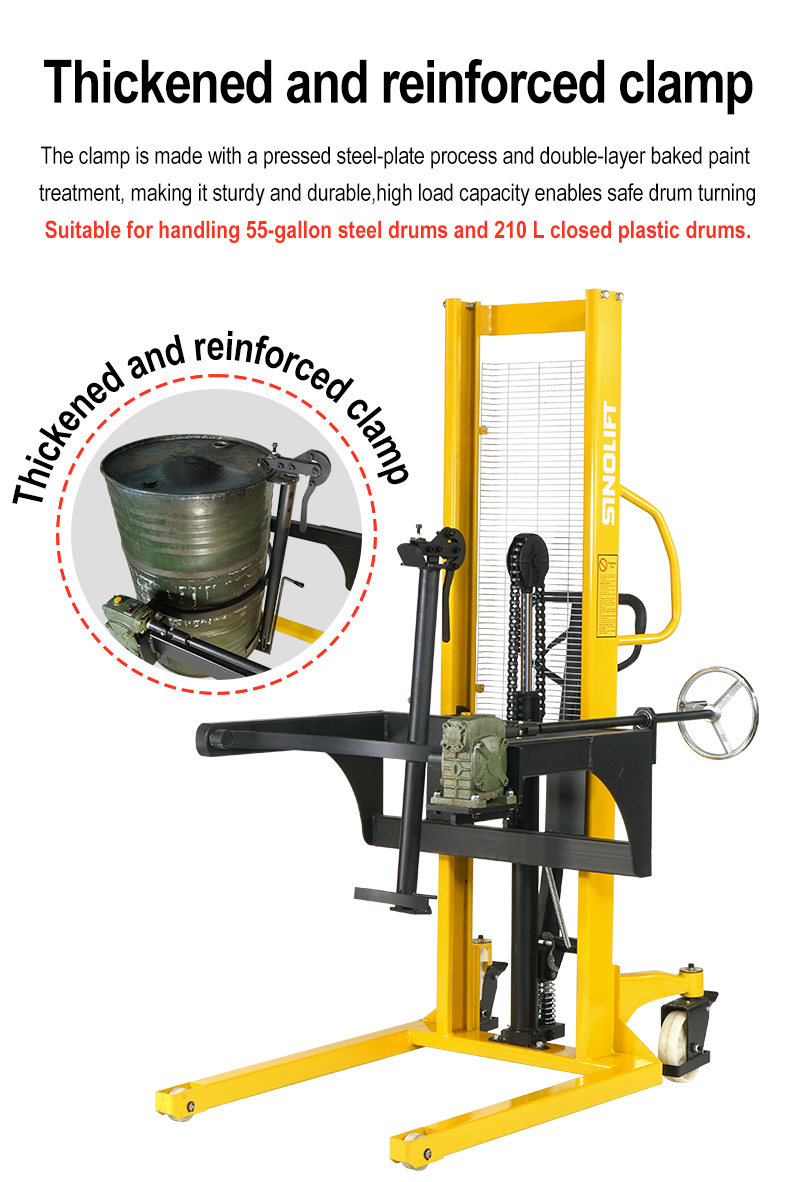

3. Double-Locking Drum Securing System
Safety during drum rotation is critical.
The DS500 uses a reinforced drum fixing structure including:
- Thickened upper-rim clamp jaw
- Bottom drum hook
This double-locking design securely holds the drum during lifting and 180° dumping operations.

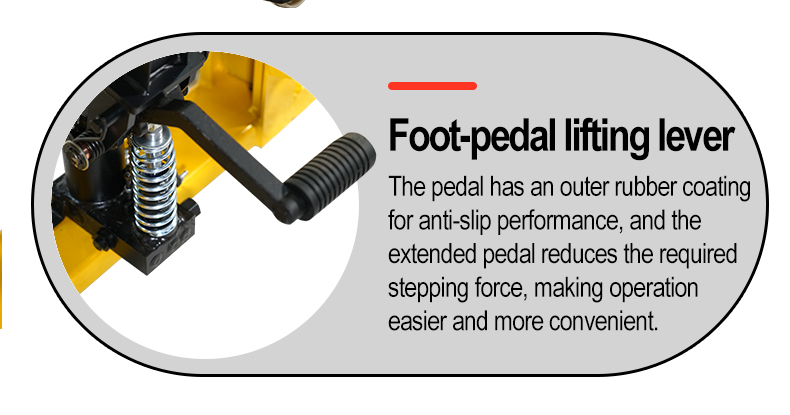

4. Foot-Pedal Hydraulic Lifting System
The manual hydraulic lifting system allows operators to raise heavy drums with less effort.
Advantages include:
- No external power required
- Simple operation
- Lower maintenance cost
- Suitable for locations without electricity
The foot-pedal design improves efficiency during repeated drum handling tasks.

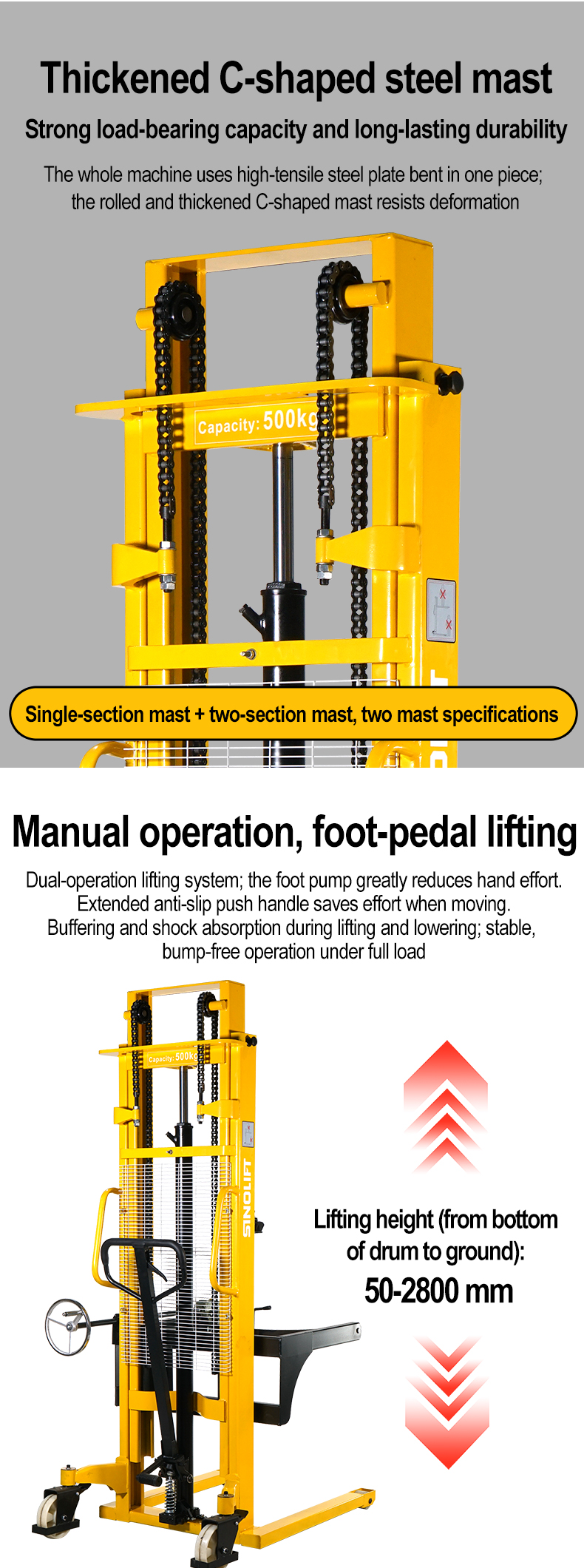

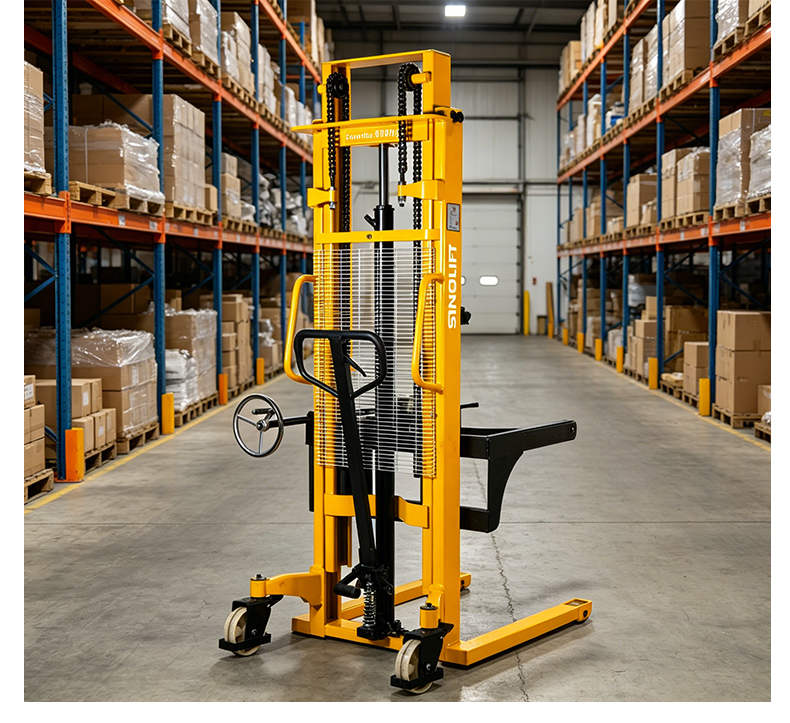

5. Reinforced C-Shaped Steel Mast
The DS500 features a thickened C-shaped steel mast designed for:
- High structural strength
- Better deformation resistance
- Improved lifting stability
This ensures smooth operation under heavy loads.

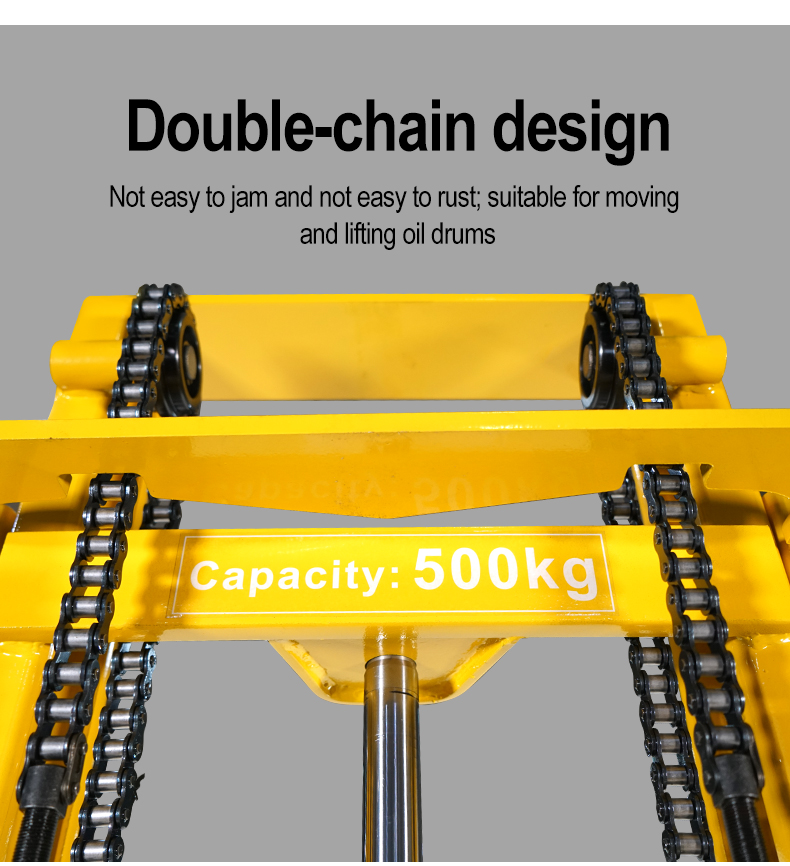

6. Durable Double-Chain Lifting Structure
The composite double-chain system provides:
- Smooth lifting movement
- High durability
- Reduced risk of jamming
- Better corrosion resistance compared with traditional chain structures
It supports reliable operation in industrial environments.

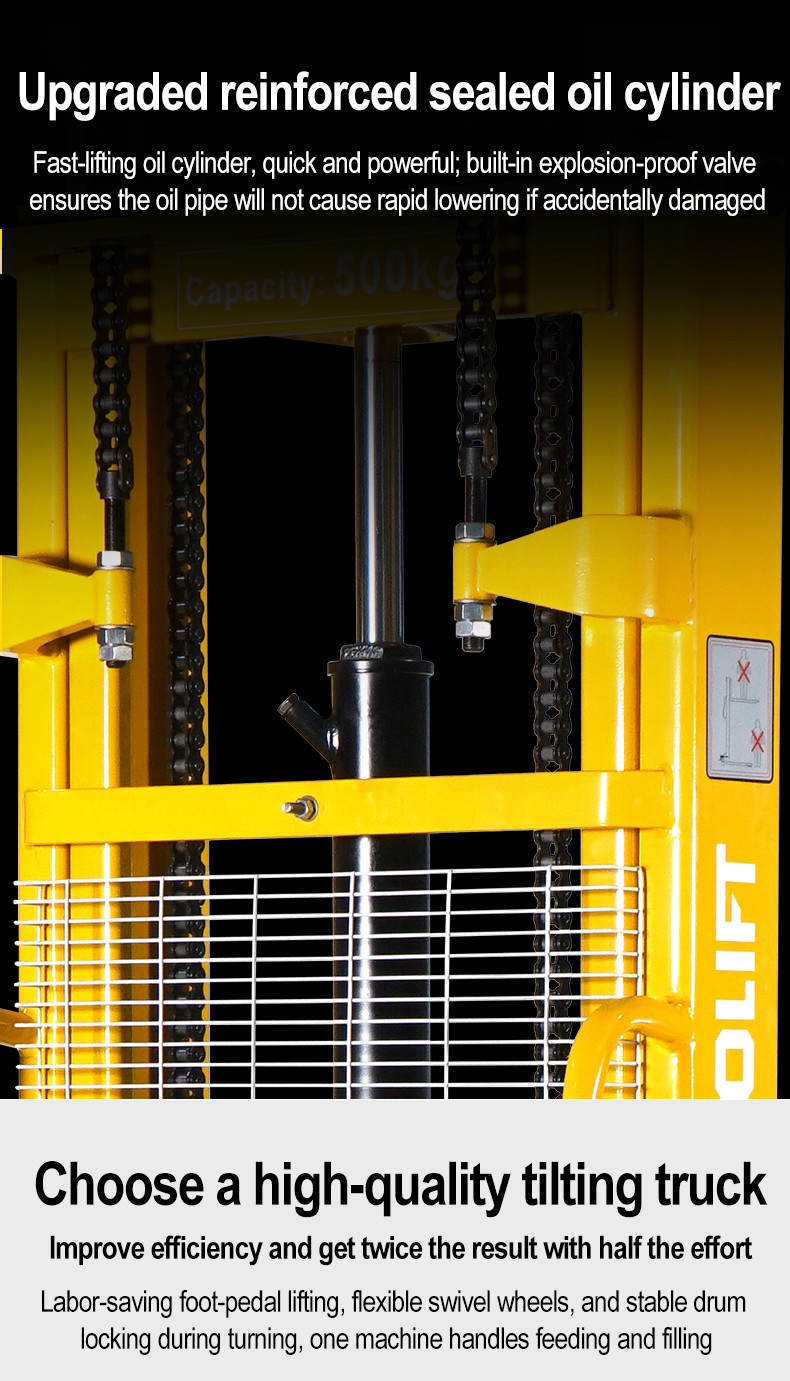

7. Safe Hydraulic System
The upgraded sealed hydraulic cylinder includes a built-in safety valve.
Benefits:
- Prevents sudden lowering
- Improves operator safety
- Provides stable lifting performance
The controlled lifting and lowering speed allows smoother drum positioning.

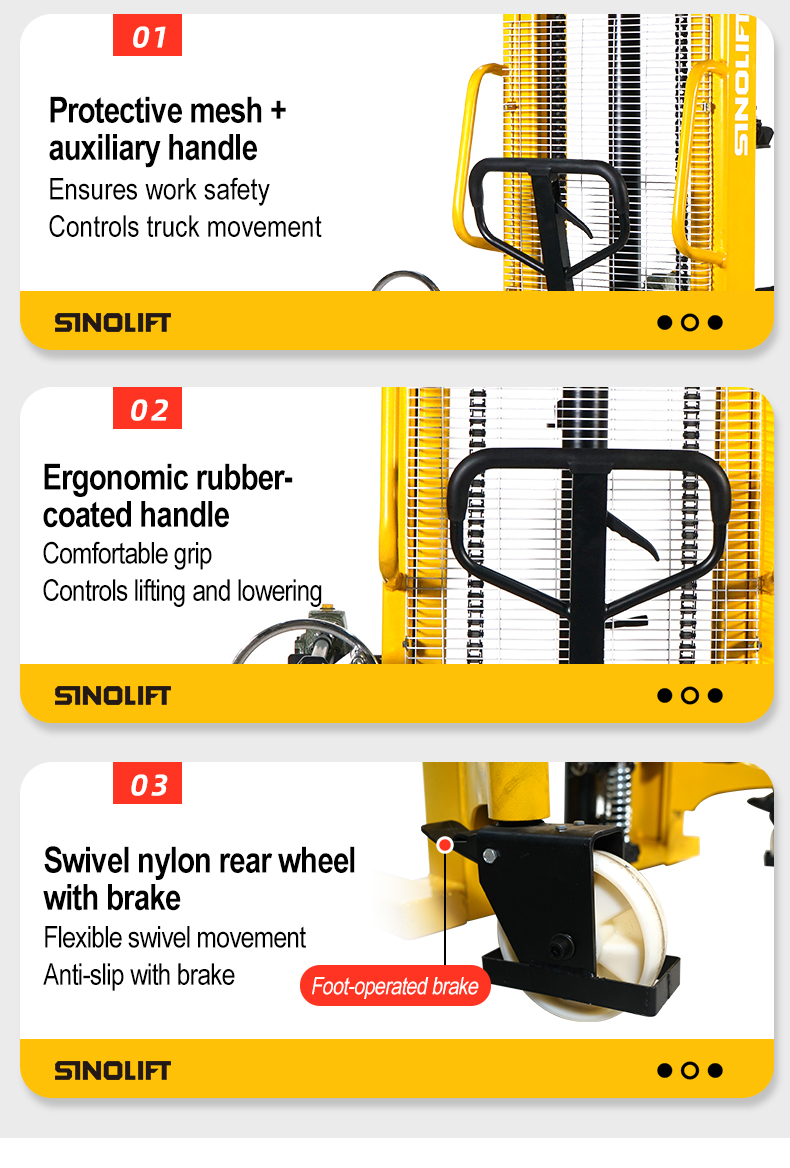

8. Ergonomic and Stable Operation Design
The DS500 is equipped with:
- Rubber-coated ergonomic handle
- Auxiliary handle
- Protective mesh
- Swivel rear wheels with brakes
- Nylon wheels
These features improve maneuverability and operator control during daily operation.
Available Models
The DS500 series includes multiple lifting height options:
| Model | Lifting Range | Capacity |
|---|---|---|
| DS500-1600 | 50–1,400 mm | 500 kg |
| DS500-2000 | 50–1,800 mm | 500 kg |
| DS500-2500 | 50–2,300 mm | 500 kg |
| DS500-3000 | 50–2,800 mm | 500 kg |
Different models allow customers to select the suitable lifting height according to production line requirements and drum positioning height.
Typical Applications
The SINOLIFT DS500 Manual Hydraulic Drum Dumper is widely used in:
Chemical Industry
For handling and transferring:
- Chemical liquids
- Industrial additives
- Coating materials
Oil & Lubricant Industry
Suitable for:
- Oil drums
- Lubricant containers
- Fluid dispensing operations
Manufacturing Workshops
Used for:
- Production feeding
- Material preparation
- Batch mixing processes
Warehouses and Logistics Areas
Ideal for:
- Drum loading and unloading
- Short-distance drum movement
- Storage area handling
Why Choose DS500 Instead of a Standard Drum Truck?
| Function | Standard Drum Truck | DS500 Drum Dumper |
|---|---|---|
| Lift drum | ✓ | ✓ |
| Transport drum | ✓ | ✓ |
| Rotate drum | Limited | ✓ 180° controlled rotation |
| Dump materials | ✕ | ✓ |
| Production feeding | Limited | ✓ |
| No electricity required | ✓ | ✓ |
The DS500 is designed for customers who need more than simple drum movement — it provides a complete solution for lifting, positioning, and controlled material discharge.
Frequently Asked Questions (FAQs)
1. What is the maximum load capacity of the DS500?
The SINOLIFT DS500 has a rated capacity of 500 kg, suitable for heavy-duty steel drum handling applications.
2. Does the DS500 require electricity?
No. The DS500 uses a manual hydraulic lifting system and hand-cranked rotation mechanism, making it suitable for workplaces without power supply.
3. How far can the drum rotate?
The DS500 supports 180-degree controlled drum rotation, allowing operators to safely pour and unload materials.
4. What drum types can the DS500 handle?

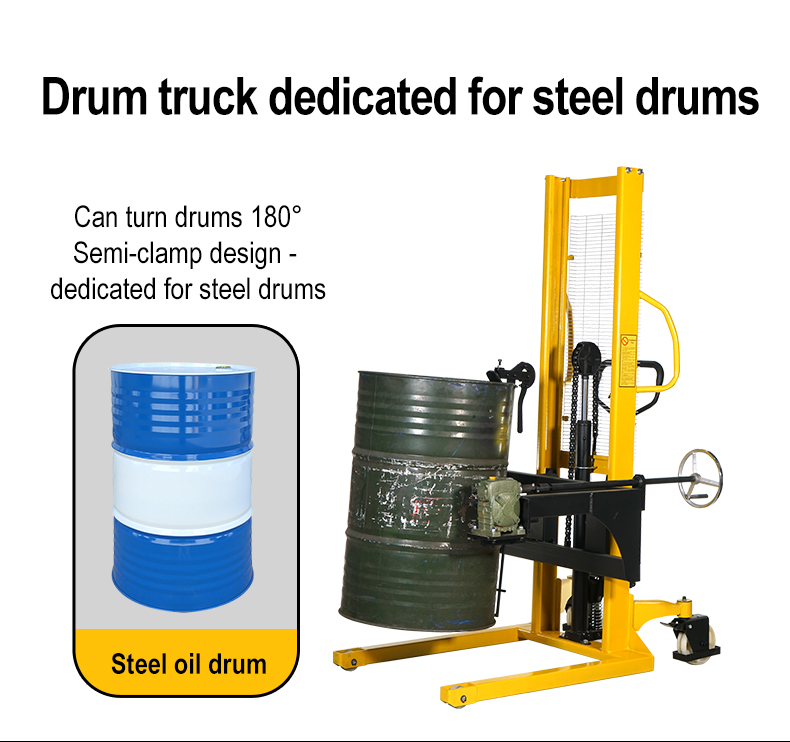

The DS500 uses a semi-clamp structure mainly designed for steel drums. Customers should confirm drum diameter, rim structure, and compatibility before ordering. The listed clamp diameter is 600 mm.
