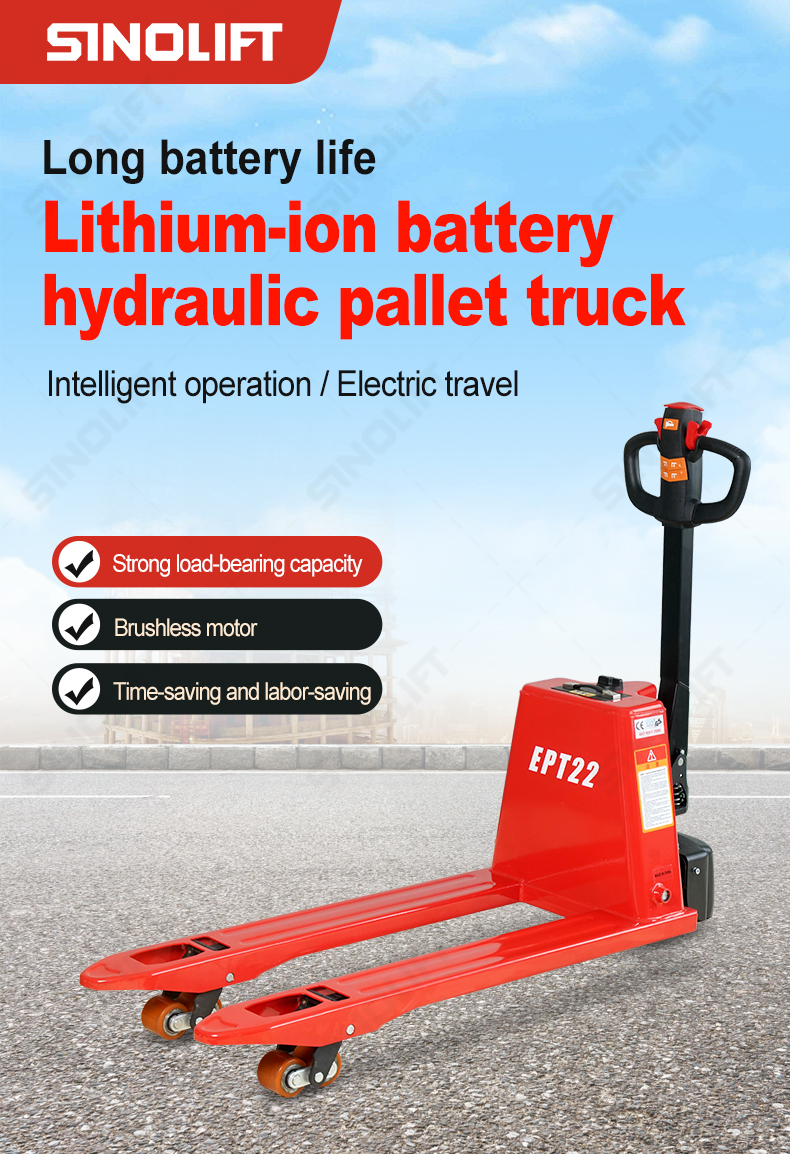

Sinolift long battery life capacity EPT22 lithium-ion battery hrdraulic pallet jack

EPT22

The EPT22 is perfectly suited for light electric pallet truck applications, able to transport and lift loads up to 2200 kg. With its lithium-ion technology, it improves energy efficiency and merges the advantages of a powered pallet truck with the flexibility of a manual pallet truck. The EPT22 is an excellent choice for hand pallet truck users looking to enhance their productivity.

Quantity:

Contact Now

add to cart

Dentiﬁcation	1.1	Manufacturer	SINOLIFT
	1.2	Model			EPT22 plus
	1.4	Power Type			Lithium Battery
	1.5	Type of Operation			Pedestrian
	1.6	Load capacity/Rated load	q	kg	2200
	1.7	Load Center Distance	c	mm	600
	1.8	Alex Centre to Fork Face	x	mm	820 (890)
	1.9	Wheelbase	y	mm	1193
Weight	2.1	Total Weight (with battery)		kg	146 (152)
	2.2	Axle Load(laden):Drive Side/Load-bearing Side		kg	//
	2.3	Axle Load(unladen):Drive Side/Load-bearing Side		kg	//

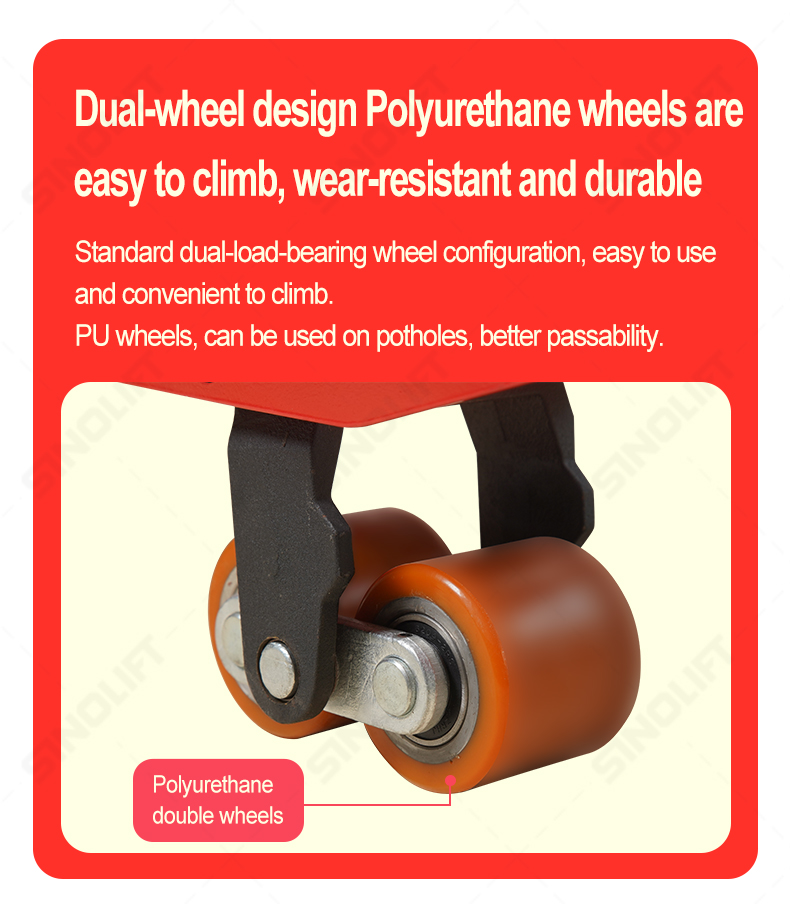

Tyre and Chassis	3.1	Tyre Type			Polyurethane
	3.21	Tyre Size (Load Wheel) Tandem		mm	φ80x70(85mm) or φ74x70(75mm)
	3.22	Tyre Size (Load Wheel) Single			φ80x93(85mm) or φ74x93(75mm)
	3.3	Tyre Size (Drive Wheel)		mm	φ190x70
	3.5	Wheels Quantity, Front/Rear (x=Driving Wheels)			4/1x+2
	3.6	Track Width,Front,Driving Side	b10	mm	460
	3.8	Track Width,Rear,Loading Side	b11	mm	400(520)

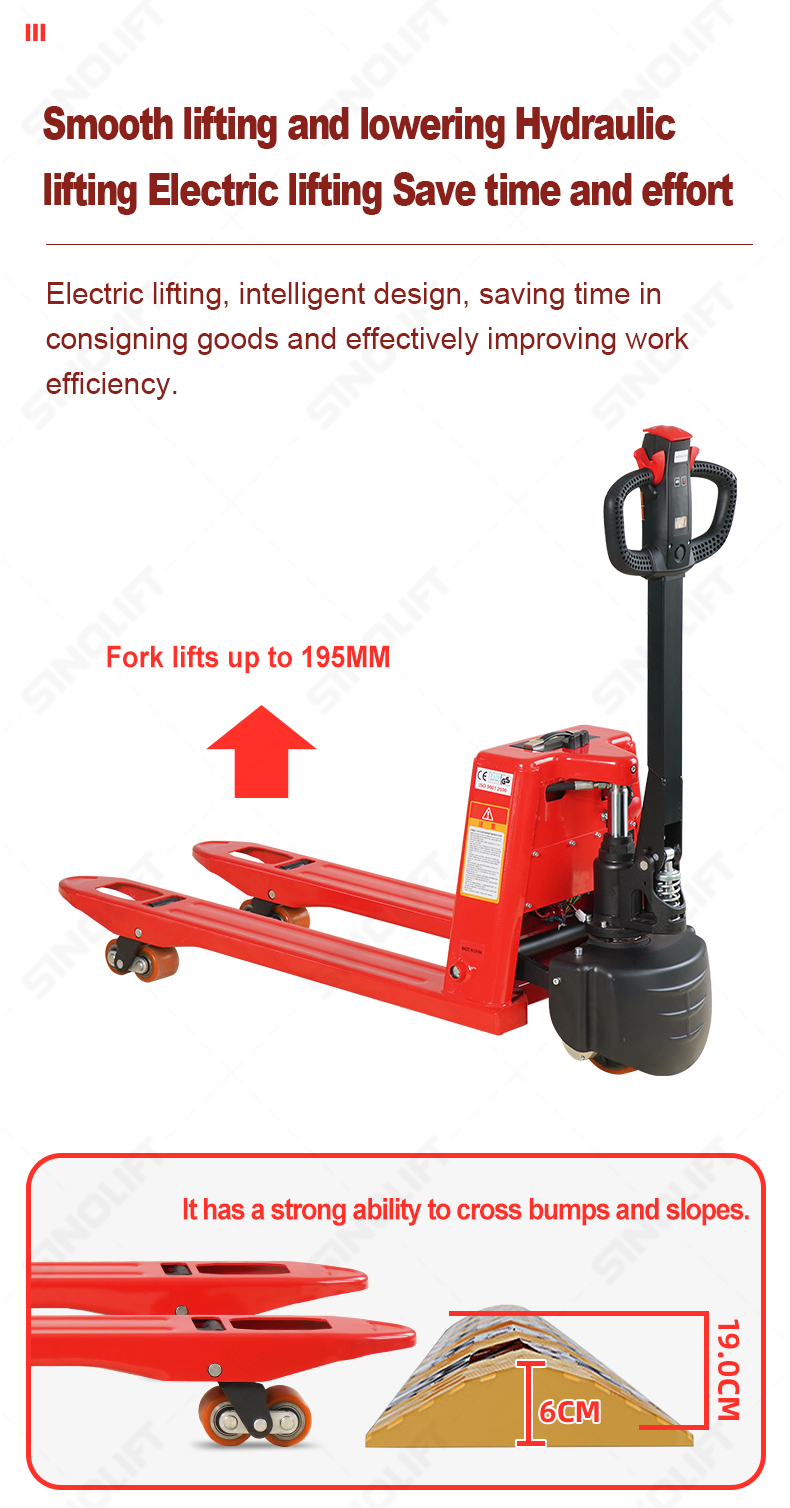

Dimension	4.4	Lifting Height	h3	mm	180(200)
	4.9	Height of Tiller Arm in Driving Position, Min.- Max.	h14	mm	561-1215
	4.15	Lowered Height	h13	mm	75(85)
	4.19	Overall Length	l1	mm	1566(1616)
	4.20	Length to Fork Face	l2	mm	390

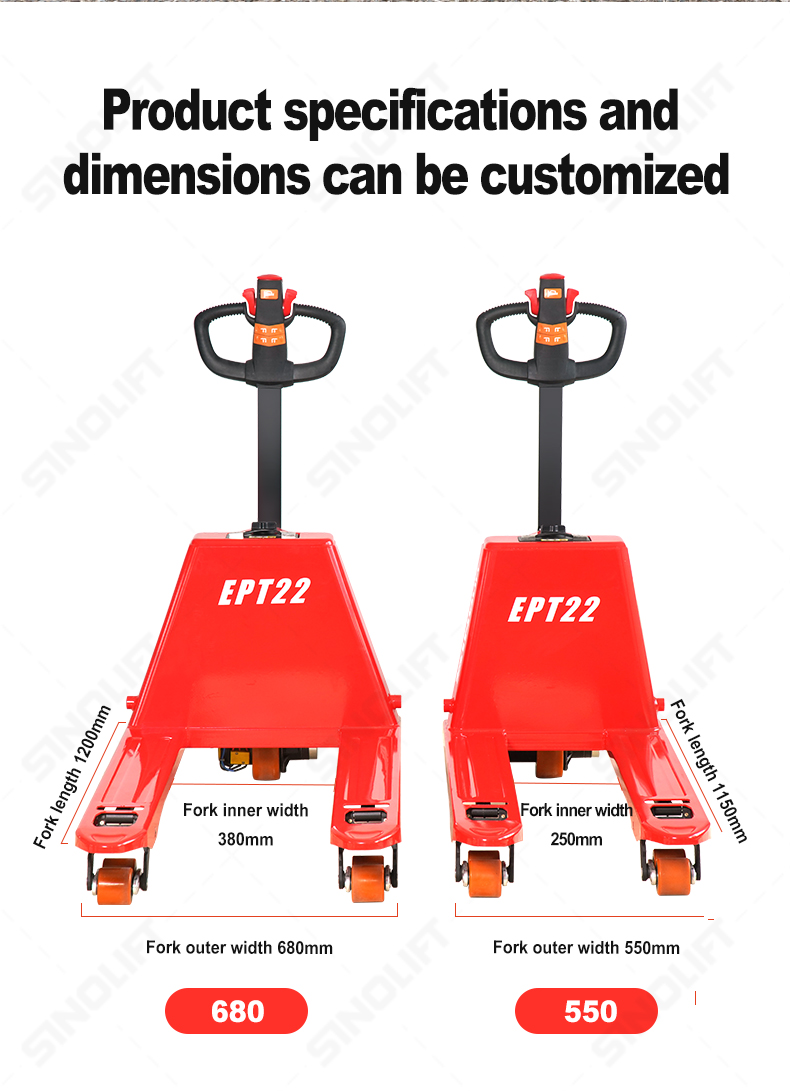

	4.21	Overall Width	b1	mm	550(680)

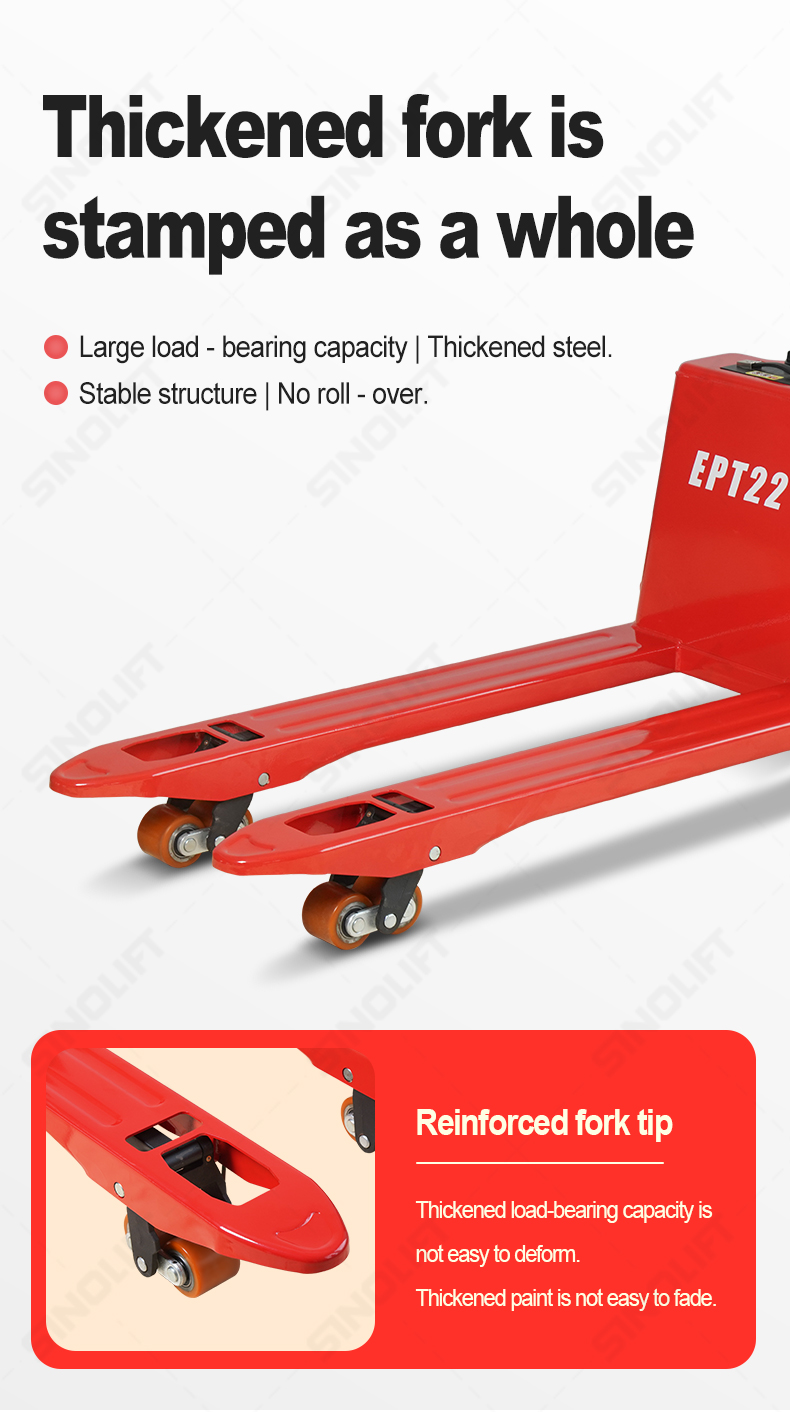

	4.22	Fork Dimension	s/e/l	mm	50x160x1150(1200)
	4.25	Fork Spread Width	b5	mm	550/680
	4.32	Ground Clearance at Center of Wheelbase (Min)	m2	mm	30
	4.33	Aisle Width for Pallets 1000x1200 Crossways	Ast	mm	1790
	4.34	Aisle Width for Pallets 800x1200 Crossways	Ast	mm	1740
	4.35	Turning Radius	Wa	mm	1361/1511
Performance	5.1	Traveling Speed (Laden/Unladen)		km/h	4.5/4.5
	5.2	Lifting Speed (Laden/Unladen)		mm/s	22/17
	5.3	Lowering Speed (Laden/Unladen)		mm/s	26/30

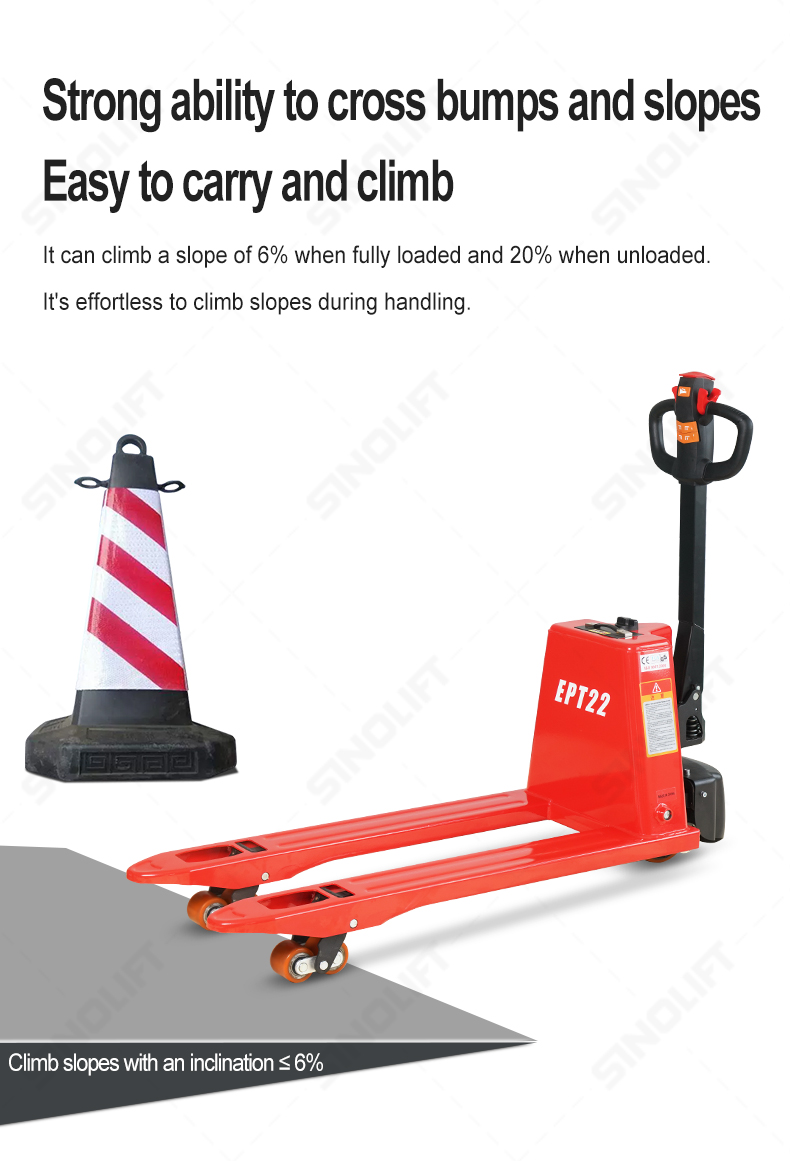

	5.8	Max.Gradient Performance (Laden/Unladen)		%	6/20
	5.10	Service Brake Type			Electromagnetic

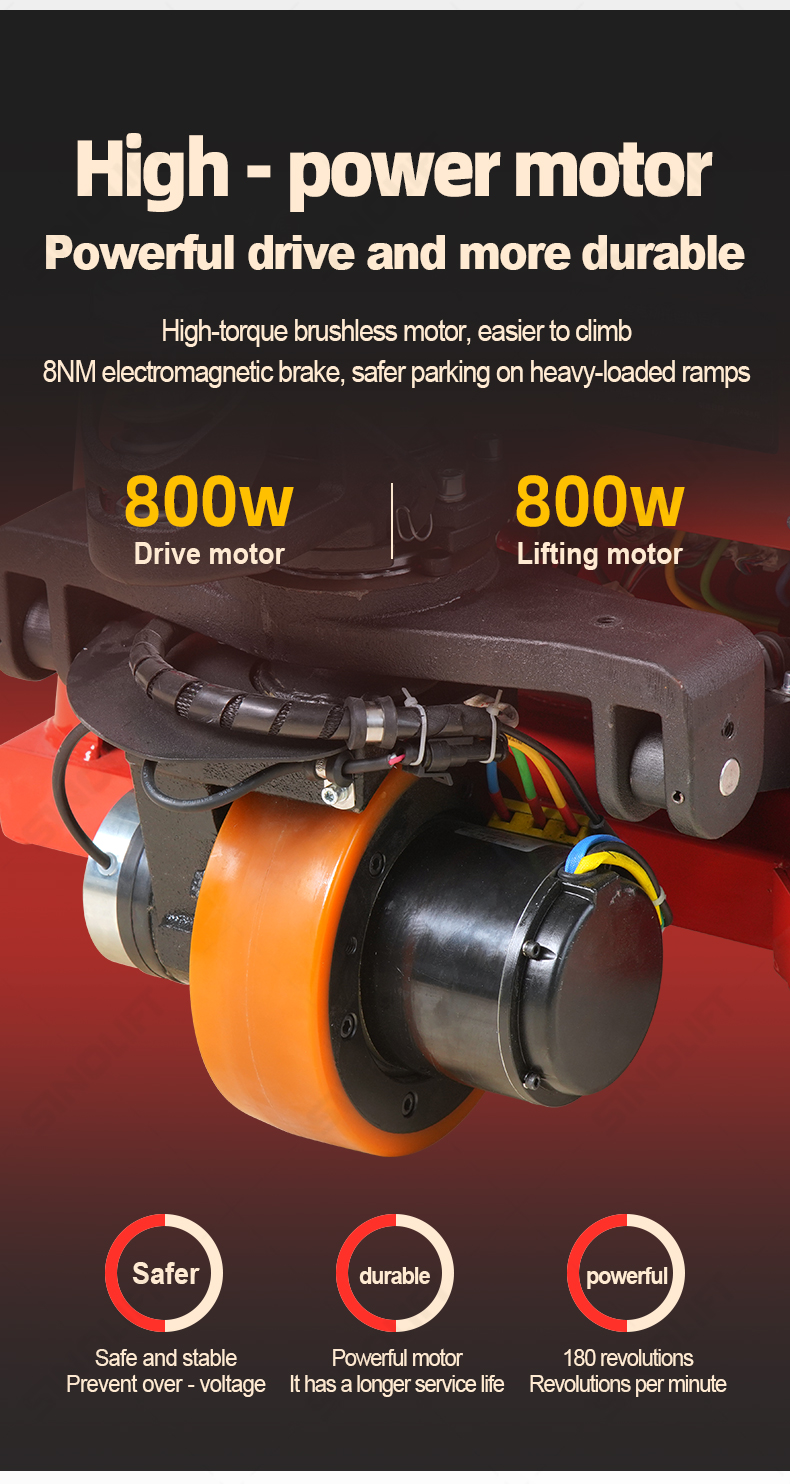

Power Unit	6.1	Driving Motor Rating (DC) S2 60min		kw	0.8
	6.2	Lifting Motor Rating S3 15%		kw	0.6

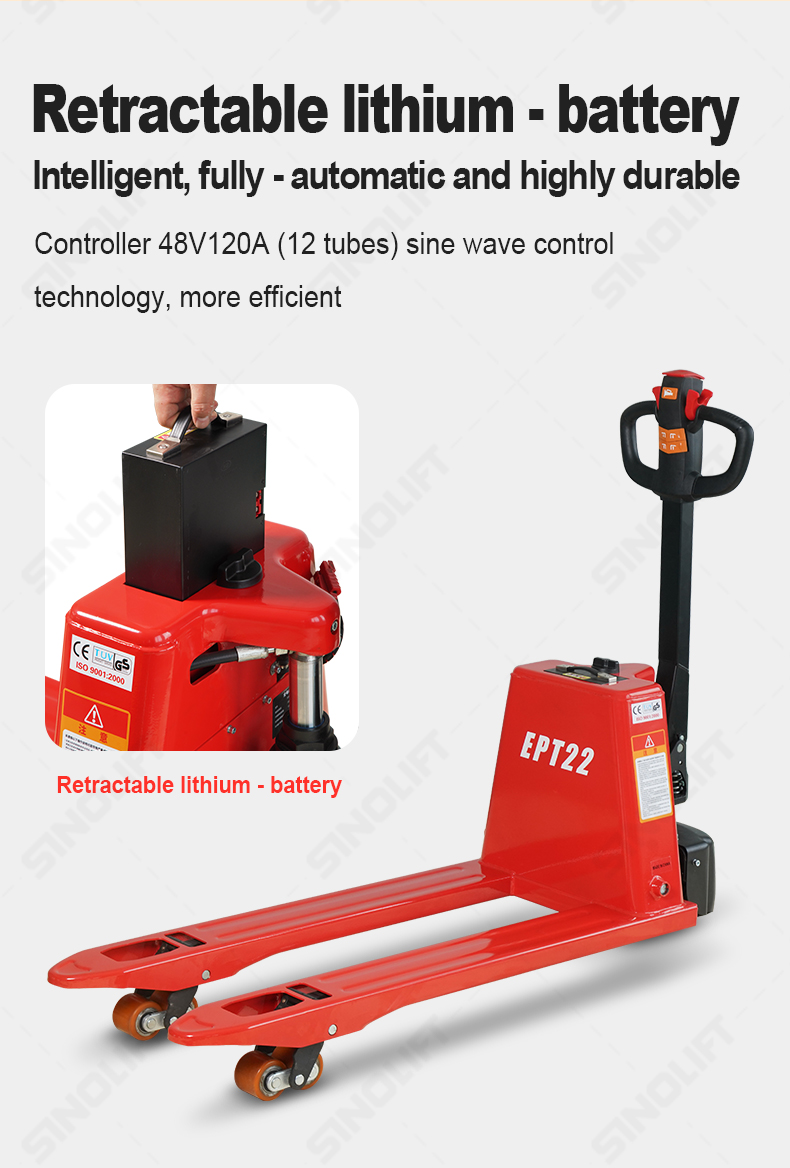

	6.3	Battery Type			Li-ion
	6.4	Battery Voltage/Capacity K5		V/Ah	48/15
	6.5	Battery Weight		kg	4.22/5.68

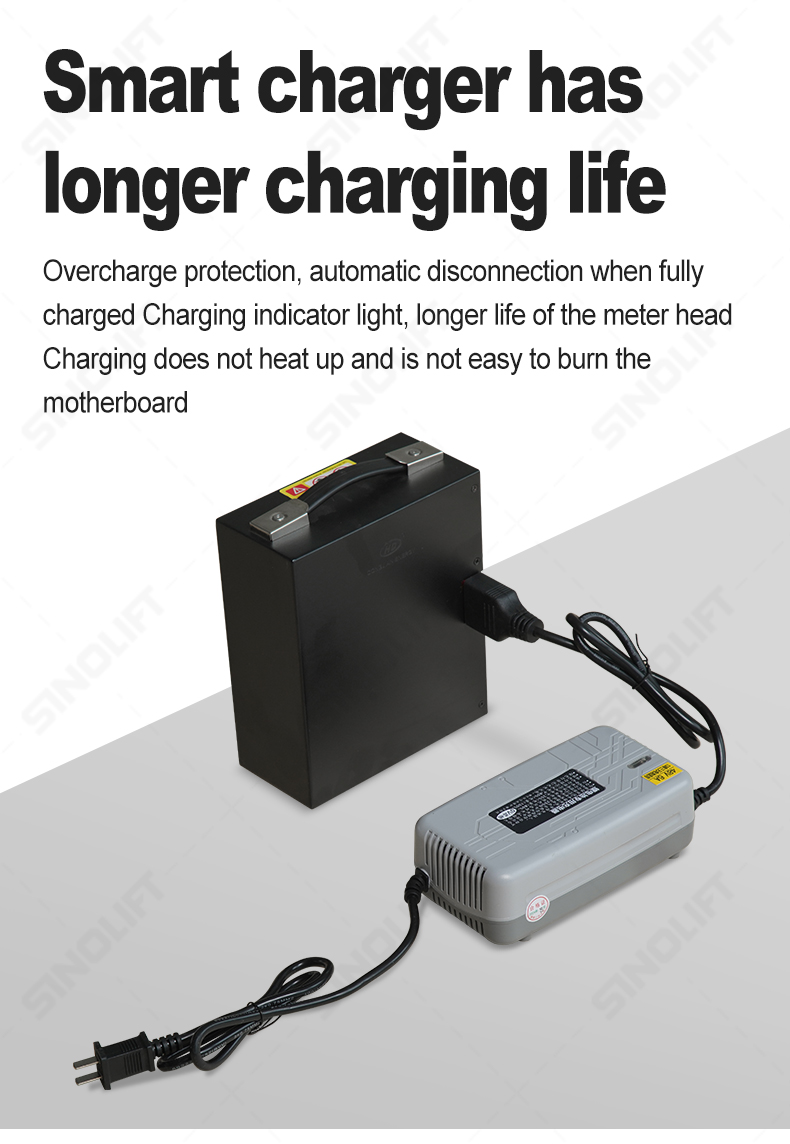

	6.7	Charger		V/A	48/6
Others	8.1	Controller Model			DC
	10.5	Steering Type			Mechanical
	10.7	Sound Level at Driver's Ear According to EN 12 053		dB(A)	70
