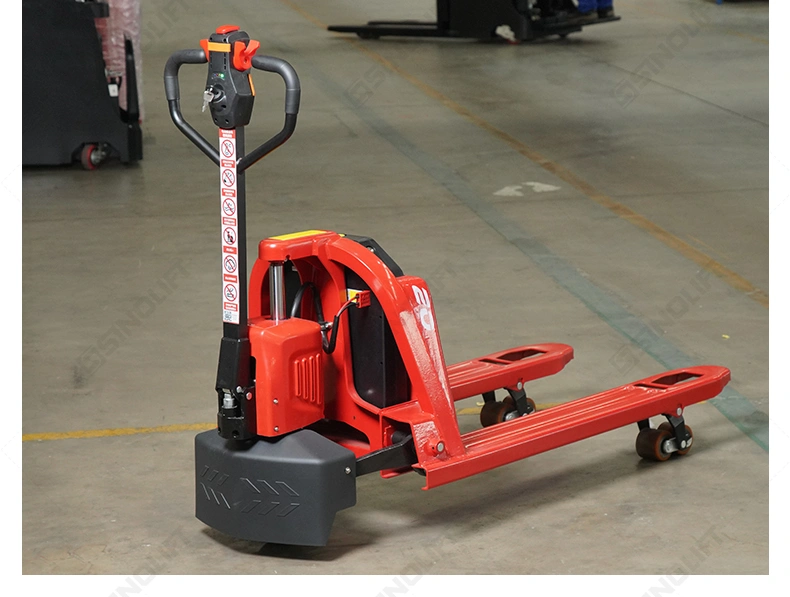

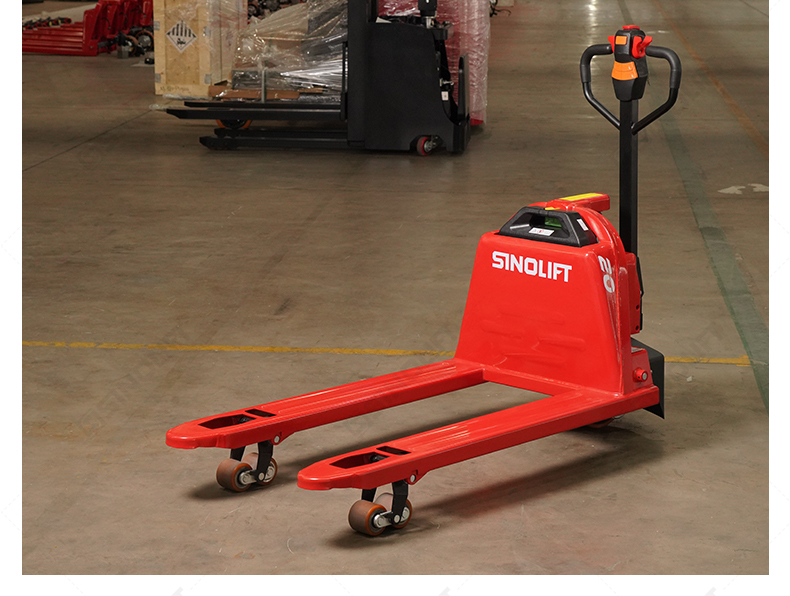

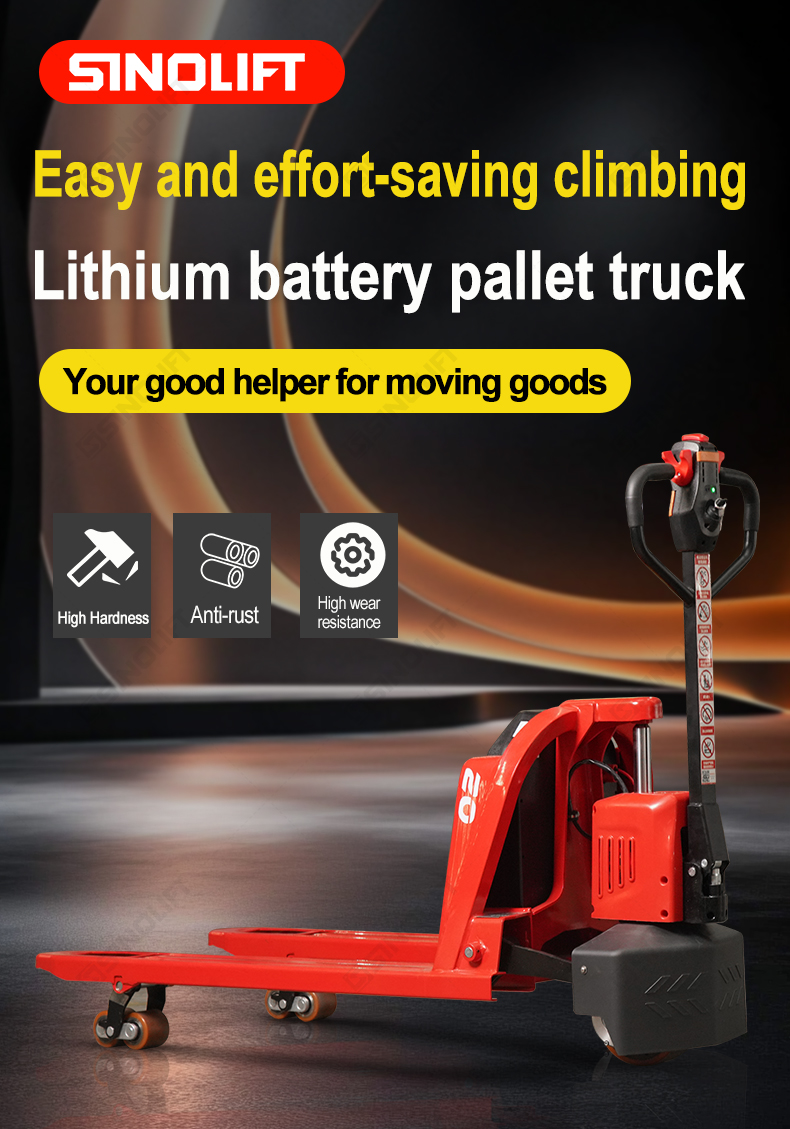

Sinolift CBD1.5Li-2 CBD2.0Li-2 all new 2nd generation lithium powered electric pallet truck.

CBD1.5Li-2 CBD2.0Li-2

Quantity:

Contact Now

add to cart

CBD1.5Li-2 CBD2.0Li-2 the 2nd generation lithium powered electric pallet truck, is designed to enhance efficiency in material handling tasks，Your good helper for moving goods.Its very simple to operate, safe and convenient to use, which will improve work efficiency very easily. With a load capacity of either 1,500 kgs or 2,000 kgs, this pallet truck is suitable for both Euro and standard GKN/Chep pallets.

Key Product Features:

Load Capacity Options

Available in 1,500 kg (Model LTEY15L) and 2,000 kg (Model LTEY20L) capacities to suit various operational needs.

Compact Design

Overall width matches the fork width, enhancing maneuverability in narrow spaces.

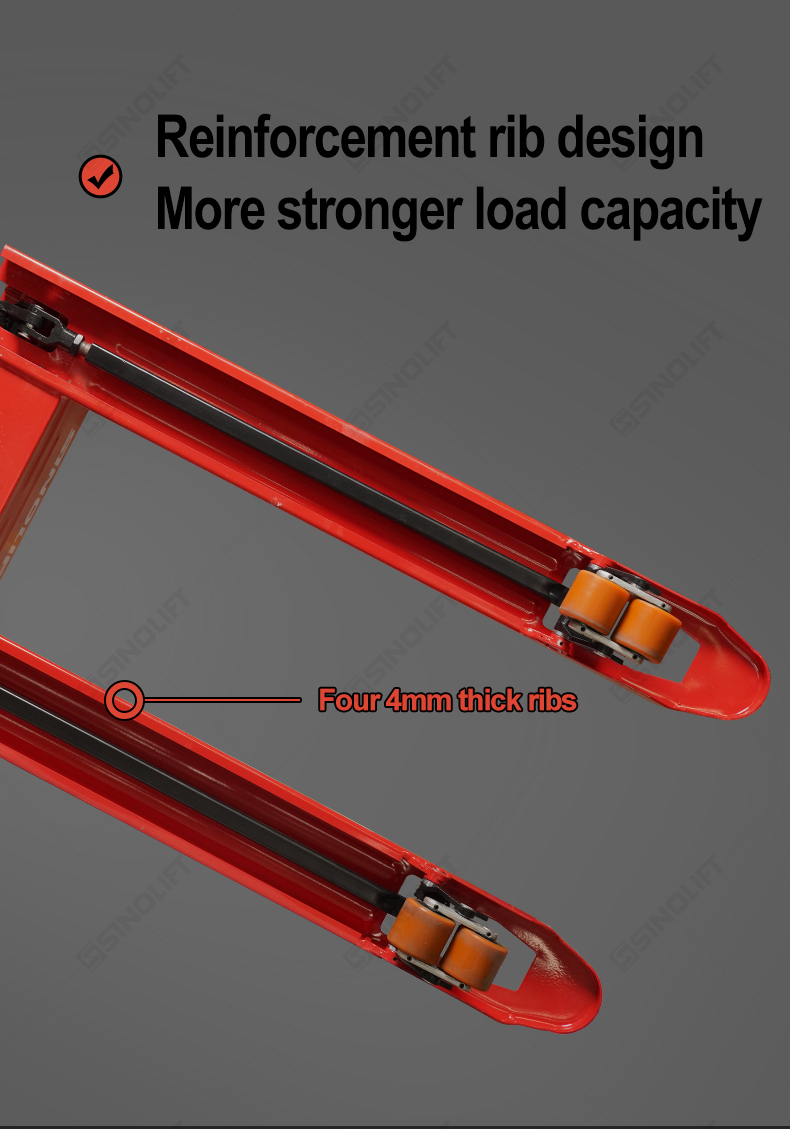

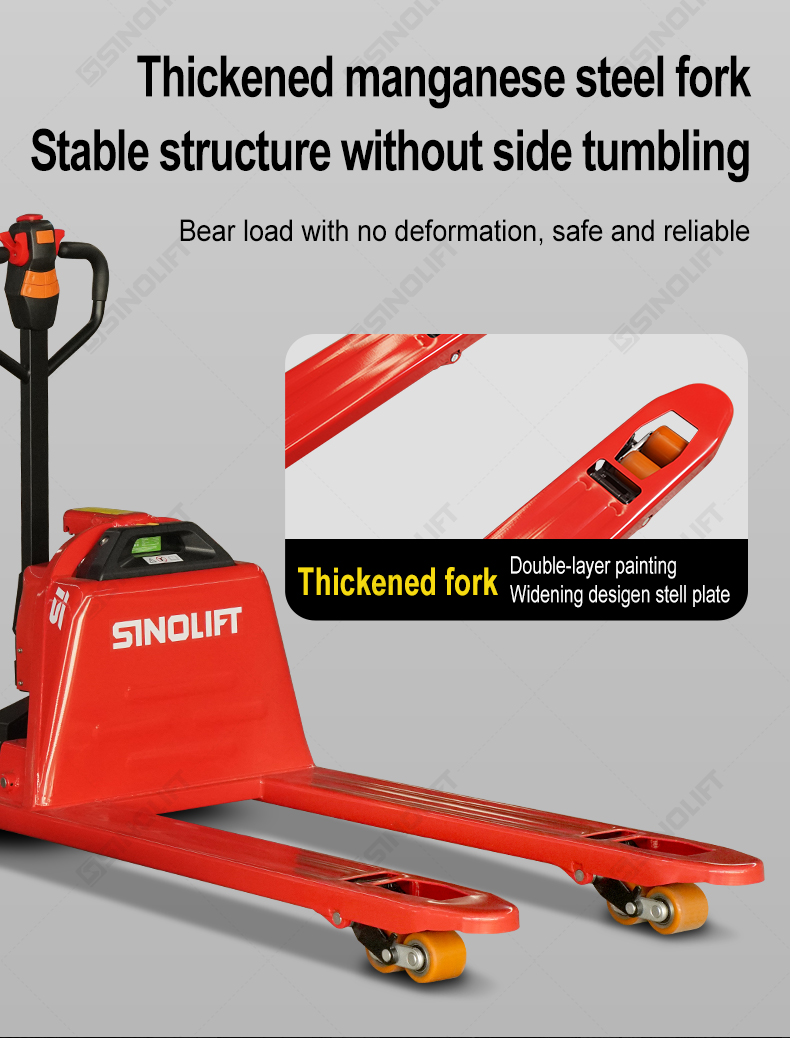

Robust Construction

Durable frame designed to withstand torsion and heavy loads, ensuring longevity.

Safety Features

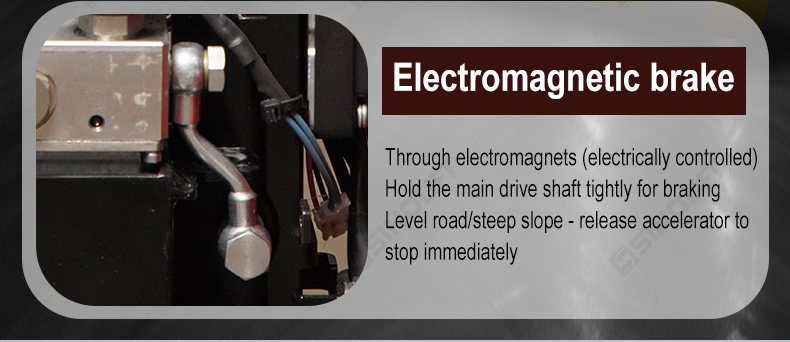

Equipped with an emergency push button, belly button, electrobrake, and a protective cover for the driving wheel to ensure operator safety.

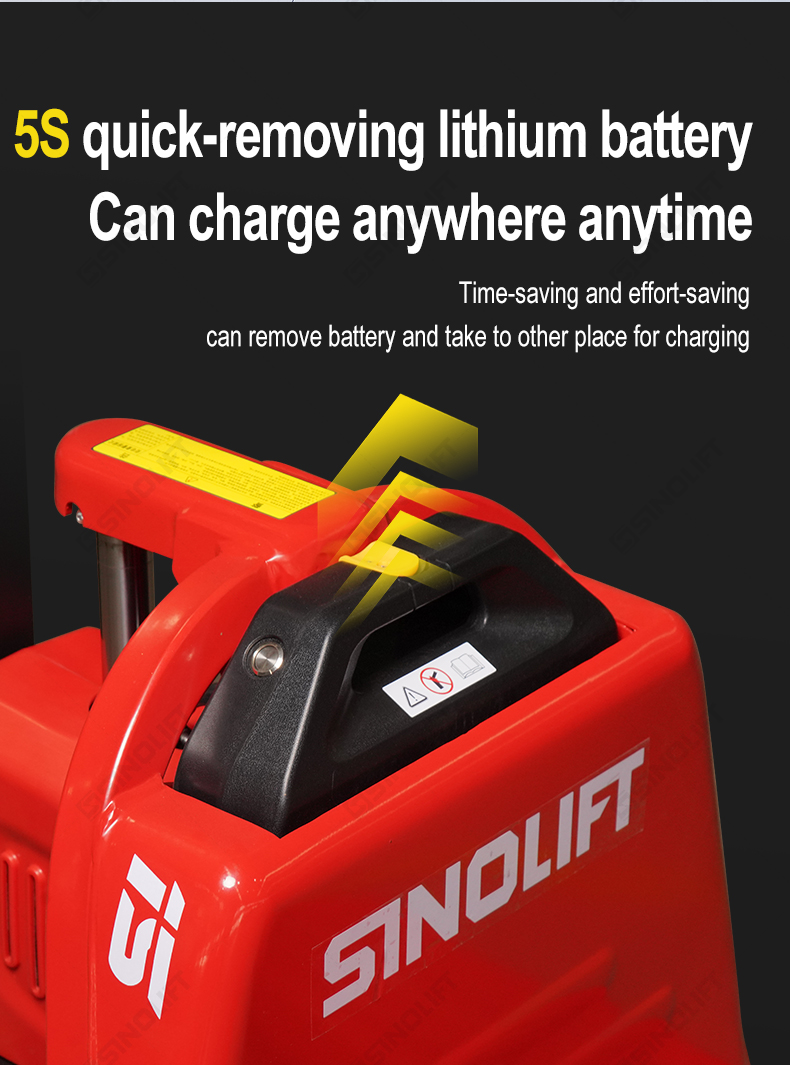

Quick-Change Lithium-Ion Battery

Maintenance-free 48V lithium battery with a plug-in and out system allows for easy replacement in seconds, supporting continuous operation with an optional extra battery.

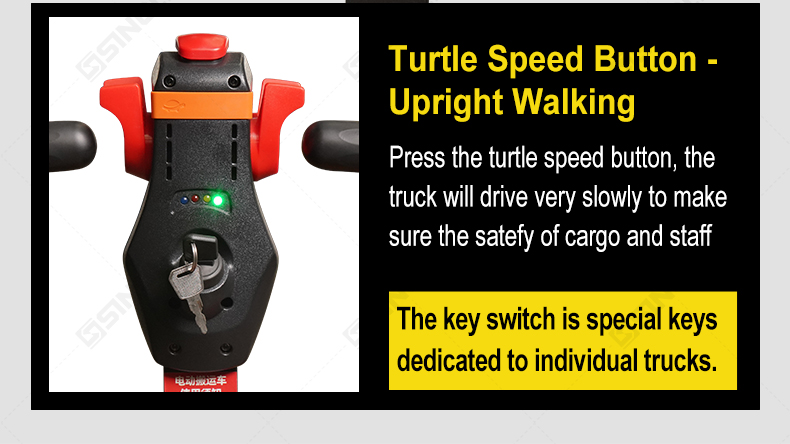

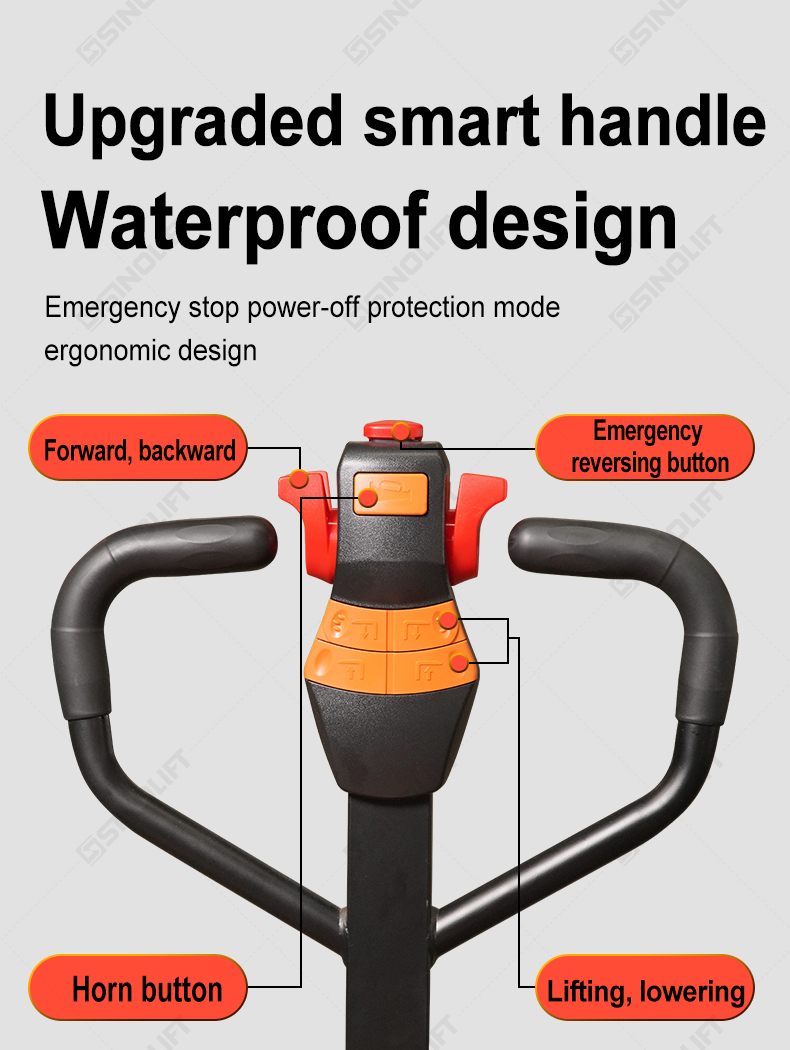

Ergonomic Handle

All controls are at the operator's fingertips, facilitating ease of use and reducing fatigue.

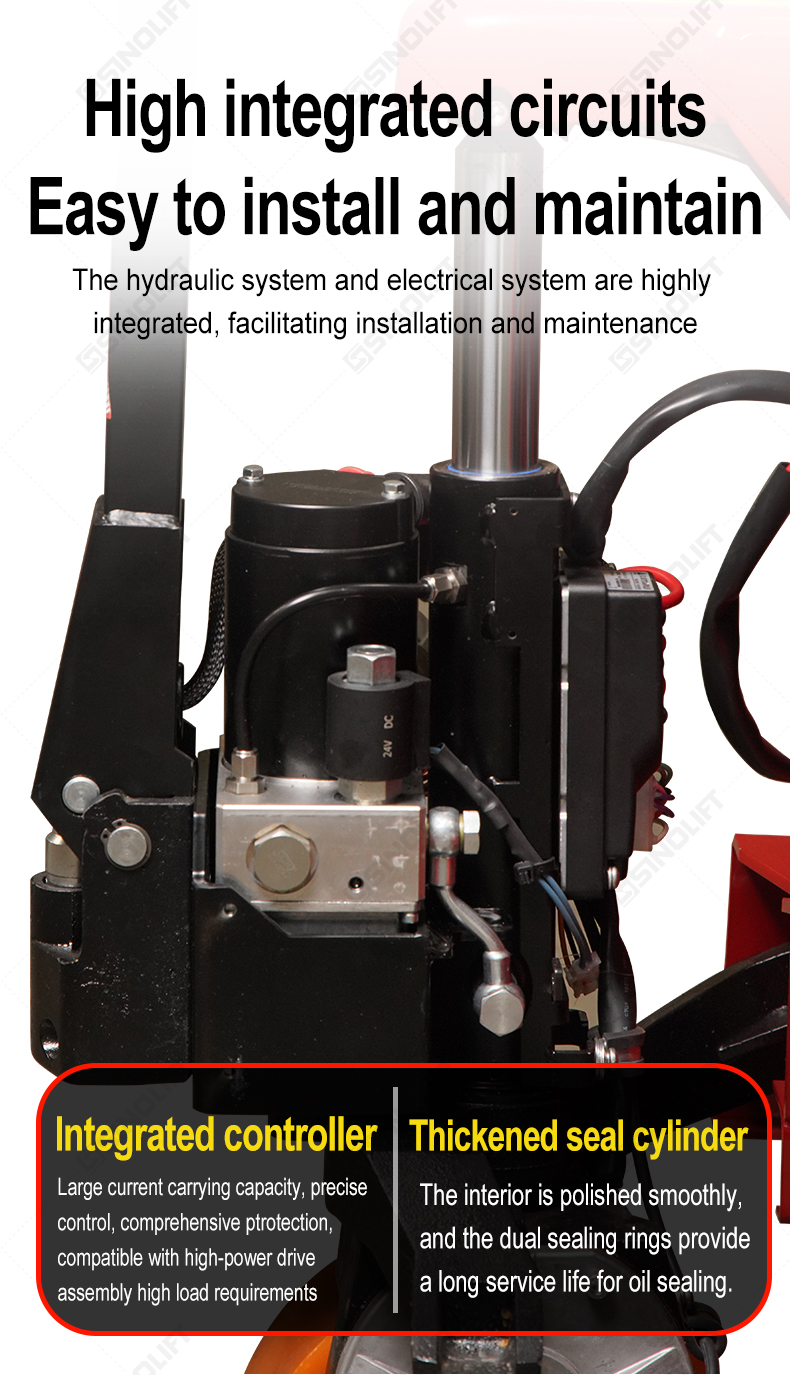

Easy Maintenance

Simplified design allows for quick disassembly and assembly, reducing downtime and operating costs.

Characteristic	1.1	Manufacturer Brand	SINOLIFT
	1.2	Model			CBD15Li	CBD20Li
	1.3	Power Type			Electric	Electric
	1.4	Type of Operation			Walkie	Walkie
	1.5	Steering Mode			Mechanical	Mechanical
	1.6	Load Capacity/Rated Load	Q	kg	1500	2000
	1.7	Load Center Distance	C	mm	600	600
	1.8	Wheel Base	Y	mm	1220	1220
Weight	2.1	Total Weight (Include Battery)		kg	120	124

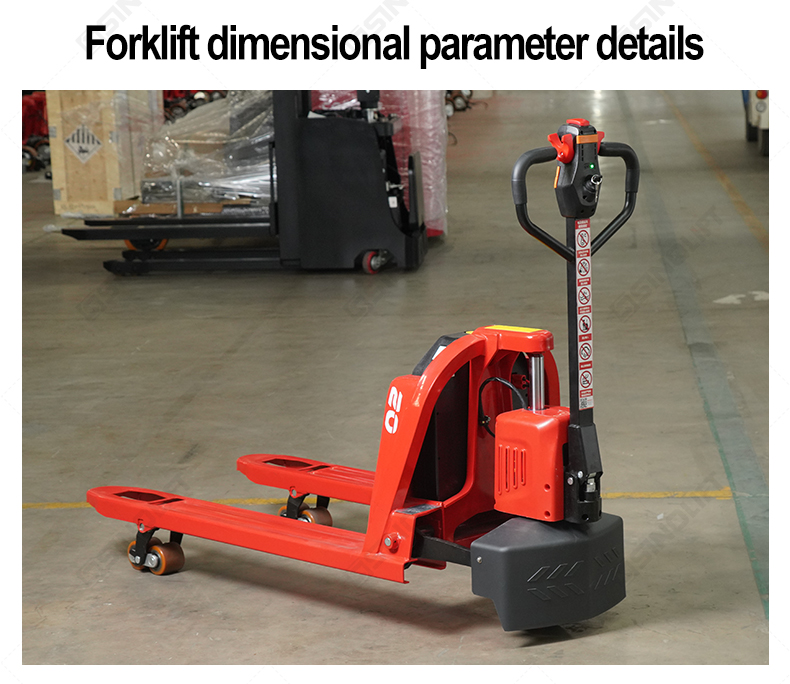

Dimension	3.1	Overall Length	L1	mm	1625	1616
	3.2	Overall Width	D	mm	560/685	560/685
	3.3	Fork Dimension	l/e/s	mm	1150×160×50	1150×160×50
	3.4	Width of Fork	D	mm	550/685	550/685

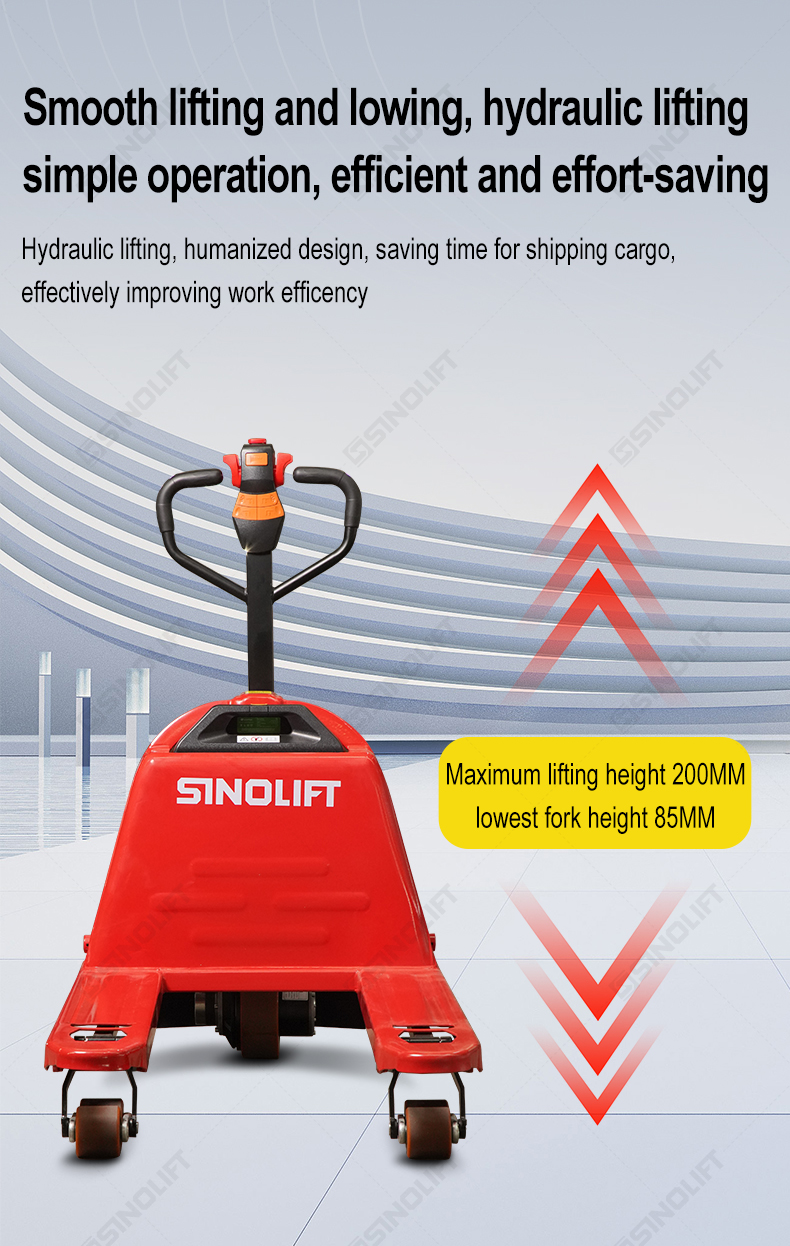

	3.5	Min. Fork Height	G	mm	85	85
	3.6	Lift Height	H	mm	200	200
	3.7	Ground Clearance at Center of Wheelbase	X	mm	35	35
	3.8	Height of Operating Handlebar (Min./Max.)	H1	mm	735/1155	735/1155
	3.9	Turning Radius	Wa	mm	1425	1425
	3.10	Aisle Width for Lengthways (Pallet size1000*1200)	Ast	mm	2375	2375
	3.11	Aisle Width for Lengthways (Pallet size 800*1200)	Ast	mm	1825	1825

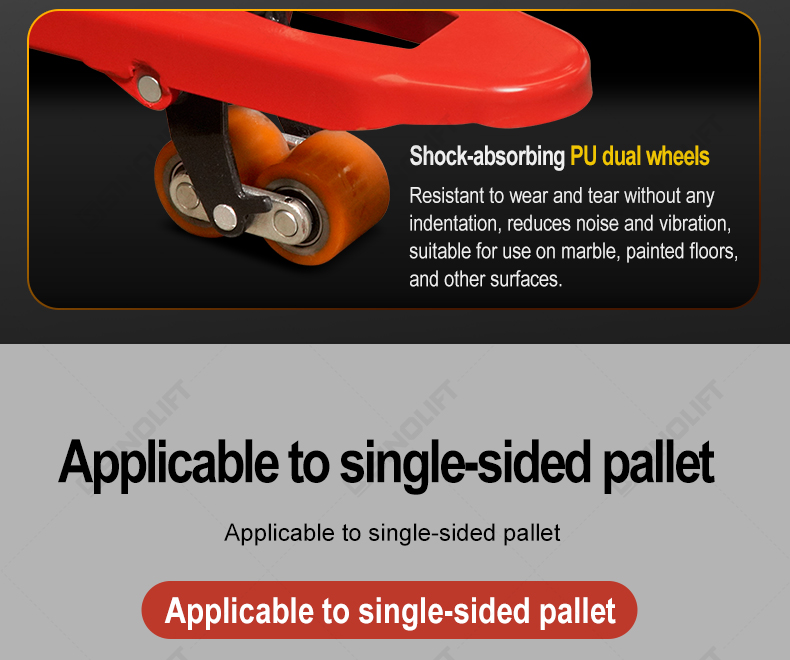

Tyre	4.1	Tyre Type			Polyurethane	Polyurethane
	4.2	Tyre Size (Front)		mm	φ80×70	φ80×70
	4.3	Tyre Size(Driving Wheel)		mm	φ210×70	φ210×70
	4.5	Wheels Quantity, Front/Rear(x=Driving Wheel)			2/1x	2/1x
Performance	5.1	Drive Damping Method			/	/
	5.2	Traveling Speed (laden/unladen)		Km/h	3.5/3.6	4.3/4.8
	5.3	Lifting Speed (laden/unladen)		mm/s	18/25	20/25
	5.4	Lowering Speed (laden/unladen)		mm/s	49/32	49/32

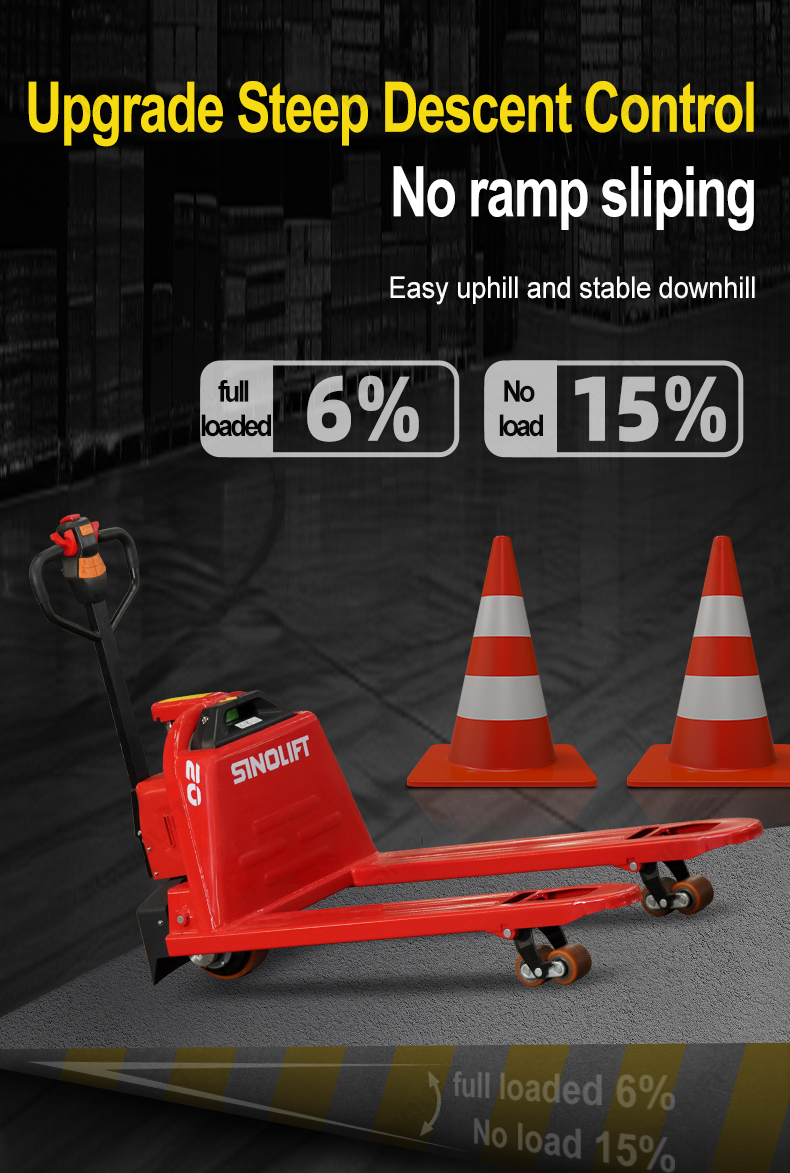

	5.5	Max.Gradient Performance (laden/unladen)		%	6/15	6/15
	5.6	Service Brake Type			Electromagnetic	Electromagnetic
	5.7	Parking Brake Type			Electromagnetic	Electromagnetic

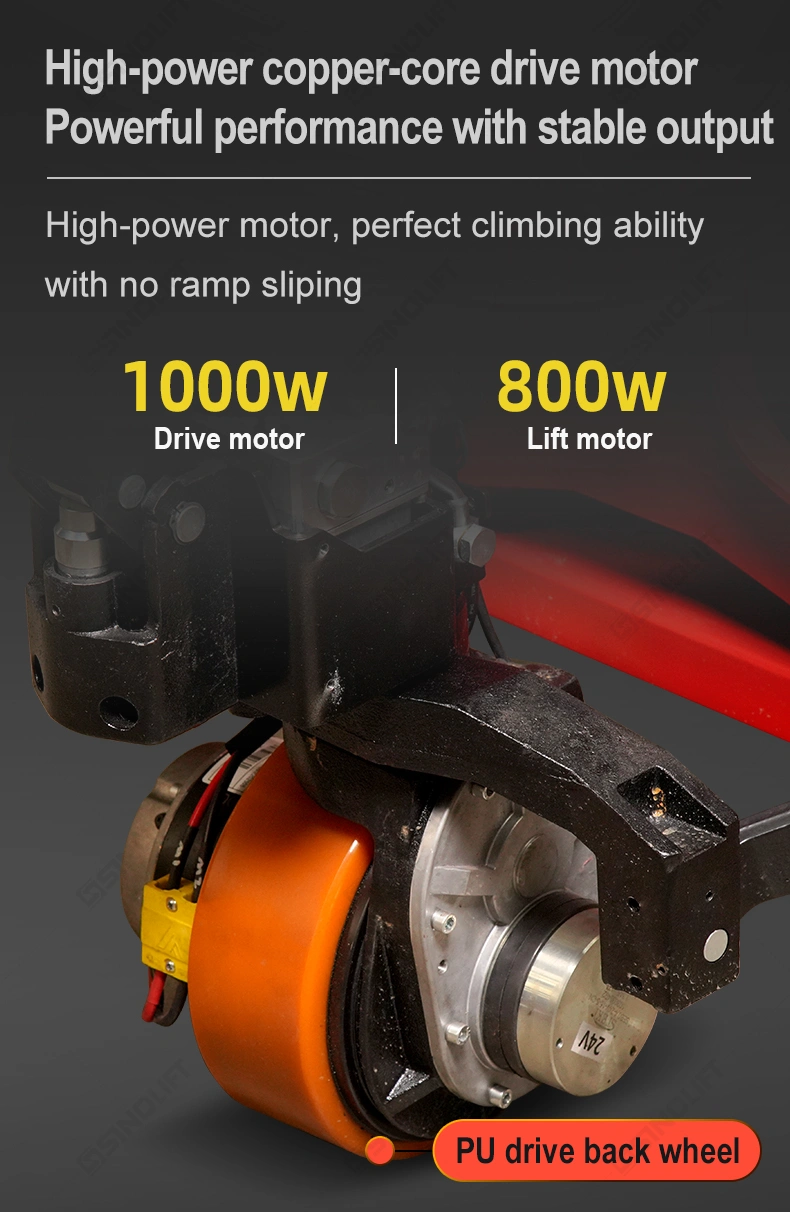

Power Unit	6.1	Drive Motor (AC)		kW	0.75	1
	6.2	Lifting Motor (DC)		kW	0.5	0.8

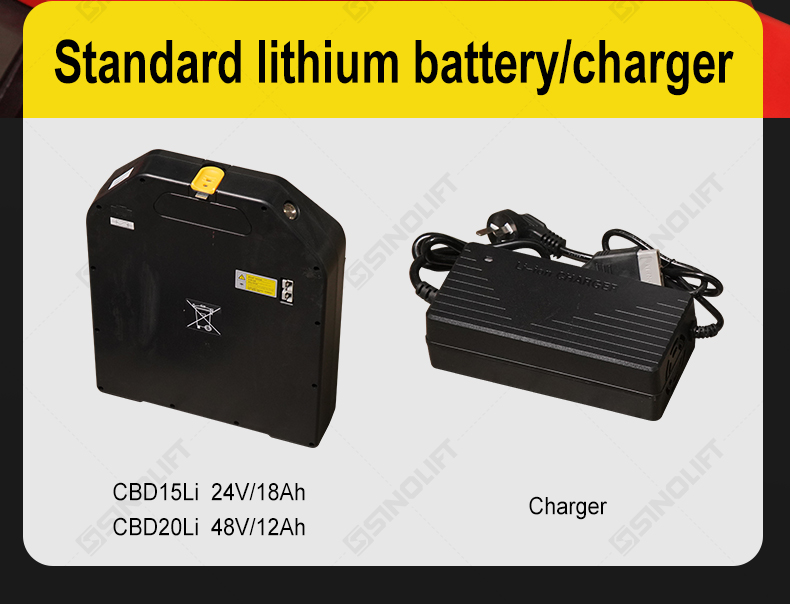

	6.3	Battery Voltage/Capacity K5		V/Ah	24/18 (24,36)	48/12 (18)
	6.4	Battery Weight		kg	5.4 (6.4,8.6)	6.2 (8.4)
