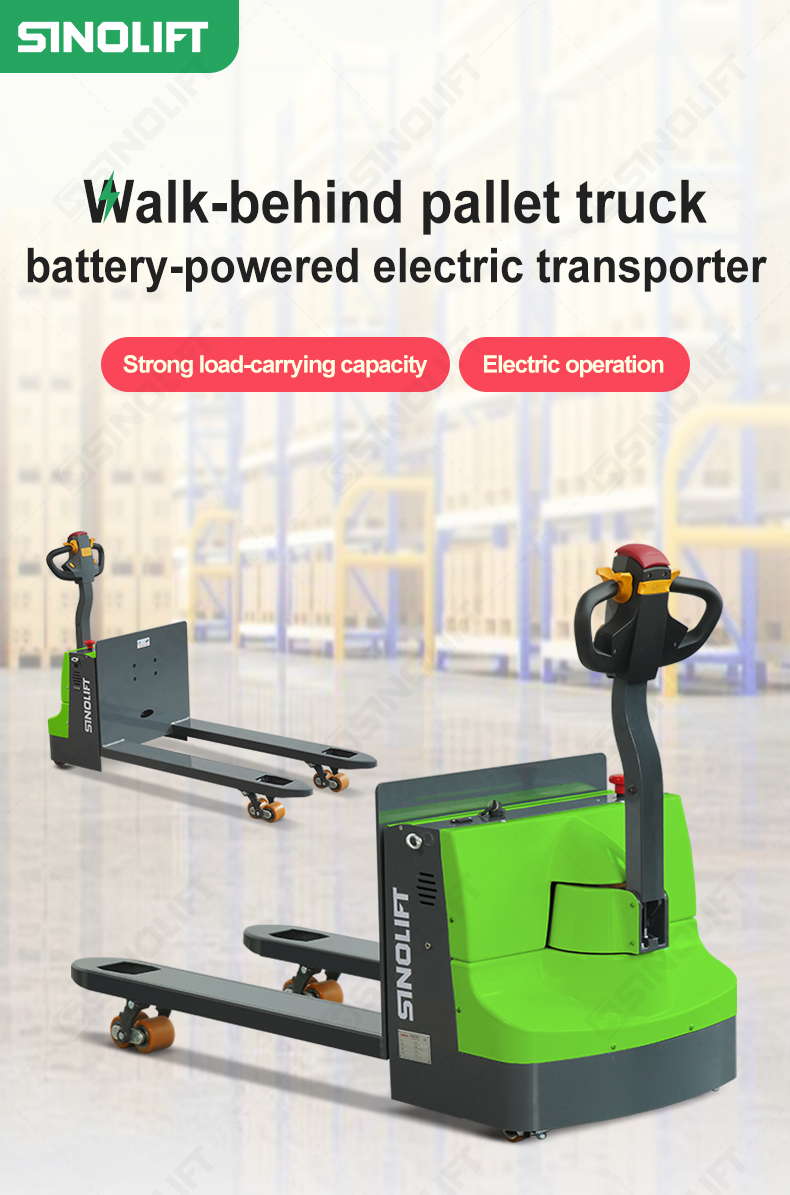

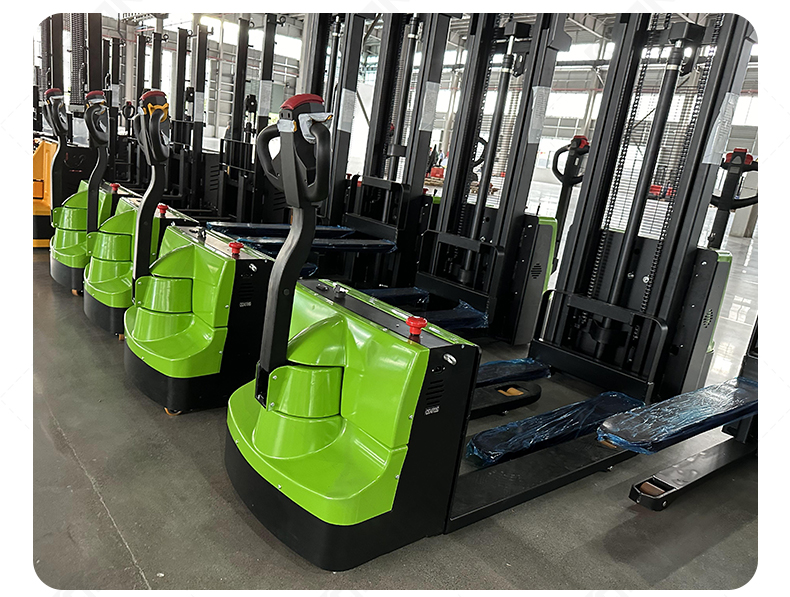

Sinolift EPT20K-Li walk-behind pallet truck battery-powered electric transporter

EPT20K-Li
Quantity:
Contact Now
add to cart
All Products

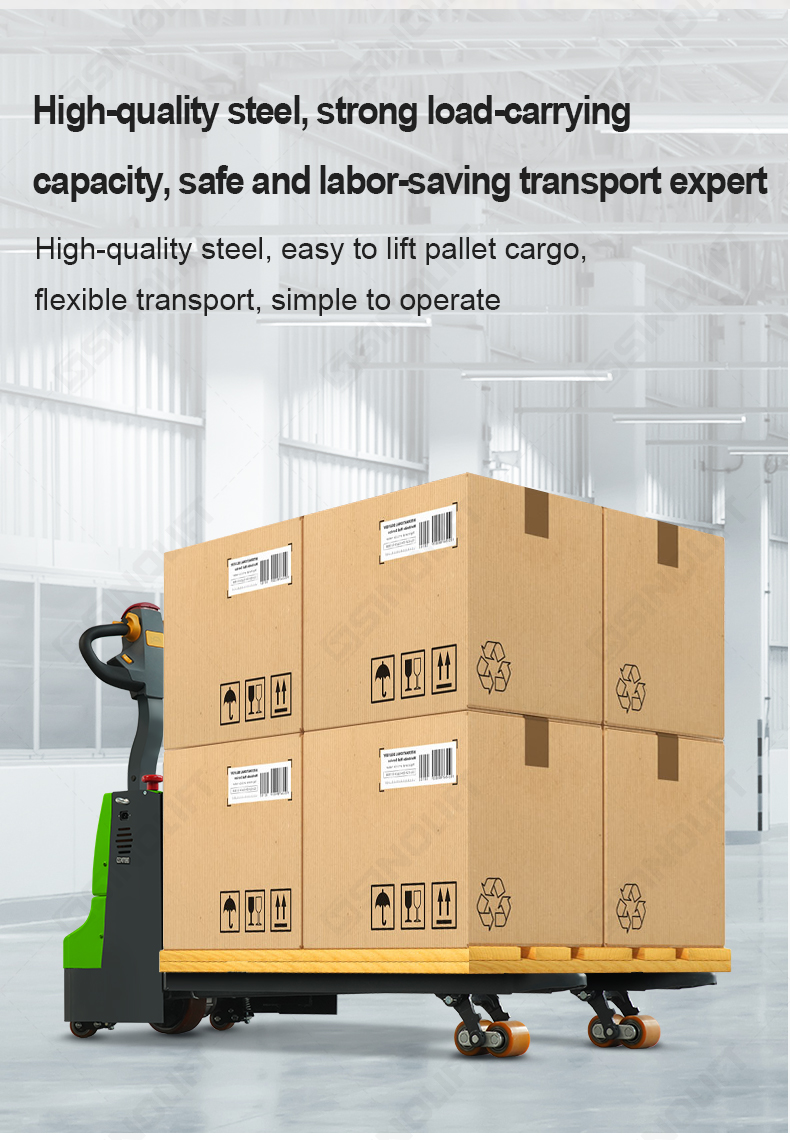

Engineered with high-quality steel, this delivers exceptional load-bearing performance. Designed to enhance safety and reduce labor intensity, it's your reliable partner for efficient material handling.

  • Lithium Battery Technology

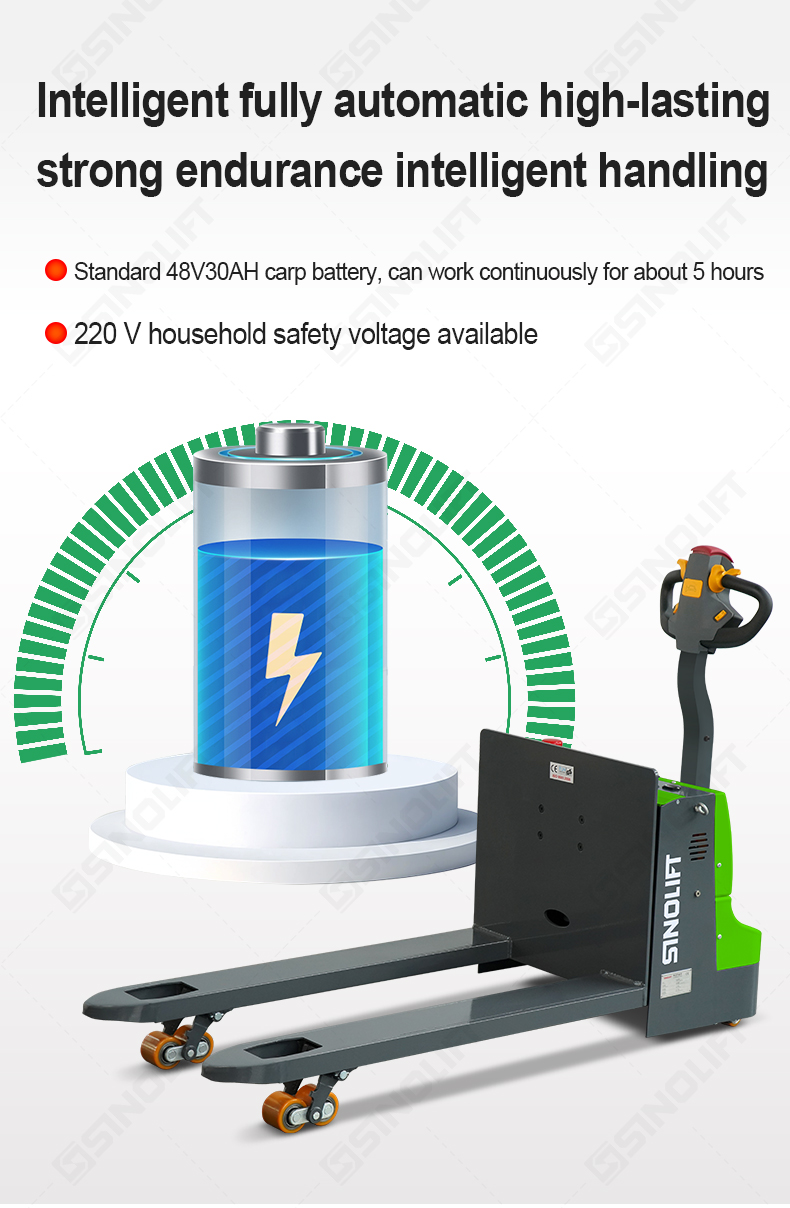

    Equipped with a 24V/20Ah Li-ion battery, it offers fast charging, long lifespan, and zero maintenance—ideal for multi-shift operations.

  • Compact & Lightweight
    With a lightweight chassisandshort turning radius, it's easy to maneuver in confined spaces like narrow aisles and small delivery trucks.

  • High Efficiency Drive System

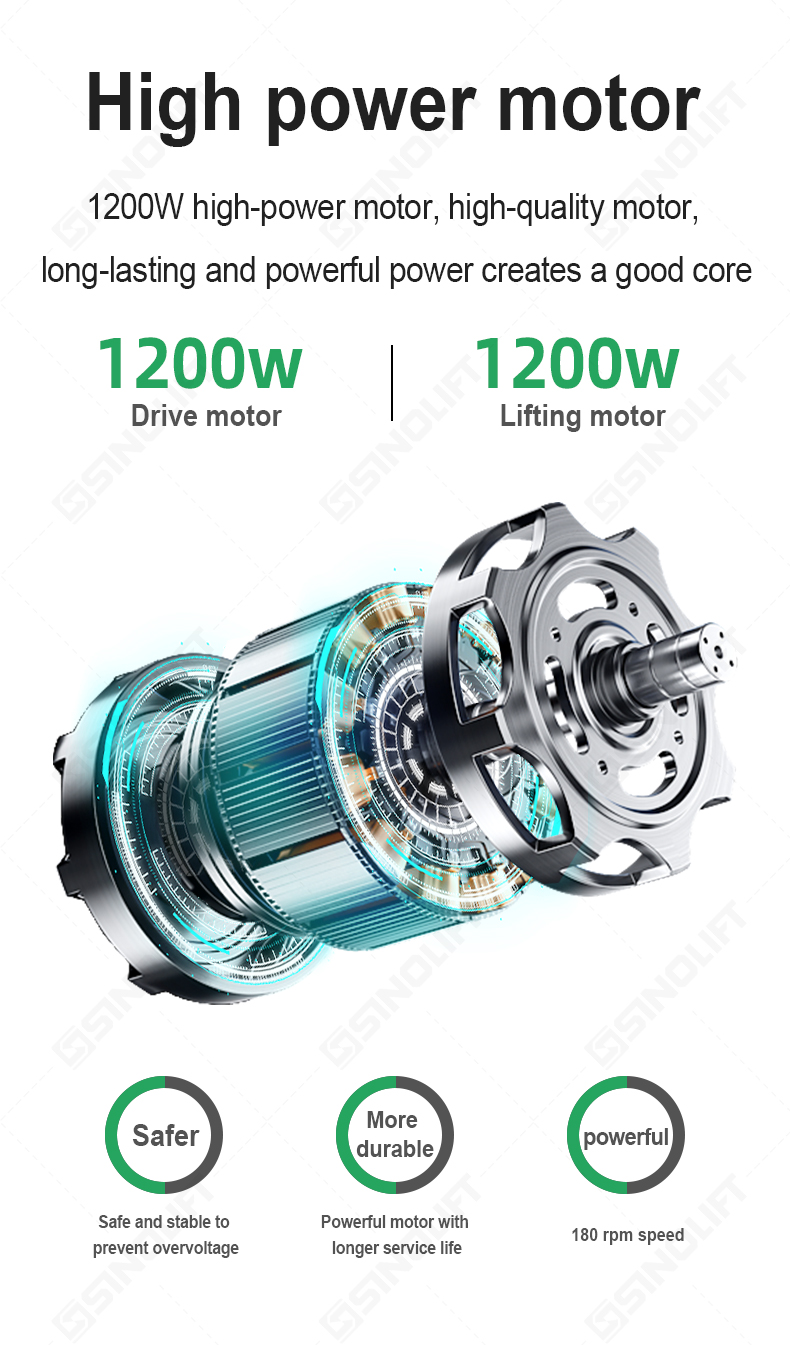

    Apowerful AC motor provides smooth acceleration, energy efficiency, and low noise, while ensuring reliable and responsive operation.

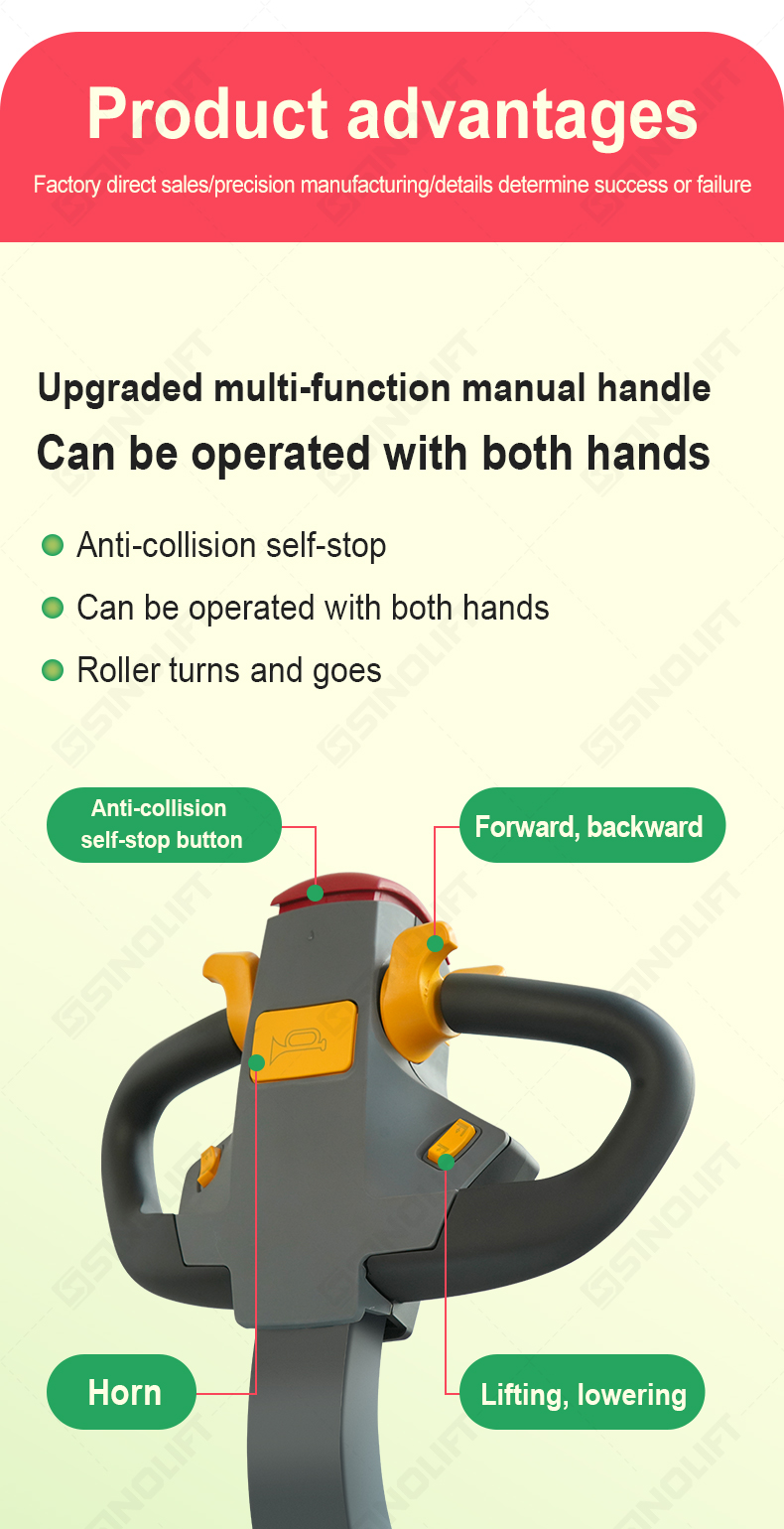

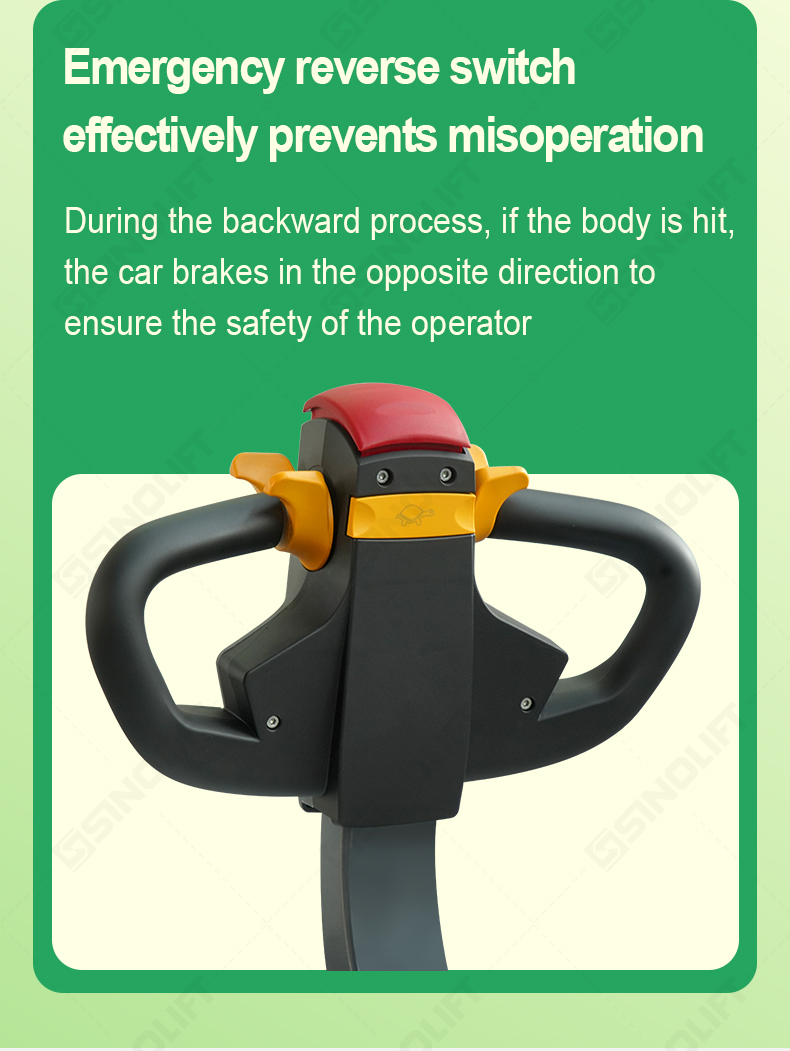

  • Ergonomic Handle with Smart Controls

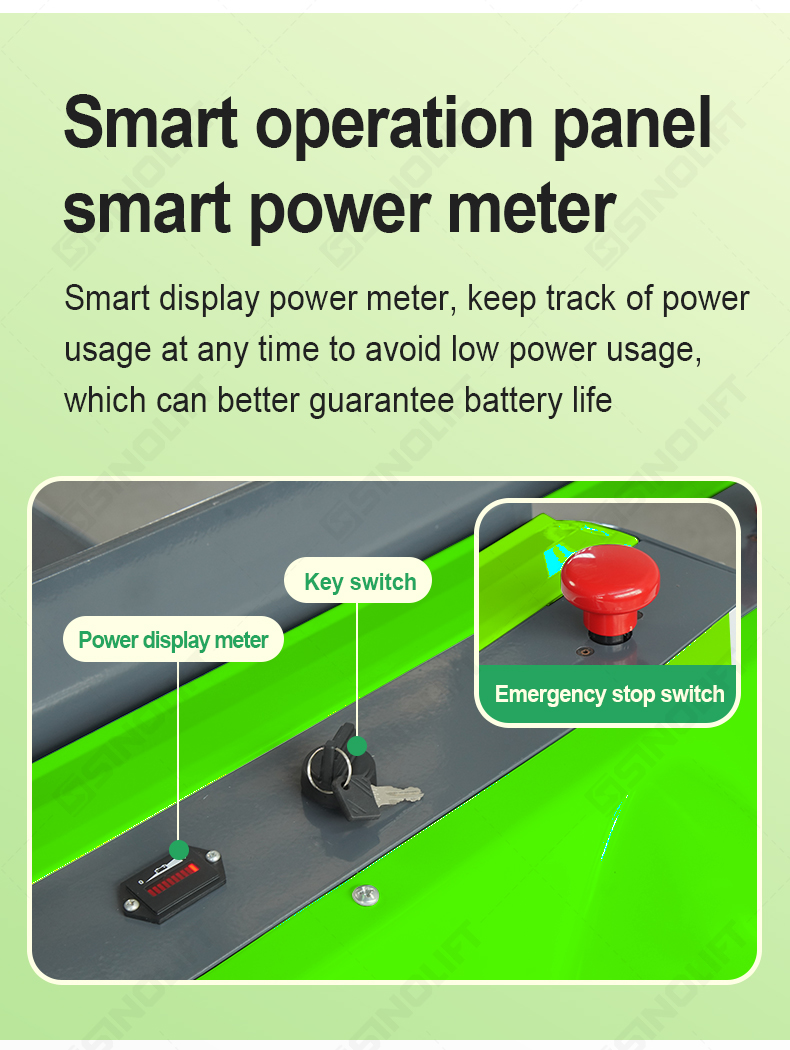

    Intuitive controls, including turtle speed mode,emergency stop switch, and battery level indicator, ensure safe and user-friendly operation.

  • Durable Construction

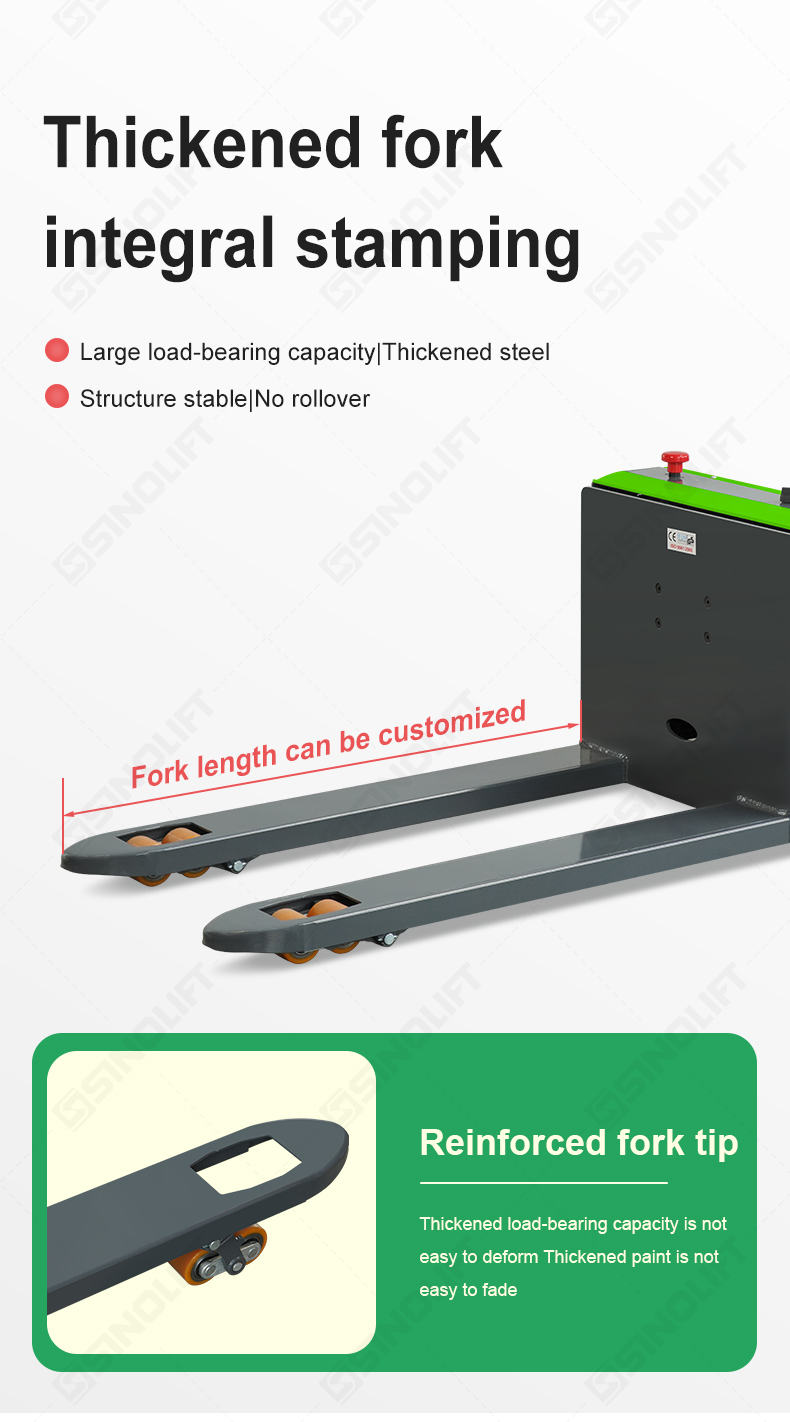

    Reinforced forks and a robust frame offer a 2,000 kg (4,400 lbs) load capacity, suitable for a wide range of material handling tasks.

  • Fast & Flexible Charging
    External plug-and-play charging design; full charge within 2.5–3 hours, supports opportunity charging without battery memory effect.

✅Ideal For:

  • Supermarkets and retail stores

  • Urban logistics and delivery trucks

  • Warehouses with limited space

  • Light to medium-duty material handling

Manufacturer                           SINOLIFT
Model　　EPT20KEPT20K-Li
Power Type　　AGM LEP
Type of Operation　　PedestrianPedestrian
Load capacity/Rated loadqkg20002000
Load Center Distancecmm   600   600
Alex centre to Fork Facexmm948948
Wheelbaseymm12651265
Total Weight (with battery)　kg340335
Axle Load(laden):Drive side/Load-bearing side　kg　　
Axle Load(unladen):Drive Side/Load-bearing side　kg　　

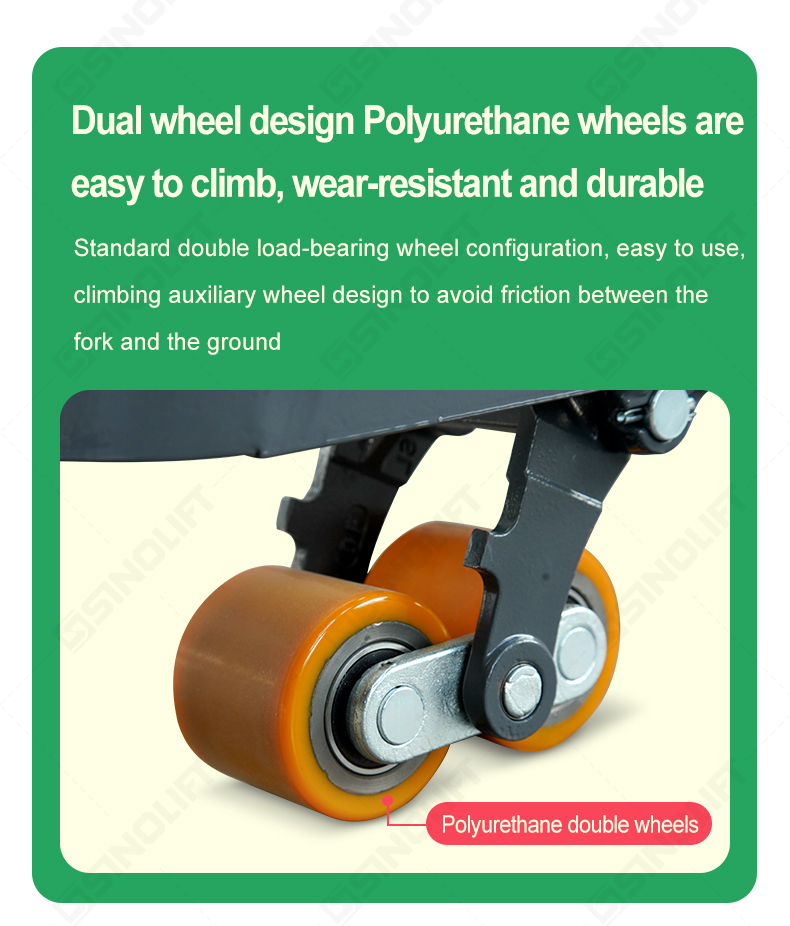

Tyre Type　　PolyurethanePolyurethane
Tyre Size ( Load Wheel)　mmφ80x60φ80x60
Tyre Size (Drive Wheel)　mmφ210x70φ210x70
Tyre Size (Caster Wheel)　mmφ70x36φ230x75
Wheels Quantity, front/rear (x=Driving Wheels)　　4/1x+24/1x+2
Track Width,Front,Driving Sideb10mm520520
Track Width,Rear,Loading Sideb11mm400400

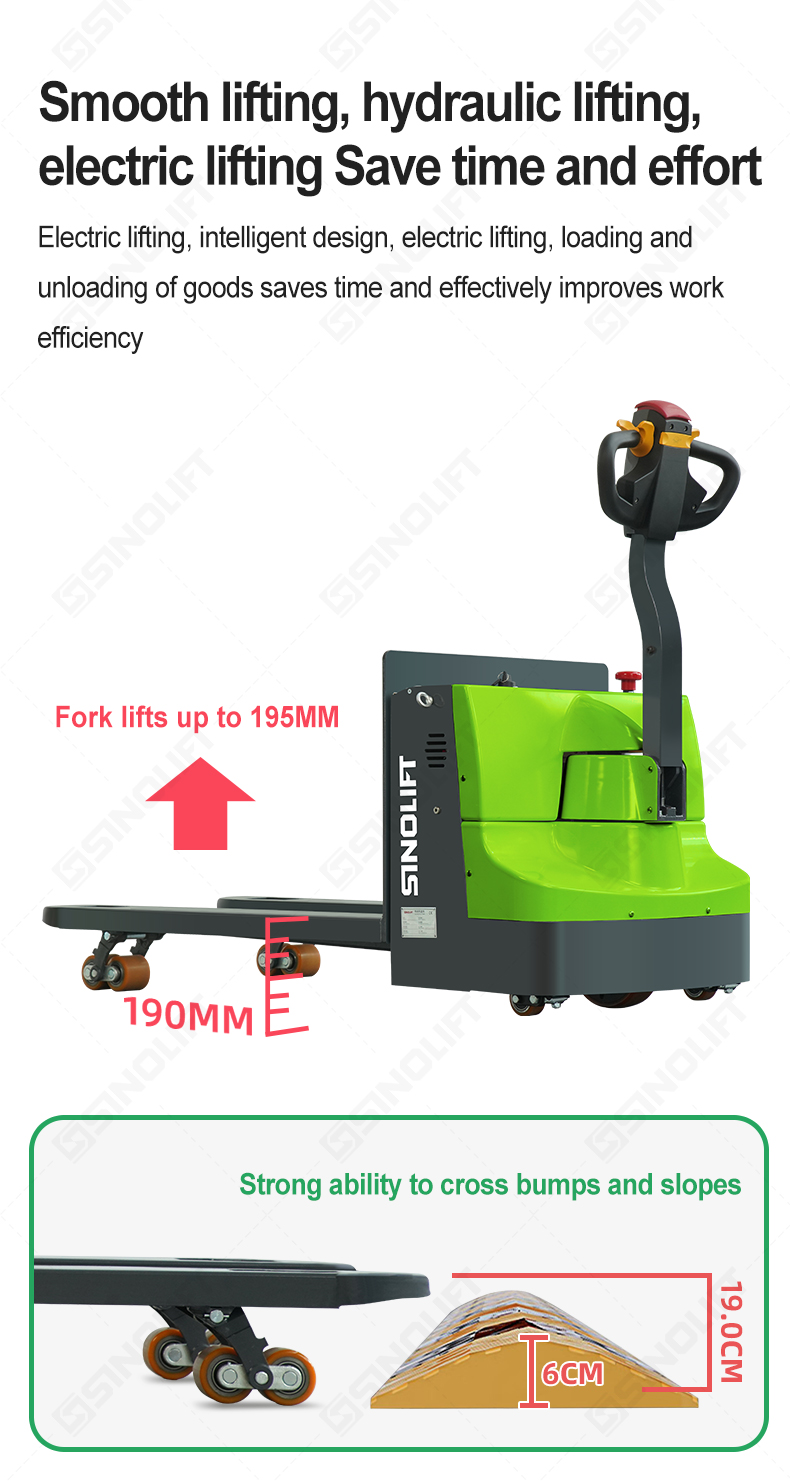

Lifting Heighth3mm190190
Height of Tiller Arm in Driving Position, Min.- Max.h14mm950-1250950-1250
Lowered Heighth13mm8585
Overall Lengthl1mm16201620
Length to Fork Facel2mm460460
Overall Widthb1mm680680
Fork Dimensions/e/lmm54x160x1150(1220)54x160x1150(1220)
Fork Spread Widthb5mm560/680560/680
Ground Clearance at Center of Wheelbase (Min)m2mm2727
Aisle Width for Pallets 1000x1200 CrosswaysAstmm24152415
Aisle Width for Pallets 800x1200 CrosswaysAstmm23152315
Turning RadiusWamm14301430
Traveling Speed (Laden/Unladen)　km/h2.5/32.5/3
Lifting Speed (Laden/Unladen)　mm/s35/4535/45
Lowering Speed (Laden/Unladen)　mm/s50/4050/40

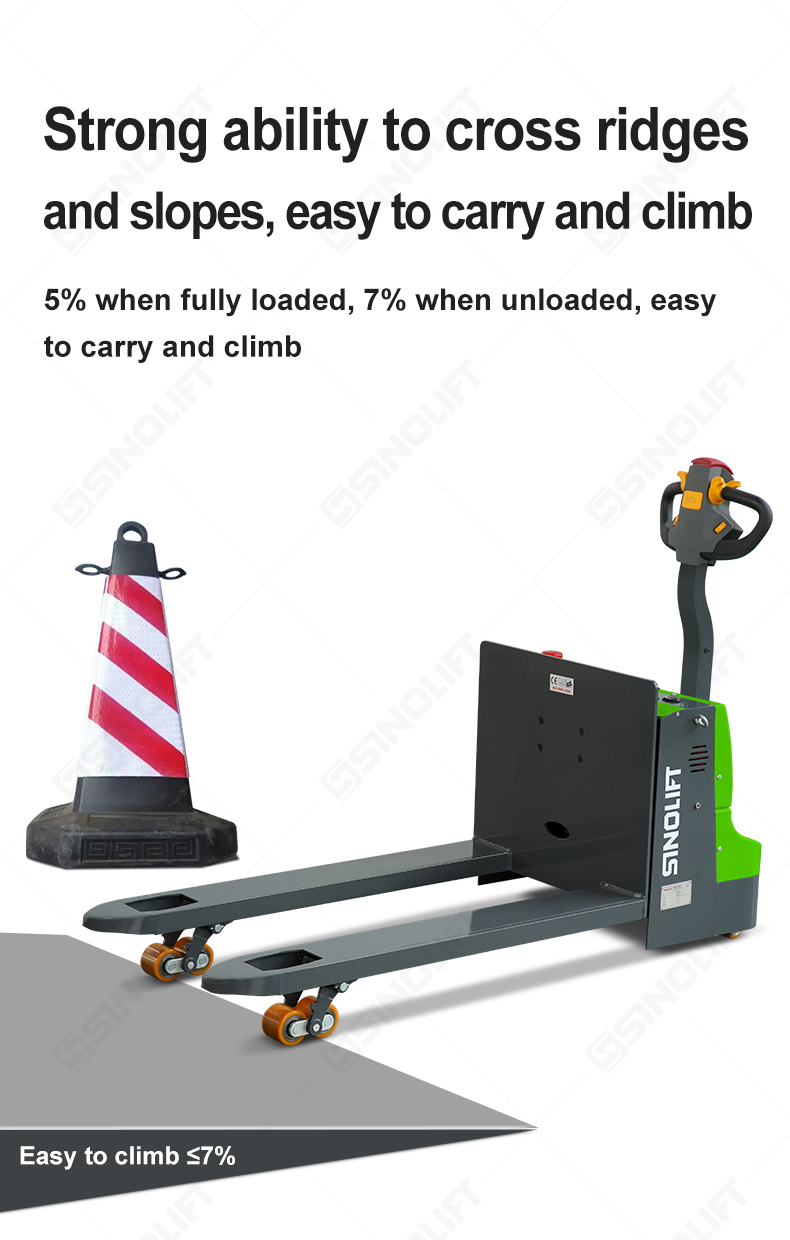

Max.Gradient Performance (Laden/Unladen)　%5/85/8
Service Brake Type　　       Electromagnetic       Electromagnetic
Driving Motor Rating (DC) S2 60min　kw0.750.75
Lifting Motor Rating S3 15%　kw0.80.8
Battery Type　　Acid Li-ion
Battery Voltage/Capacity K5　V/Ah24/100 (518*276*240mm)48/30 (size:120*220*340mm)
Battery Weight　kg5450
Charger　V/A24/1548/10
Controller Model　　DCDC
Steering Type　　MechanicalMechanical
Sound level atdriver's ear according to EN 12 053　dB7070
