Sinolift EPT15Q, EPT20Q and EPT30Q Electric Pallet Truck for Warehouse and Loading Dock Handling

EPT15Q, EPT20Q

Quantity:

Contact Now

add to cart

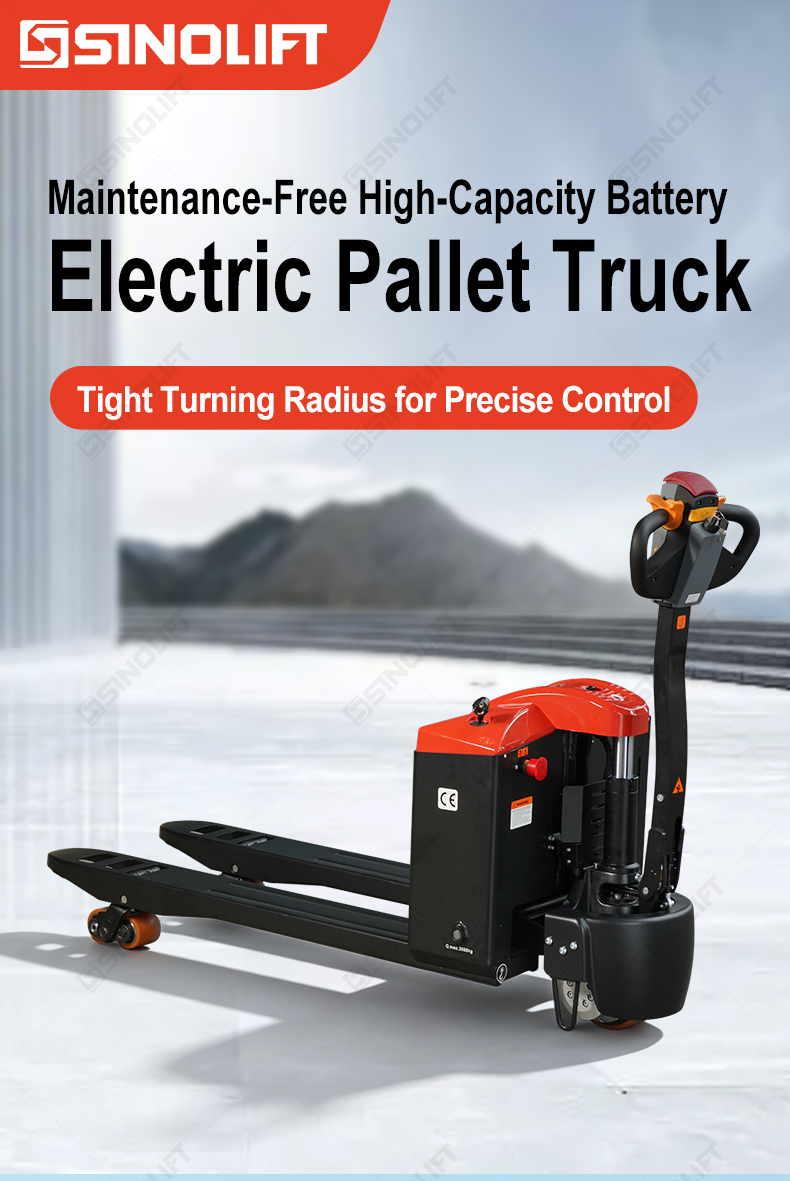

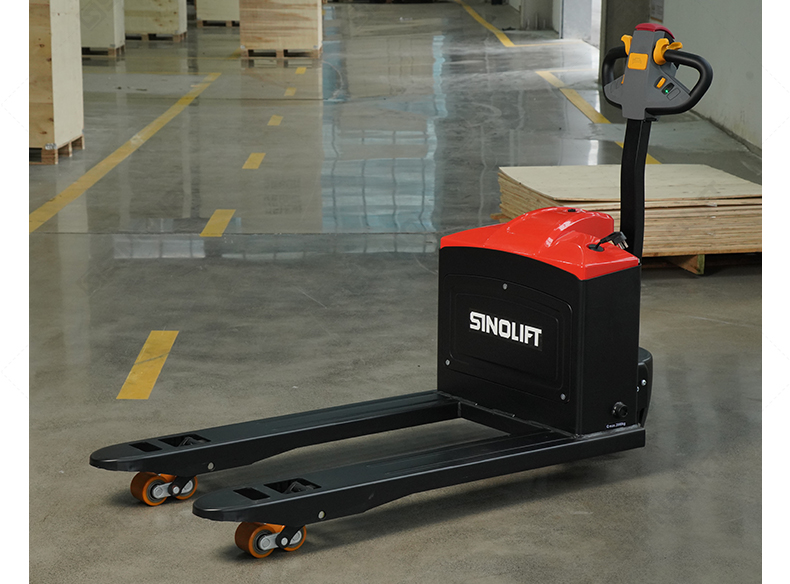

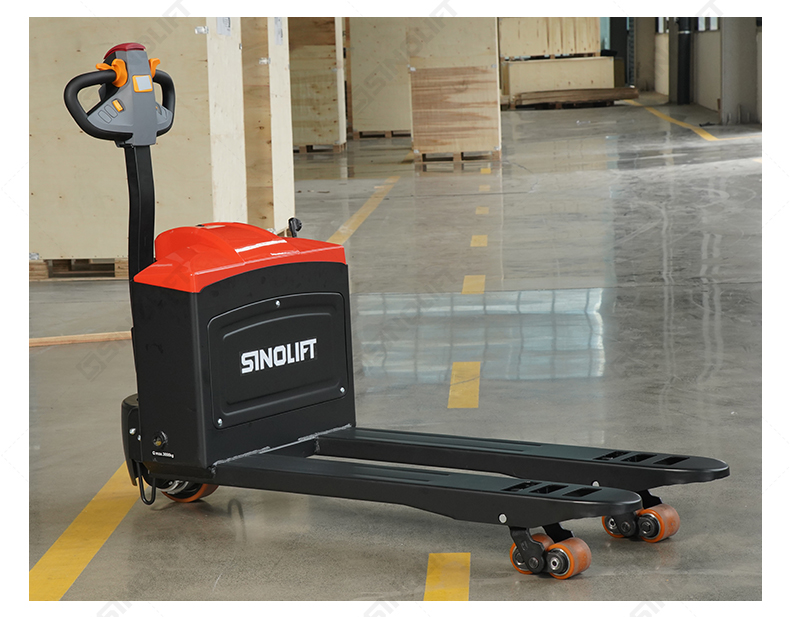

The EPT15/20/30Q Electric Pallet Truck is a robust, high-performance solution engineered to streamline heavy-duty material handling in demanding industrial and commercial environments. Designed as a highly efficient upgrade from manual hand pallet jacks, this walkie pallet truck combines a powerful drive system with a maintenance-free, high-capacity battery to deliver continuous, reliable power for frequent start-stop operations.

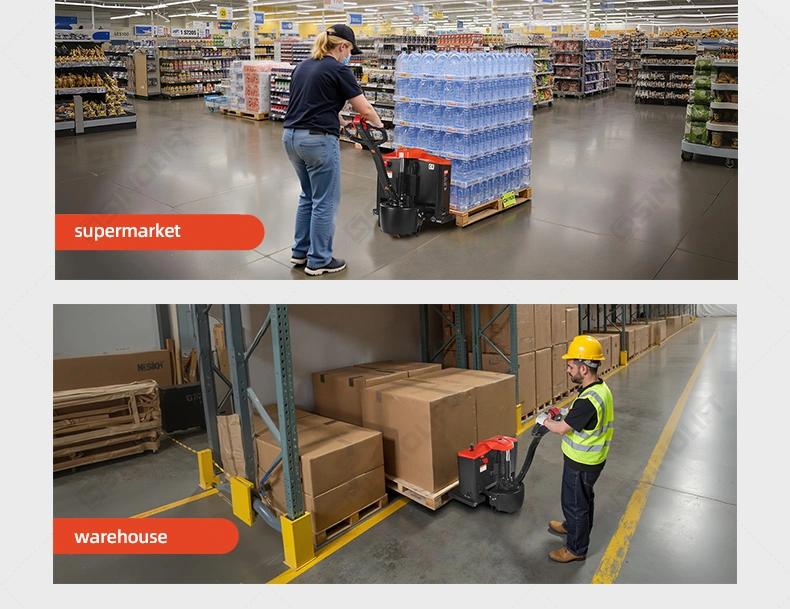

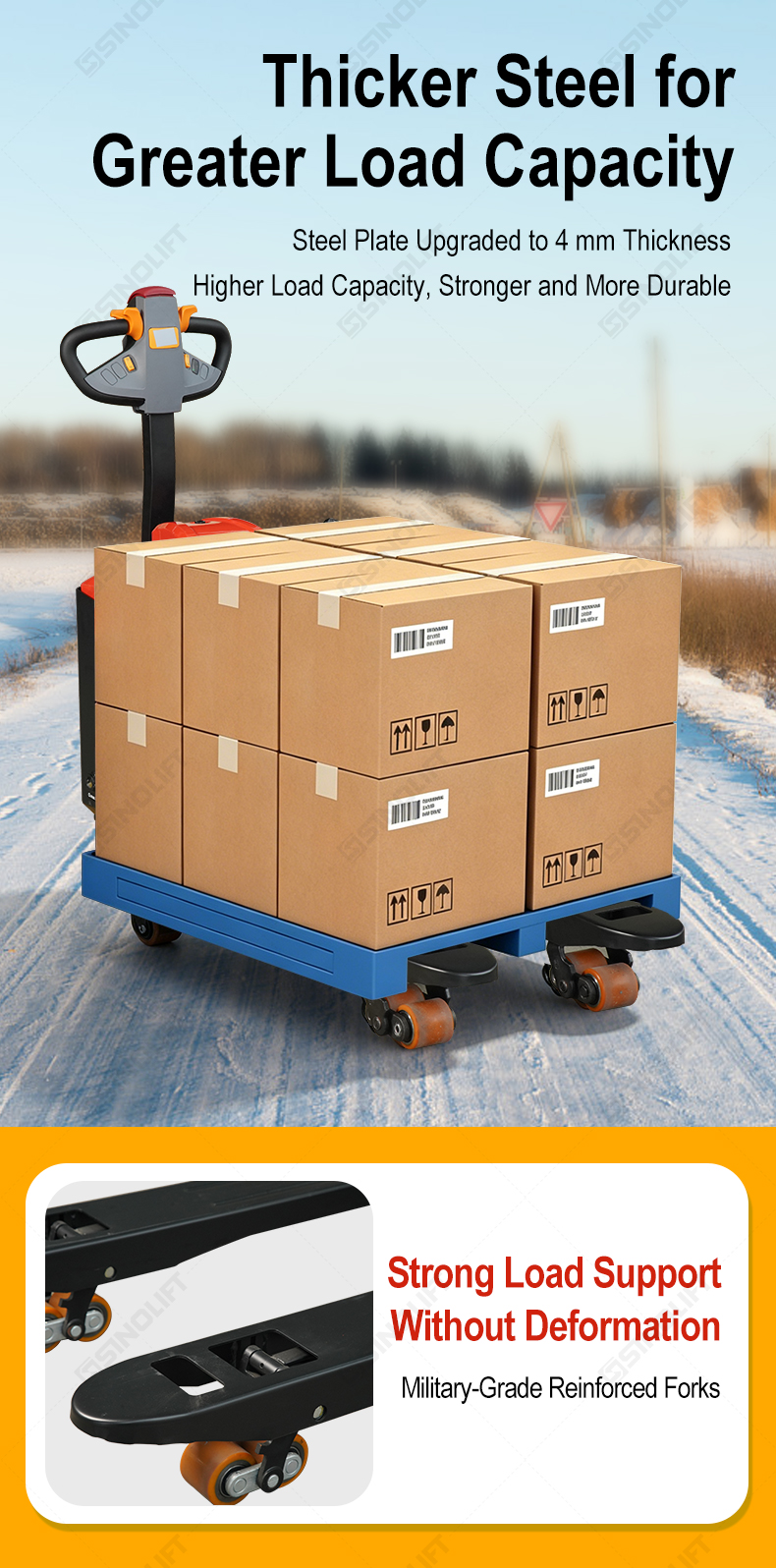

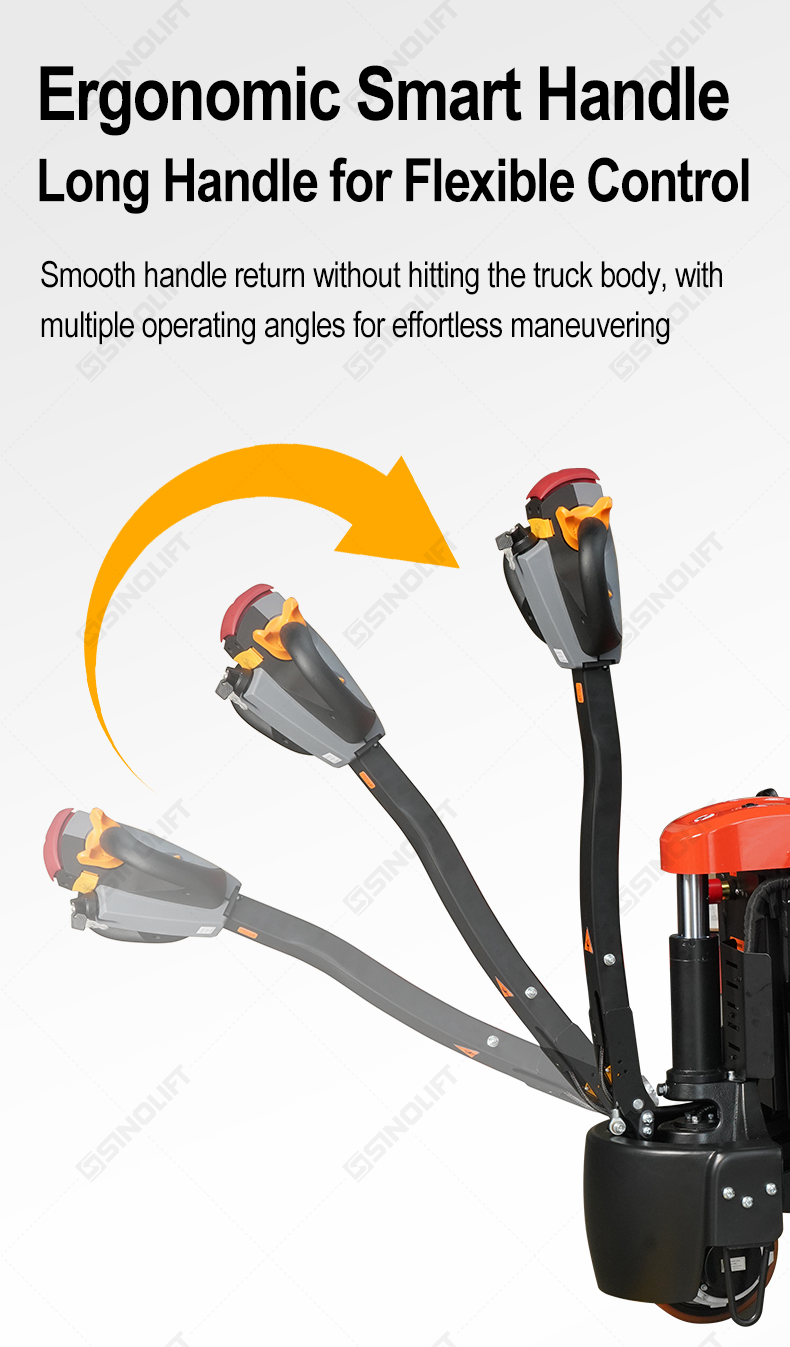

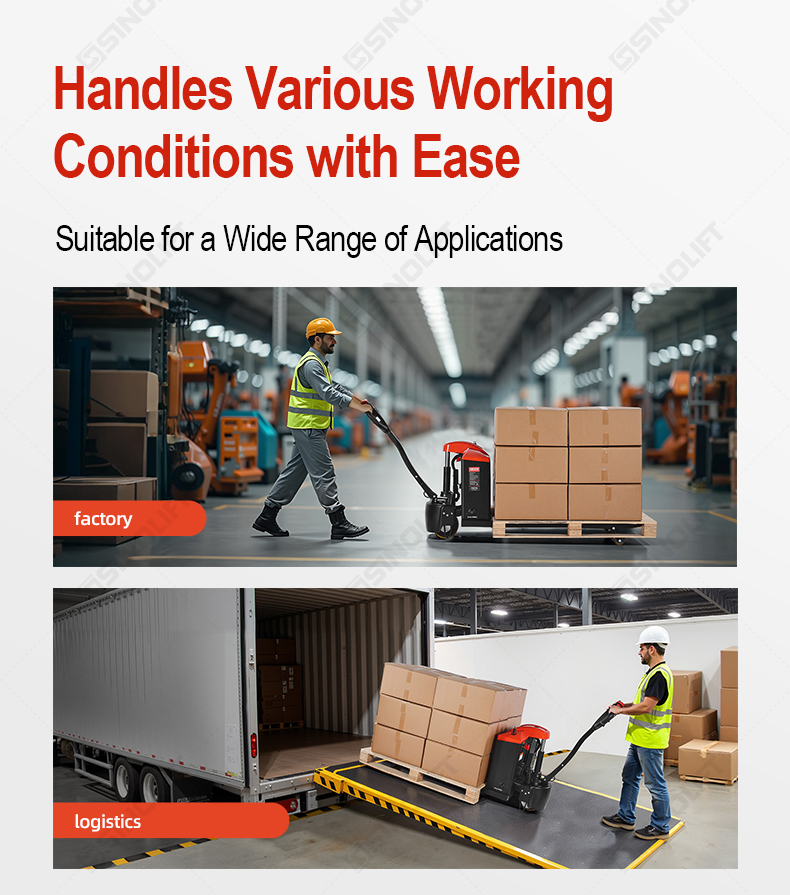

Built with a precision-forged steel frame and an ergonomic smart handle, the EPT series maximizes operator comfort while significantly minimizing your total cost of ownership. Whether you are moving stock on a busy loading dock or navigating narrow warehouse aisles, this versatile workhorse ensures seamless maneuverability, superior stability, and exceptional productivity.

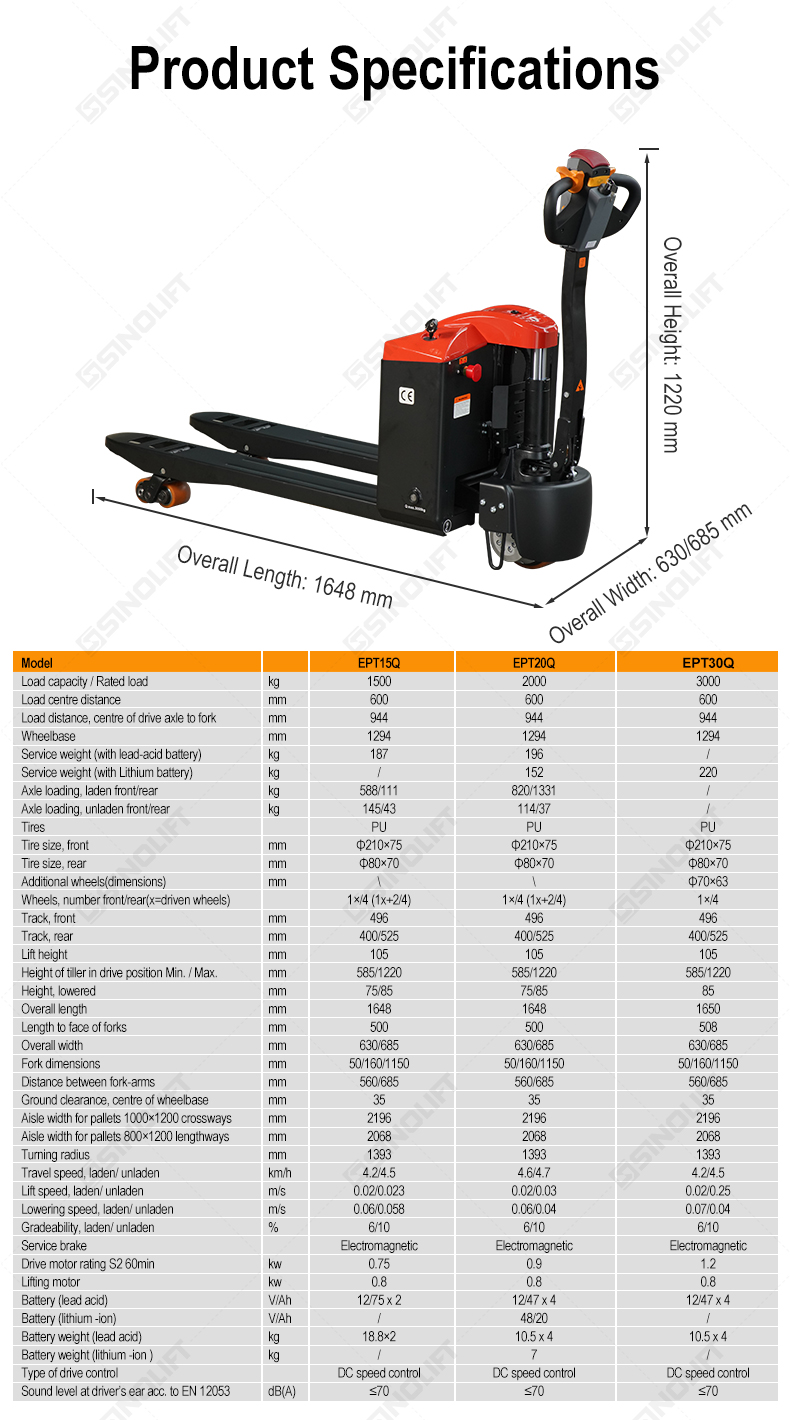

Additional wheels(dimensions)	mm			Φ70×63

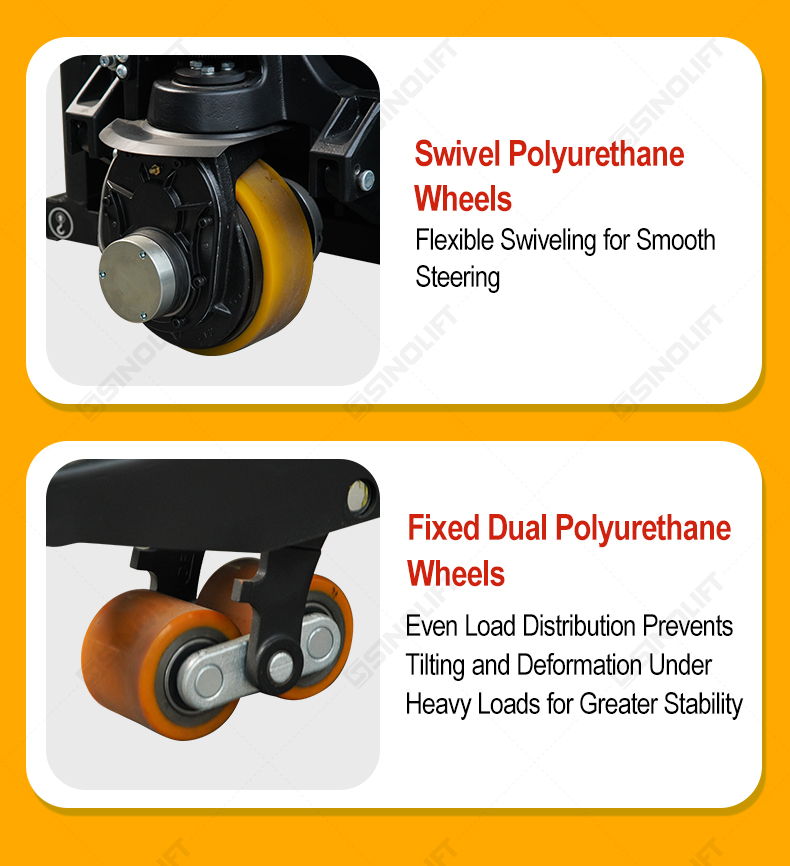

Wheels, number front/rear(x=driven wheels)		1×/4 (1x+2/4)	1×/4 (1x+2/4)	1×/4
Track, front	mm	496	496	496
Track, rear	mm	400/525	400/525	400/525
Lift height	mm	105	105	105
Height of tiller in drive position Min. / Max.	mm	585/1220	585/1220	585/1220
Height, lowered	mm	75/85	75/85	85
Overall length	mm	1648	1648	1650
Length to face of forks	mm	500	500	508
Overall width	mm	630/685	630/685	630/685
Fork dimensions	mm	50/160/1150	50/160/1150	50/160/1150
Distance between fork-arms	mm	560/685	560/685	560/685
Ground clearance, centre of wheelbase	mm	35	35	35
Aisle width for pallets 1000×1200 crossways	mm	2196	2196	2196
Aisle width for pallets 800×1200 lengthways	mm	2068	2068	2068
Turning radius	mm	1393	1393	1393
Travel speed, laden/ unladen	km/h	4.2/4.5	4.6/4.7	4.2/4.5
Lift speed, laden/ unladen	m/s	0.02/0.023	0 0.02/0.003	0 0.02/0.025
Lowering speed, laden/ unladen	m/s	0.06/0.058	0.06/0.04	0.07/0.04
Gradeability, laden/ unladen	%	6/10	6/10	6/10
Service brake		Electromagnetic	Electromagnetic	Electromagnetic

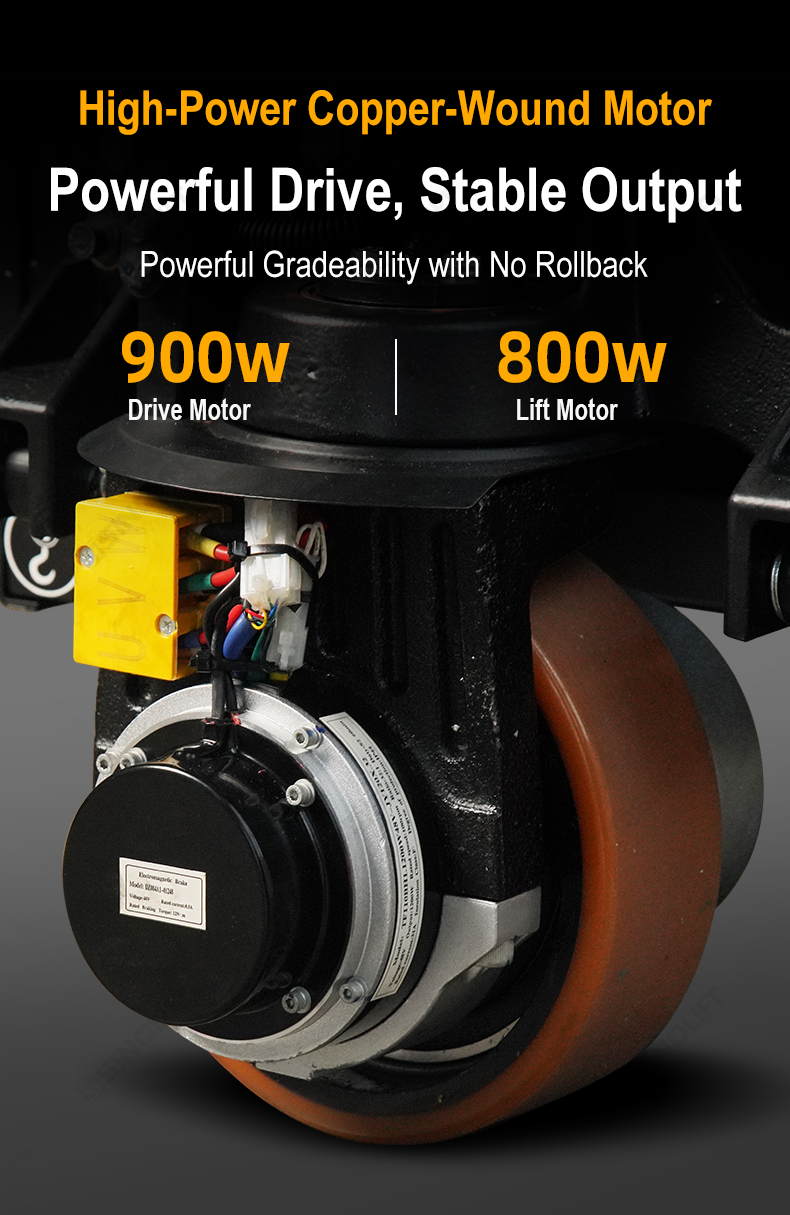

Drive motor rating S2 60min	kW	0.75	0.9	1.2
Lifting motor	kW	0.8	0.8	0.8
Battery (lead acid)	V/Ah	12/75 x 2	12/47 x 4	12/47 x 4
Battery (lithium -ion)	V/Ah	/	48/20	/
Battery weight (lead acid)	kg	18.8×2	10.5 x 4	10.5 x 4
Battery weight (lithium -ion )	kg	/	7	/
Type of drive control		DC speed control	DC speed control	DC speed control
Sound level at driver’s ear acc. to EN 12053	dB(A)	≤70	≤70	≤70

Frequently Asked Questions

Q1: What kind of maintenance is required for the battery system of the EPT series?

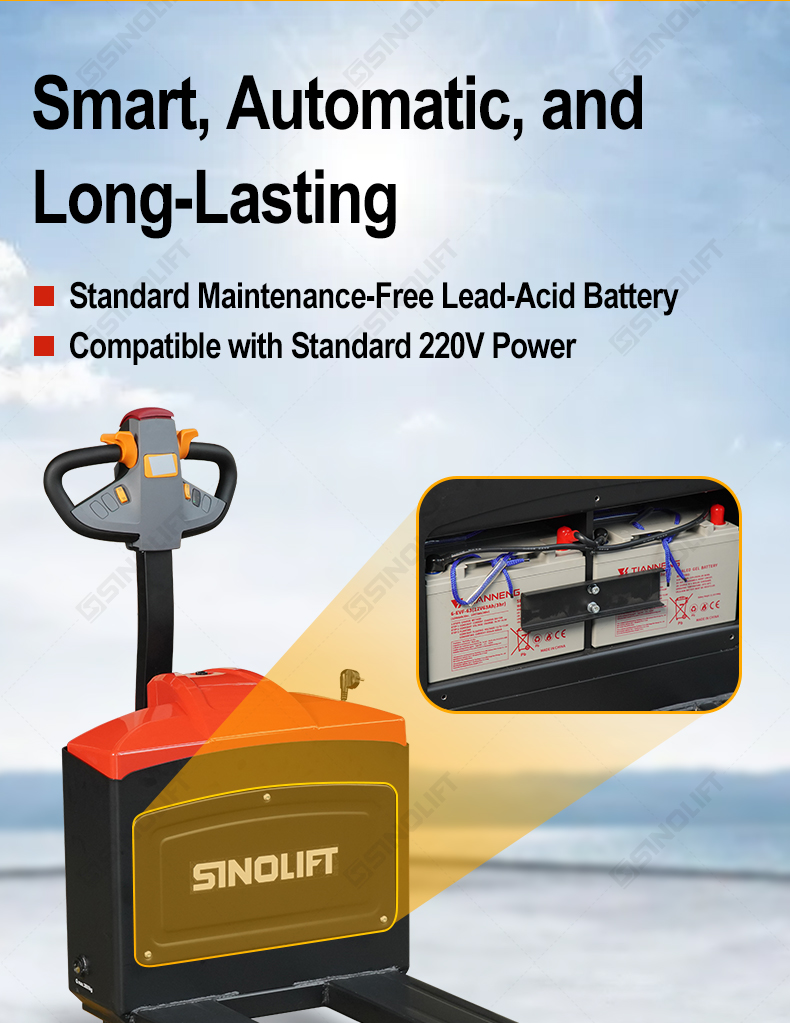

A1: The EPT series is equipped with a high-capacity, maintenance-free lead-acid (or gel) battery, which means you do not need to regularly add distilled water or perform complex upkeep. To ensure maximum lifespan and optimal continuous performance, we simply recommend charging the unit when the battery meter indicates low power and avoiding deep discharges.

Q2: Are there specific safety mechanisms to protect operators, especially in tight warehouse spaces?

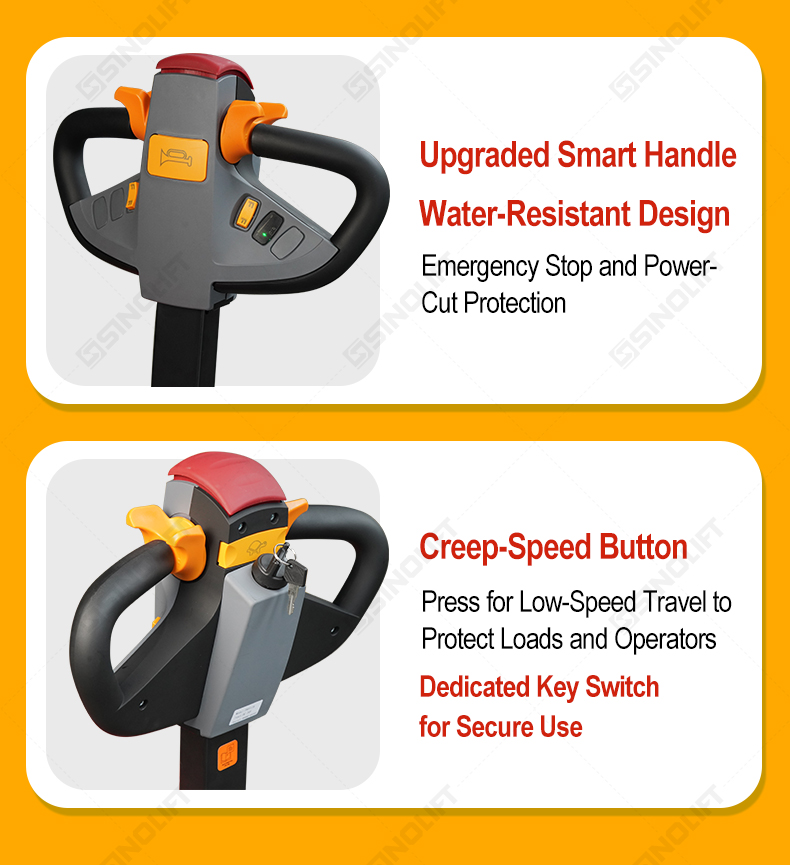

A2: Yes, operator safety is a top priority, which is why the truck features an ergonomic smart handle with a built-in emergency power-off switch and an anti-rollback system. Additionally, the integrated creep-speed button allows for ultra-slow, precise maneuvering in confined areas, significantly minimizing the risk of collisions and foot injuries.

Q3: How well does this motorized pallet jack handle inclined surfaces like loading docks?

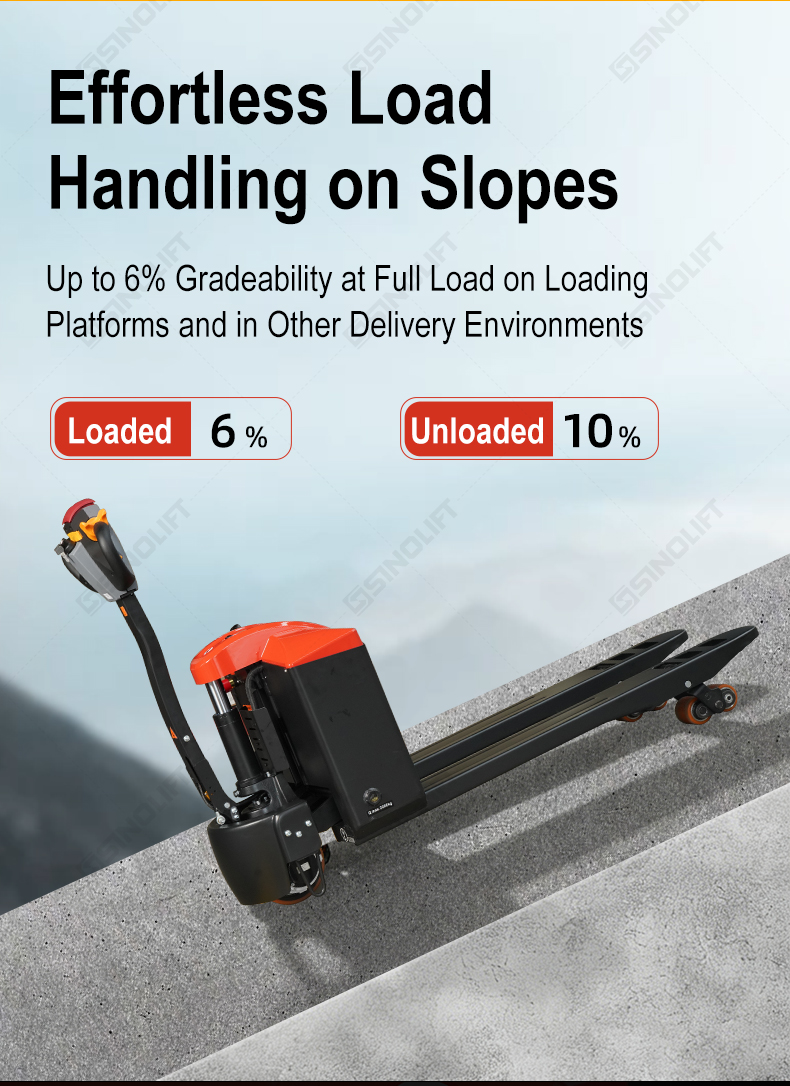

A3: The EPT series is engineered with a powerful drive motor and optimized electronic control, allowing it to easily navigate slopes and uneven warehouse terrain. It boasts a reliable gradeability of up to 6% when fully loaded, ensuring smooth and effortless operation on loading platforms without the risk of rolling backwards.

Q4: Can the pallet truck be customized to accommodate non-standard pallets or specific industry applications?

A4: As a factory-direct manufacturer, we offer comprehensive customization services to meet your unique operational requirements. Whether you need specialized fork dimensions for non-standard pallets, unique body color schemes, or modified structural designs for specific logistics handling, our engineering team can tailor the equipment to your exact needs.

Q5: What after-sales support and warranty terms do you provide for international customers?

A5: We stand behind the quality of our equipment by offering a standard comprehensive warranty on major components like the motor, Curtis controller, and hydraulic pump. Furthermore, our dedicated international support team provides remote troubleshooting, detailed maintenance guides, and quick dispatch of spare parts to ensure your operations run without interruption.
