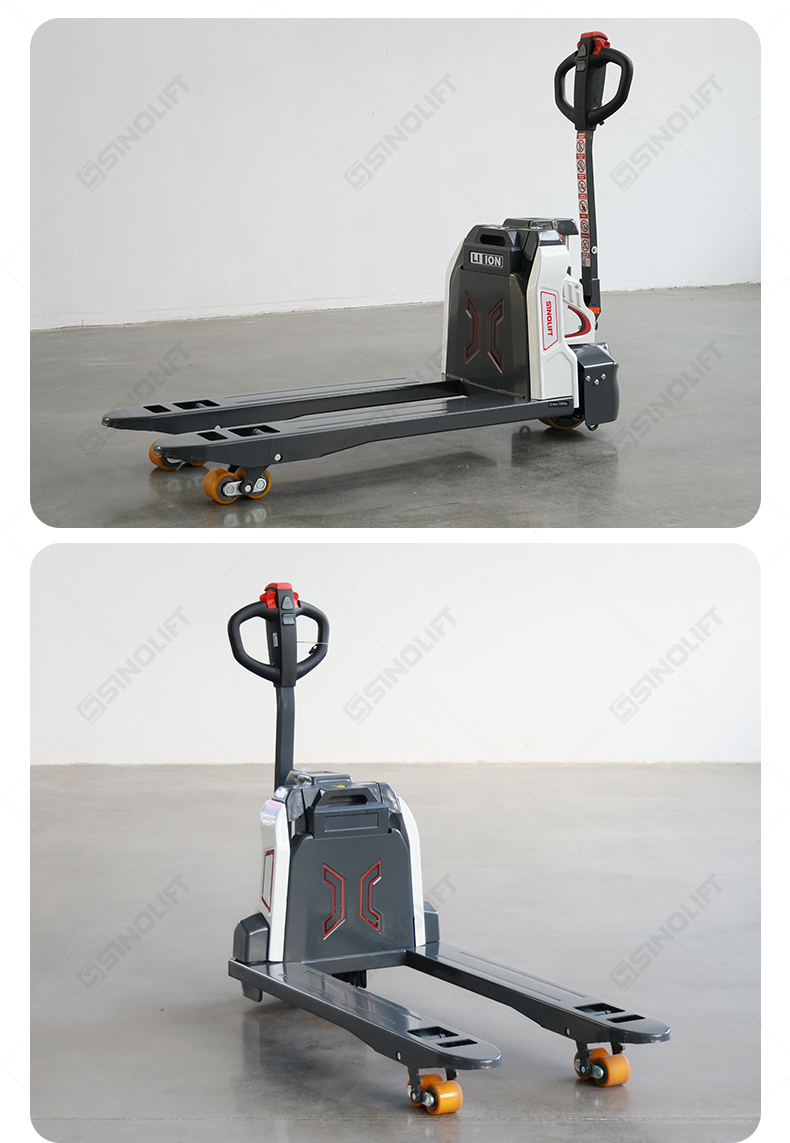

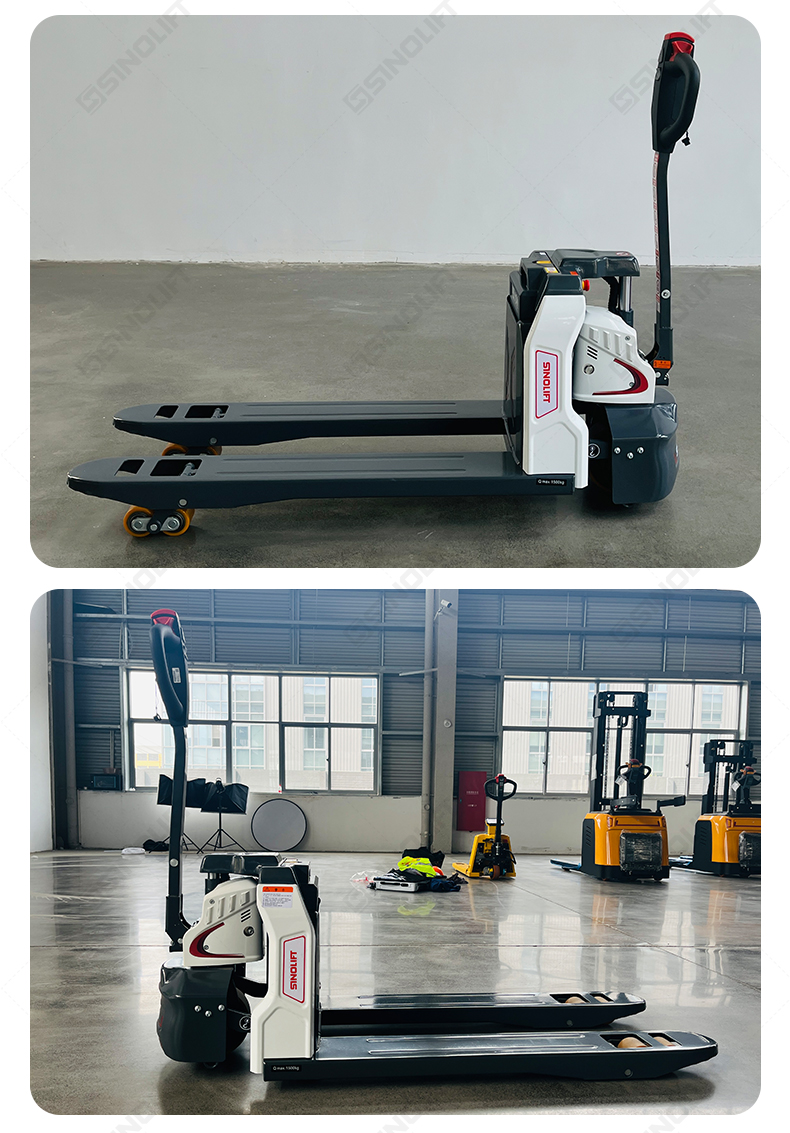

Sinolift China EPT15V heavy-duty electric pallet truck

EPT15V

Quantity:

Contact Now

add to cart

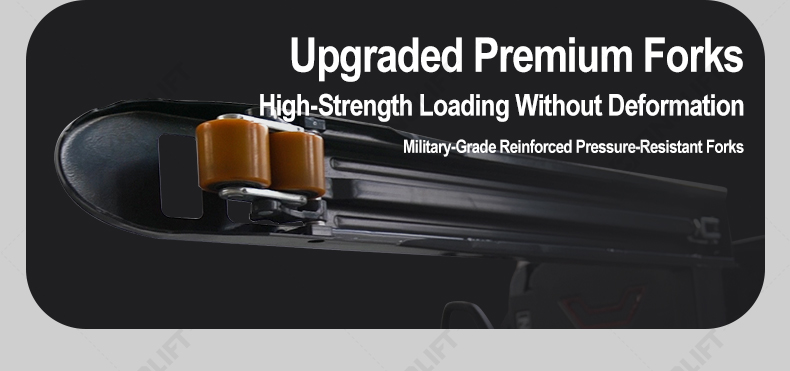

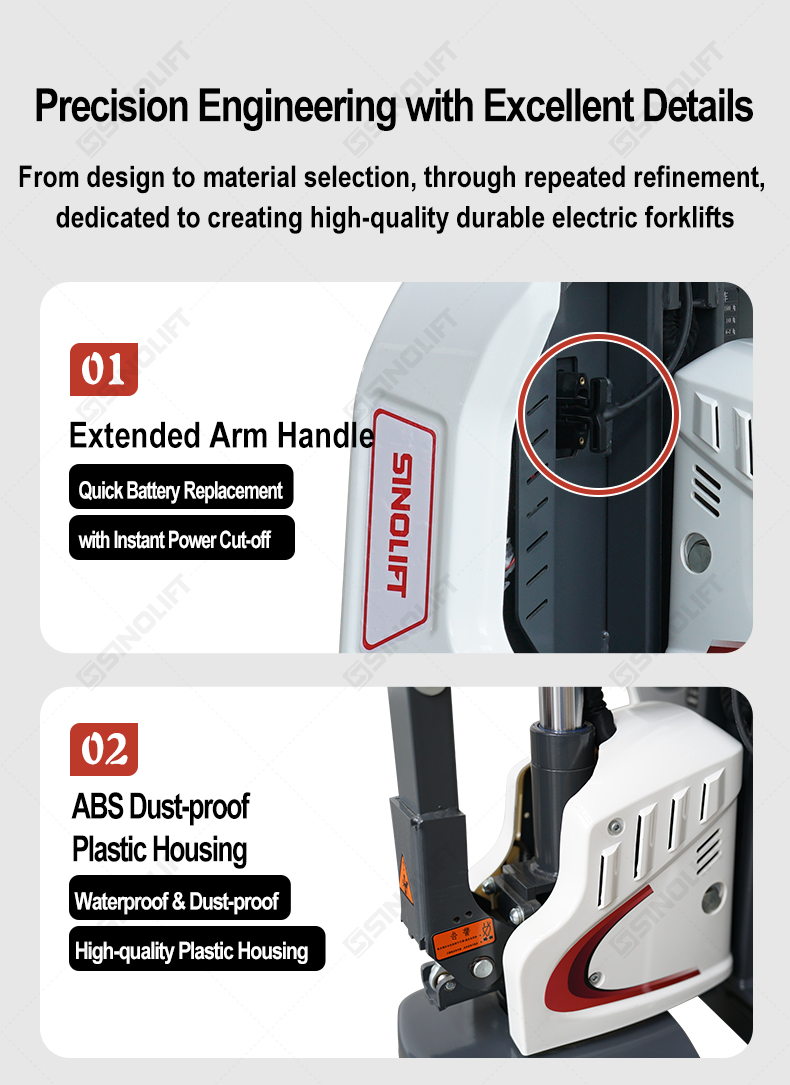

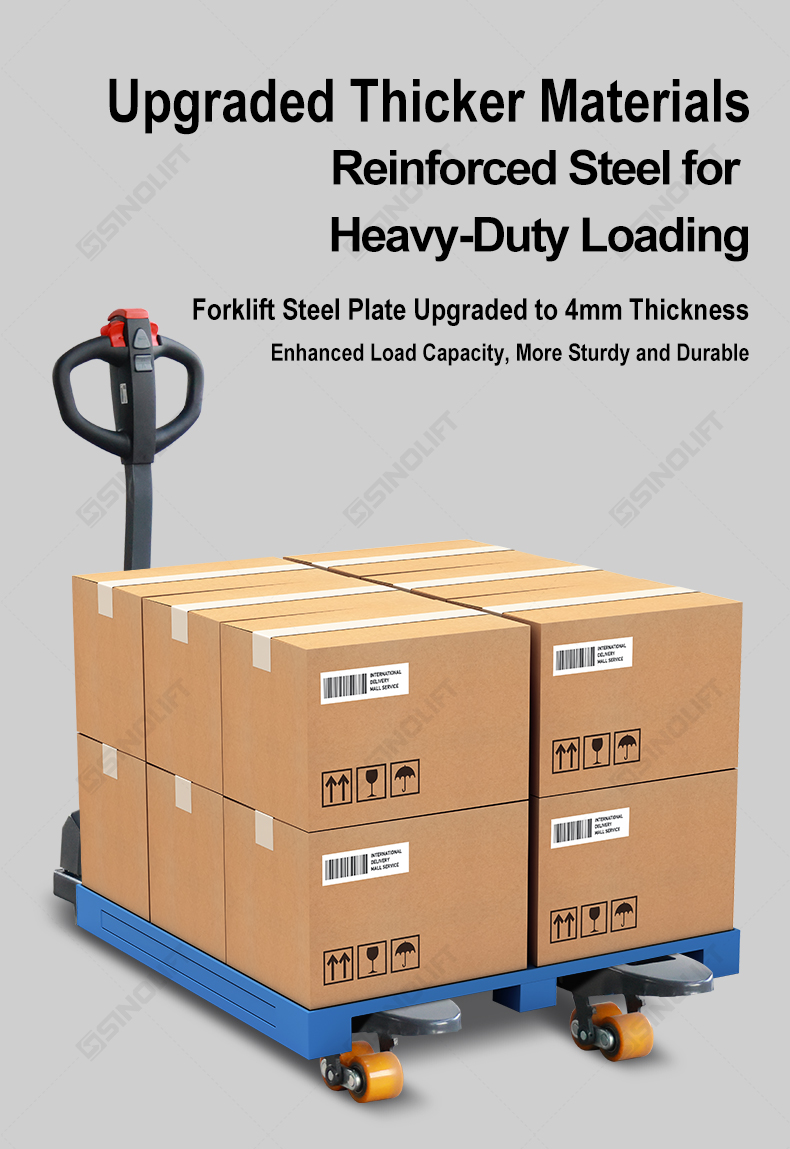

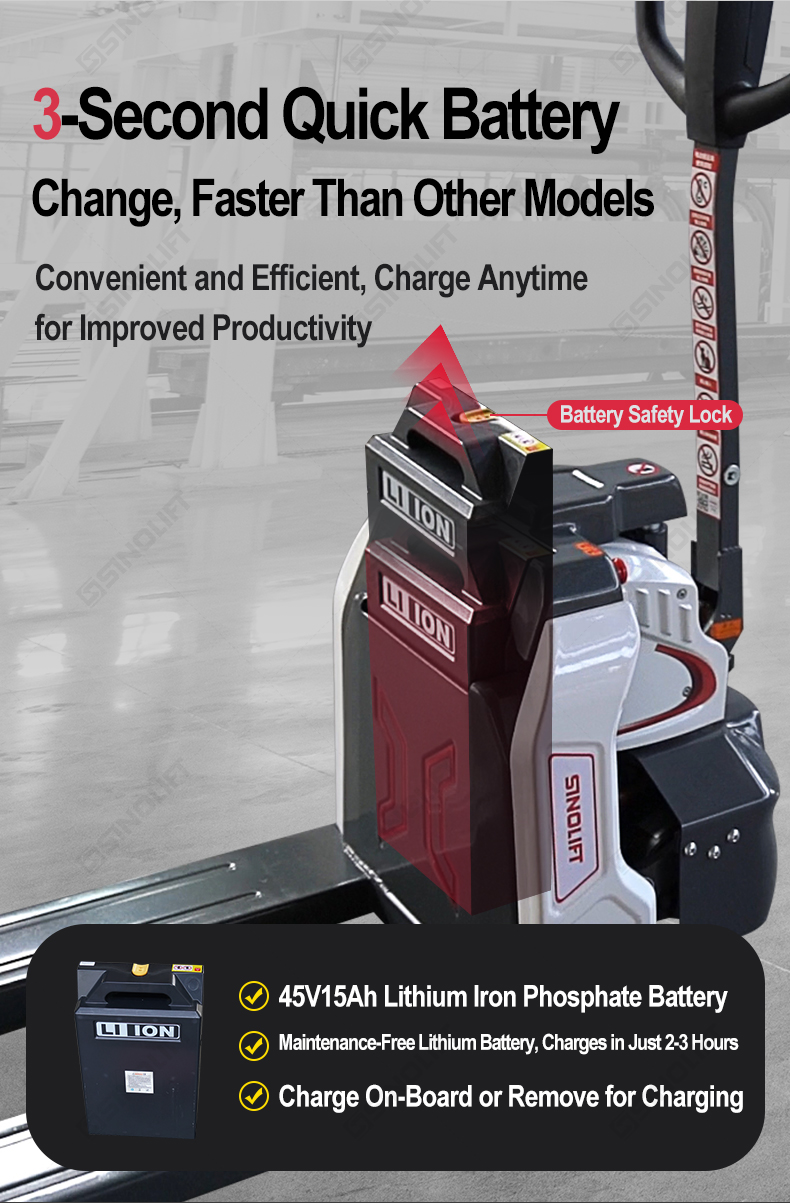

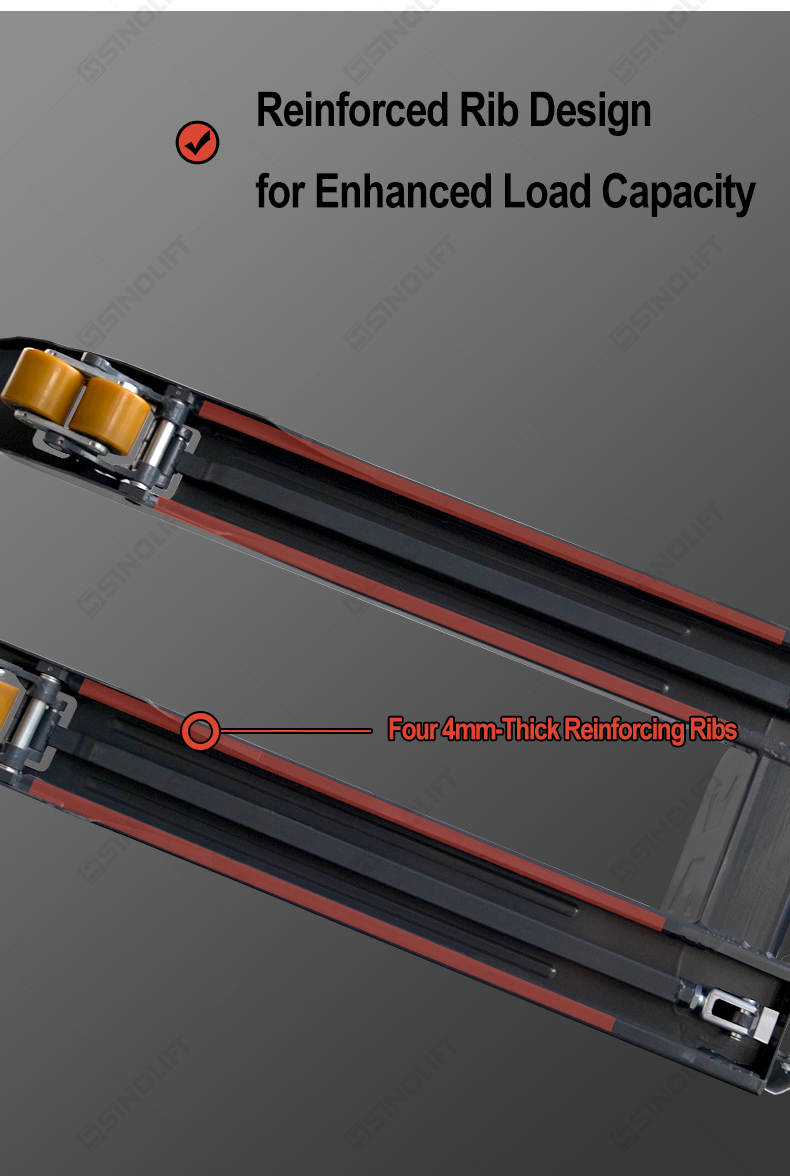

The EPT15V Heavy-Duty Electric Pallet Truck is built for tough, high-demand environments, combining rugged design with cutting-edge technology to provide superior performance. Featuring military-grade reinforced forks, an easy quick battery change system, and advanced climbing capabilities, this pallet truck is ideal for both industrial and logistics applications. Designed with durability and ease of use in mind, the EPT15V ensures smooth operation, even in challenging environments.

Parameter	Unit	EPT15V	EPT20V
Model		EPT15V	EPT20V
Drive Type		Electric
Operation Mode		Walk-behind
Rated Load Capacity	kg	1500	2000
Load Center	mm	600
Front Overhang	mm	950
Wheelbase	mm	1270
Self-weight (with battery)	kg	142	145
Drive Wheel Size	mm	Mechanical Steering

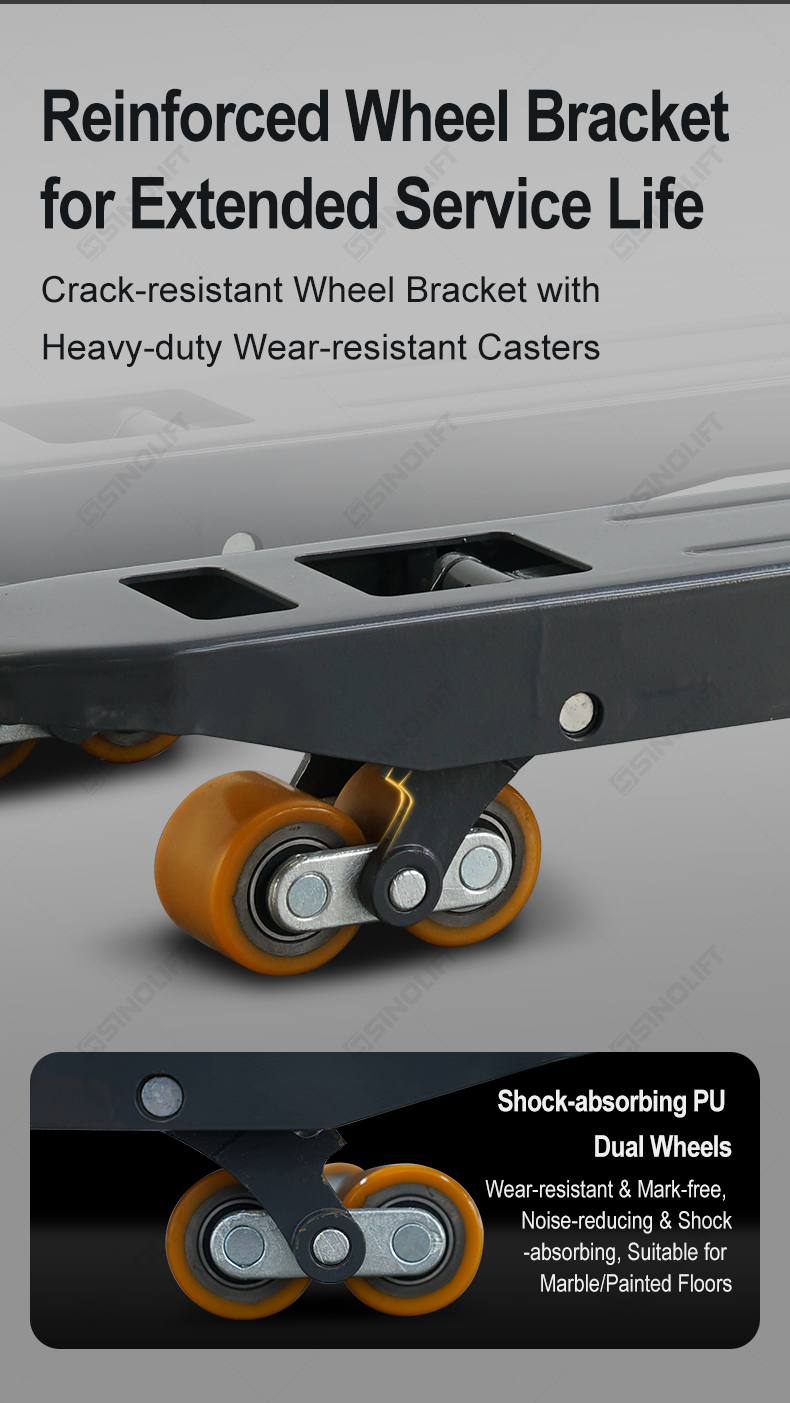

Load Wheel Size	mm	180×70
Wheel Quantity (Front/Rear, X=Drive)	-	1X/4
Wheel Track (Load end)	mm	390/525
Lifting Height	mm	195

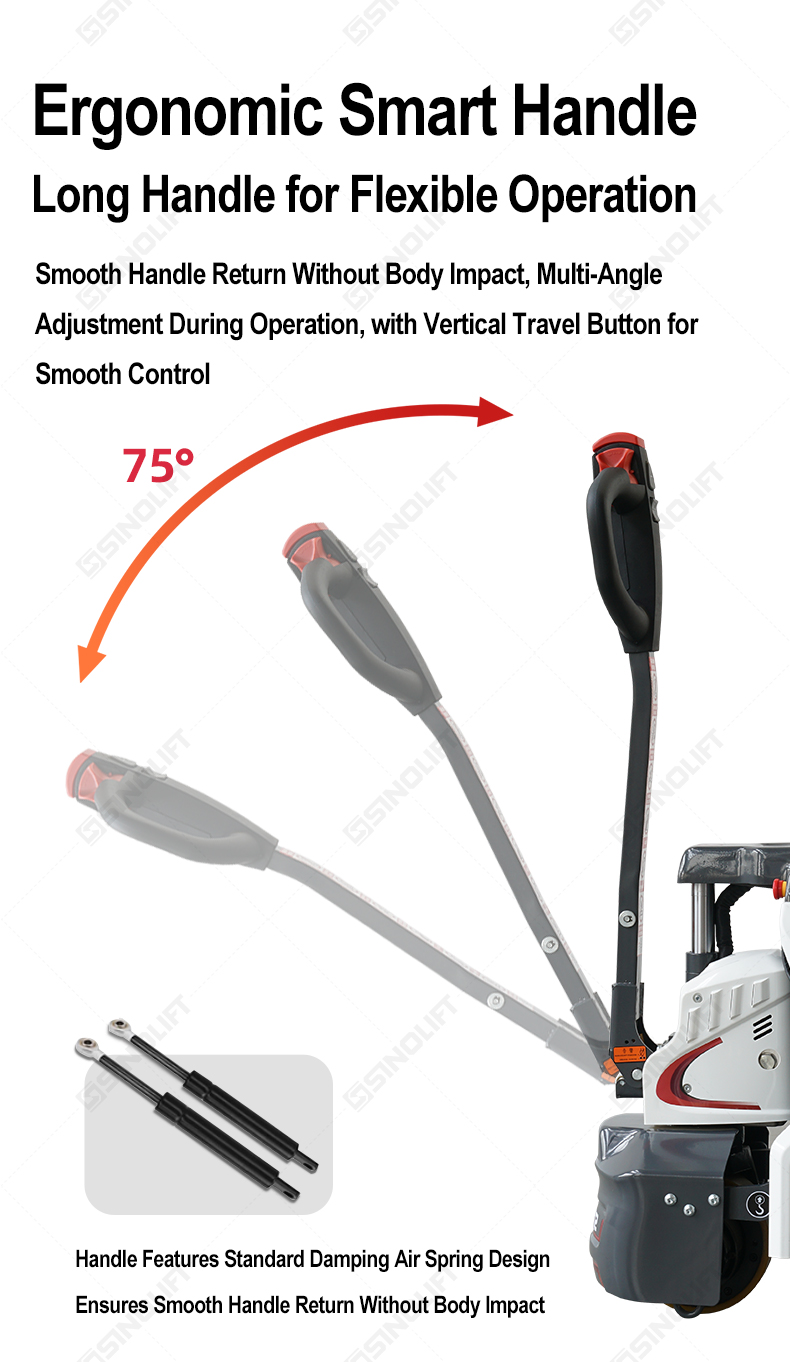

Handle Min/Max Height	mm	Mechanical Steering
Fork Lowest Height	mm	85
Overall Length	mm	1620
Underbody Length	mm	470
Overall Width	mm	550/685
Fork Dimensions	mm	50/160/1150
Fork Outside Width	mm	550/685
Ground Clearance at Wheelbase Center	mm	35
Aisle Width (1000×1200 pallet)	mm	1820
Aisle Width (800×1200 pallet)	mm	1870

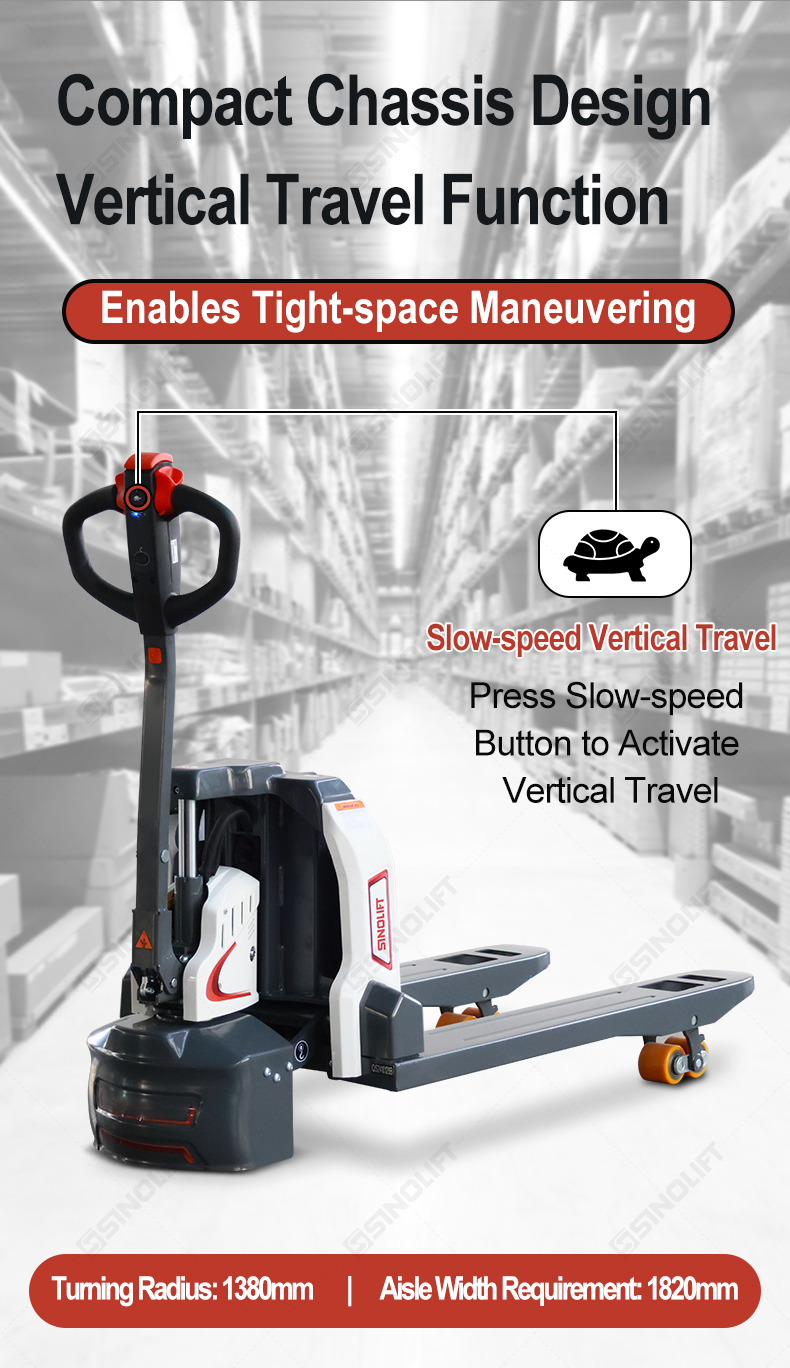

Turning Radius	mm	1380
Travel Speed (Loaded/Unloaded)	km/h	4.2/4.5

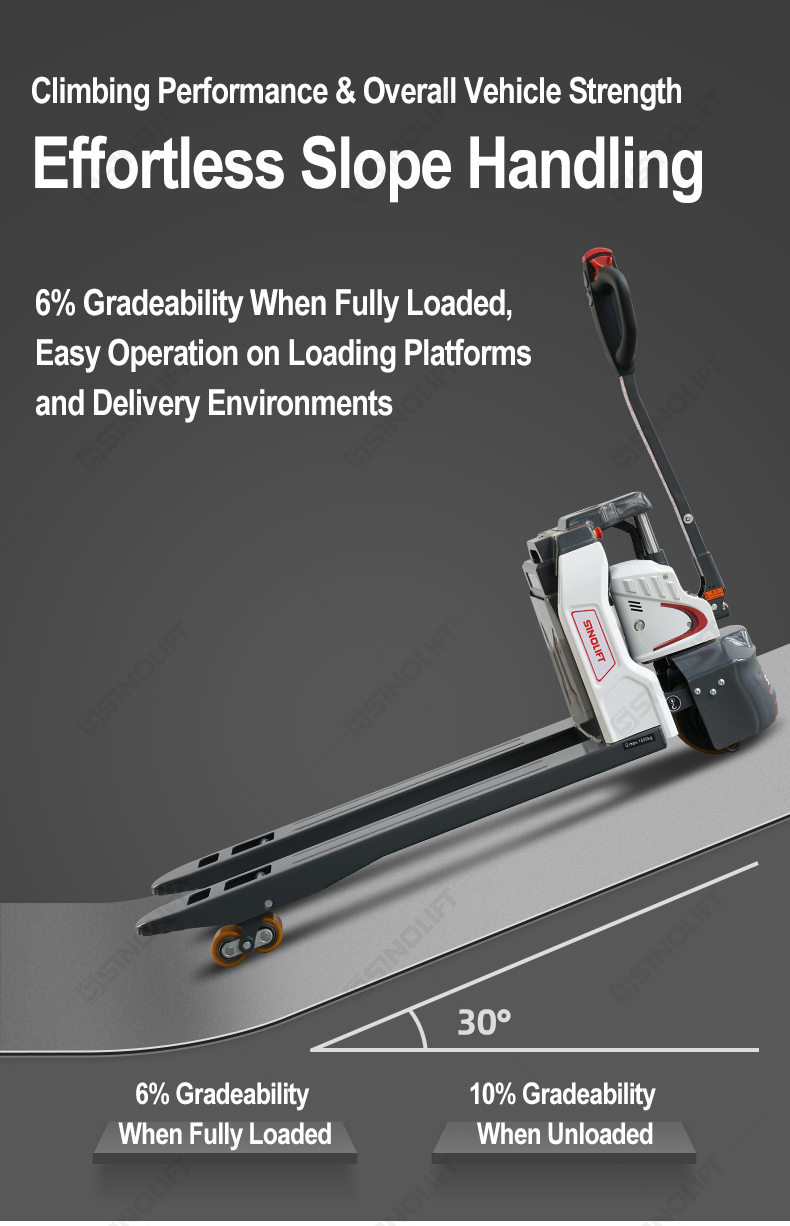

Max Gradeability (Loaded/Unloaded)	%	6/10

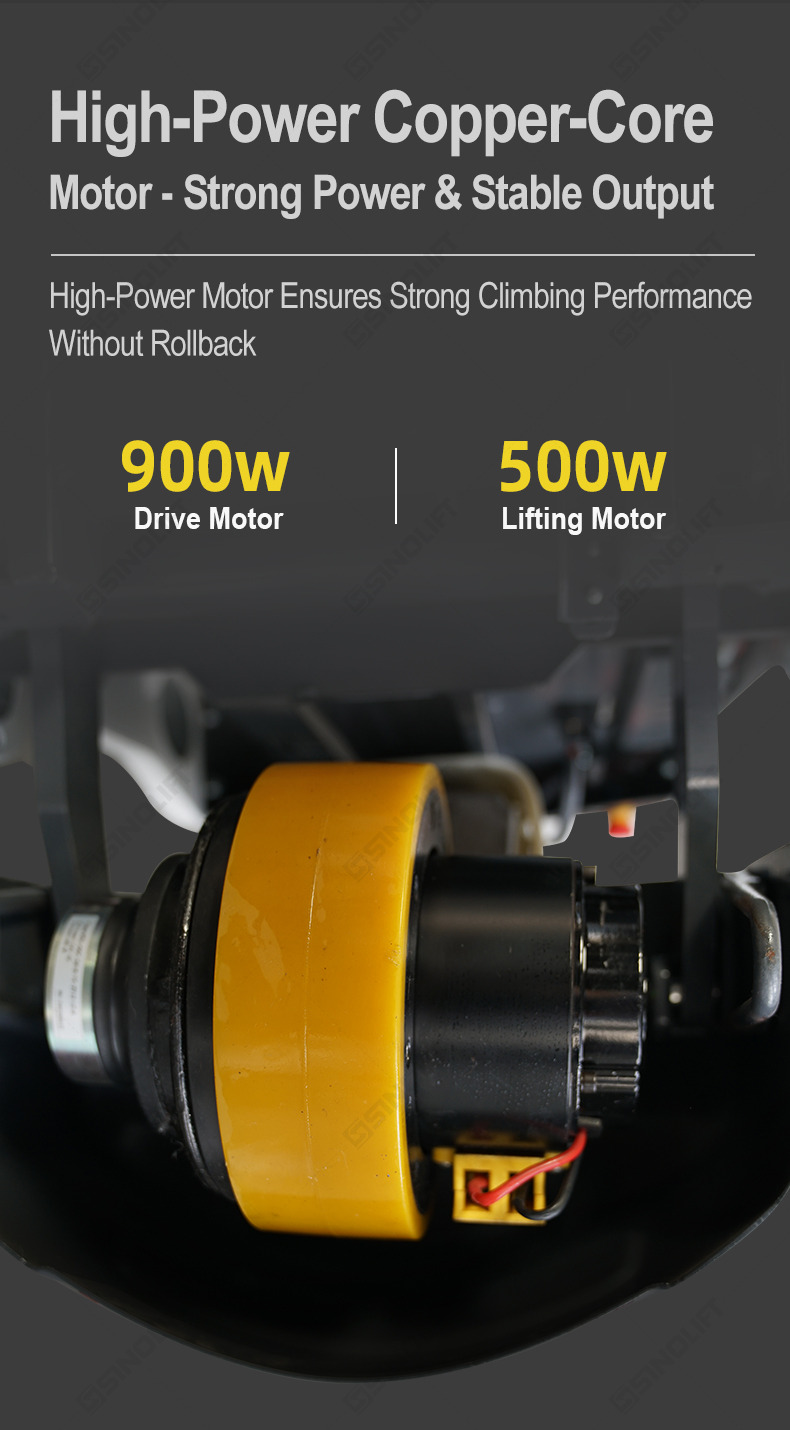

Drive Motor Power	kW	0.75	0.9
Lift Motor Power	kW	0.5	0.5

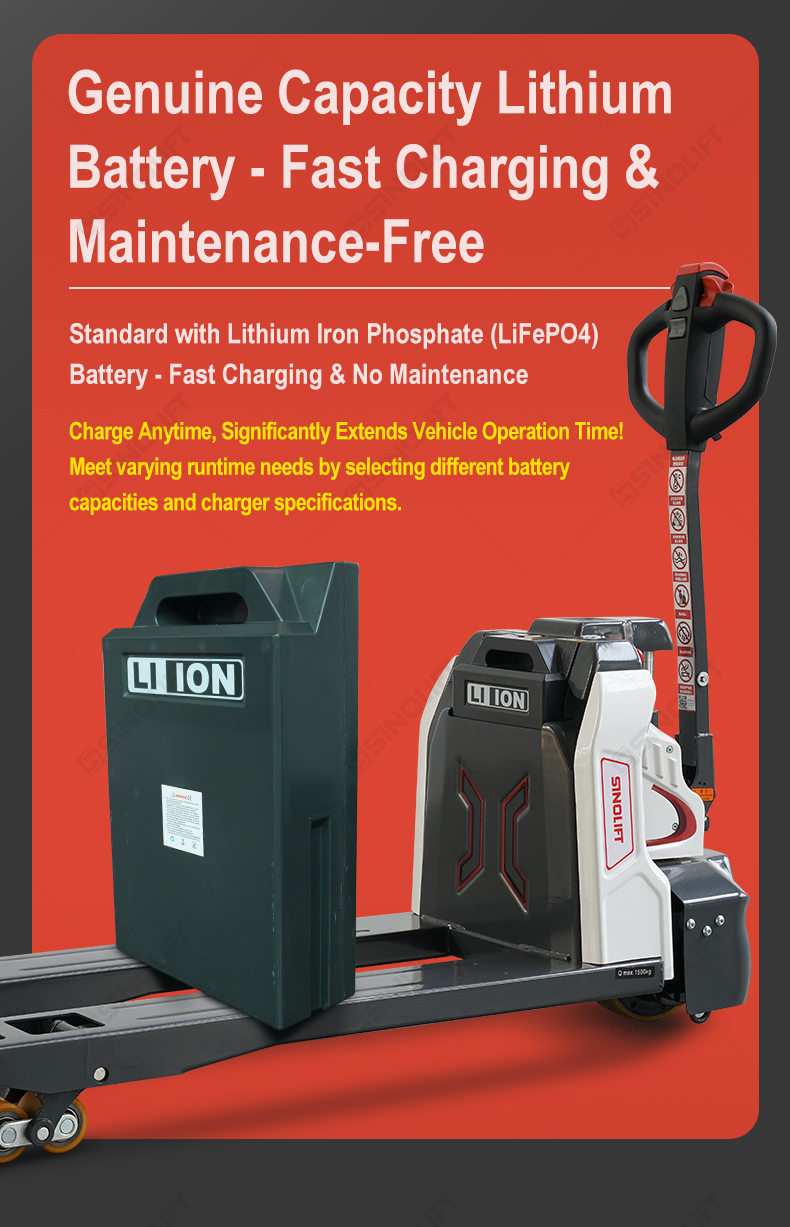

Battery Voltage/Capacity	V/Ah	24/20	48/15
Battery Weight (±5%)	kg	5.5
Noise Level	dB(A)	≤70
Steering Type		Mechanical Steering
