Sinolift CTD1000SR stainless steel semi-electric clamp roll lifter
CTD1000SR
Quantity:

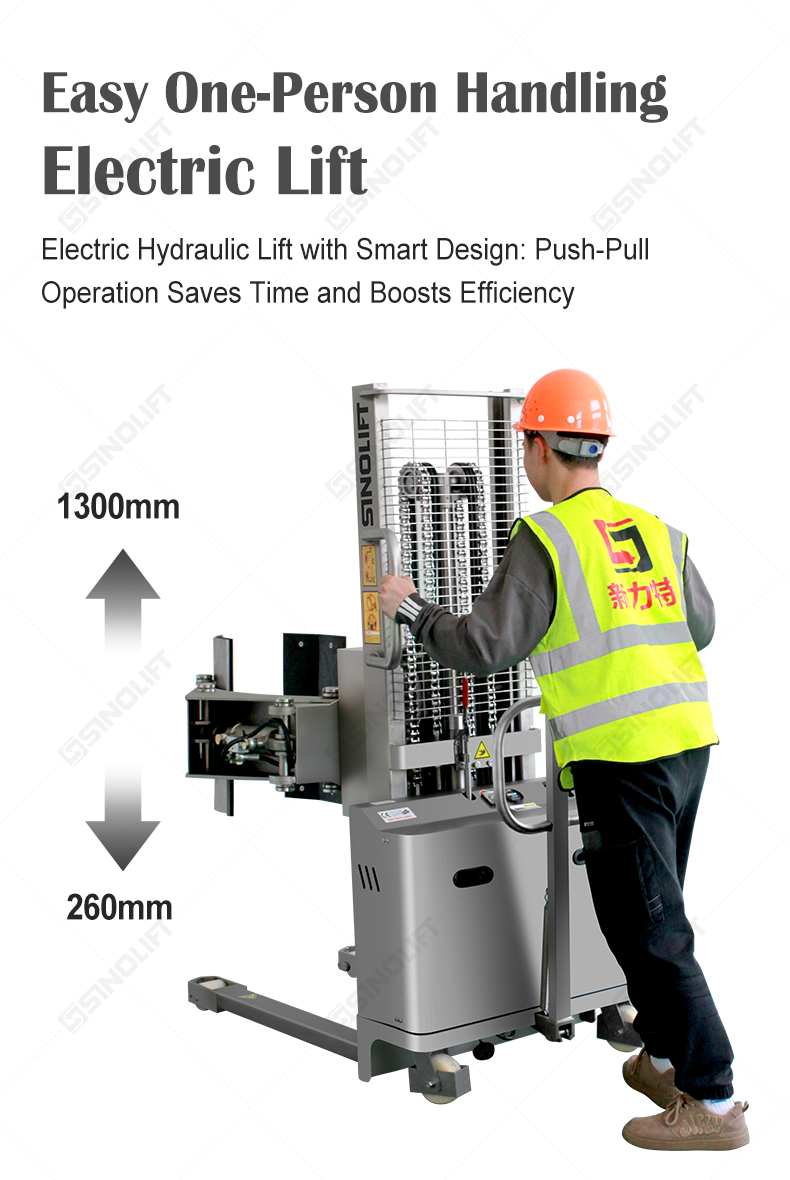

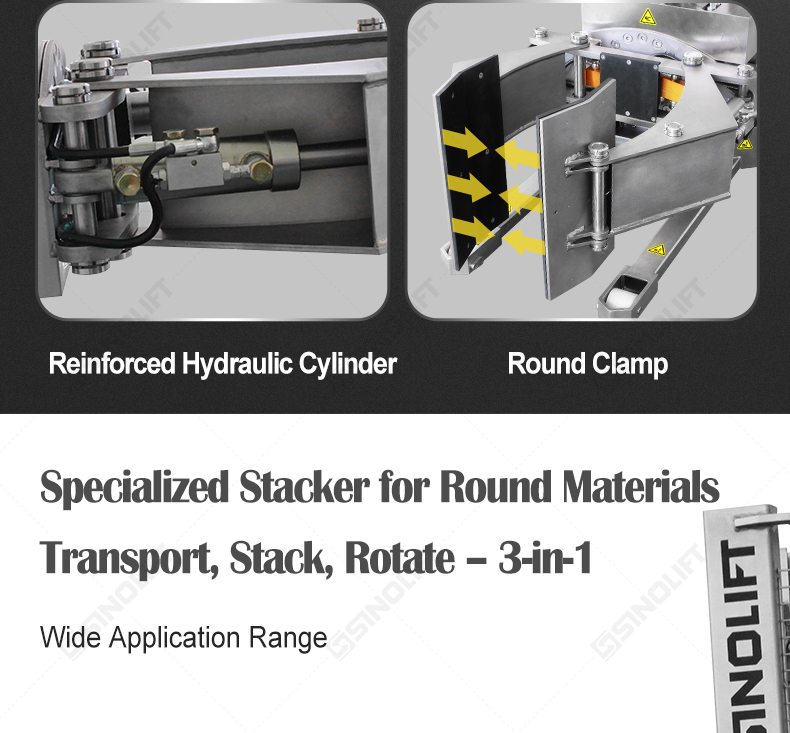

CTD1000SR electric hydraulic lift with smart design:push-pull operation saves time and boots efficiency, reinforced hydraulic cylinder for a tighter,safe grip,tight hold 360 rotating round clamp. Specialized stacker for round materials transport with samrt control panel.
| Model | CTD500-R1000S | |
| Max. Capacity | kg | 500 |
| Drum Diameter Range | mm | Φ400-Φ1000 |
| Maximum Lifting Height (Cylinder in Horizontal Position) | mm | 1300 |
| Minimum Height (Cylinder in Vertical Position, Distance from Center of Drum to the Ground) | mm | 460 |
| Minimum Height (Cylinder in Horizontal Position, Distance from Boom Center to Ground) | mm | 260 |
| Minimum Height (Cylinder in Vertical Position, Minimum Ground Clearance from Drum Bottom) | mm | 0 |
| Clamp Opening Range(Min-Max) | mm | 380-1100 |
| Rotation Angle | c | 360 |

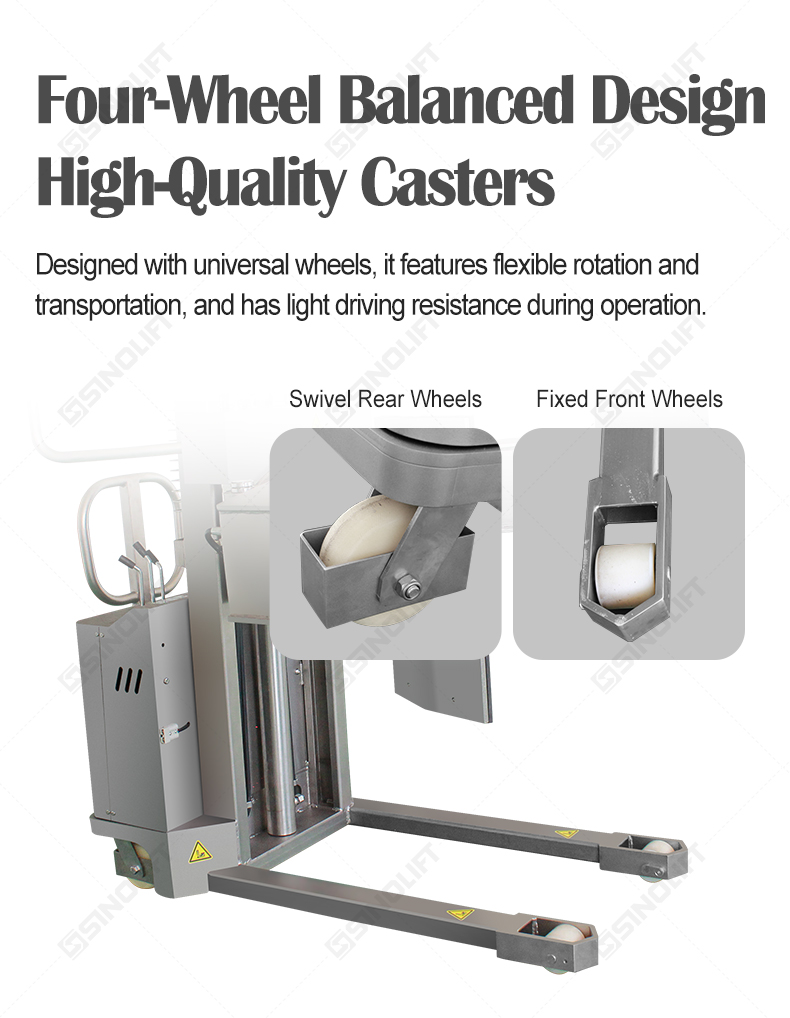

| Wheel Material | Nylon | |
| Front Wheel | mm | Φ80 |
| Rear Wheel | mm | Φ125 |
| Traction Motor | kW | 1.6 |
| Lift Motor | W | Manual |
| Battery | V/Ah | 12V/93Ah |
| Charger | V/A | 12V/20A |
| Lift Speed | Adjustable | |
| Lower Speed | Adjustable | |
| Weight | kg | 350 |
