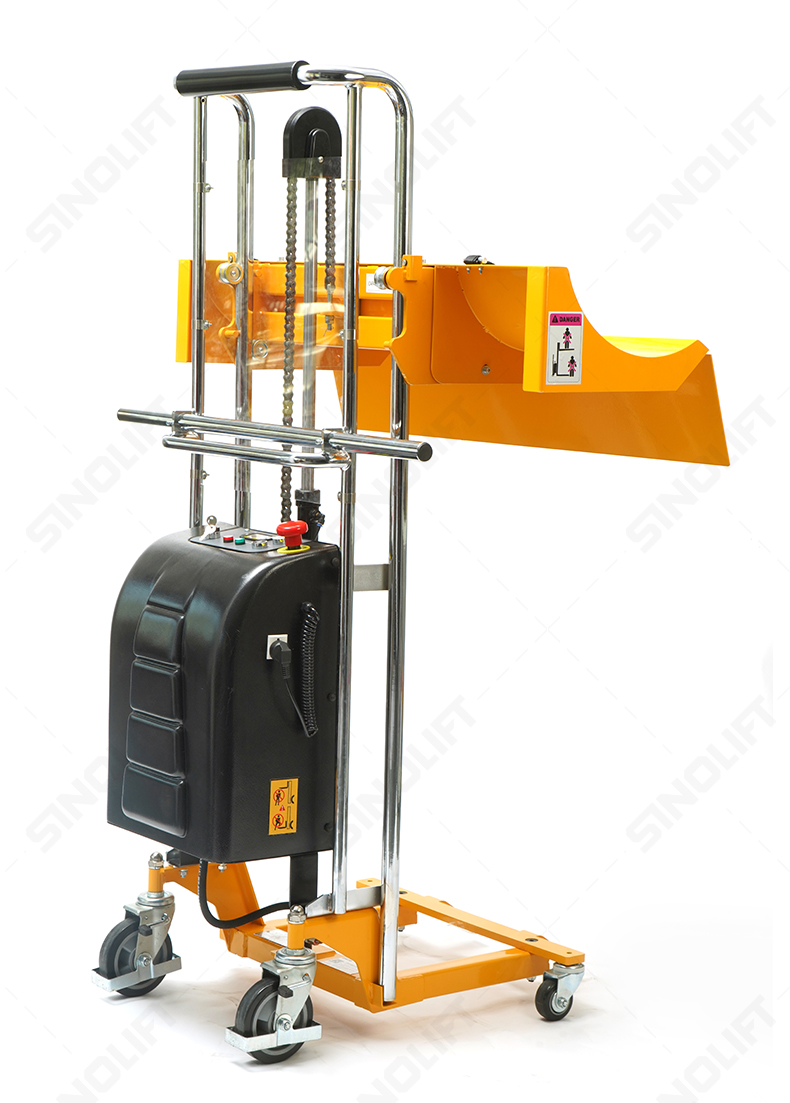

Sinolift china EFR semi-electric 5 meters long roll lifter
EFR3085 EFR3120 EFR3150
Quantity:

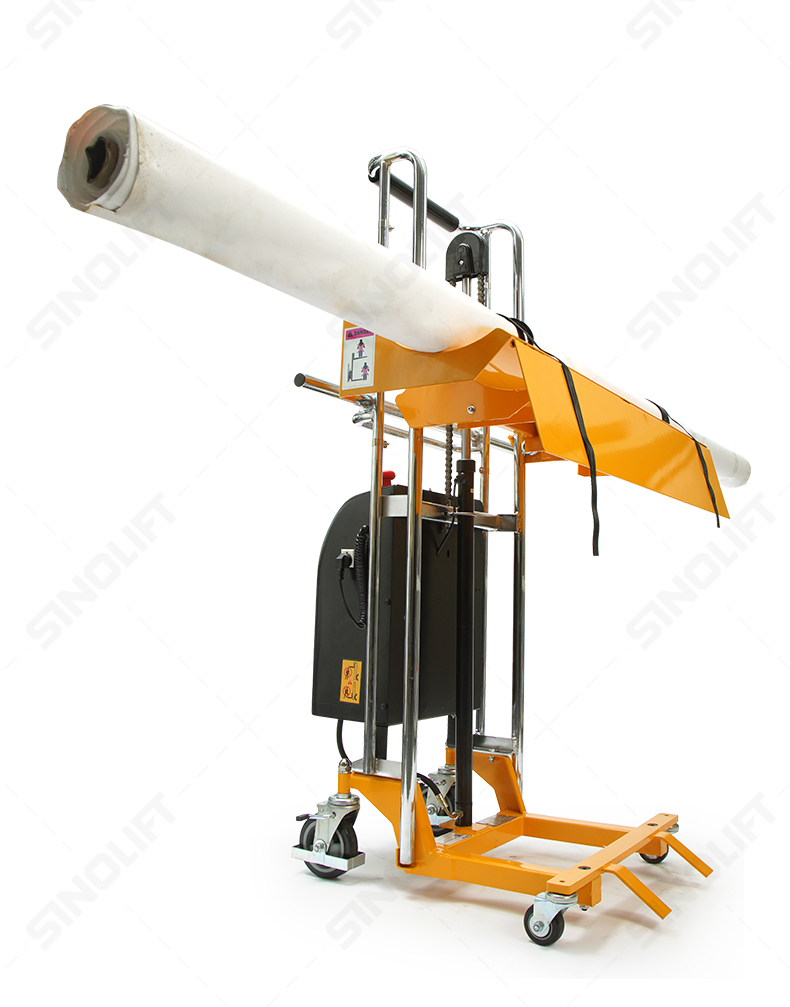

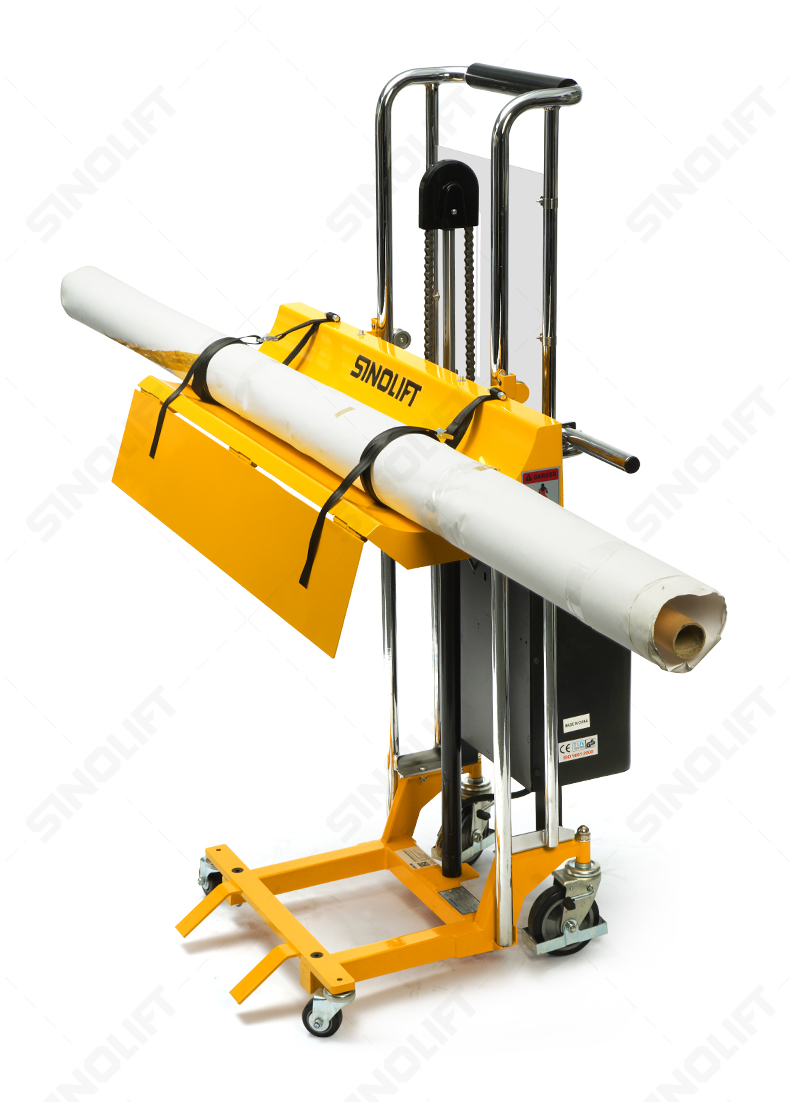

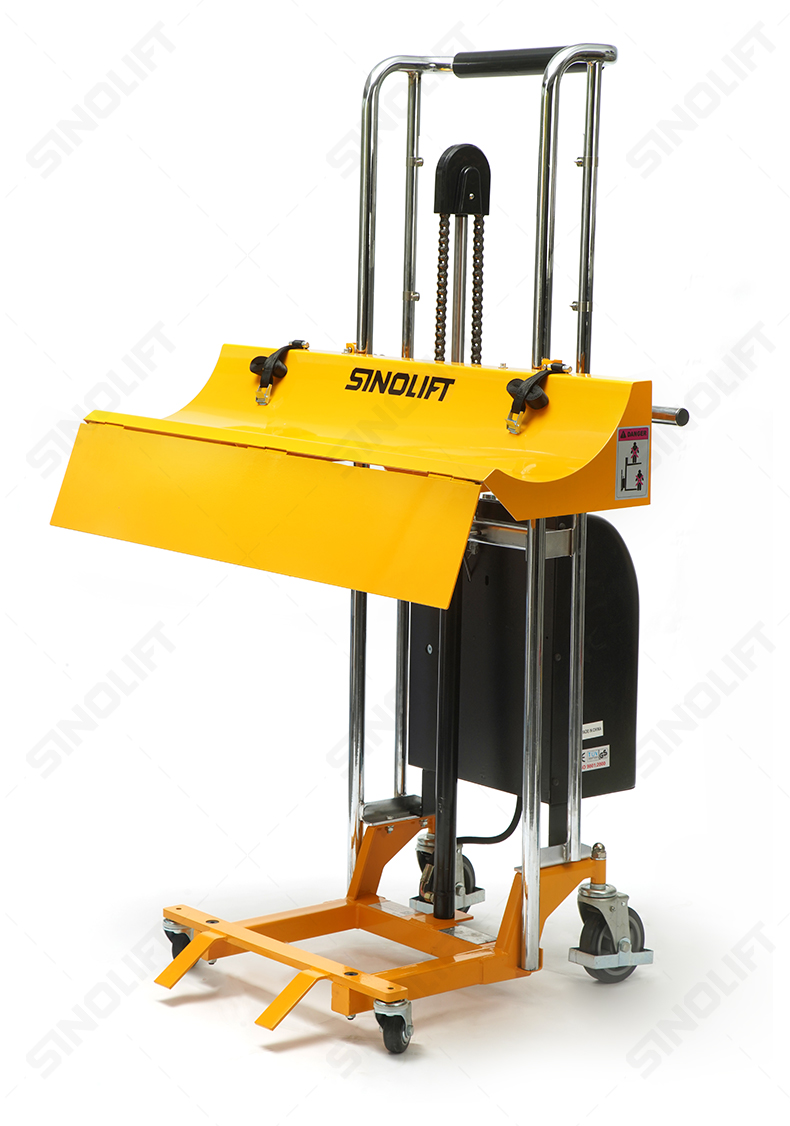

The long roller lifter is a highly specialized material handling tool designed for applications involving long and cylindrical loads, such as rolls of paper, fabric, film, or other similar materials. Its robust construction and versatile design make it an essential piece of equipment in industries like printing, textiles, packaging, and manufacturing.
| Model | EFR3085 | EFR3012 | EFR3015 | ||
| Vendor Export Code | 61563 | 61565 | 61567 | ||

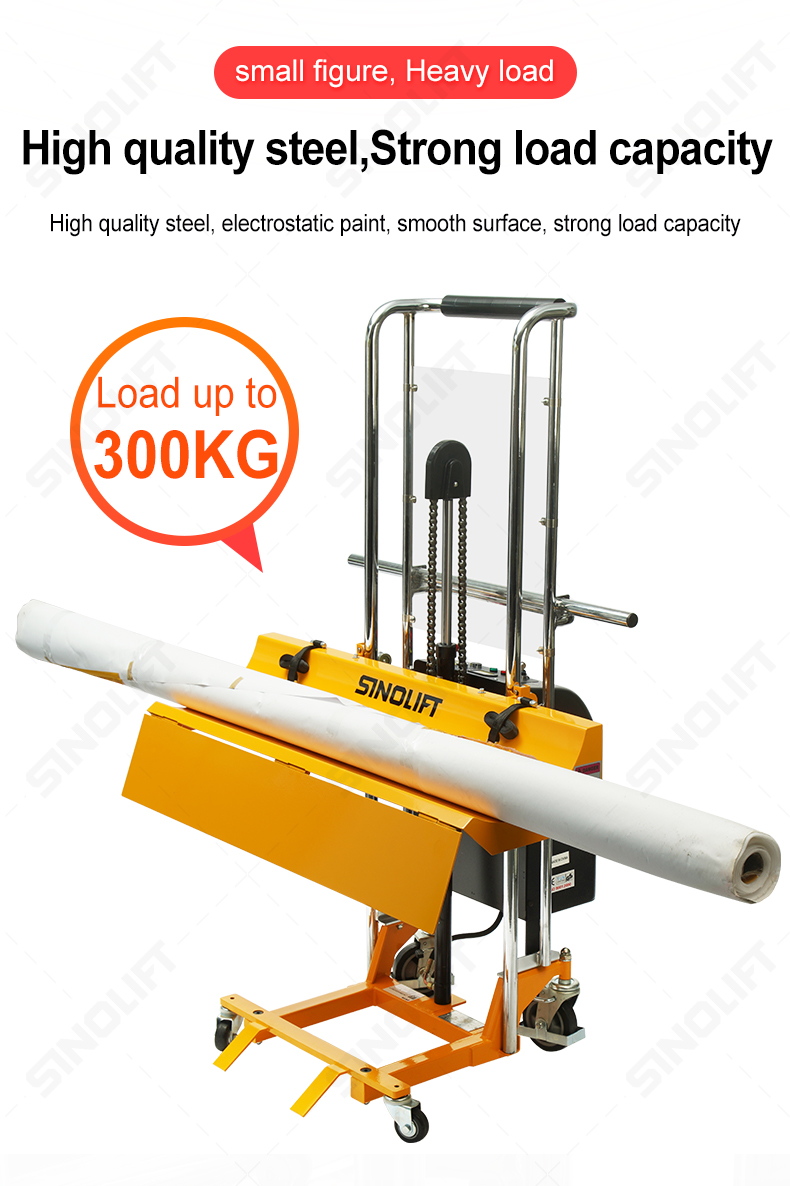

| Roll Load Capacity | kg(lbs) | 300(660) | 300(660) | 300(660) | |
| Load Center | c | mm(inch) | 350(13.75") | 350(13.75") | 350(13.75") |
| Wheelbase | y | mm(inch) | 612(24.09") | 612(24.09") | 612(24.09") |
| Bottom Fork Clearance | h1 | mm(inch) | 115(4.53") | 115(4.53") | 115(4.53") |

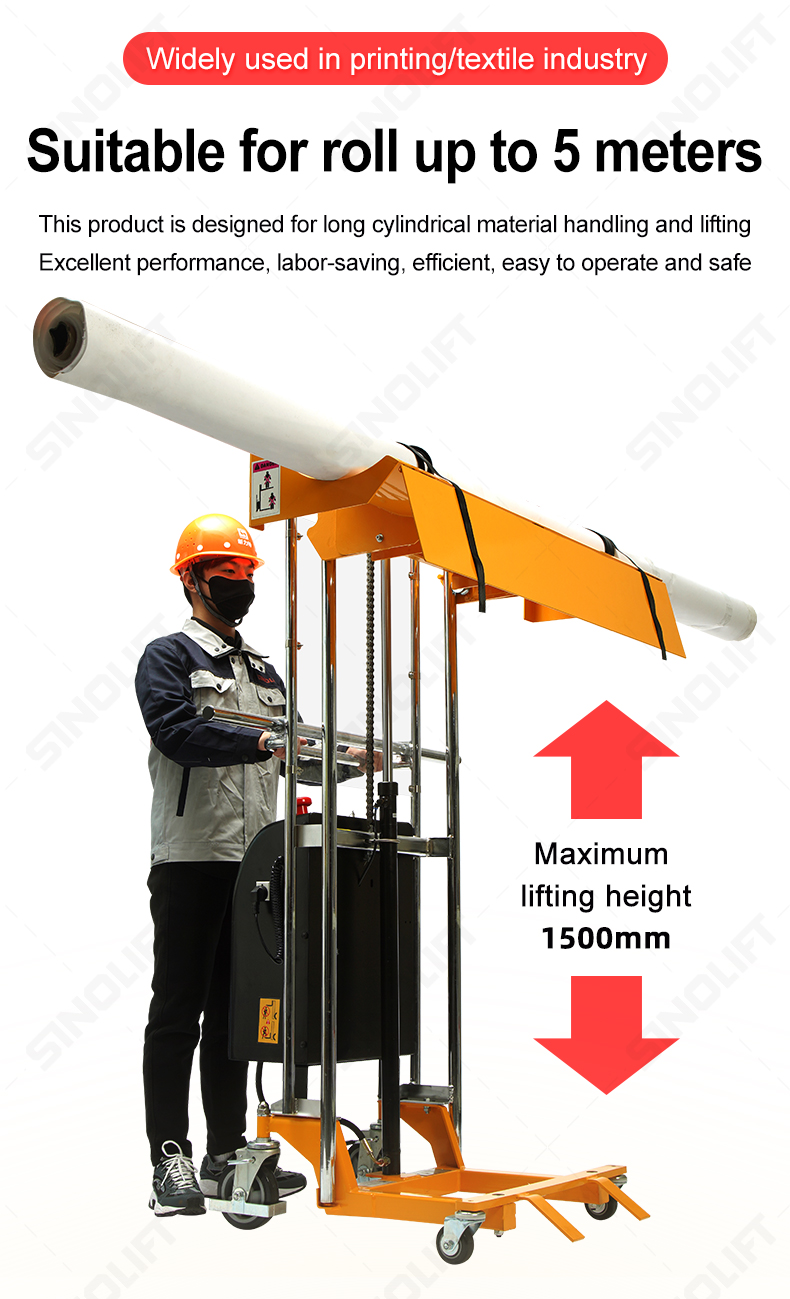

| Max. Lifting Height | h2 | mm(inch) | 850(33.46") | 1200(47.24") | 1500(59") |
| Max. Roll Diameter | 2R | mm(inch) | 410(16.14") | 410(16.14") | 410(16.14") |

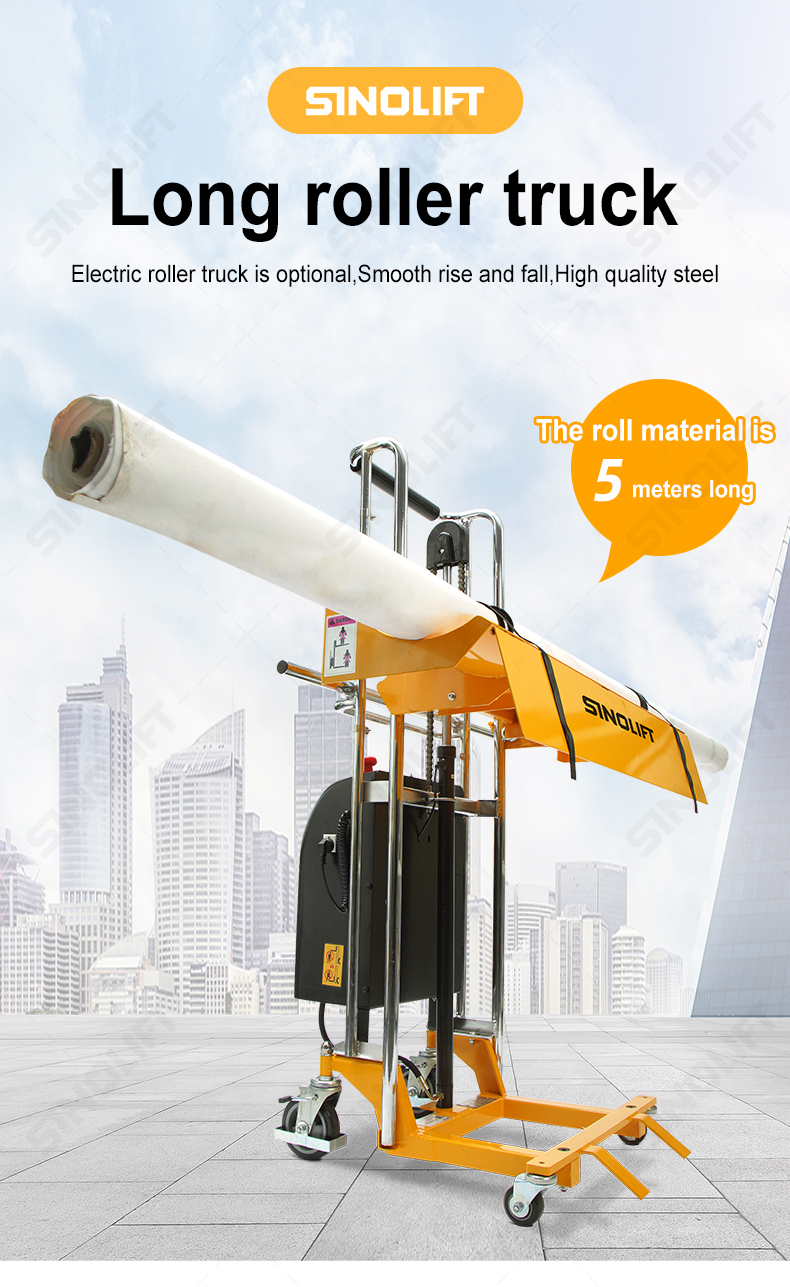

| Max. Roll Width | m(inch) | 5(16'5") | 5(16'5") | 5(16'5") | |
| Overall Length | l | mm(inch) | 974(38.34") | 926.5(36.47") | 974(38.34") |
| Overall Width | w | mm(inch) | 1208 (47.56") | 1208 (47.56") | 1208 (47.56") |
| Overall Height | h | mm(inch) | 1122(44.17") | 1475(58.07") | 1775(70") |

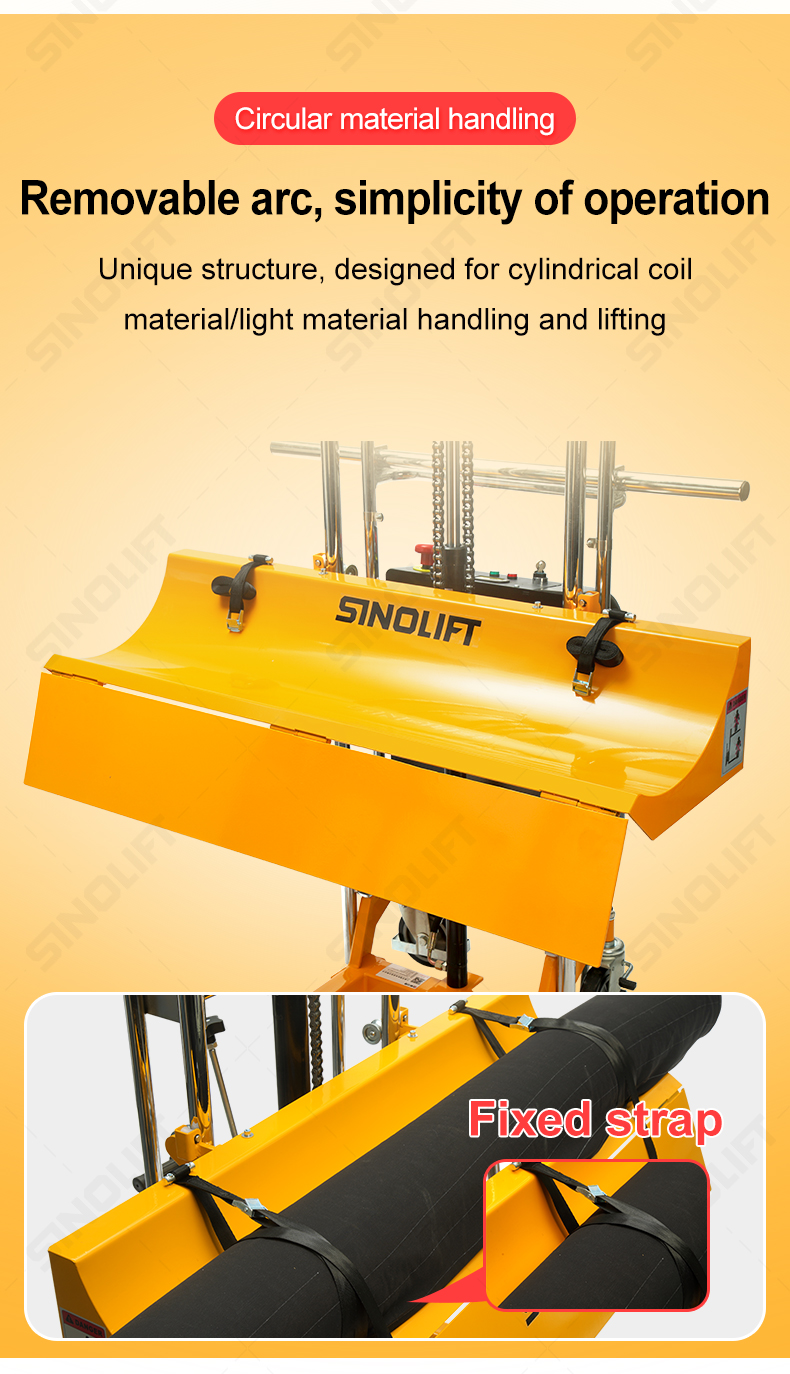

| Width of Loading Tray | w1 | mm(inch) | 1200(47.24") | 1200(47.24") | 1200(47.24") |
| Width of Handrail | w2 | mm(inch) | 1200(47.24") | 1200(47.24") | 1200(47.24") |
| Width of Load Frame Cross Member | w3 | mm(inch) | 680(26.77") | 680(26.77") | 680(26.77") |

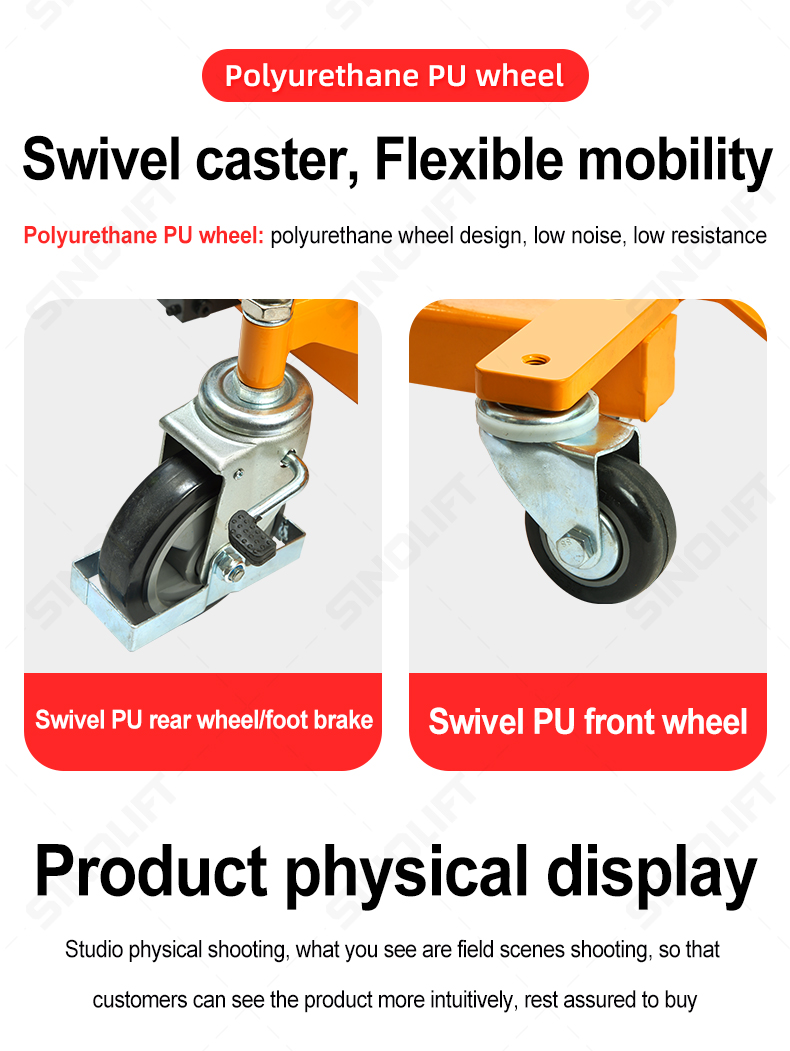

| Load Wheel (Swivel) | mm(inch) | Φ75(Ø3") | Ø75(Ø3") | Ø75(Ø3") | |
| Rear Wheel (Swivel) | mm(inch) | Ø150X40(Ø5"x1.57") | Ø150X40(Ø5"x1.57") | Ø150X40(Ø5"x1.57") | |

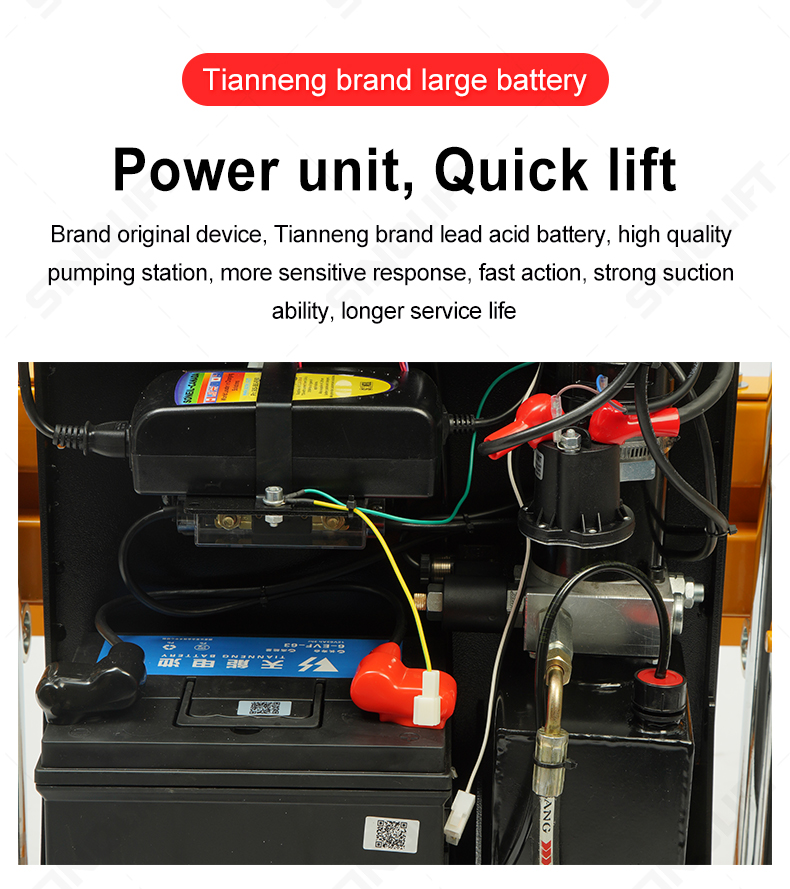

| Battery (Maintenance-free Lead Acid) | V/Ah | 12/60 | 12/60 | 12/60 | |
| Charger | V/A | 12/10 | 12/10 | 12/10 | |
| Weight | kg(lbs) | 93(205) | 123(271) | 153(271) |
