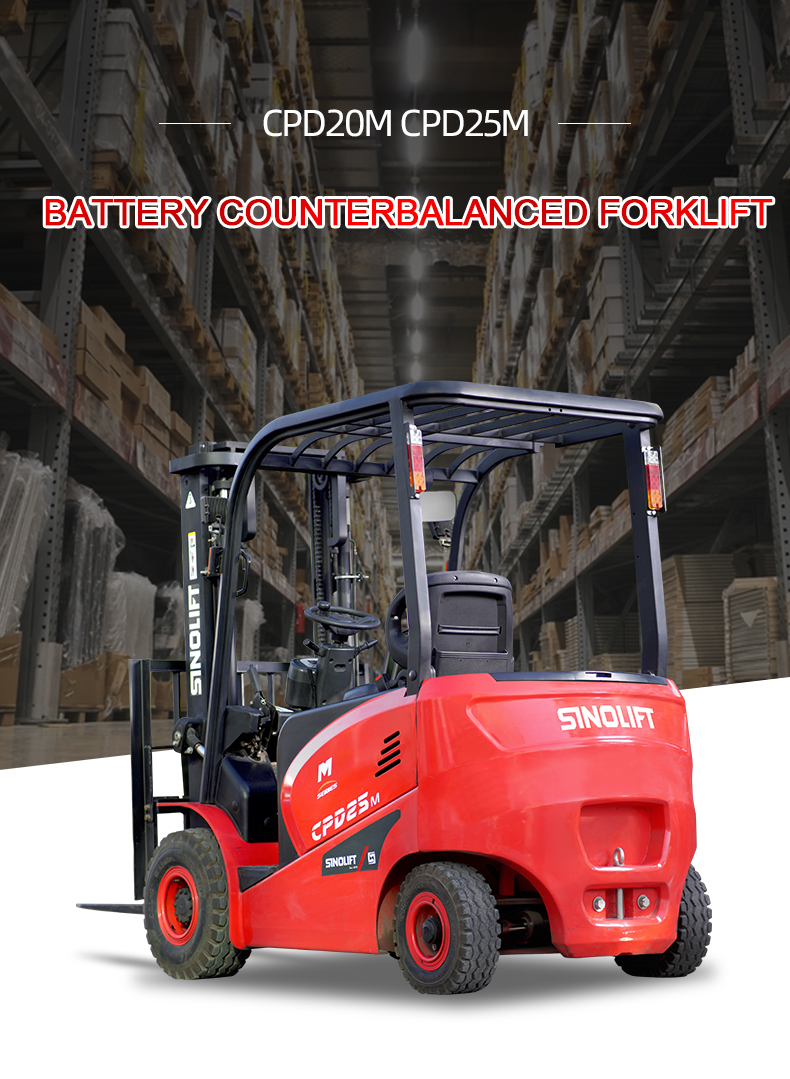

CPD20M CPD25M Electric Forklift Truck
CPD20M CPD25M
Quantity:
CPD20M CPD25M Electric Forklift Truck
* Rated load capacity: 2-2.5 tons (4400-5500 lbs).
* High performance and big productivity in a compact body.

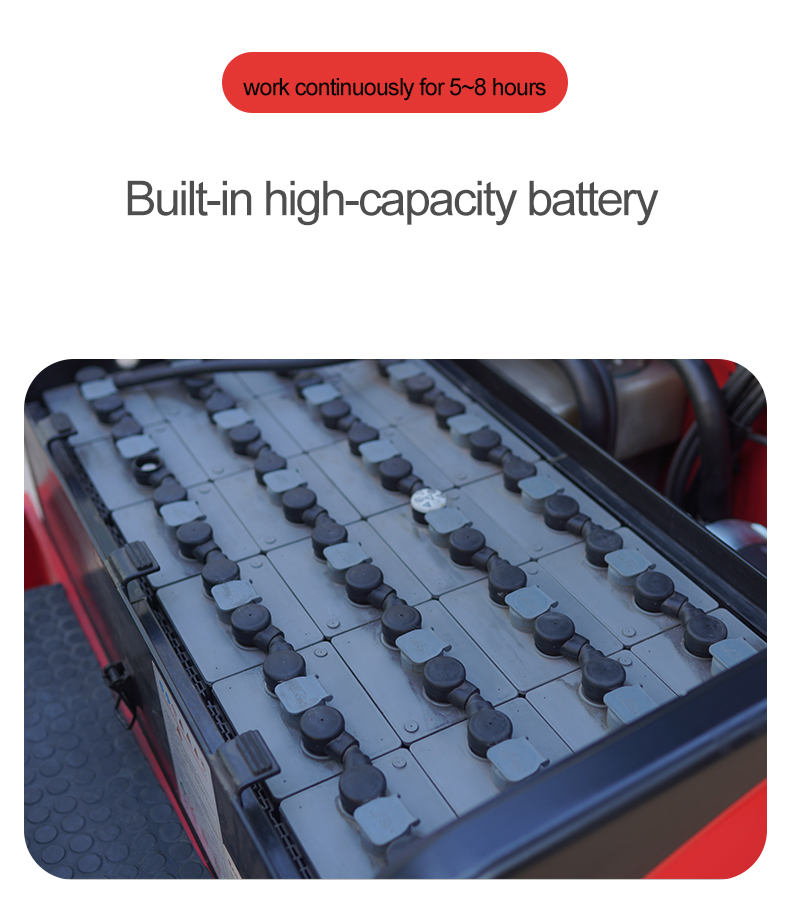

* Long operating time and long battery life for your long-term business.
* Excellent stability during turning and load handling to support efficient work.
* Smooth starting, driving and braking for stress-free operation in your hands.

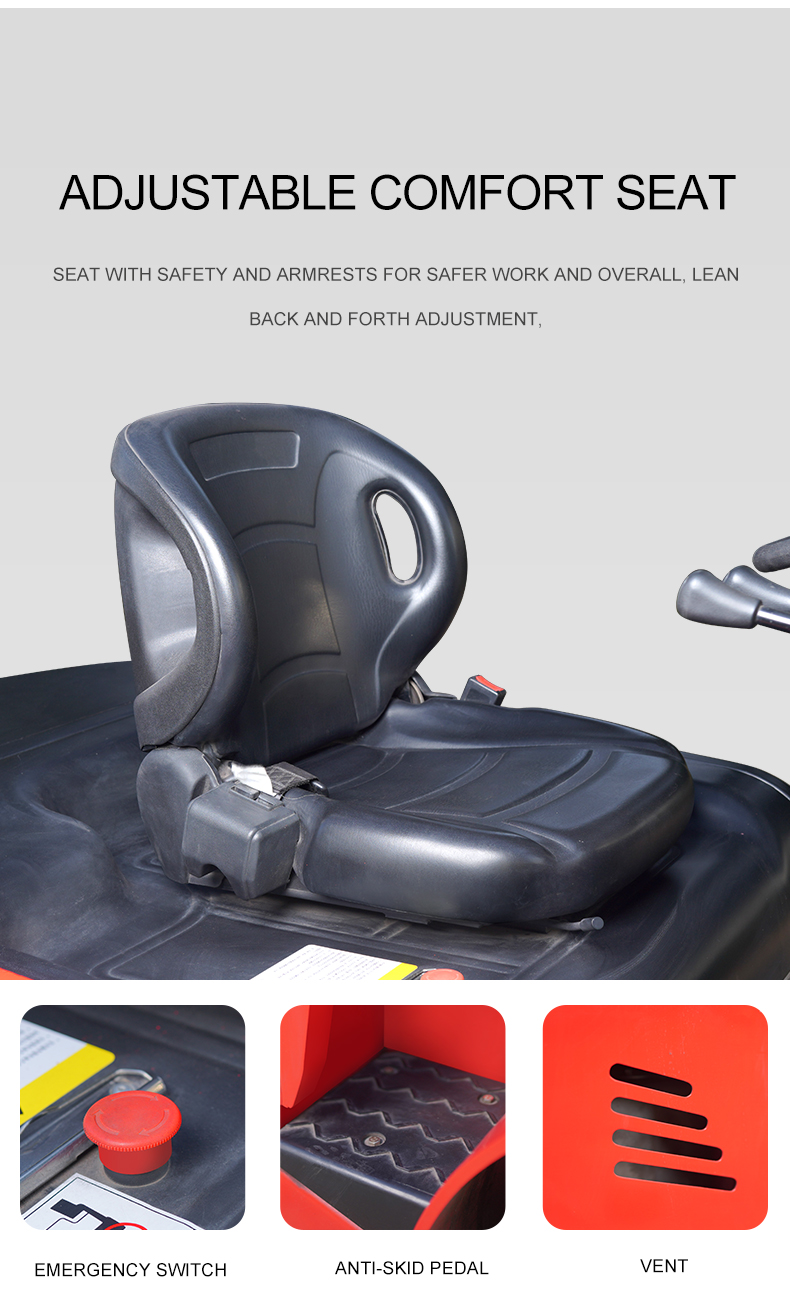

* Comfortable design and easy-to-operate features for everyday operation.
* Easy to maintain and easy to manage to fully support your workplace.
* High performance and big productivity in a compact body.
* Long operating time and long battery life for your long-term business.
* Excellent stability during turning and load handling to support efficient work.

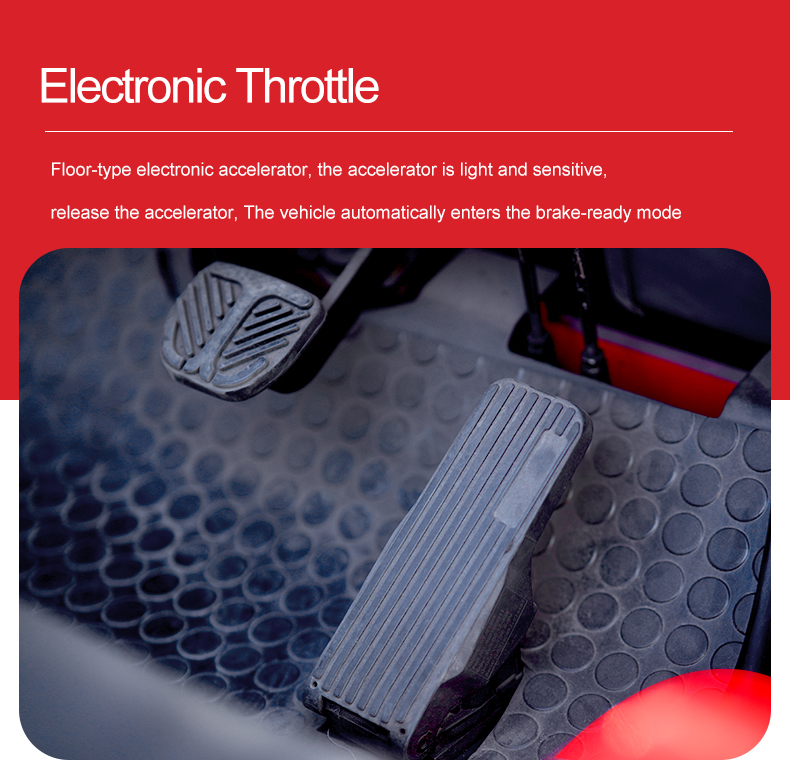

* Smooth starting, driving and braking for stress-free operation in your hands.

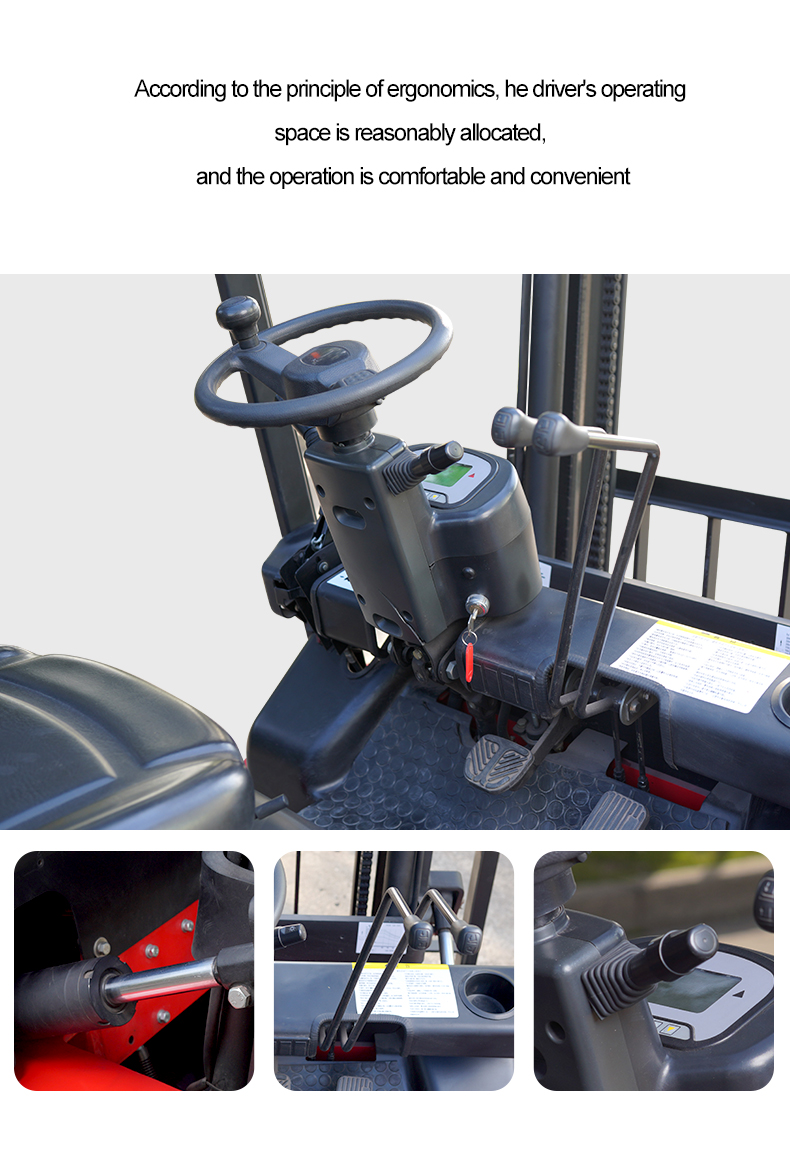

* Comfortable design and easy-to-operate features for everyday operation.
* Easy to maintain and easy to manage to fully support your workplace.
| Model | CPD20-MA1 | CPD25-MA1 | ||
| Power Type | Electric | Electric | ||
| Operation Type | Seated | Seated | ||
| Rated Capacity | Q | kg | 2000 | 2500 |
| Load Centre | c | mm | 500 | 500 |
| Front Overhang | L2 | mm | 435 | 435 |
| Wheelbase | L1 | mm | 1485 | 1485 |
| Mast Tilt Angle | α/β | ° | 6/12 | 6/12 |
| Mast Lowered Height | H1 | mm | 2050 | 2050 |
| Free Lift Height | H3 | mm | 140 | 140 |
| Standard Mast Lift Height | H | mm | 3000 | 3000 |
| Mast Extended Height | H2 | mm | 4025 | 4025 |
| Overhead Guard Height | H4 | mm | 2125 | 2125 |
| Distance from Botoom to Seat | mm | 1070 | 1070 | |
| Traction Bolt Height | mm | 308 | 308 | |
| Overall Length (include forks) | L | mm | 3400 | 3400 |
| Length to Face of Fork | L' | mm | 2330 | 2330 |
| Overall Width | W1 | mm | 1265 | 1265 |
| Fork Size | TxWxL4 | mm | 40/122/1070 | 40/122/1070 |
| Fork Type | ISO2328 2A | ISO2328 2A | ||
| Fork Carriage Outline Width | mm | 1038 | 1038 | |
| Fork carriage spread width | W5 | mm | 247-995 | 247-995 |
| Ground Clearance Under Mast Laden | H5 | mm | 115 | 115 |
| Ground Clearance at Center of the Wheelbase | H6 | mm | 120 | 120 |

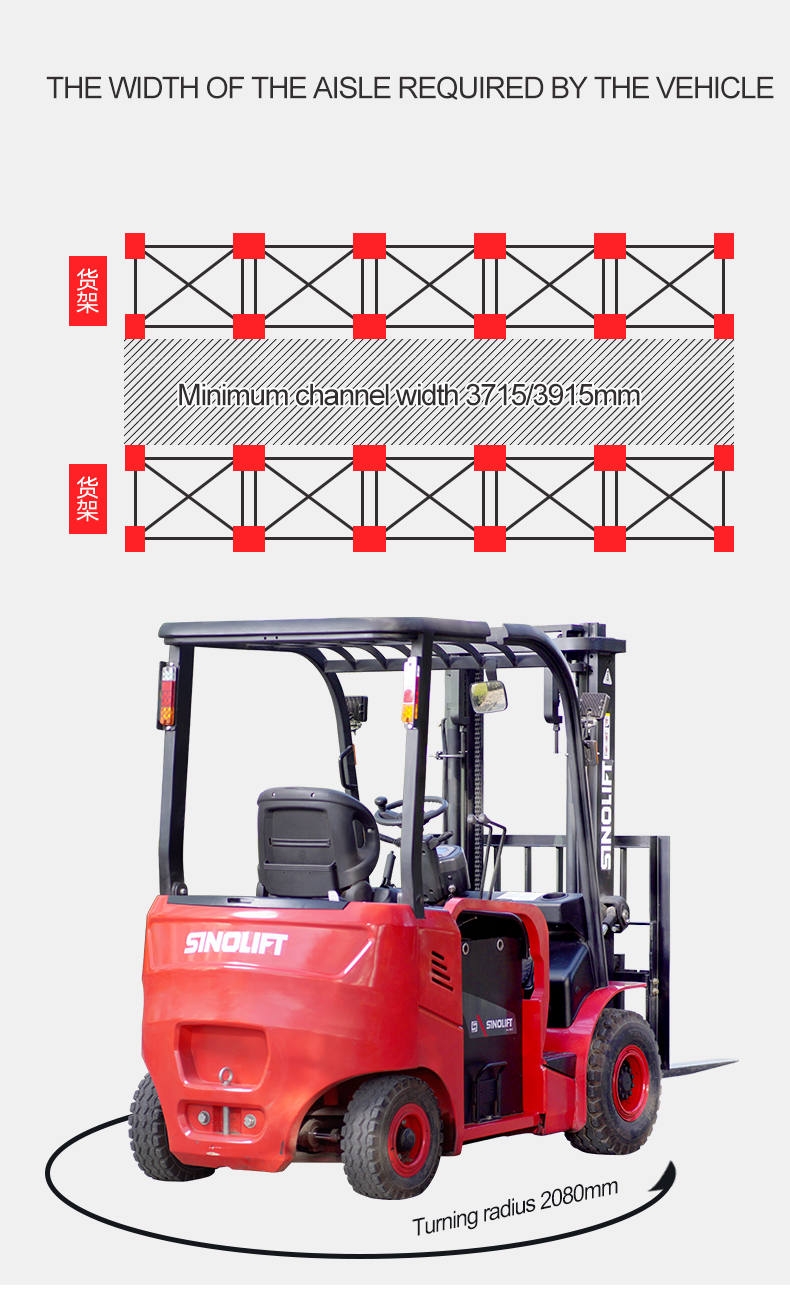

| Min. Right Angle Stacking Aisle Width (Pallet 1000x1000) | Ast | mm | 3715 | 3715 |
| Min. Right Angle Stacking Aisle Width (Pallet 1200x1200) | Ast | mm | 3915 | 3915 |
| Turing Radius | r | mm | 2080 | 2080 |
| Service Weight | kg | 3630 | 4050 | |
| Front Axle Rated Load Capacity with laden | kg | 5035 | 5820 | |
| Rear Axle Rated Load with Laden | kg | 595 | 730 | |
| Rated Load Capacity with unladen | kg | 1775 | 1745 | |
| Rear Axle Rated Load with unladen | kg | 1855 | 2305 | |

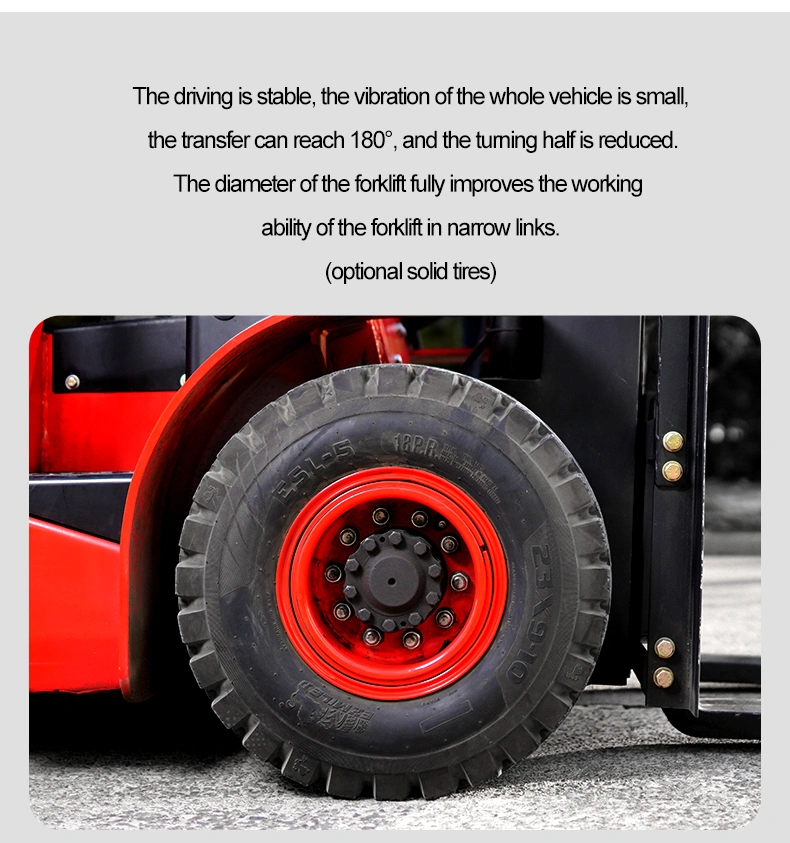

| Tyre Type | Pneumatic | Pneumatic | ||
| Tyre Size (Front) | 23×9-10-18PR | 23×9-10-18PR | ||
| Tyre Size (Rear) | 18X7-8-14PR | 18X7-8-14PR | ||
| Wheel Number (x=Drive Wheel) | 2x/2 | 2x/2 | ||
| Front Tread | mm | 1058 | 1058 | |
| Rear Thread | mm | 950 | 950 | |
| Max. Travel Speed (Laden/Unladen) | km/h | 14/15 | 14/15 | |
| Lifting Speed (Laden/Unladen) | mm/s | 260/430 | 260/430 | |
| Lowering Speed (Laden/Unladen) | mm/s | 450/410 | 450/410 | |
| Max. Gradeability (Laden/Unladen) | % | 15/20 | 15/20 | |
| Service Brake Type | Hydraulic | Hydraulic | ||
| Parking Brake Type | Mechanical | Mechanical | ||
| Drive Motor Rating S2 60min | kW | 11 | 11 | |
| Lifting Motor Rating at S315% | kW | 12 | 12 | |
| Battery Voltagl/Capacicty K5 | V/Ah | 48/630 (600-x-700) | 48/630 (600-x-700) | |
| Battery Weight | kg | 990 （930-1200） | 990 （930-1200） | |
| Maximum Allowable Battery Size | mm | 964x580x675 | 964x580x675 | |
| Controller Brand | CURTIS | CURTIS | ||
| Attachment Pressure | bar | 140 | 140 | |
| Attachment Oil Volume | L/min | 65 | 65 | |
| Hydraulic oil tank volume | L | 35 | 35 | |
| Sound Level at Driver's Ear According to EN 12 053 | dB | 72 | 72 |
