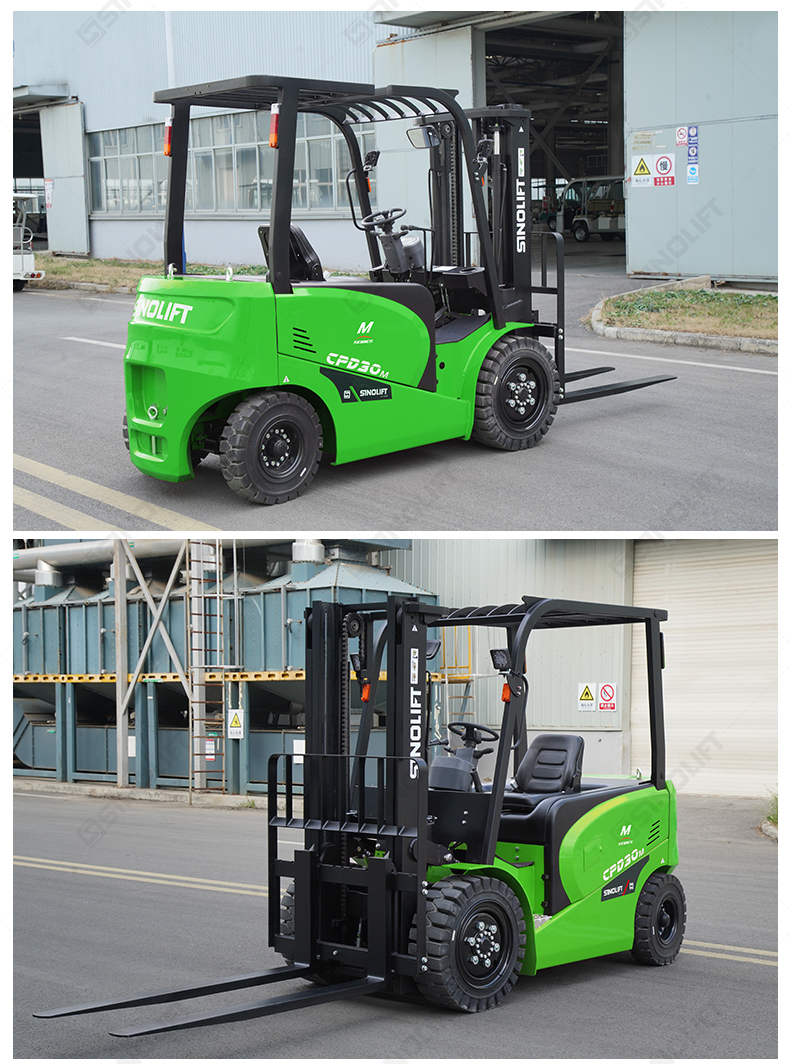

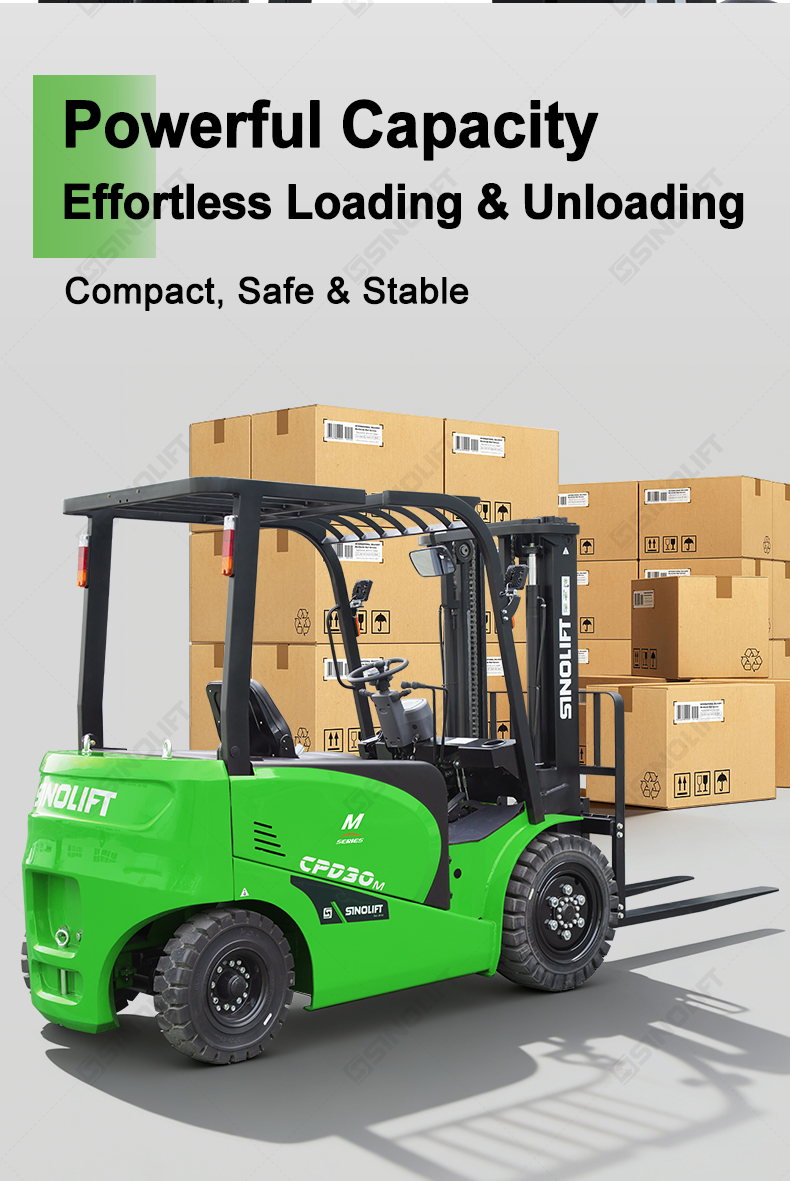

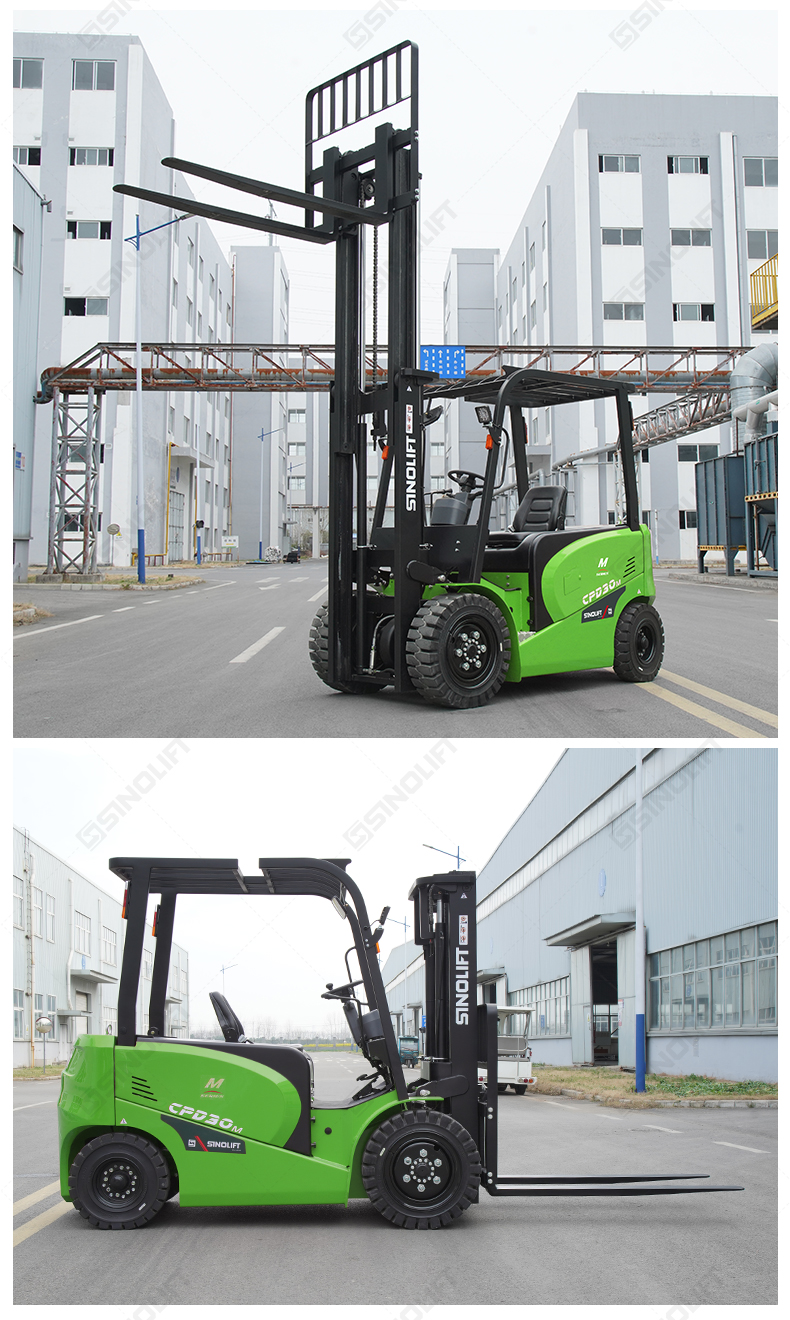

Sinolift MA7 Series 2.0-3.5T Lithium-Ion Battery Operated Forklift

MA7

Quantity:

Contact Now

add to cart

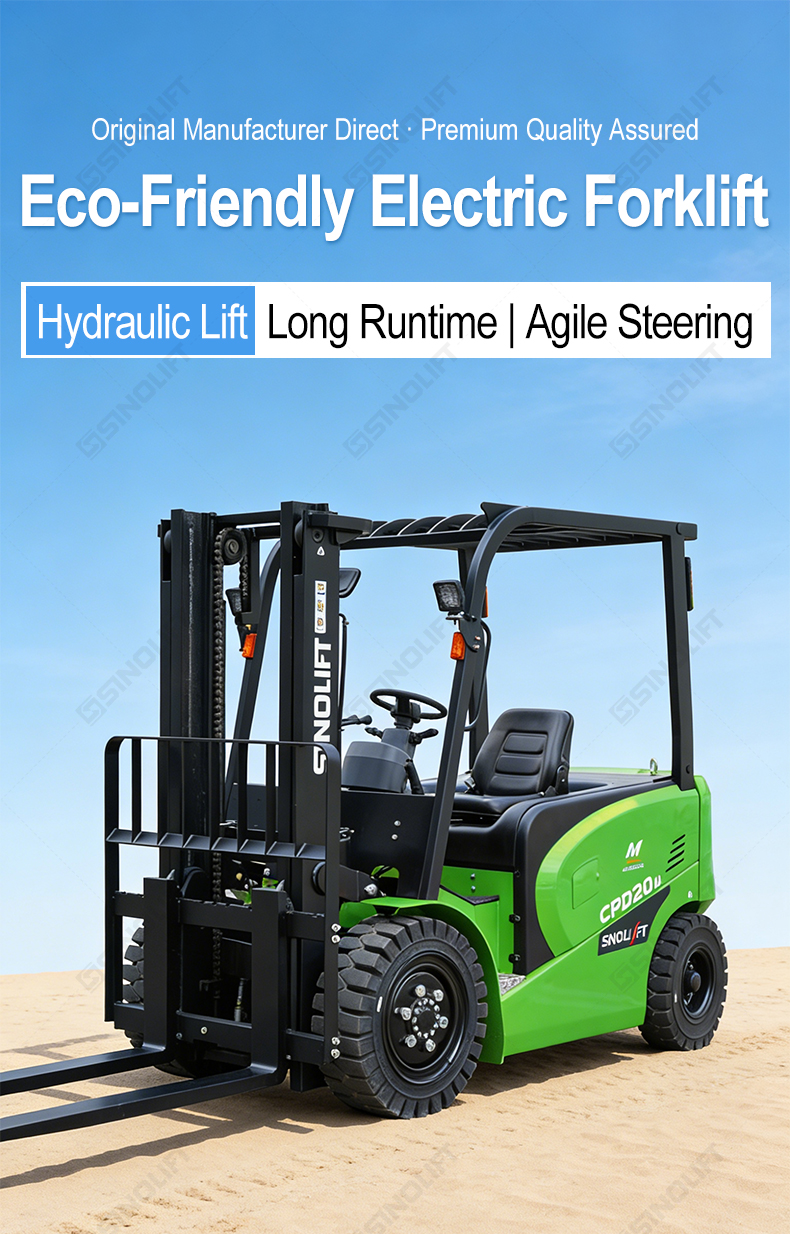

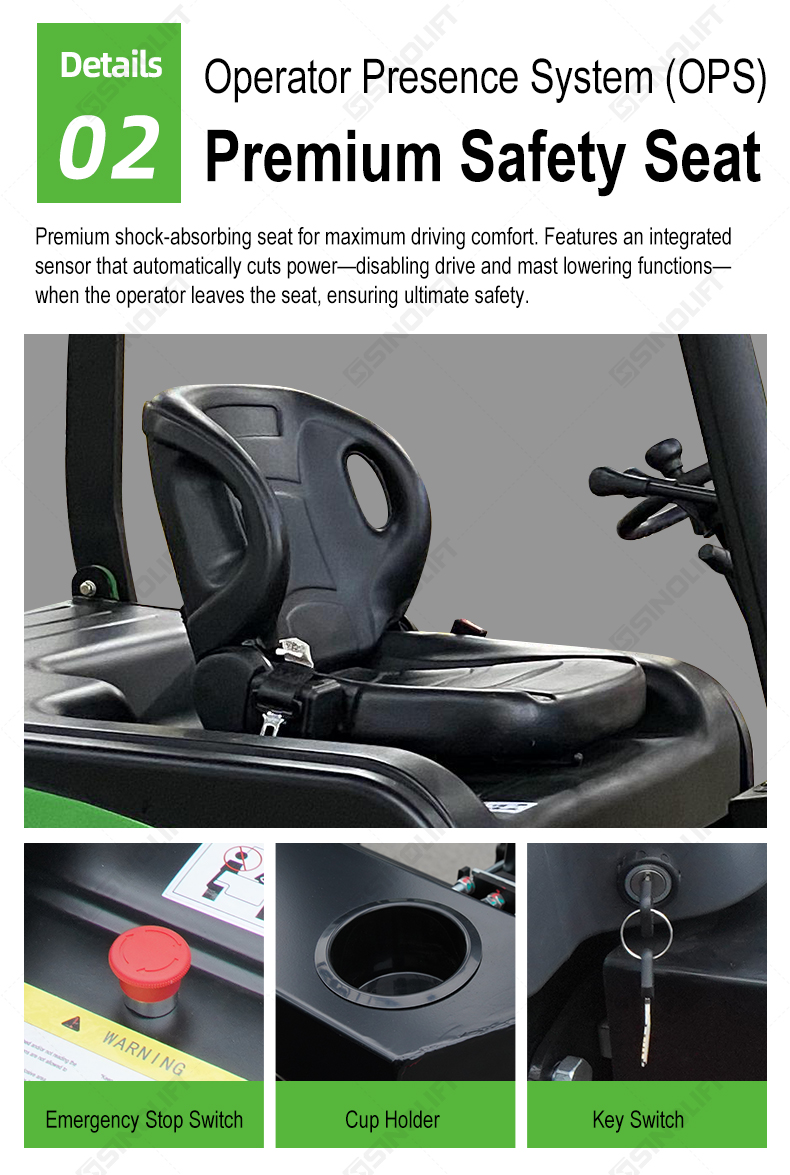

Designed for high-intensity material handling in diverse indoor and outdoor environments, the MA7 Series 2.0-3.5T Lithium-Ion Forklift combines robust lifting capabilities with all-weather reliability. Its ergonomic design features a significantly larger operating cabin and intelligent safety systems to provide operators with maximum comfort and security. Powered by advanced, fast-charging lithium-ion technology and a highly efficient direct-drive motor, this maintenance-free forklift ensures continuous uptime, lower operating costs, and superior productivity for your most demanding operations.

characteristic	1.1	Manufacturer Brand	SINOLIFT
	1.2	Model			CPD20MA7Li	CPD25MA7Li	CPD30MA7Li	CPD35MA7Li
	1.3	Power Type			Electric	Electric	Electric	Electric
	1.4	Operation Type			Seated	Seated	Seated	Seated
	1.5	Rated Capacity	Q	kg	2000	2500	3000	3500
	1.6	Load Centre	c	mm	500	500	500	500
	1.7	Front Overhang	L2	mm	445	445	475	490
	1.8	Wheelbase	L1	mm	1620	1620	1750	1750
Size	2.1	Mast Tilt Angle	α/β	°	6/12	6/12	6/10	6/10
	2.2	Mast Lowered Height	H1	mm	2050	2050	2080	2080
	2.3	Free Lift Height	H3	mm	120	120	150	150

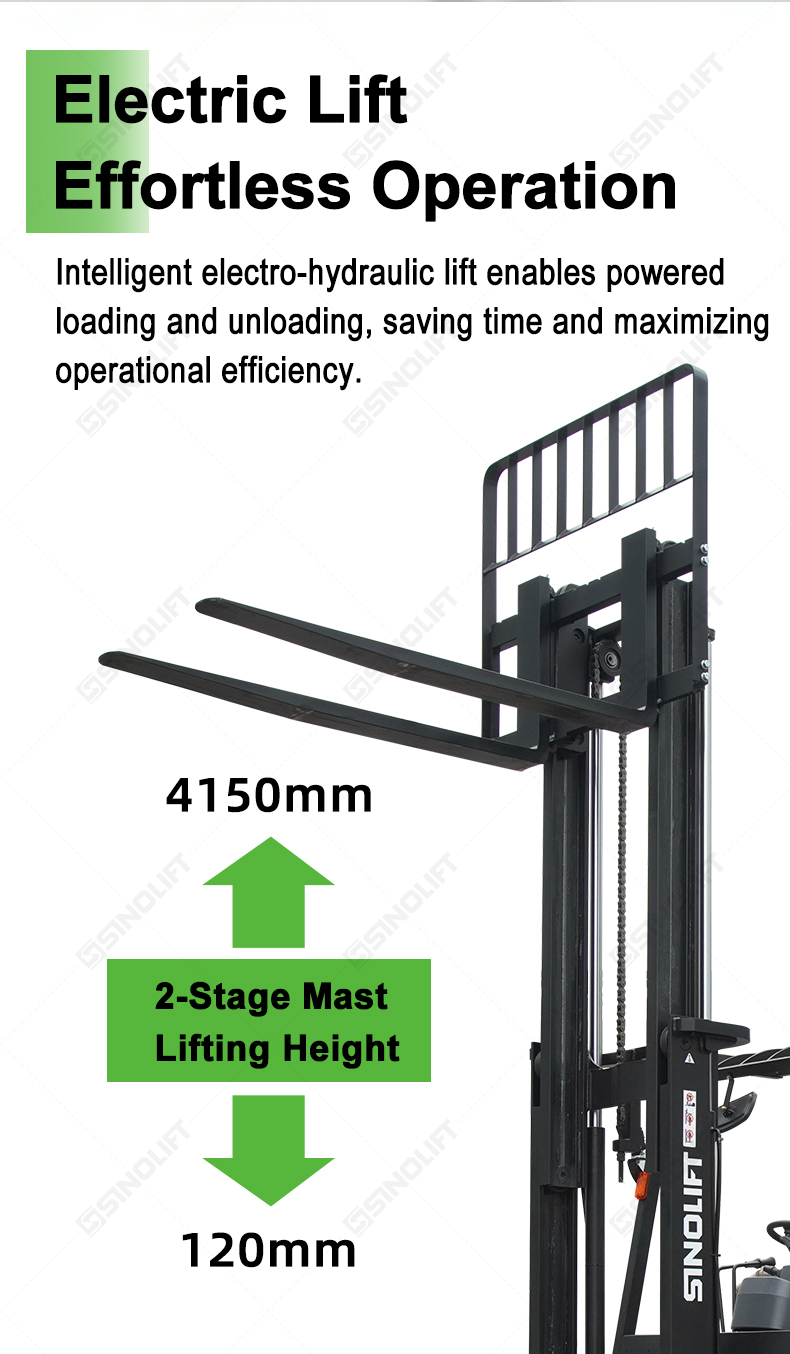

	2.4	Standard Mast Lift Height	H	mm	3000	3000	3000	3000
	2.5	Mast Extended Height	H2	mm	4045	4045	4150	4150
	2.6	Overhead Guard Height	H4	mm	2120	2120	2150	2150
	2.7	Distance from Botoom to Seat		mm	1070	1070	1070	1070
	2.8	Traction Bolt Height		mm	300	300	300	300
	2.9	Overall Length (include forks)	L	mm	3555	3555	3740	3760
	2.10	Length to Face of Fork	L'	mm	2485	2485	2670	2690
	2.11	Overall Width	W1	mm	1175	1175	1235	1235

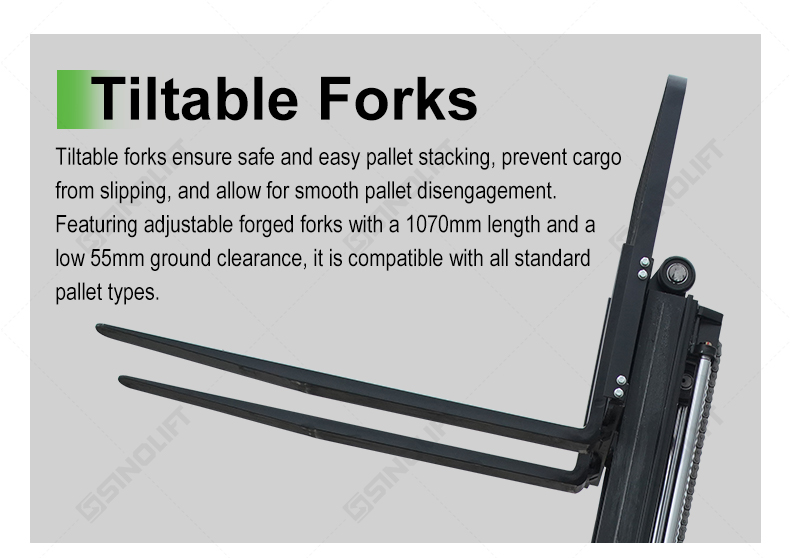

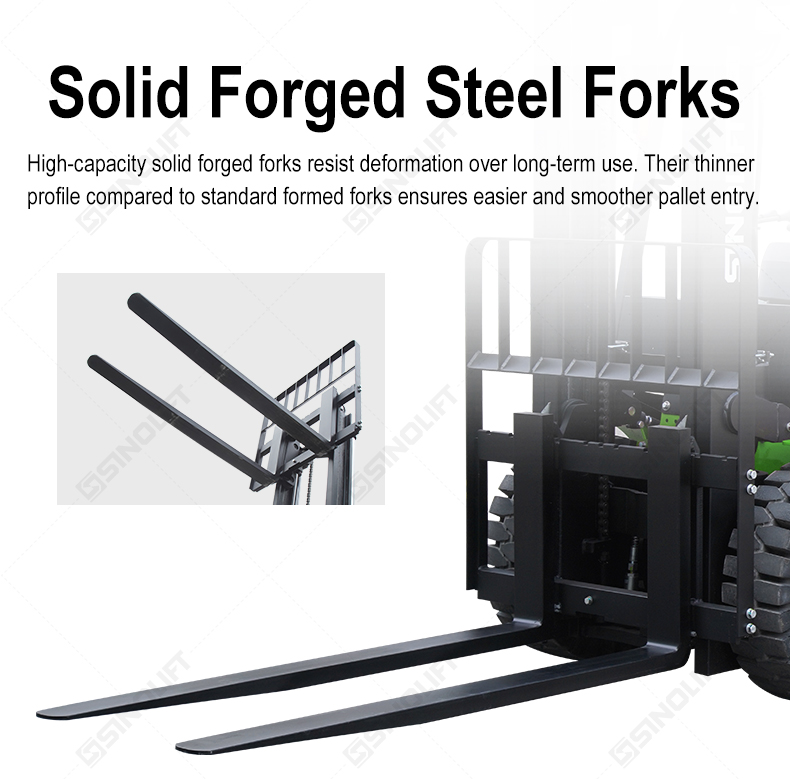

	2.12	Fork Size	TxWxL4	mm	40/100/1070	40/122/1070	45/125/1070	50/125/1070
	2.13	Fork Type			ISO2328 2A	ISO2328 2A	ISO2328 3A	ISO2328 3A
	2.14	Fork Carriage Outline Width		mm	1038	1038	1100	1100
	2.15	Fork carriage spread width	W5	mm	225-972	247-995	250-1090	250-1090
	2.16	Ground Clearance Under Mast Laden	H5	mm	100	100	110	110
	2.17	Ground Clearance at Center of the Wheelbase	H6	mm	125	125	135	135

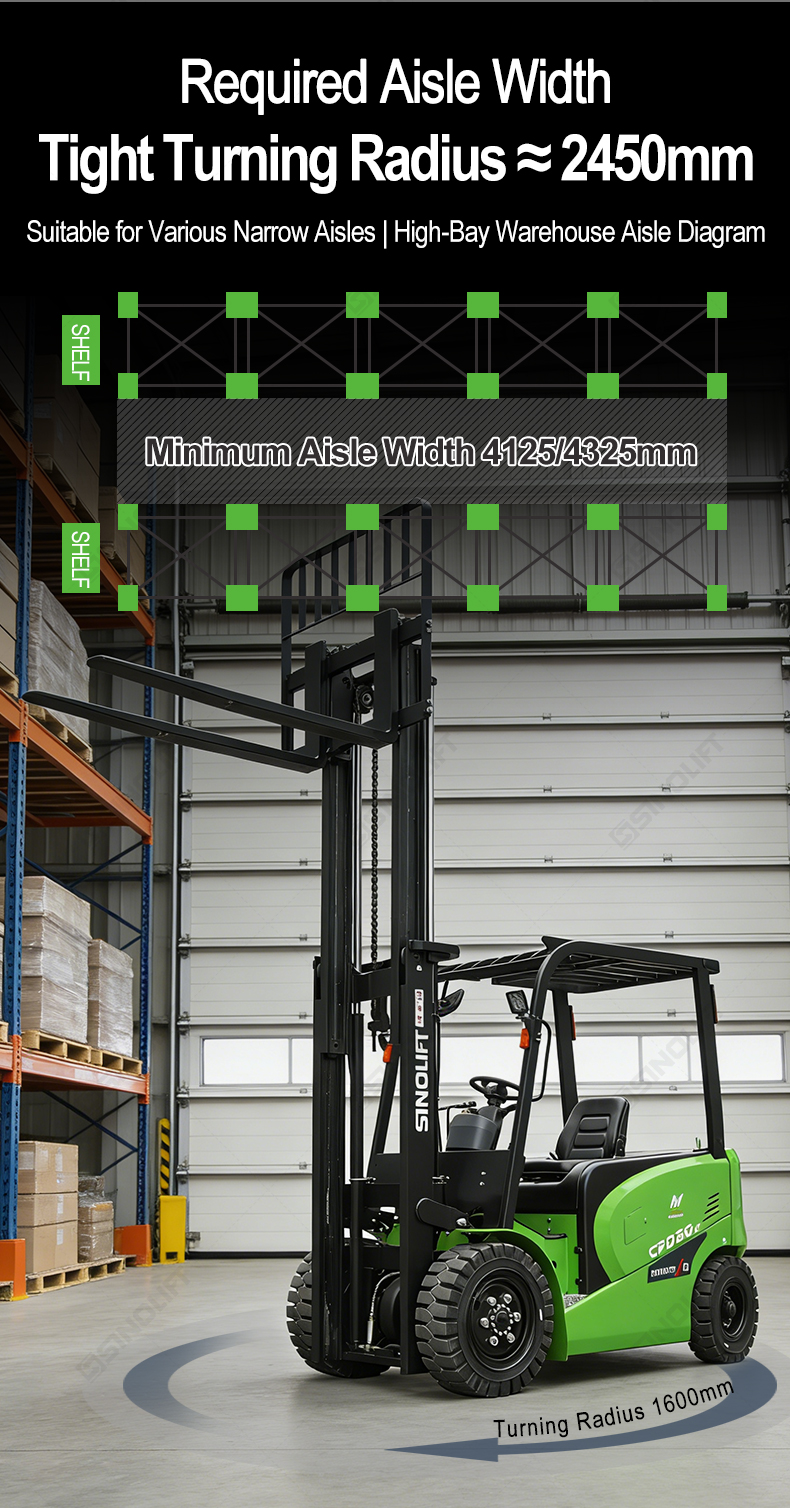

	2.18	Min. Right Angle Stacking Aisle Width (Pallet 1000x1000)	Ast	mm	3895	3895	4125	4140
	2.19	Min. Right Angle Stacking Aisle Width (Pallet 1200x1200)	Ast	mm	4095	4095	4325	4340
	2.20	Turing Radius	r	mm	2250	2250	2450	2450
Weight	3.1	Service Weight		kg	3300	3600	4300	4650
	3.2	Front Axle Rated Load Capacity with laden		kg	4720	5430	6640	7415
	3.3	Rear Axle Rated Load with Laden		kg	580	670	660	735
	3.4	Rated Load Capacity with unladen		kg	1290	1400	2020	2185
	3.5	Rear Axle Rated Load with unladen		kg	2010	2160	2280	2465

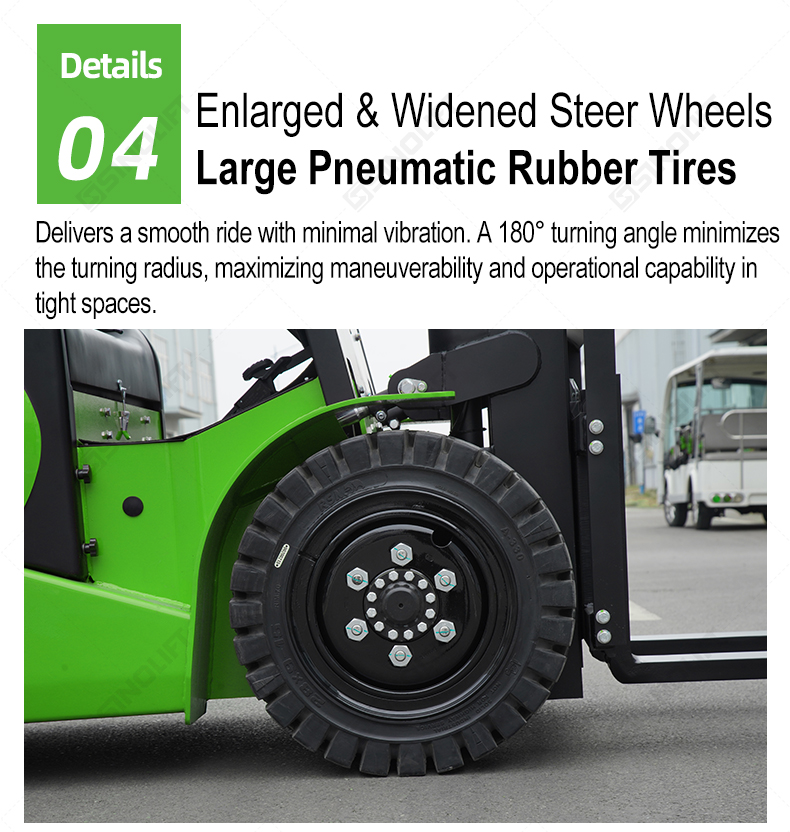

Tyre & Chassis	4.1	Tyre Type			Pneumatic	Pneumatic	Pneumatic	Pneumatic
	4.2	Tyre Size (Front)			7.00-12NHS-12PR	7.00-12NHS-12PR	28×9-15-14PR	28×9-15-14PR
	4.3	Tyre Size (Rear)			6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR
	4.4	Wheel Number (x=Drive Wheel)			2x/2	2x/2	2x/2	2x/2
	4.5	Front Tread		mm	970	970	1000	1000
	4.6	Rear Thread		mm	980	980	980	980
Performance	5.1	Max. Travel Speed (Laden/Unladen)		km/h	15/15	15/15	15/15	15/15
	5.2	Lifting Speed (Laden/Unladen)		mm/s	330/360	310/360	340/420	320/210
	5.3	Lowering Speed (Laden/Unladen)		mm/s	400/340	420/340	400/360	420/360

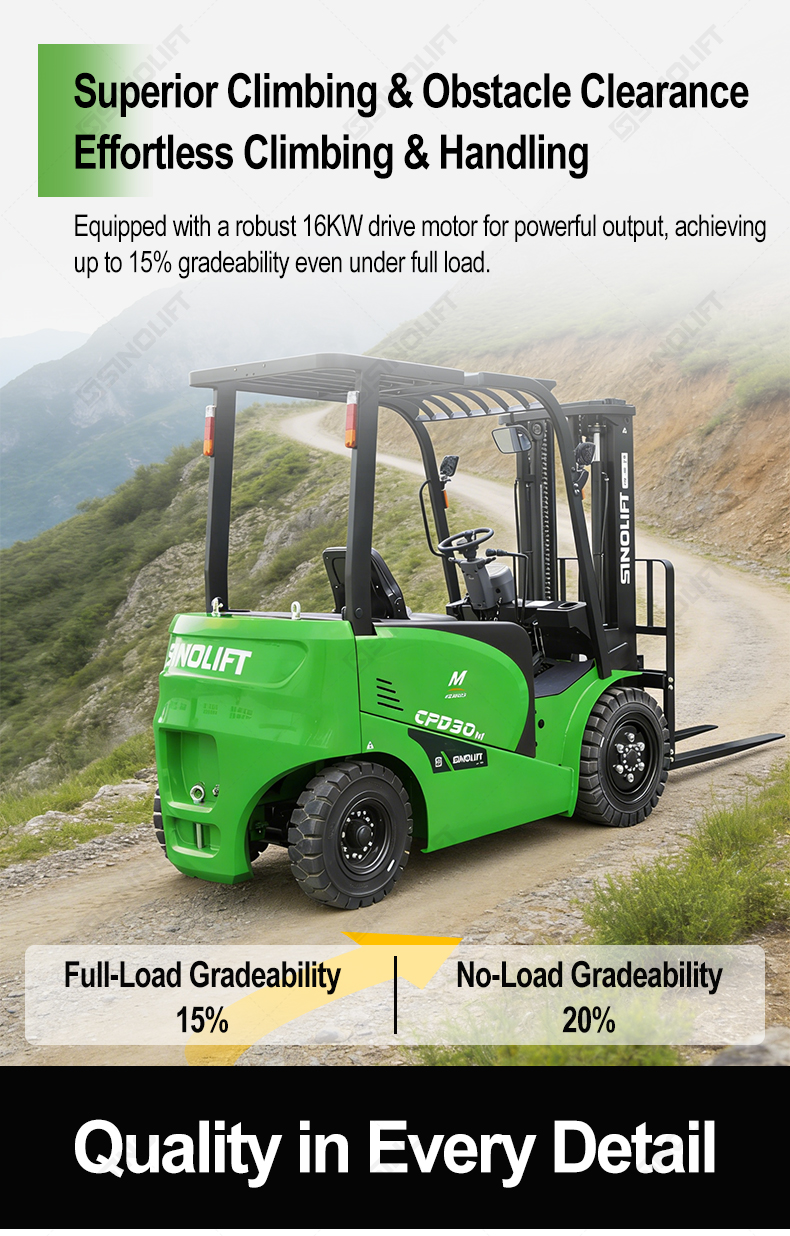

	5.4	Max. Gradeability (Laden/Unladen)		%	15/20	15/20	15/20	15/20
	5.5	Service Brake Type			Hydraulic	Hydraulic	Hydraulic	Hydraulic
	5.6	Parking Brake Type			Mechanical	Mechanical	Mechanical	Mechanical
Power & Transmission	6.1	Drive Motor Rating S2 60min		kW	16	16	16.6	16.6
	6.2	Lifting Motor Rating at S315%		kW	18	18	22.6	13/13.5

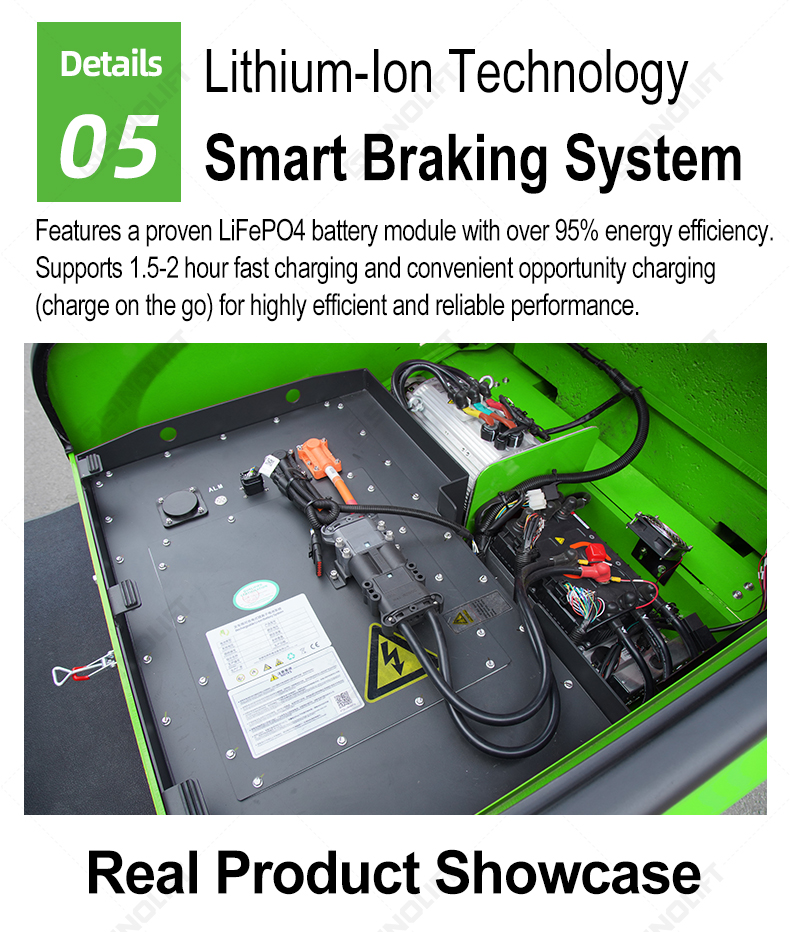

	6.3	Battery Voltagl/Capacicty K5		V/Ah	76.8/202	76.8/202	76.8/280	76.8/280
	6.4	Battery Weight		kg	216	216	259	259
	6.5	Maximum Allowable Battery Size		mm	964x580x675	964x580x675	675x780x964	675x780x964
Others	7.1	Controller Brand			CURTIS	CURTIS	CURTIS	CURTIS
	7.2	Controller Model			1234SE+1232SE	1234SE+1232SE	1236SE+1253	1236SE+1234SE
	7.3	Attachment Pressure		bar	140	140	140	140
	7.4	Attachment Oil Volume		L/min	65	65	65	65
	7.5	Hydraulic oil tank volume		L	35	35	>=35	>=35
	7.6	Sound Level at Driver's Ear According to EN 12 053		dB	72	72	72	72
Note:"CPD"means full electric Counter-balanced Electric Forklift,"20/25"means rated load capacity 2T / 2.5T,"M"is serial code,"A"is equipped with full AC system, "7"is generation code,"Li"is equipped with lithium-ion battery,"S"means battery can be roll side out.
