Sinolift Pneumatic Scissor Lift Tables: QN500, QN1000 and QN2000
Sinolift Pneumatic Scissor Lift Tables: QN500, QN1000 and QN2000
Quick Answer
Choose QN500, QN1000 or QN2000 by matching the actual load, platform footprint, height range, air pressure, and workstation layout. The confirmed range is 500–2000 kg; the model decision should follow the complete lifting cycle.
Selection Factors
Define the load, how it reaches the table, the minimum loading height, the required working height, and the next handoff. Then check platform size, air supply, cycle frequency, access, and surrounding clearance.
-
Capacity
Compare the actual load with 500–2000 kg and include load distribution.
-
Platform and access
Compare the load footprint and approach path with 1220 × 812 mm (QN500/QN1000); 1220 × 1220 mm (QN2000).
-
Height range
Check the working positions against 230 mm (QN500/QN1000); 240 mm (QN2000) and 840 mm.
-
Air utility
Review available plant air against 0.6 MPa (QN500/QN1000); 0.45 MPa (QN2000).
Parameters & Comparison
Use the confirmed family data as the first comparison layer, then add the application measurements required for final selection.
| Decision Dimension | Confirmed Reference | What To Evaluate |
|---|---|---|
| Model Range | QN500 / QN1000 / QN2000 | Which capacity option matches the actual load. |
| Platform Size | 1220 × 812 mm (QN500/QN1000); 1220 × 1220 mm (QN2000) | Whether load footprint and access fit. |
| Height Range | 230 mm (QN500/QN1000); 240 mm (QN2000) to 840 mm | Whether loading and working positions are reachable. |
| Air Pressure | 0.6 MPa (QN500/QN1000); 0.45 MPa (QN2000) | Whether site utility can support operation. |
| Net Weight | 282 kg (QN500); 288 kg (QN1000); 440 kg (QN2000) | Whether positioning and installation are suitable. |
Specification Interpretation
Capacity, platform size, height, air pressure, and net weight answer different buyer questions. Review them together with load path, workstation height, plant-air supply, and floor space.
| Specification | Confirmed Value | Buyer Question |
|---|---|---|
| Model Range | QN500 / QN1000 / QN2000 | Three capacity options for industrial lifting. |
| Rated Capacity | 500–2000 kg | Defines the available load range. |
| Platform Size | 1220 × 812 mm (QN500/QN1000); 1220 × 1220 mm (QN2000) | Supports load-footprint and clearance planning. |
| Height Range | 230 mm (QN500/QN1000); 240 mm (QN2000) to 840 mm | Defines loading and working positions. |
| Air Pressure | 0.6 MPa (QN500/QN1000); 0.45 MPa (QN2000) | Provides the operating-air reference. |
| Net Weight | 282 kg (QN500); 288 kg (QN1000); 440 kg (QN2000) | Supports positioning and installation planning. |
Common Mistakes
Avoiding these mistakes reduces late layout or utility changes.
-
Choosing by capacity only
A capacity match does not confirm platform fit, height, air supply, or access.
-
Ignoring the lower position
Loading height affects whether pallets, carts, or containers reach the table efficiently.
-
Skipping the air review
Confirm site air pressure and connection conditions before installation.
-
Measuring only the platform
Approach route, working clearance, and the next handoff also matter.

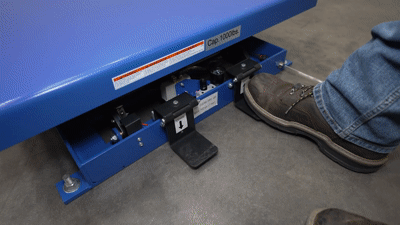

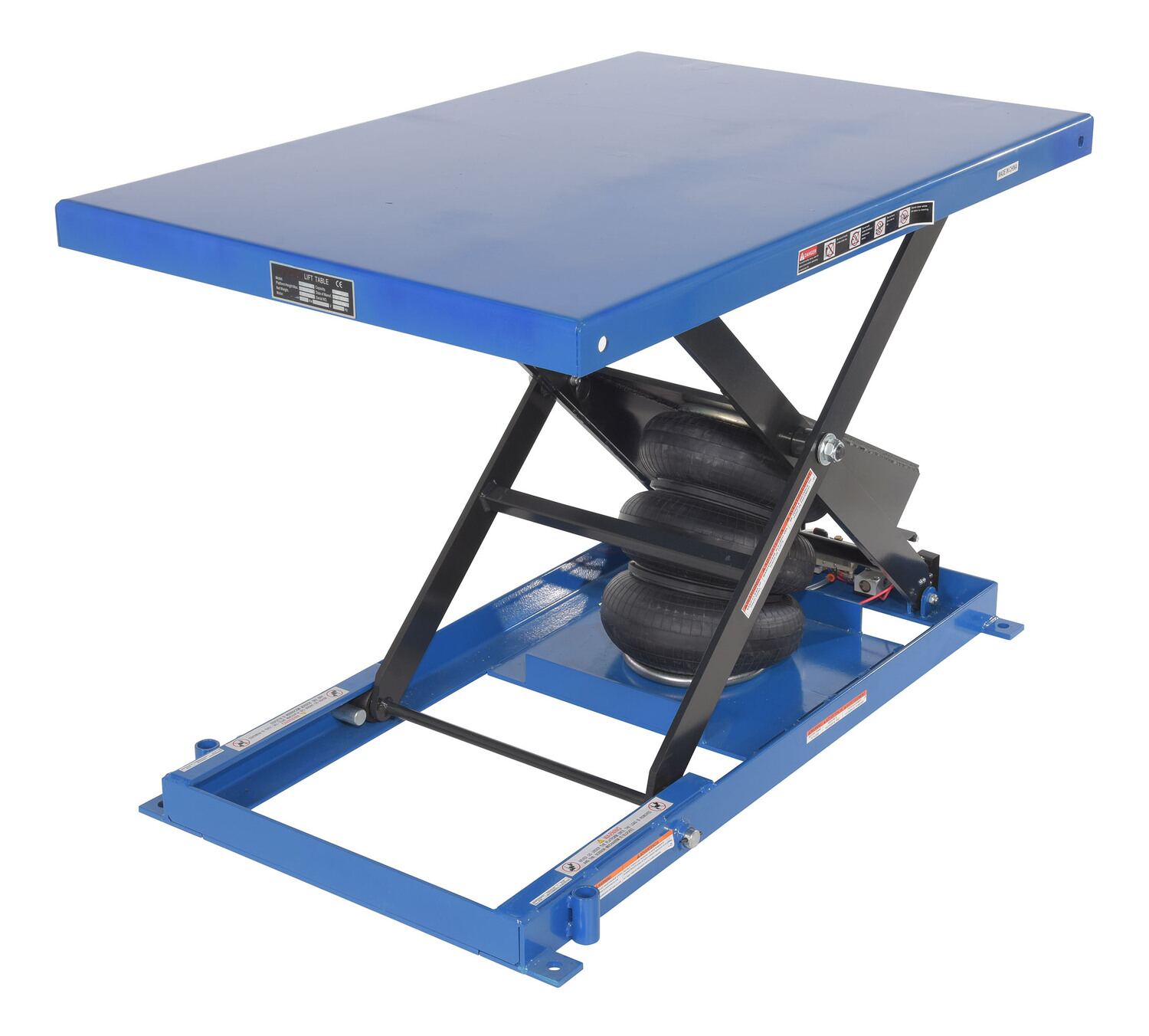

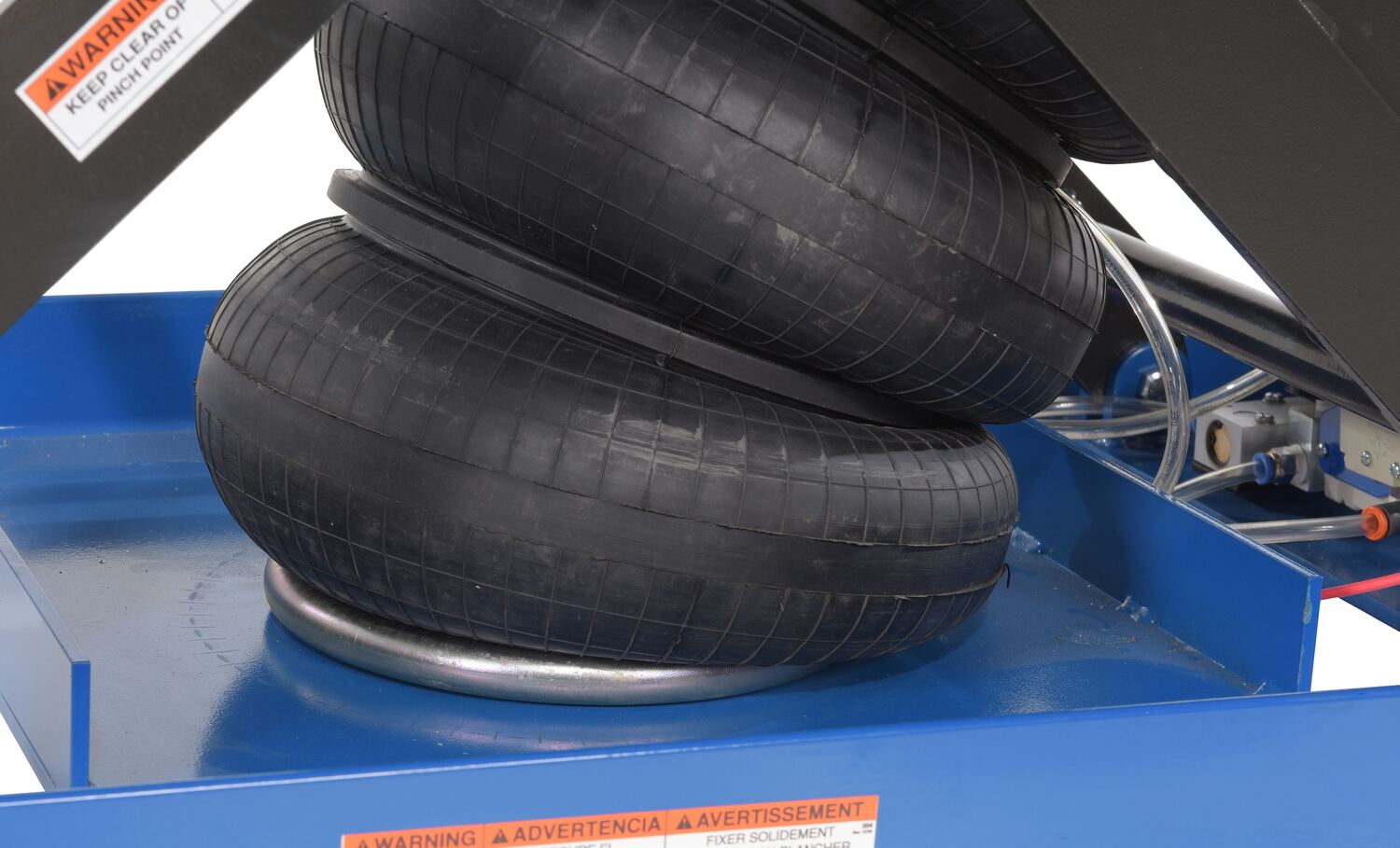

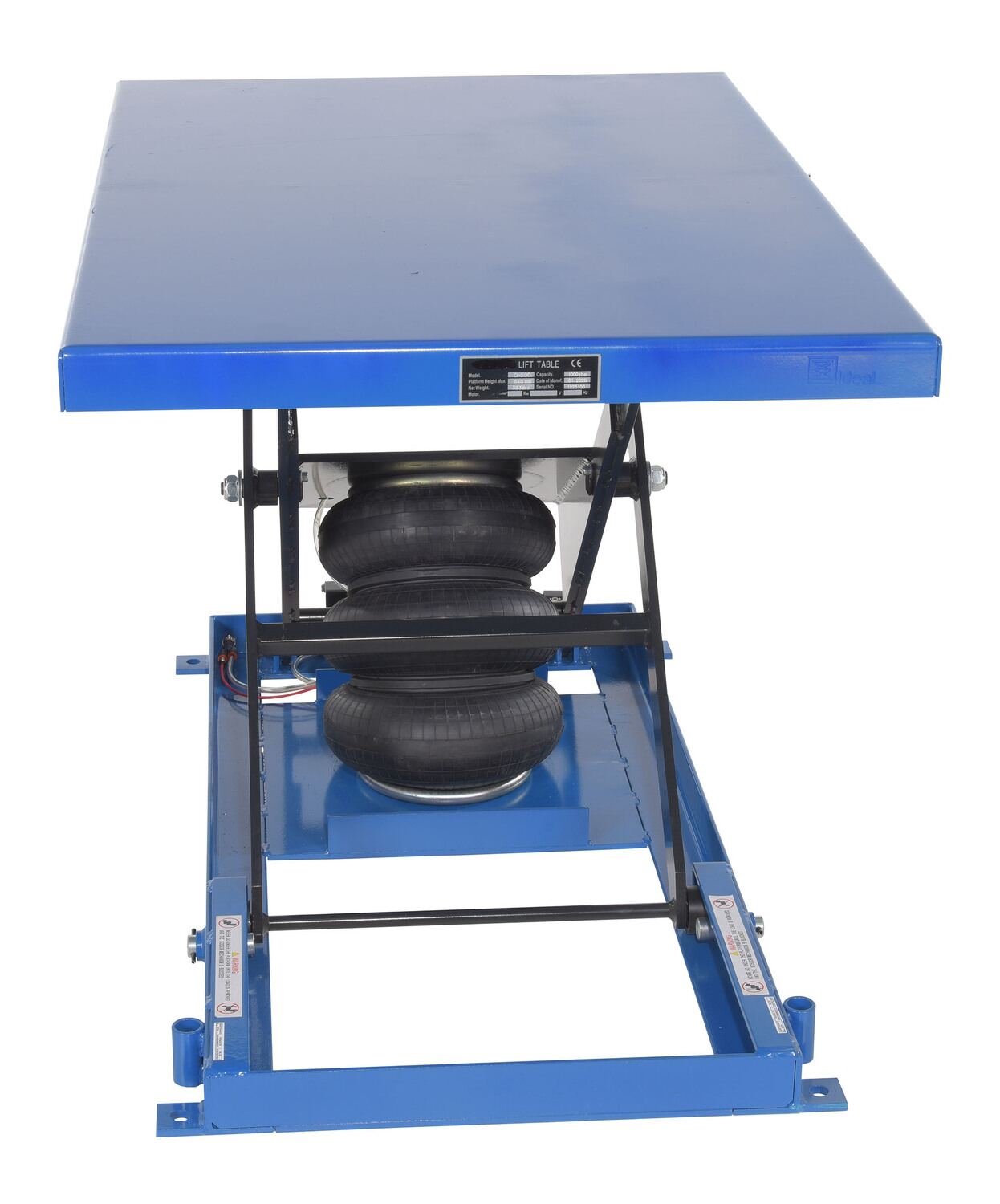

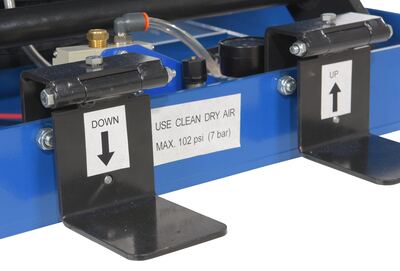

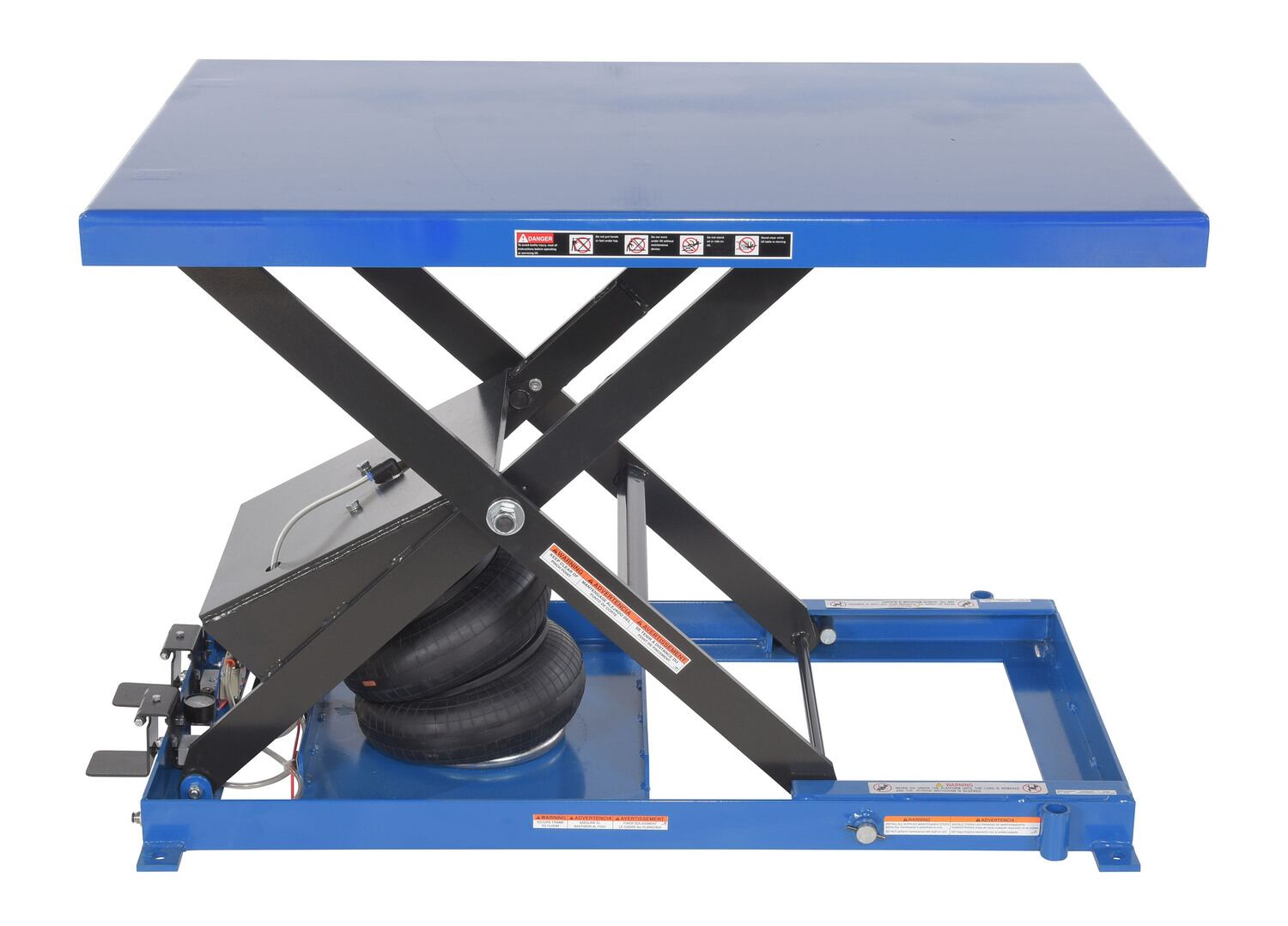

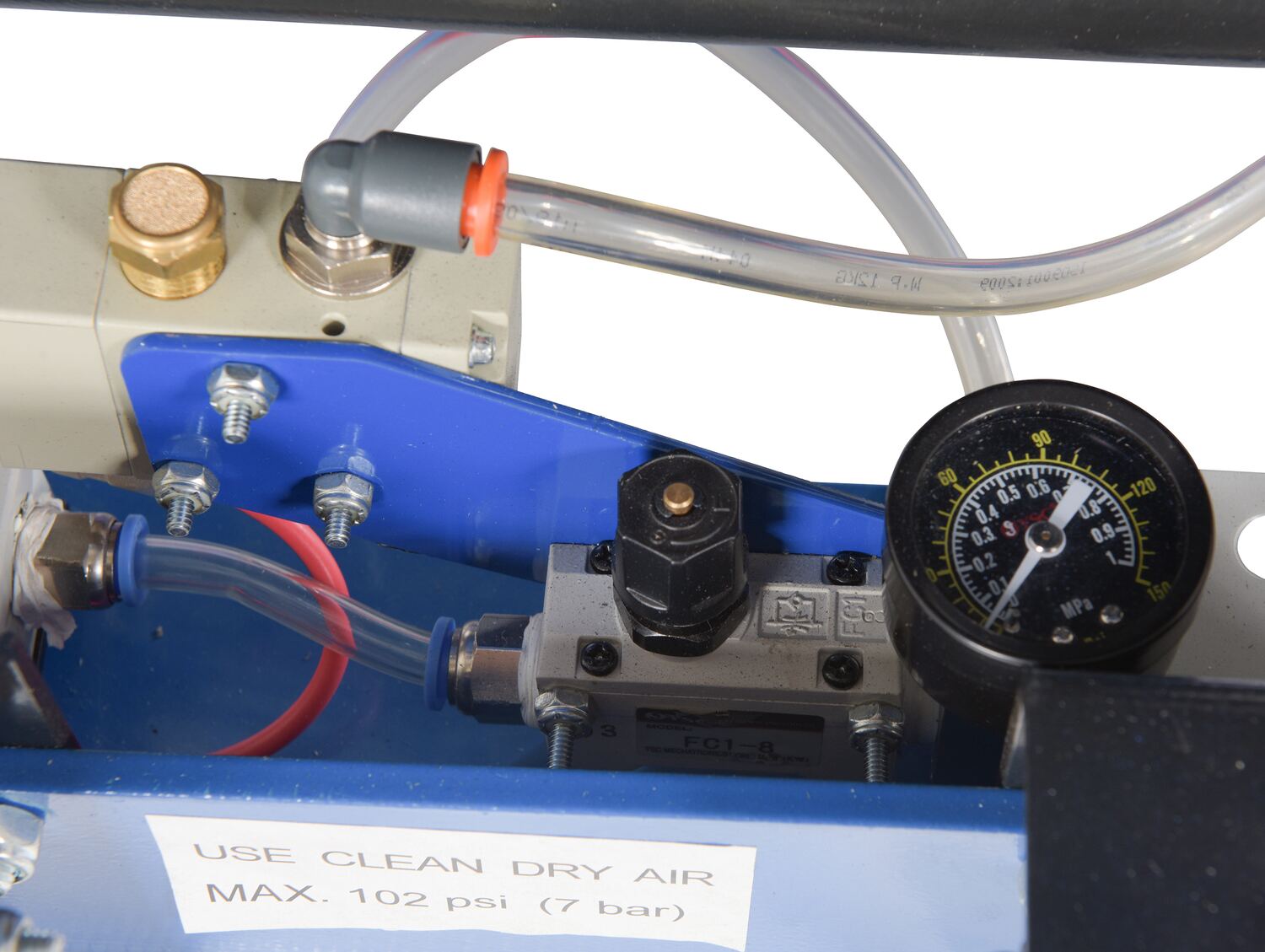

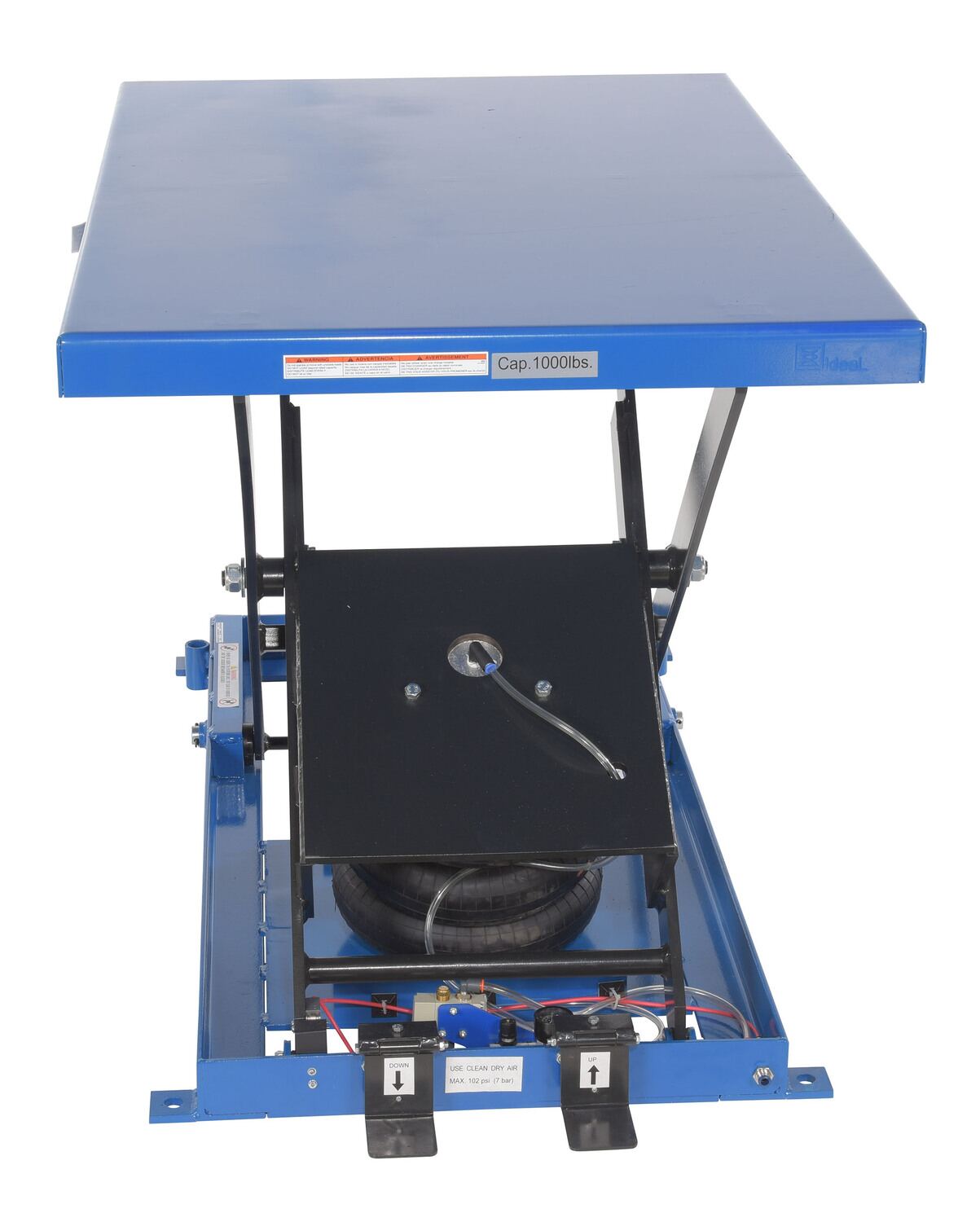

Media Gallery
Buyer Checklist
Include load weight and footprint, loading method, required heights, cycle frequency, plant-air conditions, floor and clearance constraints, drawings, photographs, and integration requirements.
- Load weight and dimensions
- Required minimum and working heights
- Platform access and surrounding clearance
- Plant-air pressure and connection conditions
- Cycle frequency and operator workflow
- Layout drawing, photographs, and integration requirements
FAQ
These questions keep the purchase discussion tied to the complete application.
- Which QN model should be reviewed for a 500 kg load?
- QN500 is the first model to review, but confirm load distribution, platform footprint, height, access, and the complete cycle.
- Can QN1000 or QN2000 handle heavier loads?
- They provide higher confirmed capacity options, but verify platform, height, air utility, layout, and integration requirements.
- What should be sent for a quotation review?
- Send load data, height requirements, layout, photographs, plant-air information, cycle frequency, and integration requirements.
Contact us
Ready to specify the right pneumatic scissor lift table?
Send Sinolift the load footprint and weight, required height range, plant-air conditions, operating frequency, layout drawings, and photographs. We can help compare QN500, QN1000 and QN2000 for your application.
