YLF01 Cantilever Telescopic Boom Mobile Floor Crane

YLF01
Quantity:
Contact Now
add to cart
All Products
YLF01

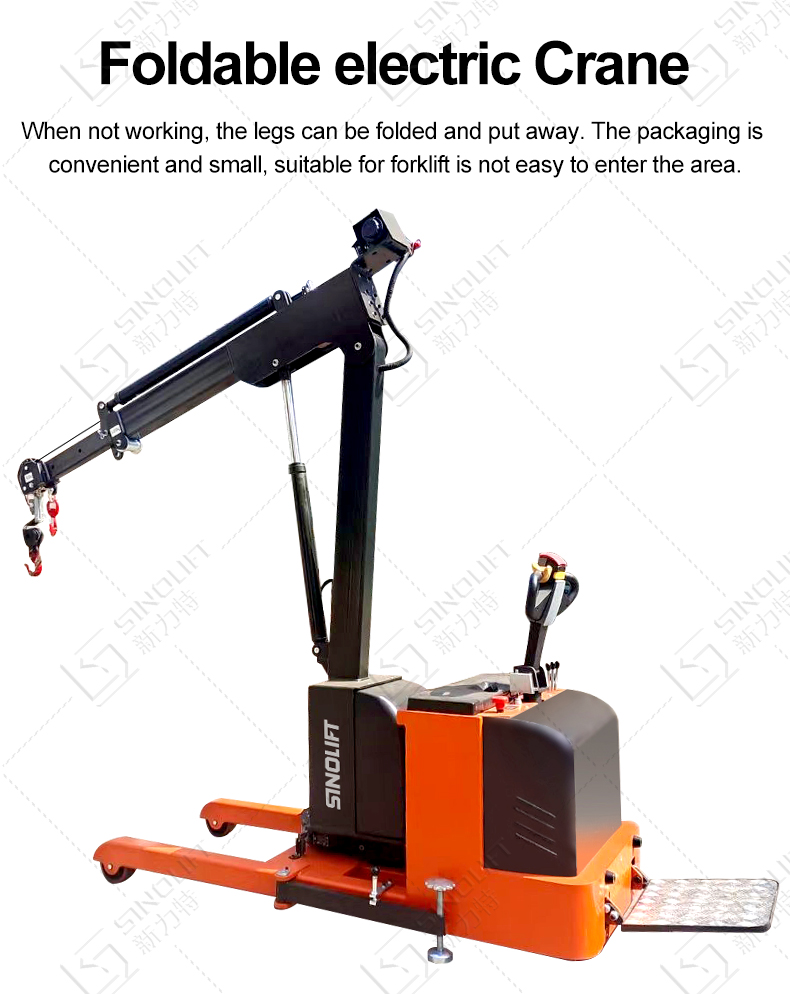

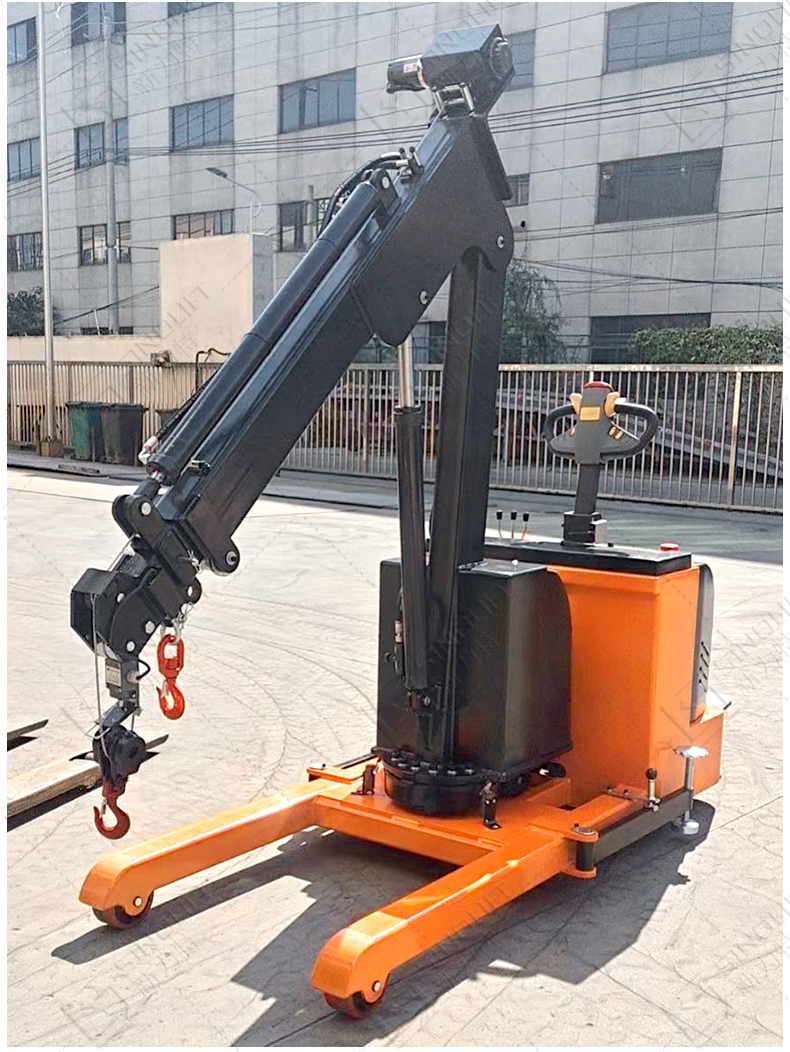

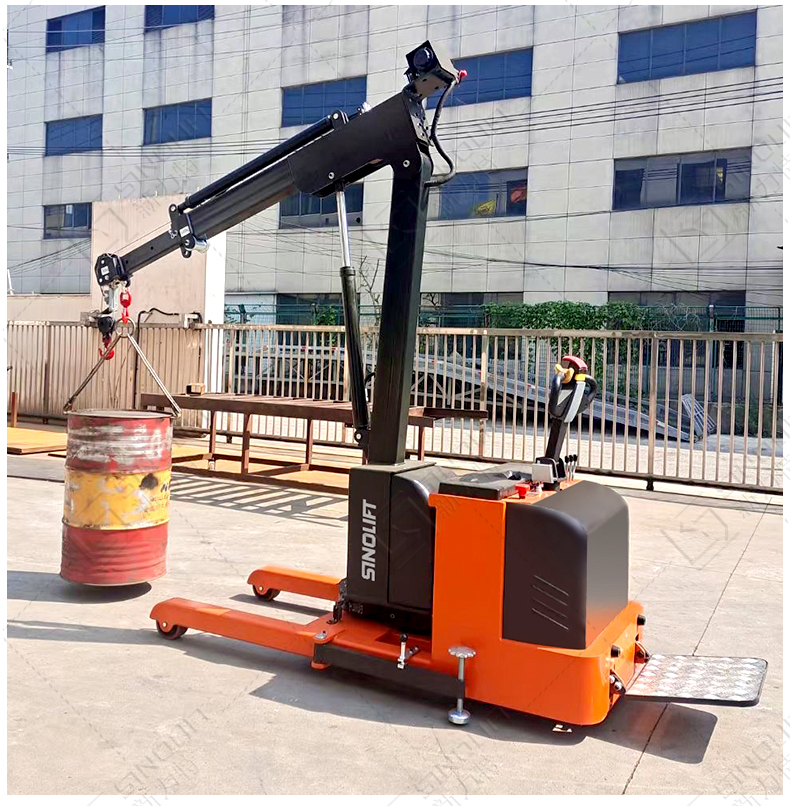

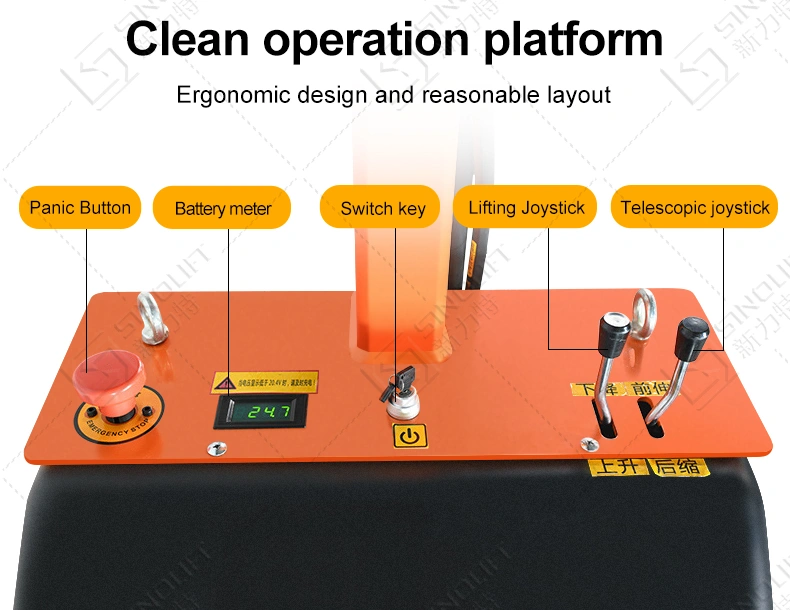

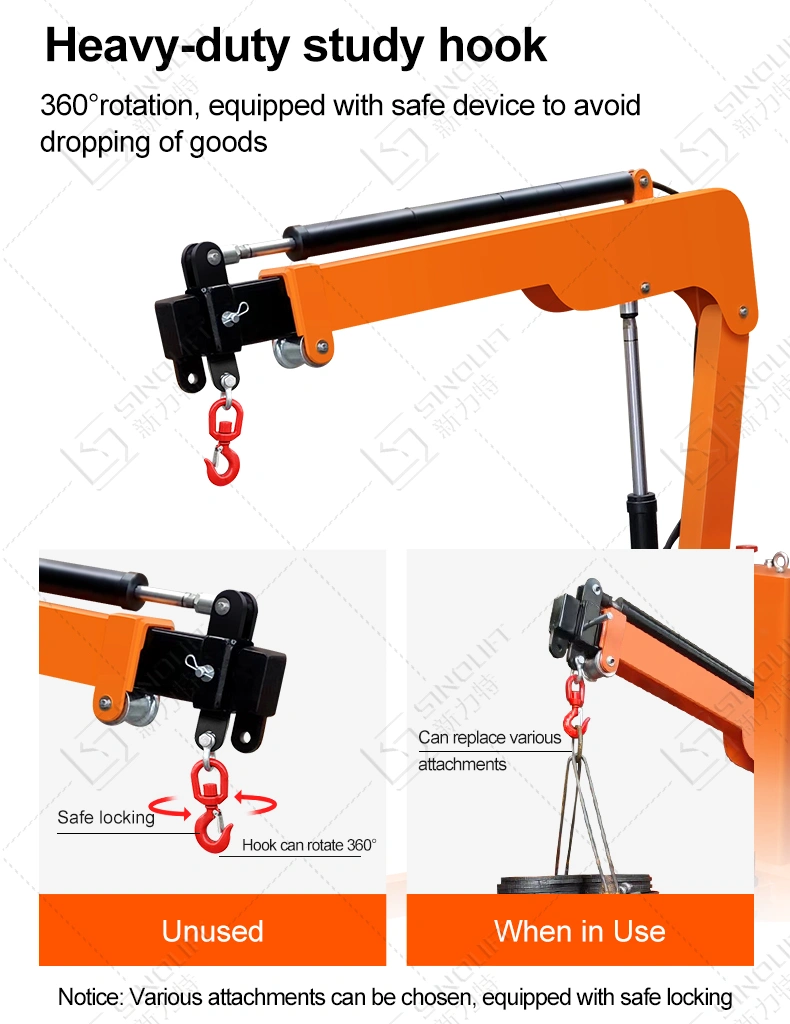

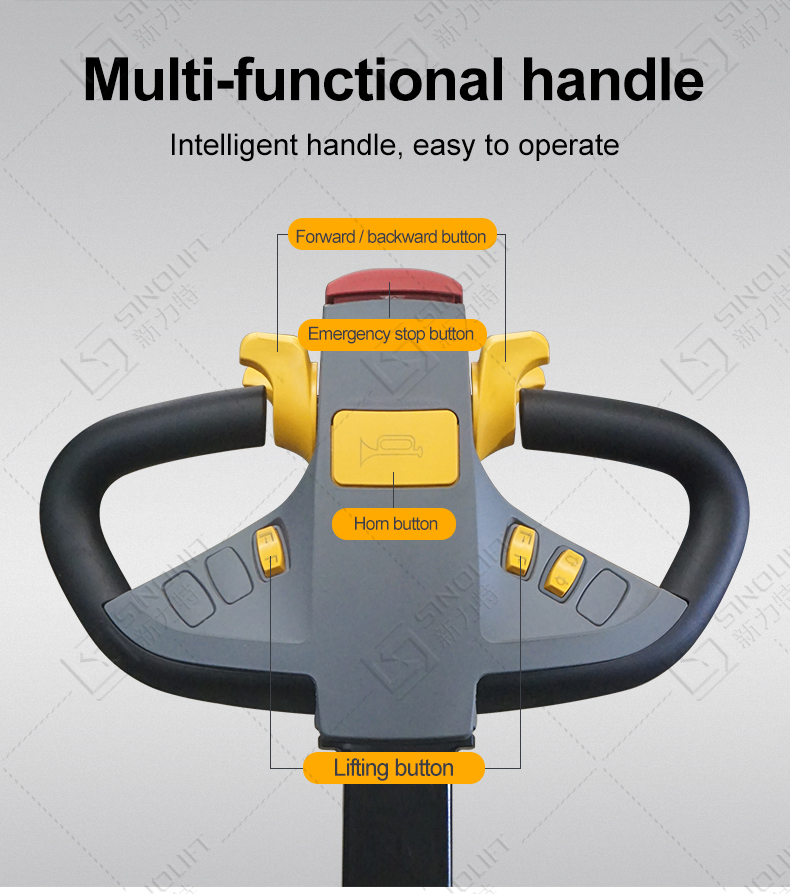

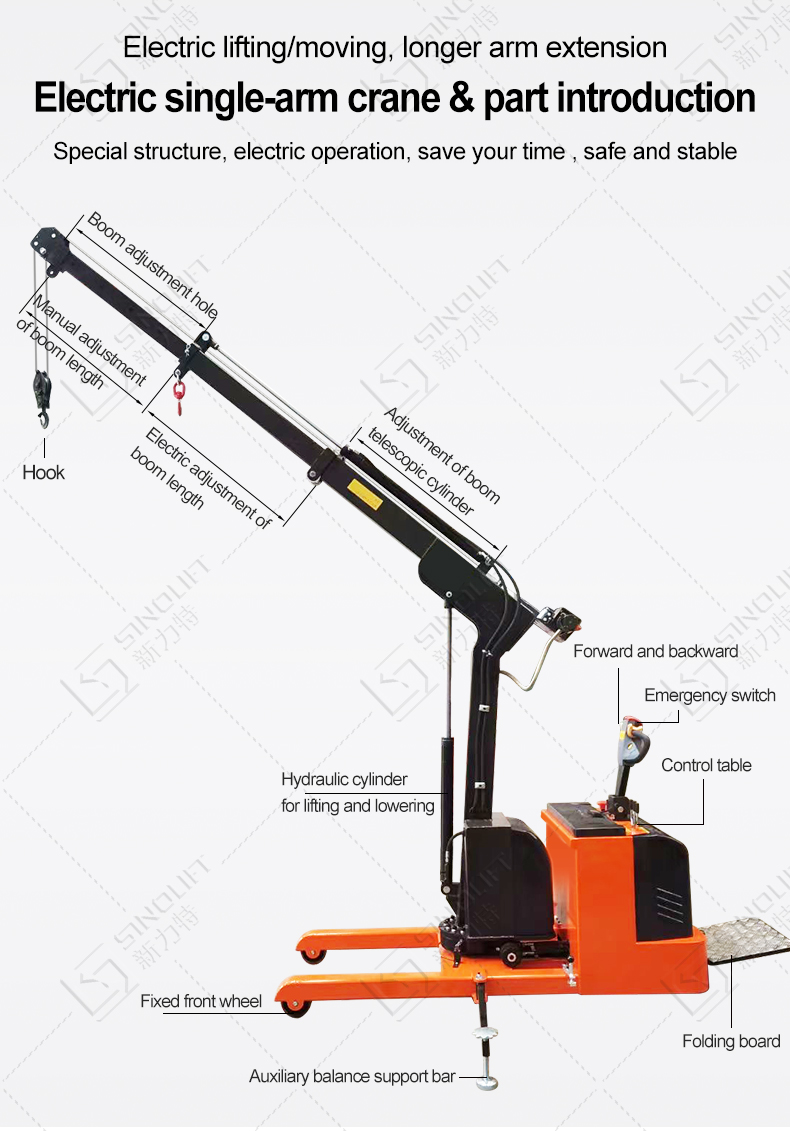

This fully powered electric floor crane is easy and fast to operate. It raises and lowers loads with the push of a button. It is perfect for maneuvering loads in warehouses and on trailers. It has a heavy duty rigid hook with safety latches.

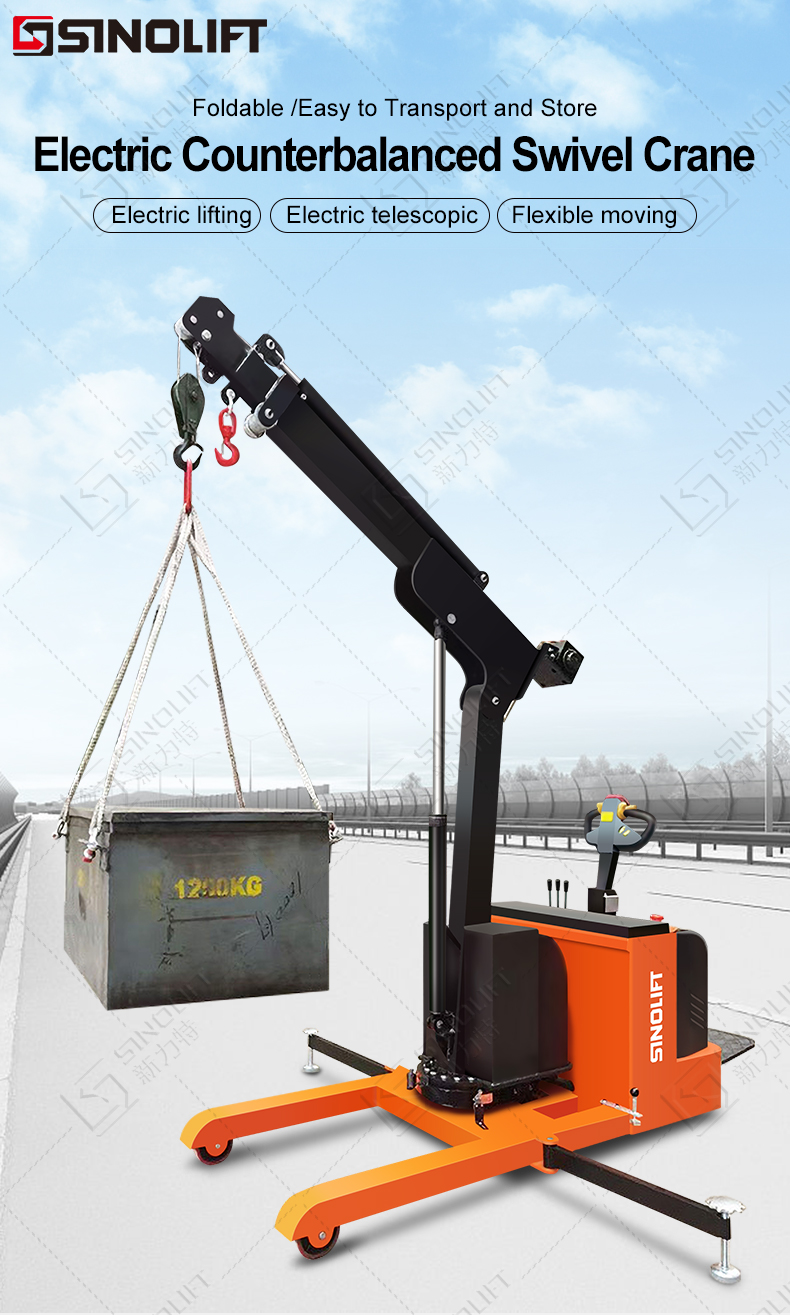

The counterbalance floor crane by Hoist China is ideal as a portable lifting solution for most industrial and workshop environments.

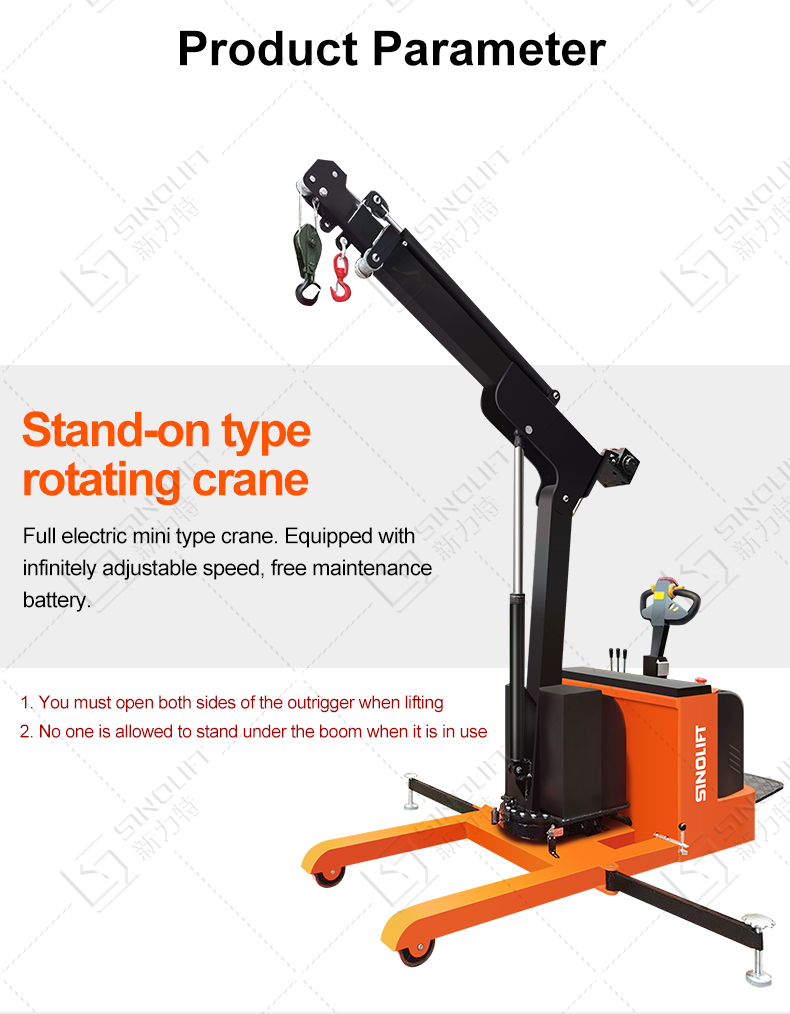

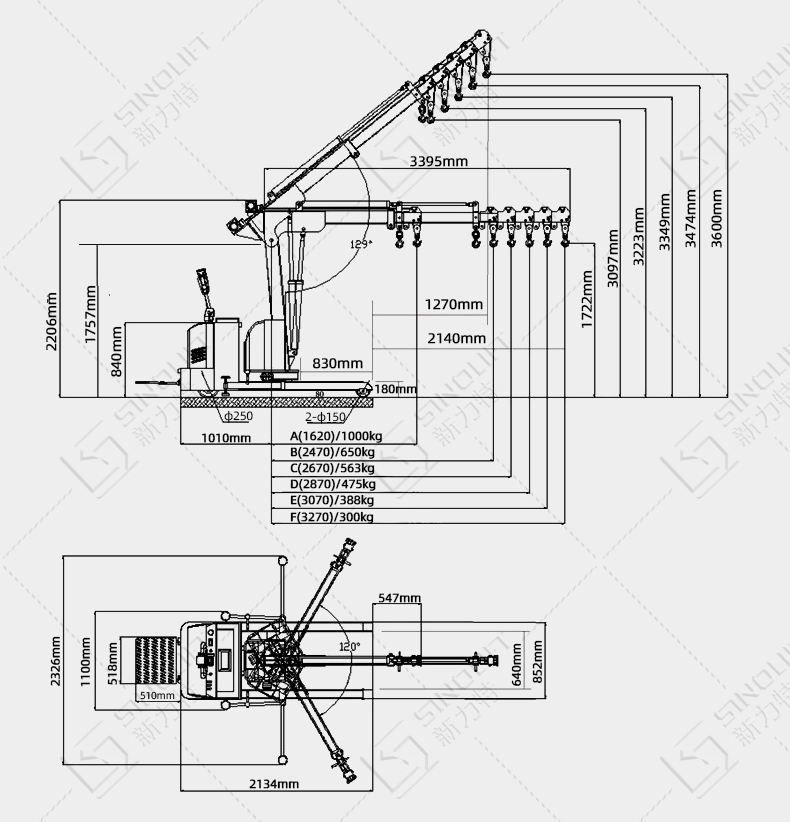

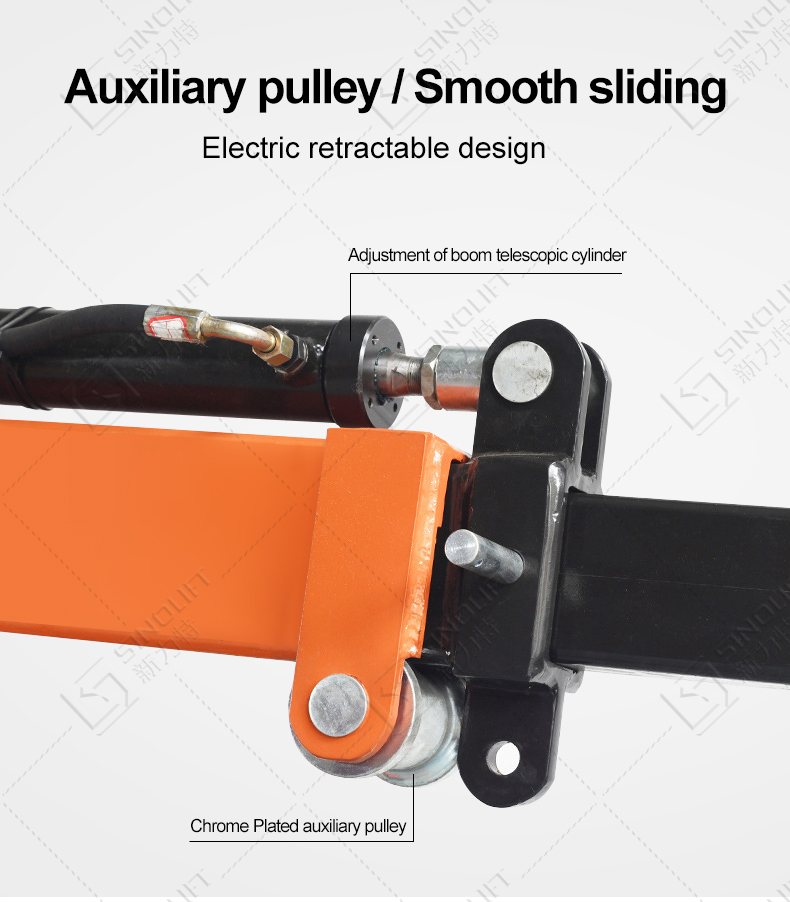

The design of the floor crane features a telescopic jib arm with 5 set positions ranging from 1620 mm to 3070 mm and the maximum load capacity is determined by the arm reach setting.

ModelYLF01
Boom length mm162024702670287030703270
Load Capacitykg1000650562.5475387.5300
Boom Rotation°±60°
Turning Radiusmm2150
The Width of Straddle legmm852
Front Wheelmm∅150×50
Rear wheelmm∅250×80
Drive TypeElectric
Drive Motorkw1.2
Lift Motorkw2.2
Battery V/Ah24/210
Retracted Size(L×W×H)mm2200×1100×2155
ChargerV/A24/30
Net Weightkg1070
