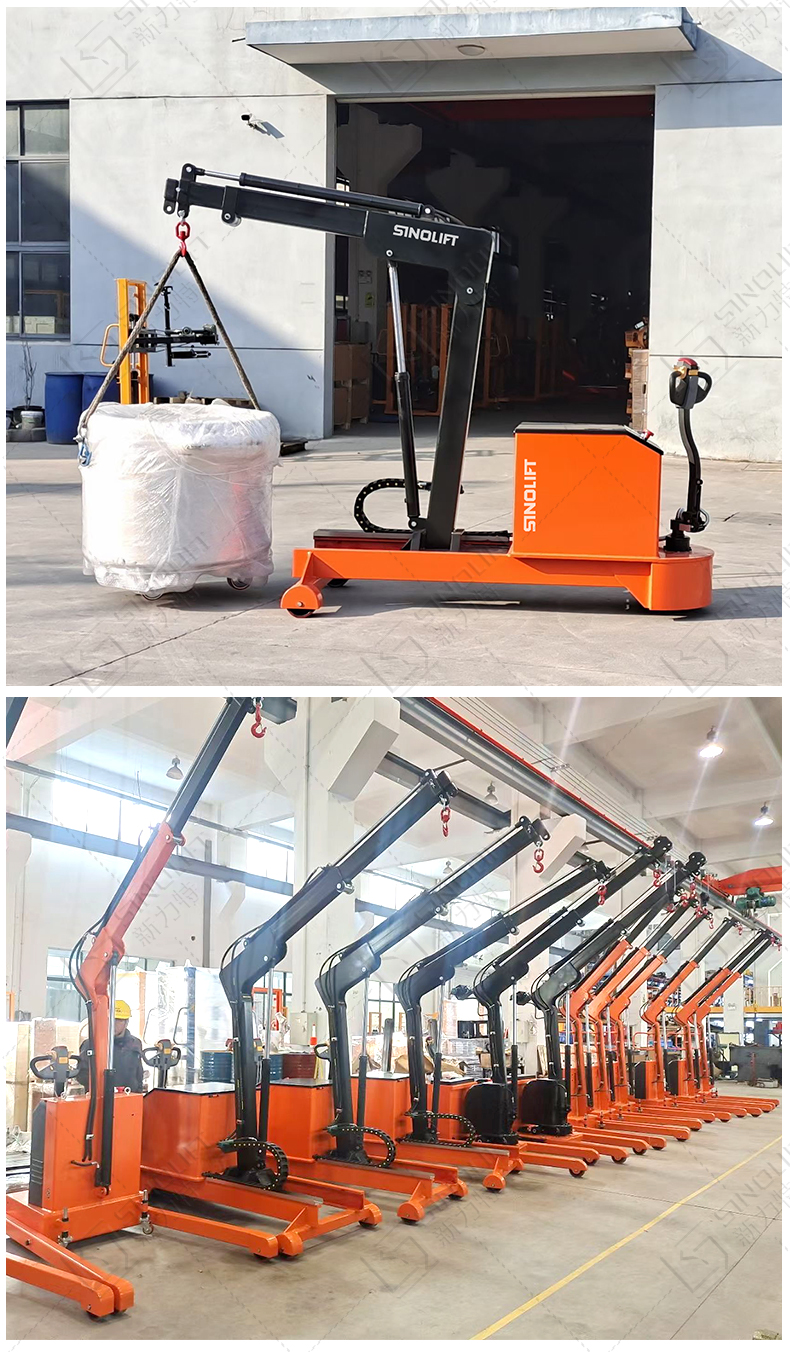

YLH01 Full Electric Floor Crane, Engine Hoist
YLH01

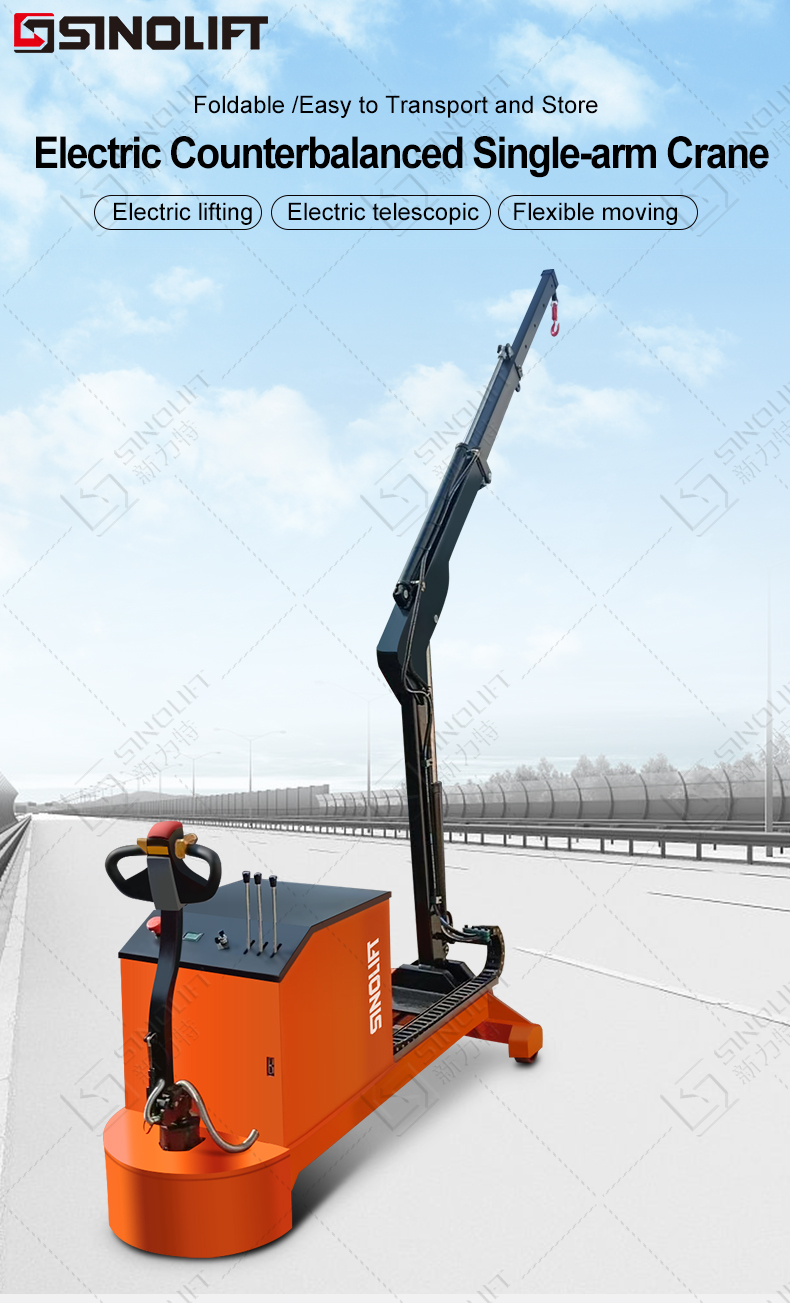

Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs.

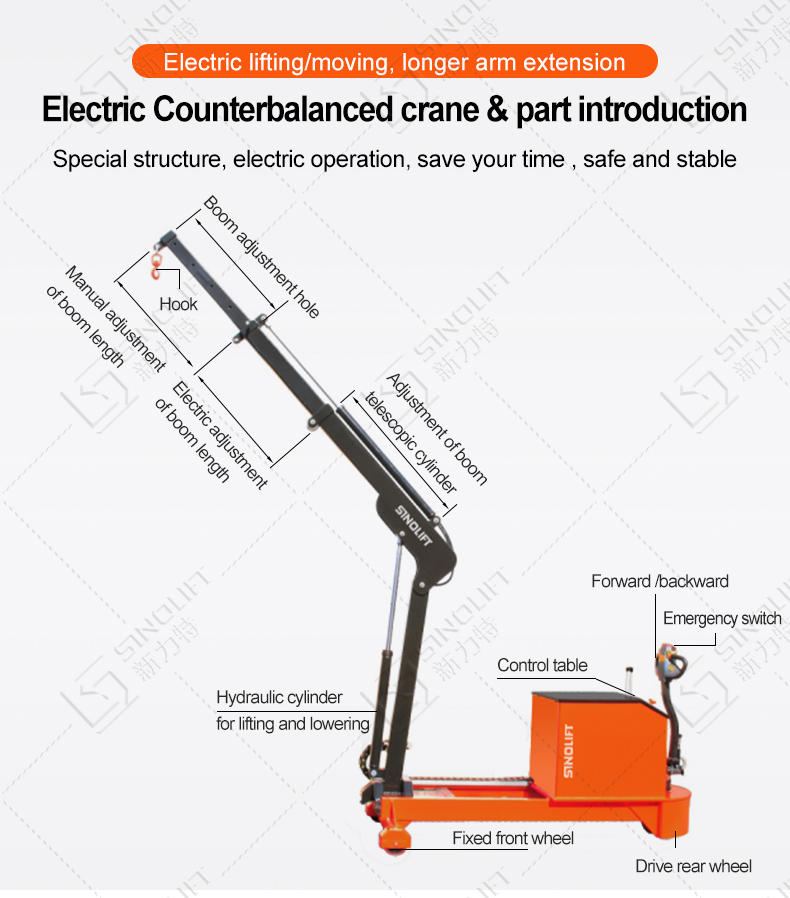

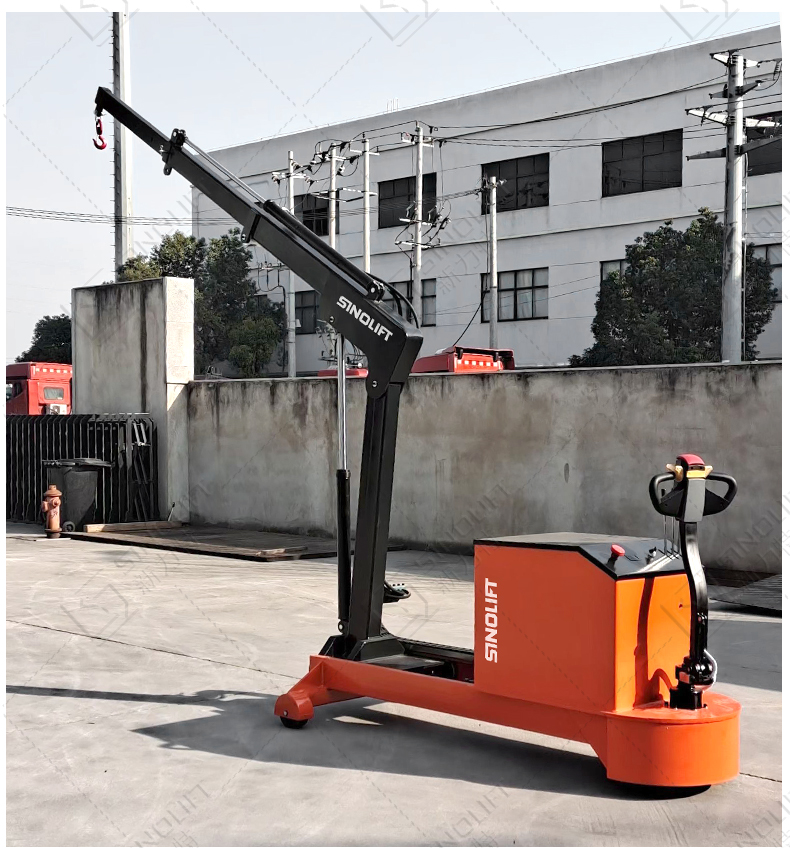

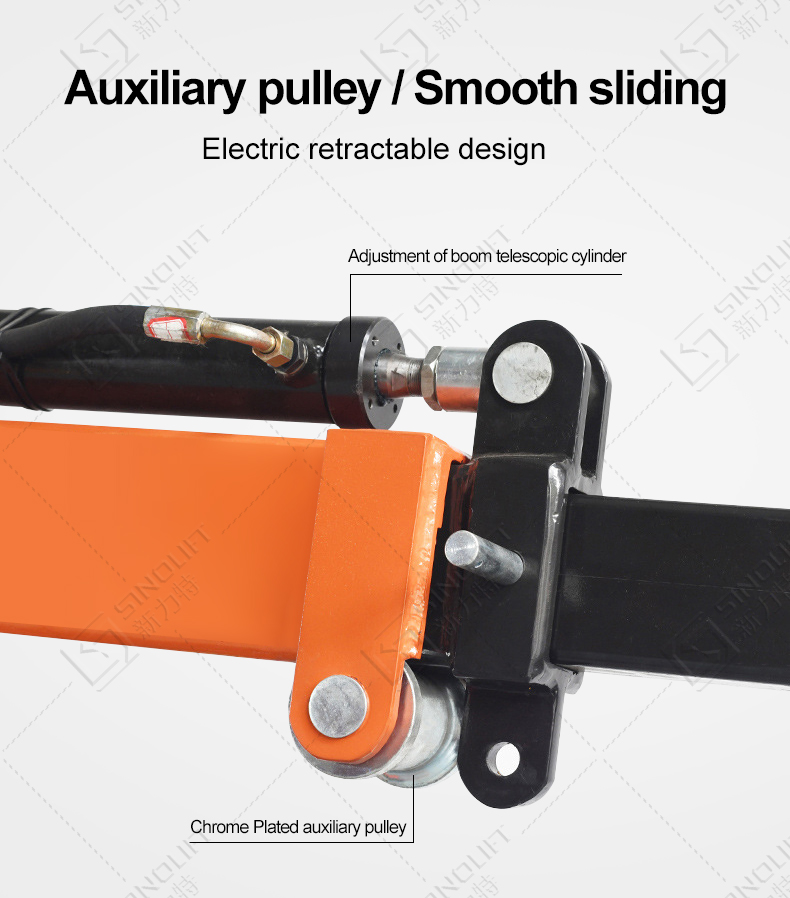

The crane has an adjustable boom that allows maximum adjustment and versatility to lift a variety of loads. The boom is operated with a manual hydraulic hand pump. The boom can also be telescoped out for greater reach. The counterbalanced design eliminates the need for a front leg, making the unit easier to maneuver and is ideal for reaching narrow, hard-to-reach areas, hard-to-reach areas.
The crane has an adjustable boom that allows maximum adjustment and versatility to lift a variety of loads. The boom is operated with a manual hydraulic hand pump. The boom can also be telescoped out for greater reach. The counterbalanced design eliminates the need for a front leg, making the unit easier to maneuver and is ideal for reaching narrow, hard-to-reach areas, hard-to-reach areas.
Quantity:
Fully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs.
The crane has an adjustable boom that allows maximum adjustment and versatility to lift a variety of loads. The boom is operated with a manual hydraulic hand pump. The boom can also be telescoped out for greater reach. The counterbalanced design eliminates the need for a front leg, making the unit easier to maneuver and is ideal for reaching narrow, hard-to-reach areas, hard-to-reach areas.
| Model | YLH | |||

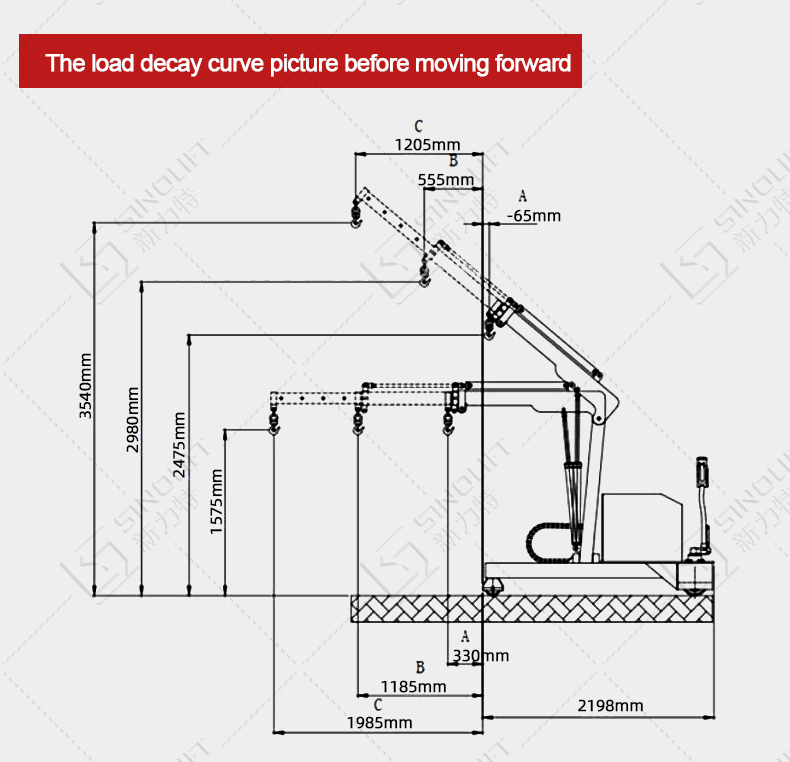

| Boom length | mm | 1125 | 1980 | 2780 |
| Load Capacity | kg | 1000 | 550 | 200 |
| Lift Motor | kw | 2.2 | ||
| Drive Motor | kw | 0.75 | ||
| Battery | 12V/120Ah×2 | |||
| Front Wheel | mm | ∅150×70 | ||
| Drive Wheel | mm | ∅250×80 | ||
| Travel Speed | km/h | 5 | ||
| Overall Size | mm | 2200×1015×1950 | ||
| Battery Size | mm | 406×172×211 | ||
| Net Weight | kg | 720 | ||
