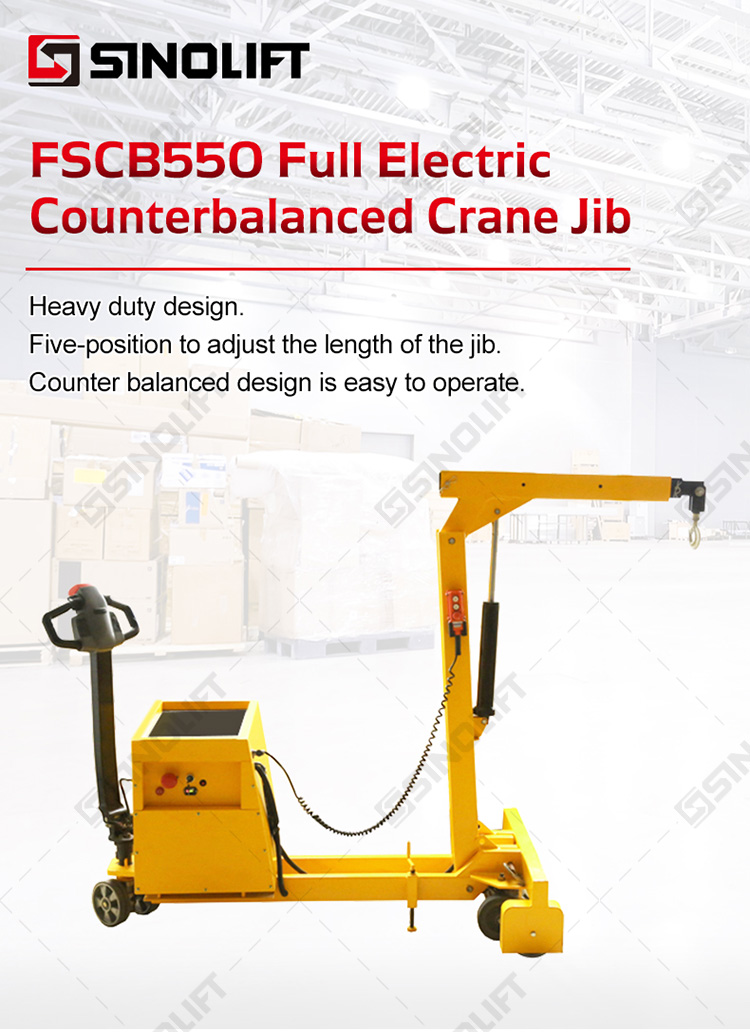

FSCB550 Full Electric Counterbalanced Crane Jib
This full power crane will provide years of reliable use for unique material handling projects or repetitive production applications.
Very easy to operate, save labor.
Electric lifting and electric moving.
Five positions to adjust the length of the jib.
Heavy duty design

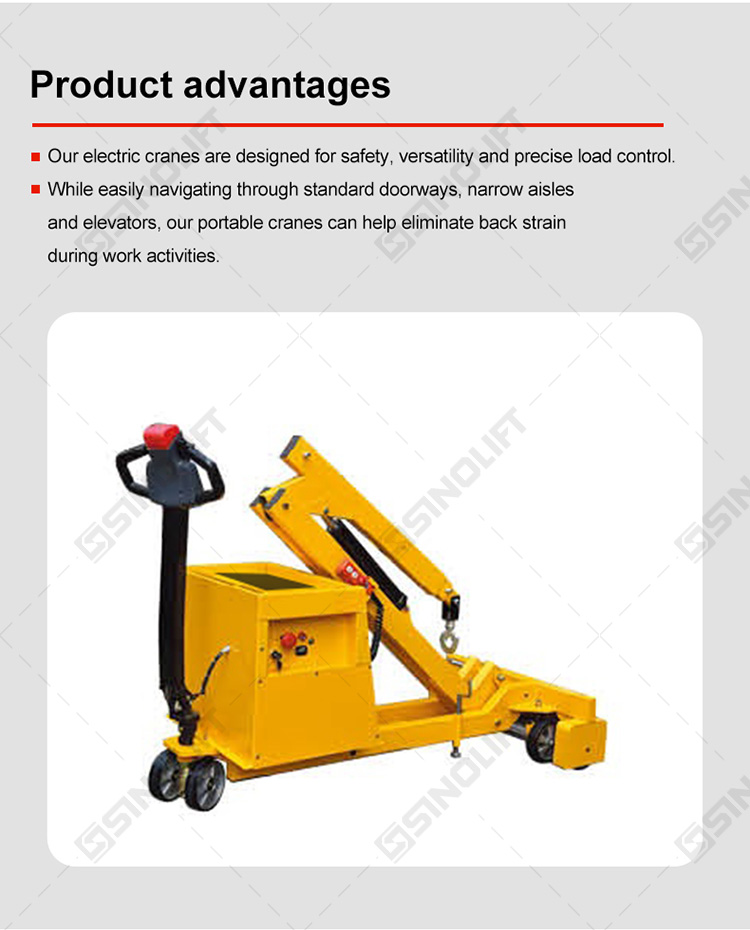

Our electric cranes are designed for safety, versatility and precise load control.

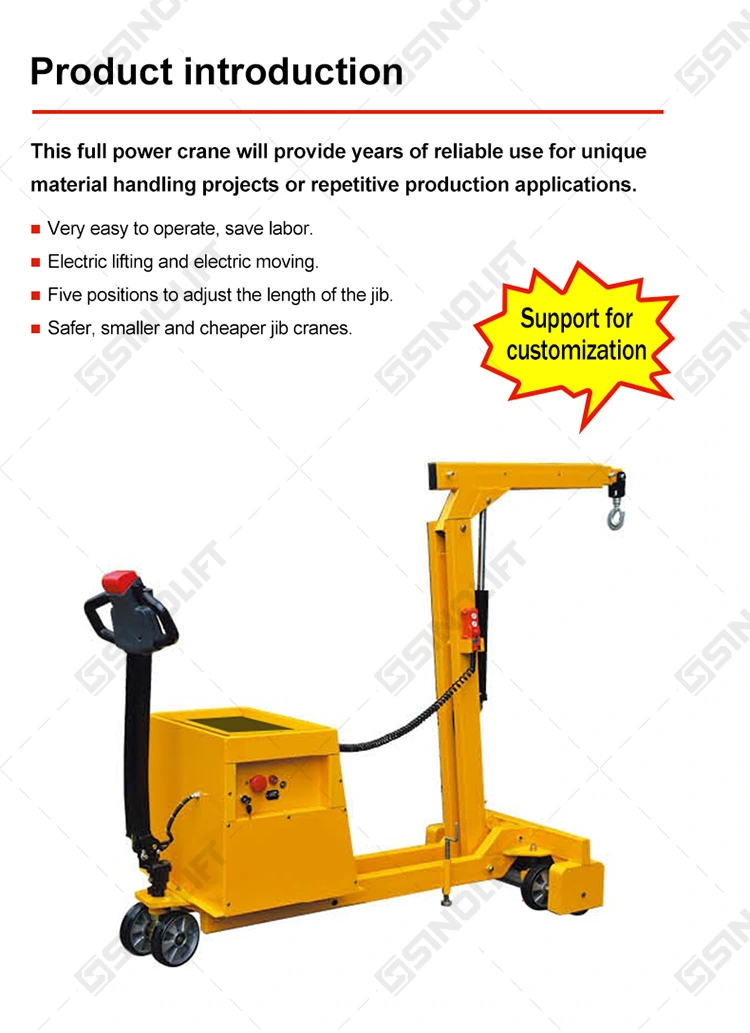

This full power crane will provide years of reliable use for unique material handling projects or repetitive production applications.
Very easy to operate, save labor. |
Electric lifting and electric moving. |
Five positions to adjust the length of the jib. |
Heavy duty design |
Counter balance design for heavy lifting. Fixed legs for constant size. Brightly colored for visibility. Stand up user design for quick action
While easily navigating through standard doorways, narrow aisles and elevators, our portable cranes can help eliminate back strain during work activities. As highly mobile material handling equipment, our products are often seen as a safer, smaller and less expensive alternative to tractor-trailer lift trucks.

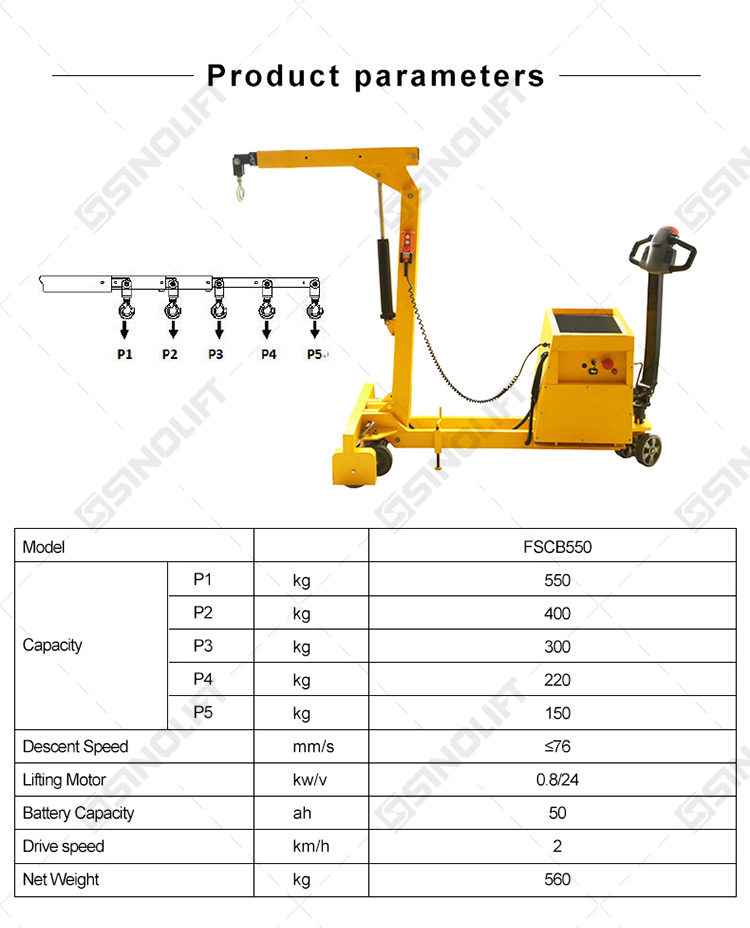

| Model | FSCB550 | ||
| Capacity | kg | P1 | 550kg |
| P2 | 400kg | ||
| P3 | 300kg | ||
| P4 | 220kg | ||
| P5 | 150kg | ||
| Descent Speed | mm/s | ≤76 | |
| Lifting Motor | kw/v | 0.8/24 | |
| Battery Capacity | ah | 60 | |
| Drive speed | km/h | 2 | |
| Net Weight | kg | 560 |
