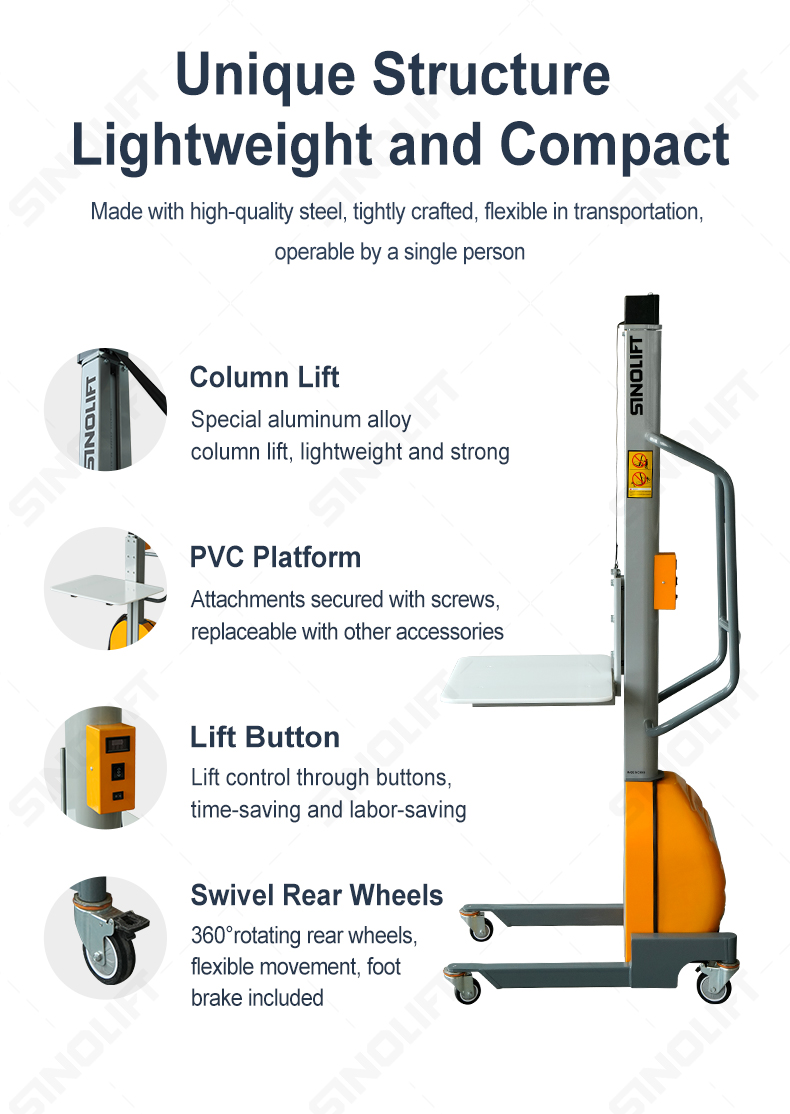

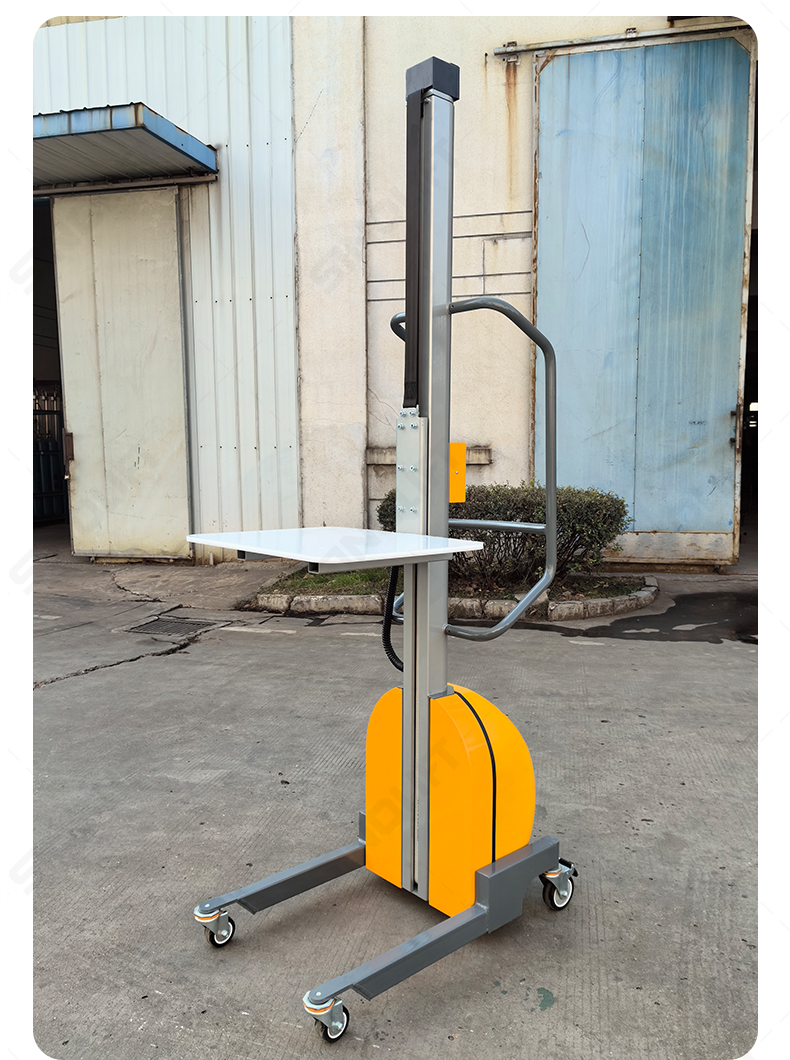

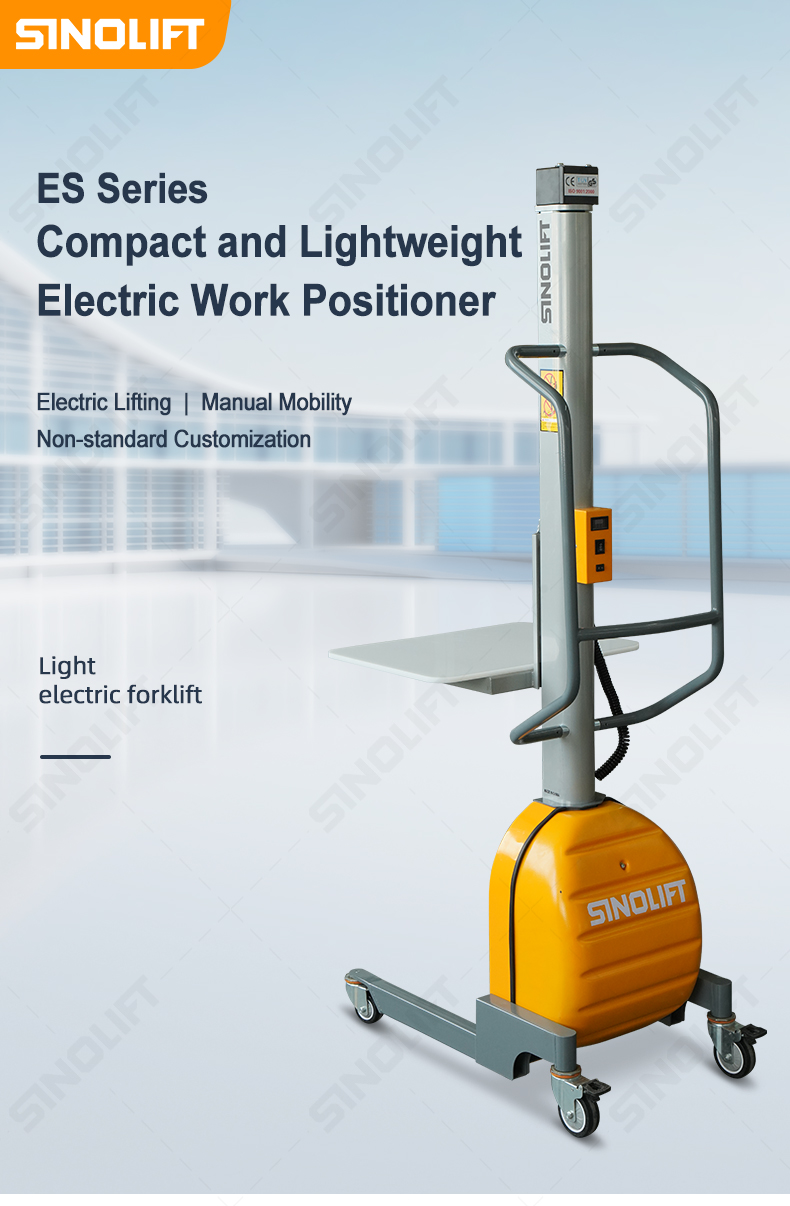

The Sinolift E-series work positioners with 2000mm Lifting Height
ES100、ES150、ES200
Quantity:
A work positioner is a type of lifting table that allows the operator to position products at the optimal working height. Often designed with a low profile, these tables make it easy to load products directly onto them using a manual pallet lifter. The low-profile models can even be placed directly on the floor without requiring a pit.
These lifting tables are highly favored for their user-friendliness and their ability to reduce the strain on employees by eliminating the need for bending and lifting heavy objects. Additionally, they enhance efficiency by streamlining production and packaging workflows, saving valuable time.
| Model with Standard Platform | ES100 | ES150 | ES200 | |

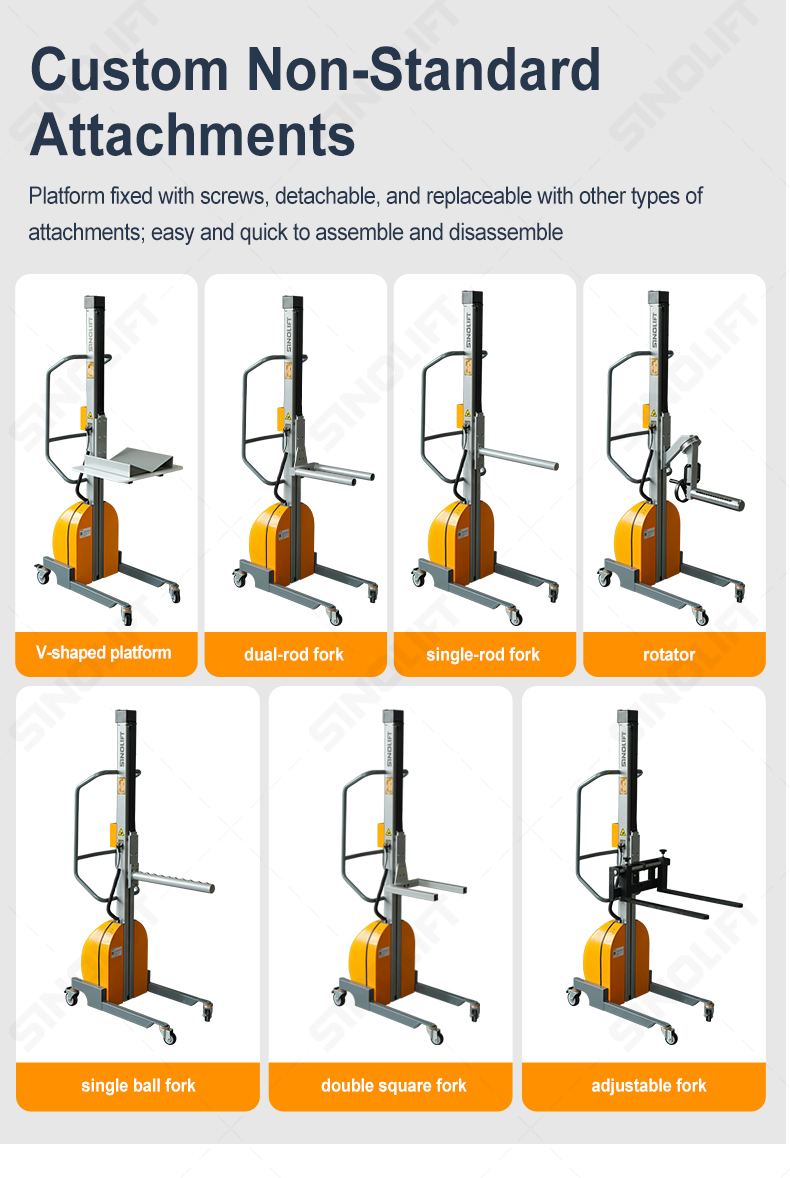

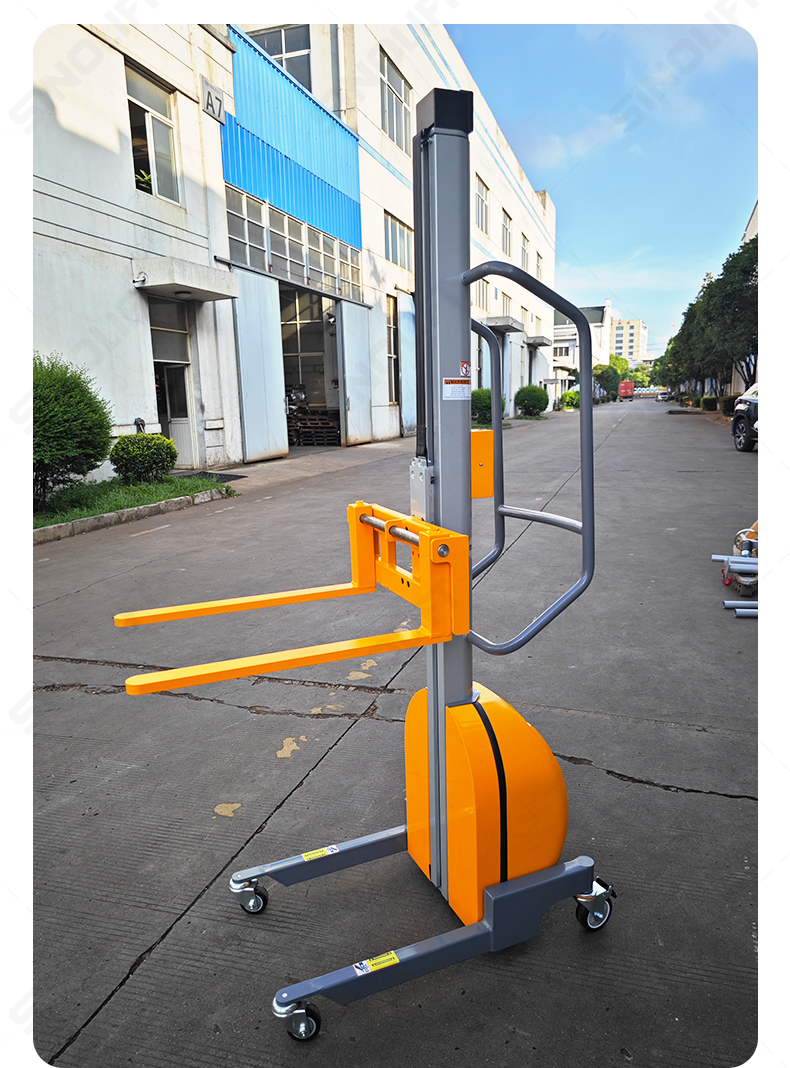

| Model with Adjustable Fork | ES100f | ES150f | ES200f | |
| Load Capacity | kg | 100 | 150 | 200 |
| Load Center | mm | 235 | 235 | 200 |

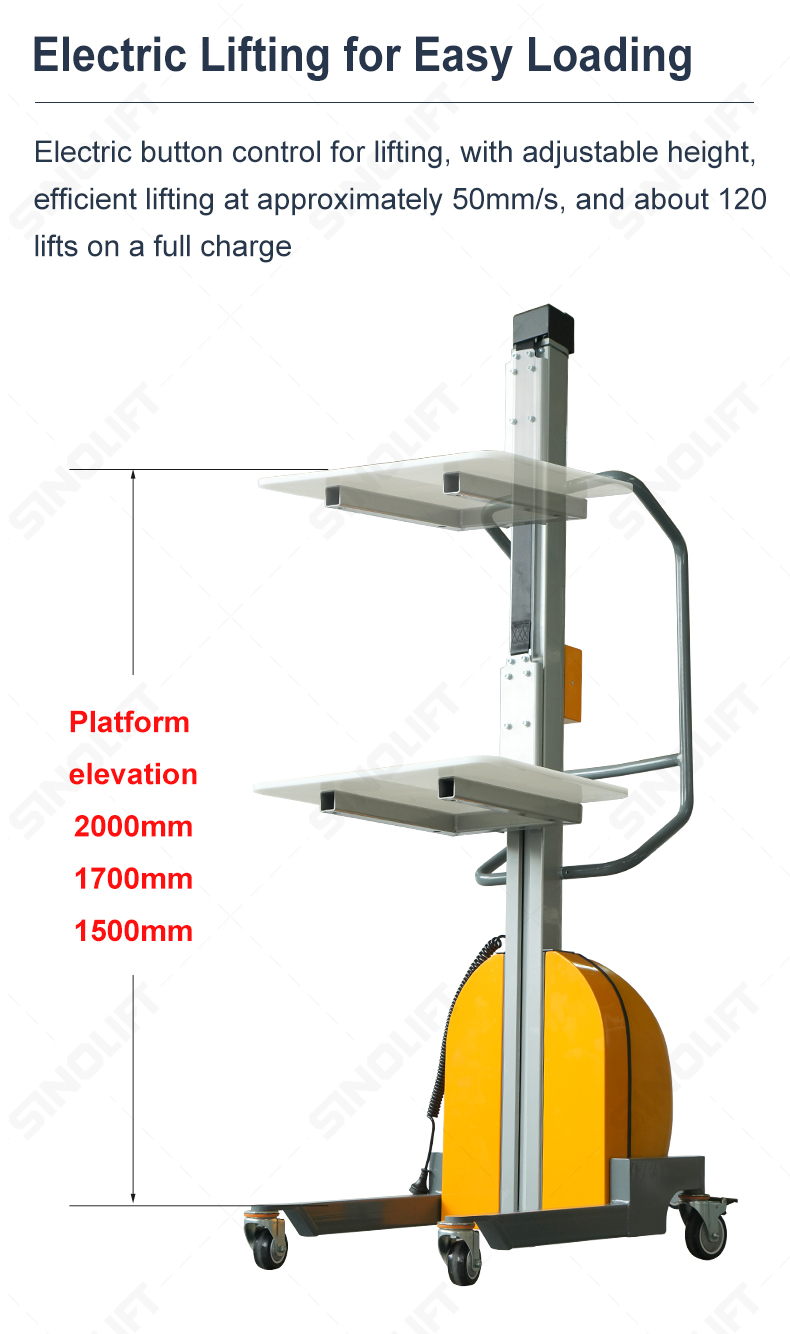

| Maximum Platform/Fork Height | mm | 1700/2000 | 1500/1700/2000 | 1500/1700/2000 |
| Standard Minimum Platform/Fork Height | mm | 130 | 130 | 130 |
| Optional Minimum Platform/Fork Height | mm | 85 | 85 | 85 |

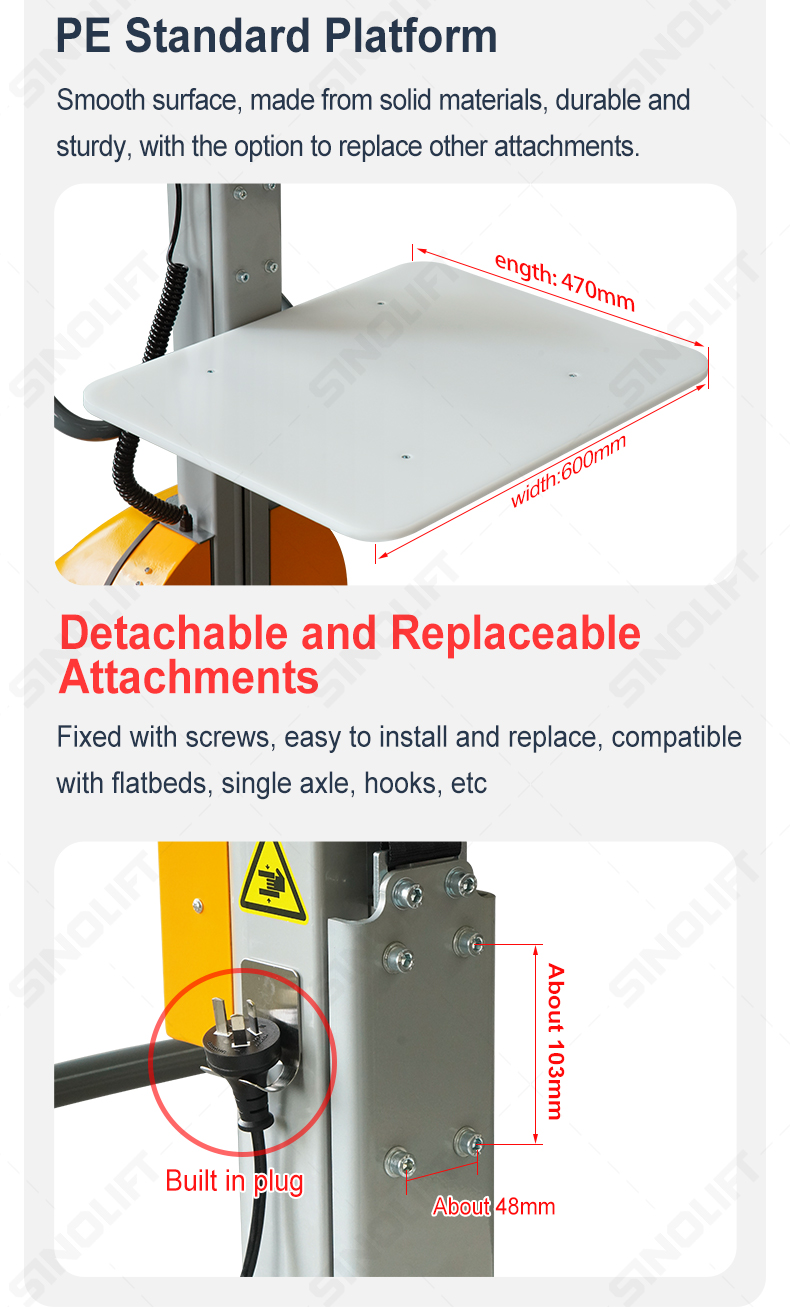

| Platform Size | mm | PVC600×470 | ||
| Fork Length | mm | 550 | ||
| Overall Fork Width | mm | 200~520 | ||
| Loading Roller Diameter | mm | 75×20 | ||
| Lifting/Lowering Speed | mm/s | 55 | ||

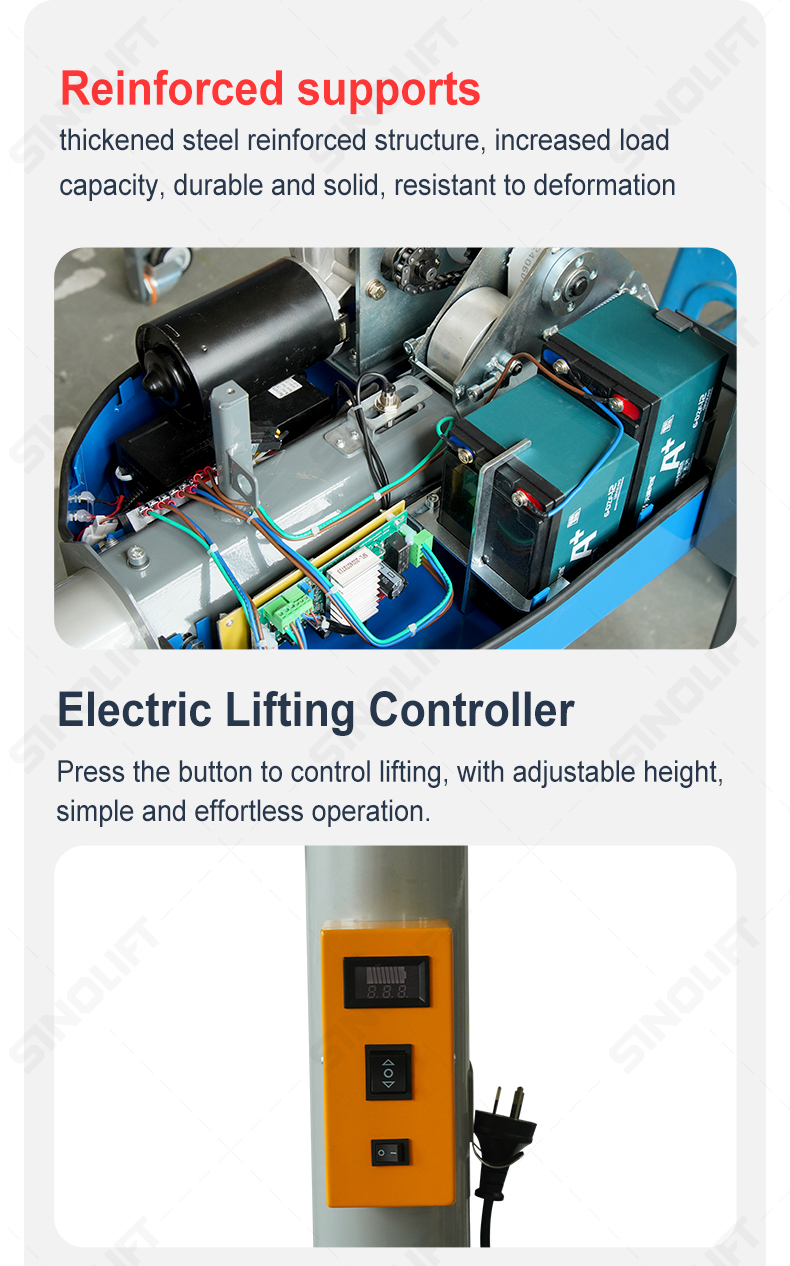

| Battery | V/Ah | 24/10 | ||
| Vehicle Length/Width | mm | 850×600 | ||
| Vehicle Height | mm | 2165/2465 | 1965/2165/2465 | 1965/2165/2465 |
| Net Weight | kg | 68/70 | 72/74/76 | 84/86/88 |
