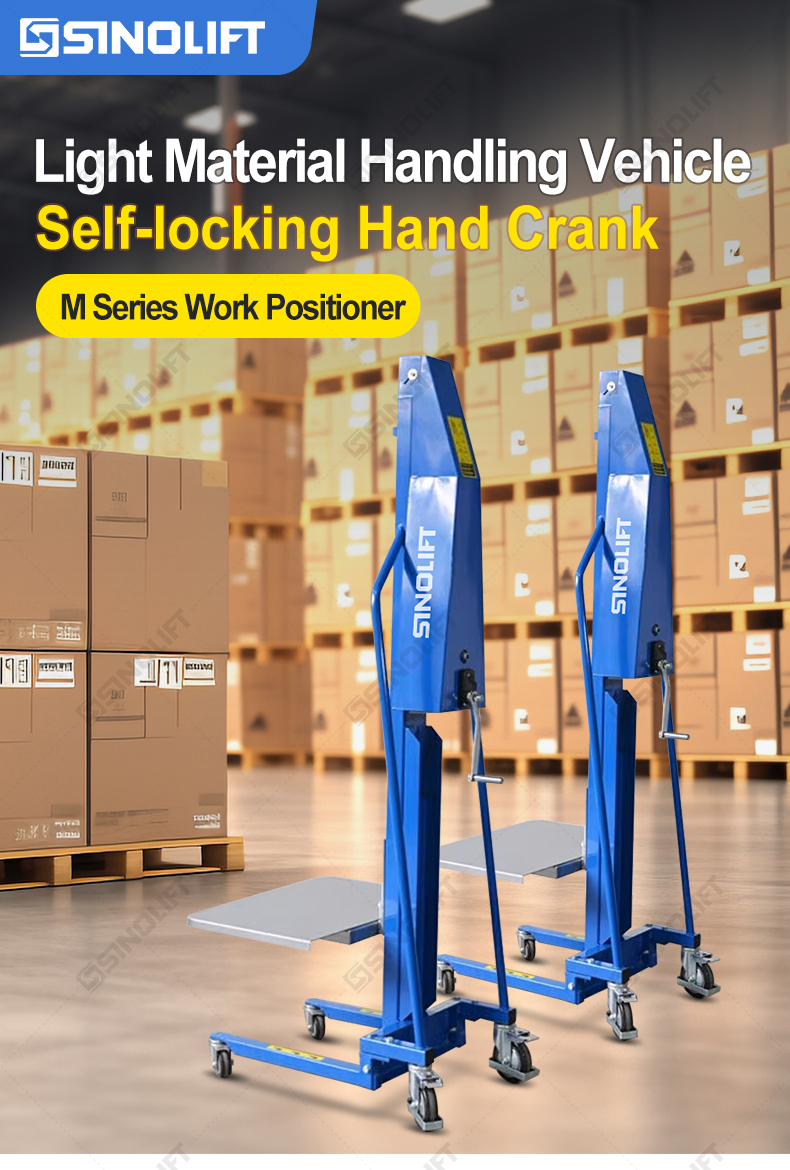

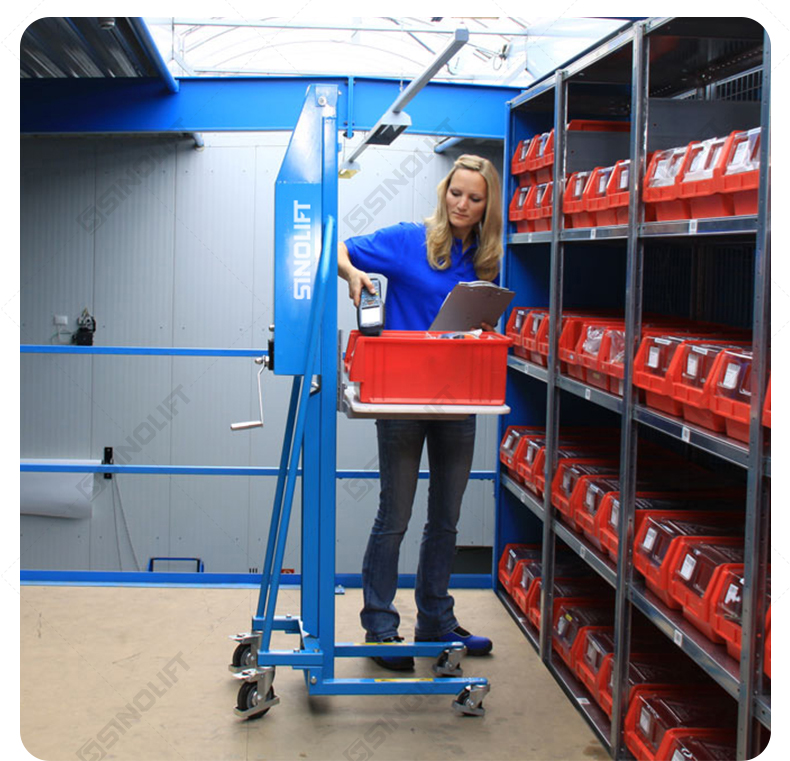

Sinolift M series work positioner light material handling vehicle with self-locking hand crank
M100-15 、M200-15、M200-17、M200-19
Quantity:

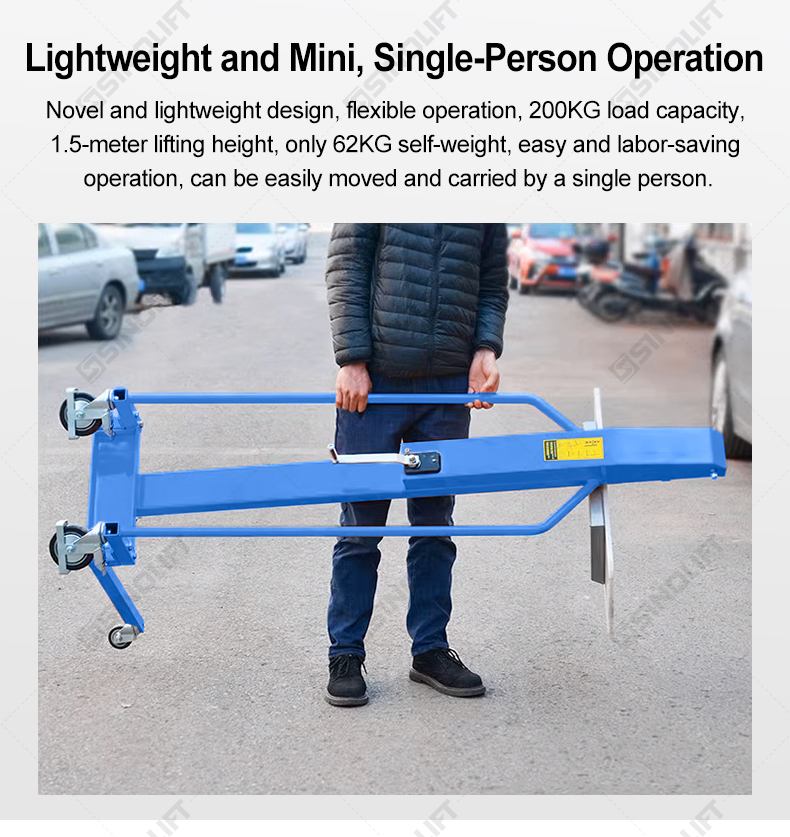

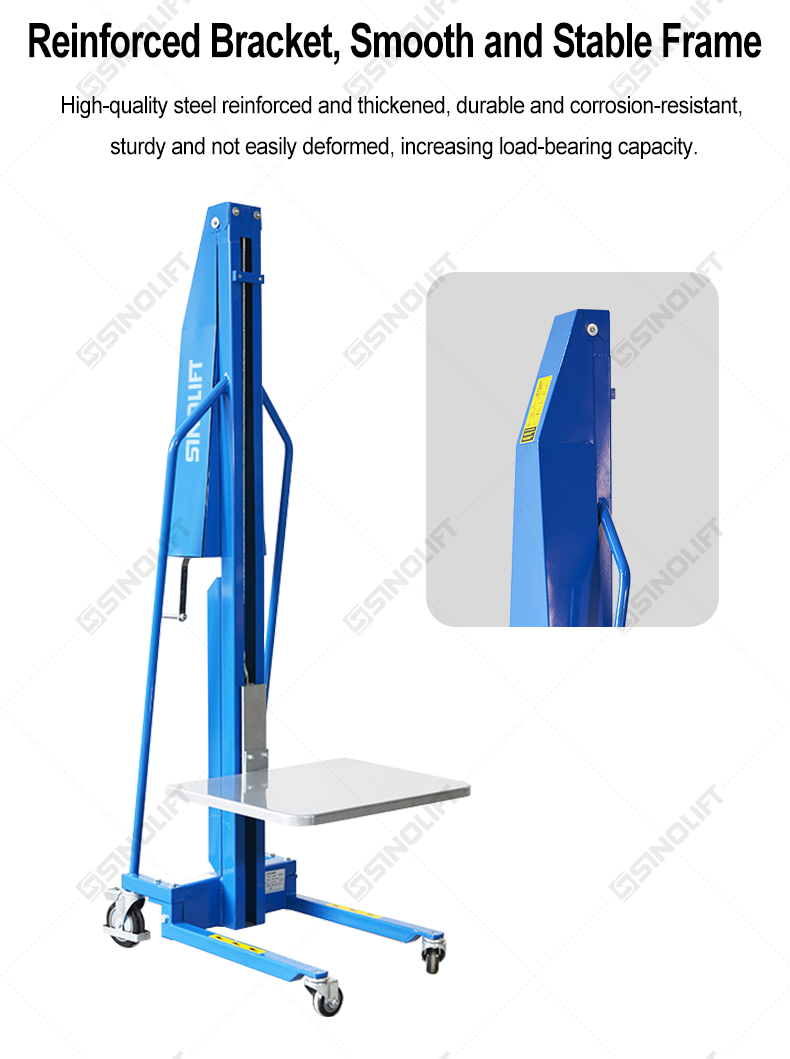

M series work positioner,reinforced bracket,smooth and stable frame,200kg load capacity,1.5m lifting height,lightweight and mini ,only 62kg self-weight,easy and labor-saving operation,can be easily moved and carried by a single person.

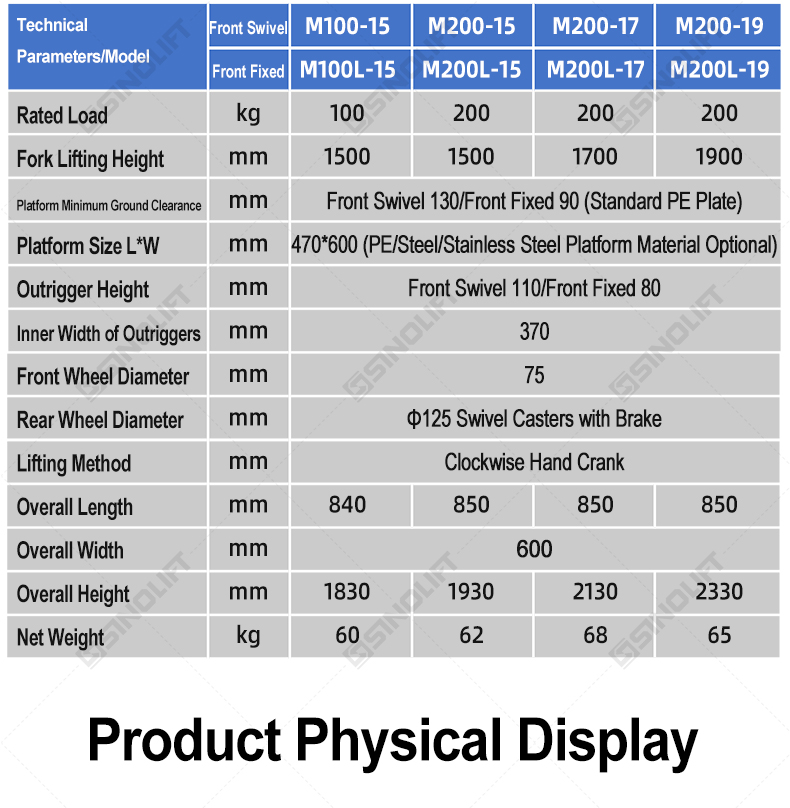

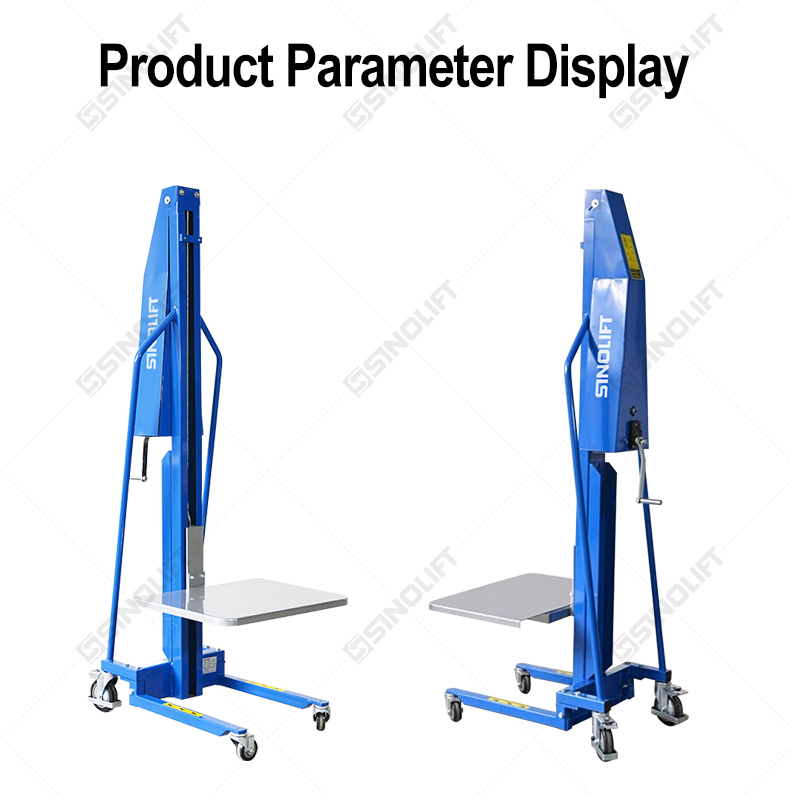

| Technical | Front Swivel | M100-15 | M200-15 | M200-17 | M200-19 |
| Parameters/Model | Front Fixed | M100L-15 | M200L-15 | M200L-17 | M200L-19 |
| Rated Load | kg | 100 | 200 | 200 | 200 |
| Fork Lifting Height | mm | 1500 | 1500 | 1700 | 1900 |
| Platform Minimum Ground Clearance | mm | Front Swivel 130/Front Fixed 90 (Standard PE Plate) | |||

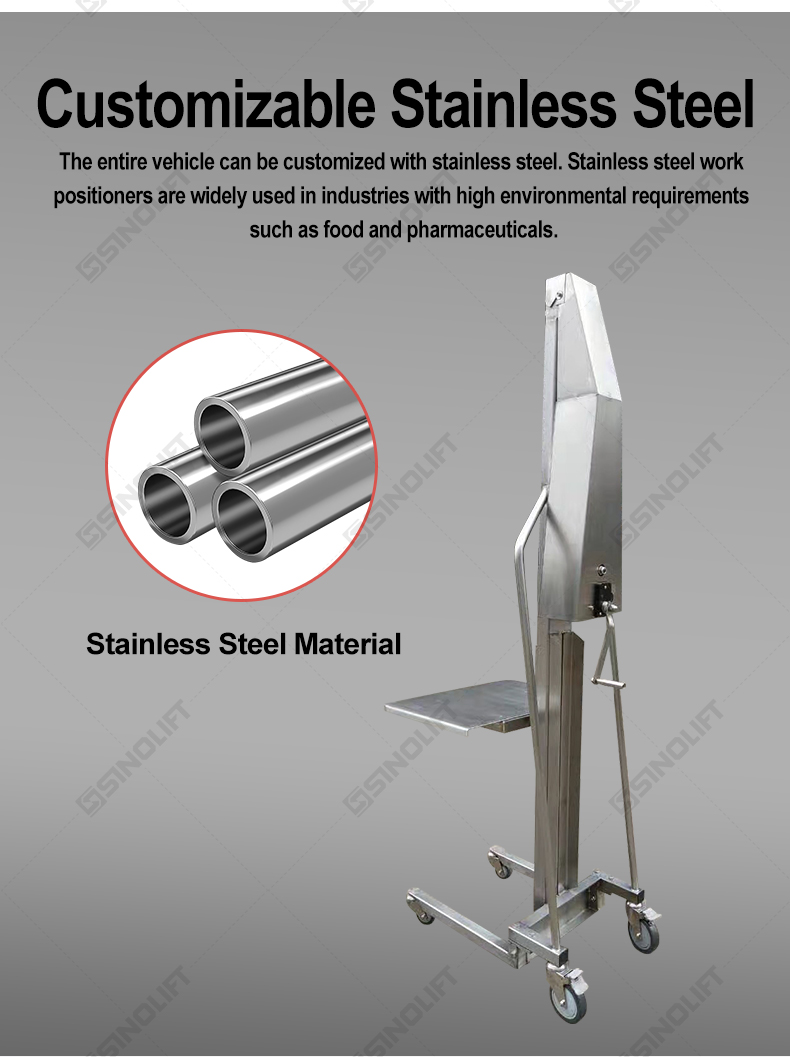

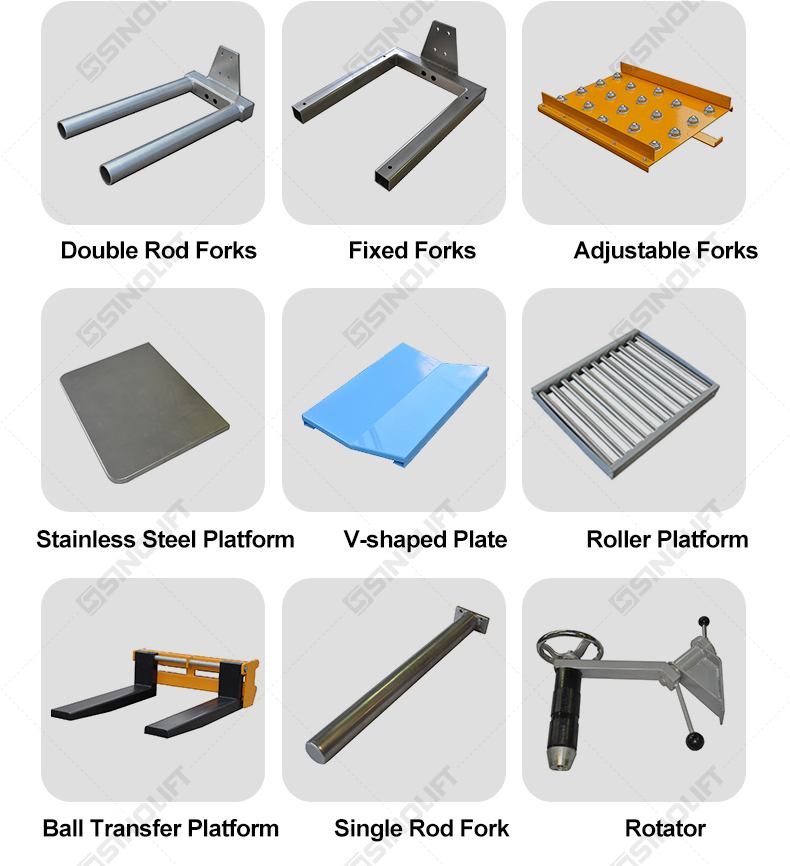

| Platform Size L*W | mm | 470*600 (PE/Steel/Stainless Steel Platform Material Optional) | |||

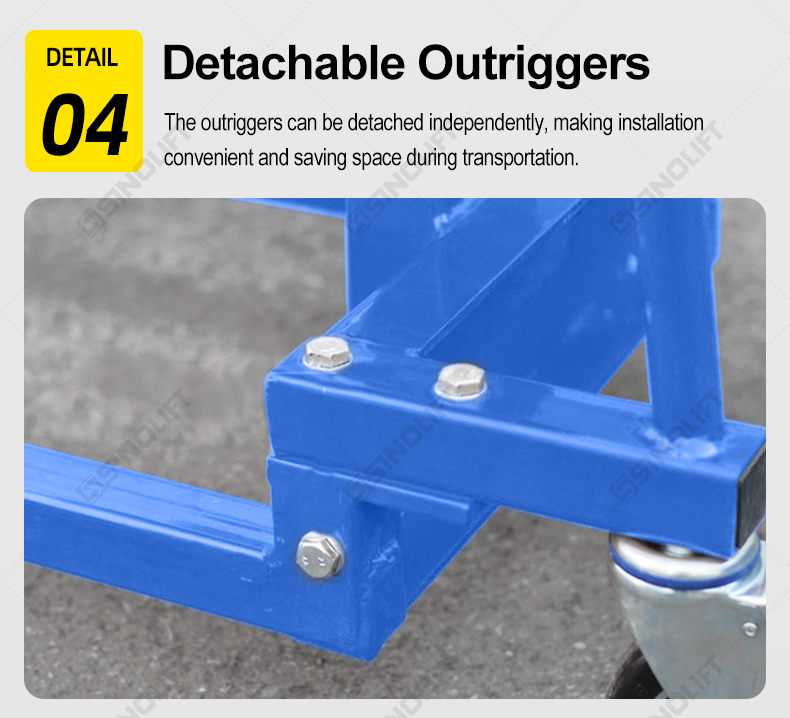

| Outrigger Height | mm | Front Swivel 110/Front Fixed 80 | |||
| Inner Width of Outriggers | mm | 370 | |||
| SINOLI | |||||
| Front Wheel Diameter | mm | 75 | |||

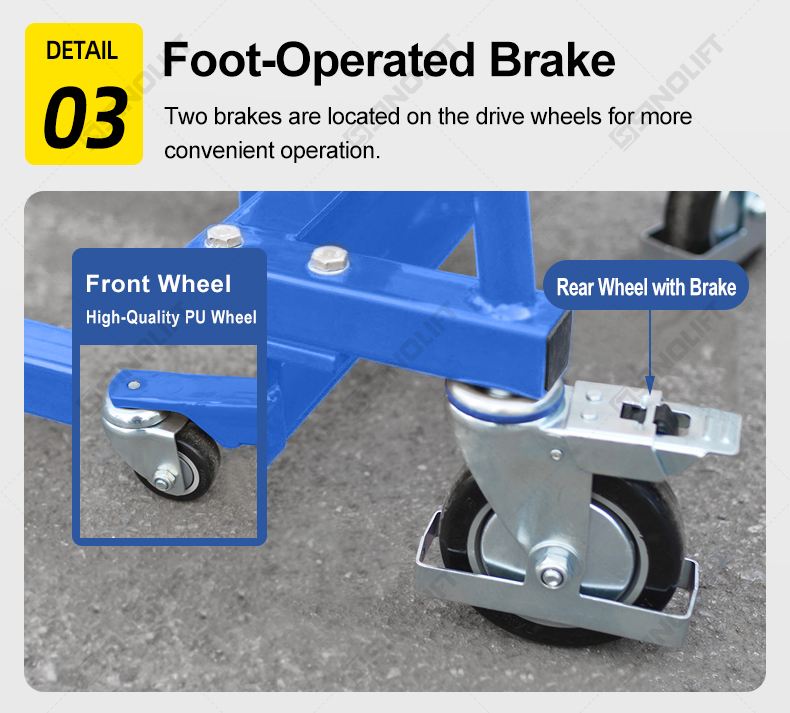

| Rear Wheel Diameter | mm | ф125 Swivel Casters with Brake | |||

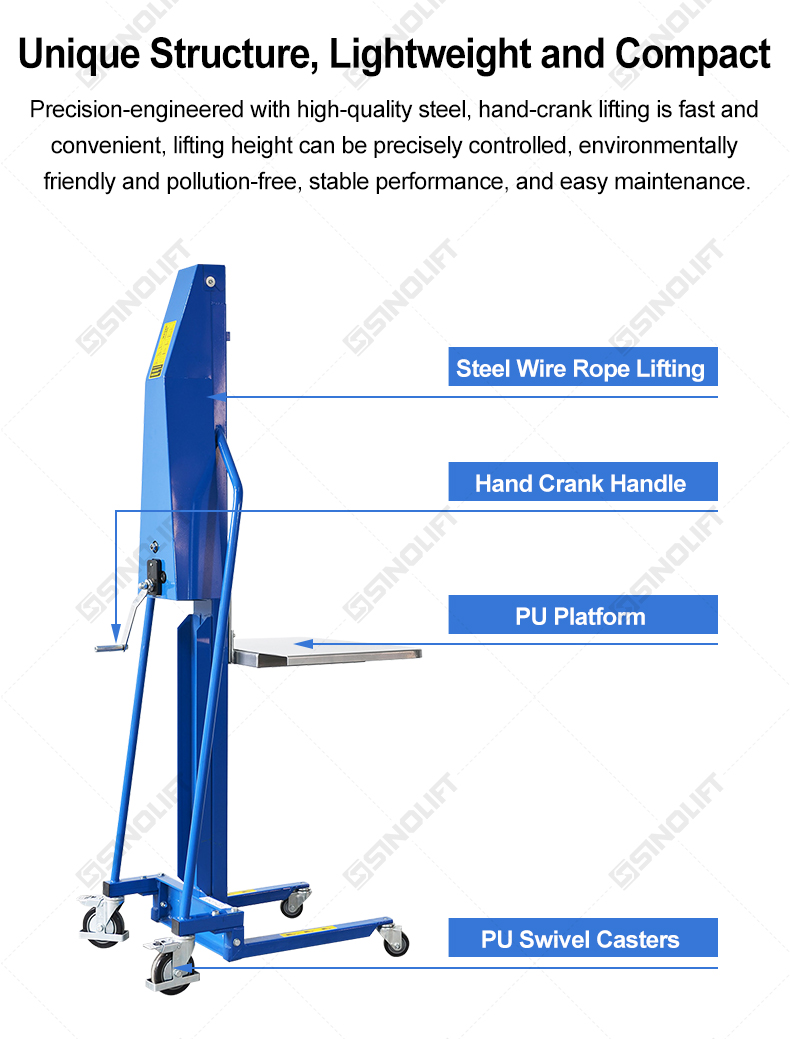

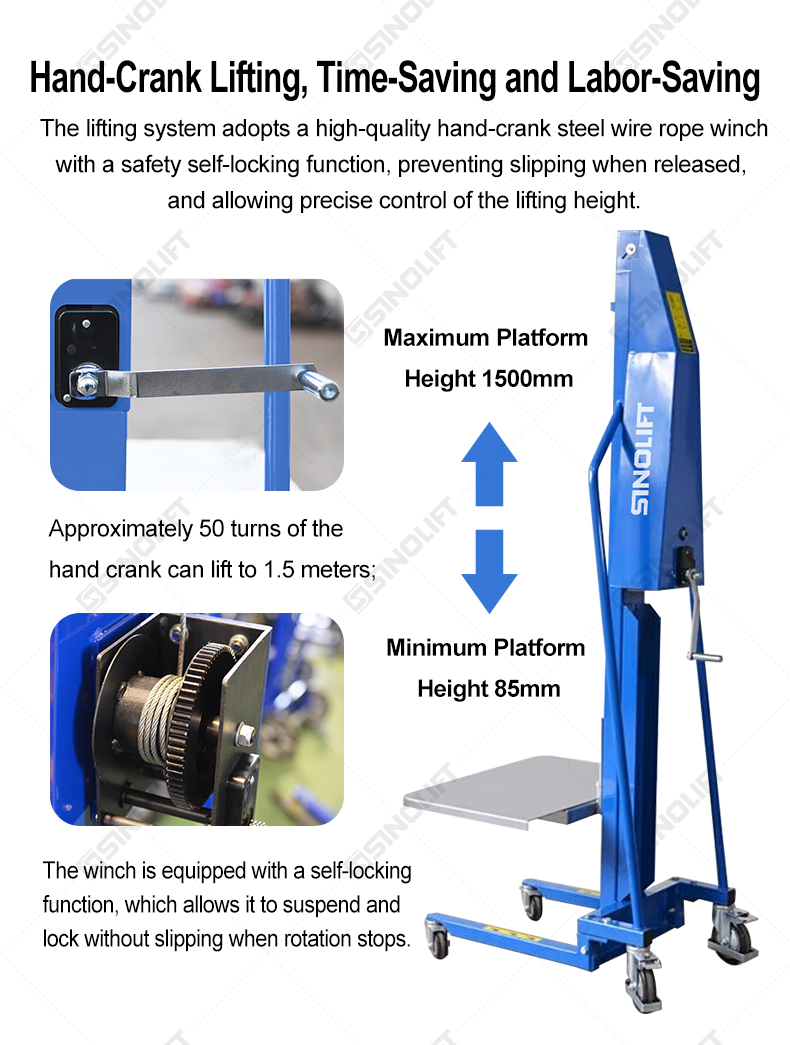

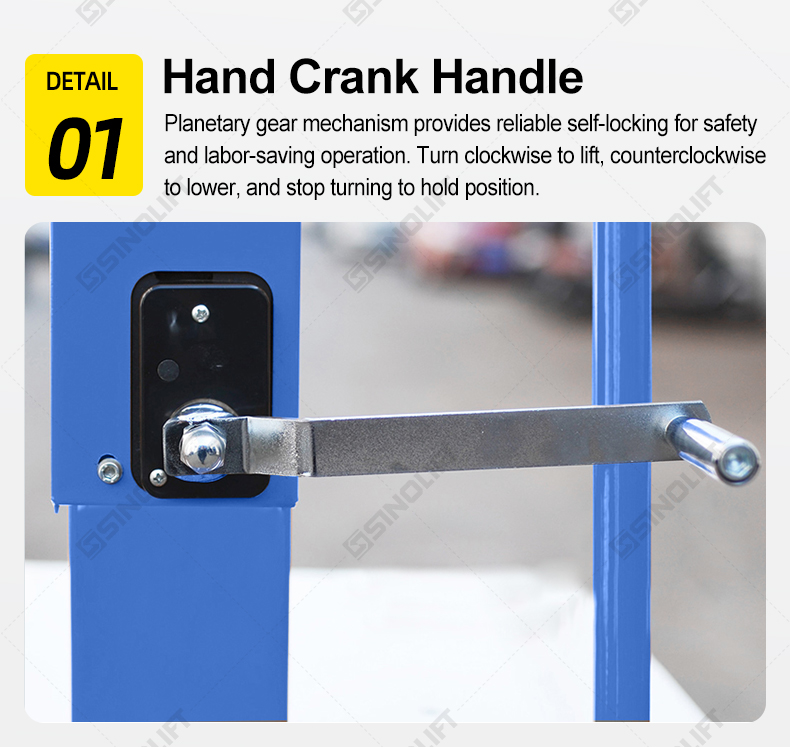

| Lifting Method | mm | Clockwise Hand Crank | |||
| Overall Length | mm | 840 | 850 | 850 | 850 |
| Overall Width | mm | 600 | |||
| Overall Height | mm | 1830 | 1930 | 2130 | 2330 |
| Net Weight | kg | 60 | 62 | 68 | 65 |
