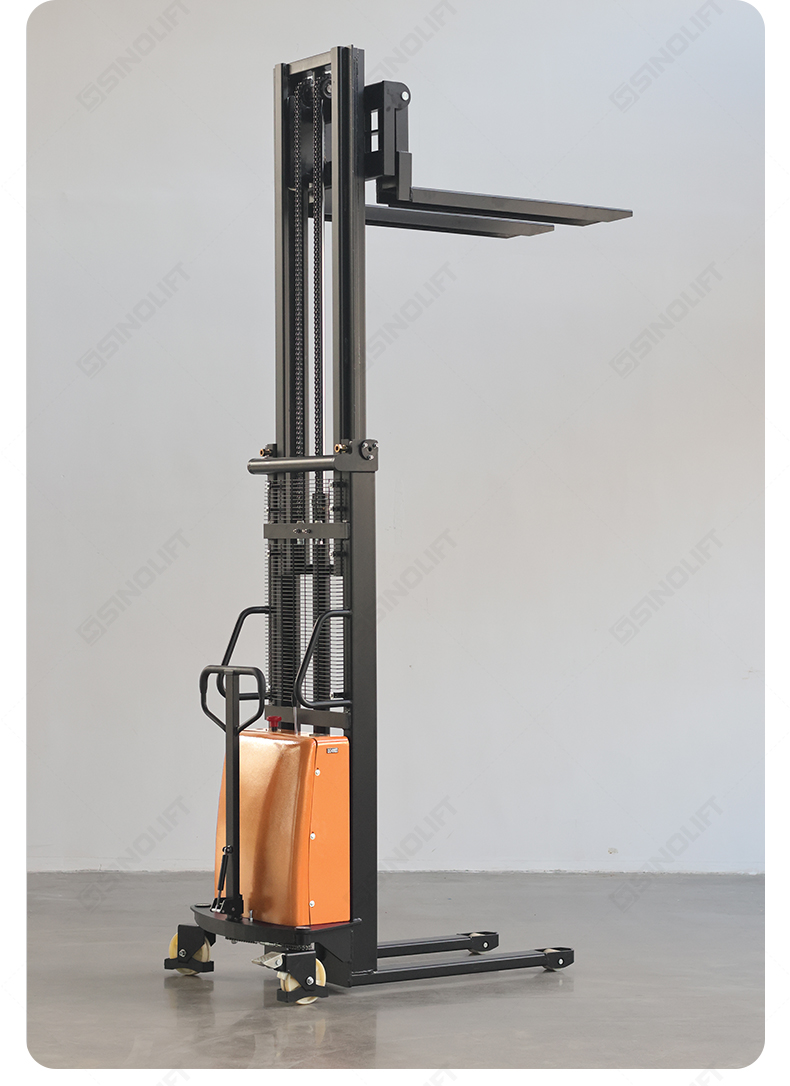

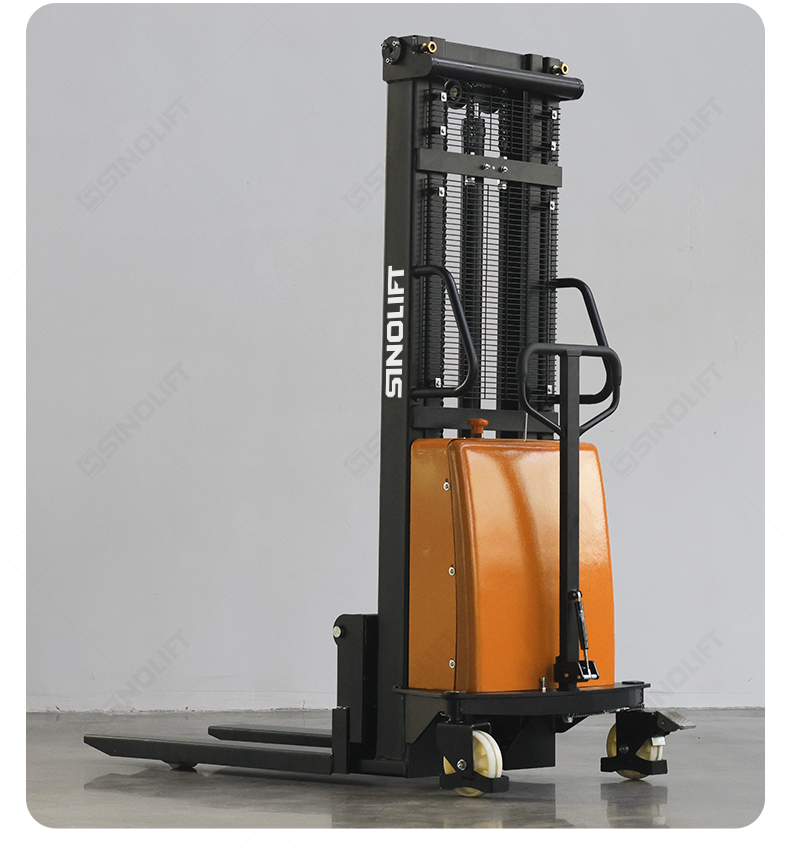

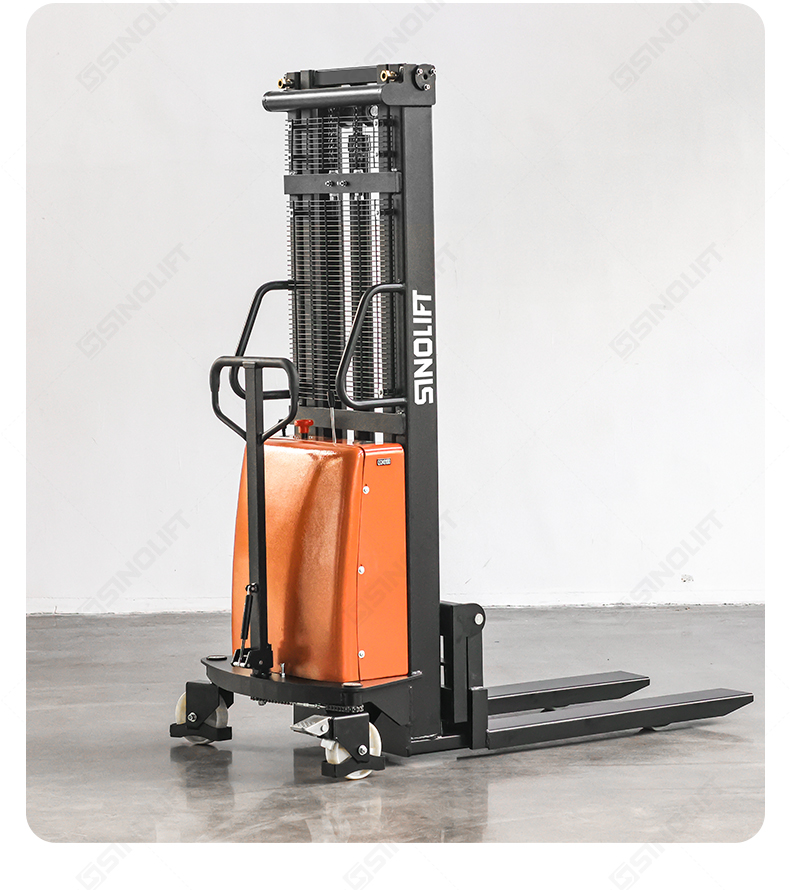

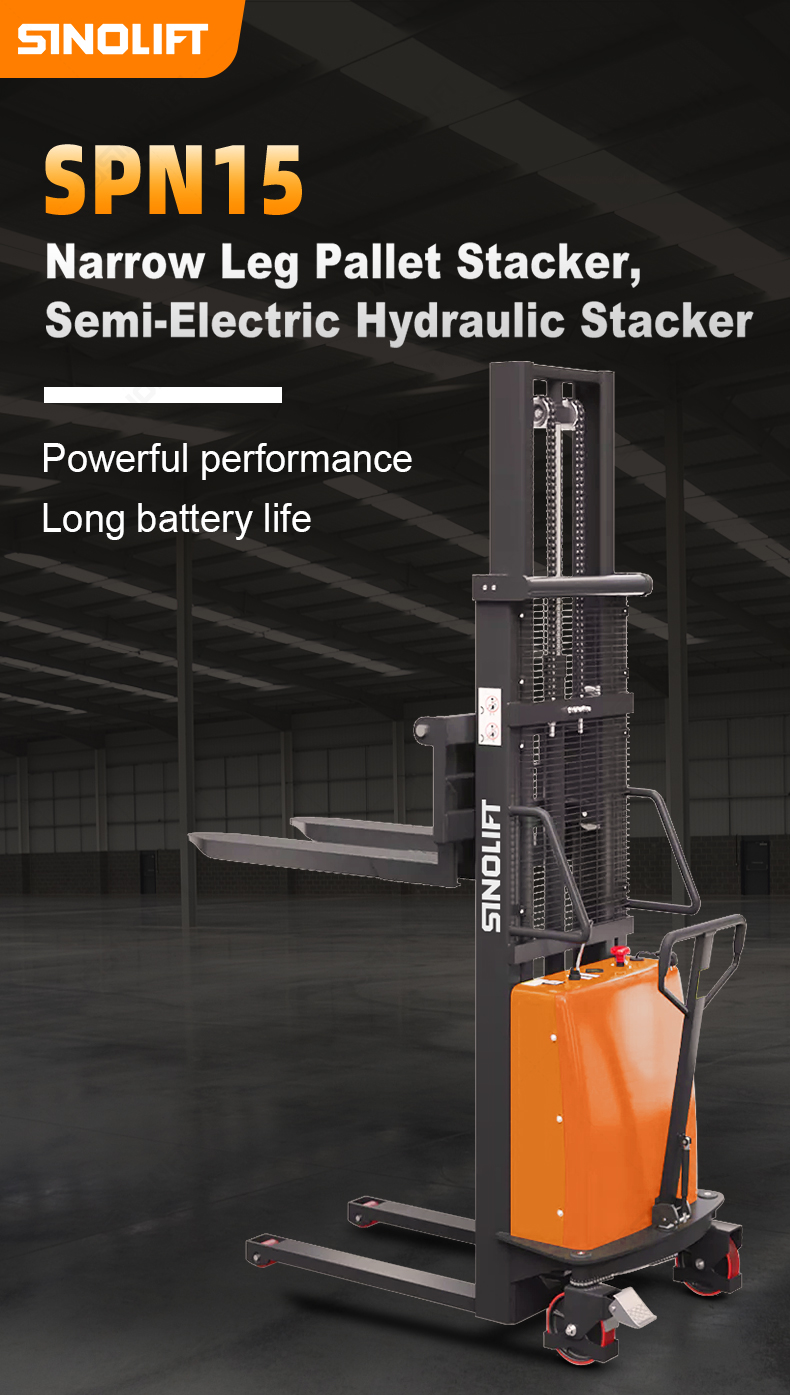

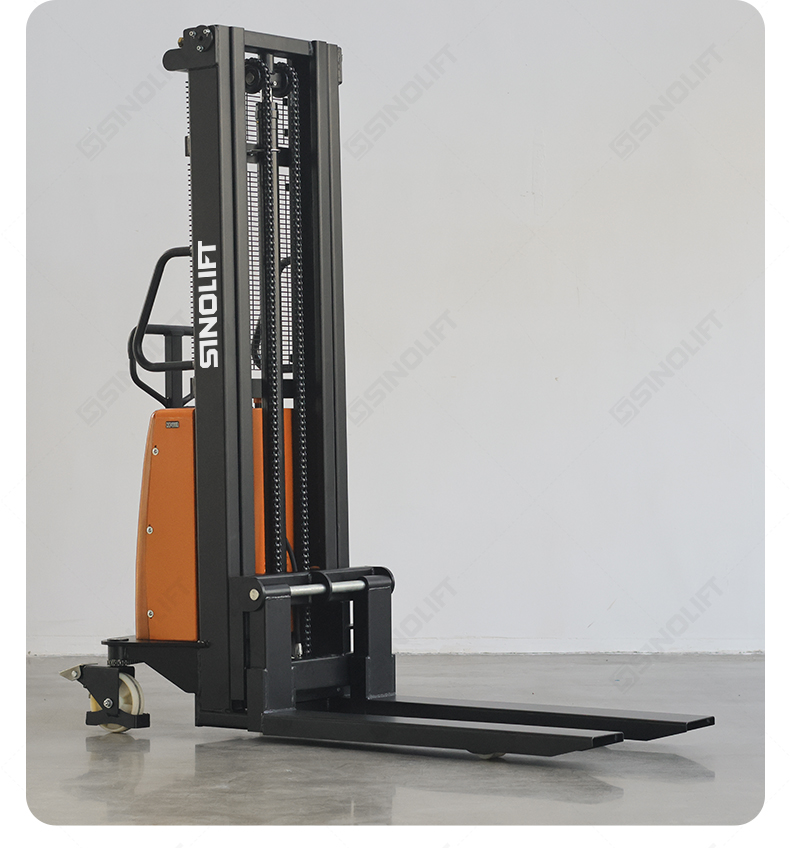

Sinolift SPN15 narrow leg semi-electric hydraulic pallet stacker
SPN15
Quantity:
Electric pallet stackers are designed to efficiently lift and store loads on rack beams or shelves. They are indispensable in environments such as factories, warehouses, and retail floors, where pallets, skids, or totes need to be moved or racked. These stackers are also perfect for loading and unloading trucks, especially when a loading dock or forklift is unavailable.
| Specifications | Manufactuer | SINOLIFT | SINOLIFT | |||||||||||
| Model | SPN15 (Fork over) | SPN15SL (Straddle leg) | ||||||||||||
| DistinguishingClassification type | SPN1516 | SPN1520 | SPN1525 | SPN1530 | SPN1535 | SPN1516SL | SPN1520SL | SPN1525SL | SPN1530SL | SPN1535SL | ||||
| 1.1 | Drive | Manual + Electric | Manual + Electric | |||||||||||
| 1.2 | Operator type | Pedestrian | Pedestrian | |||||||||||

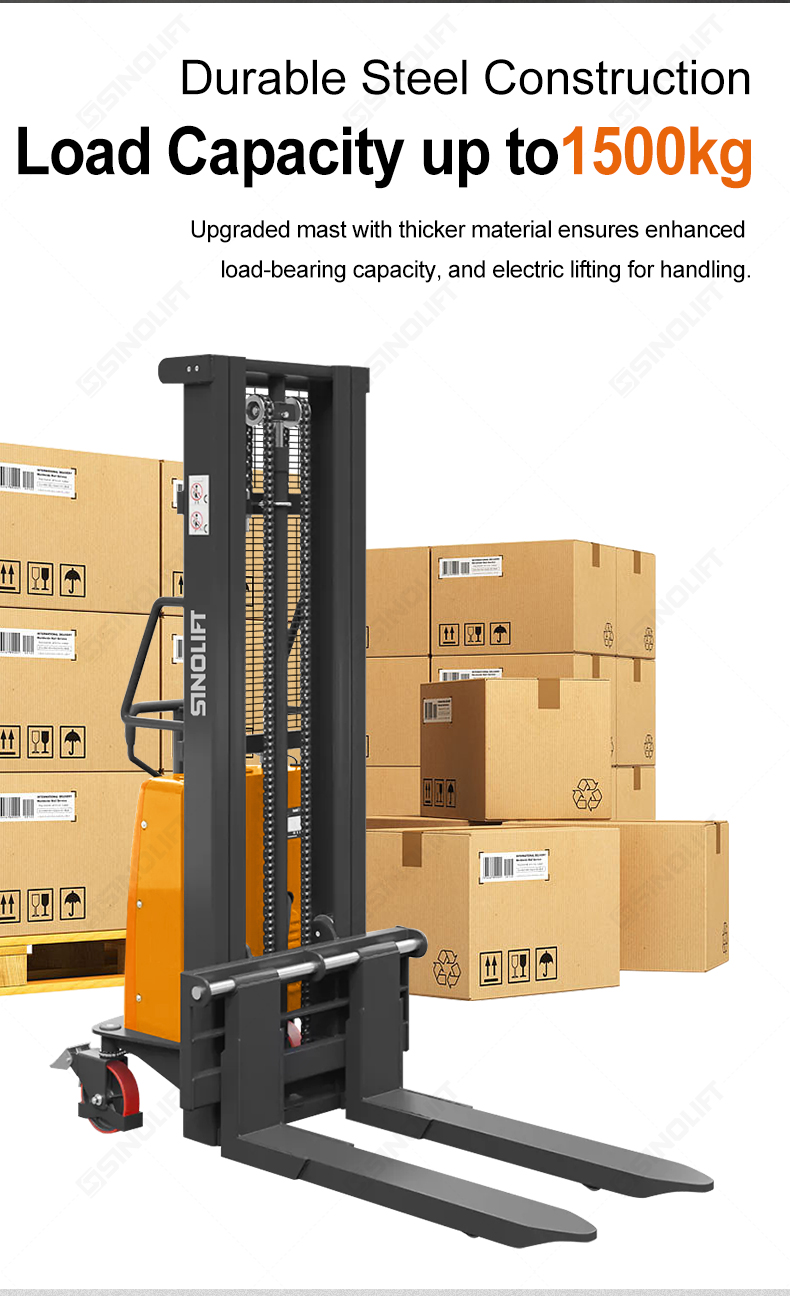

| 1.3 | Load capacity/ Rated load | Q | kg | 1500 | 1500 | |||||||||
| 1.4 | Load centre distance | c | mm | 600 | 600 | |||||||||
| 1.5 | Load distance, centre of drive axle to fork | x | mm | 730 | 693 | |||||||||
| 1.6 | Wheelbase | y | mm | 1253 | 1209 | |||||||||
| Weight | 2.1 | Service weight (Without battery) | kg | 350 | 377 | 411 | 445 | 467 | 470 | 497 | 531 | 565 | 587 | |
| 2.2 | Battery weight | kg | 34 | 34 | ||||||||||
| 2.3 | Axle loading, laden front/rear | kg | // | 1815/3500 | ||||||||||
| 2.4 | Axle loading, unladen front/rear | kg | // | 1232/780 | ||||||||||
| Tyres,Chassis | 3.1 | Tires | PU | PU | ||||||||||
| 3.2 | Tires size. Front | pxy | mm | 180 x 50 | 180 x 50 | |||||||||
| 3.3 | Tires size. Rear | pxy | mm | 80 x 70 | 80 x 70 | |||||||||
| 3.4 | Additional wheels(Dimensions) | pxy | mm | 180 x 50 | 180 x 50 | |||||||||
| 3.5 | Wheel number, Drive wheel/Load Wheel/Balanced wheel (x=drive wheel) | 2/2 | 2/2 | |||||||||||
| 3.6 | Tread, front, Drive side | b10 | mm | 714 | 714 | |||||||||
| 3.7 | Tread, rear, Load side | b11 | mm | 390 (490) | 1000 ~ 1400 | |||||||||
| Dimensions | 4.1 | Lowered mast height | h1 | mm | 2135 | 1635 | 1885 | 2135 | 2385 | 2135 | 1635 | 1885 | 2135 | 2385 |
| 4.2 | Free lift height | h2 | mm | 0 | 0 | |||||||||

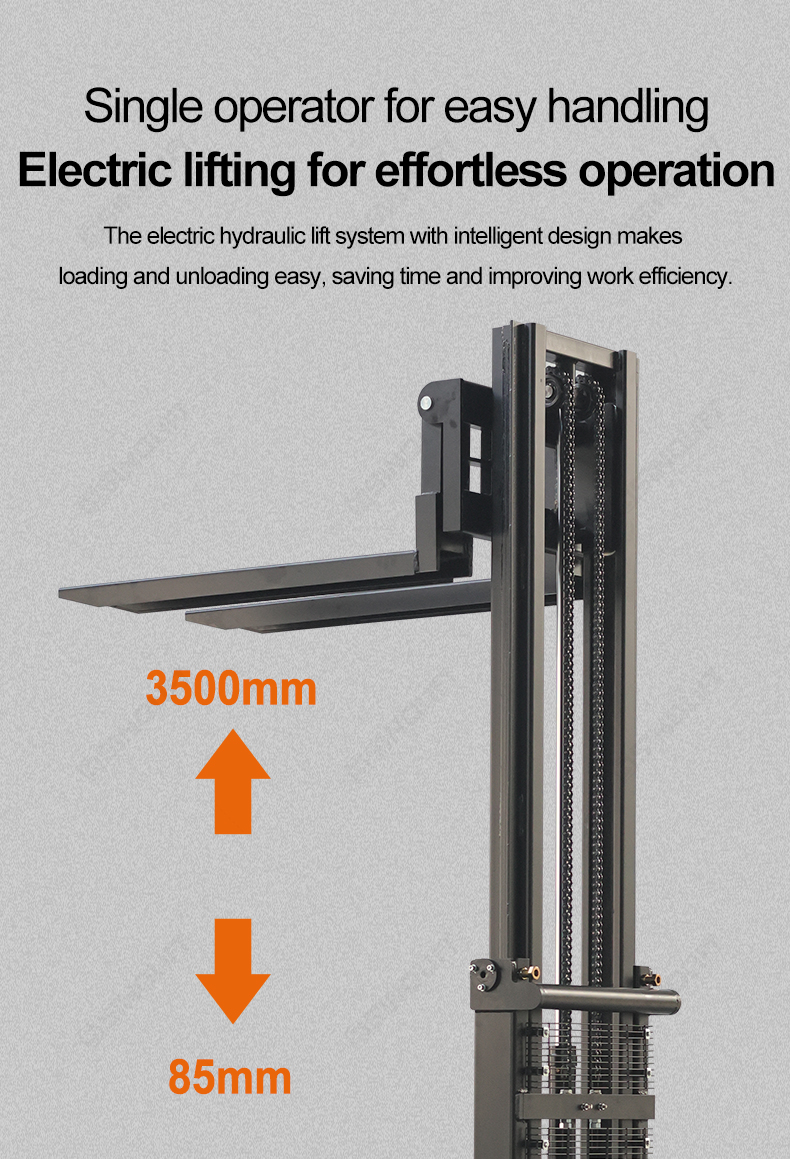

| 4.3 | Lift Height | h3 | mm | 1600 | 2000 | 2500 | 3000 | 3500 | 1600 | 2000 | 2500 | 3000 | 3500 | |
| 4.4 | Extended mast height | h4 | mm | 2135 | 2605 | 3105 | 3605 | 4105 | 2135 | 2605 | 3105 | 3605 | 4105 | |
| 4.5 | Height of tiller in drive position min./max. | h14 | mm | // | // | |||||||||
| 4.6 | Height, lowered | h13 | mm | 85 | 60 | |||||||||
| 4.7 | Overall length | l1 | mm | 1745 | 1875 | |||||||||
| 4.8 | Length to face of forks | l2 | mm | 676 | 633 | |||||||||
| 4.9 | Overall width | b1/b5 | mm | 820/550 (650) | 820/(1100-1500) | |||||||||
| 4.11 | Length of leg | mm | 1080 | 1140 | ||||||||||

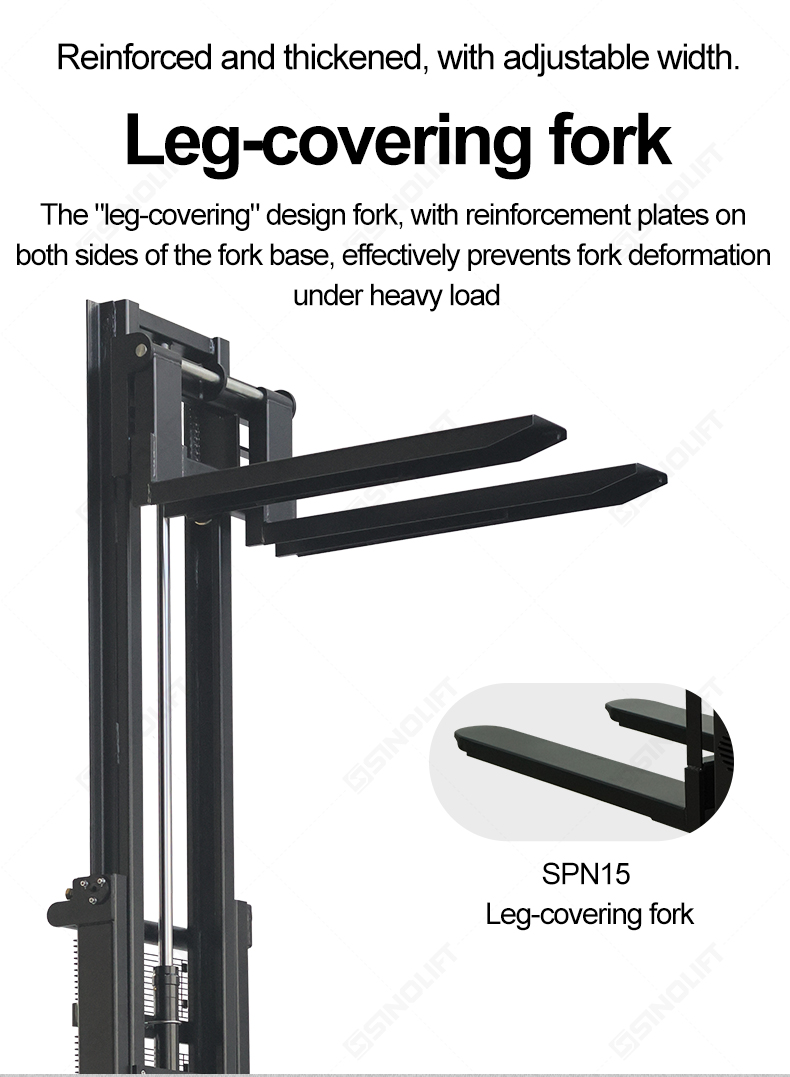

| 4.12 | Fork dimensions | s/e/l | mm | 35/160/1100 | 35/100/1150 | |||||||||
| 4.13 | Distance between fork-arms | b5 | mm | 550 (650) | 210-850 | |||||||||
| 4.14 | Ground Clearance, centre of wheelbase | m2 | mm | 30 | 40 | |||||||||

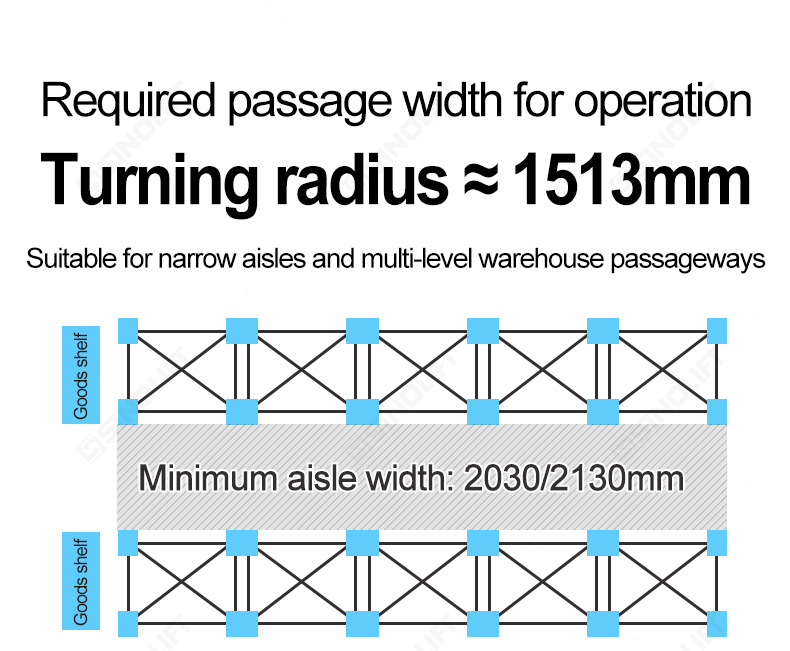

| 4.15 | Aisle width for pallets 1000x1200 crossways | Ast | mm | 2130 | 2409-2443 | |||||||||
| 4.16 | Aisle width for pallets 800x1200 lengthways | Ast | mm | 2030 | 2317-2443 | |||||||||

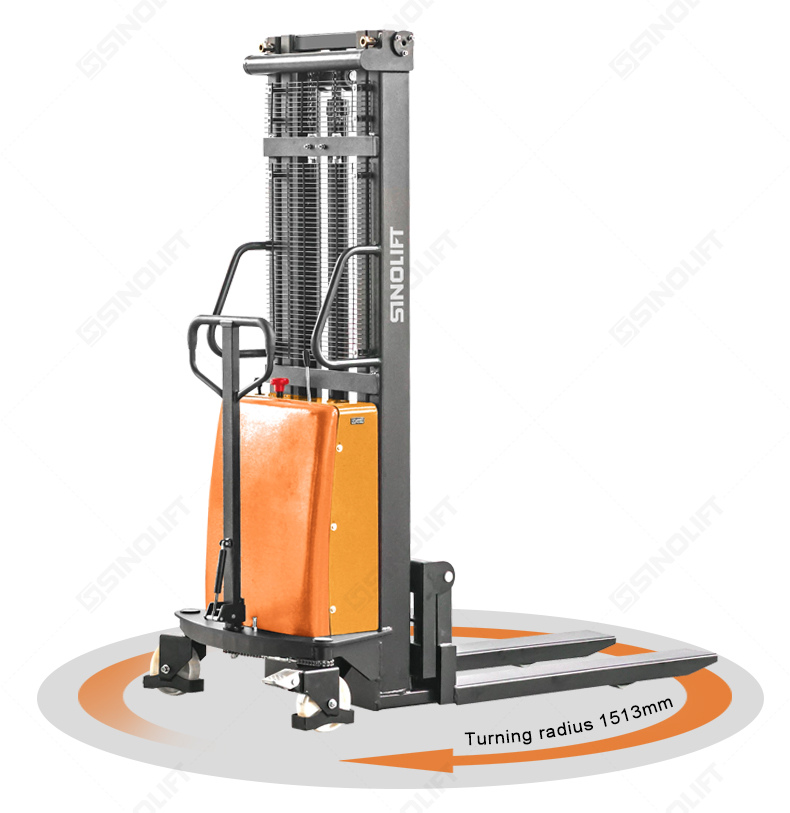

| 4.17 | Turnign radius | Wa | mm | 1513 | 1369 | |||||||||
| Performance | 5.1 | Travel speed, laden/unladen | mph | // | // | |||||||||
| 5.2 | Lift speed, laden/unladen | mm/s | 68(114) | 65(102) | 65(102) | 65(102) | 65(102) | 68(114) | 65(102) | 65(102) | 65(102) | 65(102) | ||
| 5.3 | Lowering speed, laden/unladen | mm/s | 115(89) | 113(89) | 113(89) | 113(89) | 113(89) | 115(89) | 113(89) | 113(89) | 113(89) | 113(89) | ||
| 5.4 | Max. Gradeability, laden/unladen | % | // | // | ||||||||||
| 5.5 | Service brake | Mechancial | Mechancial | |||||||||||
| Electric motor | 6.1 | Drive motor rating | kw | // | // | |||||||||

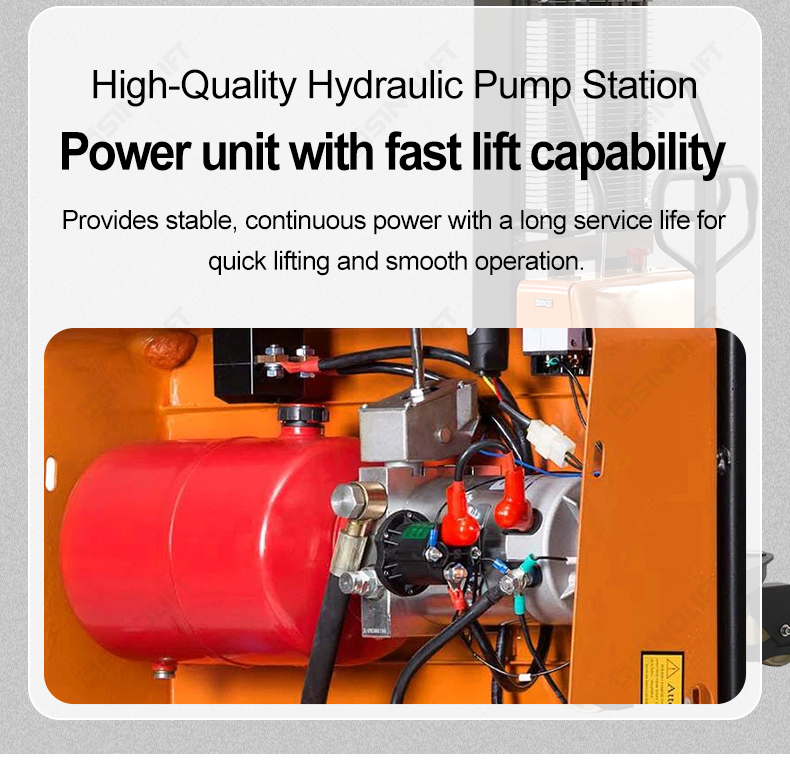

| 6.2 | Lift motor rating | kw | 2.2 | 1.6 | ||||||||||
| 6.3 | Battery voltage, nominal capacity | V/AH | Lead-acid 1*12V/120AH (150Ah as option) | Lead-acid 1*12V/120AH (150Ah as option) | ||||||||||
| 6.5 | Type of control | // | // | |||||||||||
| 6.6 | Sound level at driver's ear acc. to EN12053 | dB(A) | 65 | 65 | ||||||||||
