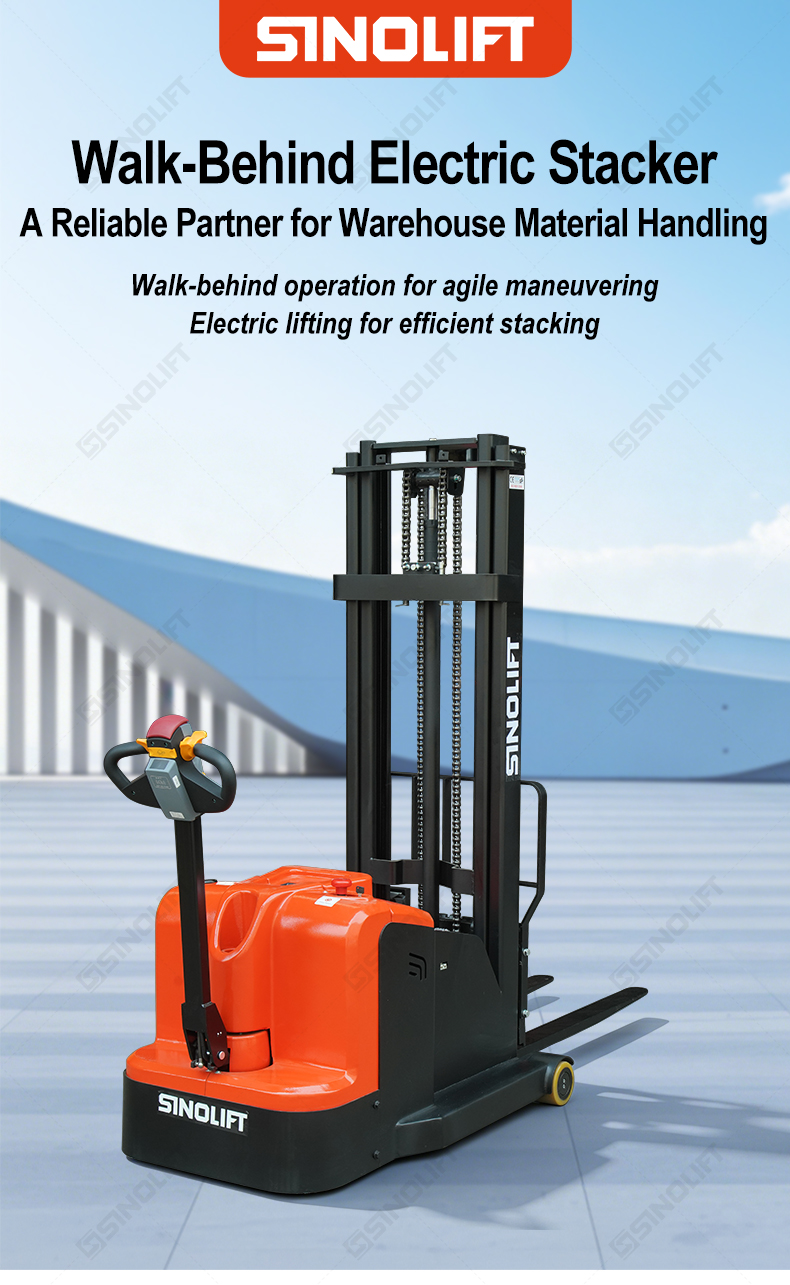

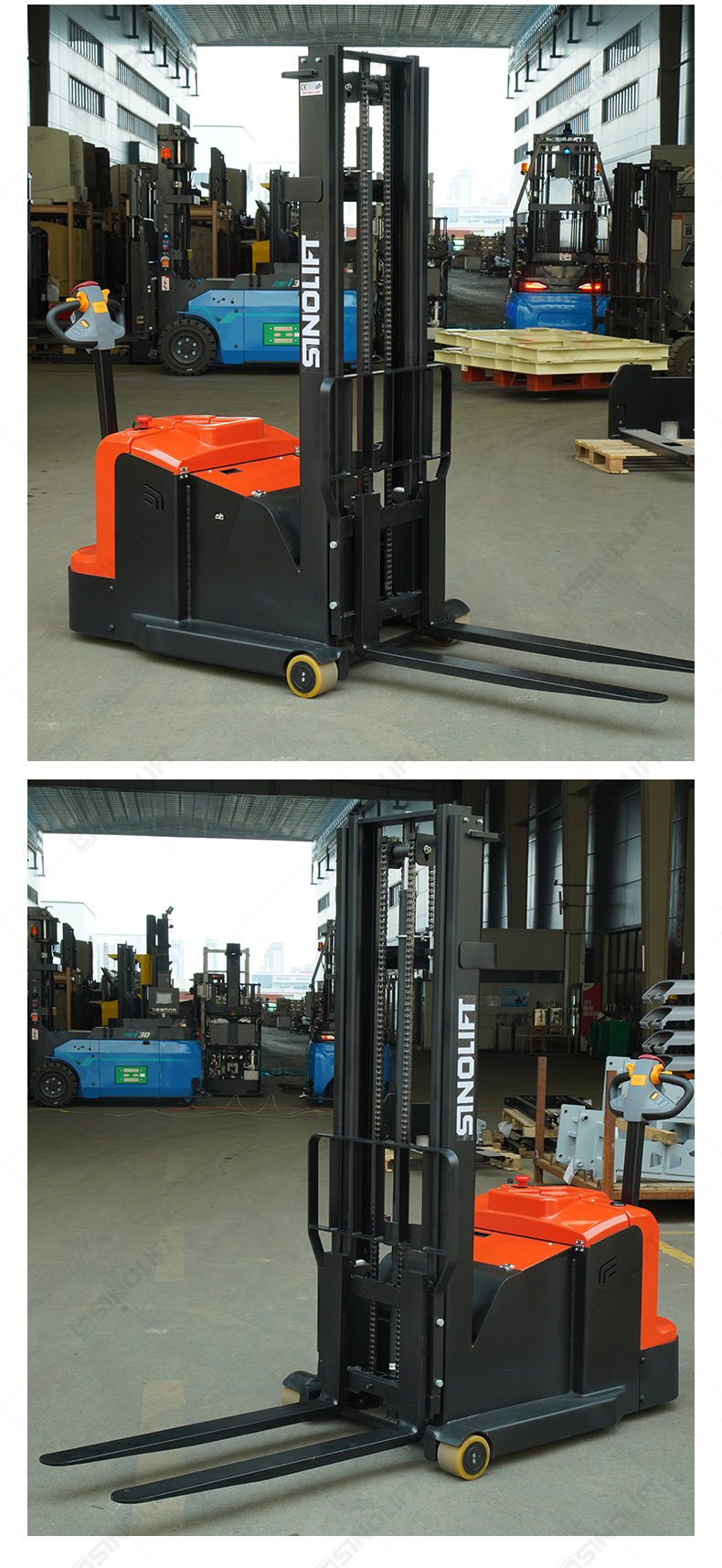

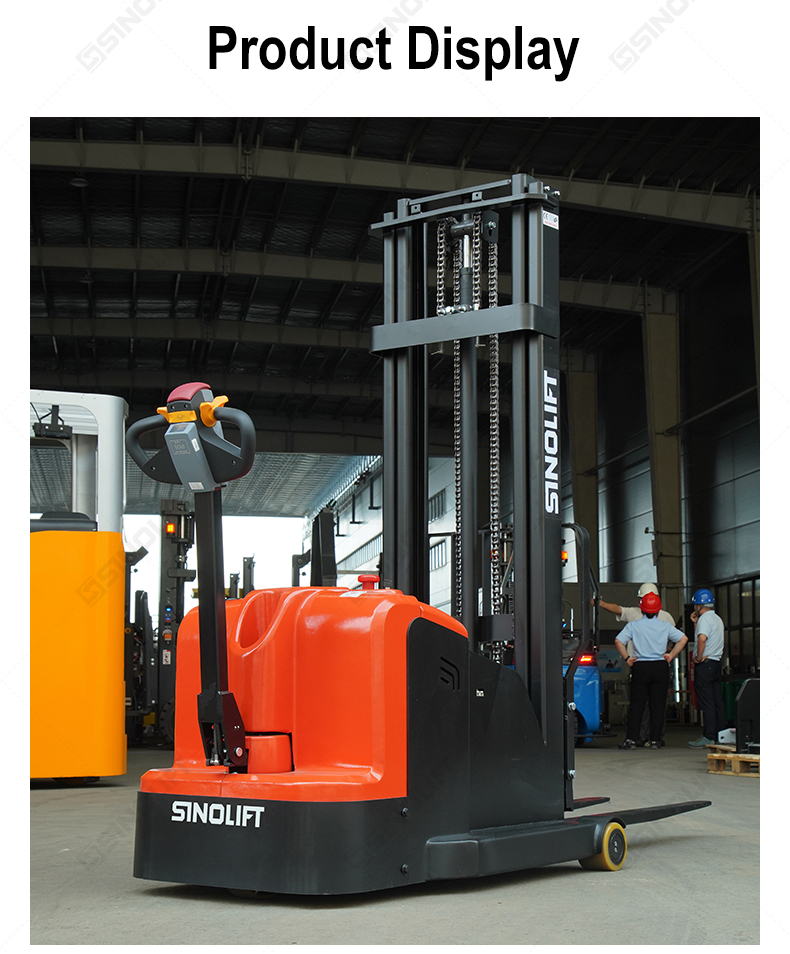

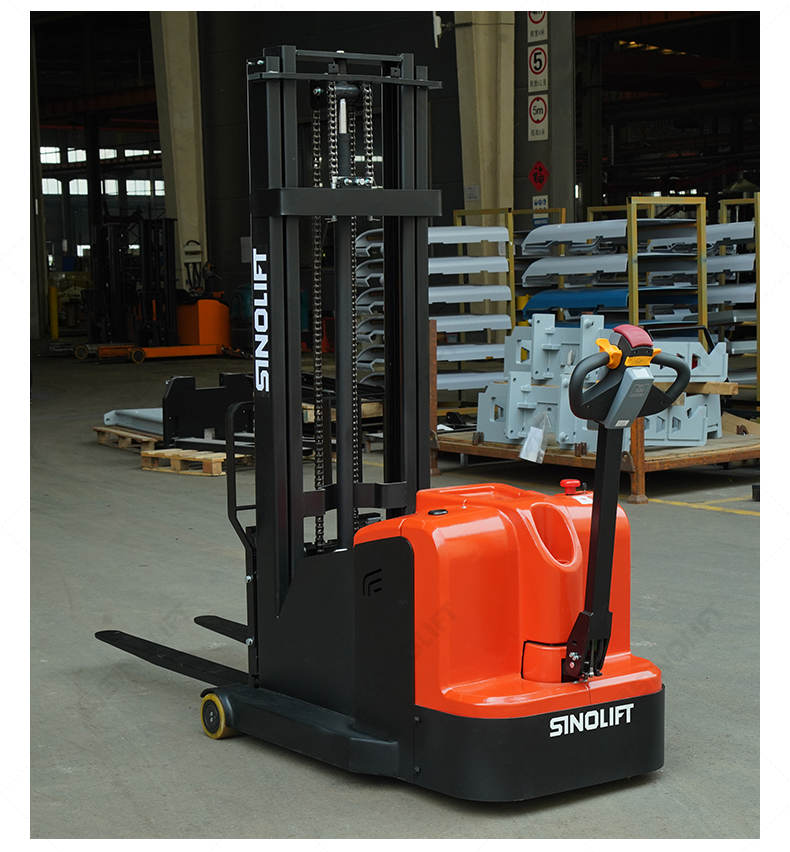

SINOLIFT CPDW09 Walk-Behind Electric Stacker for Warehouse Material Handling
TheSINOLIFT CPDW09 Walk-Behind Electric Stacker is a compact electric stacker designed to improve productivity in warehouses, retail stores, logistics centers, and manufacturing facilities. Combining electric lifting,walk-behind operation, and a maintenance-free battery, the CPDW09 provides an economical solution for pallet transport and stacking while ensuring easy operation and reliable performance.
Whether you need to replenish supermarket shelves, stack pallets in a warehouse, or handle goods at loading docks, the CPDW09 delivers stable lifting, excellent maneuverability, and low operating costs.

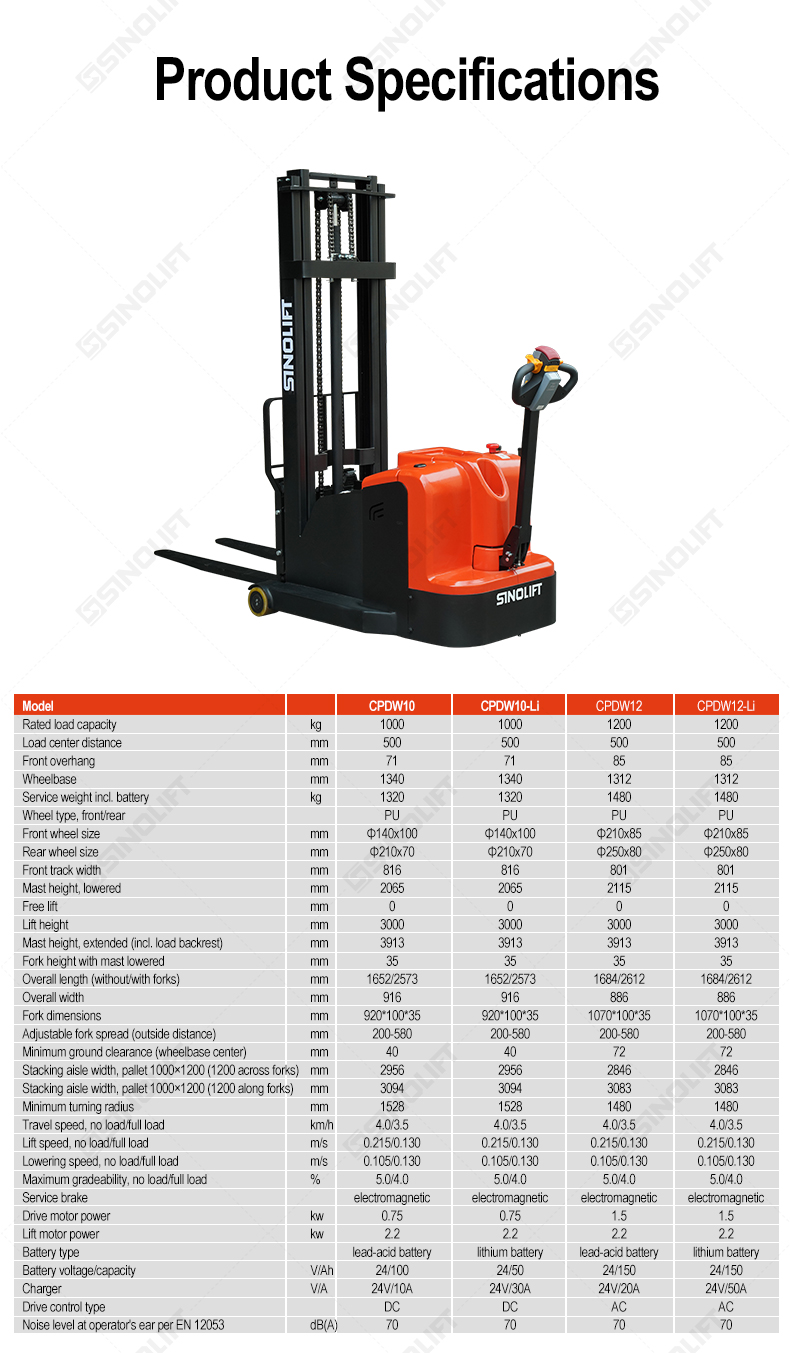

| Model | Unit | CPDW10 | CPDW10-Li | CPDW12 | CPDW12-Li |
| Rated load capacity | kg | 1000. | 1000. | 1200. | 1200. |
| Load center distance | mm | 500. | 500. | 500. | 500. |
| Front overhang | mm | 71. | 71. | 85. | 85. |
| Wheelbase | mm | 1340. | 1340. | 1312. | 1312. |
| Service weight incl. battery | kg | 1320. | 1320. | 1480. | 1480. |
| Wheel type, front/rear | PU | PU | PU | PU | |
| Front wheel size | mm | Φ140×100 | Φ140×100 | Φ210×85 | Φ210×85 |
| Rear wheel size | mm | Φ210×70 | Φ210×70 | Φ250×80 | Φ250×80 |
| Front track width | mm | 816. | 816. | 801. | 801. |
| Mast height, lowered | mm | 2065. | 2065. | 2115. | 2115. |
| Free lift | mm | 0. | 0. | 0. | 0. |
| Lift height | mm | 3000. | 3000. | 3000. | 3000. |
| Mast height, extended (incl. load backrest) | mm | 3913. | 3913. | 3913. | 3913. |
| Fork height with mast lowered | mm | 35. | 35. | 35. | 35. |
| Overall length (without/with forks) | mm | 1652/2573 | 1652/2573 | 1684/2612 | 1684/2612 |
| Overall width | mm | 916. | 916. | 886. | 886. |
| Fork dimensions | mm | 920×100×35 | 920×100×35 | 1070×100×35 | 1070×100×35 |
| Adjustable fork spread (outside distance) | mm | 200–580 | 200–580 | 200–580 | 200–580 |
| Minimum ground clearance (wheelbase center) | mm | 40. | 40. | 72. | 72. |
| Stacking aisle width, pallet 1000×1200 (1200 across forks) | mm | 2956. | 2956. | 2846. | 2846. |
| Stacking aisle width, pallet 1000×1200 (1200 along forks) | mm | 3094. | 3094. | 3083. | 3083. |
| Minimum turning radius | mm | 1528. | 1528. | 1480. | 1480. |
| Travel speed, no load/full load | km/h | 4.0/3.5 | 4.0/3.5 | 4.0/3.5 | 4.0/3.5 |
| Lift speed, no load/full load | m/s | 0.215/0.130 | 0.215/0.130 | 0.215/0.130 | 0.215/0.130 |
| Lowering speed, no load/full load | m/s | 0.105/0.130 | 0.105/0.130 | 0.105/0.130 | 0.105/0.130 |
| Maximum gradeability, no load/full load | % | 5.0/4.0 | 5.0/4.0 | 5.0/4.0 | 5.0/4.0 |
| Service brake | electromagnetic | electromagnetic | electromagnetic | electromagnetic | |
| Drive motor power | kW | 0.75 | 0.75 | 1.5 | 1.5 |
| Lift motor power | kW | 2.2 | 2.2 | 2.2 | 2.2 |
| Battery type | lead-acid battery | lithium battery | lead-acid battery | lithium battery | |
| Battery voltage/capacity | V/Ah | 24/100 | 24/50 | 24/150 | 24/150 |
| Charger | V/A | 24V/10A | 24V/30A | 24V/20A | 24V/50A |
| Drive control type | DC | DC | AC | AC | |
| Noise level at operator's ear per EN 12053 | dB(A) | 70. | 70. | 70. | 70. |
Key Features

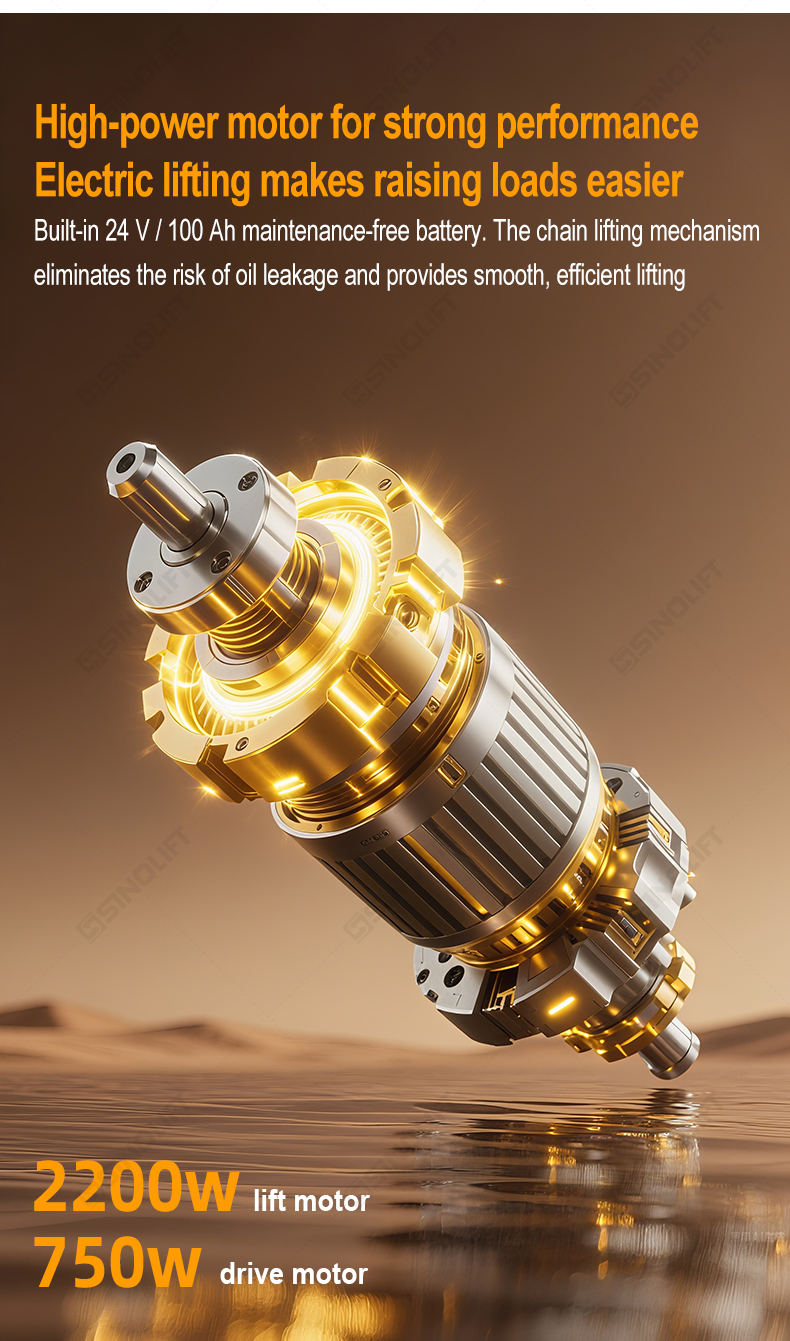

1. Electric Lifting for Effortless Operation
Powered by a 2200W lift motor, the CPDW09 makes lifting heavy pallets fast and effortless, reducing operator fatigue and improving productivity.
2. Compact Walk-Behind Design
The walk-behind configuration offers excellent visibility and precise control, making it ideal for narrow aisles, confined warehouses, and retail environments.

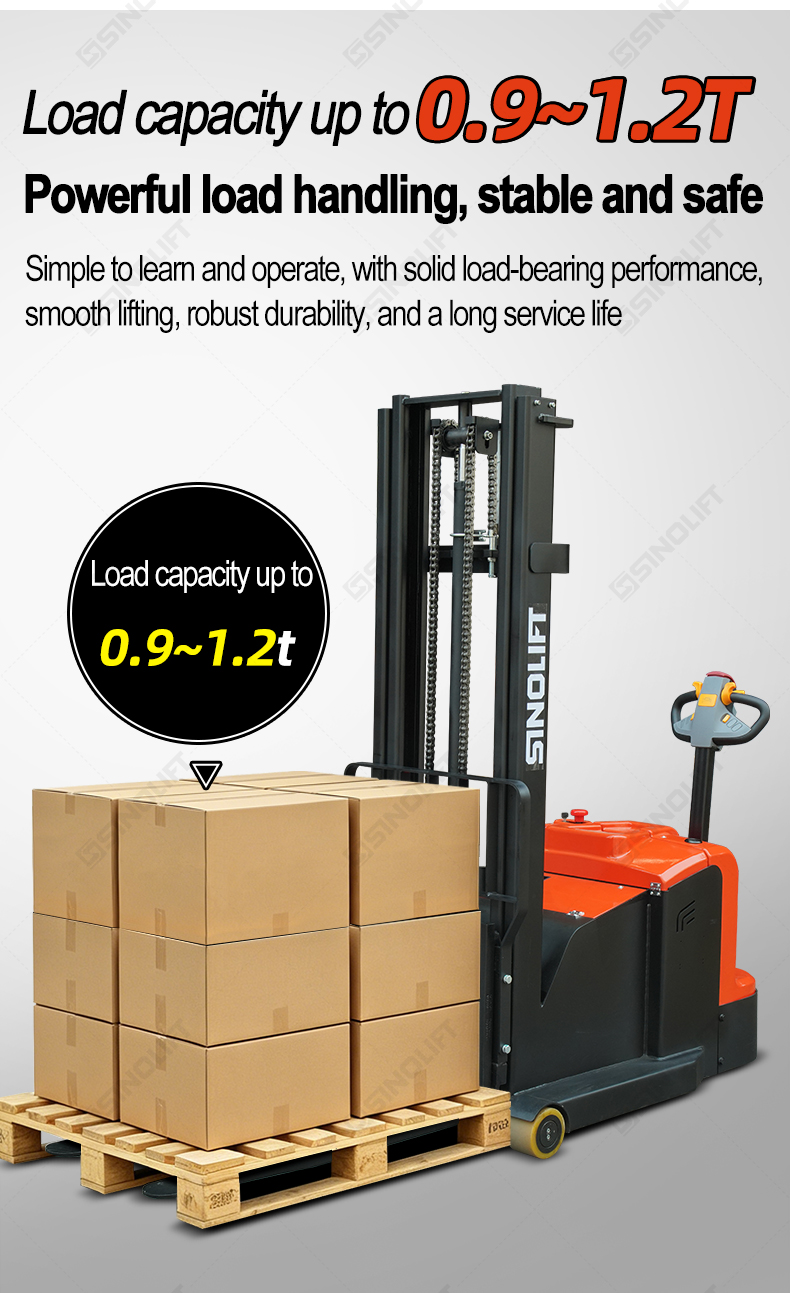

3. Load Capacity up to 1.2 Tons
Available with 0.9T and 1.2T load capacities, the stacker provides reliable performance for daily pallet handling and stacking tasks.

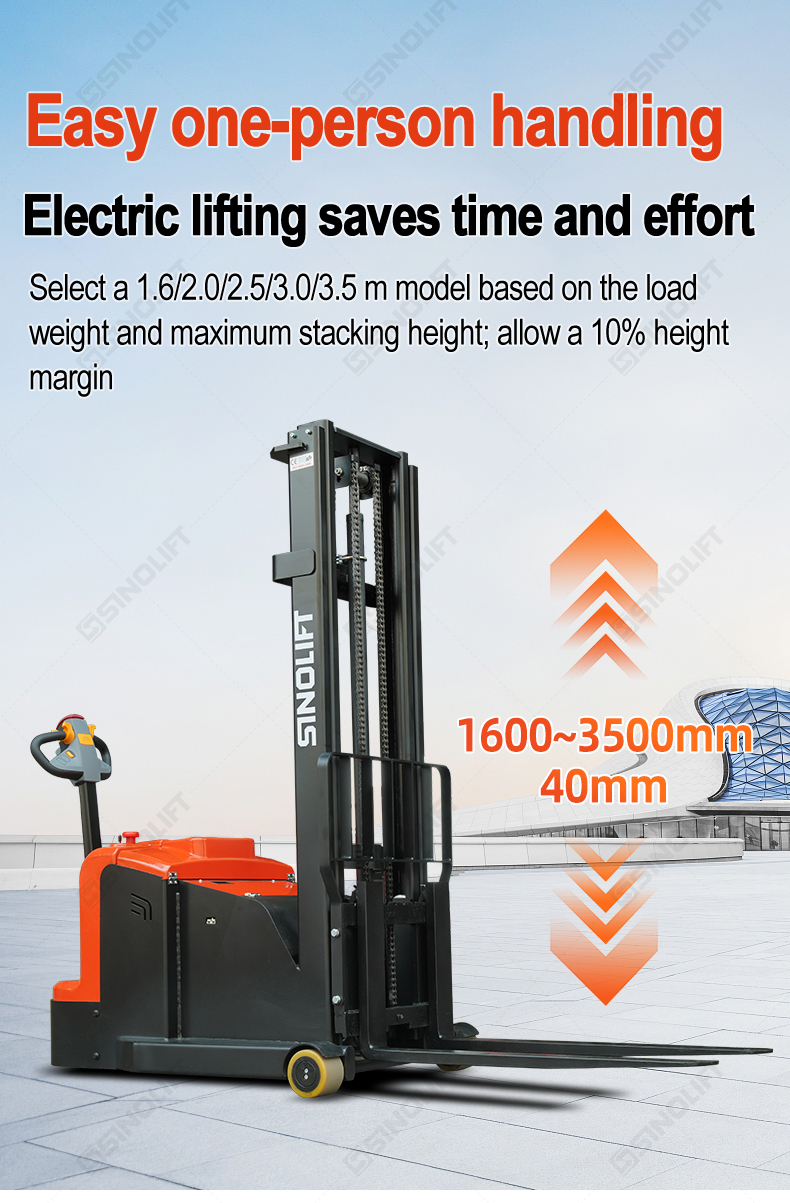

4. Multiple Lift Height Options
Choose from 1.6 m, 2.0 m, 2.5 m, 3.0 m, or 3.5 m lift heights to meet different warehouse storage requirements.

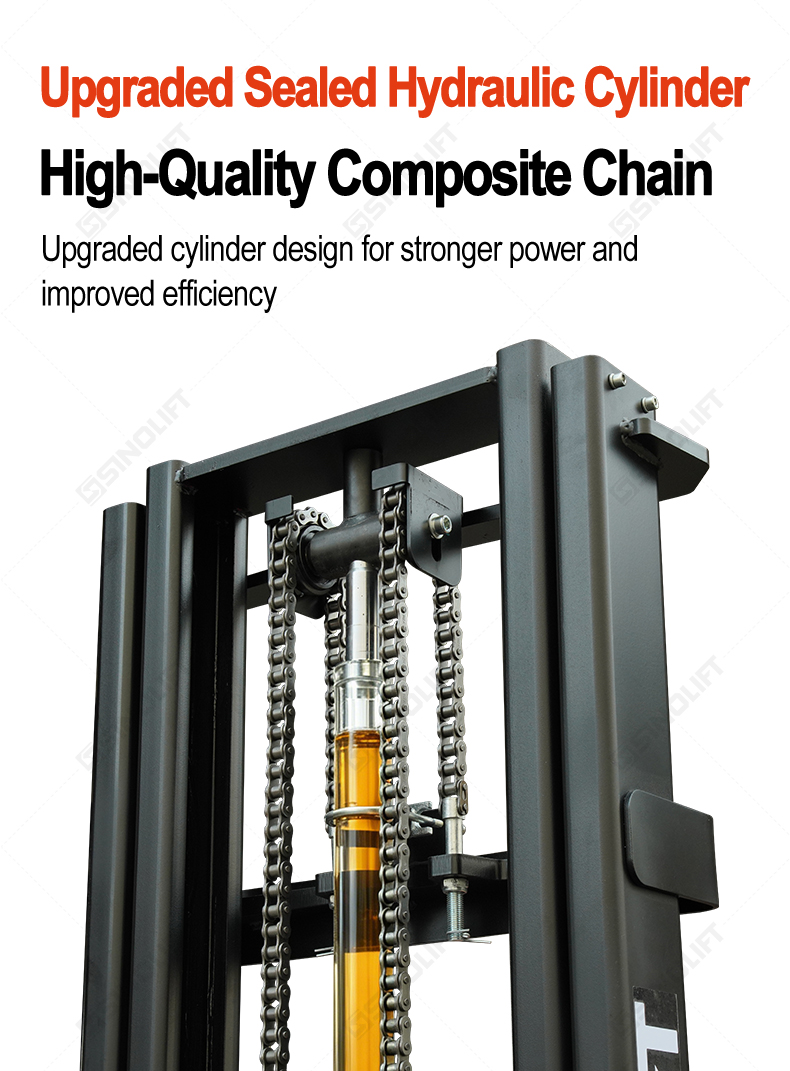

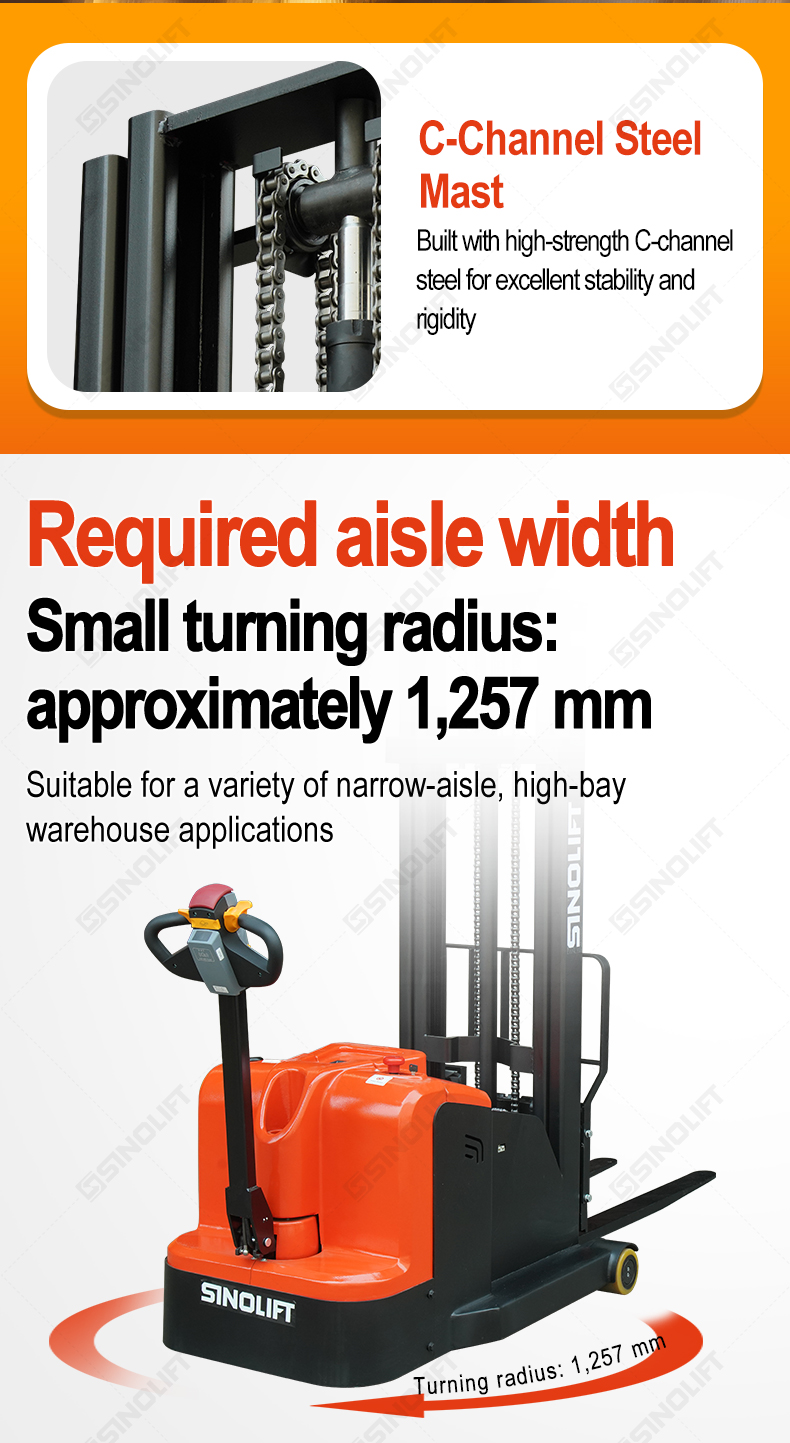

5. High-Strength C-Channel Mast
The reinforced steel mast provides excellent rigidity and stability, ensuring smooth lifting and reliable stacking performance.

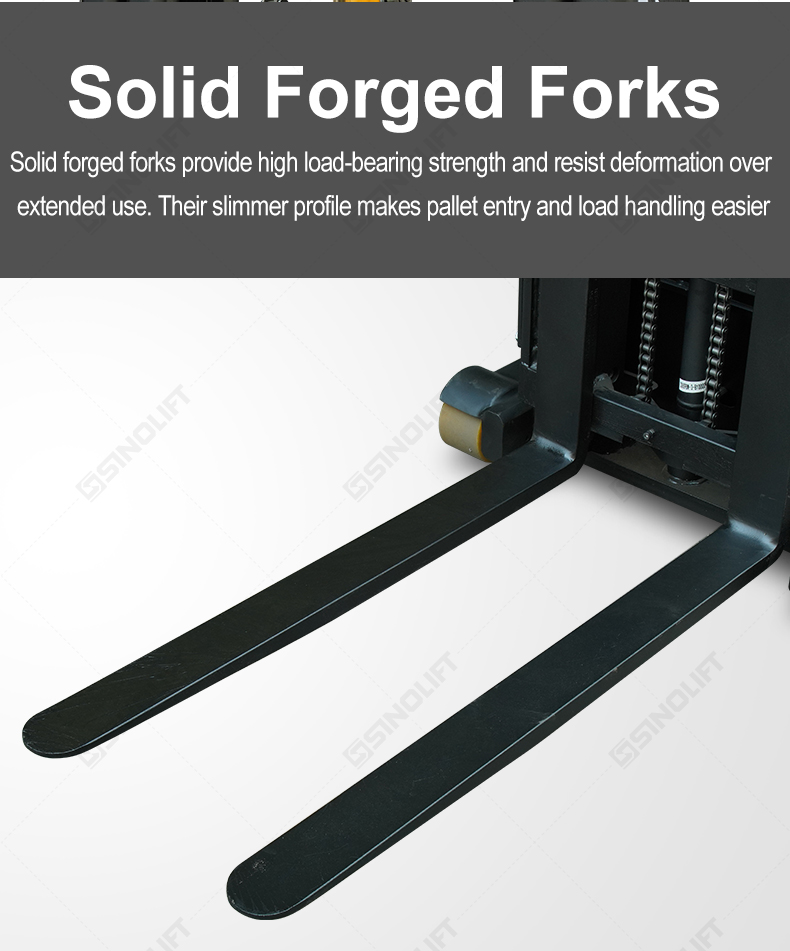

6. Durable Forged Forks
Heavy-duty forged forks offer outstanding strength and wear resistance while the slim fork profile allows easy pallet entry.

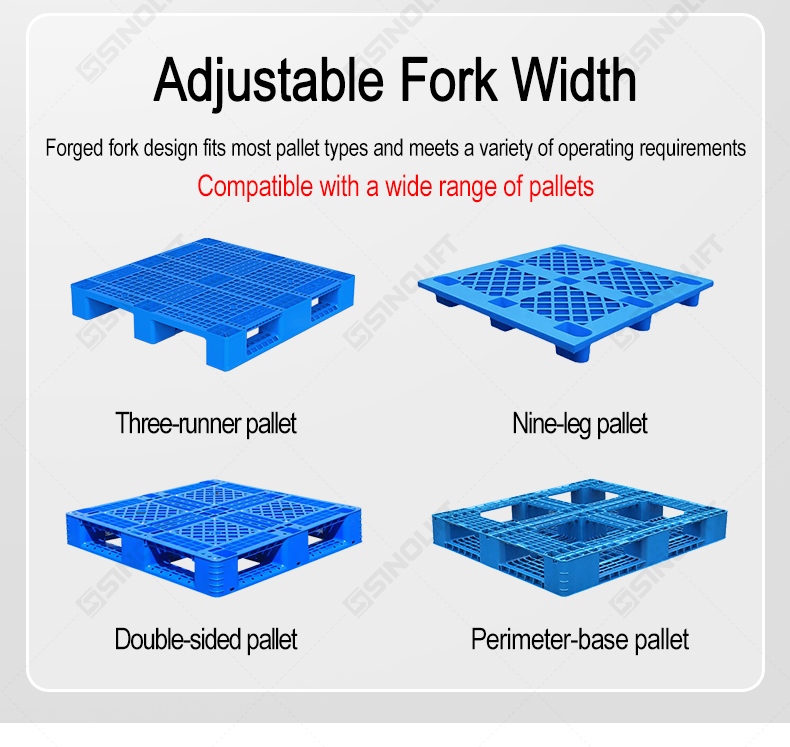

7. Adjustable Fork Width
The adjustable forks are compatible with various pallet types, including:
- Three-runner pallets
- Nine-leg pallets
- Double-sided pallets
- Perimeter-base pallets

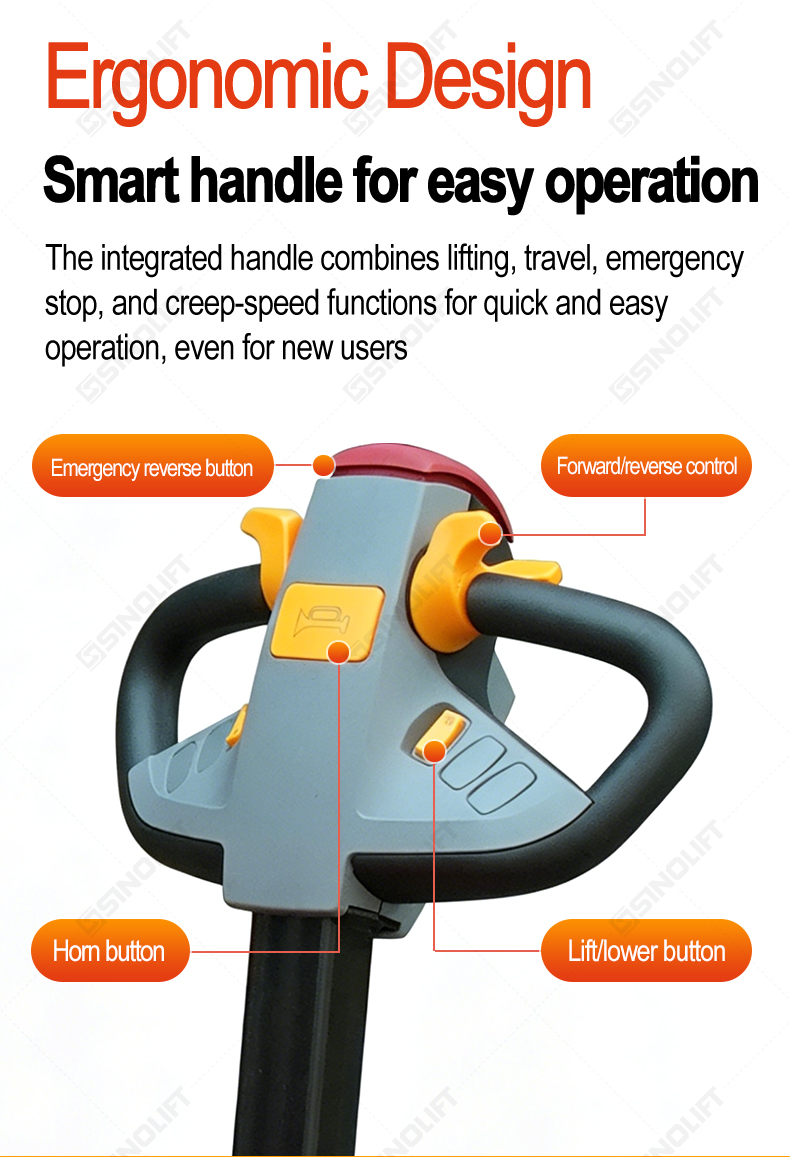

8. Ergonomic Smart Handle
The multifunction control handle integrates:
- Lift / Lower
- Forward / Reverse travel
- Horn
- Emergency reverse
- Creep-speed mode
Its intuitive layout allows even first-time operators to use the truck with confidence.

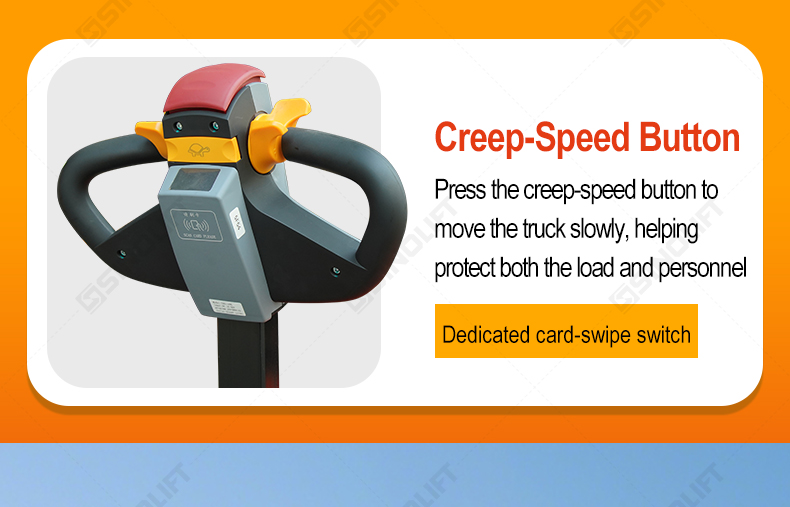

9. Creep-Speed Function
The low-speed mode enables precise positioning in tight spaces, helping protect both the operator and the load.

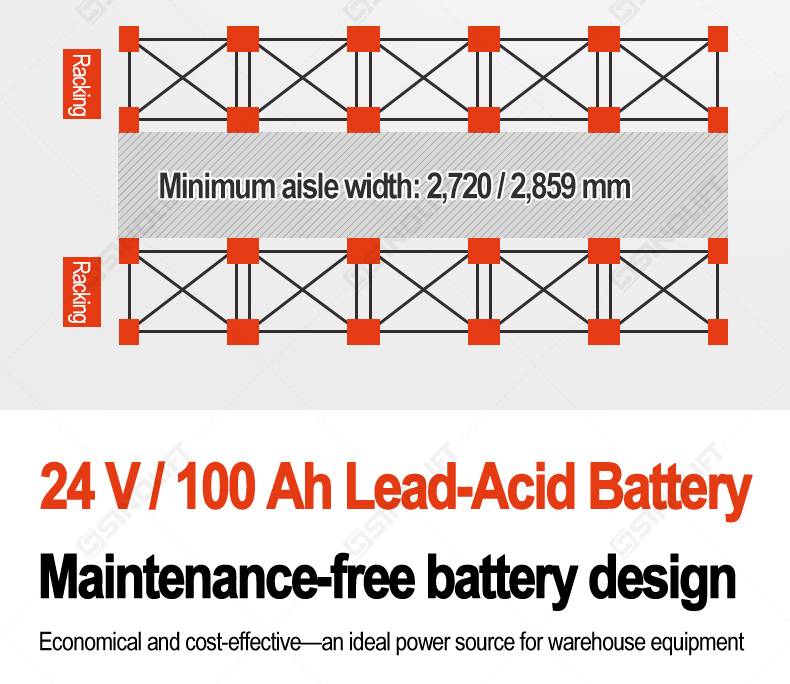

10. Maintenance-Free Battery
Equipped with a 24V / 100Ah maintenance-free lead-acid battery, the CPDW09 provides dependable power while reducing routine maintenance requirements.

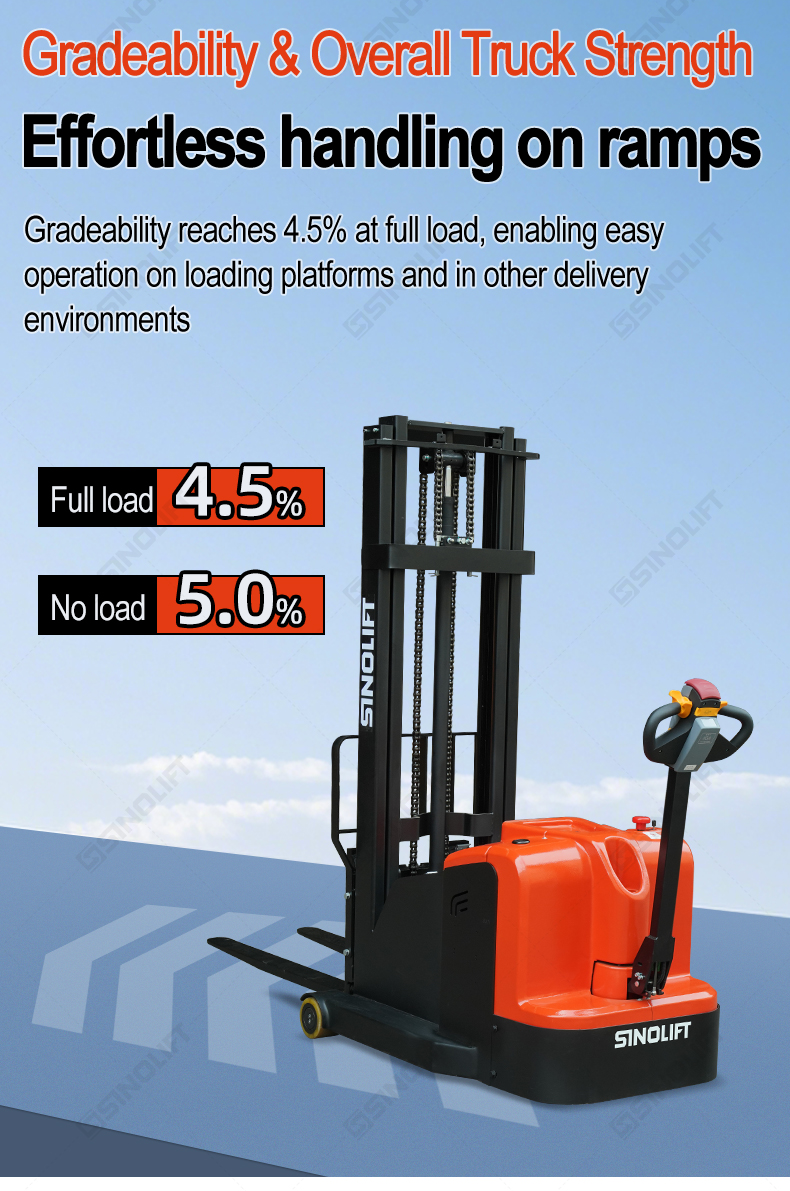

11. Powerful Drive System
The750W drive motor delivers smooth travel and allows the truck to climb gradients up to:
- 4.5% at full load
- 5.0% without load
making it suitable for loading ramps and dock operations.
12. Excellent Maneuverability
With a turning radius of only 1,257 mm, the CPDW09 is easy to operate in narrow warehouse aisles and compact storage areas.

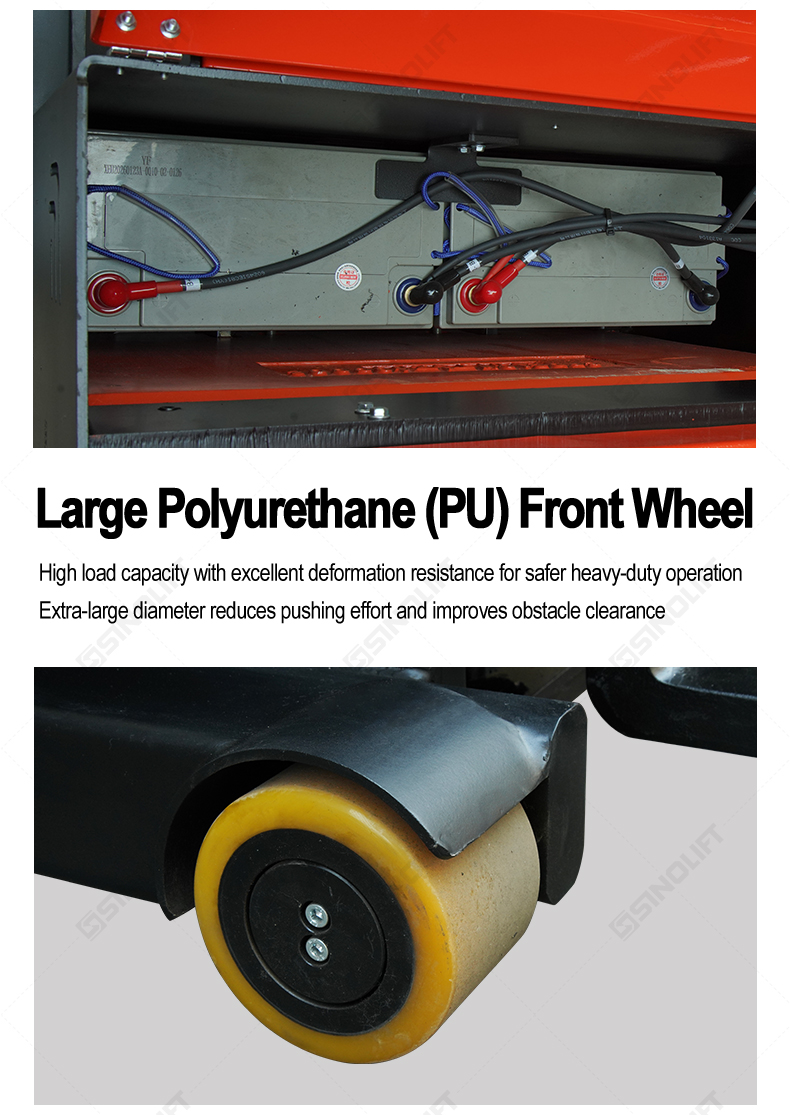

13. Heavy-Duty PU Wheels
Large polyurethane drive wheels provide:
- High load capacity
- Excellent wear resistance
- Smooth travel
- Better obstacle clearance

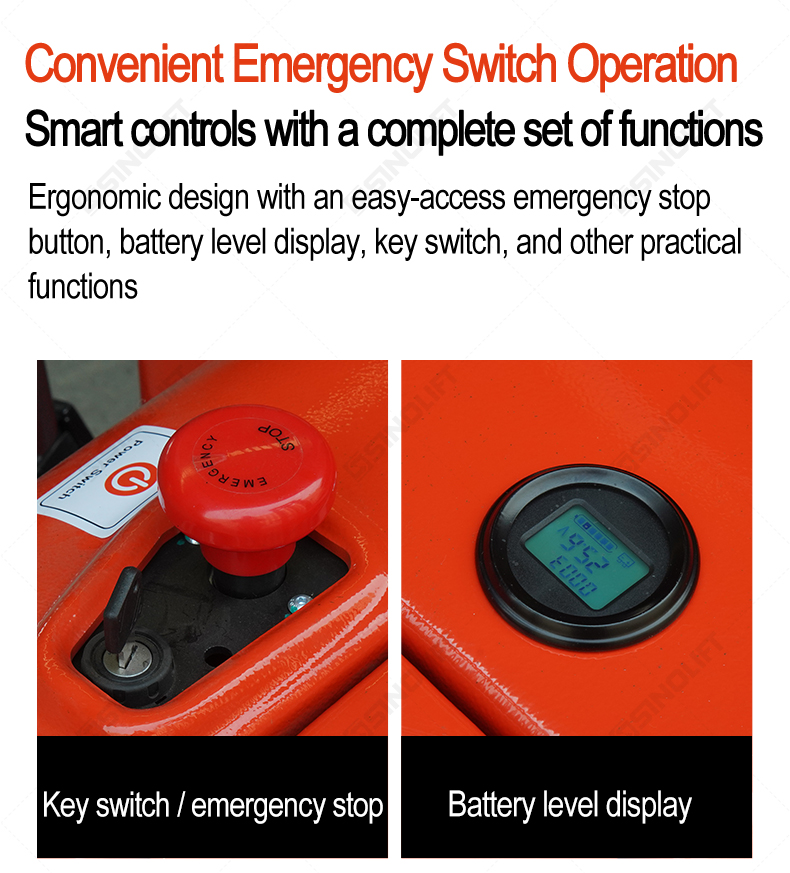

14. User-Friendly Control Panel
The truck includes:
- Key switch
- Emergency stop button
- Battery level indicator
allowing operators to monitor and control the equipment conveniently.
Typical Applications
The CPDW09 is ideal for:
- Warehouse pallet stacking
- Warehouse storage systems
- Supermarket shelf replenishment
- Logistics and distribution centers
- Loading dock operations
- Courier and parcel handling
- Manufacturing plants
- E-commerce fulfillment centers
Frequently Asked Questions (FAQs)
1. What is the SINOLIFT CPDW09 used for?
The CPDW09 is designed for transporting and stacking palletized goods in warehouses, supermarkets, factories, logistics centers, and loading docks.
2. What is the maximum load capacity?
The CPDW09 is available with 900 kg and 1,200 kg load capacities to meet different material handling requirements.
3. What lifting heights are available?
The stacker is offered with lift heights of 1.6 m, 2.0 m, 2.5 m, 3.0 m, and 3.5 m, allowing users to choose the right model for their storage system.
4. Is the CPDW09 suitable for narrow aisles?
Yes. Its compact walk-behind design and 1,257 mm turning radius make it an excellent choice for warehouses with limited aisle space.
5. What types of pallets can it handle?
The adjustable forged forks are compatible with most standard pallets, including three-runner, nine-leg, double-sided, and perimeter-base pallets.
6. What type of battery does the CPDW09 use?
It is powered by a 24V / 100Ah maintenance-free lead-acid battery, providing reliable performance with minimal maintenance.
7. Can the stacker operate on ramps?
Yes. The CPDW09 can climb gradients of 4.5% with a full loadand5.0% without load, making it suitable for loading docks and warehouse ramps.
8. Why choose the SINOLIFT CPDW09?
The CPDW09 combines electric lifting,compact maneuverability,easy operation,durable construction, and cost-effective performance, making it an ideal solution for businesses seeking an efficient and reliable warehouse stacking truck.
