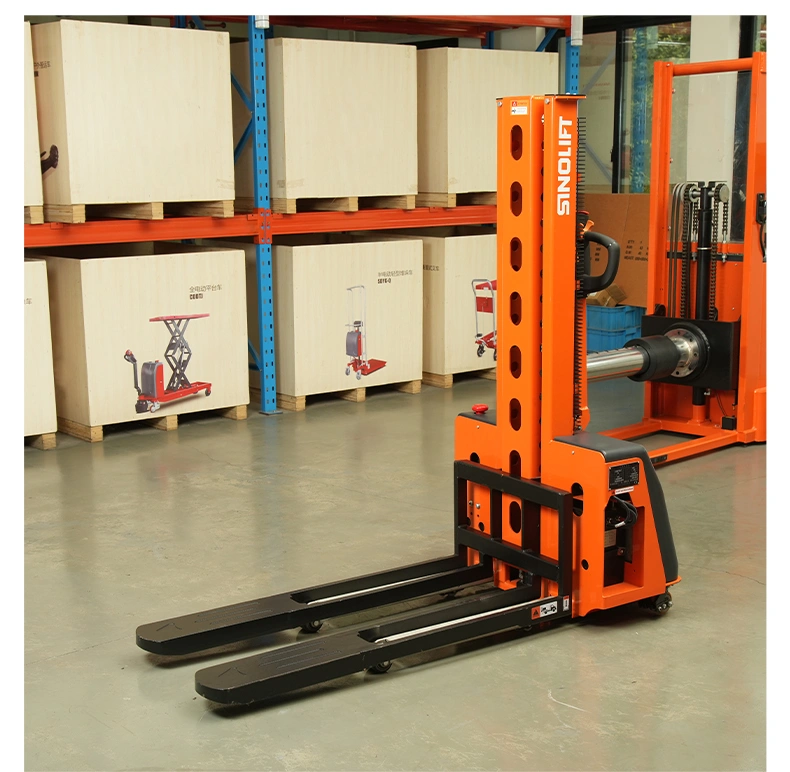

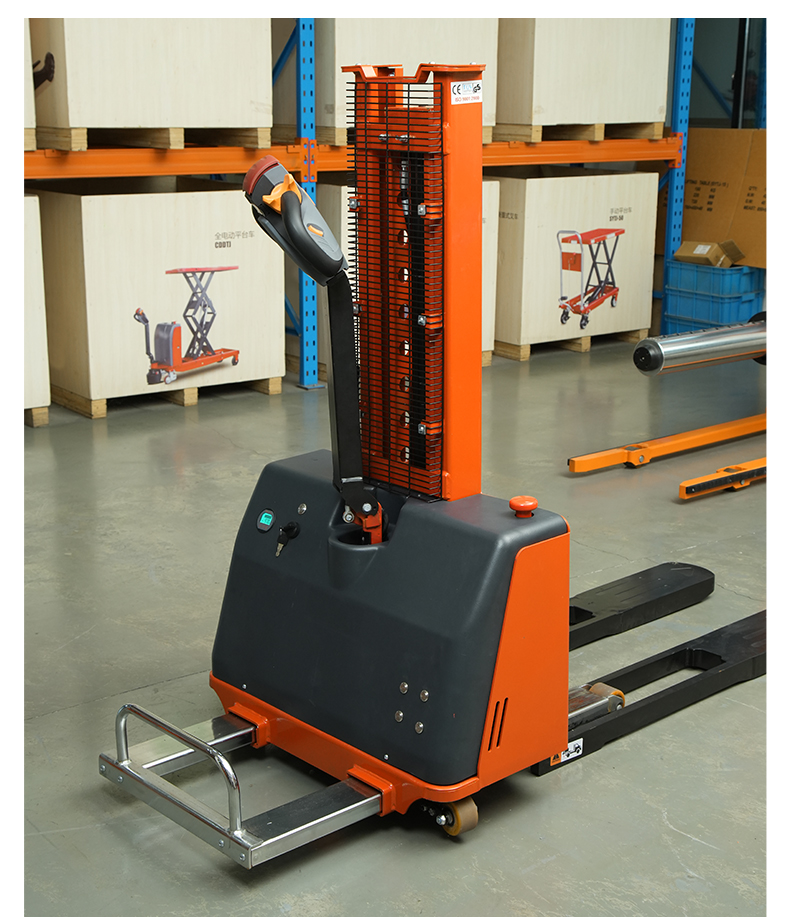

Sinolift CDDYG-Z Fully Electric Self-Loading Pallet Stacker for Truck Loading

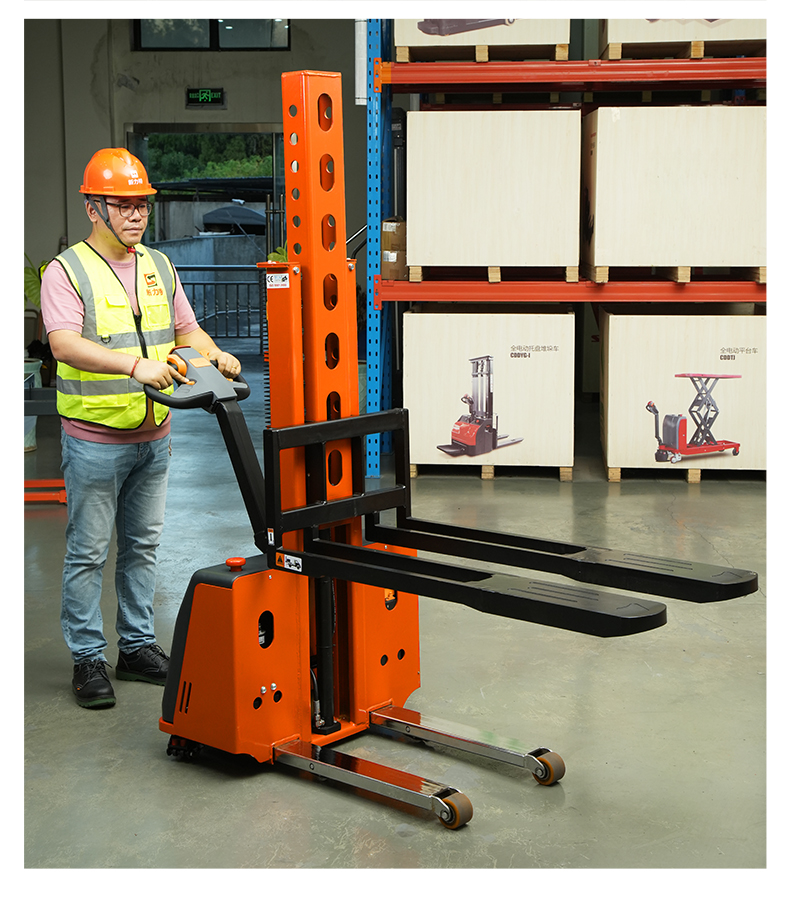

The CDDYG-Z Fully Electric Self-Loading Pallet Stacker is designed to simplify truck loading, unloading, and material handling without requiring an additional forklift. Its innovative self-lifting mechanism allows the stacker to load itself onto delivery vehicles, while fully electric lifting and driving ensure efficient, effortless operation. With a compact design, reinforced steel construction, and customizable configurations, it provides a practical solution for handling goods in confined spaces. Ideal for warehouses, logistics centers, delivery services, and industrial applications where flexible loading and transportation are essential.

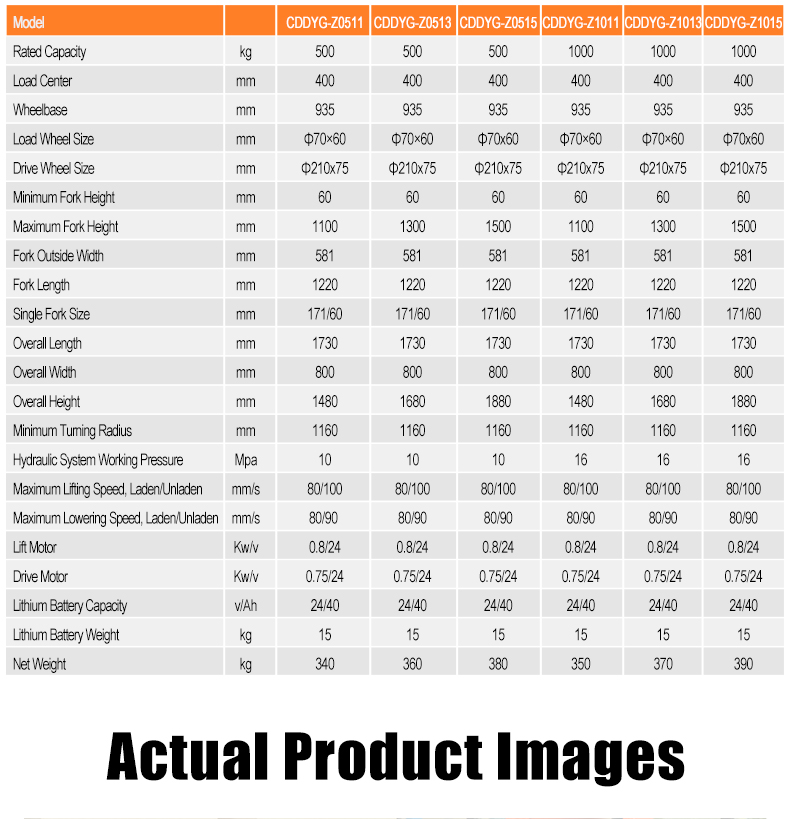

| Model | Unit | CDDYG-Z0511 | CDDYG-Z0513 | CDDYG-Z0515 | CDDYG-Z1011 | CDDYG-Z1013 | CDDYG-Z1015 |
| Rated Capacity | kg | 500 | 500 | 500 | 1000 | 1000 | 1000 |
| Load Center | mm | 400 | 400 | 400 | 400 | 400 | 400 |
| Wheelbase | mm | 935 | 935 | 935 | 935 | 935 | 935 |
| Load Wheel Size | mm | Φ70×60 | Φ70×60 | Φ70×60 | Φ70×60 | Φ70×60 | Φ70×60 |
| Drive Wheel Size | mm | Φ210×75 | Φ210×75 | Φ210×75 | Φ210×75 | Φ210×75 | Φ210×75 |
| Minimum Fork Height | mm | 60 | 60 | 60 | 60 | 60 | 60 |
| Maximum Fork Height | mm | 1100 | 1300 | 1500 | 1100 | 1300 | 1500 |
| Fork Outside Width | mm | 581 | 581 | 581 | 581 | 581 | 581 |
| Fork Length | mm | 1220 | 1220 | 1220 | 1220 | 1220 | 1220 |
| Single Fork Size | mm | 171/60 | 171/60 | 171/60 | 171/60 | 171/60 | 171/60 |

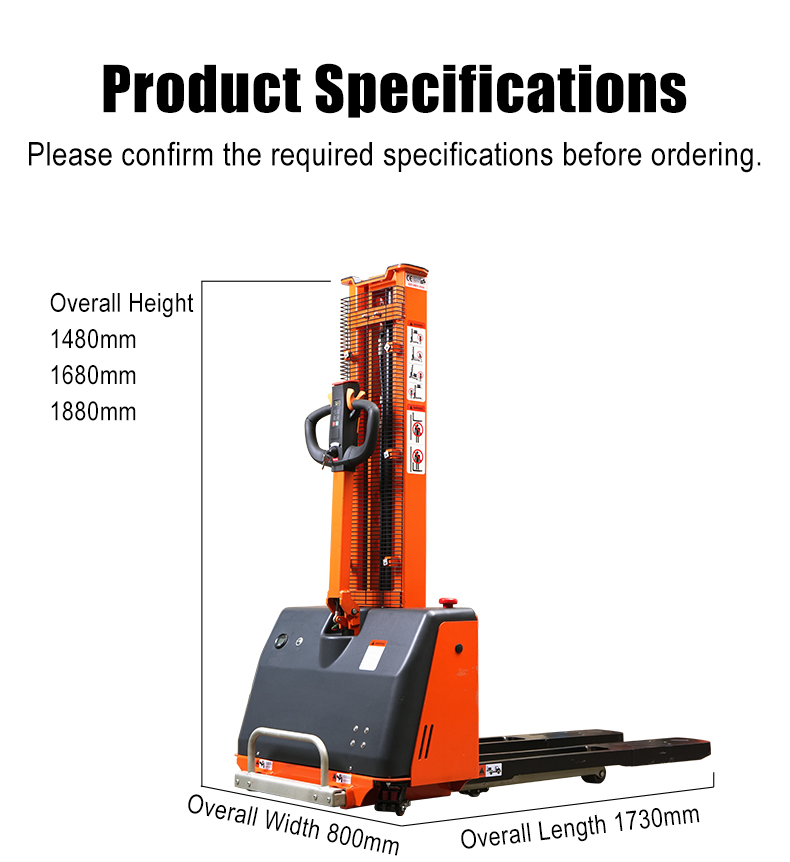

| Overall Length | mm | 1730 | 1730 | 1730 | 1730 | 1730 | 1730 |
| Overall Width | mm | 800 | 800 | 800 | 800 | 800 | 800 |
| Overall Height | mm | 1480 | 1680 | 1880 | 1480 | 1680 | 1880 |
| Minimum Turning Radius | mm | 1160 | 1160 | 1160 | 1160 | 1160 | 1160 |
| Hydraulic System Working Pressure | MPa | 10 | 10 | 10 | 16 | 16 | 16 |
| Maximum Lifting Speed, Laden/Unladen | mm/s | 80/100 | 80/100 | 80/100 | 80/100 | 80/100 | 80/100 |
| Maximum Lowering Speed, Laden/Unladen | mm/s | 80/90 | 80/90 | 80/90 | 80/90 | 80/90 | 80/90 |
| Lift Motor | kW/V | 0.8/24 | 0.8/24 | 0.8/24 | 0.8/24 | 0.8/24 | 0.8/24 |
| Drive Motor | kW/V | 0.75/24 | 0.75/24 | 0.75/24 | 0.75/24 | 0.75/24 | 0.75/24 |
| Lithium Battery Capacity | V/Ah | 24/40 | 24/40 | 24/40 | 24/40 | 24/40 | 24/40 |
| Lithium Battery Weight | kg | 15 | 15 | 15 | 15 | 15 | 15 |
| Net Weight | kg | 340 | 360 | 380 | 350 | 370 | 390 |
1.Key Features
- Self-Loading Capability: Built-in self-lifting mechanism allows the stacker to load itself onto compatible trucks without an additional forklift.
- Fully Electric Operation: Electric driving and lifting reduce manual effort and improve daily material handling efficiency.

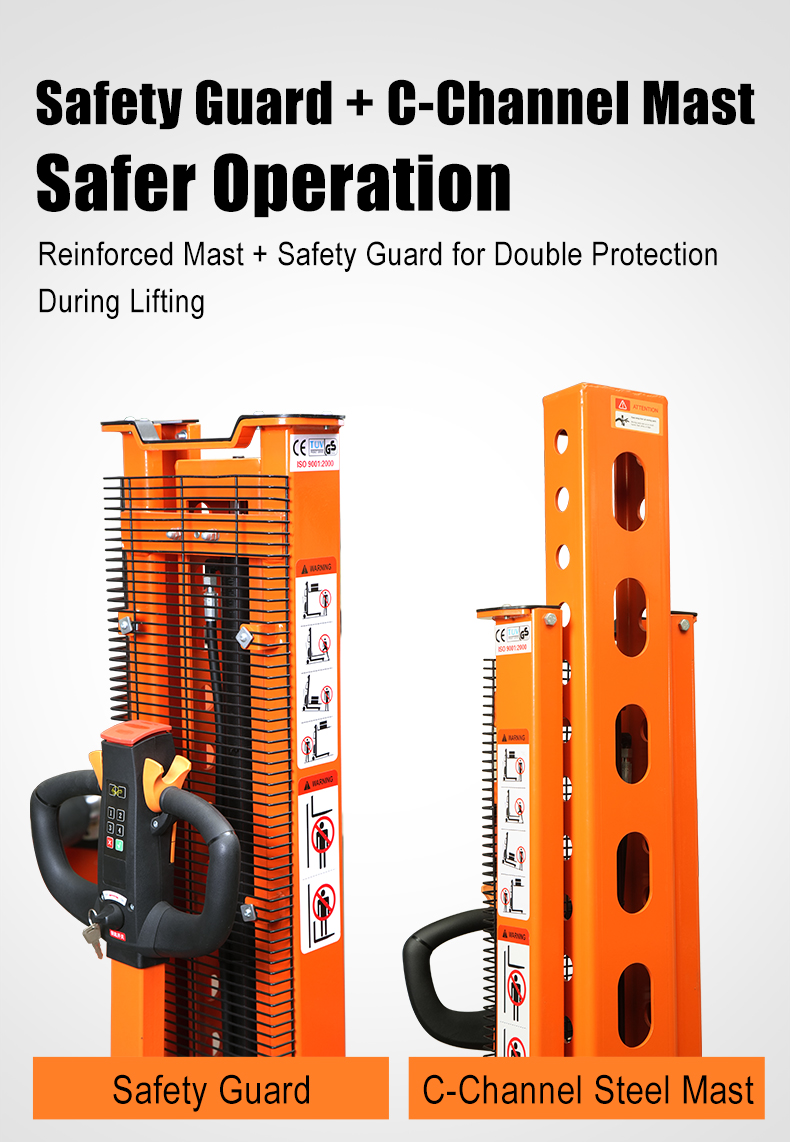

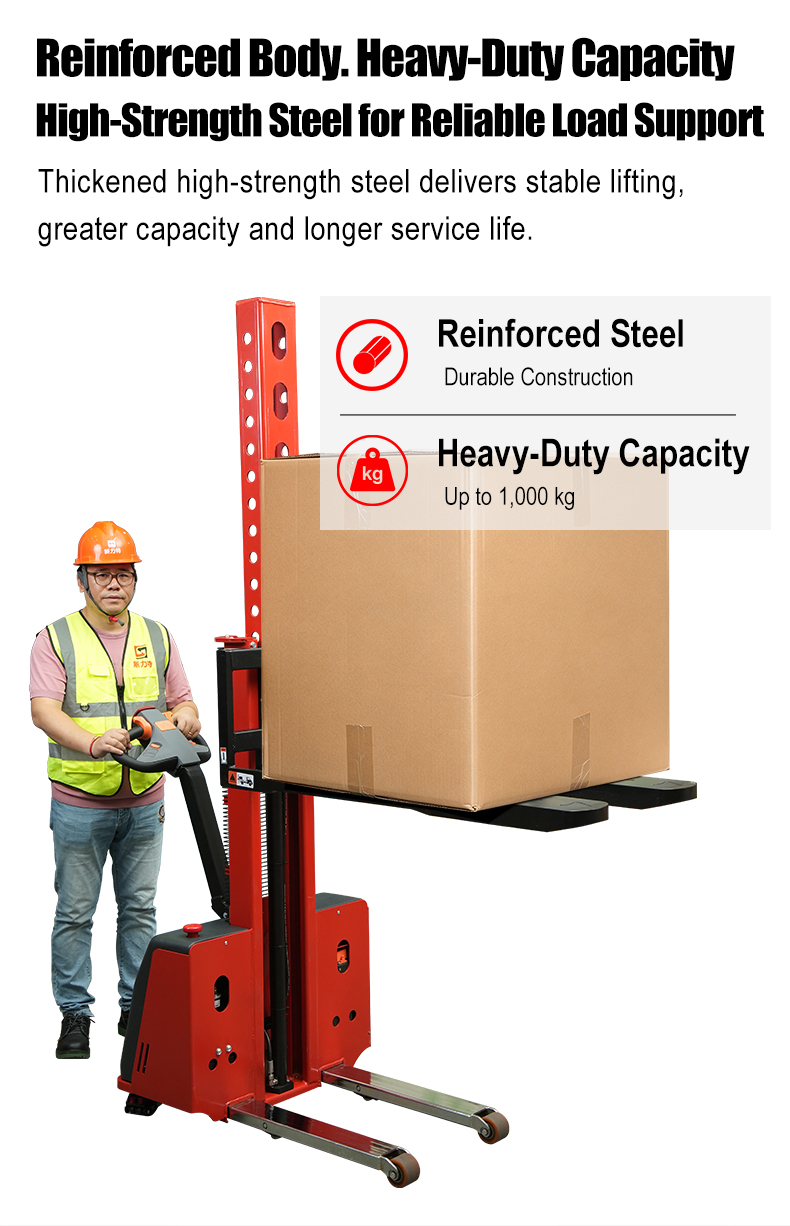

- Up to 1,000 kg Load Capacity: Reinforced steel construction provides reliable support for demanding material handling applications.

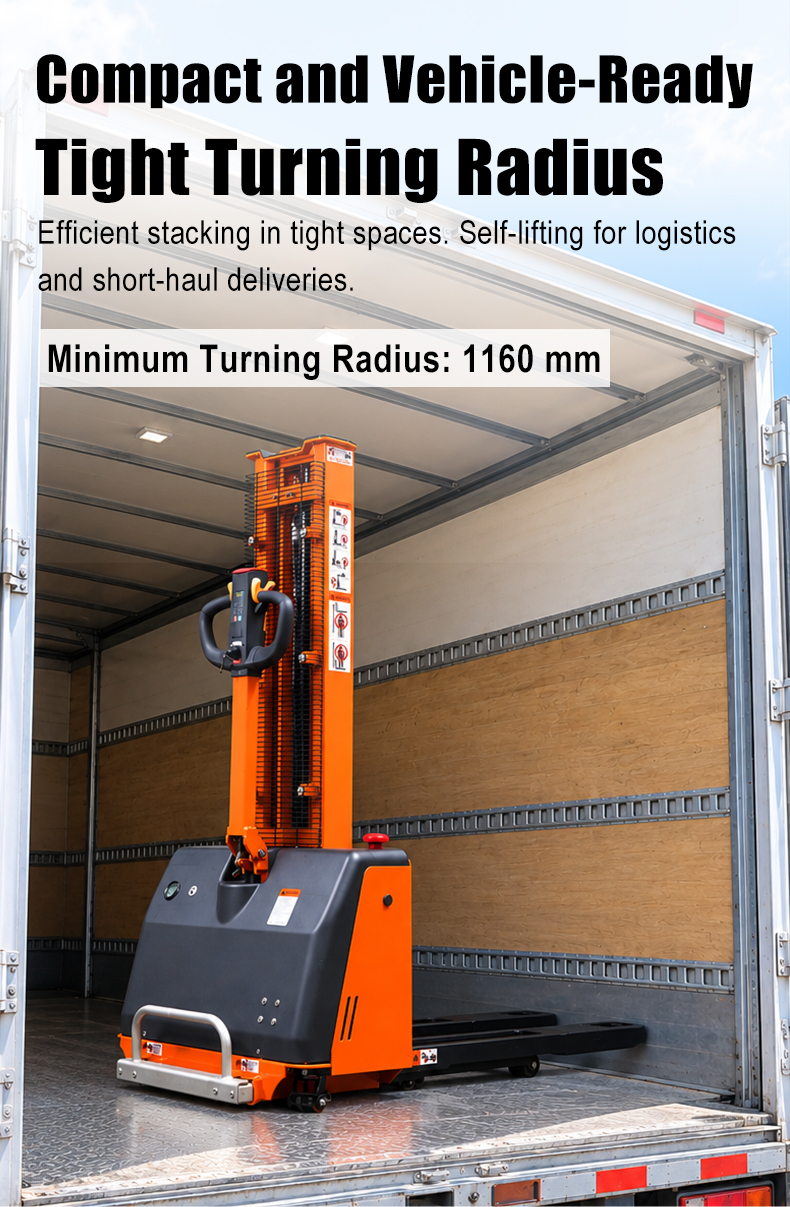

- Compact & Maneuverable: Small turning radius makes it suitable for confined warehouses, delivery vehicles, and narrow working areas.

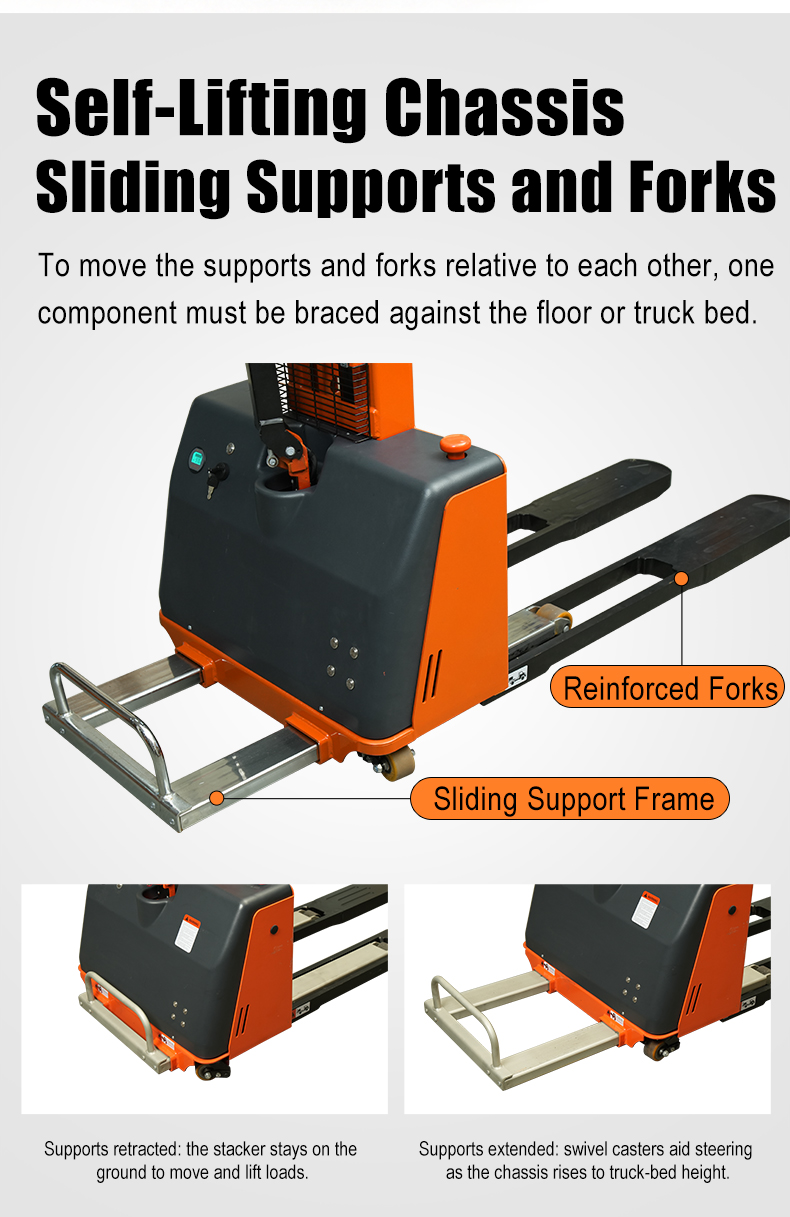

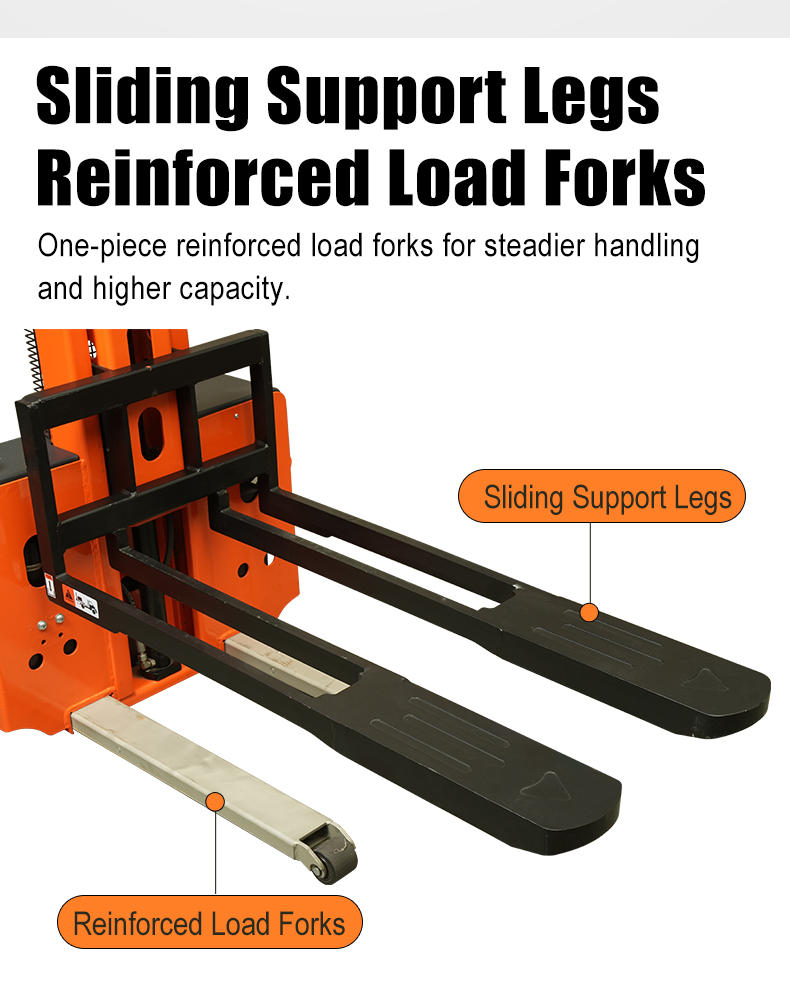

- Adjustable Support Legs: Sliding support legs enable controlled chassis lifting during the self-loading process.

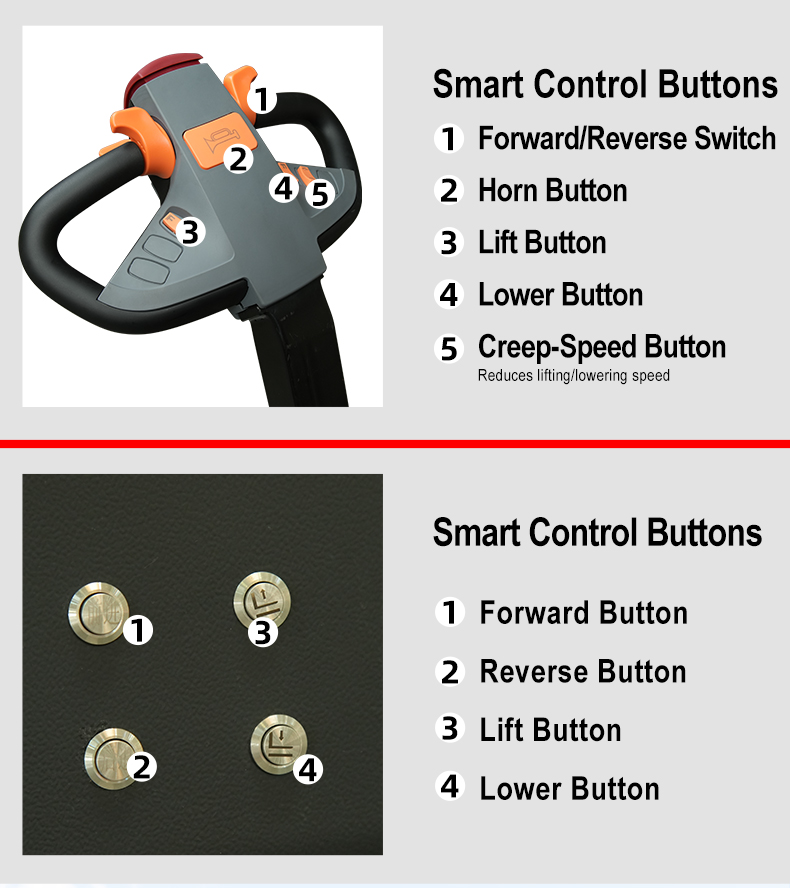

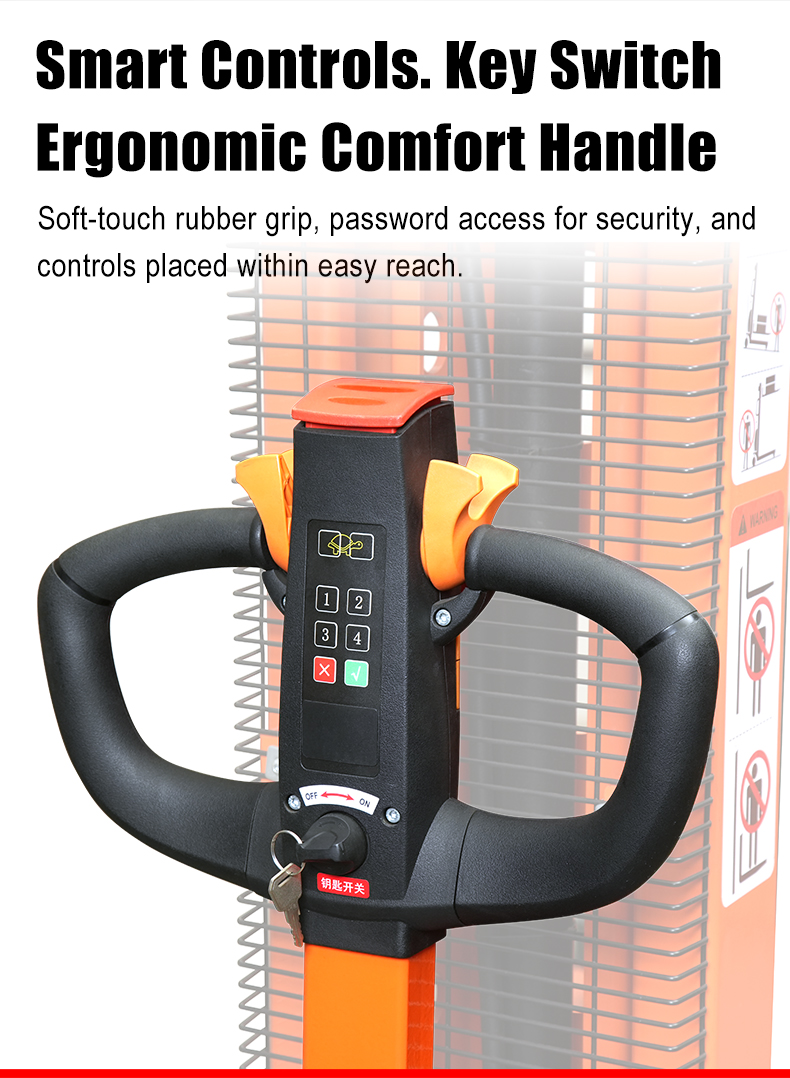

- User-Friendly Controls: Ergonomic control handle with convenient lifting, lowering, travel, and emergency stop functions.

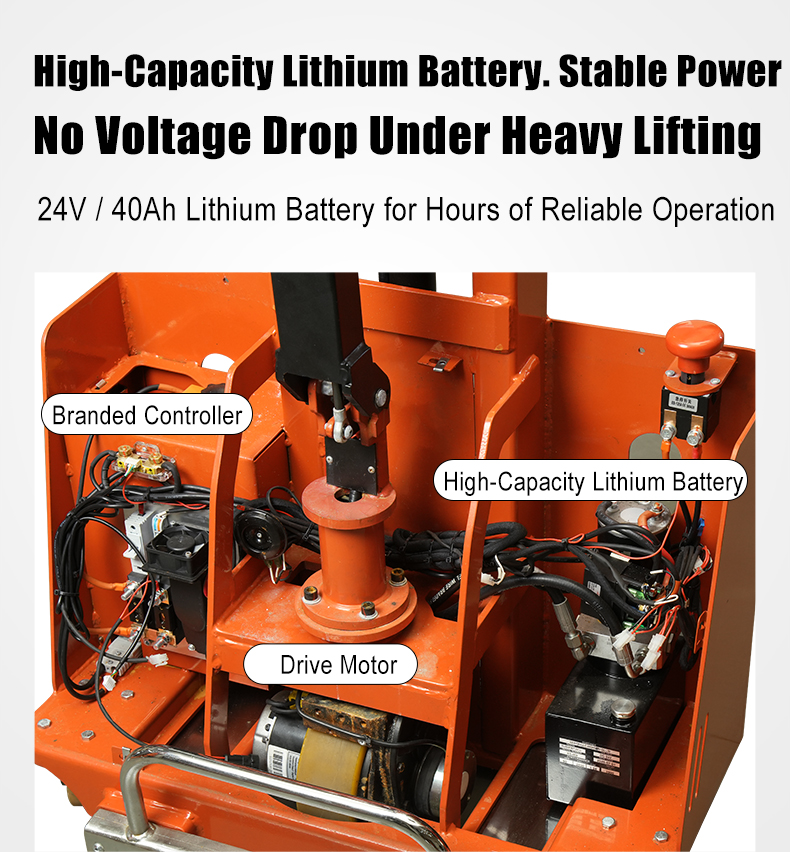

- Lithium Battery Power: Equipped with a 24 V / 40 Ah lithium battery for convenient cordless operation.
- Customizable Design: Available with customized configurations to accommodate different loads, truck dimensions, and operating requirements.
2. Frequently Asked Questions
Q1. How does a self-loading pallet stacker work without an additional forklift?

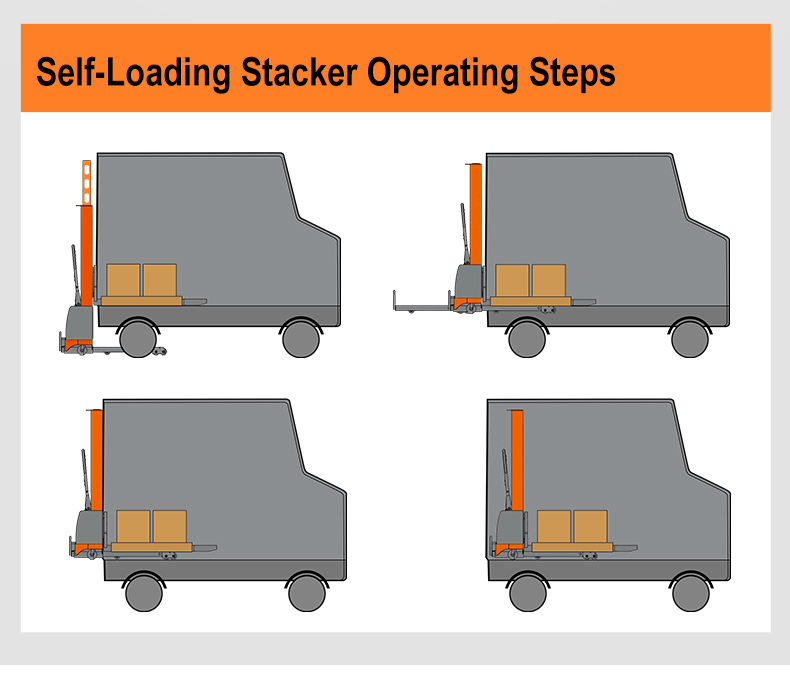

The CDDYG-Z features a built-in self-lifting mechanism that allows the stacker to raise its own chassis to the height of a truck bed. By coordinating the movement of its forks and sliding support legs, the machine can transfer itself between the ground and a compatible delivery vehicle without requiring a separate forklift. During this process, the appropriate supporting component must remain securely positioned against the ground or truck bed to ensure stable operation.
Q2. What types of trucks can the CDDYG-Z self-loading pallet stacker be used with?

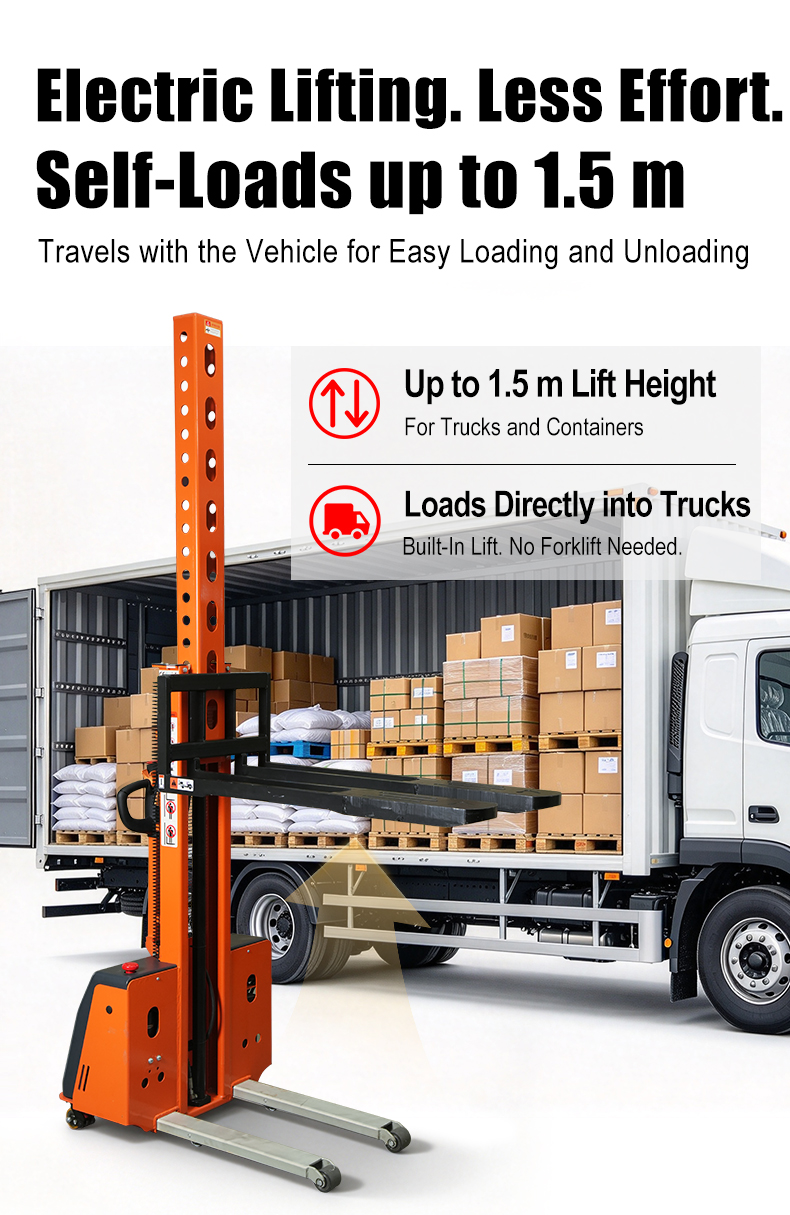

The CDDYG-Z is designed for loading and unloading operations involving delivery trucks, cargo vehicles, and other compatible transport platforms. Its self-lifting system can raise the chassis up to 1.5 meters, making it suitable for various logistics and transportation applications. Before ordering, customers should confirm the truck-bed height, available loading space, and operating conditions to ensure proper compatibility.
Q3. What is the maximum load capacity of the CDDYG-Z self-loading pallet stacker?
The CDDYG-Z is available in configurations with a rated load capacity of up to 1,000 kg, depending on the selected specifications. However, actual lifting capability also depends on the load center, cargo dimensions, and operating conditions. Customers should verify the rated capacity and any applicable restrictions during self-loading operations before purchasing to ensure safe and efficient handling.
Q4. What is the difference between a fully electric self-loading pallet stacker and a manual hydraulic model?
A fully electric self-loading pallet stacker uses electric power for both driving and lifting, reducing operator effort during frequent loading and unloading operations. In contrast, a manual hydraulic model, such as the PV series, relies on manual hydraulic lifting and is more suitable for applications where powered lifting is not required. The CDDYG-Z is particularly useful for delivery operations that involve repeated vehicle loading, material transportation, and unloading.
Q5. Can the CDDYG-Z self-loading pallet stacker be customized for specific applications?
Yes. The CDDYG-Z is a customizable material handling solution designed to accommodate different cargo types, vehicle dimensions, and working environments. Customers can provide their required load capacity, lifting height, fork dimensions, and truck-bed height so that a suitable configuration can be evaluated. Our team can help determine the appropriate specifications based on the intended loading conditions and application requirements.
