Sinolift SDYG electric self-propelled loding stacker

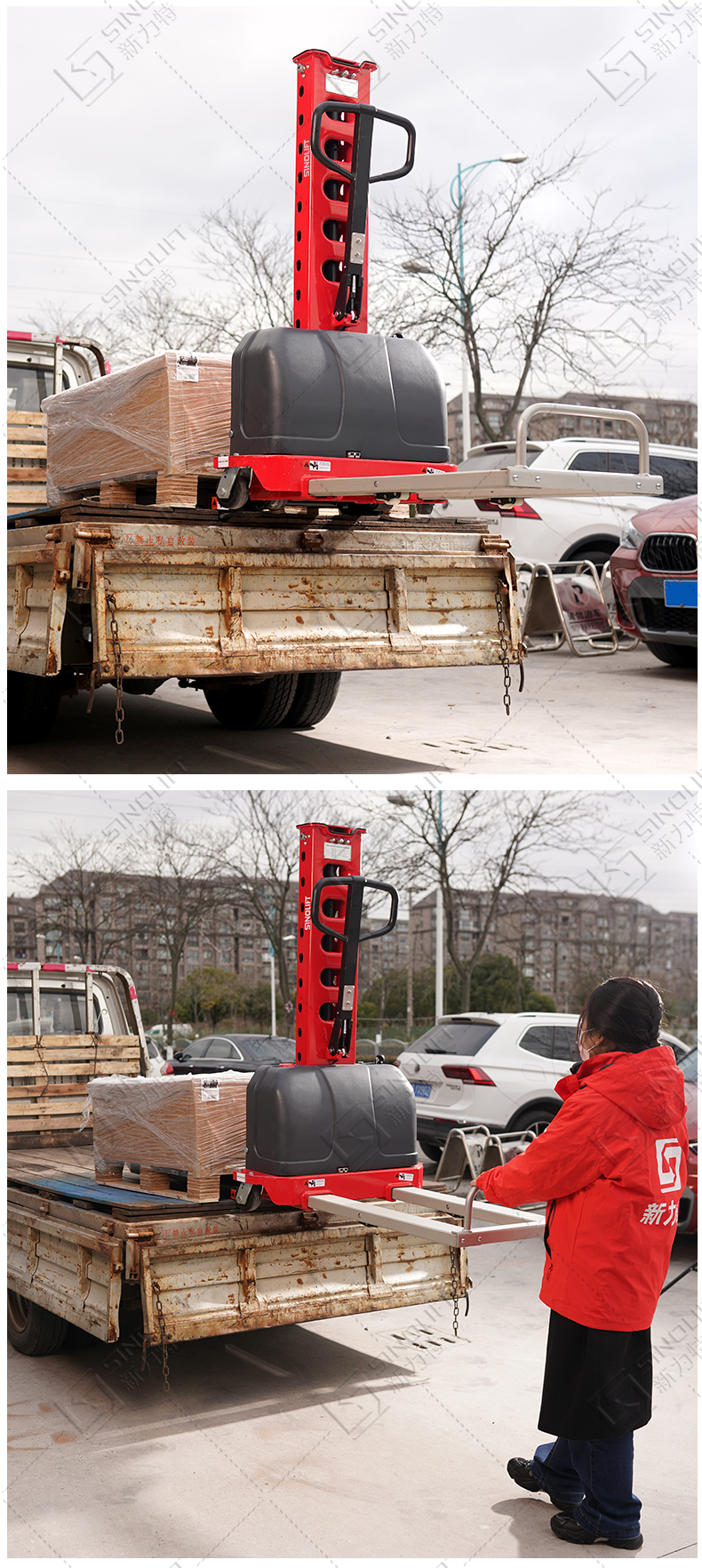

Sinolift SDYG is a modern loading electric stacker with a 500kg capacity and a lift height of 1.3 metres.This is a versatile model because its unique design allows it to be loaded or
unloaded into the back of a vehicle, with no external lifting equipment required.
Self Loading Electric Stacker for Smart Mobile Material Handling
TheSelf Loading Electric Stacker is an innovative material handling solution designed for businesses that need fast, flexible, and efficient loading operations. Unlike traditional stackers, this model can load itself into trucks or vans, making it ideal for mobile delivery teams, warehouses, retail distribution, and field logistics operations.
With compact dimensions, electric lifting, and easy maneuverability, this machine helps reduce labor costs while improving loading productivity.
| Model | SDYG-Z0.5A | SDYG-Z0.5B | SDYG-Z0.5C | SDYG-Z0.5D |
|---|---|---|---|---|
| Rated Capacity | 500 kg | 500 kg | 500 kg | 500 kg |
| Load Center | 400 mm | 400 mm | 400 mm | 400 mm |
| Max Lift Height | 900 mm | 1000 mm | 1100 mm | 1300 mm |
| Fork Length | 1150 mm | 1150 mm | 1150 mm | 1150 mm |
| Fork Width (Overall) | 560 mm / 680 mm | 560 mm / 680 mm | 560 mm / 680 mm | 560 mm / 680 mm |
| Min Fork Height | 85 mm | 85 mm | 85 mm | 85 mm |
| Turning Radius | Compact Design | Compact Design | Compact Design | Compact Design |
| Battery | 12V / 33Ah | 12V / 33Ah | 12V / 33Ah | 12V / 33Ah |
| Charger | Included | Included | Included | Included |
| Net Weight | 175 kg | 190 kg | 205 kg | 219 kg |
| Operation Type | Electric Lift / Manual Travel | Electric Lift / Manual Travel | Electric Lift / Manual Travel | Electric Lift / Manual Travel |
