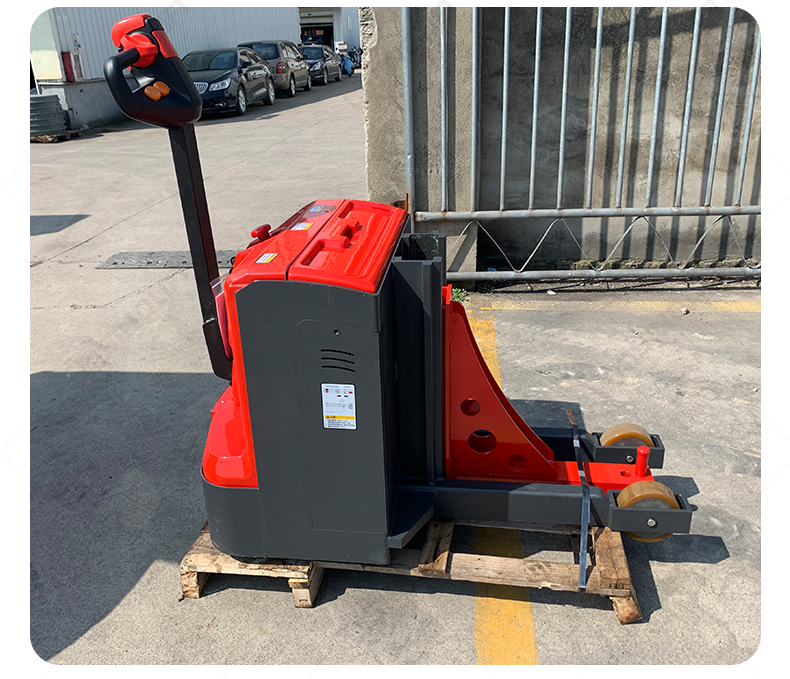

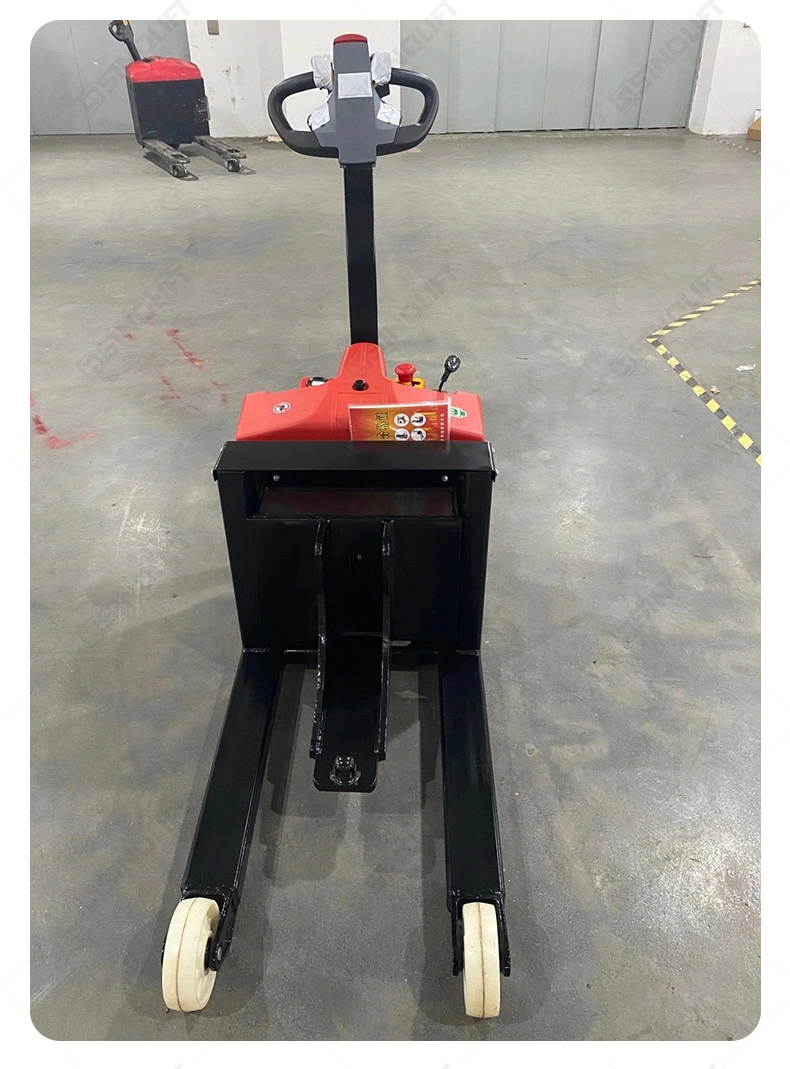

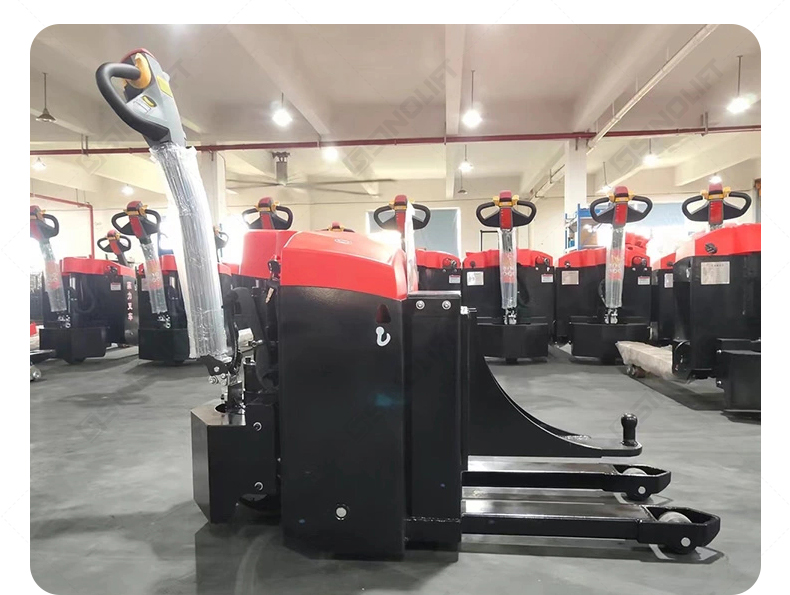

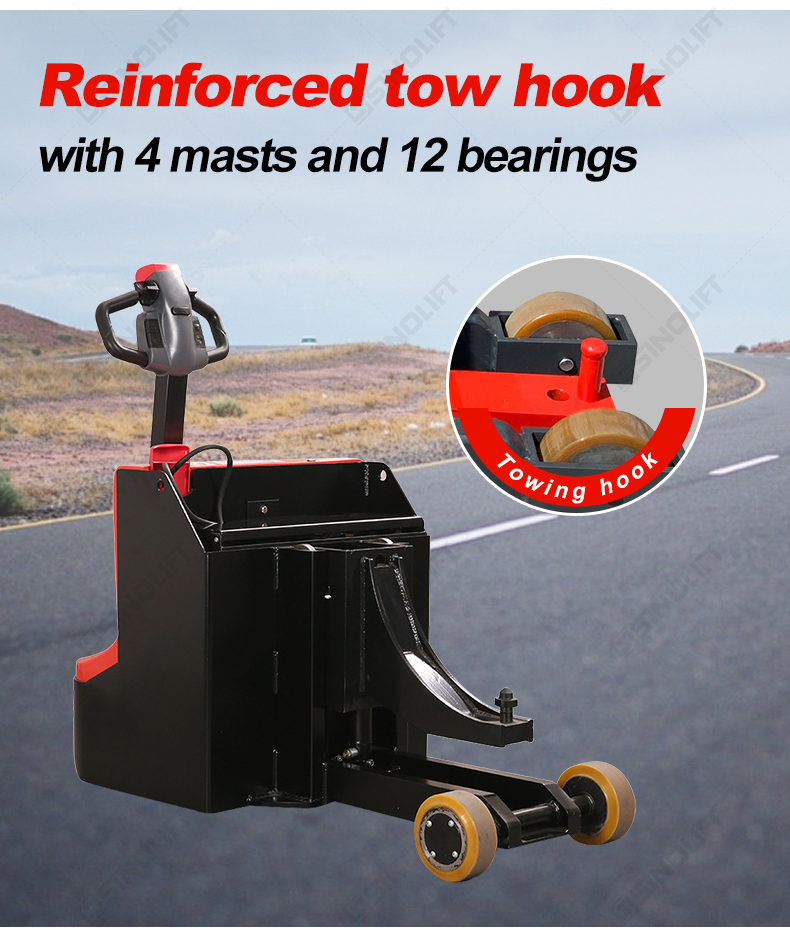

Sinolift EKP30A Walkie Electric A-frame Tow Tractor
EKP30A
Quantity:

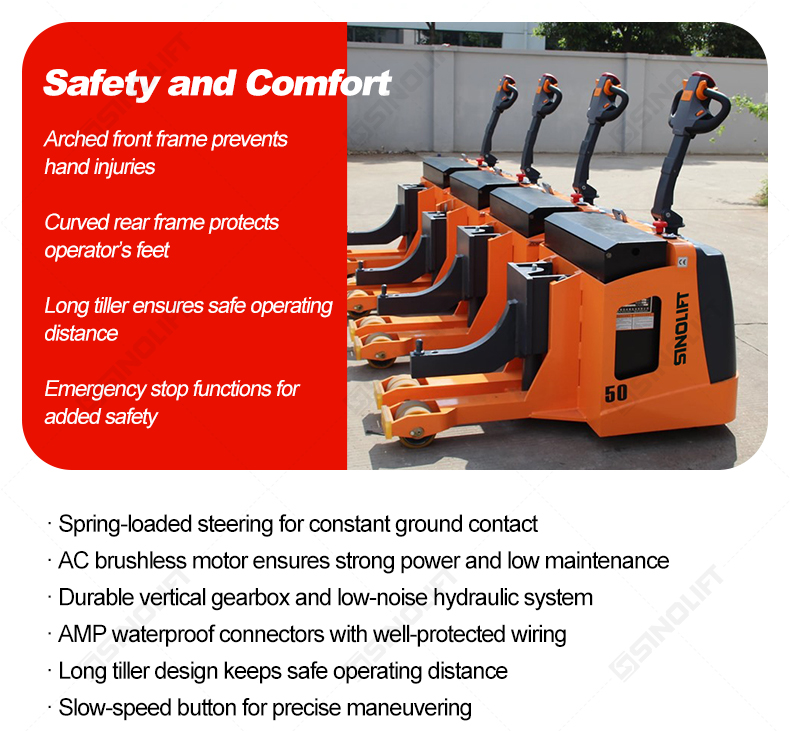

The EKP30A Walkie Electric A-frame Tow Tractor combines robust towing power with user-friendly controls and durable construction, delivering high efficiency, heavy-load capability, and easy operation in diverse industrial environments.

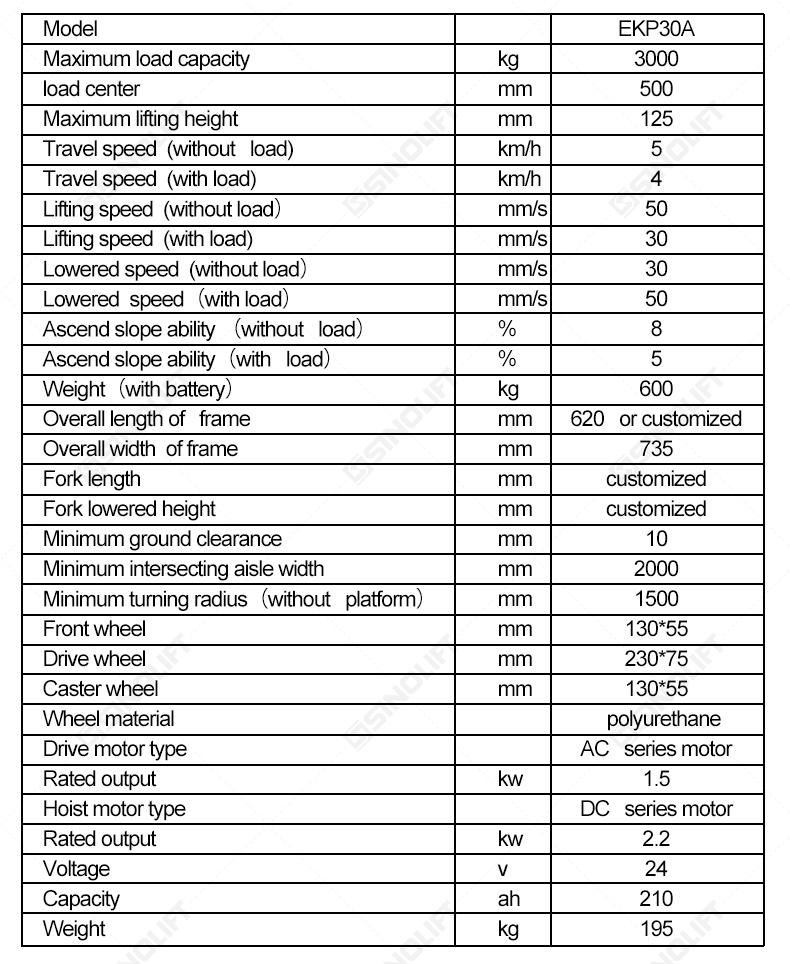

| Model | EKP30A | |||
| Performance | Maximum load capacity | kg | 3000 | |
| load center | Q | mm | 500 | |
| Maximum lifting height | H3 | mm | 125 | |
| Travel speed (without load) | km/h | 5 | ||
| Travel speed (with load) | km/h | 4 | ||
| Lifting speed (without load） | mm/s | 50 | ||
| Lifting speed (with load) | mm/s | 30 | ||
| Lowered speed (without load） | mm/s | 30 | ||
| Lowered speed（with load） | mm/s | 50 | ||
| Ascend slope ability （without load） | % | 8 | ||
| Ascend slope ability（with load） | % | 5 | ||
| Weight（with battery） | kg | 600 | ||
| Dimensions | Overall length of frame | L | mm | 620 or customized |
| Overall width of frame | B | mm | 735 | |
| Fork length | mm | customized | ||
| Fork lowered height | S | mm | customized | |
| Minimum ground clearance | mm | 10 | ||
| Minimum intersecting aisle width | Asts | mm | 2000 | |
| Minimum turning radius（without platform） | Wa | mm | 1500 | |
| Tire | Front wheel | mm | 130*55 | |
| Drive wheel | mm | 230*75 | ||
| Caster wheel | mm | 130*55 | ||
| Wheel material | polyurethane | |||
| Electrical components | Drive motor type | AC series motor | ||
| Rated output | kw | 1.5 | ||
| Hoist motor type | DC series motor | |||
| Rated output | kw | 2.2 | ||
| Battery | Voltage | v | 24 | |
| Capacity | ah | 210 | ||
| Weight | kg | 195 | ||
