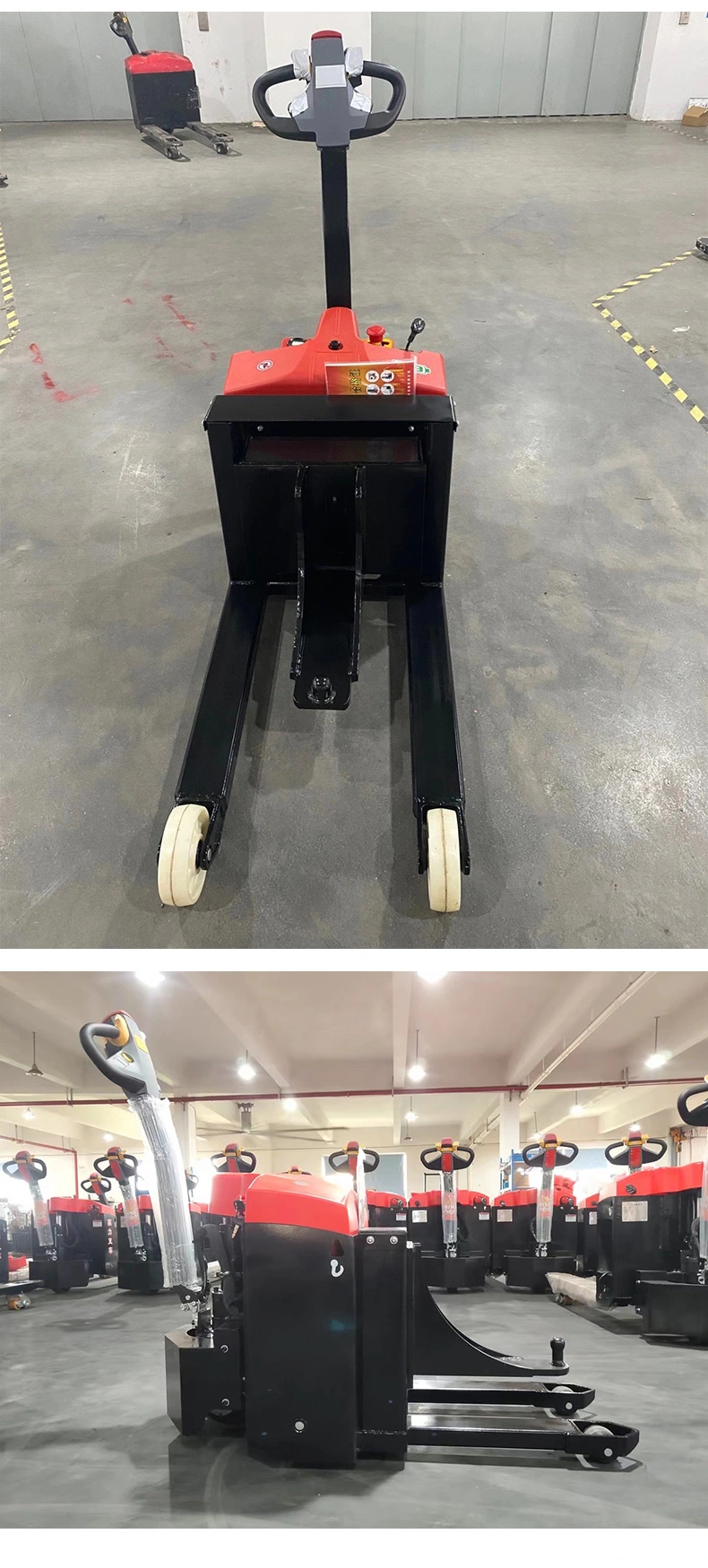

Sinolift China excellent stability of EKP30A electric A-frame tow tractor 3000kg capacity.
EKP30A Electric A frame tow tractor can lift and tow batch trolleys,it is equipped with a collision protection device on the driving part and behind the running wheels, since it is
often used under rough conditions.
1. Tow hook holds in place by 4 masts and 12 bearings for maximum resistance and durability
2. Tiller arm and relevant drive wheel placed in the central part of the truck ensure the operator greater benefits in terms of safety, stability and manoeuvrability (steering angle 200°)
3. The spring loaded steering system allows to keep a constant contact of the drive wheel with the floor, excellent stability of the pallet truck and a minimum steering effort even when the pallet truck is fully loaded
4. Maximum battery lifespan and efficiency
| Model | EKP30A | |||
| Performance | Maximum load capacity | kg | 3000 | |
| load center | Q | mm | 500 | |
| Maximum lifting height | H3 | mm | 125 | |
| Travel speed (without load) | km/h | 5 | ||
| Travel speed (with load) | km/h | 4 | ||
| Lifting speed (without load） | mm/s | 50 | ||
| Lifting speed (with load) | mm/s | 30 | ||
| Lowered speed (without load） | mm/s | 30 | ||
| Lowered speed（with load） | mm/s | 50 | ||
| Ascend slope ability （without load） | % | 8 | ||
| Ascend slope ability（with load） | % | 5 | ||
| Weight（with battery） | kg | 600 | ||
| Dimensions | Overall length of frame | L | mm | 620 or customized |
| Overall width of frame | B | mm | 735 | |
| Fork length | mm | customized | ||
| Fork lowered height | S | mm | customized | |
| Minimum ground clearance | mm | 10 | ||
| Minimum intersecting aisle width | Asts | mm | 2000 | |
| Minimum turning radius（without platform） | Wa | mm | 1500 | |
| Tire | Front wheel | mm | 130*55 | |
| Drive wheel | mm | 230*75 | ||
| Caster wheel | mm | 130*55 | ||
| Wheel material | polyurethane | |||
| Electrical components | Drive motor type | AC series motor | ||
| Rated output | kw | 1.5 | ||
| Hoist motor type | DC series motor | |||
| Rated output | kw | 2.2 | ||
| Battery | Voltage | v | 24 | |
| Capacity | ah | 210 | ||
| Weight | kg | 195 | ||
