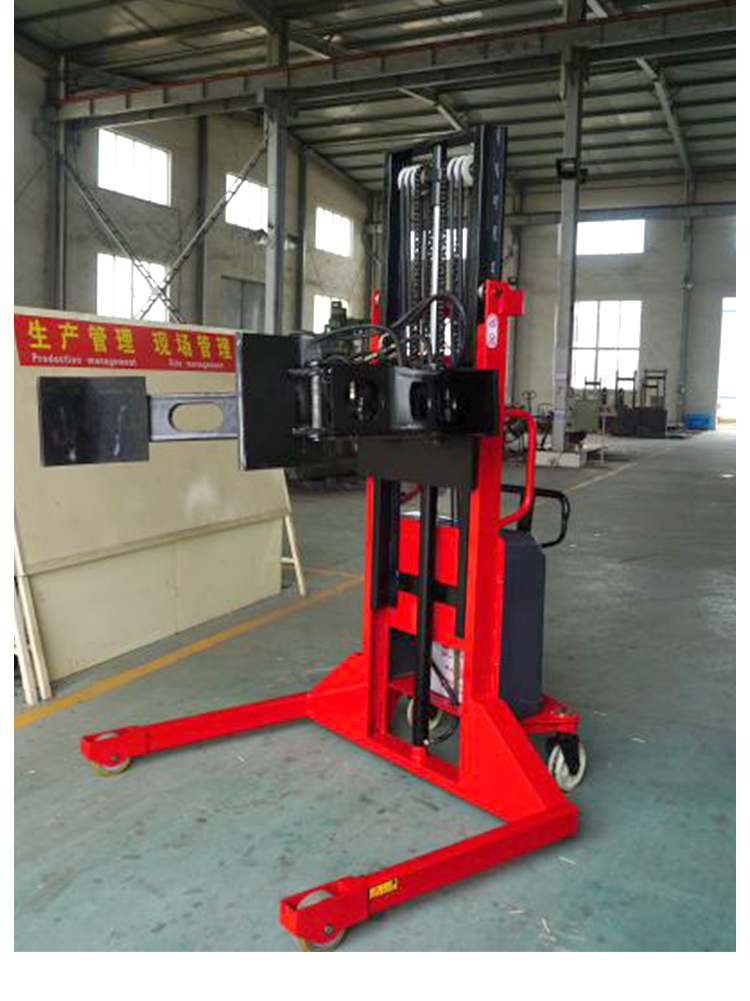

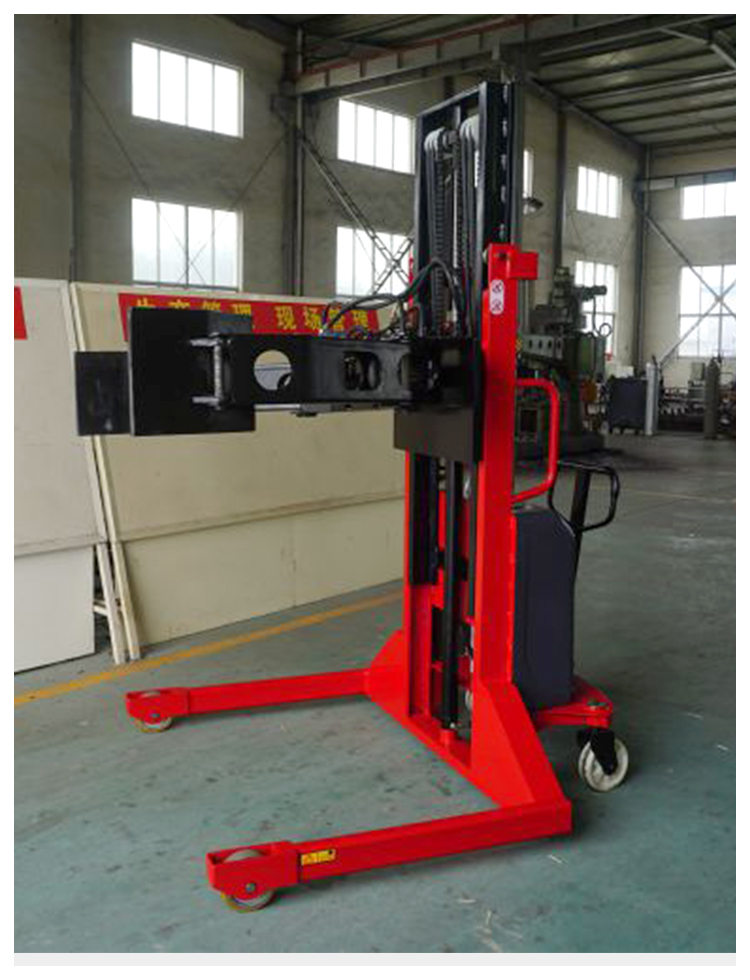

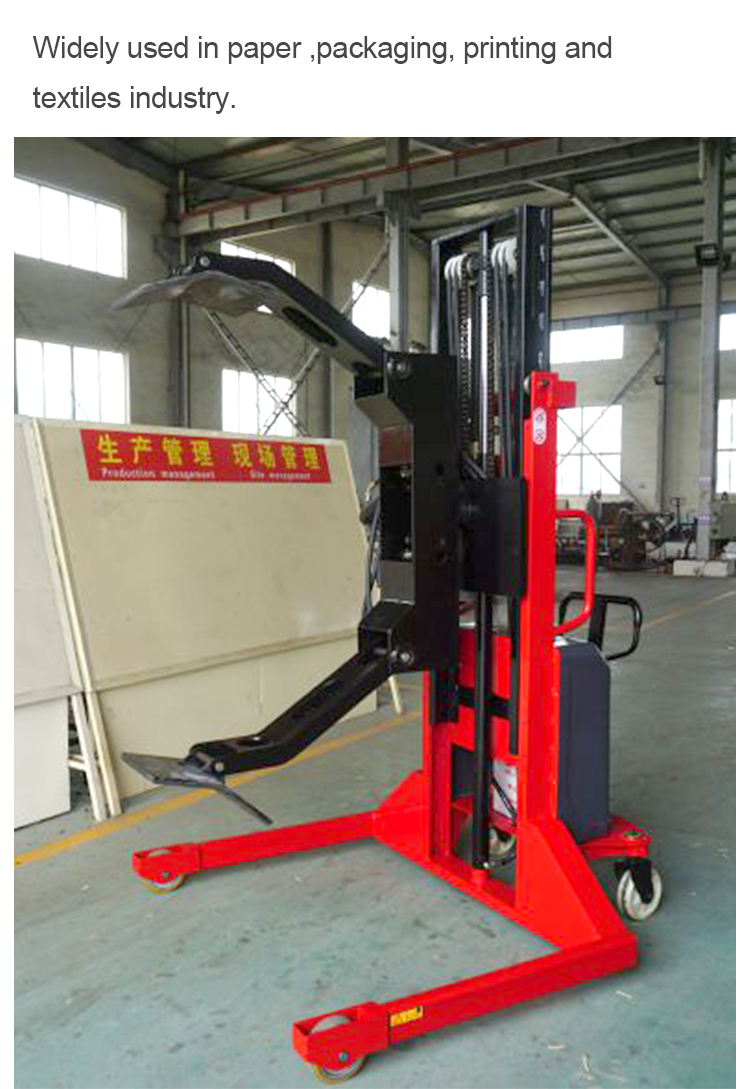

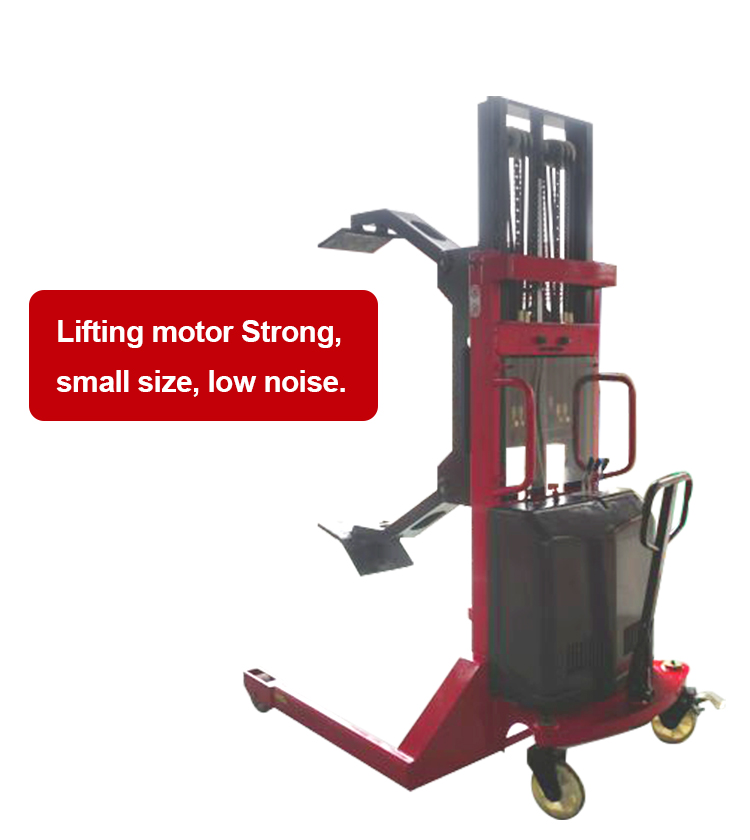

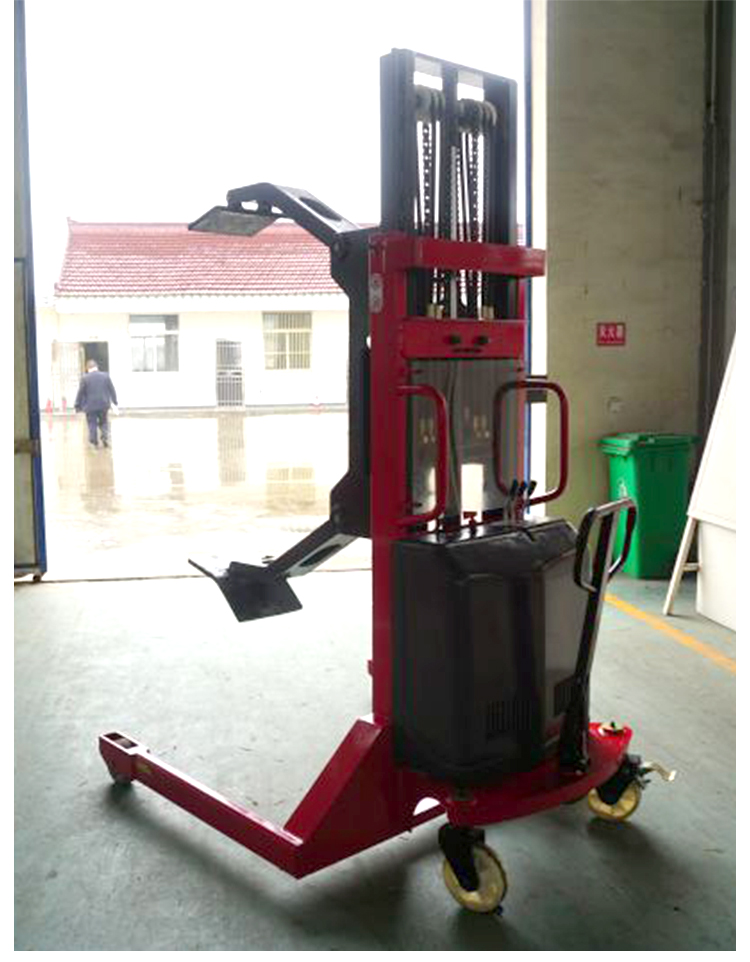

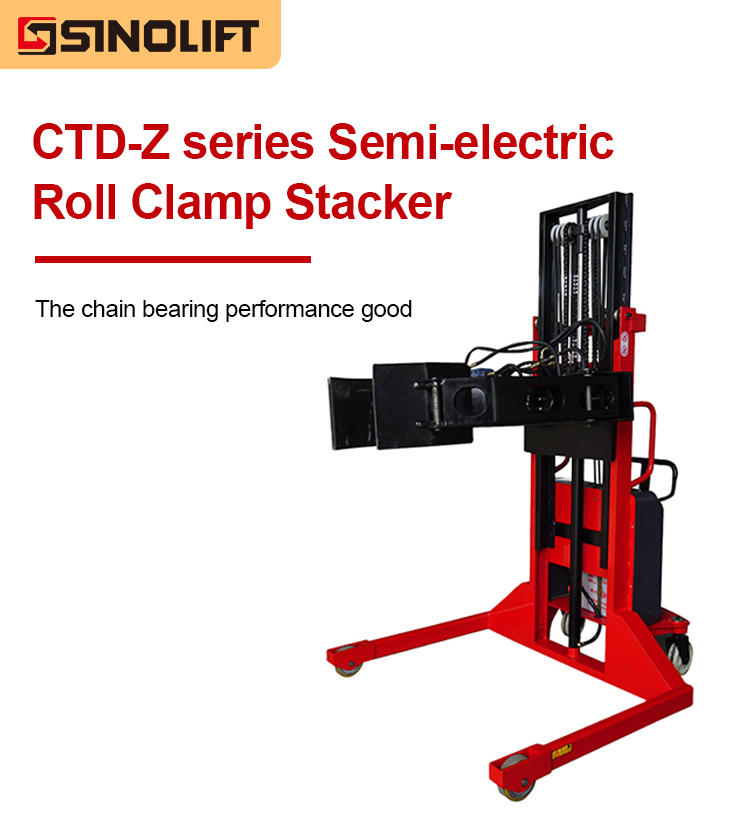

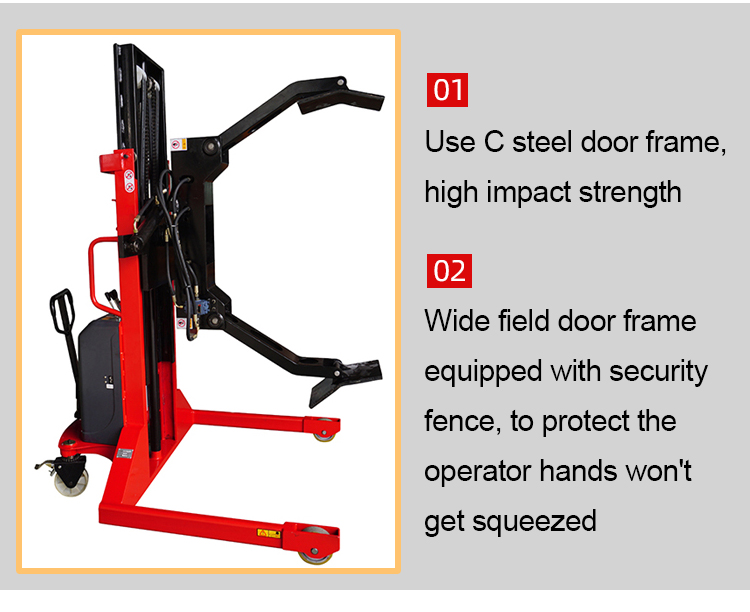

SINOLIFT CTD-Z Semi-electric Roll Clamp Stacker
CTD-Z
Quantity:
| Model | CTD0216-500Z | CTD0525-500Z | CTD0516-1000Z | CTD0525-1000Z | |
| Capacity | kg | 200 | 500 | 500 | 500 |
| Max.Lifting height | mm | 1600 | 2500 | 1600 | 2500 |
| Min. Clamp Height | mm | 520 | 520 | 520 | 520 |
| Clamp width | mm | 635-950 | 635-950 | 1135-1450 | 1135-1450 |
| Clamp Overall Length | mm | 820 | 820 | 1220 | 1220 |
| Paper Roll Diameter | mm | ¢200-500mm | ¢200-500mm | ¢300-1000mm | ¢300-1000mm |
| Load Cente | mm | 350 | 350 | 700 | 700 |
| Self Weight | kg | 498 | 550 | 560 | 640 |
| Overall Size | mm | 1700*950*2000 | 1700*950*1780 | 1900*1500*2000 | 1900*1500*1780 |
| Asle Width | mm | 1900 | 1900 | 2100 | 2100 |
| Rear Wheels | 2*¢80*70 | ||||
| Front Wheels | 2*¢150*50 | ||||
| Battery | V/Ah | 12/120 | |||
| Charger | V/A | 12/15 | |||
| Lifting Motor | Kw | 1.6 | |||
