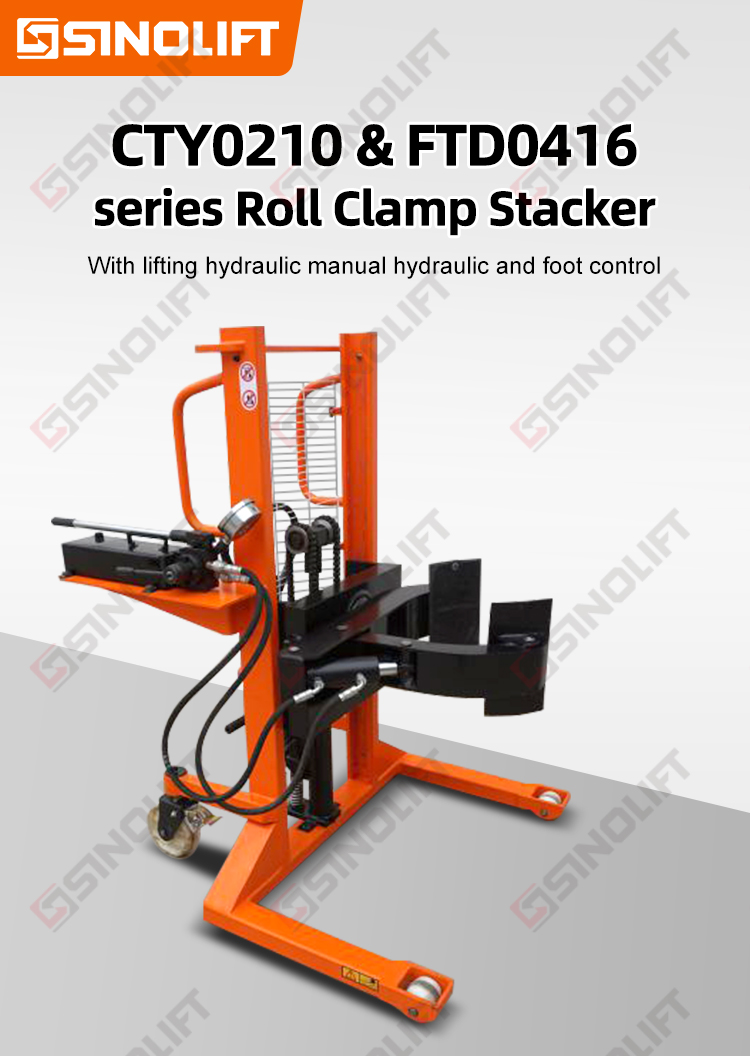

SINOLIFT CTY0210 & FTD0416 series Roll Clamp Stacker

CTY FTD

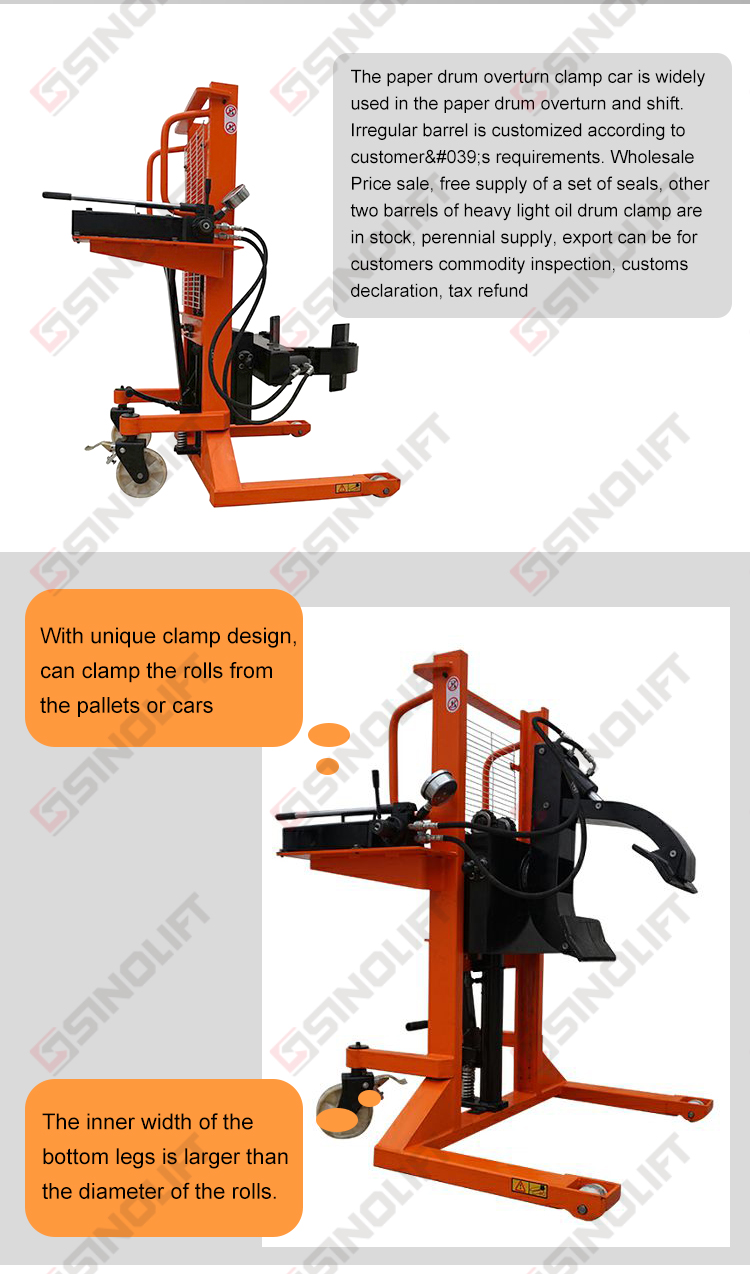

With unique clamp design,can clamp the rolls from the pallets or cars
After manual rotation roll into a vertical direction
The inner width of the bottom legs is larger than the diameter of the rolls.

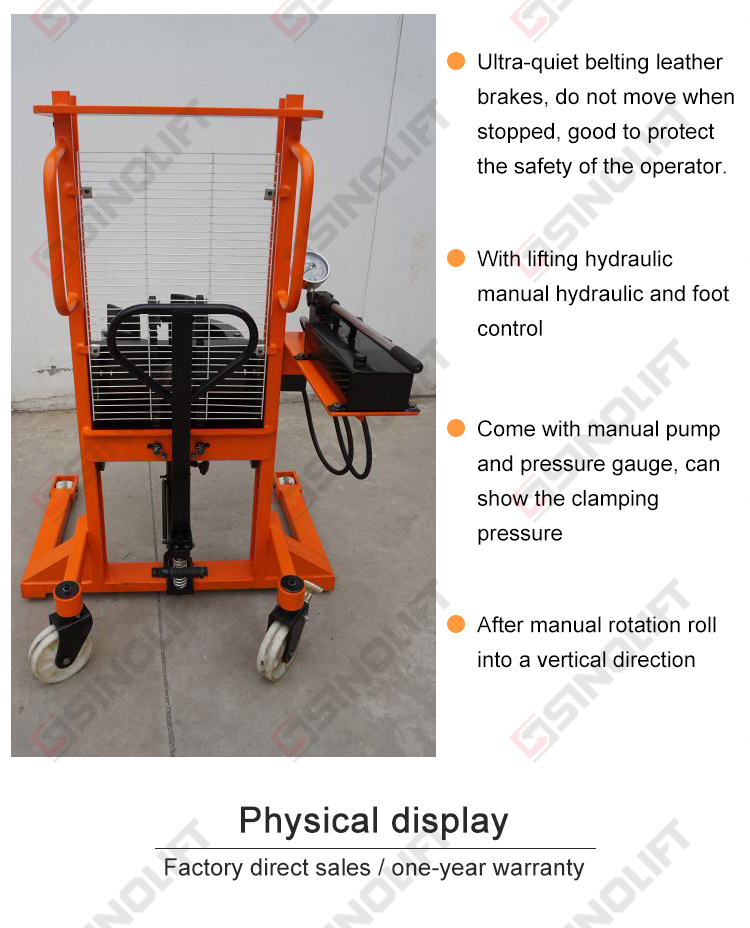

Come with manual pump and pressure gauge, can show the clamping pressure
Ultra-quiet belting leather brakes, do not move when stopped, good to protect the safety of the operator.
With lifting hydraulic manual hydraulic and foot control

Quantity:

Contact Now

add to cart

With unique clamp design,can clamp the rolls from the pallets or cars

After manual rotation roll into a vertical direction

The inner width of the bottom legs is larger than the diameter of the rolls.

Come with manual pump and pressure gauge, can show the clamping pressure

Ultra-quiet belting leather brakes, do not move when stopped Good to protect the safety of the operator.

With lifting hydraulic manual hydraulic and foot control

Model number		CTY0210-500	FTD0416-500	CTY0216-500	FTD0416-1000
Rated load	kg	200	400	200	400
Maximum lift	mm	1000	1600	1600	1600
Clamp width	mm	700-790	635-950	635-950	1135-1450
Clamp down after high	mm	300	490	490	520
Clip length	mm	820	820	820	1220
Roll diameter	mm	Ø300-390mm	Ø200-500mm	Ø200-500mm	Ø300-1000mm
Load center	mm	200	350	350	700
Weight	kg	300	366	348	395
Overall dimension	mm	150010601400	15009502000	15009502000	190014502000
Channel requirement	mm	1600	1600	1600	2000
Walking channel	mm	1100	1000	1000	1500
rear-wheel	mm	2Ø18050
Front wheel	mm	2Ø8070
