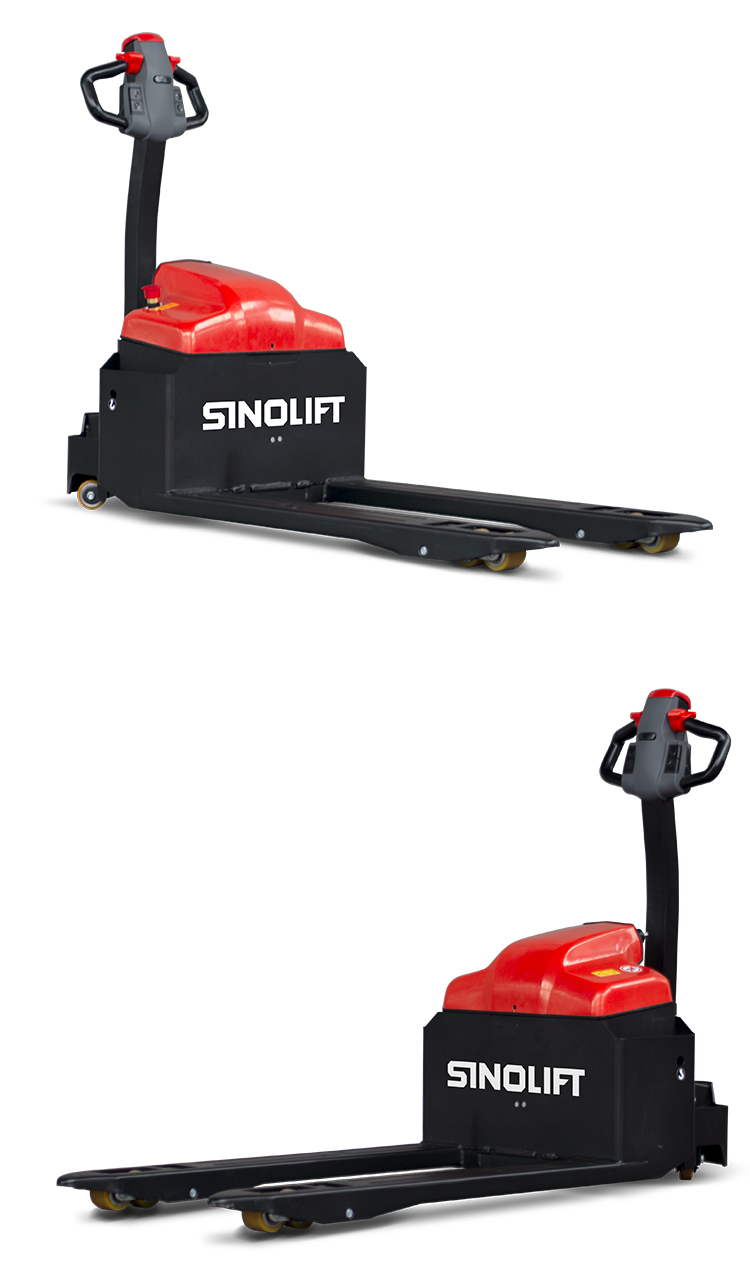

Sinolift China EPT20-ET pallet truck is ideal for heavy-duty shop and warehouse use

EPT20-ET

Quantity:

Contact Now

add to cart

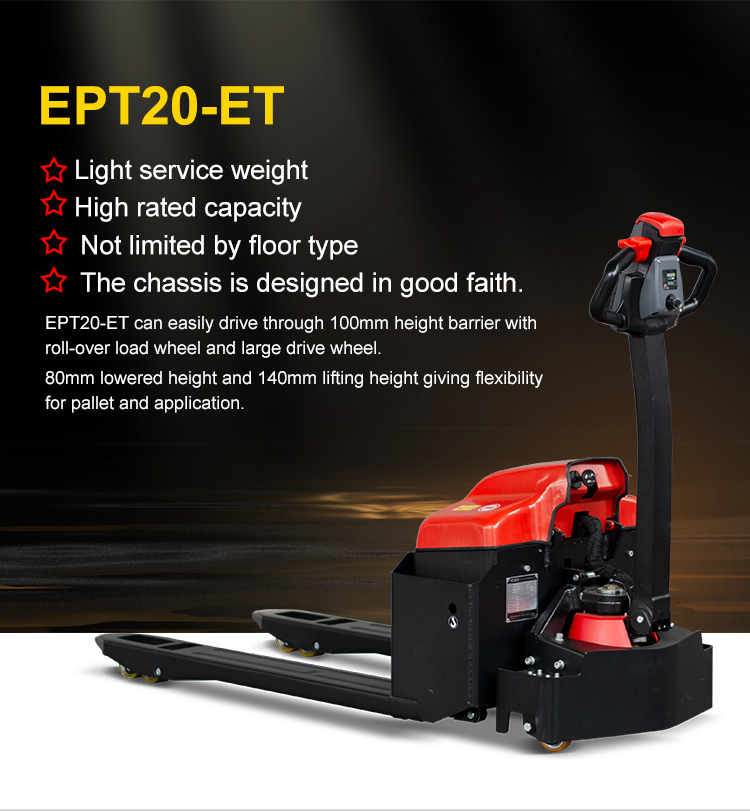

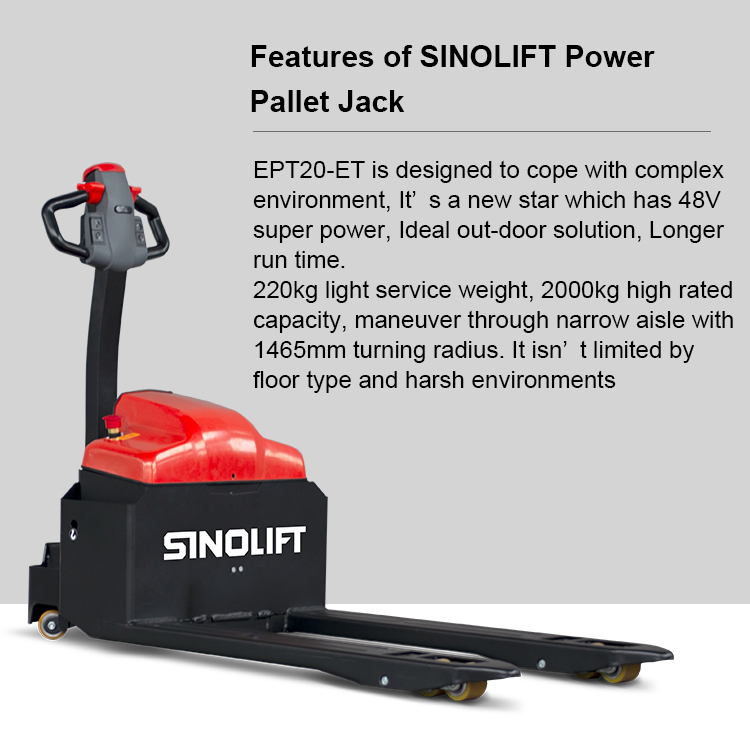

Features

Light service weight
High rated capacity
Not limited by floor type
The chassis is designed in good faith.
can easily drive through 100mm height barrier wlith roll over load wheel and large drive wheel.80mm lowered height and 140mm lifting height giving flexibility for pallet and application.

Model	EPT20-ET
Rated load(kg)	2000
Load center B11(mm)	600
Operation type	Walking style
Standard fork width b5(mm)	560(685)
Fork length(mm)	1150
Fork thickness(mm)	50
Fork width(mm)	150
Overall length(mm)	1685
Minimum turning radius(mm)	1465
Minimum channel width(1000x1200mm,Tray)(mm)	1792
Minimum channel width(800x1200mm,Tray)(mm)	1992
Maximum running speed, full load / no load(km/h)	4/5.5
Maximum lifting speed, full load / no load(m/s)	0.024/0.038
Maximum down speed, full load / no load(m/s)	0.034/0.025
Dead weight with battery(kg)	220
Tire material	Polyurethane
Running power(kw)	0.75
Lifting power(kw)	0.84
Voltage / capacity(V/Ah)	12*4/30
Running braking	Electromagnetic brake
Brake	Battery brake
Drive control type	DC
