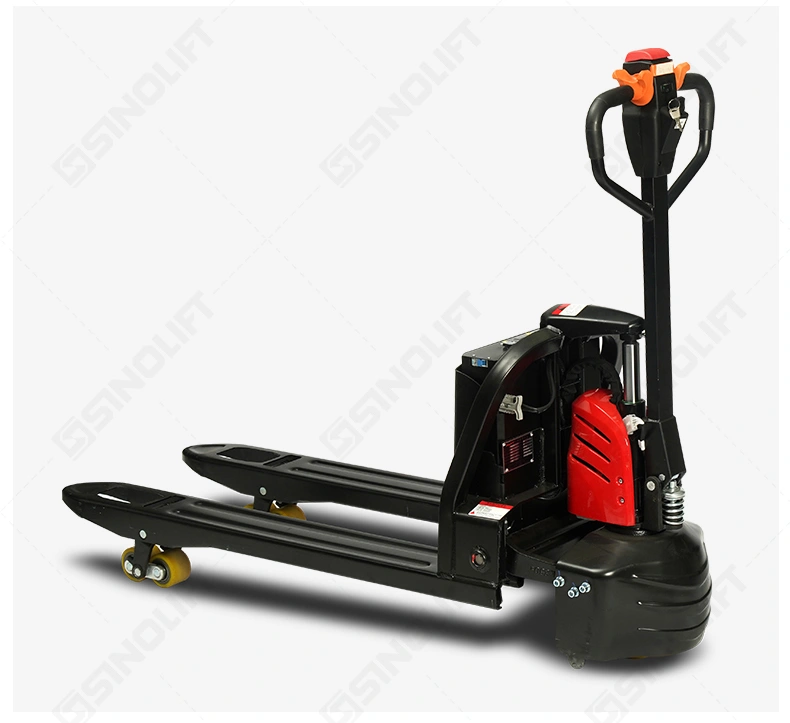

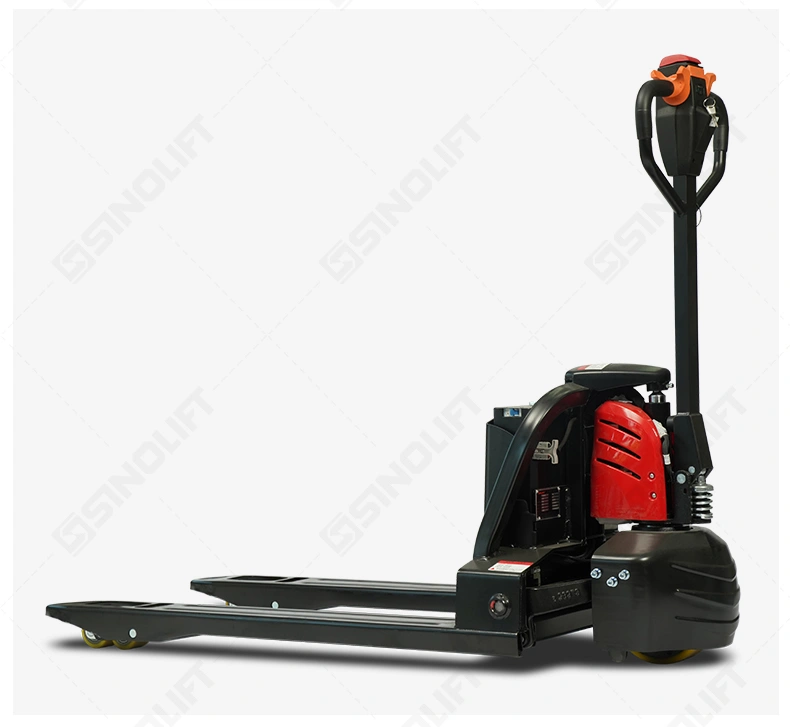

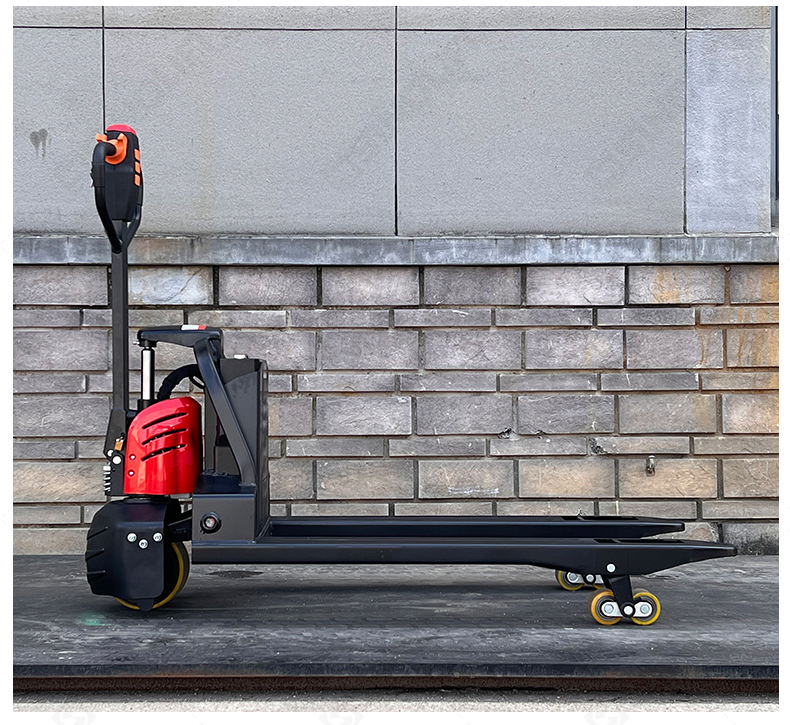

Sinolift china 2T lead-acid battery electric heavy-duty CBD20J black knight warehouse pallet truck

CBD20J

Quantity:

Contact Now

add to cart

Experience seamless maneuverability and silent operation that enhances productivity and boosts your warehouse efficiency.

Our electric pallet trucks come with intuitive controls, enabling your team to quickly adapt and work effectively. Each model is specifically designed to meet the unique challenges of different industries, drawing on our extensive expertise.

Discover the Sinolift Handling Solutions range and transform the way you move and manage your goods.

Characteristics	Model		CBD20J-Li			CBD20J Lead-acid battery
	Drive Method		Electric			Electric
	Operation Method		Pedestrian			Pedestria

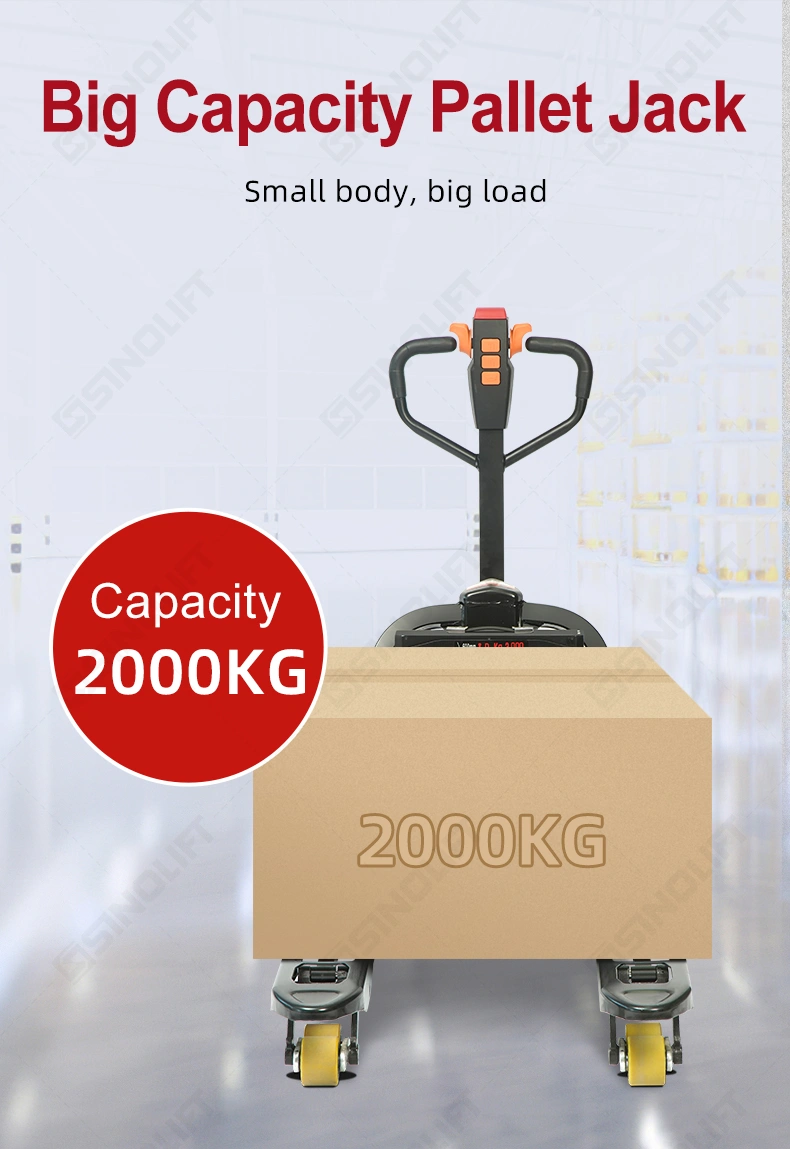

	Rated Load Capacity	Q (t)	2.0			2
	Load Center	c (mm)	600			600
	Front Overhang	x (mm)	944			944
	Wheelbase	y (mm)	1243			1243
Weights	Self-weight (without battery)	kg	146			160
Dimensions	Lifting Height	h3 (mm)	200			200

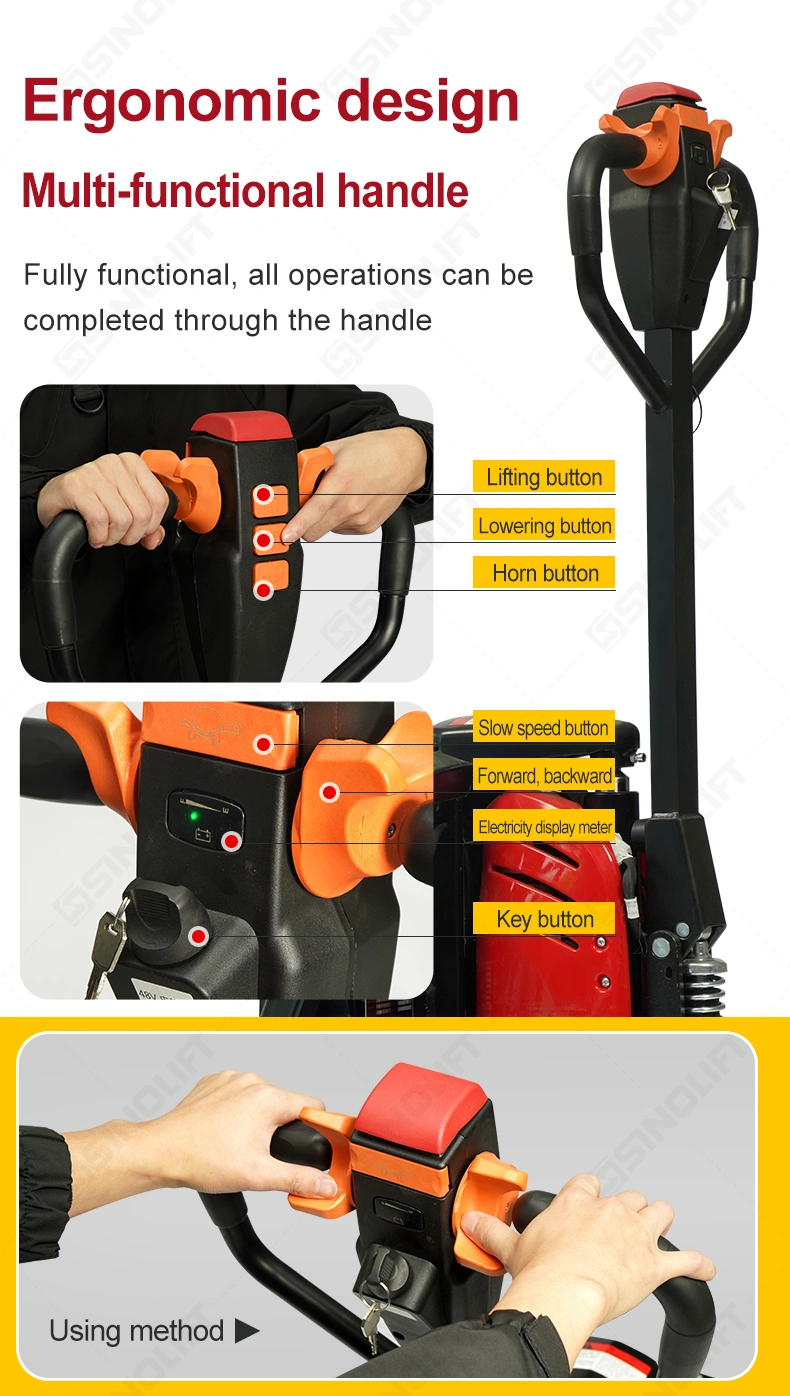

	Minimum/Maximum Height of Operating Position Handle	h14 (mm)	740/1160			740/1160
	Minimum Height of Fork	h13 (mm)	85			85
	Overall Length	l1 (mm)	1603			1603
	Body Length	l2 (mm)	453			453
	Overall Width	b1/ b2 (mm)	550/685			550/685

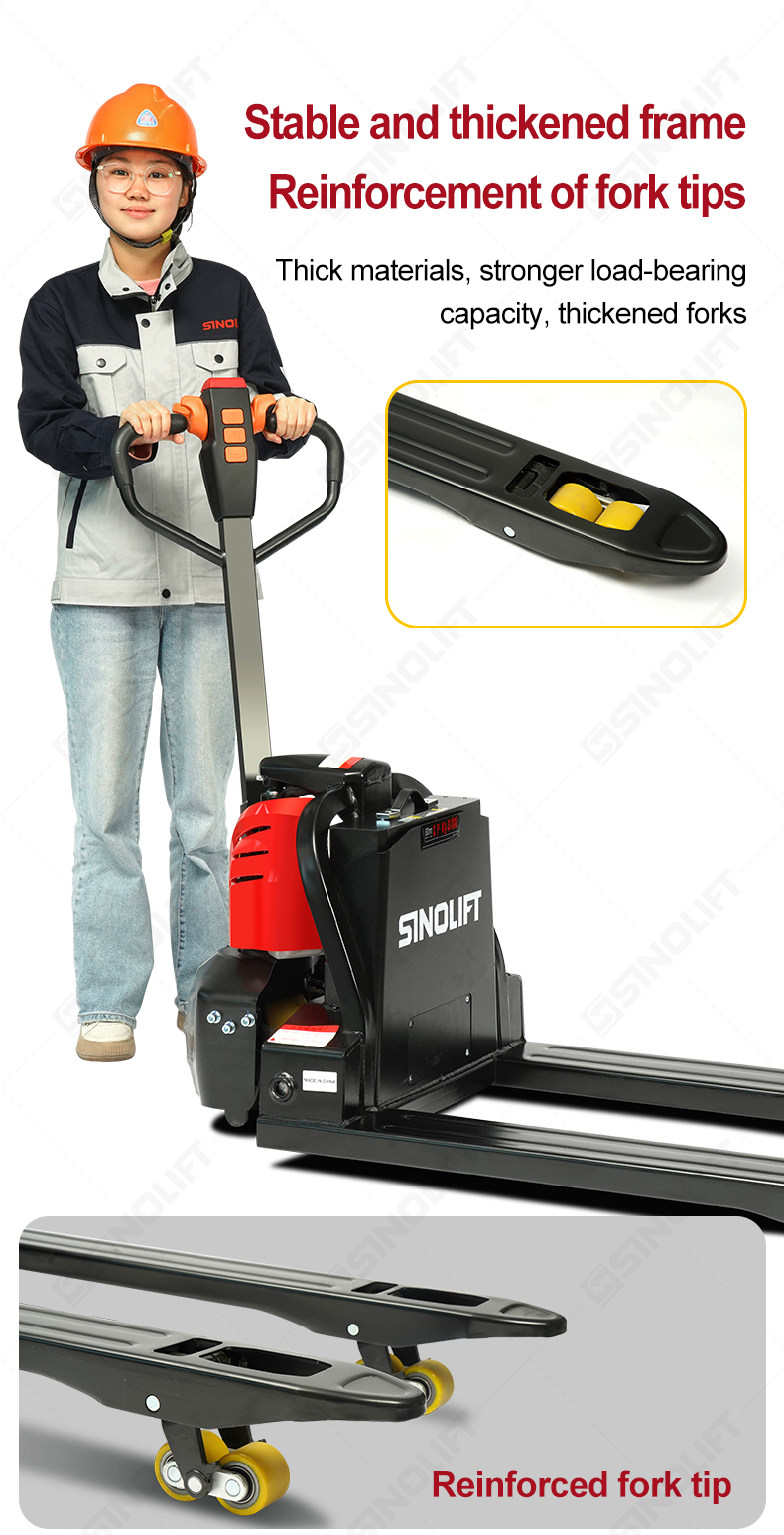

	Fork Dimensions	s/e/l (mm)	50/150/1150			50/150/1150
	Fork Outer Width	b5 (mm)	550/685			550/685
	Ground Clearance at Wheelbase Center	m2 (mm)	35			35
	Aisle Width: 1000x1200 Pallet (1200 across forks)	Ast (mm)	1804			1804
	Aisle Width: 800x1200 Pallet (1200 along forks)	Ast (mm)	1854			1854
	Turning Radius	Wa (mm)	1398			1398
Performance	Travel Speed, Loaded/Unloaded	(km/h)	4.2/4.5			4.2/4.5
	Maximum Climbing Gradient Loaded/Unloaded	(%)	5/10			8/15
	Brake Type		Electromagnetic			Electromagnetic

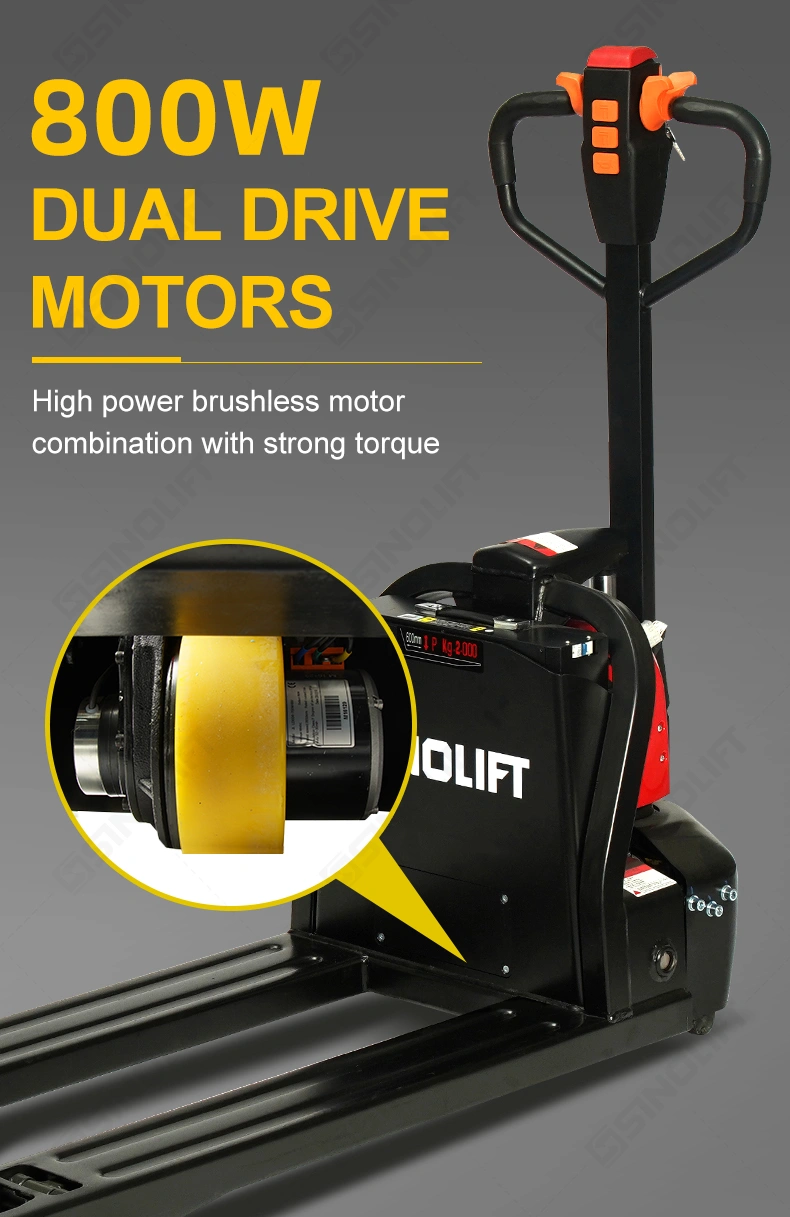

Drive	Drive Motor Power	(kW)	0.75			1
	Lifting Motor Power	(kW)	0.8			0.8

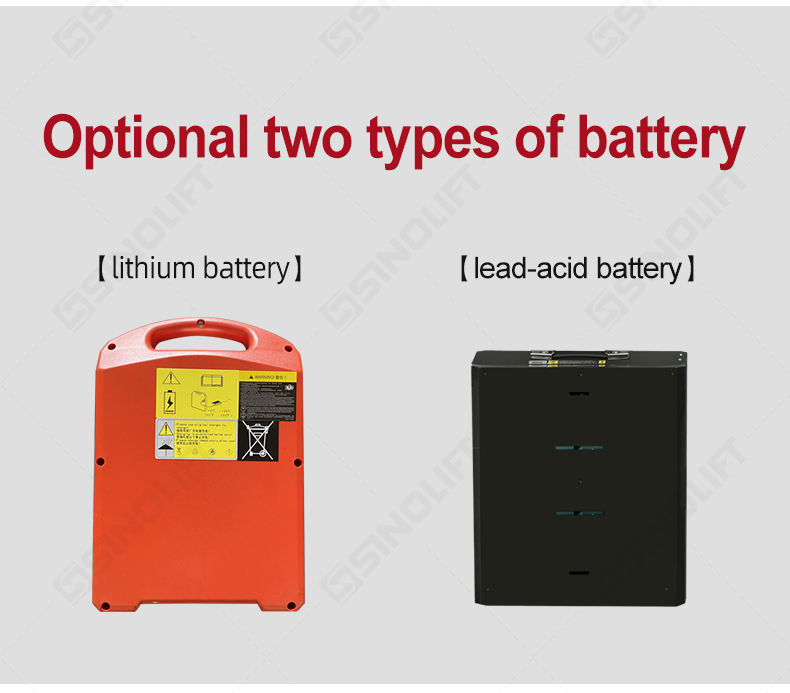

	Battery Voltage/Capacity	(V/Ah)	48/15	48/20	48/30	48/15
	Battery Weight (±5%)	(kg)	8.2	10.2	13.2	18
Others	Drive Control Type		DC			DC
	Noise Level	(dB(A))	≤70			≤70
	Steering Type		Mechanical			Mechanical
