Sinolift China EPT18-EHJ is the original EP1.8t semi-electric pallet truck

EPT18-EHJ

Quantity:

Contact Now

add to cart

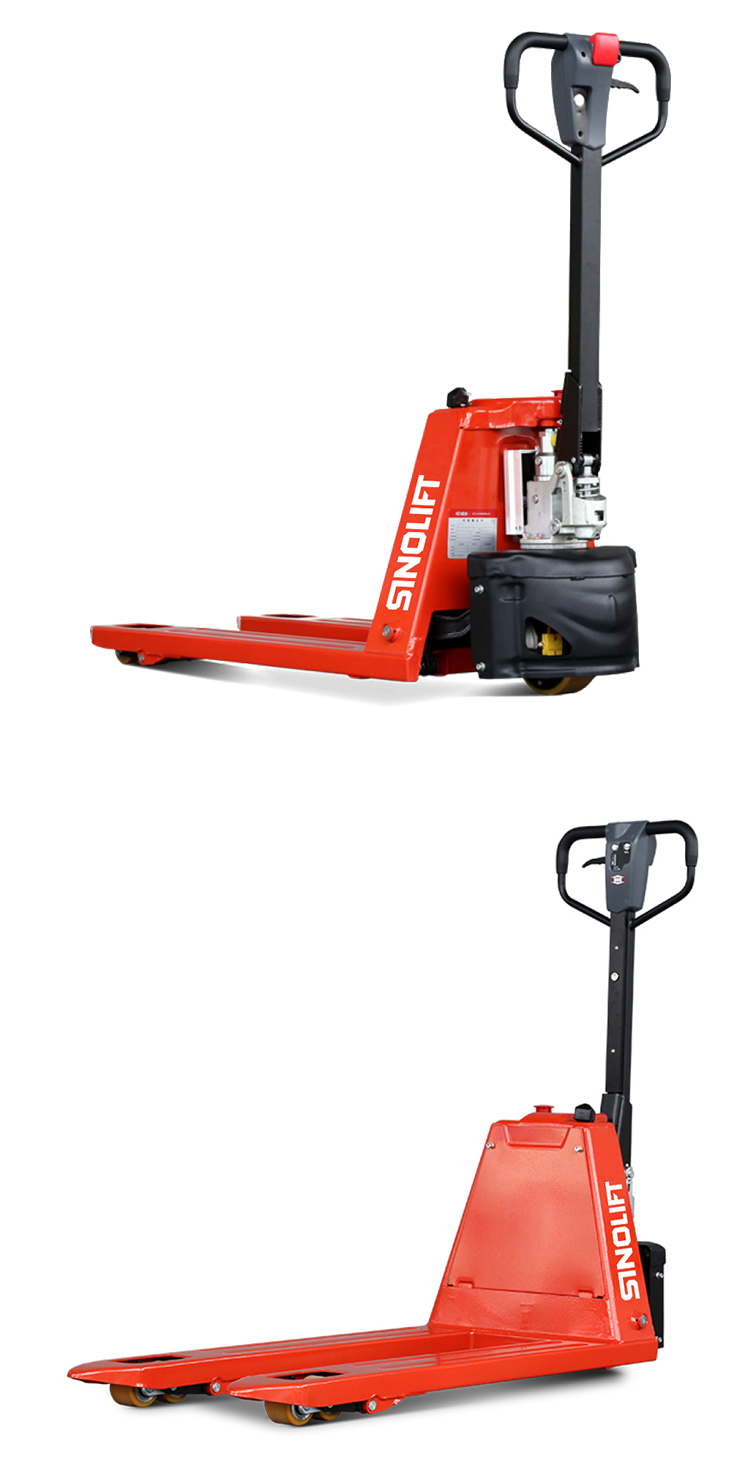

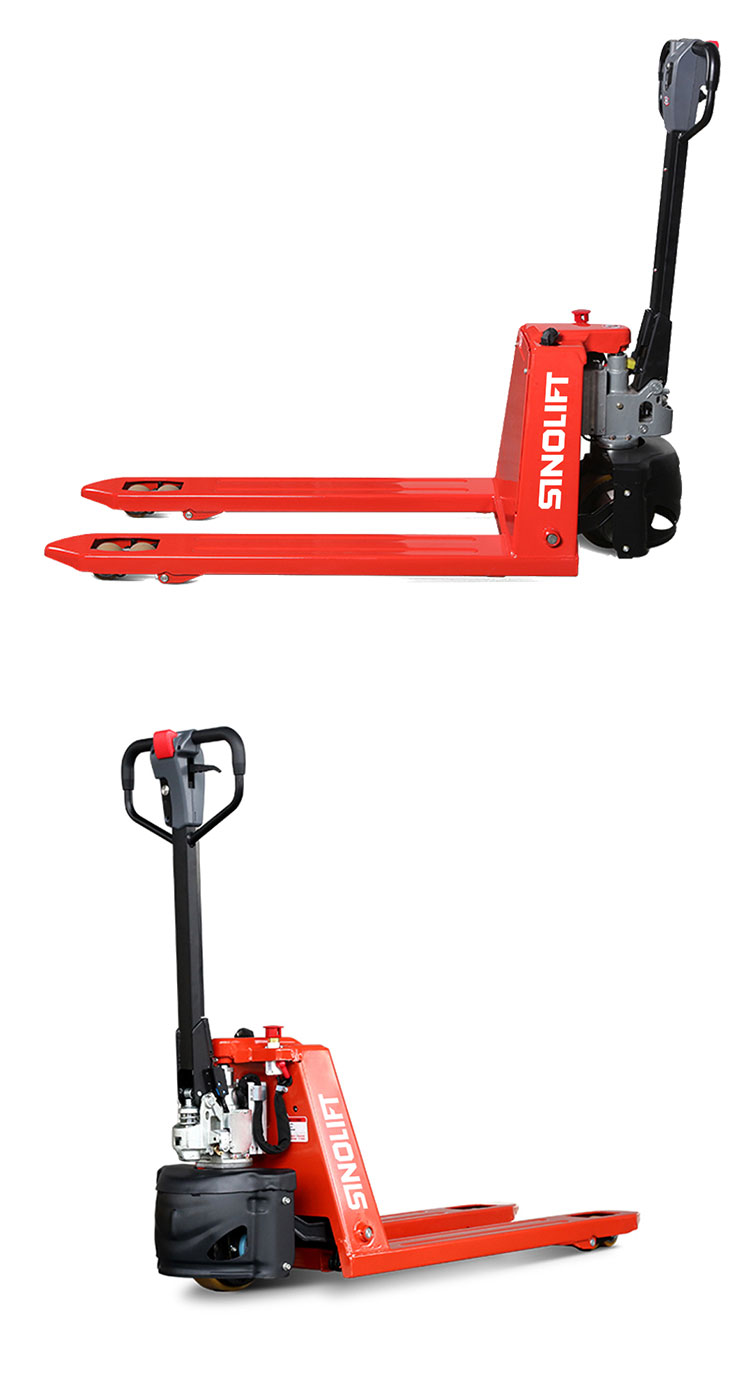

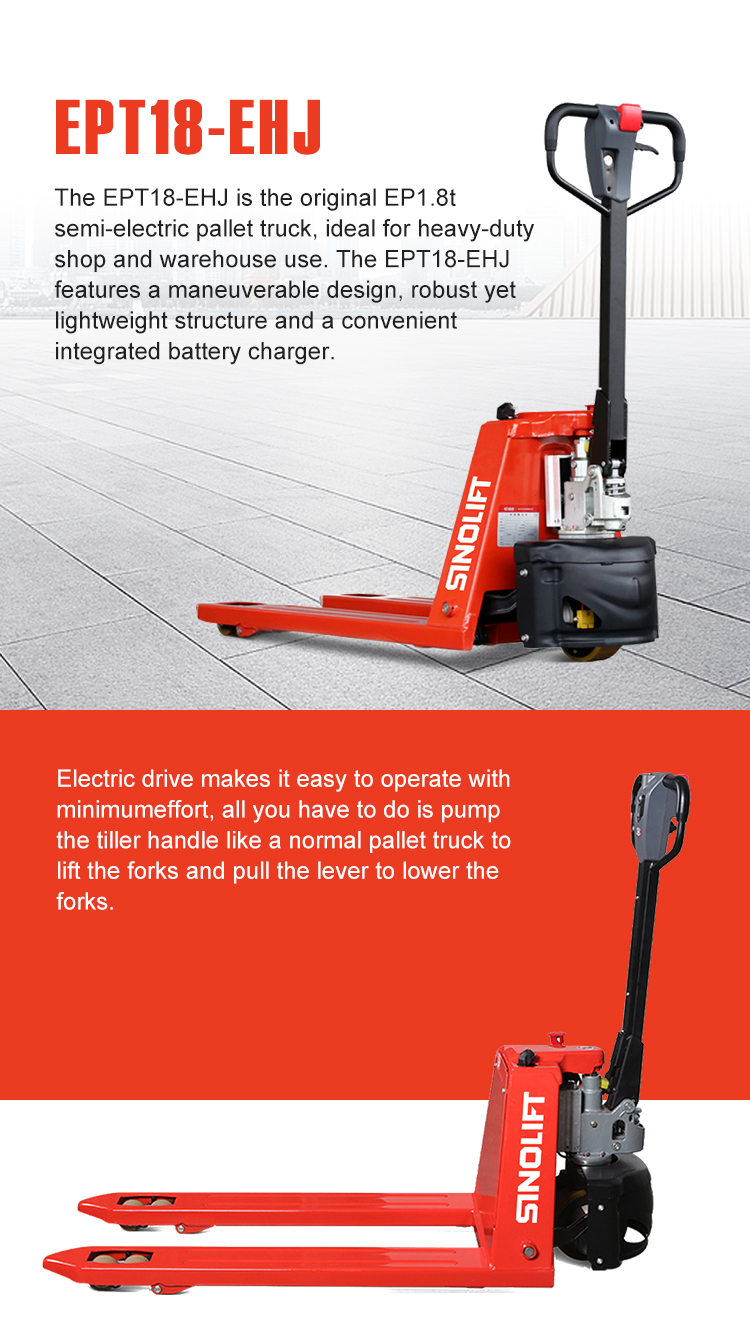

The Sinolift China EPT18-EHJ is the original EP1.8t semi-electric pallet truck, ideal for heavy duty use in shops and warehouses. The EPT18-EHJ features a manoeuvrable design, robust yet lightweight structure and a convenient integrated battery charger.
The electric drive makes it easy to operate with minimal effort, just pump the tiller as you would on a normal pallet truck to raise the forks and pull the lever to lower the forks.

Distinguishing mark
1.1	Manufacturer			SINOLIFT
1.2	Model designation			EPT18-EHJ
1.3	Drive unit			Battery
1.4	Operator type			Walkie
1.5	rated capacity	Q	kg	1800
1.6	Load center distance c mm			600
1.8	Load distance	x	mm	882/946
1.9	Wheelbase y mm			1169/1233
Weight
2.1	Service weight （include battery）		kg	145
2.2	Axle loading, laden driving side/loading side kg			620/1325
2.3	Axle loading, unladen driving side/loading side		kg	115/30
Types,Chassis
3.1	Tyre type driving wheels/loading wheels			PU/PU
3.2	Tyre size, driving wheels（diameter×width） mm			Ф210x70
3.3	Tyre size, loading wheels（diameter×width）		mm	2x Ф80x60（Ф74x88）
3.5	Wheels, number driving，caster/loading (x=drive wheels) mm			1x /4(1x /2)
3.7	Track width,rear,loading side	b11	mm	410（535）
Dimensions
4.4	Lift height	h3	mm	115
4.9	Height drawbar in driving position min./max. h14 mm			715/1280
4.15	Lowered height	h13	mm	85(75)
4.19	Overall length l1 mm			1613
4.2	Length to face of forks	l2	mm	463
4.21	Overall width b1/ b2 mm			560(685)
4.22	Fork dimensions	s/ e/ l	mm	50/150/1150
4.25	Outside width of the forks b5 mm			560/685
4.32	Ground clearance, center of wheelbase	m2	mm	35(25)
4.34.1	Aisle width for pallets 1000 × 1200 crossways Ast mm			1684
4.34.2	Aisle width for pallets 800 × 1200 lengthways	Ast	mm	1884
4.35	Turning radius Wa mm			1430
Performance data
5.1	Travel speed, laden/ unladen	km/ h	km/h	3.5/4
5.2	Lifting speed, laden/ unladen m/ s			10mm/time
5.3	Lowering speed, laden/ unladen		m/ s	manual lowering
5.1	Service brake type			Electromagnetic
Electric-engine
6.1	Drive motor rating S2 60 min		kW	0.65
6.2	Lift motor rating at S3 15% kW			Manual Lifting
6.3	The maximum allowed size battery		mm	185/125/190
6.4	Battery voltage/nominal capacity K20 V/ Ah			12*2/30Ah
6.5	Battery weight		kg	9.5*2
Addition data
8.1	Type of drive control			DC
10.5	Steering type			Mechanical
10.7	Sound pressure level at the driver’s ear		dB (A)	74
