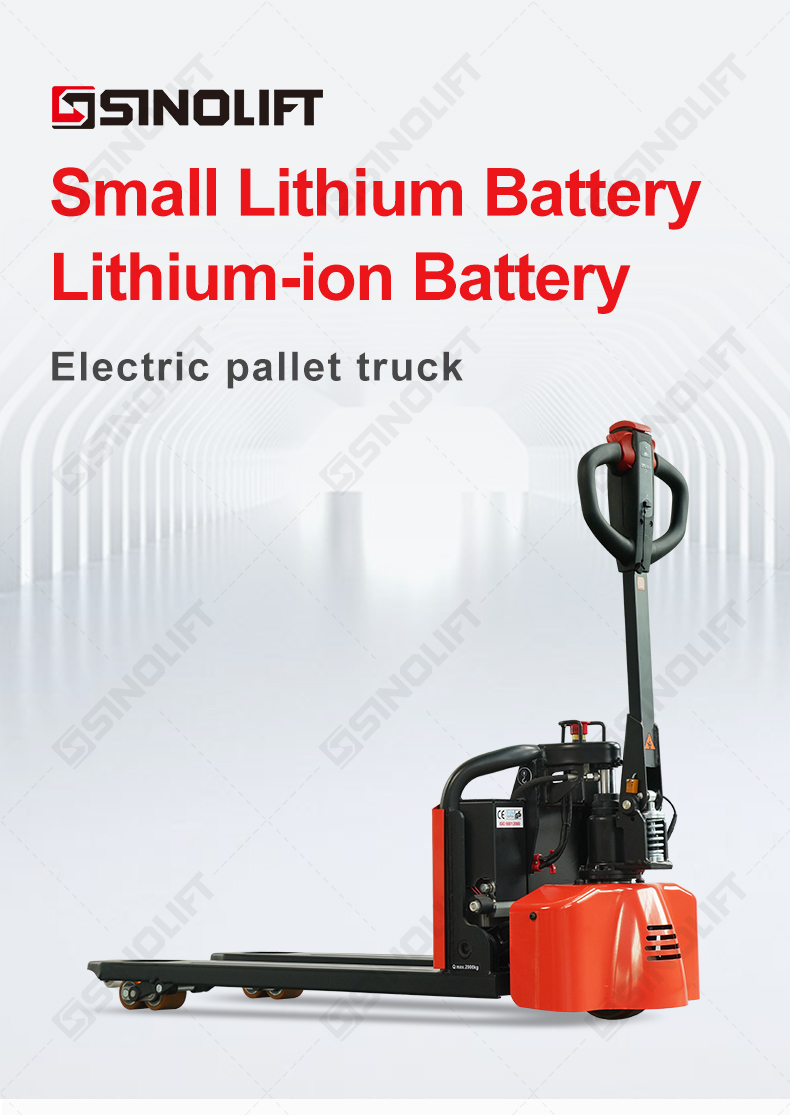

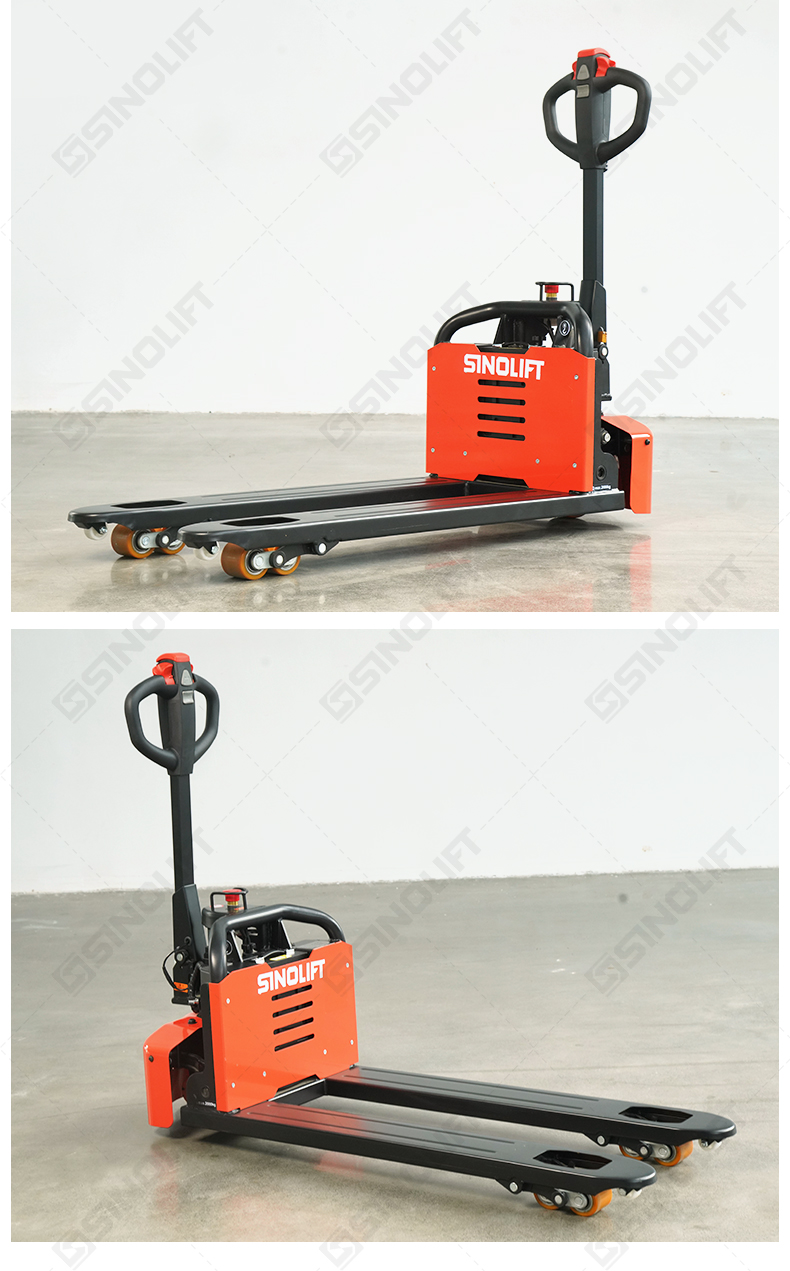

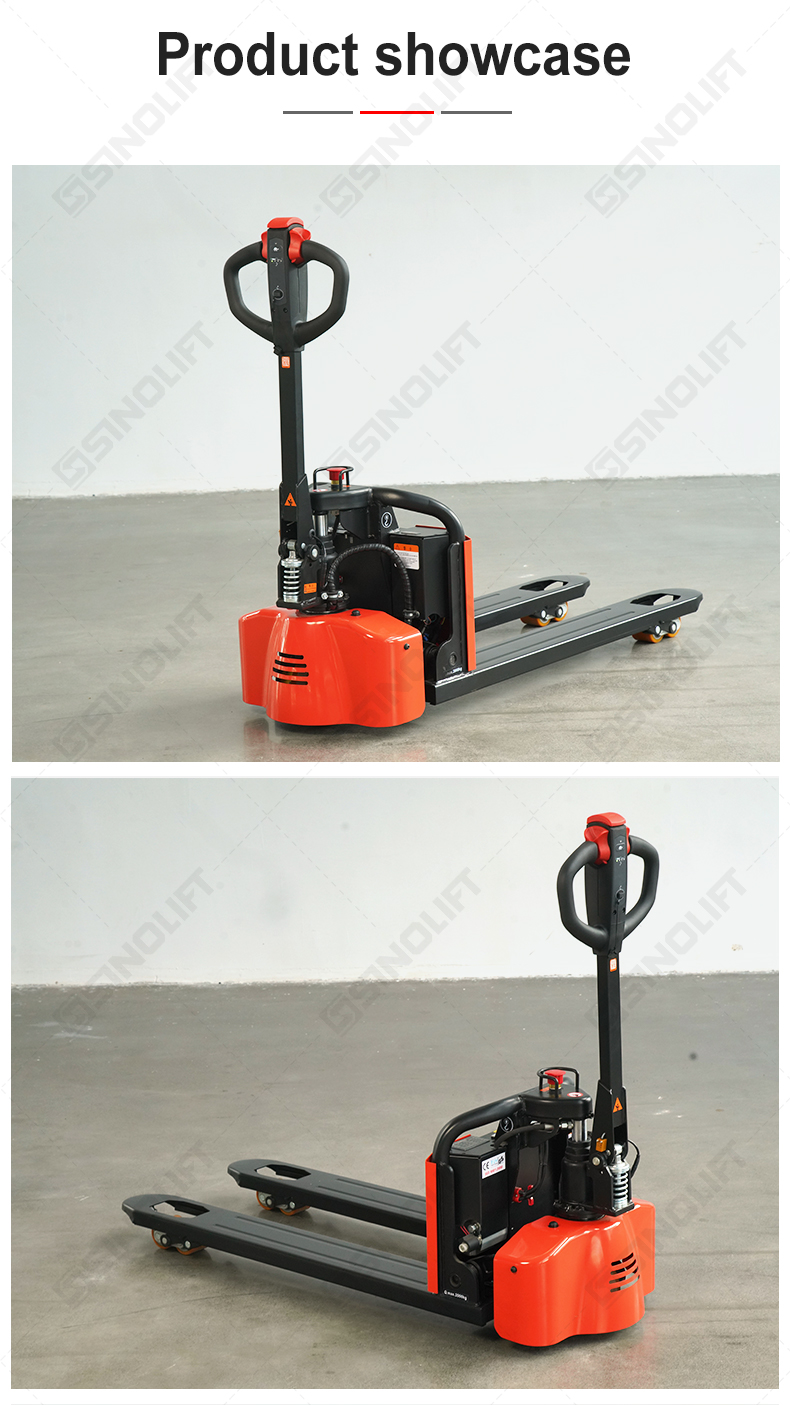

Sinolift China EPT15 EPT18 EPT20 electric powered pallet truck lithium battery can use in warehouse.

Product Description

• Capacity: With a 1500KG capacity, this model meets the demands of most applications.
• Lightweight Design: Its lightweight and compact size provide excellent maneuverability and passability.
• Durable Cables: Robot cables feature excellent twist resistance for a longer lifespan.
• Smart Charger: The charger includes a temperature indicator to protect the battery.

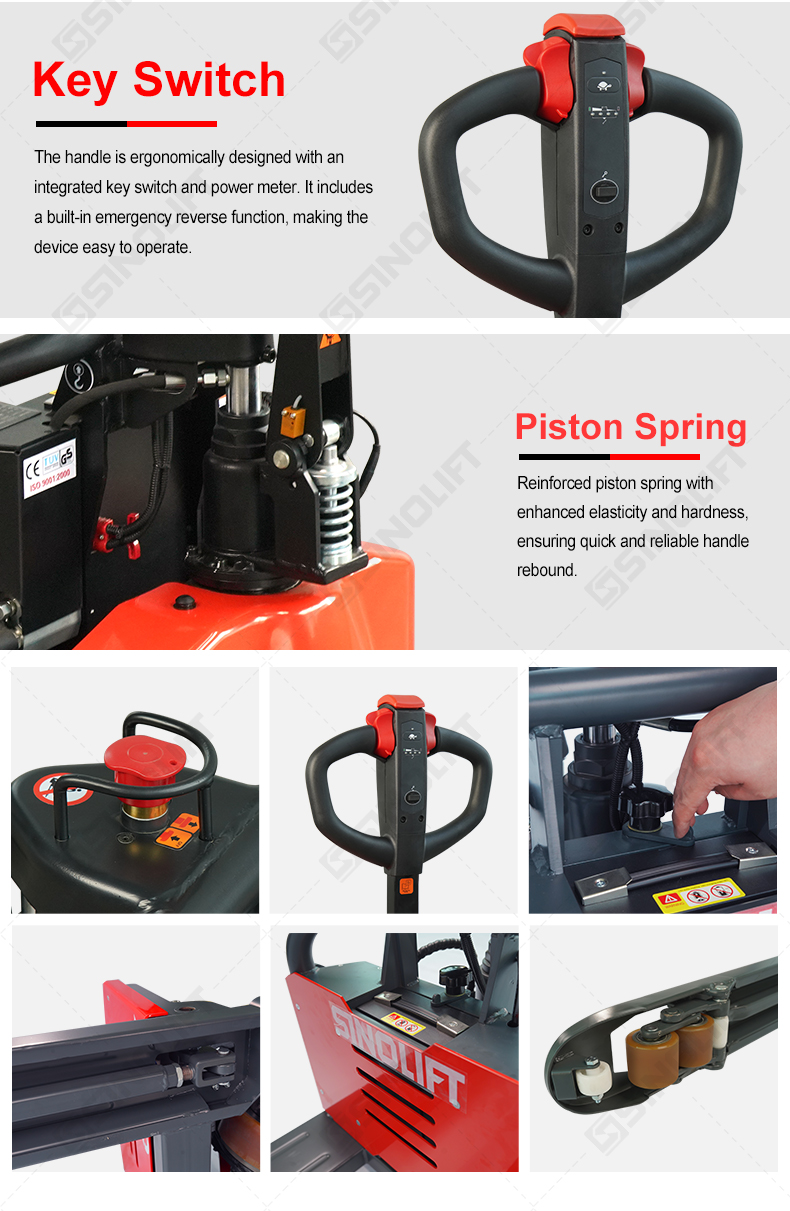

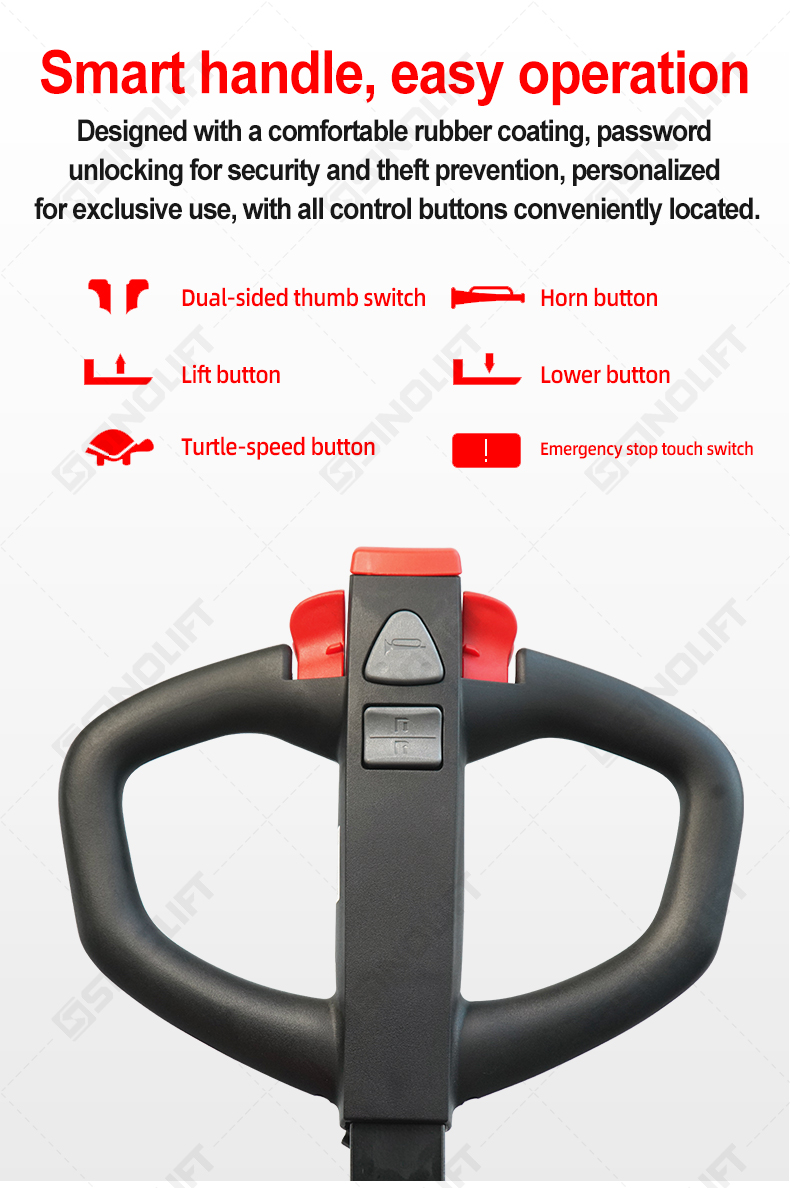

• Efficient Operation: The ergonomically-designed tiller head enhances operational efficiency, while the internal charger allows for easy charging.

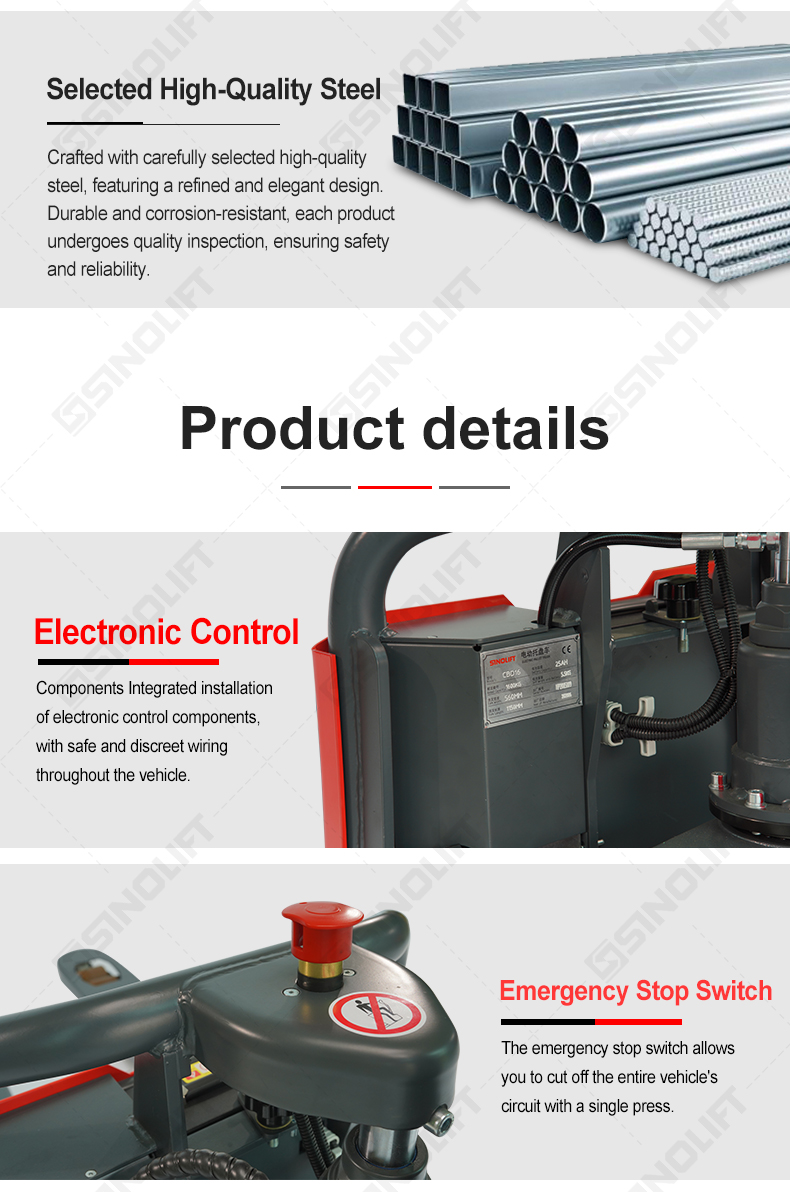

• Safety Features: Equipped with a handy emergency disconnect button and a durable driving unit to ensure safety in all situations.
• Easy Serviceability: Assembly components are designed for straightforward diagnosis and replacement.

Dentification	Manufacturer	SINOLIFT
	Model			EPT15	EPT18	EPT20
	Power Type			Lithium Battery	Lithium Battery	Lithium Battery
	Type of Operation			Pedestrian	Pedestrian	Pedestrian
	Load capacity/Rated load	q	kg	1500	1800	2000
	Load Center Distance	c	mm	600	600	650
	Alex centre to Fork Face	x	mm	950(1020)	950(1020)	950(1020)
	Wheelbase	y	mm	1220(1295)	1220(1295)	1220(1295)
Weight	Total Weight (with battery)		kg	148(153)	155(160)	158(163)
	Axle Load(laden):Drive side/Load-bearing side		kg
	Axle Load(unladen):Drive Side/Load-bearing side		kg

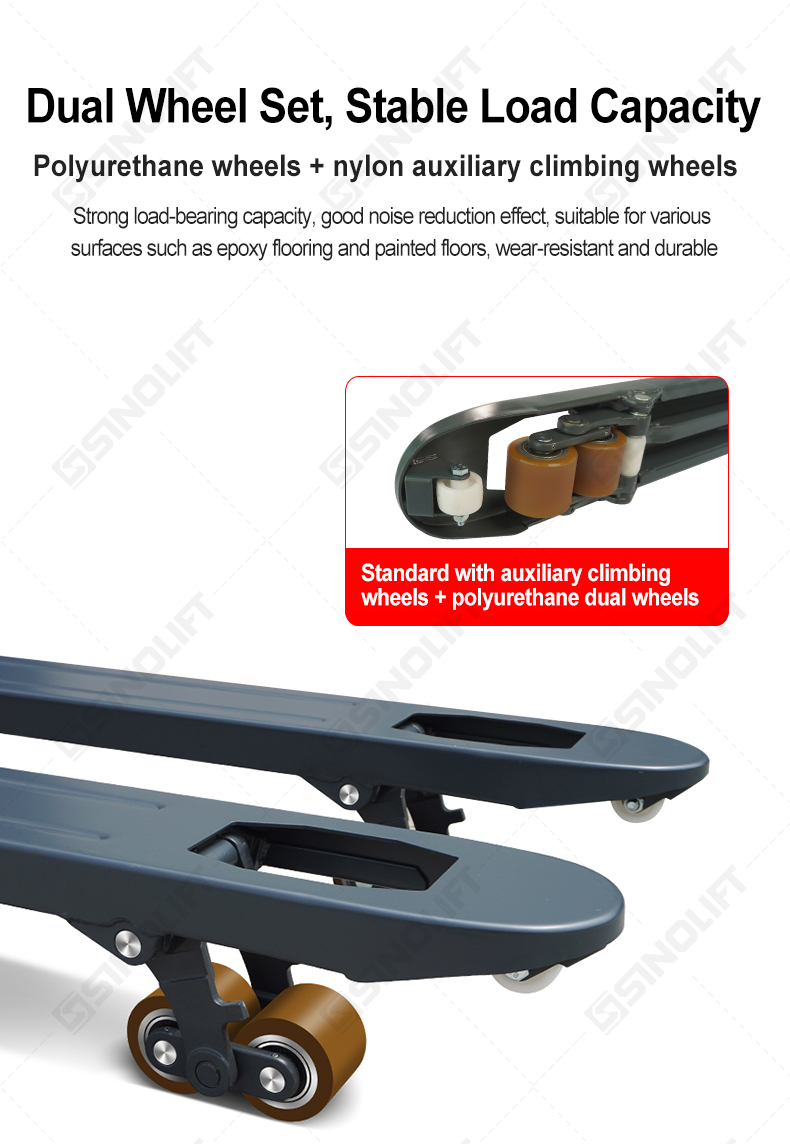

Tyre and Chassis	Tyre Type			Polyurethane	Polyurethane	Polyurethane
	Tyre Size ( Load Wheel)  Tandem		mm	φ80x70(85mm) or φ74x70(75mm)	φ80x70(85mm) or φ74x70(75mm)	φ80x70(85mm) or φ74x70(75mm)
	Tyre Size (Load Wheel) Single			φ80x93(85mm) or φ74x93(75mm)	φ80x93(85mm) or φ74x93(75mm)	φ80x93(85mm) or φ74x93(75mm)
	Tyre Size (Drive Wheel)		mm	φ210x70	φ210x70	φ190x70
	Tyre Size (Caster Wheel)		mm	φ70x36	φ70x36	φ70x36
	Wheels Quantity, front/rear (x=Driving Wheels)			4/1x+2	4/1x+2	4/1x+2
	Track Width,Front,Driving Side	b10	mm	460	460	460
	Track Width,Rear,Loading Side	b11	mm	400(520)	400(520)	400(520)
Dimension	Lifting Height	h3	mm	190(200)	190(200)	190(200)
	Height of Tiller Arm in Driving Position, Min.- Max.	h14	mm	600-1220	600-1220	680-1200
	Lowered Height	h13	mm	75(85)	75(85)	75(85)
	Overall Length	l1	mm	1540(1610)	1540(1610)	1540(1610)
	Length to Fork Face	l2	mm	390	390	390
	Overall Width	b1	mm	560(680)	560(680)	560(680)

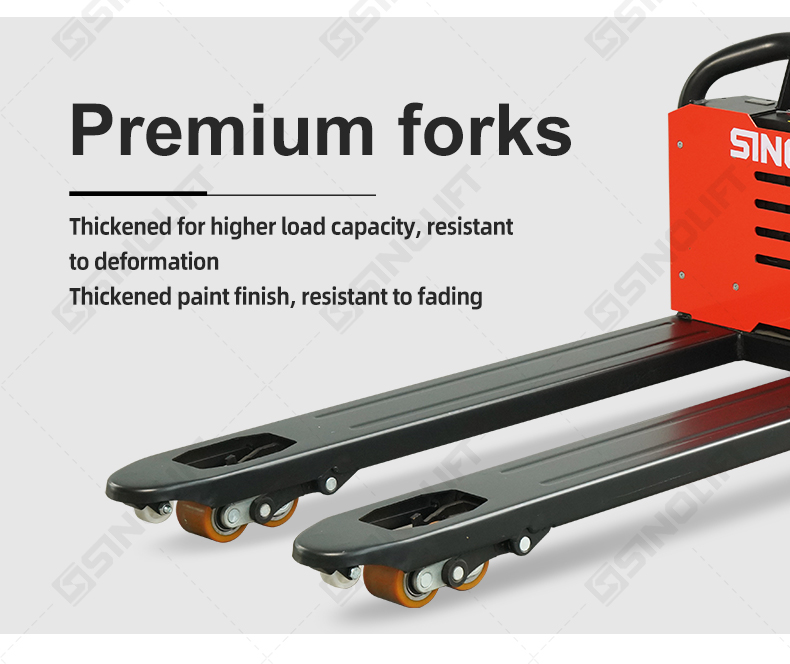

	Fork Dimension	s/e/l	mm	50x160x1150(1220)	50x160x1150(1220)	54x160x1150(1220)
	Fork Spread Width	b5	mm	560/680	560/680	560/680
	Ground Clearance at Center of Wheelbase (Min)	m2	mm	30	30	42
	Aisle Width for Pallets 1000x1200 Crossways	Ast	mm	1790	1790	1790
	Aisle Width for Pallets 800x1200 Crossways	Ast	mm	1740	1740	1740
	Turning Radius	Wa	mm	1350	1350	1350
Performance	Traveling Speed (Laden/Unladen)		km/h	4.5/4	4.5/4	4.5/4
	Lifting Speed (Laden/Unladen)		mm/s	22/17	22/17	15/28
	Lowering Speed (Laden/Unladen)		mm/s	26/30	26/30	35/26
	Max.Gradient Performance (Laden/Unladen)		%	5/7	5/7	6/15

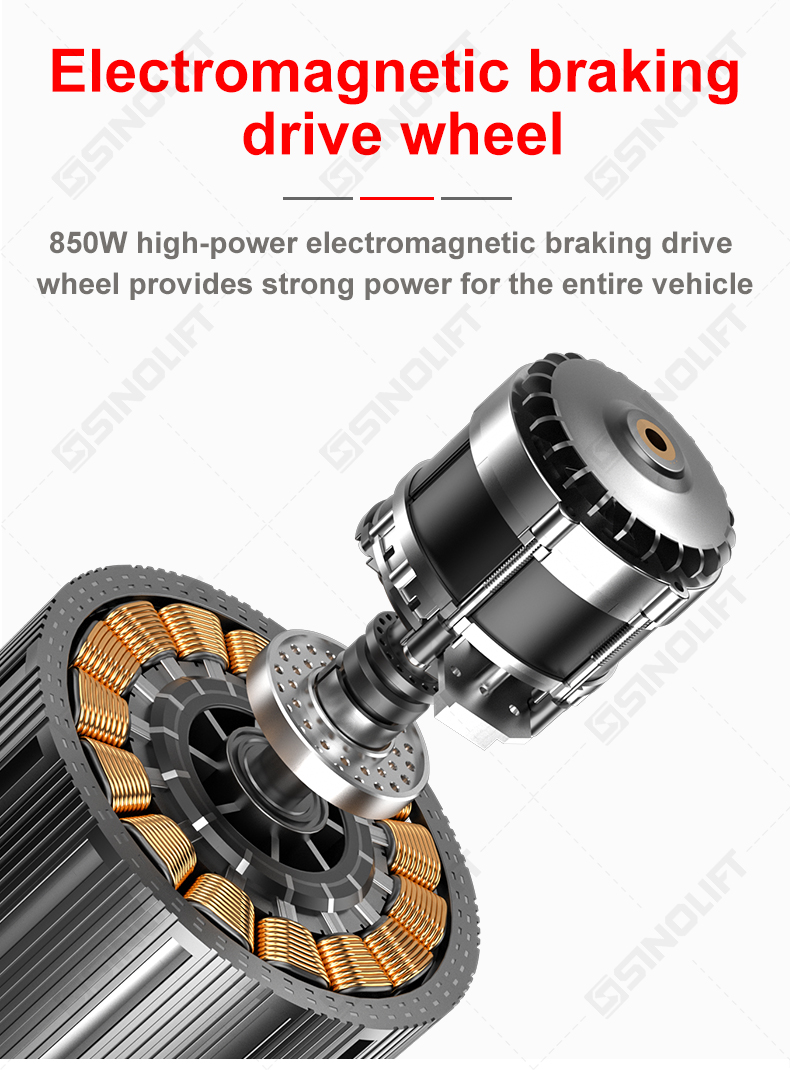

	Service Brake Type			Electromagnetic	Electromagnetic	Electromagnetic
Power Unit	Driving Motor Rating (DC) S2 60min		kw	0.75	0.75	0.85
	Lifting Motor Rating S3 15%		kw	0.5	0.5	0.6

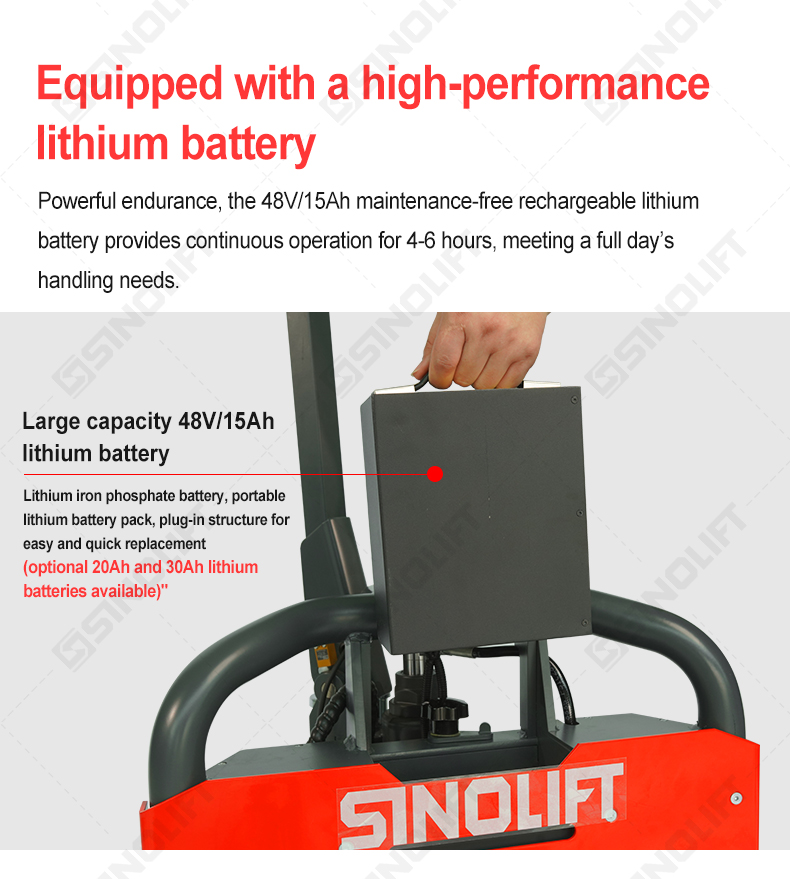

	Battery Type			Li-ion	Li-ion	Li-ion
	Battery Voltage/Capacity K5		V/Ah	24/25	24/25	48/15(20Ah 30Ah option)
	Battery Weight		kg	5	5	6(6.5kg 7kg)
	Charger		V/A	24/10	24/10	48/6
Others	Controller Model			DC CURTIS	DC CURTIS	DC CURTIS
	Steering Type			Mechanical	Mechanical	Mechanical
	Sound level atdriver's ear according to EN 12 053		dB(A)	70	70	70
