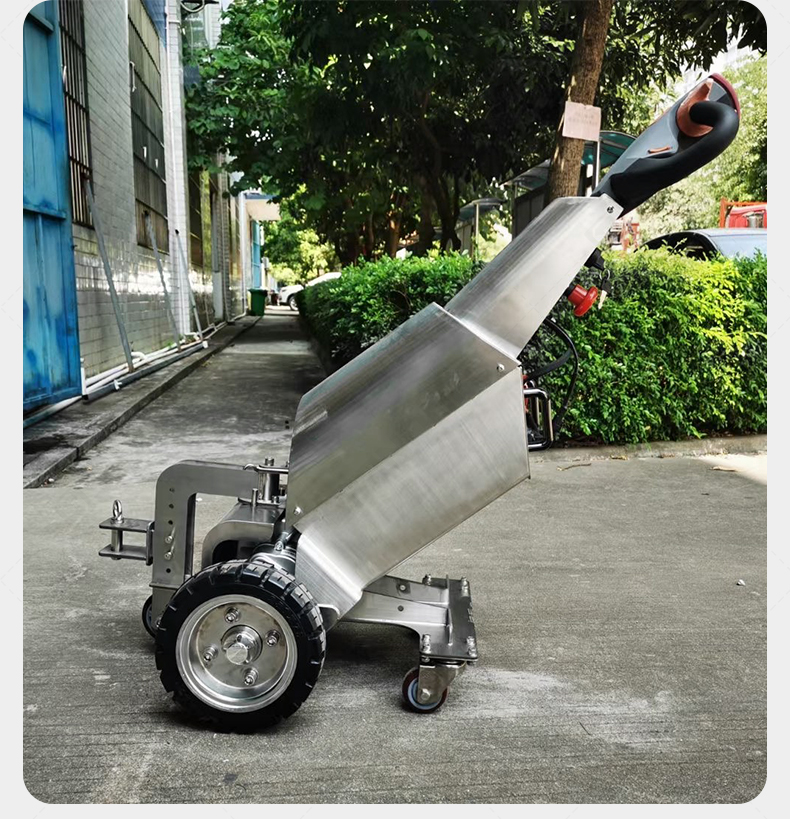

Sinolift big capacity stainless steel electric Towing Tugs
ML100S ML150S
Quantity:
The Electric Tow Tug is used for transportation of large quantities of goods inside and outside the workshop, carrying the materials to the assembly line in large factory sections. It is driven by the motor, greatly improves the transportation efficiency for the materials in different sections.widely used in supermarket ,factory,hospital,airport towing tractor.
Easy to face all kinds of road surfaces:speed bumps,boardwalks,gravel roads.

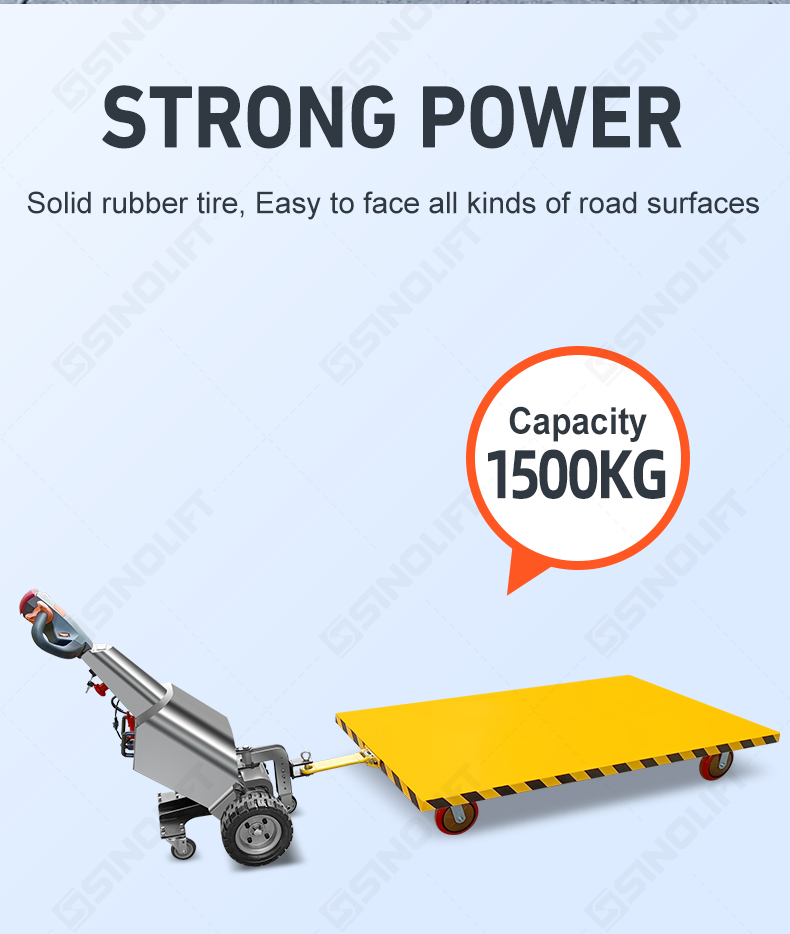

- Strong power: it can manage the towing task of 1500kg goods on a slope of 5% degress.
- Stability in operation and excellent passomhability: the application of pneumatic tyre.
- Comforatbility in operation:the height of the tiller is adjustable.

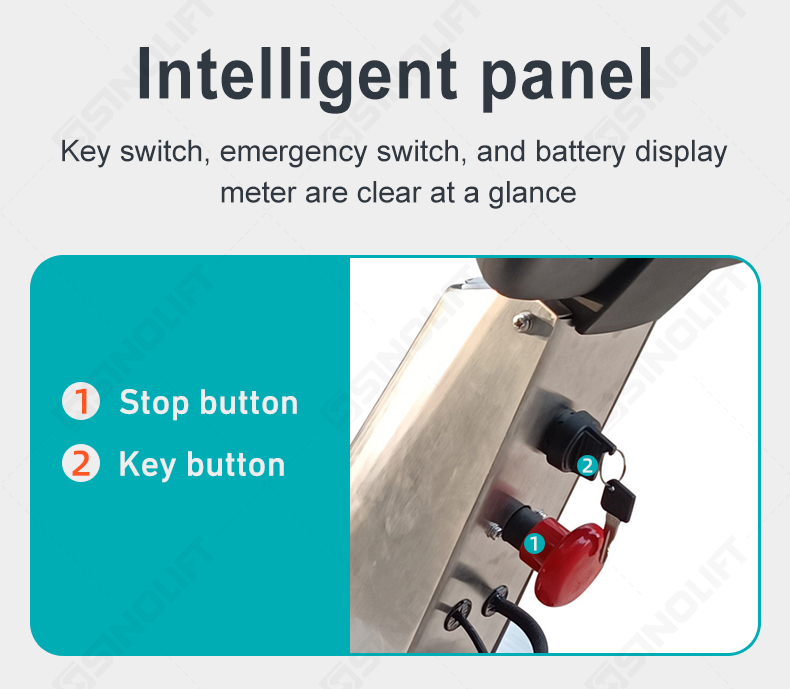

- Intelligent panel:stop button,key button

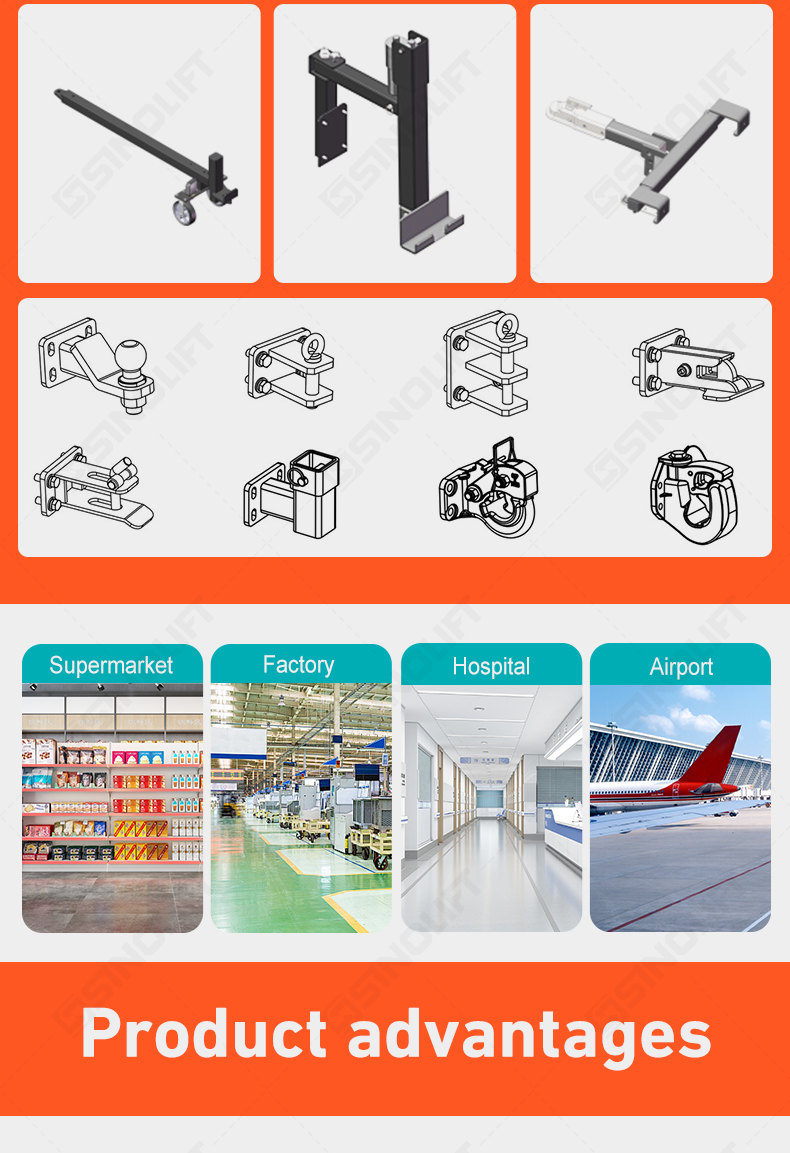

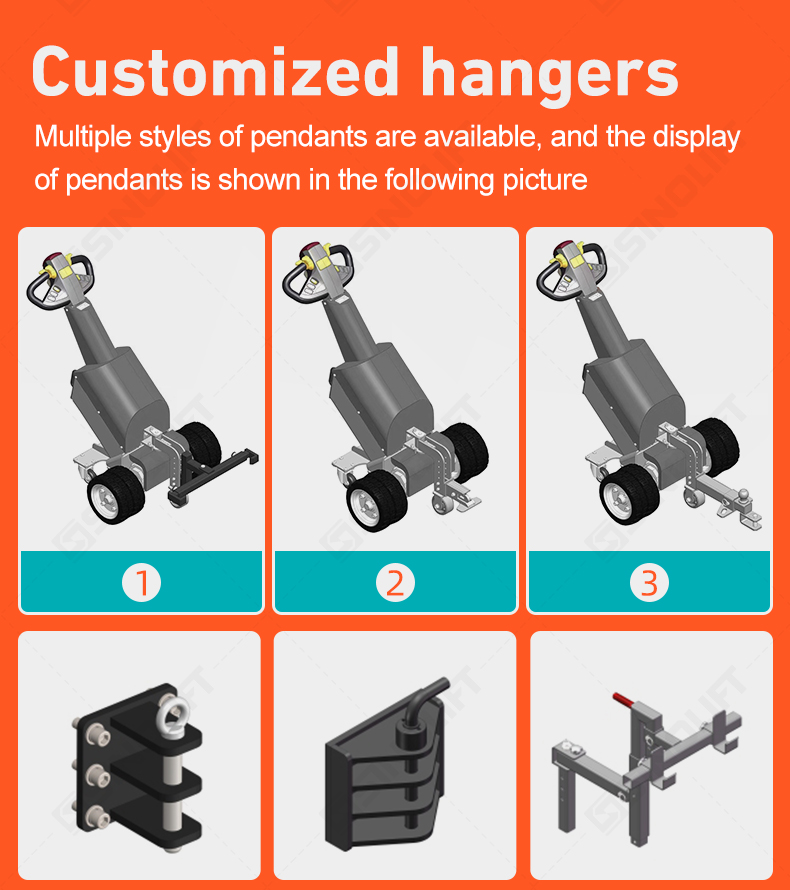

- Customized hangers:Multiple styles of pendants are avaliable. And the display of pendants is shown in the following picture.

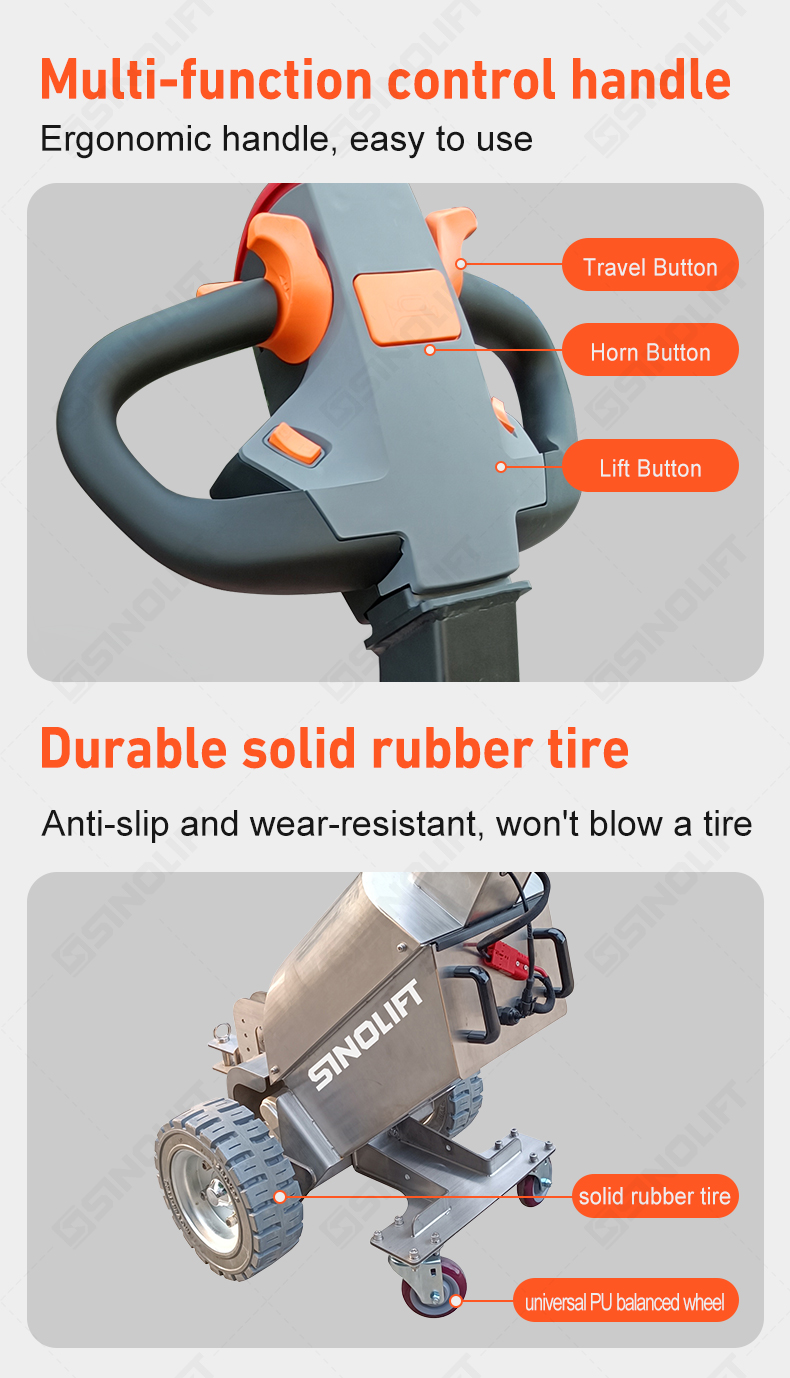

- Multi-function control handle
- Durable solid rubber tire
| Operating type | Walking style | Walking style | |
| Max traction weight | kg | 1000 | 1500 |
| Rated pulling force | N | 300 | 500 |
| Truck weight(with battery) | kg | 105 | 115 |
| Battery weight | kg | 15 | 15 |
| Tire type,Drive wheel/Supporting wheel | Rubber/PU | Rubber/PU | |
| Overall height | mm | 1075 | 1075 |
| Height of tiller in drive position | mm | 1010 | 1010 |
| Hook height | mm | 170/290 | 170/290 |
| Overall length | mm | 1080 | 1080 |
| Overall width | mm | 510 | 680 |
| Ground clearance | mm | 100 | 100 |
| Turning radius | mm | 780 | 800 |
| Drive speed load/unload | km/h | 3~4 | 3~4 |
| Rated pulling force | N | 300 | 500 |
| Max pulling force | N | 500 | 750 |
| Max gradeability load/unload | % | 5 | 5 |
| Drive motor rating S2 60min | kw | 0.8 | 1 |
| Charger (external) | V/A | 24/10 | 24/10 |
