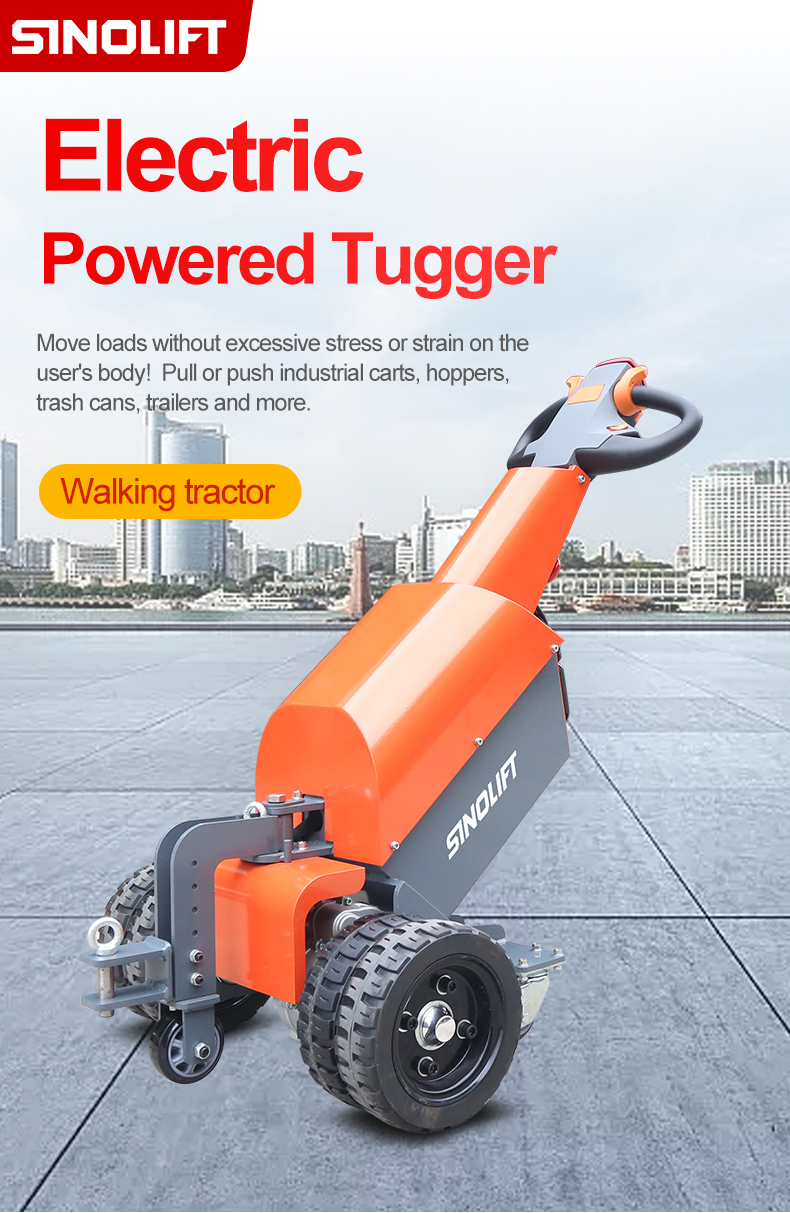

powered tugger

ML100 ML150 warehouse electric tug tow tractor load capacity 1500kg

ML100 ML150
Quantity:
Contact Now
add to cart
All Products

This electric tow tractor is used for transportation of large quantities of goods inside and outside the workshop, carrying the materials to the assembly line in large factory sections. Move loads without excessive stress or strain on the user's body, pull or push industrial carts,hoppers,trash cans,trailers and more.This electric tow tractor is driven by the motor, the rated traction load can reach 1000kg to 1500kg. which is greatly improves the transportation efficiency for the materials in different sections.

Features & Advantages:

  • Road condition: firm and flat
  • With low voltage protectionw
  • With emergency braking function
  • Built-in charger
  • Stepless regulating speed acceleration system
  • The electromagnetic brake for the Service braking and parking braking.

1.2

Model

ML100

ML150

1.3

Power supply

Electric

Electric

1.4

Operating type

Walking style

Walking style

1.5

Max traction weight

kg

1000

1500

1.6

Rated pulling force

N

300

500

2.1

Truck weight(with   battery)

kg

105

115

2.2

Battery weight

kg

15

15

3.1

Tire type,Drive   wheel/Supporting wheel

Rubber/PU

 Rubber/PU

4.1

Overall height

mm

1075

1075

4.2

Height of tiller in   drive position

mm

1010

1010

4.3

Hook height

mm

170/290

170/290

4.4

Overall length

mm

1080

1080

4.5

Overall width

mm

510

680

4.6

Ground clearance

mm

100

100

4.7

Turning radius

mm

780

800

5.1

Drive speed  load/unload

km/h

3~4

3~4

5.2

Rated pulling force

N

300

500

5.3

Max pulling force

N

500

750

5.4

Max gradeability  load/unload

%

5

5

6.1

Drive motor rating S2   60min

kw

0.8

1.0

6.2

Charger (external)

V/A

24/10

24/10
