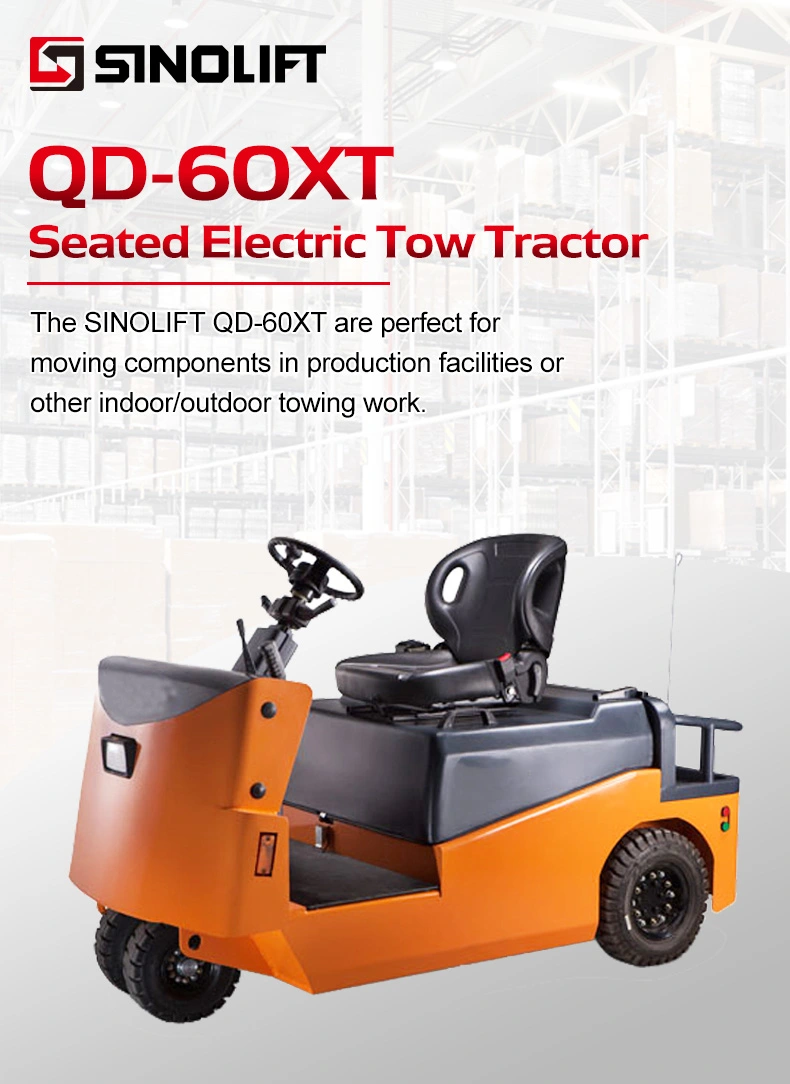

QD-60XT Seated electric tow tractor

QD-60XT

Quantity:

Contact Now

add to cart

The SINOLIFT QD60XT are perfect for moving components in production facilities or other indoor/outdoor towing work. Sinolift seated electric tow tractor QD60XT can tow up to 6000kg and can be equipped with different towing equipment to suit your individual trolley system. With its simple design and optimized usability, this truck will support your workforce and reduce injuries due to back problems. It's a simple and powerful tool to tow trolleys around your warehouse,

To meet the market's growing need for electric vehicles, we developed our QD-60XT towing tractor. Its long operating hours and excellent performance match even engine-powered towing tractors.

Model No.				QD60XT
Power supply				Battery
Operating type				Sit-on
Tyres		front / rear		Pneumatic
Tyre Quantity		front / rear		2/2x
Max. pulling force		3min rating	N(kgf)	4410(450)
Rated pulling force		60min rating	N(kgf)	1470(155)
(traction capacity)
Traction weight		60min rating	kg	6000
Traveling speed		without loaded	km/h	17
		with load		7
Max. gradeability		without load	%	30
Overall length		with hook	mm	2000
		without hook	mm	1870
Front overhang			mm	150
Rear overhang			mm	370
Overall width			mm	960
Overall height			mm	1220
Turning radius			mm	1845
Hook length			mm	136
Hook height			mm	290/340/390
Wheelbase			mm	1350
Tread	front wheel		mm	260
	rear wheel		mm	860
Ground clearance			mm	100
Platform height			mm	340
Total weight	with battery		kg	1150
	without battery			610
Weight layout	front wheel		kg	370
(with standard battery)	rear wheel			780
Tyre Dimension	front wheel			3.50-5-6PR
	rear wheel			4.00-8-6PR
Main brake				Hydraulic
Hand brake				Manual
Battery Voltage/ Nominal capacity (5H rating)			V/AH	48/320
Battery Weight			kg	540
Driving motor			kW	AC 4.0
Type of drive control				MOSFET Control
