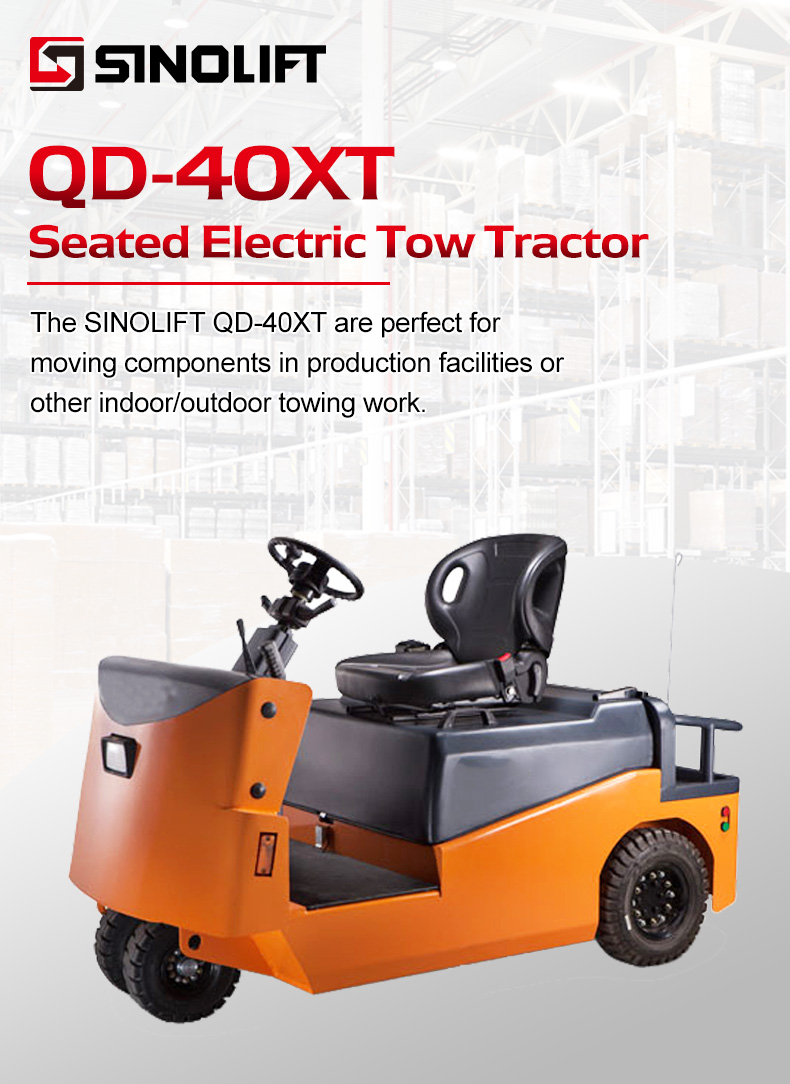

QD-40XT Seated electric battery powered tow tractor

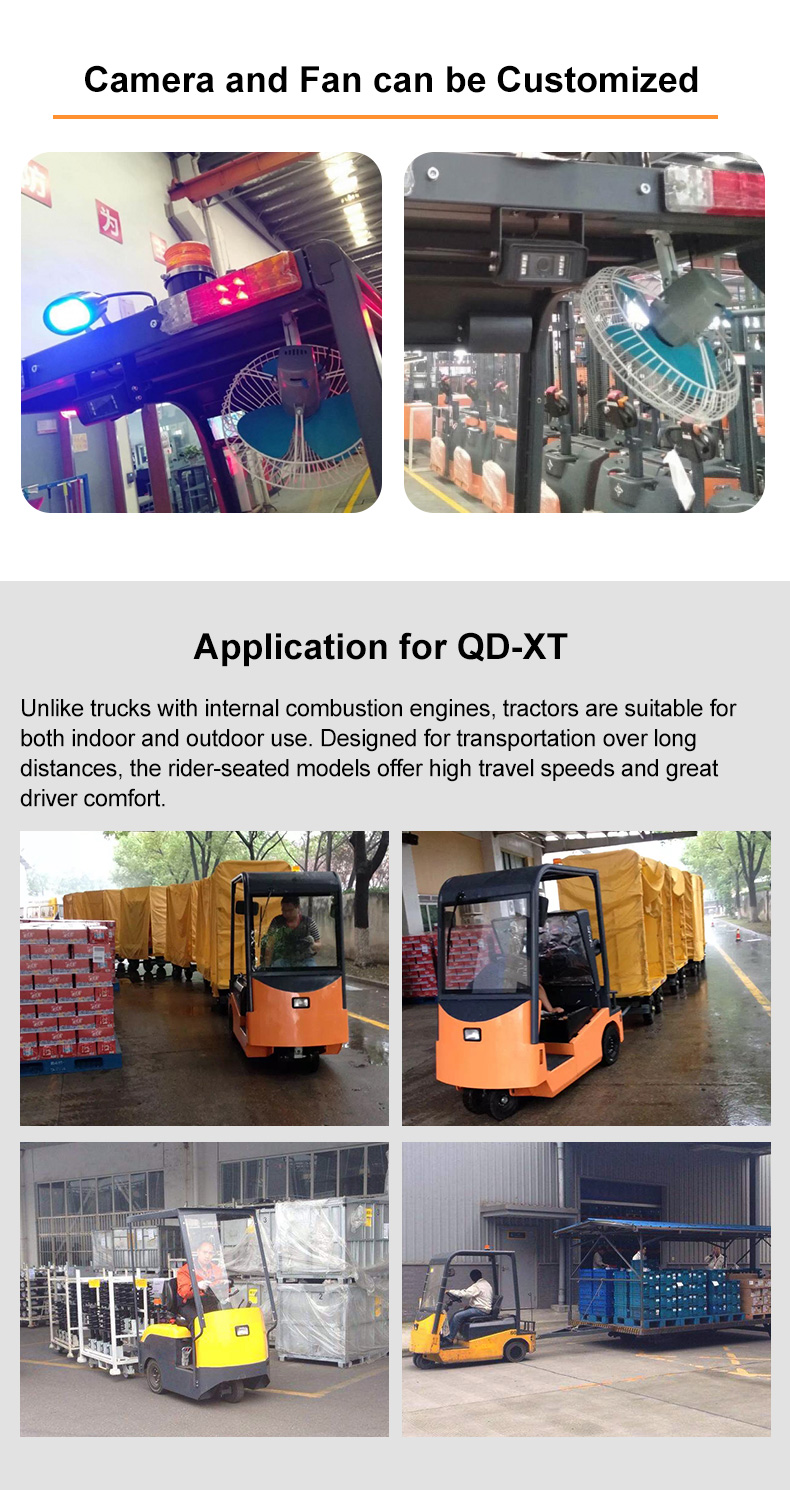

The Sinolift seated electric tow tractor QD40XT can tow up to 4000kg and can be equipped with different towing equipment to suit your individual trolley system. Such as fan and camera ,With its simple design and optimized usability, this truck will support your workforce and reduce injuries due to back problems. This electric tractor is a simple and powerful tool to tow trolleys around your warehouse, production or logistics center.
To maneuver narrow aisles in warehouses or in production, we put extra effort in designing our electric tractor extra compact. With its solid rubber tires, the QD40XT series is ready for a variety of operations. It does not matter if you are using the tow tractor on flat ground in the warehouse, or on uneven floors or outdoors, the electric towing tractor will safely bring your trolleys to their destination.
| Manufacturer | SINOLIFT | ||
| Manufacturer's type designation | QD-40XT | ||
| Drive | Battery | ||
| Operator type: hand, pedestrian, stand-on, seat-on, order-picker | Seat-on | ||
| Load capacity/rated load | Q (t) | 4 | |
| Rated drawbar pull | F (N) | ≥F | 1000 |
| Wheelbase | y (mm) | ±1% | 1231 |
| Dead weight | kg | ±3% | 783 |
| Axle loading, unladen front/rear | kg | ±3% | 279/504 |
| Tyres | Pneumatic tire | ||
| Tyre size, front | Ø x w(mm) | 3.50-5-6PR | |
| Tyre size, rear | Ø x w(mm) | 4.00-8-6PR | |
| Wheels, number front/rear (x = driven wheels) | 1/2x | ||
| Tread , front | b10 (mm) | ±2% | 245 |
| Tread , rear | b11 (mm) | ±2% | 744 |
| Height of overhead guard(cabin) | h6 (mm) | ±1% | 1232 |
| Seat height relating to SIP/stand height | h7 (mm) | 816/412 | |
| Coupling height | h10 (mm) | ±2% | 283/333/358/408 |
| Overall length | l1 (mm) | ±1% | 1876 |
| Overall width | b1/b2 (mm) | ±1% | 860 |
| Ground clearance, centre of wheelbase | m2 (mm) | -5% | 92 |
| Load dimension b 12 × l 6 crossways | b 12 × l 6 (mm) | 1447 | |
| Turning radius | Wa (mm) | ≤Wa | 1590 |
| Travel speed, laden/unladen | km/h | ± 10 % | 7/13 |
| Drawbar pull,laden/unladen | N | 1000 | |
| Max. drawbar pull, laden/unladen | N | 4000 | |
| Gradeability, laden/unladen | % | 5.6/14 | |
| Service brake | Hydraulic | ||
| Drive motor rating | kW | 4 | |
| Battery according to DIN 43531/35/36 A,B,C,no | Special case | ||
| Battery voltage/nominal capacity | V/Ah | 24/280 | |
| Battery weight | kg | 285 | |
| Type of drive control | AC | ||
| Noise | dB (A) | < 70 |
