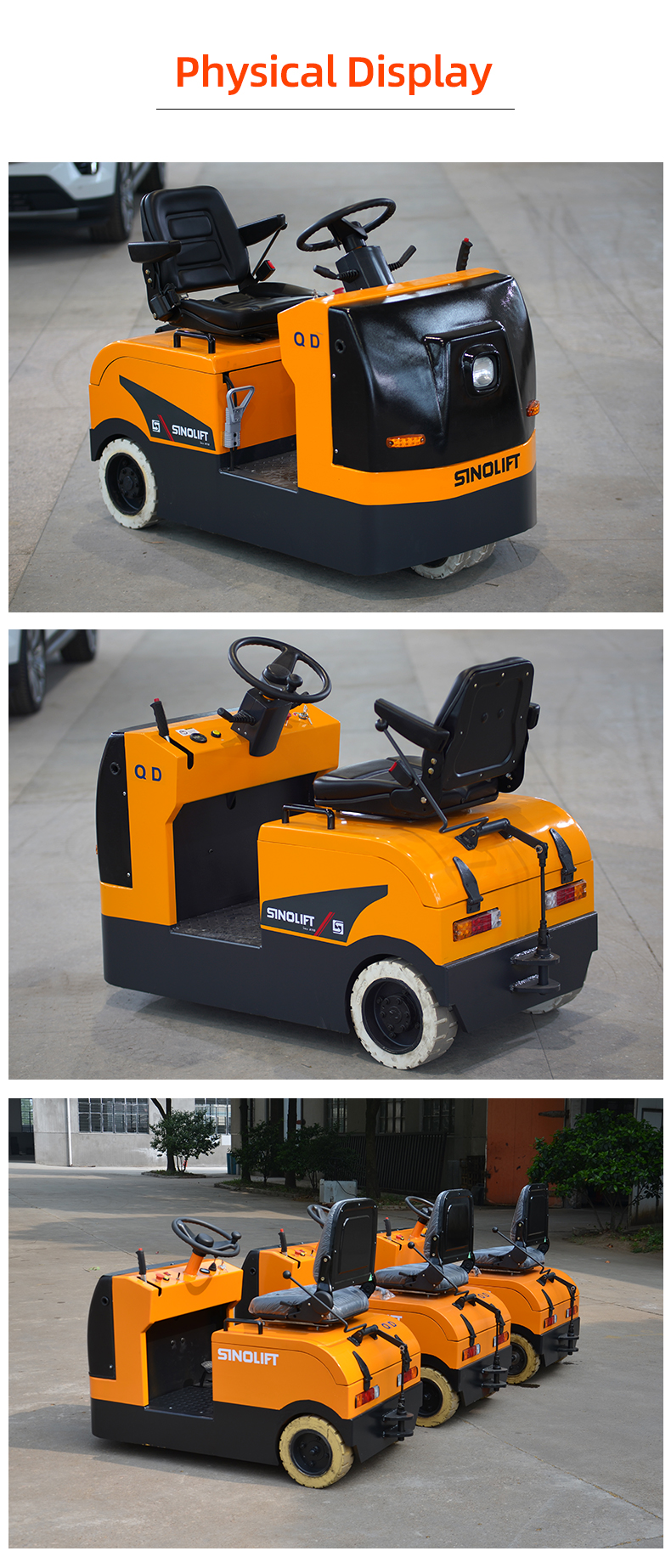

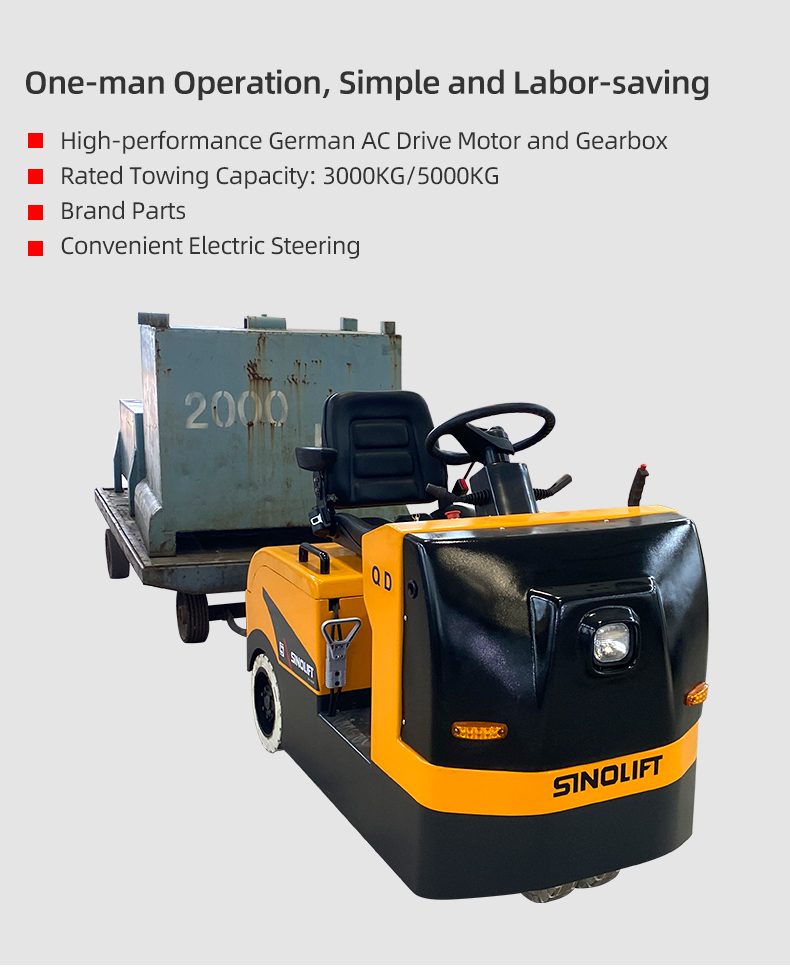

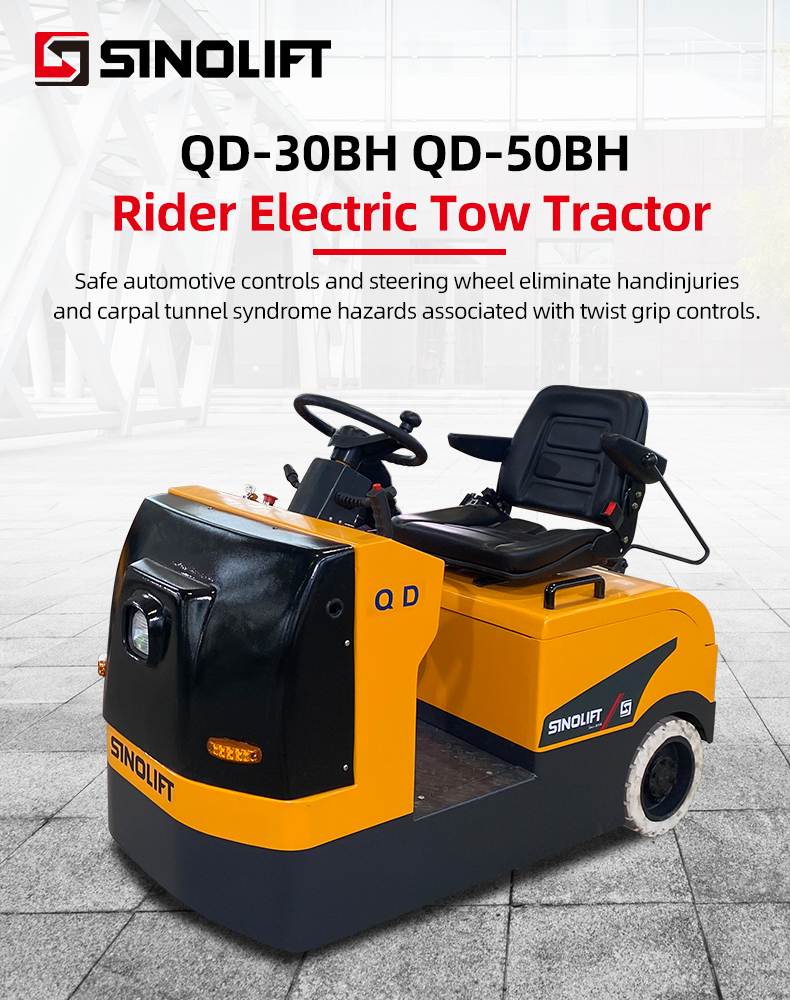

QD-30BH QD-50BH Seated Electric Tow Tractor
QD-30BH QD-50BH
Quantity:
The QD30BH/QD50BH uses the same battery as the 24volt pedestrian tractor and has a high load capacity, making it ideal for carrying luggage or goods in airports, railway stations, factories and post offices. It is an upgraded version of the QD-30B with rear drive. Safe vehicle controls and steering wheel eliminate the risk of hand injuries and carpal tunnel syndrome associated with twist grip controls.
The tractor is equipped with a safe MOS-tube stepless speed control system for energy efficiency and operator comfort when driving the tractor.
| Model No. | QD-30BH | QD-30BH(AC) | QD-50BH | ||
| Towing Capacity | kg | 3000 | 3000 | 5000 | |
| Driving Motor | W | DC-24V-2000W | DC-24V-2200W AC | DC-36V-3000W | |
| Battery | D-300A 24V | D-300A 36V | D-300A 24V | ||
| Driving Speed | km/h | 0~6.5 | 0~7.5 | 0~6.5 | |
| Controller Type | CURTIS solid-state speed | C3-250A | CURTIS solid-state speed | ||
| Working Time | Hours | 6 | 6 | 6 | |
| Min. Turning Radius | mm | R | 1350 | 1350 | 1580 |
| Operation Type | Rider seated | Rider seated | Rider seated | ||
| Min.under-clearance | mm | 85 | 85 | 85 | |
| Steering Wheel | mm | White Rubber Φ267x76 | White Rubber Φ267x76 | White Rubber Φ330x165 | |
| Drive Wheel | mm | Φ330x114 | Φ330x114 | Φ267x127 | |
| Overall length | mm | L | 1700 | 1700 | 1760 |
| Overall width | mm | W | 800 | 800 | 820 |
| Overall height | mm | H | 1240 | 1240 | 1280 |
| Service Weight | kg | 1450 | 1450 | 1580 |
