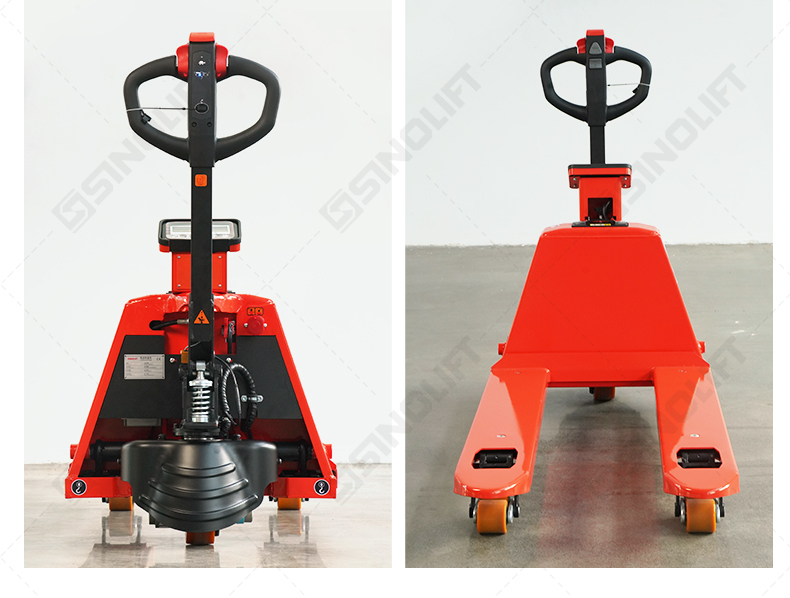

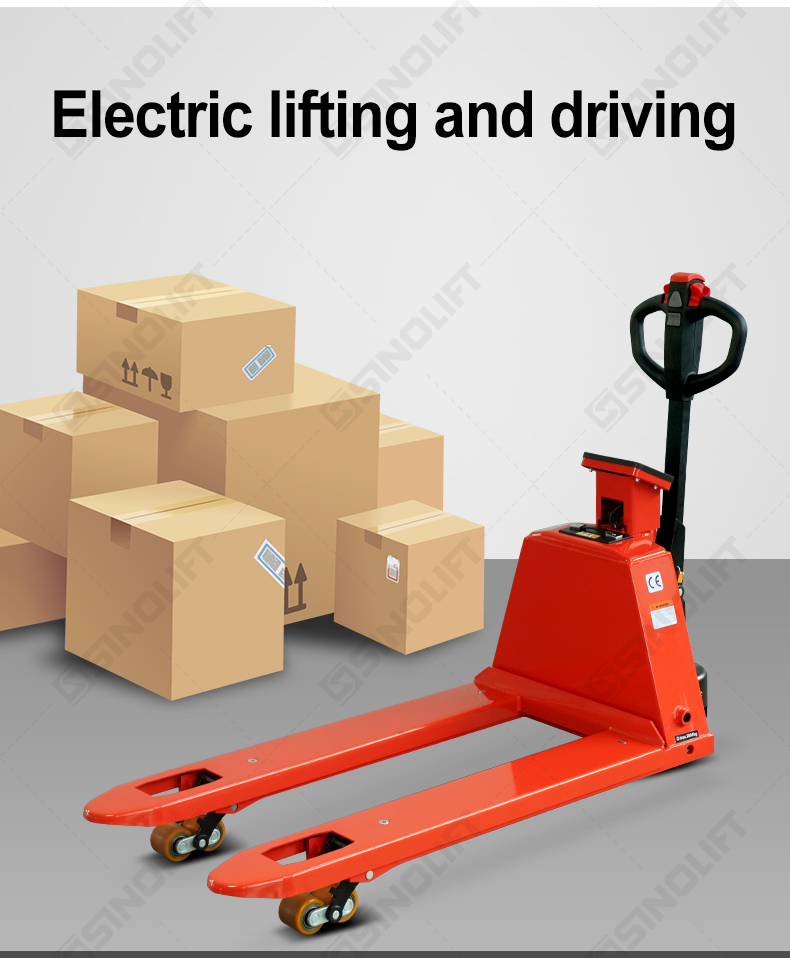

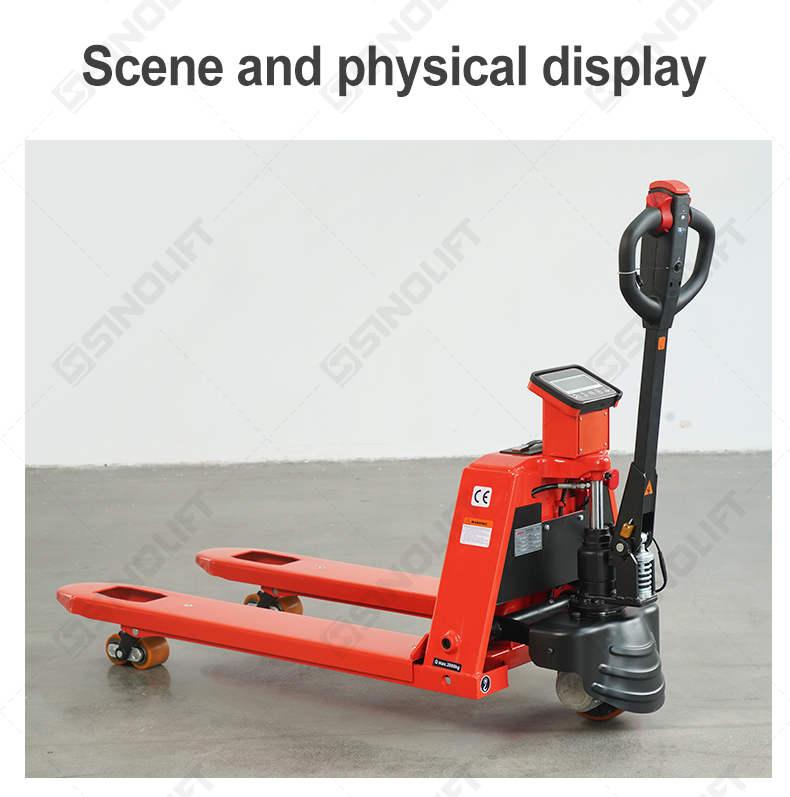

China Sinolift EPT20ES capacity 2000kg Lithium Battery Walkie Pedestrian Electric Powered Pallet Truck for Warehouse

EPT20ES

Quantity:

Contact Now

add to cart

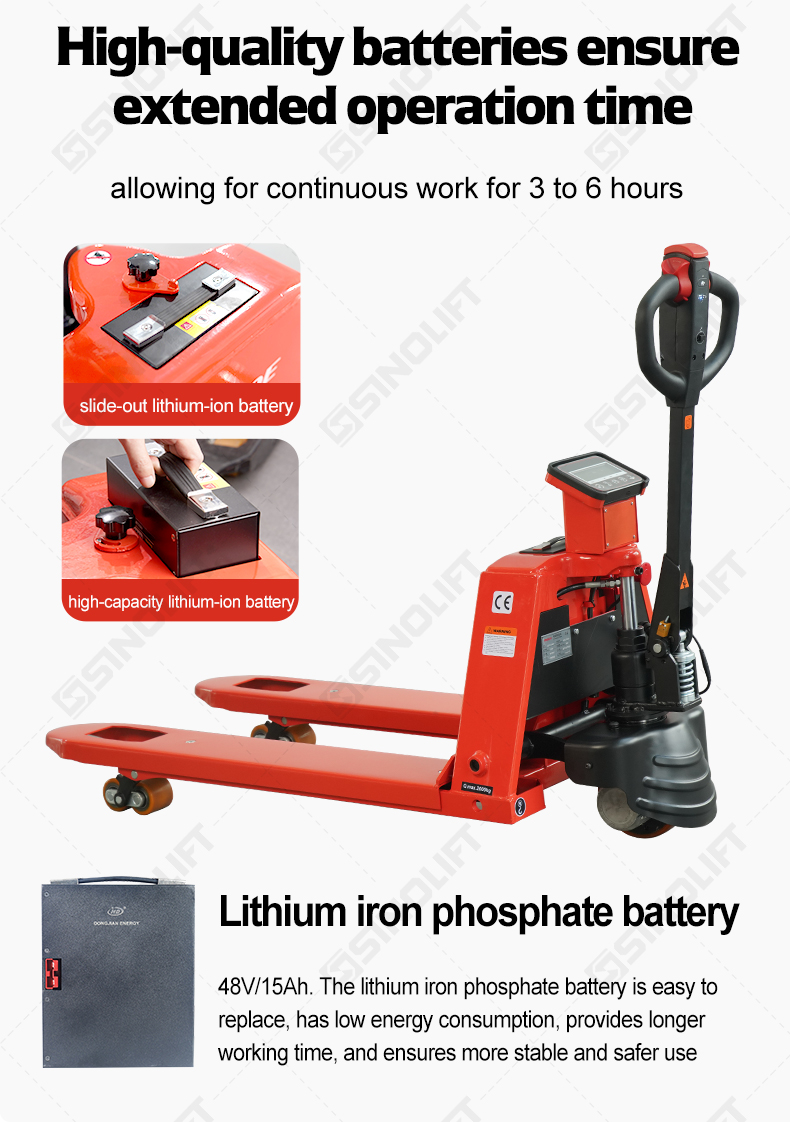

The EPT20ESelectric powered pallet truck high performance in a compact design for excellent maneuverability in tight locations,The high energy density of the installed lithiumion battery provides great

travel performance and long operating periods of up to 3,2 hours. At the same time, the EPT20E has a low service weight, which means it consumes up to 30 % less energy than vehicles with

lead-acid batteries.

Fast charging + top up chargingUp to 5 % of battery capacity can be recharged in just 10 minutes. Top up charging can be used between full charges without affecting the service life of the battery.

Dentiﬁcation	1.1	Manufacturer	SINOLIFT
	1.2	Model			EPT20E	EPT20ES
	1.4	Power Type			Lithium Battery	Lithium Battery
	1.5	Type of Operation			Pedestrian	Pedestrian
	1.6	Load capacity/Rated load	q	kg	2000	2000
	1.7	Load Center Distance	c	mm	600	600
	1.8	Alex centre to Fork Face	x	mm	840(910)	840(910)
	1.9	Wheelbase	y	mm	1220(1295)	1185(1225)
Weight	2.1	Total Weight (with battery)		kg	140(145)	168(190)
	2.2	Axle Load(laden):Drive side/Load-bearing side		kg
	2.3	Axle Load(unladen):Drive Side/Load-bearing side		kg
Tyre and Chassis	3.1	Tyre Type			Polyurethane	Polyurethane
	3.21	Tyre Size ( Load Wheel) Tandem		mm	φ80x70(85mm) or φ74x70(75mm)	φ80x70(88mm)
	3.22	Tyre Size (Load Wheel) Single			φ80x93(85mm) or φ74x93(75mm)	φ80x93(88mm)
	3.3	Tyre Size (Drive Wheel)		mm	φ190x70	φ190x70
	3.5	Wheels Quantity, front/rear (x=Driving Wheels)			4/1x+2	4/1x+2
	3.6	Track Width,Front,Driving Side	b10	mm	460	460
	3.8	Track Width,Rear,Loading Side	b11	mm	400(520)	400(520)
Dimension	4.4	Lifting Height	h3	mm	180(200)	198
	4.9	Height of Tiller Arm in Driving Position, Min.- Max.	h14	mm	800-1240	800-1240
	4.15	Lowered Height	h13	mm	75(85)	88
	4.19	Overall Length	l1	mm	1540(1610)	1540(1610)
	4.20	Length to Fork Face	l2	mm	390	420
	4.21	Overall Width	b1	mm	560(680)	570(690)

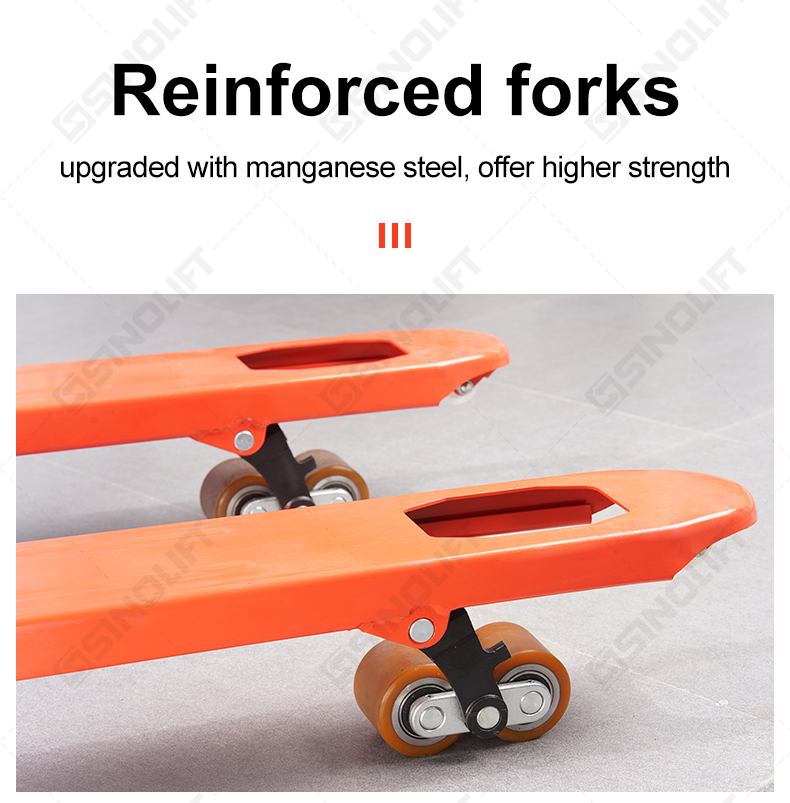

	4.22	Fork Dimension	s/e/l	mm	50x160x1150(1220)	50x180x1150(1220)
	4.25	Fork Spread Width	b5	mm	560/680	560/680
	4.32	Ground Clearance at Center of Wheelbase (Min)	m2	mm	30	30
	4.33	Aisle Width for Pallets 1000x1200 Crossways	Ast	mm	1790	1790
	4.34	Aisle Width for Pallets 800x1200 Crossways	Ast	mm	1740	1740
	4.35	Turning Radius	Wa	mm	1350	1350
Performance	5.1	Traveling Speed (Laden/Unladen)		km/h	4.5/4	4.5/4
	5.2	Lifting Speed (Laden/Unladen)		mm/s	22/17	22/17
	5.3	Lowering Speed (Laden/Unladen)		mm/s	26/30	26/30
	5.8	Max.Gradient Performance (Laden/Unladen)		%	8/20	5/7
	5.10	Service Brake Type			Electromagnetic	Electromagnetic
Power Unit	6.1	Driving Motor Rating (DC) S2 60min		kw	0.85	0.75
	6.2	Lifting Motor Rating S3 15%		kw	0.6	0.5
	6.3	Battery Type			Li-ion	Li-ion
	6.4	Battery Voltage/Capacity K5		V/Ah	48/15	24/25
	6.5	Battery Weight		kg	6.3	6.3
	6.7	Charger		V/A	48/16	48/16
Others	8.1	Controller Model			DC CURTIS	DC CURTIS
	10.5	Steering Type			Mechanical	Mechanical
	10.7	Sound level atdriver's ear according to EN 12 053		dB(A)	70	70
