How to Choose an Oil Drum Clamp Truck for Safer, More Repeatable Handling
How to Choose an Oil Drum Clamp Truck for Safer, More Repeatable Handling
Quick Answer
Choose an oil drum clamp truck by matching the load, clamp interface, lift position, travel path, vehicle envelope, and operator workflow. The supplied project record identifies CPD0210AF and a rated capacity of 200 kg. The selection question is how those values fit the actual oil drum, access route, and destination.
Selection Factors
Begin at the load and follow it through the process. Describe where the drum is picked up, how the interface reaches it, how high it must be raised, where it travels, and where it is released. This sequence turns a general equipment search into a practical selection brief.
-
Load and capacity
Use the verified load reference of 200 kg as the starting point, then describe drum dimensions, center of gravity, and variation between containers.
-
Clamp compatibility
Relate clamp length, width, and opening range to drum geometry and the intended gripping position.
-
Transfer height
Match the required destination position to the documented lift range and actual workstation or process handoff.
-
Access and control
Review aisle access, overhead clearance, visibility, approach space, and the operator's complete movement sequence.
Watch the Handling Sequence
Parameters & Comparison
A useful comparison table translates specifications into decisions. The values below are the confirmed project references for the current Drum Lifter example.
| Decision Dimension | Confirmed Reference | What To Evaluate |
|---|---|---|
| Load Reference | 200 kg | Whether the rated value matches the actual drum and handling cycle. |
| Maximum Lift Height | 950 mm | Whether the vertical range reaches the required transfer point. |
| Maximum Clamp Opening | 660 mm | Whether the opening fits the drum diameter and gripping position. |
| Vehicle Width | 1126 mm | Whether overall width supports aisle and workstation clearance. |
| Vehicle Envelope | 2090 mm / 1126 mm / 1603 mm | Whether approach, turning, doorway, and overhead conditions support the cycle. |
Specification Interpretation
Read each specification in relation to the work. A maximum opening is a compatibility question; a lift height is a transfer question; and overall width is an access question. This interpretation is more useful than collecting numbers without a route or destination.
| Specification | Value | Application Meaning |
|---|---|---|
| Capacity | 200 kg | Defines the verified load-selection boundary for oil drums handling. |
| Design Capacity | 250 kg | Provides a project design reference for matching the handling task and review scope. |
| Clamp Max Lift Height | 950 mm | Defines the vertical transfer range available between pickup and the required process height. |
| Clamp Max Open Width | 660 mm | Provides an important compatibility dimension when checking the drum diameter and gripping position. |
| Vehicle Width | 1126 mm | Should be considered when assessing aisle access and clearance around production equipment. |
| Vehicle Length | 2090 mm | Helps assess approach space, turning room, and the distance available at the workstation. |
| Vehicle Height | 1603 mm | Helps assess overhead clearance and access through the operating area. |
| Clamp Length | 500 mm | Helps relate the clamp contact area to the handled container and engagement position. |
Common Mistakes
The most avoidable mistakes happen when the equipment is evaluated separately from the process.
-
Choosing by capacity alone
A load reference does not describe the clamp interface, route, lift position, or clearance needed for the complete task.
-
Measuring only the doorway
Approach space, turning room, workstation clearance, and release space also affect whether the vehicle can complete the cycle.
-
Treating opening width as a catalogue detail
Opening range should be compared with drum geometry and the intended gripping position.
-
Ignoring the handoff
The destination height and release step often determine whether the proposed configuration fits the production flow.

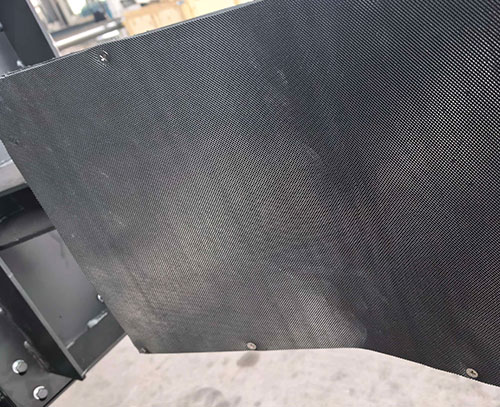

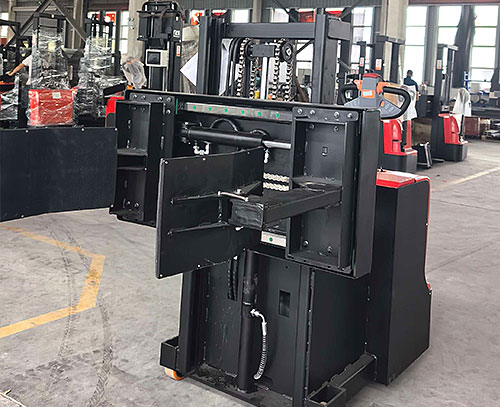

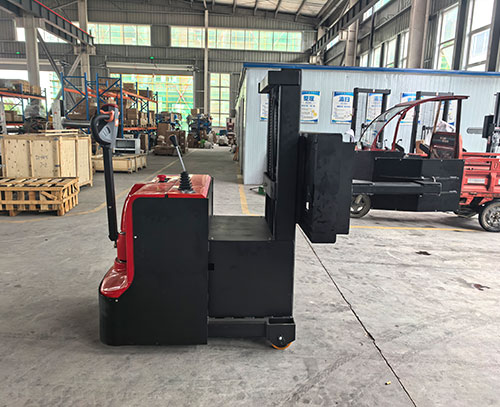

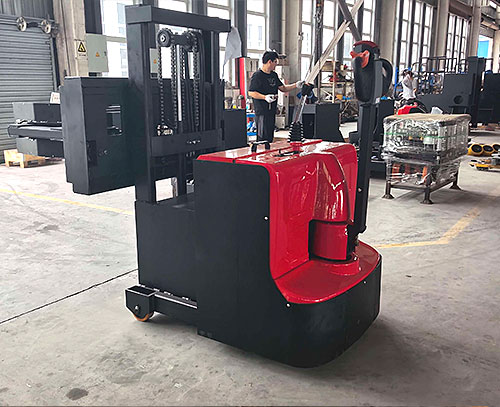

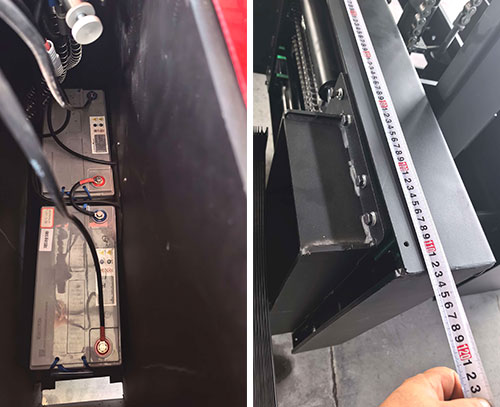

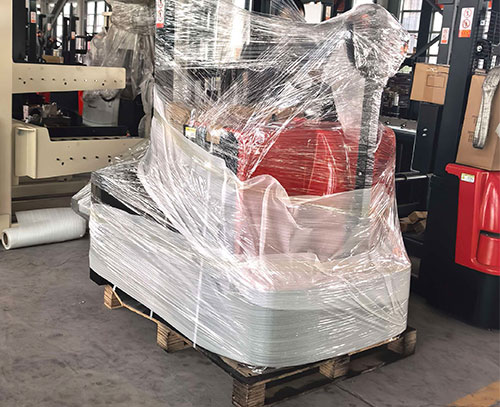

Media Gallery
Buyer Checklist
Include the drum type and dimensions, maximum load, pickup and destination positions, route, floor and clearance conditions, operating frequency, photographs, drawings, and required approval documents. Also state which requirements are fixed and which can be adapted.
- Drum dimensions and load weight
- Pickup method and gripping position
- Required transfer or workstation height
- Aisle, doorway, overhead, and workstation clearances
- Handling frequency and operator workflow
- Photographs, drawings, route sketch, and acceptance requirements
FAQ
These questions keep the selection discussion tied to the application.
- Is CPD0210AF automatically the right choice?
- No model name replaces application matching. The current record provides a capacity of 200 kg and the listed interface and vehicle values; compare them with the actual drum and route.
- What should a supplier explain?
- The proposal should connect the interface, lift range, vehicle dimensions, operating sequence, assumptions, and open approval items to the buyer's work area.
- When is customization useful?
- Consider it when the drum, access, engagement position, transfer height, or workflow falls outside a standard configuration.
Contact us
Ready to specify the right oil drum clamp truck?
Send Sinolift the oil drums dimensions, load weight, pickup position, required transfer height, route, and work-area photographs. We can review the application and recommend a suitable oil drum clamp truck configuration with the relevant interface, access, and operating questions clearly defined.
