Sinolift Finalizes Production of Pedestrian Electric Stackers and Electric Pallet Trucks, Now Packing for Global Dispatch

In a significant milestone, Shanghai Sinolift has just completed production of two major export models—the CDD15H/CDD15HE pedestrian electric pallet stacker and the EPT22 lithium-ion electric pallet truck—and crews are now packing and staging them for overseas shipment. These machines represent Sinolift’s commitment to combining cutting-edge drive systems, energy-efficient batteries, and user-friendly ergonomics.

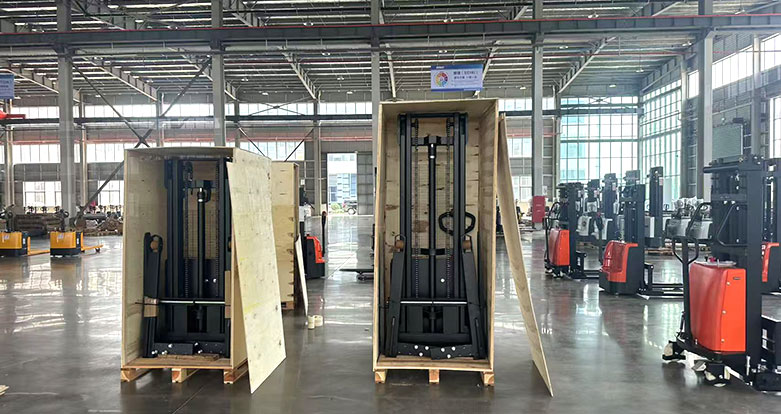

Production Wraps Up and Packaging Underway

Production on both the CDD15H/CDD15HE stackers and the EPT22 pallet jacks finished ahead of schedule. Now, skilled technicians are carefully boxing each unit in reinforced corrugated cases. Protective foam inserts cushion the masts and drive wheels. Weather-resistant stretch wrapping secures pallets of spare parts—including chargers and control handles—before forklifts load them into 20- and 40-foot containers bound for Europe, Latin America, and Southeast Asia.

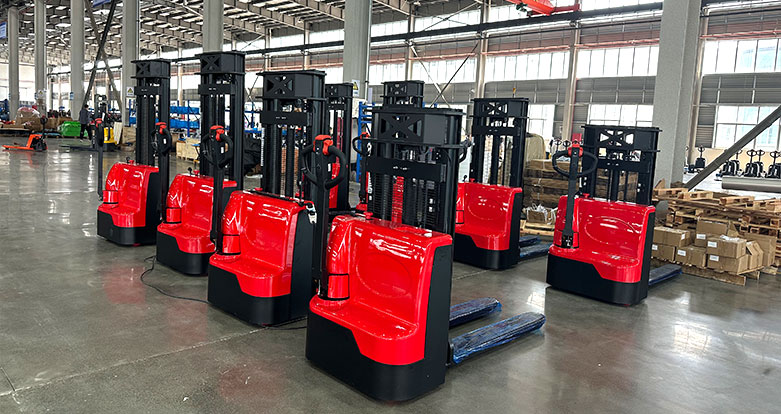

Pedestrian Electric Pallet Stacker: CDD15H & CDD15HE

Compact Size, High Capacity

The CDD15H and CDD15HE share a rated load capacity of 1 500 kg, with a 500 mm load center, making them ideal for narrow-aisle operations

Power and Performance

Both models employ brushless AC drive motors (1.5 kW on the H; 0.75 kW DC on the HE) that deliver smooth acceleration and regenerative braking for energy recapture during lowering . Lifting is handled by a 2.2 kW DC motor, achieving speeds of 80 mm/s under load and up to 125 mm/s without load .

Battery and Charger

A built-in, maintenance-free 24 V/100 Ah battery powers up to seven hours of continuous operation. Users can recharge via any standard 230 V outlet; a full charge from 20 % takes approximately 3.5 hours .

Ergonomics & Control

The intelligent handle integrates all controls—travel, lift/lower, horn, and emergency stop—into one joystick, fitting comfortably in the operator’s hand . A large, backlit LCD displays battery level, fault codes, and hours run.

Maneuverability

With a minimum turning radius of 1 535 mm (pedal folded), the stackers excel in confined spaces. Polyurethane drive wheels and tandem load wheels ensure low rolling resistance and minimal floor marking .

Safety Features

Electromagnetic parking brakes engage automatically when the handle is upright. Slope-holding and speed-reduction functions prevent runaway on inclines. An under-platform sensor stops travel if an obstruction is detected .

Applications

These stackers streamline warehousing tasks: racking pallets up to 3 000 mm high, order picking on mezzanines, and truck loading/unloading in supermarkets and light-industrial settings.

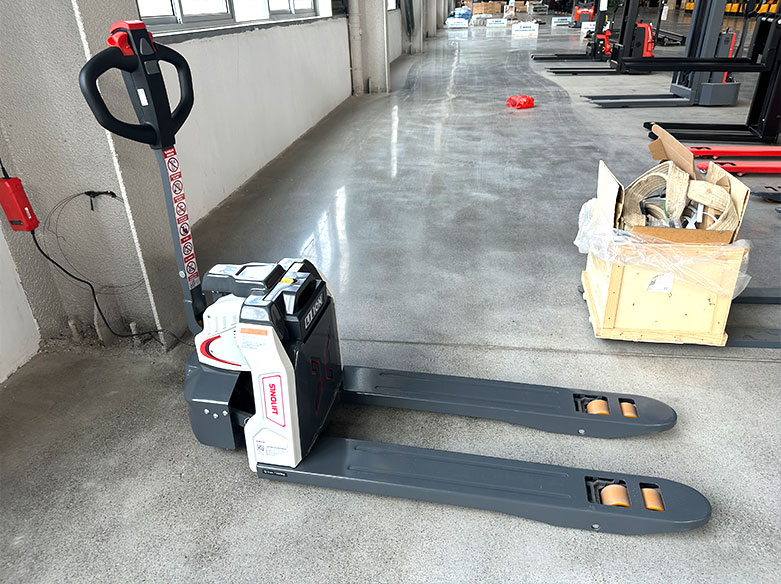

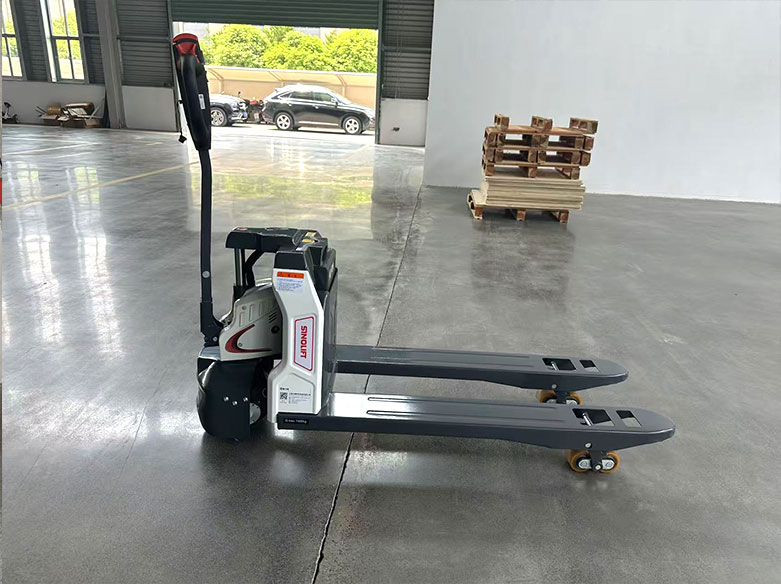

Lithium-Ion Electric Pallet Truck: EPT22

Impressive Load Handling

The EPT22 hand-guided pallet truck lifts and transports up to 2 200 kg. It bridges the gap between manual jacks and larger powered trucks .

Long-Life LiFe Battery

Equipped with a lithium-iron phosphate (LiFePO₄) battery, the EPT22 offers double the service life of lead-acid types—up to 10 000 hours or five years of operation—backed by Sinolift’s warranty .

Fast Charging & Hot-Swap

From near-empty (20 %) to full takes just 3.5 hours. The modular battery pack slides out in seconds for exchange, eliminating downtime and supporting multi-shift workloads.

Robust Drive System

A 24 V/2 kW AC motor ensures travel speeds up to 6 km/h. Electronic speed control delivers precise maneuvering in tight corridors. Motor protection includes overload cutoff and smooth ramp-up feature .

Ergonomic Tiller & Safety

The tiller head integrates a multi-function thumbwheel for speed adjustment, a large horn button, and emergency reverse-motion switch. The tiller folds to under 1 000 mm for compact stowage YouTube.

Durability & Maintenance

Key components are IP54-rated for dust and splash protection. The sealed electronics box shields against moisture. Maintenance is largely tool-free: grease points and wheel bearings can be accessed in minutes.

Typical Use Cases

EPT22 excels in retail backrooms, cold-storage warehouses, logistics centers, and any application demanding high throughput with minimal footprint.

Sinolift’s on-time delivery of these two high-performance machines not only underscores its manufacturing agility but also ensures that customers worldwide can ramp up operations without delay. For inquiries or local dealer information, visit Sinolift’s website or contact your nearest sales representative.
