Sinolift Develops New SP4500 Air-Powered Pallet Positioner for Ergonomic Pallet Handling

New pneumatic pallet positioning solution combines automatic load leveling, pallet rotation and air-powered operation for warehouses, production lines and packing workstations.

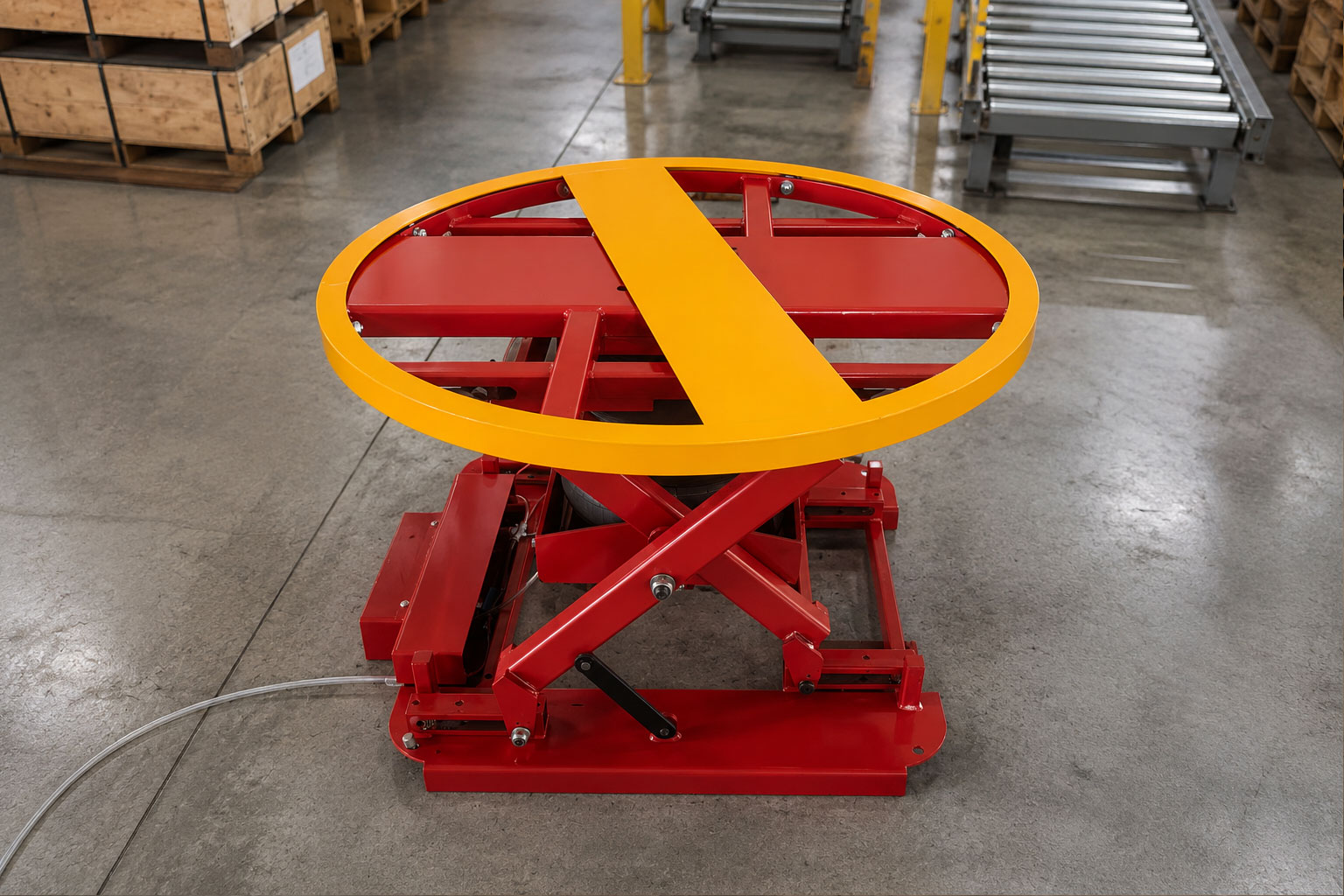

Sinolift has expanded its material-handling product development program with the SP4500 Air-Powered Pallet Positioner, a new pneumatic pallet handling solution designed to improve working height and pallet accessibility during repetitive loading and unloading operations.

Developed for warehouses, manufacturing facilities, packing stations and production environments, the SP4500 automatically adjusts the pallet working height as goods are added or removed.

The system also incorporates a rotating platform, helping operators access different sides of a pallet without repeatedly walking around the load.

The new product development focuses on a common challenge in manual material handling: keeping the active working layer of a pallet within a practical operator reach range throughout the handling cycle.

Designed Around Real Pallet Handling Operations

In many production and warehouse environments, operators repeatedly bend toward floor level, reach across pallets or move around loads while palletizing and depalletizing.

Traditional fixed-height pallet stations cannot automatically compensate as the load height changes.

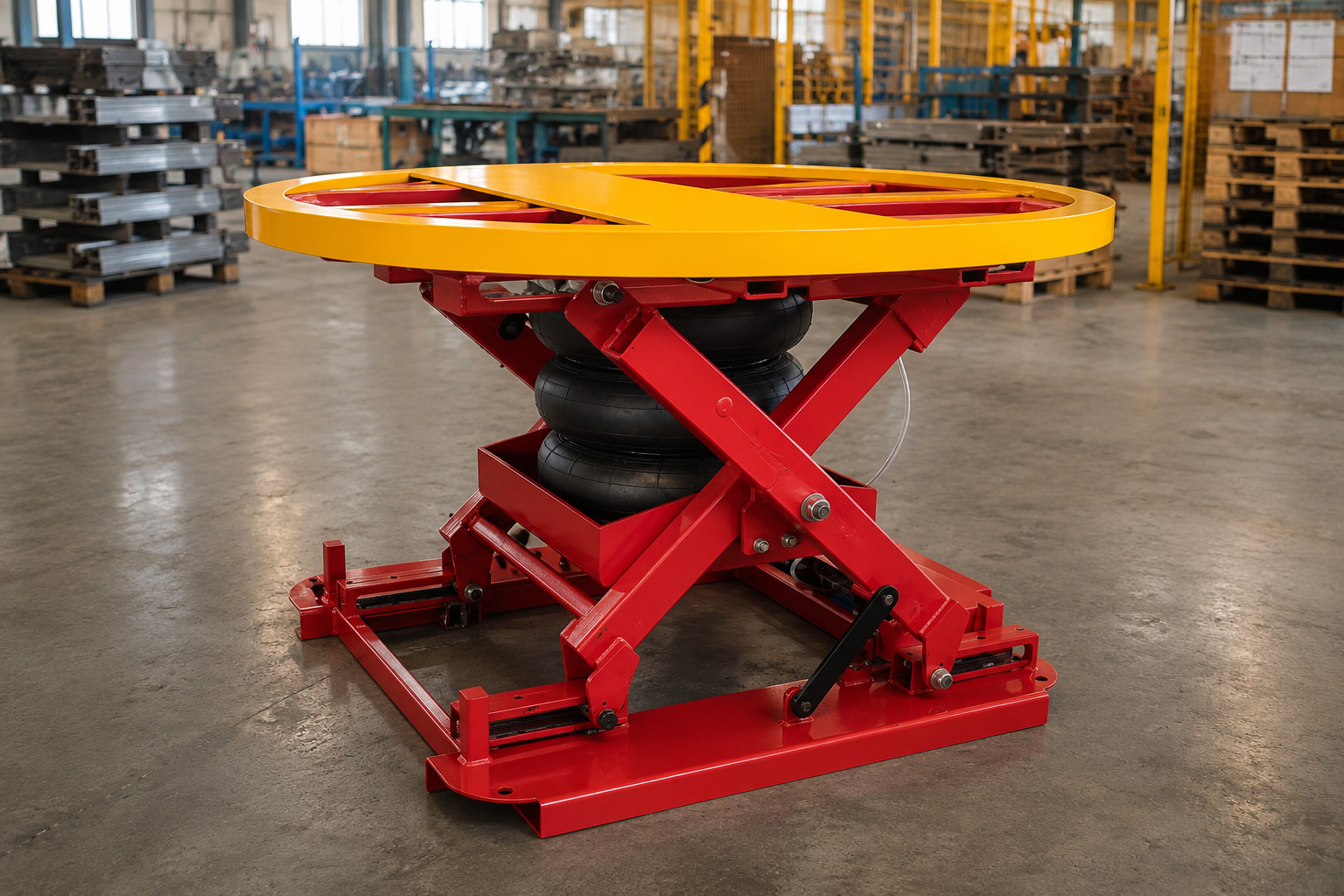

The SP4500 was developed to address this operating condition through an air-powered automatic load-leveling system.

As cartons, components or other materials are added or removed, the platform responds to the changing load and helps maintain the working layer at a more convenient handling height.

This makes the SP4500 particularly suitable for repetitive tasks where operator access and workflow efficiency are more important than simply lifting a pallet from one fixed height to another.

Key SP4500 Specifications

The newly developed SP4500 product family is designed around the following operating range:

Specification	SP4500
Load Range	100–2,000 kg
Lowered Height	265 mm
Raised Height	710 mm
Rotating Ring Diameter	1,110 mm
Air Pressure Range	6–15 PSI
Drive System	Pneumatic / Air Powered
Electrical Lifting Power	Not Required

The broad load range allows the positioner to support different palletized materials and handling processes.

The 265–710 mm positioning range is designed to support changing pallet heights during loading and unloading, while the 1,110 mm rotating ring allows operators to bring another side of the pallet toward the working position.

Pneumatic Design Reduces Dependence on Electrical Power

One of the main development features of the SP4500 is its pneumatic operating principle.

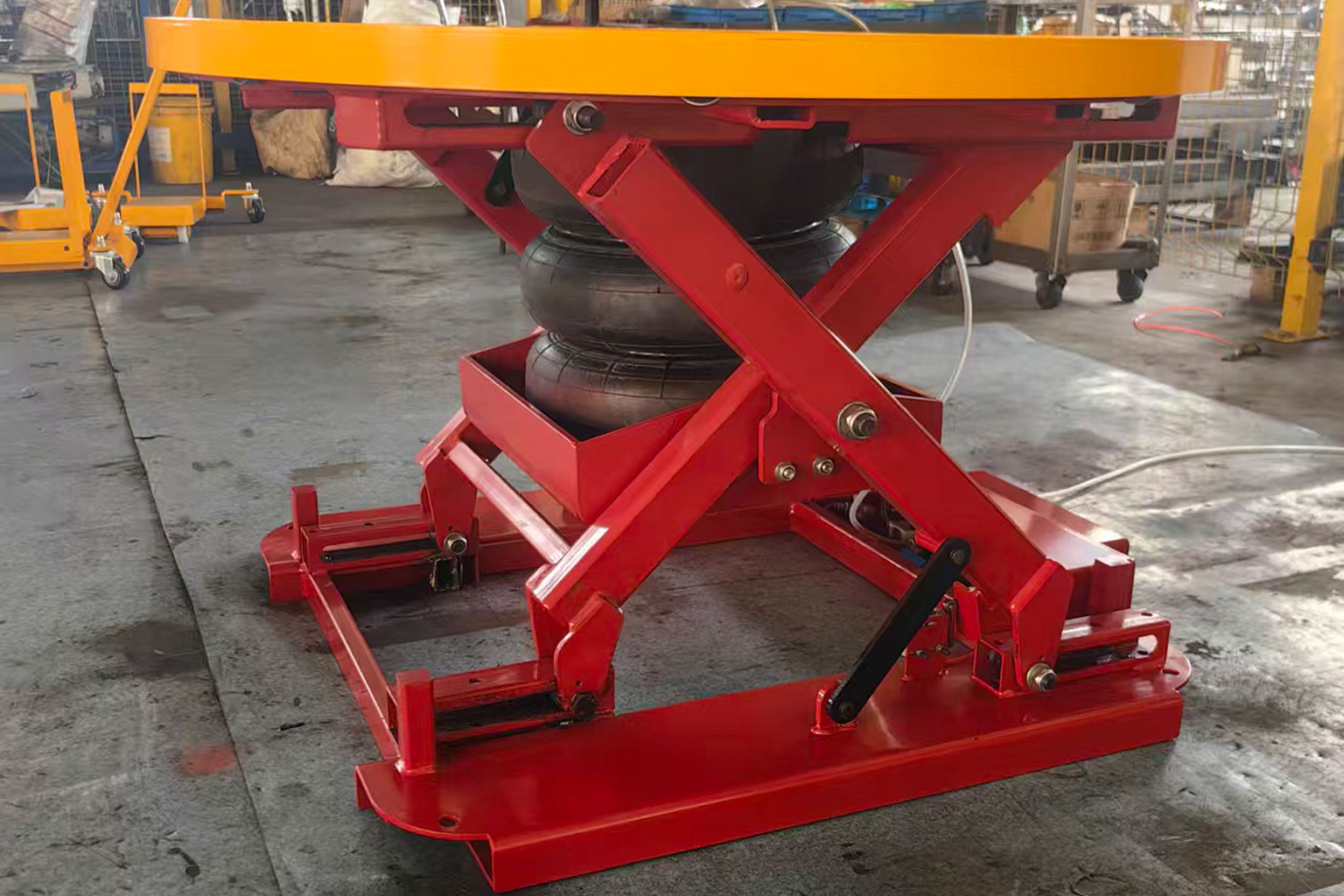

Instead of relying on an electric or hydraulic lifting drive, the unit uses compressed air for load positioning.

No electrical lifting power is required during normal operation.

This makes the product particularly relevant for workstations where a simple pneumatic solution is preferred or where electrical installation near the handling station is inconvenient.

For project applications, Sinolift can review the customer's available compressed-air conditions, including plant pressure, pressure regulation, connection arrangement and operating load requirements.

The listed SP4500 operating air-pressure range is 6–15 PSI, and the final pneumatic arrangement should be matched to the actual facility conditions.

Rotating Platform Supports More Efficient Pallet Access

Vertical positioning was only one part of the SP4500 development concept.

In many pallet-handling operations, workers spend considerable time moving around the pallet to reach cartons or components positioned on the opposite side.

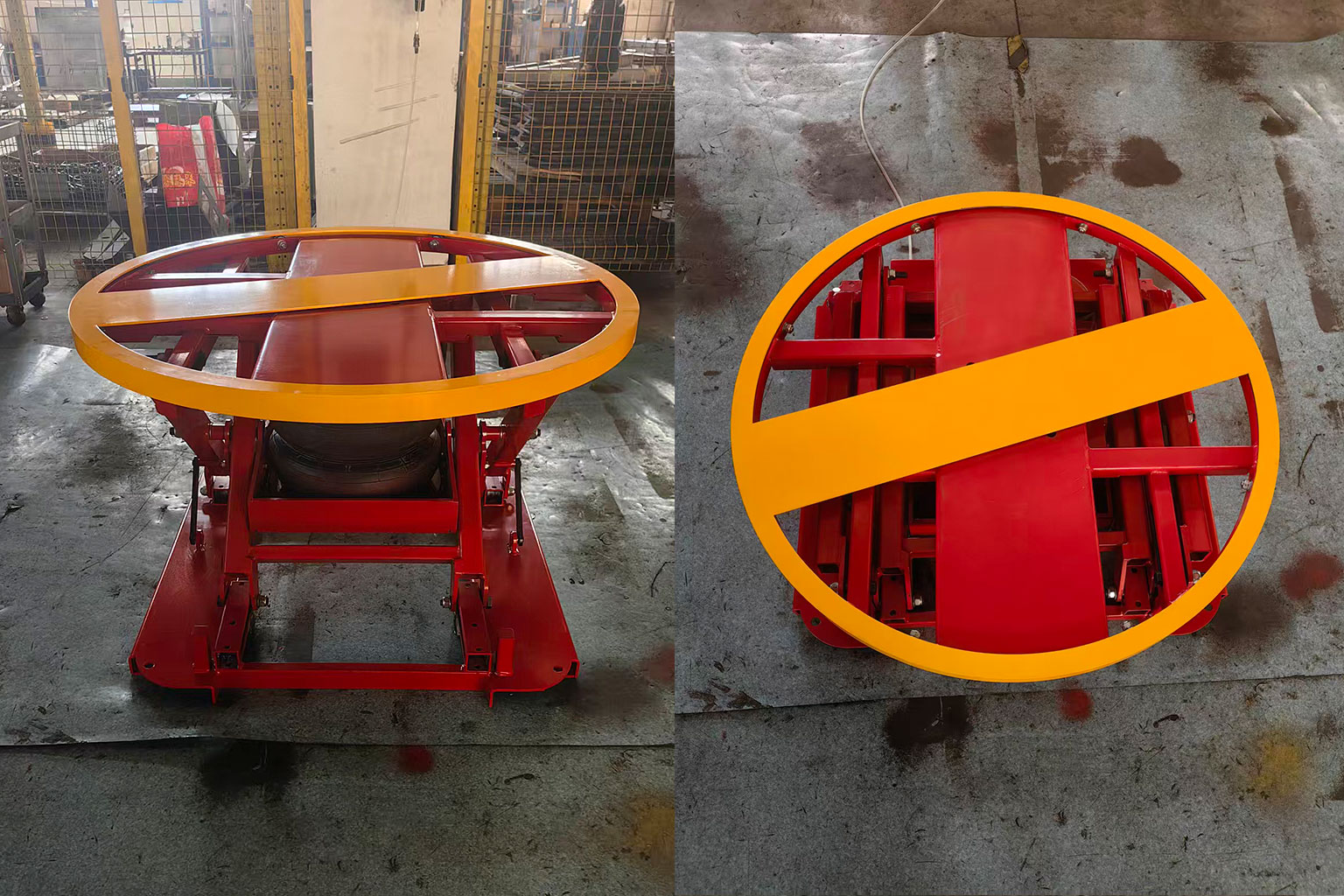

The SP4500 integrates a rotating ring to allow the pallet to be turned toward the operator.

For suitable applications, this can reduce unnecessary movement around the workstation and provide easier access to different areas of the load.

During project selection, pallet dimensions, product overhang, surrounding equipment and rotation clearance should be reviewed to ensure the positioner fits the actual workstation.

SP4500 and SP4500C Configurations

The new product family includes two main configurations:

SP4500 Open-Top Version

The standard SP4500 uses an open-top construction and is intended for general industrial pallet positioning applications.

SP4500C Closed-Top Version

The SP4500C uses a closed-top construction for applications where the working environment or project requirement calls for a different upper structure.

For export projects, Sinolift can confirm the exact model, technical configuration and applicable documentation according to the customer's destination market and application requirements.

Developed for Multiple Industrial Applications

The SP4500 development is targeted at a wide range of repetitive pallet-handling operations.

Warehousing and Distribution

In receiving, picking and dispatch areas, the SP4500 can support repetitive carton loading and unloading while helping operators access different sides of the pallet.

Manufacturing and Assembly

The positioner can be installed beside assembly lines or production workstations where palletized components need to remain accessible throughout the manufacturing cycle.

Packing and Palletizing

For packaging operations, automatic load leveling can help maintain the active packing layer as finished products are placed onto or removed from a pallet.

Production-Line Material Feeding

Components stored on pallets can be positioned near the operator's working area as the quantity on the pallet changes.

Food, Pharmaceutical and Controlled Manufacturing

Where cleanliness or environmental requirements are important, the operating conditions, surface requirements and preferred top configuration can be reviewed during the project stage.

A Different Solution from a Conventional Lift Table

The SP4500 is not designed simply as another powered lift table.

Its main development objective is automatic pallet load leveling combined with rotation.

A conventional electric or hydraulic lift table may be more suitable when an operator needs to select an exact platform height, use programmable positions or integrate the lifting platform into an automated production system.

The SP4500 is aimed at applications where the pallet weight changes continuously as goods are loaded or unloaded and where maintaining convenient operator access is the primary requirement.

This distinction allows procurement teams to select equipment according to the actual work process rather than choosing solely by lifting capacity.

Application-Based Product Development

Sinolift's development approach for the SP4500 focuses on actual customer operating conditions.

For project evaluation, customers can provide:

• pallet dimensions;
• pallet height;
• minimum and maximum load;
• load distribution;
• product or carton dimensions;
• maximum loaded pallet height;
• required working height;
• rotation requirements;
• compressed-air conditions;
• workstation dimensions;
• aisle clearance;
• operating environment;
• destination market.

Workstation photos, videos or layout drawings can also be used to evaluate how the SP4500 would fit into the customer's existing handling process.

For project-based orders, configuration review can include technical drawings, model confirmation, pneumatic requirements, operating documentation, inspection requirements, spare-parts recommendations and export packaging.

Supporting Safer and More Efficient Manual Material Handling

The development of the SP4500 reflects Sinolift's continued focus on practical material-handling solutions for repetitive industrial operations.

Rather than increasing automation complexity where it is not required, the new pneumatic pallet positioner is designed to provide a relatively simple method of maintaining pallet working height while improving access to the load.

For companies evaluating ergonomic pallet handling, production-line feeding or warehouse loading and unloading processes, the SP4500 provides an additional alternative between a fixed pallet station and a fully powered lift-table system.

SP4500 Application Review Now Available

The SP4500 Air-Powered Pallet Positioner is now available for application and configuration review.

Customers can send their pallet size, load range, working-height requirement, workstation layout and compressed-air conditions to Sinolift for technical evaluation.

Based on the operating process, Sinolift can help determine whether the SP4500, SP4500C or another pallet-handling solution is better suited to the application.
