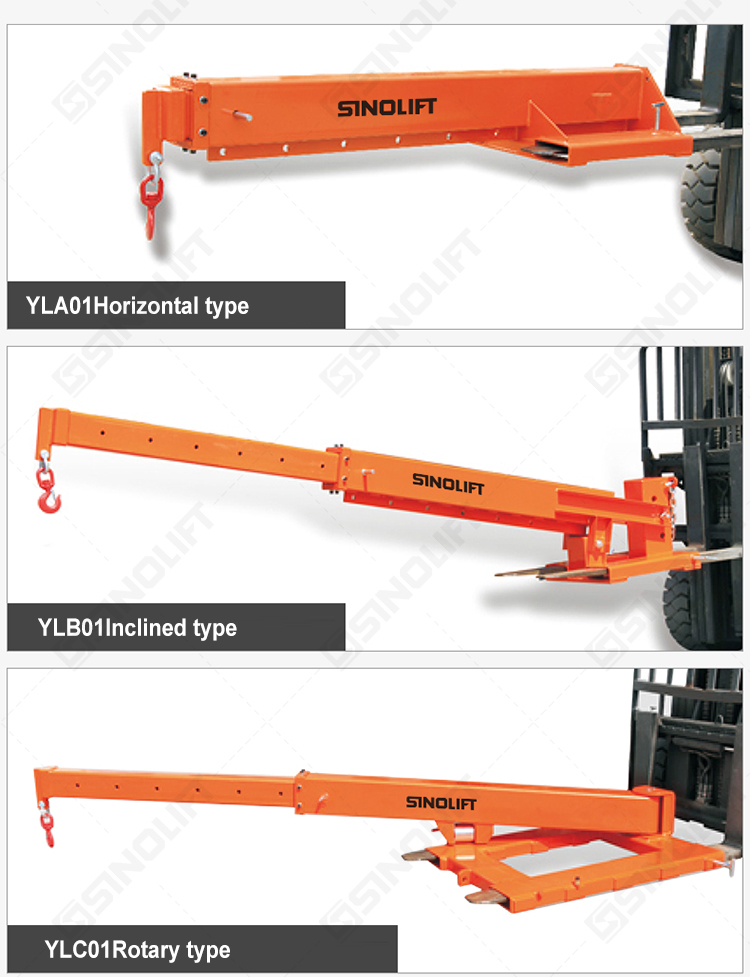

YLA01 YLB01 YLC01 Forklift Mounted Jib Crane
YLA01 YLB01 YLC01
Quantity:

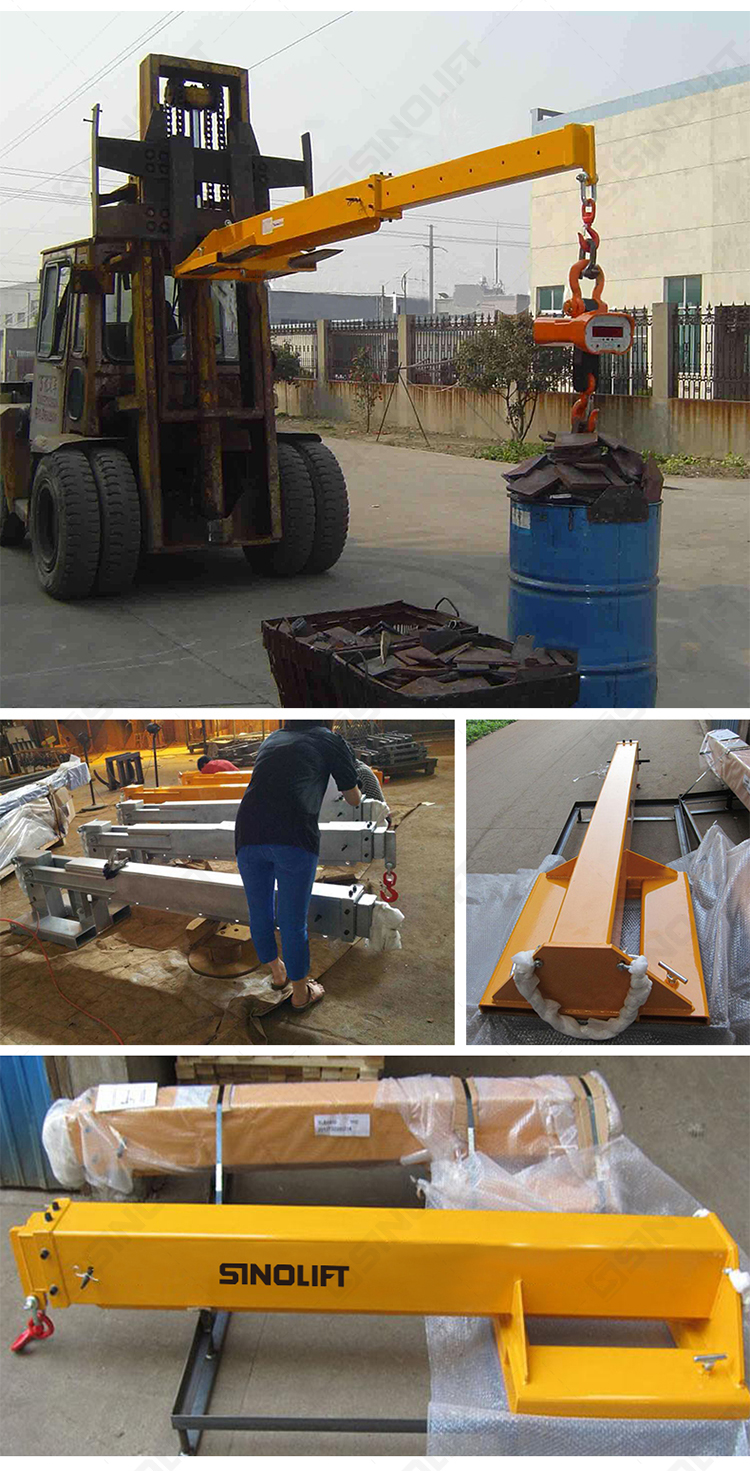

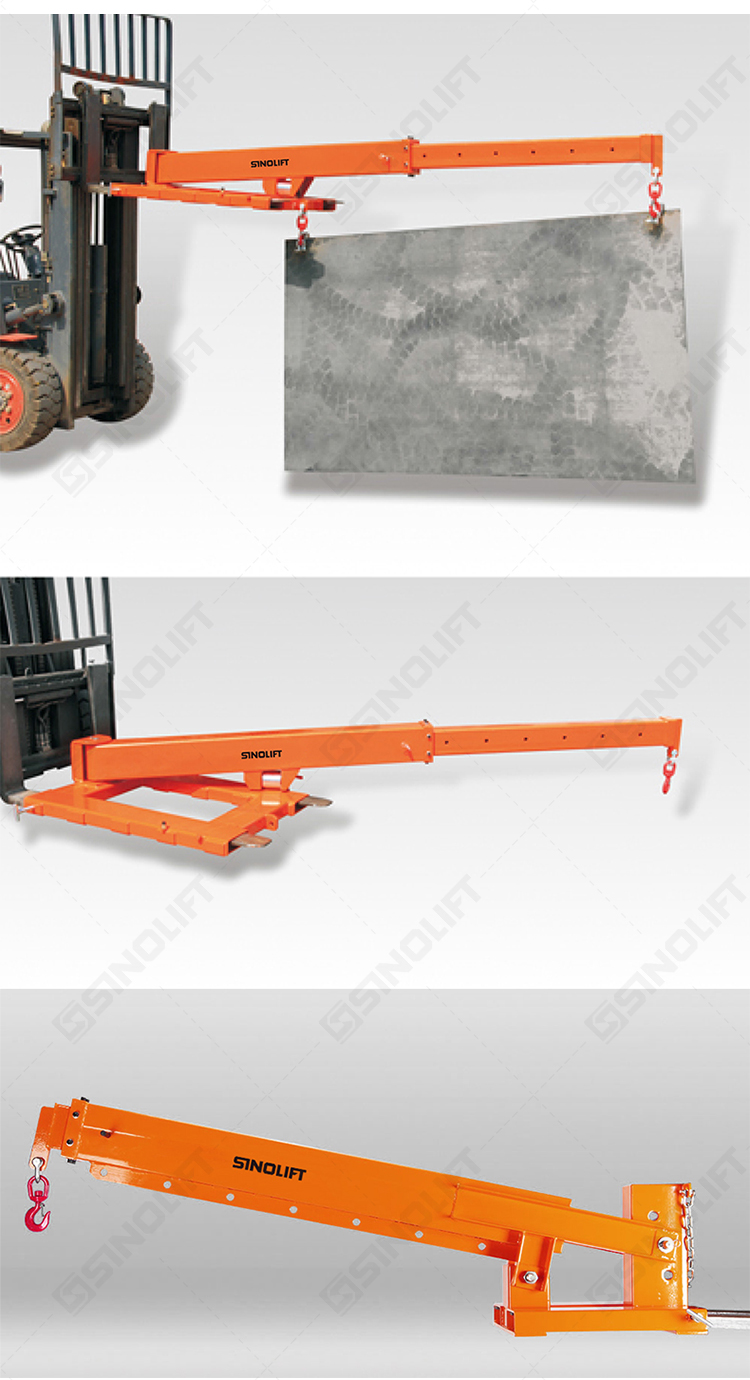

If you need to convert a standard forklift into a mobile crane for heavier jobs, this forklift adjustable mobile crane lifting hoist can help.

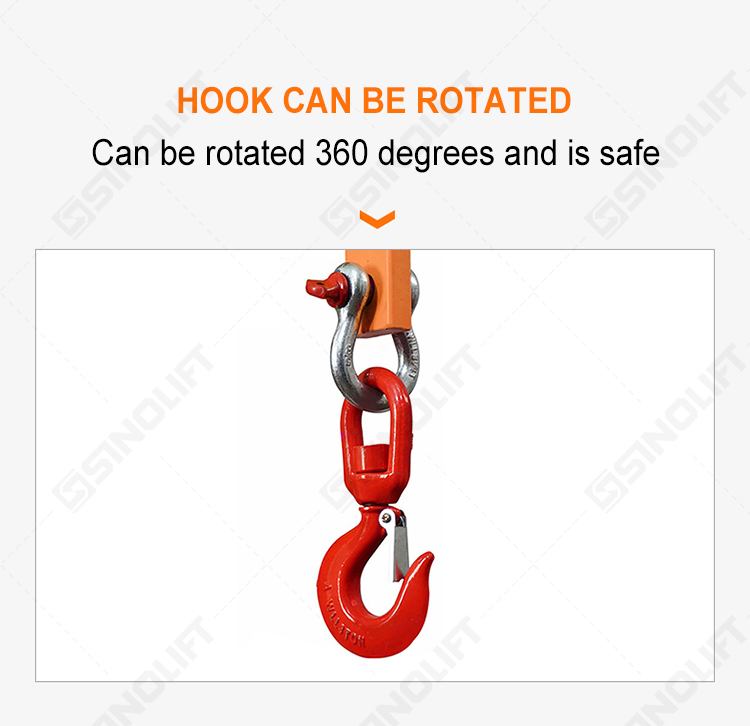

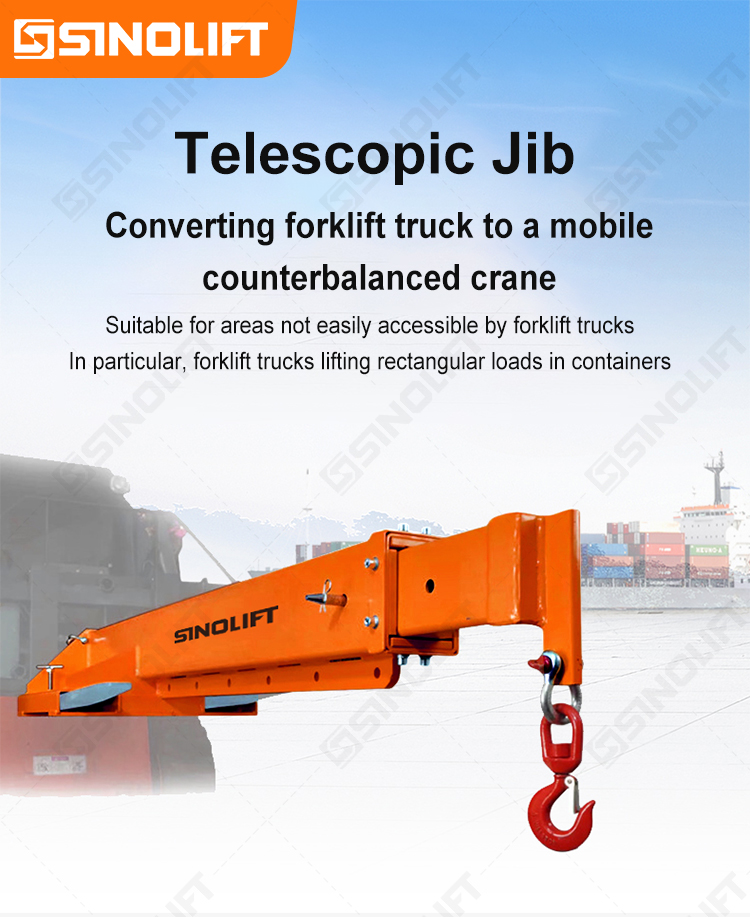

Converting a forklift into a mobile crane is easy with the fork-mounted telescopic crane lifting arm. Slide the lifting hook through the fork pockets onto the pallet forks, clamp with thumbscrews for safety, and then secure the hook to the payload. This mobile crane has a load capacity of up to 3210 kg, so you can lift large quantities of materials and containers.

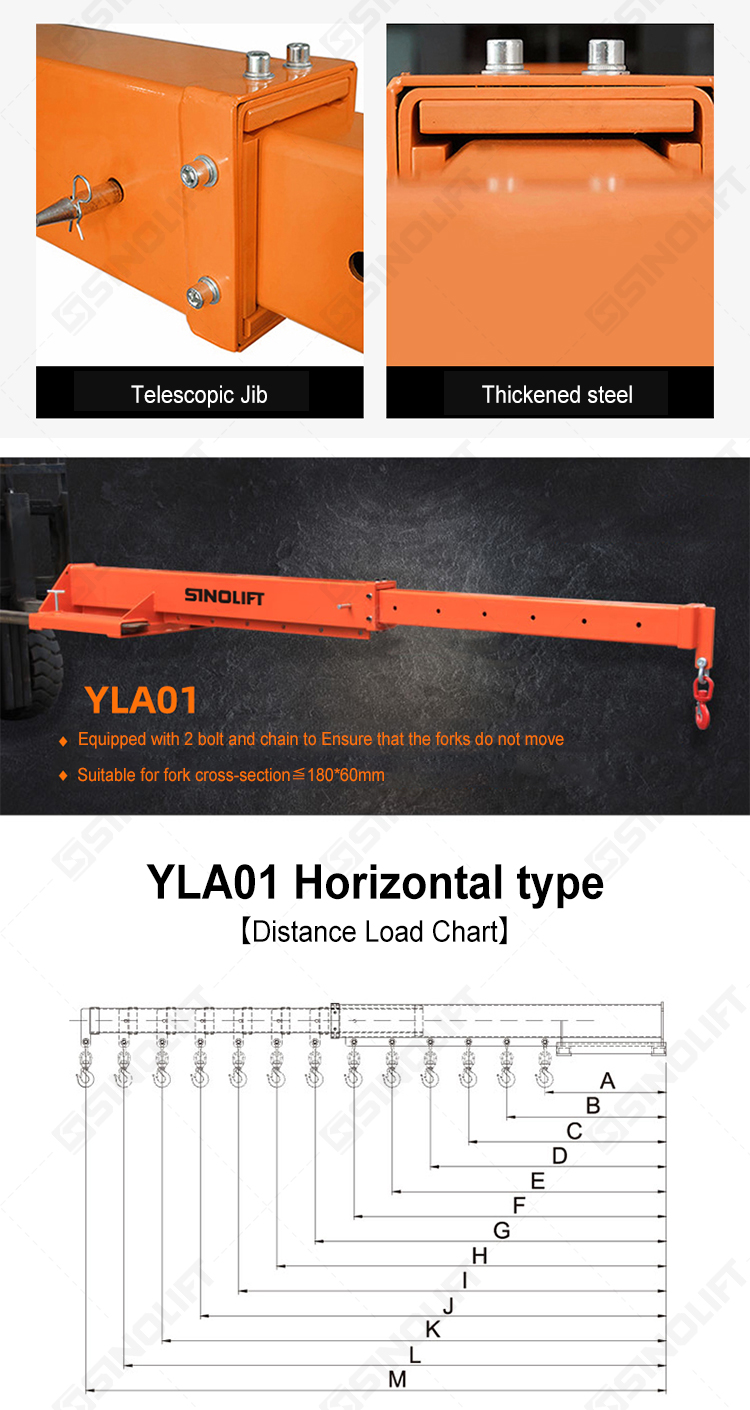

| Model | YLA01 | |||||||||||||
| Position | A | B | C | D | E | F | G | H | I | J | K | L | M | |
| Length | mm | 730 | 960 | 1190 | 1420 | 1650 | 1880 | 2115 | 2345 | 2575 | 2805 | 3035 | 3265 | 3495 |
| Capacity | kg | 3000 | 2280 | 1840 | 1542 | 1327 | 1164 | 1035 | 933 | 850 | 780 | 721 | 670 | 626 |
| Fork Width | mm | 284 | ||||||||||||
| Fork Cross-section | mm | 180*60 | ||||||||||||
| Outline Size | mm | 2150*660*325 | ||||||||||||
| Self weight | kg | 188 | ||||||||||||
