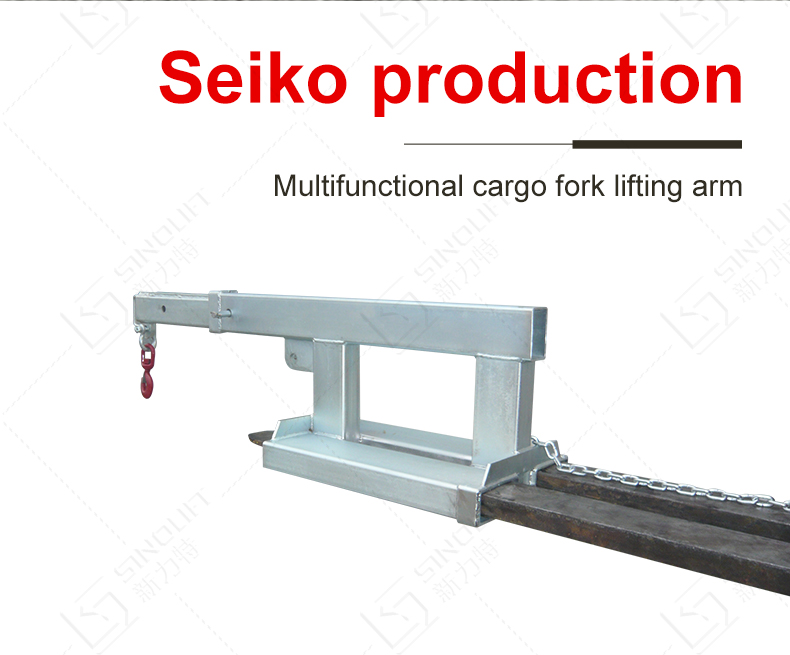

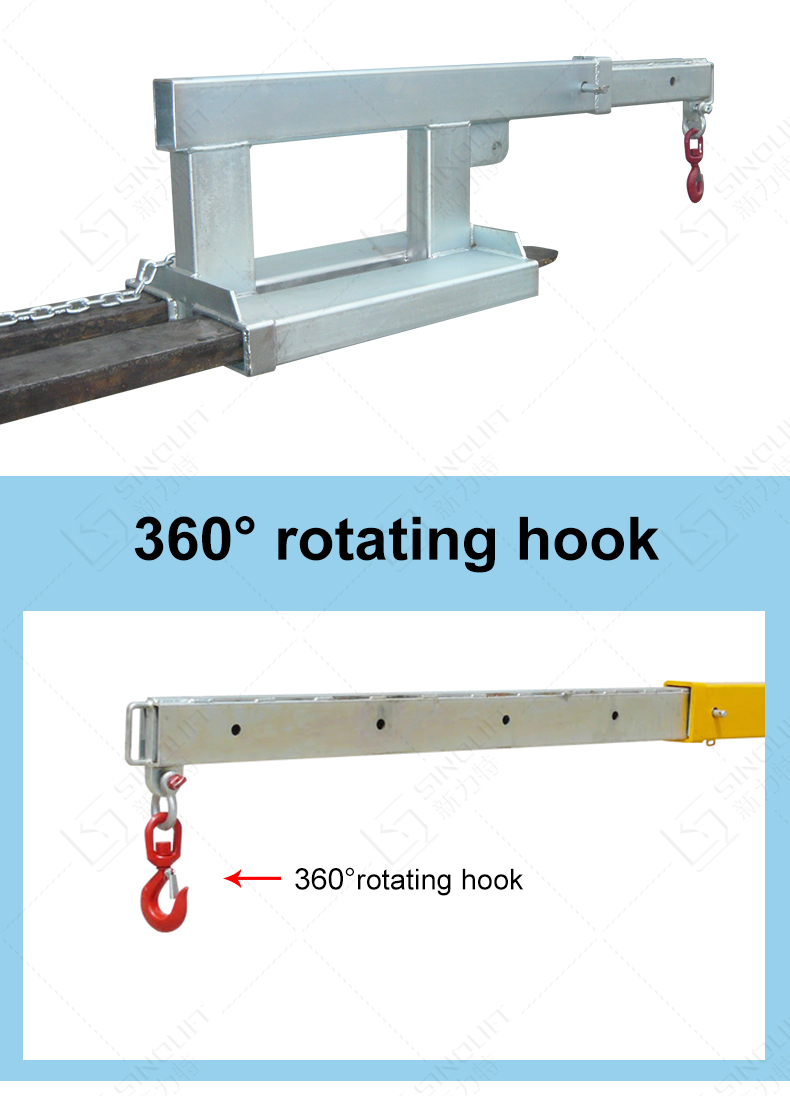

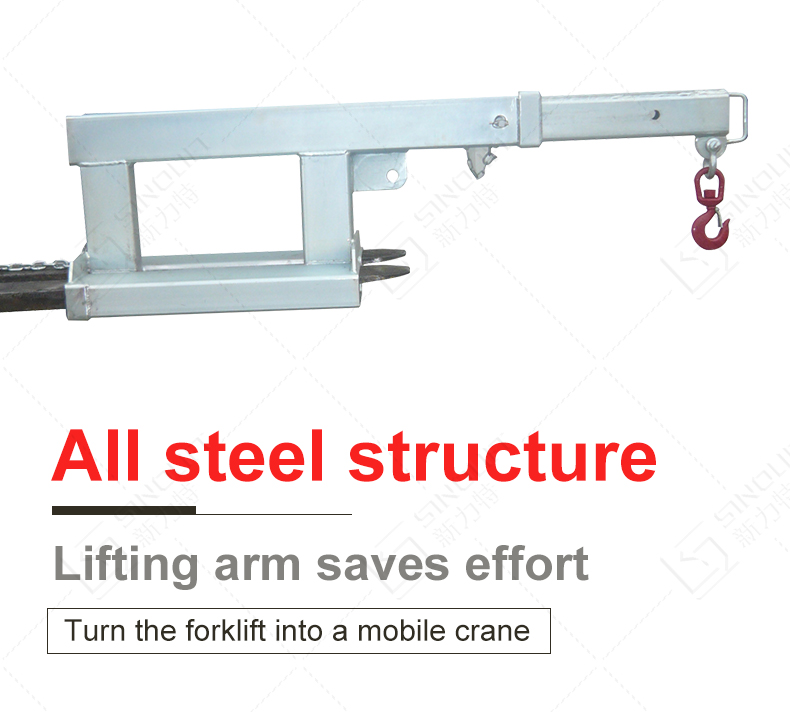

FJCS25 FJCS45 FJCS50 FJCS100 high quality and security certification jib crane forklift
FJCS25 FJCS45 FJCS50 FJCS100

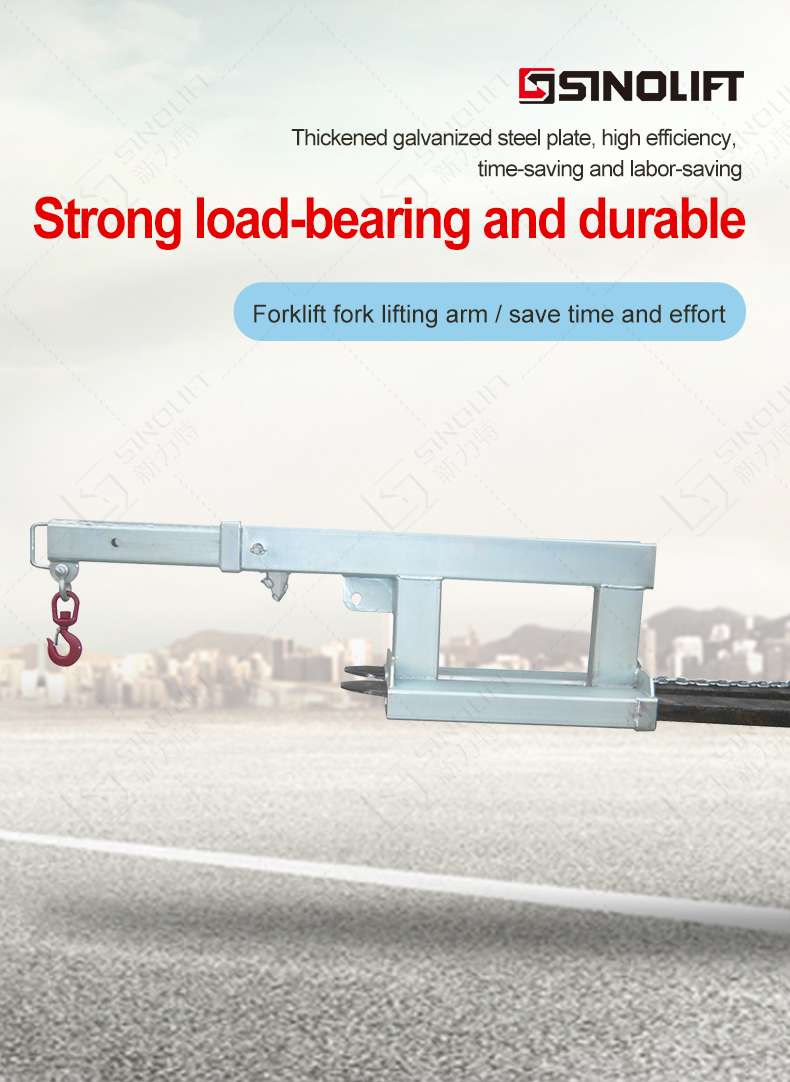

Thicked galvanized steel plate,high efficiency,time-saving and labor-saving
Quantity:
FJCS25 FJCS45 FJCS50 FJCS100 high quality and security certification jib crane forklift
- Small in size and little space taking.
- Easy installation, mainly used for lifting goods in the situation without travelling crane and only forklift available.

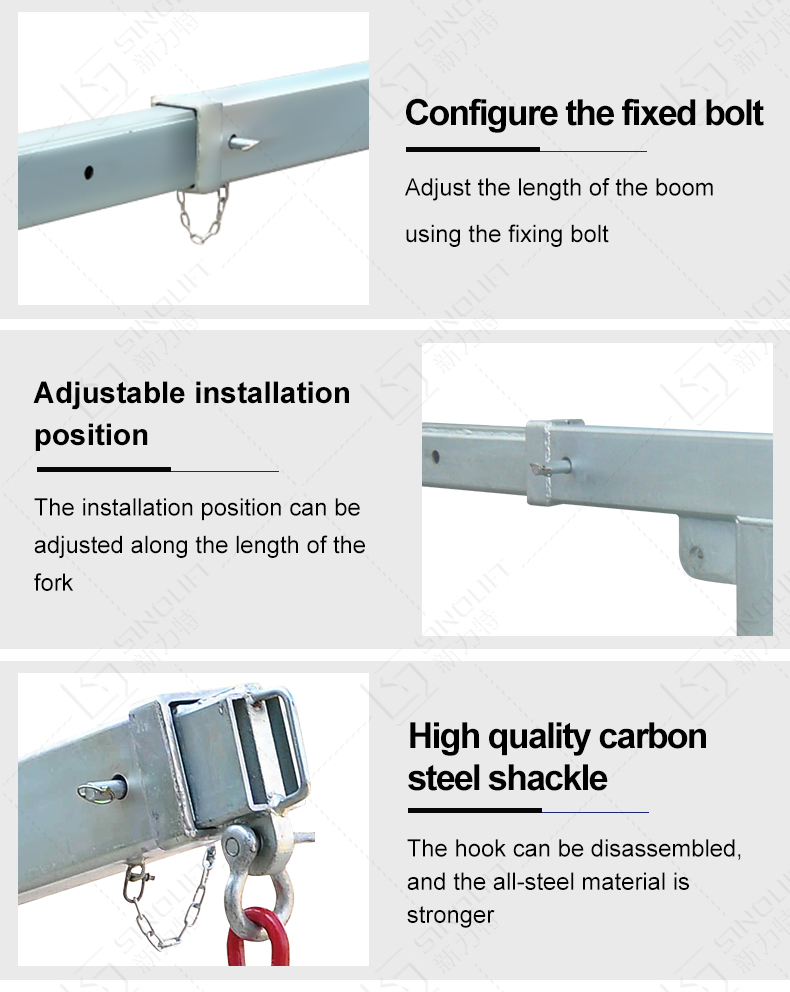

- Telescopic boom design makes flexible lifting length.
- Capacity: 2500kg,4500kg,4750kg,9500kg.

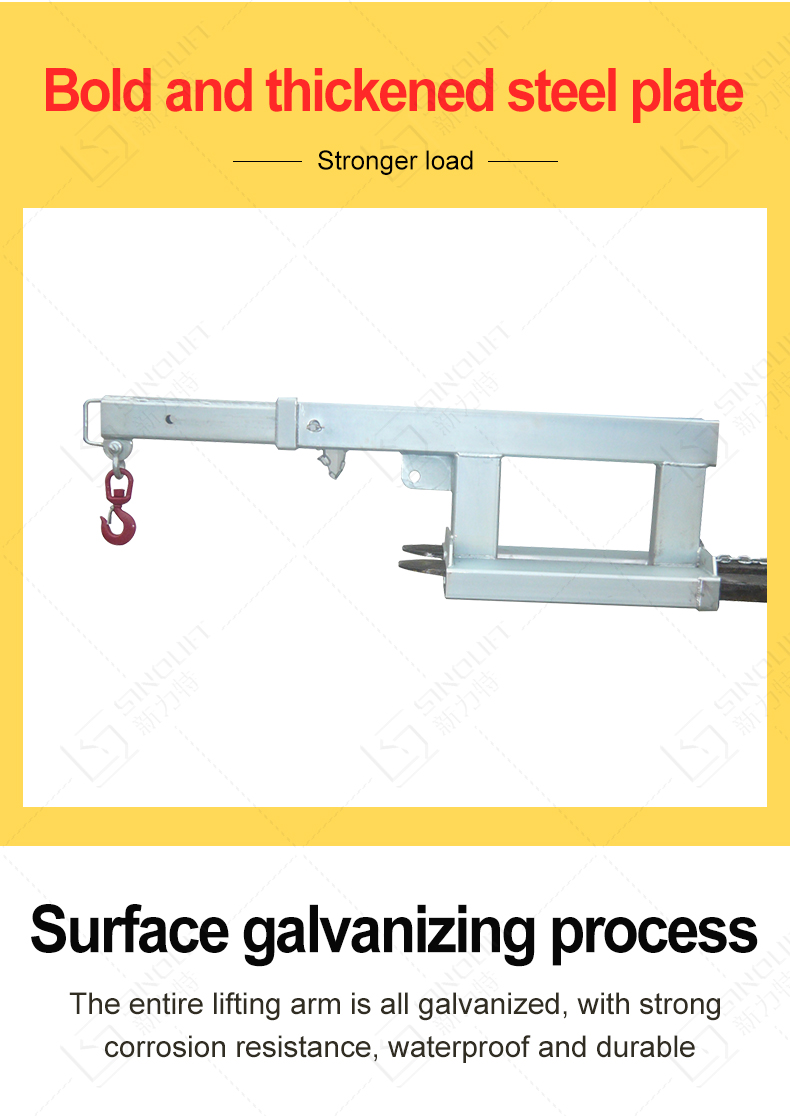

- Surface treatment: painted or galvanized finish.
Model | FJCS25 | FJCS45 | FJCS50 | FJCS100 |
Overall Length Retracted/Extended(m) | 1.3-2 | 1.25-1.96 | 1.3-1.96 | 1.39-2 |
Max.SWL(kg) | 2500 | 4500 | 4750 | 9500 |
ForkPocket Size(mm) | 185X65 | 185X65 | 185X75 | 230X110 |
Unit Weight(kg) | 100 | 95 | 130 | 400 |
SafeWorkingLoad(SWL) PerPosition(kg/mm) | 2500/790 | 4500/670 | 4750/780 | 9500/930 |
1200/1200 | 2900/1165 | 2400/1200 | 4800/1245 | |
900/1580 | 1300/1545 | 1800/1580 | 3600/1625 | |
750/1960 | 750/1925 | 1500/1960 | 3000/2005 |
