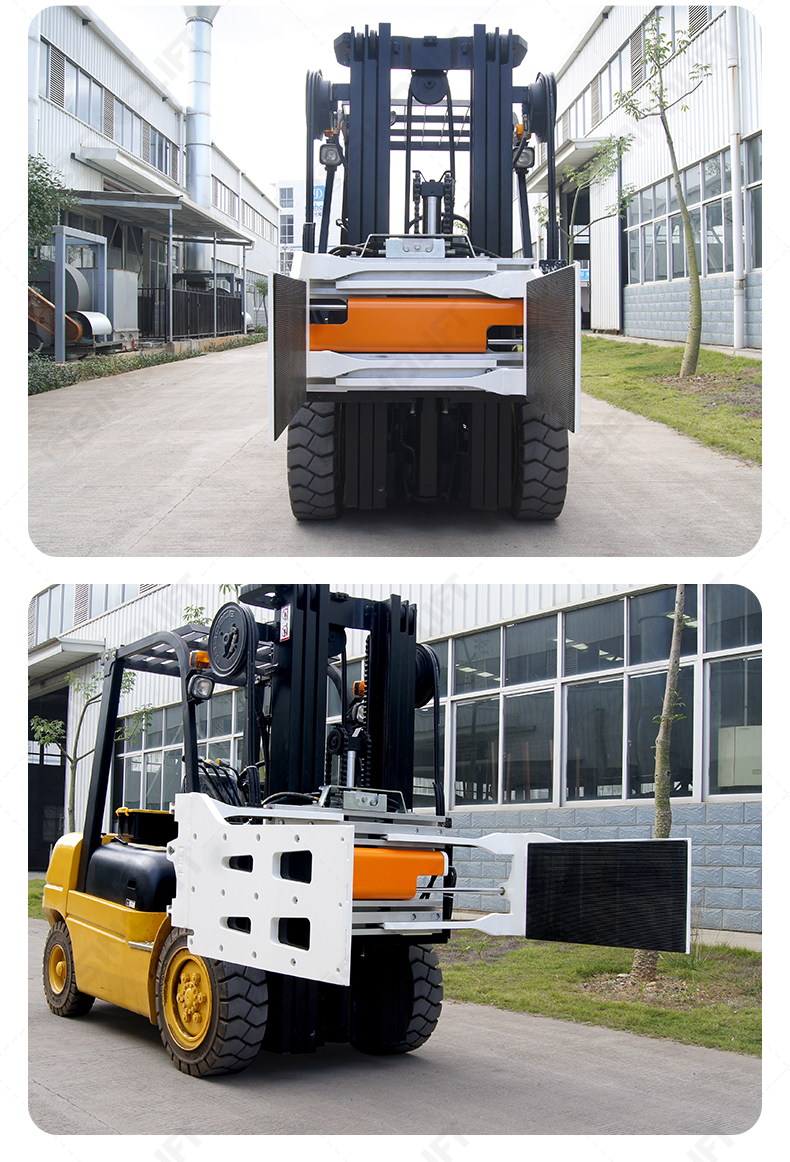

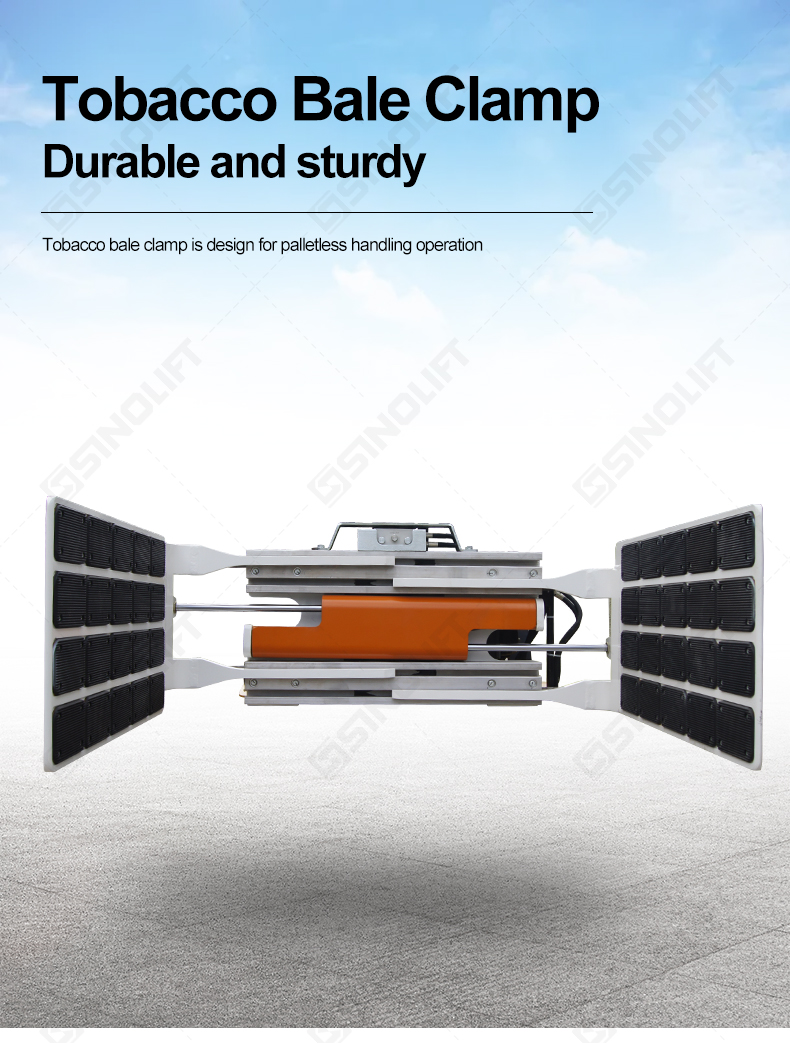

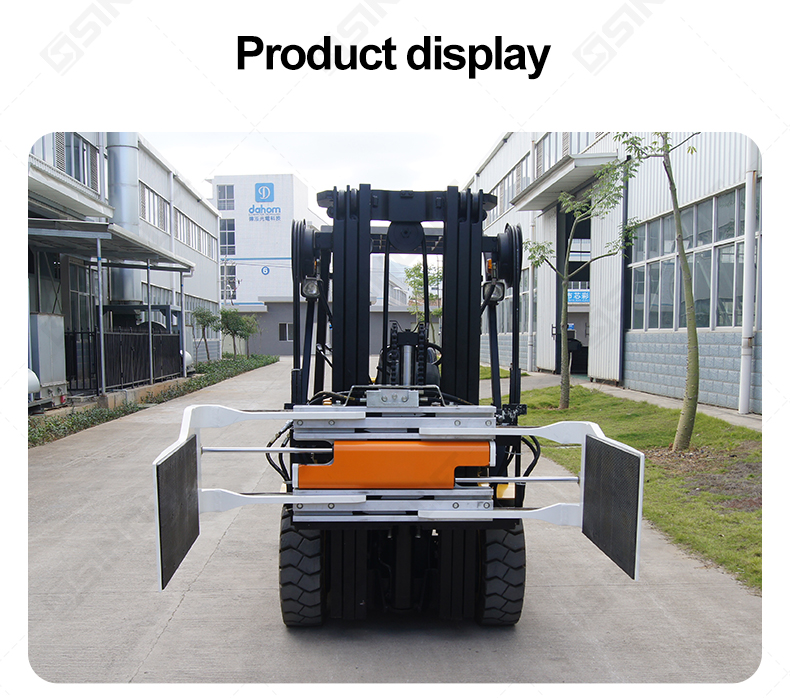

Tobacco bale clamp forklift attachment

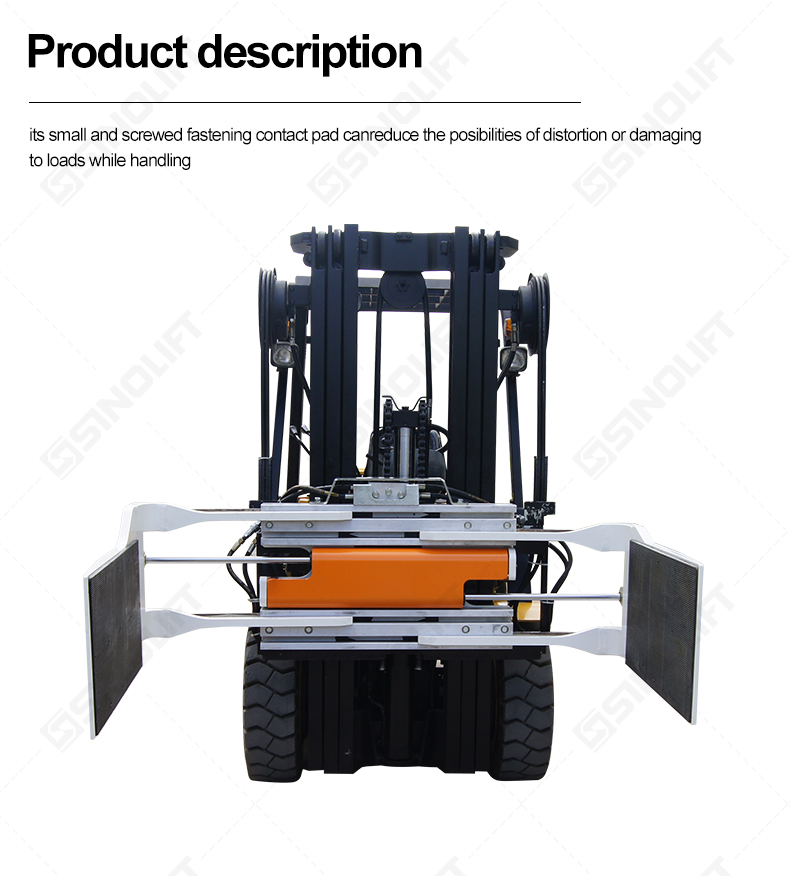

Structural components: The plywood are used around high-performance steel plates, and by the overall profiling and calibration, good bending properties.

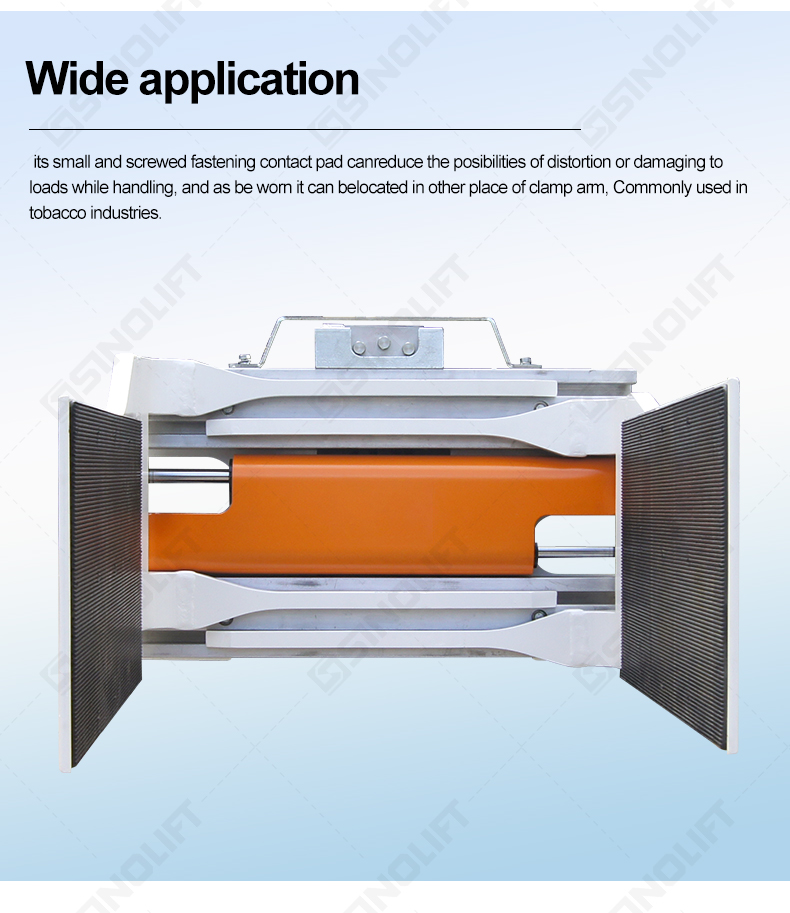

Mechanical performance: You can also achieve clamping, open and drift functions, and better vision; additional groups can meet the requirements of asphalt

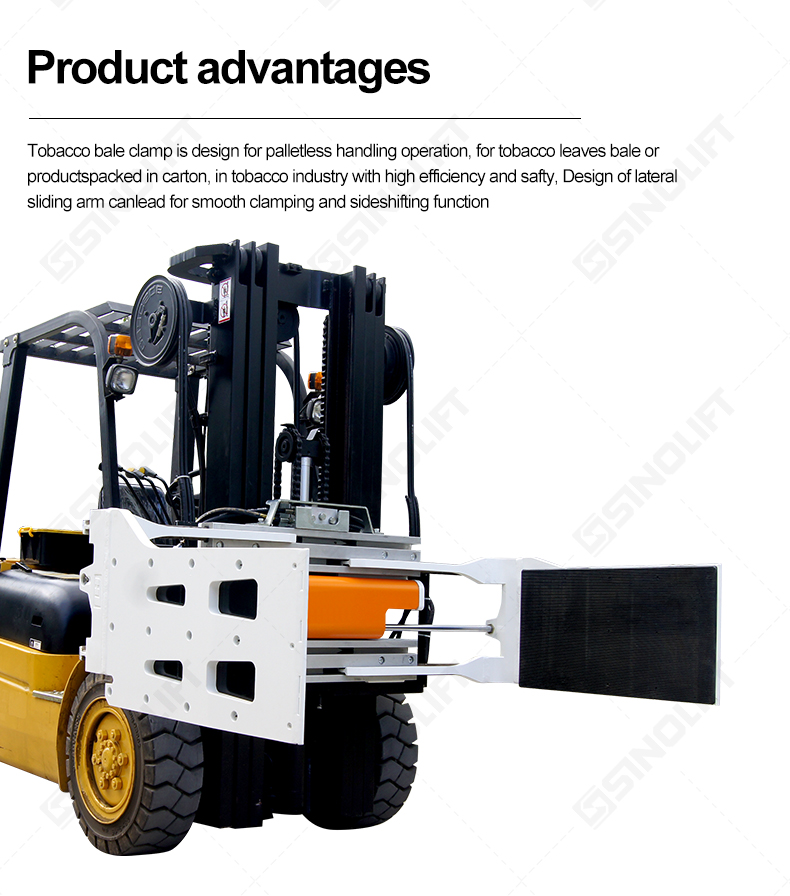

Applications: Tobacco Box folder is tailored for the tobacco industry, efficient, non-moving forklift pallet is a tobacco, especially for Roasting Plant, cigarette factory and other occasions of twin cured tobacco Container Handling. thereby effectively improving the storage space utilization and avoid the carton damage, reduce the logistics cost, significantly increase productivity.
Hydraulic systems: The main control valve in the load to maintain valve adopts imported products; seals are imported products, high-pressure hose with cone seal, high-performance import . Structural components: The plywood are used around high-performance steel plates, and by the overall profiling and calibration, good bending properties. Mechanical performance: You can also achieve clamping, open and drift functions, and better vision; additional groups can meet the requirements of asphalt Applications: Tobacco Box folder is tailored for the tobacco industry, efficient, non-moving forklift pallet is a tobacco, especially for Roasting Plant, cigarette factory and other occasions of twin cured tobacco Container Handling. thereby effectively improving the storage space utilization and avoid the carton damage, reduce the logistics cost, significantly increase productivity. |

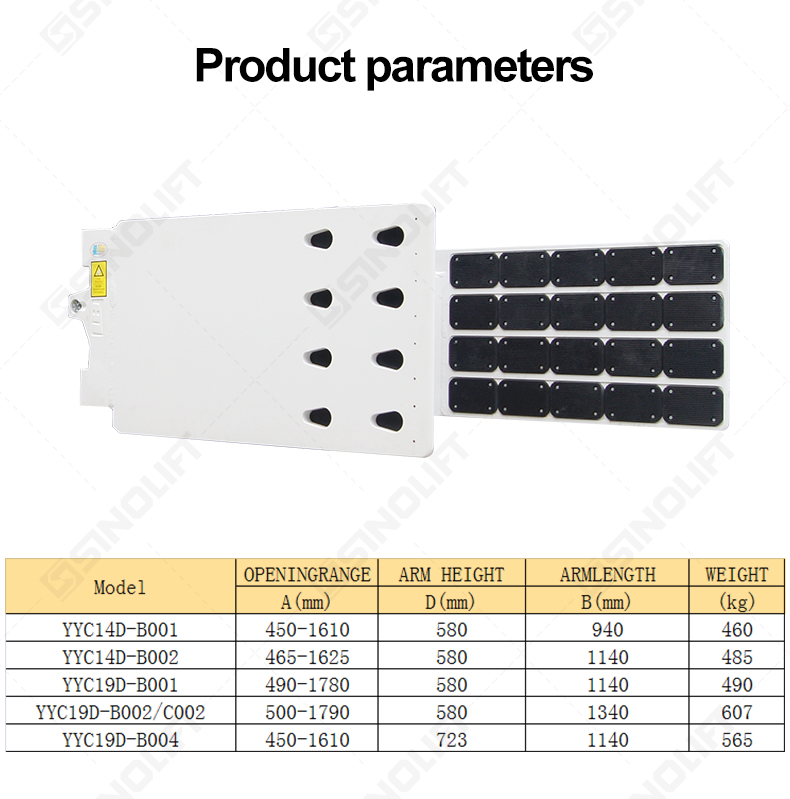

| Model | OPENINGRANGE | ARM HEIGHT | ARMLENGTH | WEIGHT |
| A(mm) | D(mm) | B(mm) | (kg) | |
| YYC14D-B001 | 450-1610 | 580 | 940 | 460 |
| YYC14D-B002 | 465-1625 | 580 | 1140 | 485 |
| YYC19D-B001 | 490-1780 | 580 | 1140 | 490 |
| YYC19D-B002/C002 | 500-1790 | 580 | 1340 | 607 |
| YYC19D-B004 | 450-1610 | 723 | 1140 | 565 |
