Multi-purpose Block Clamp Forklift Attachment
ZKC

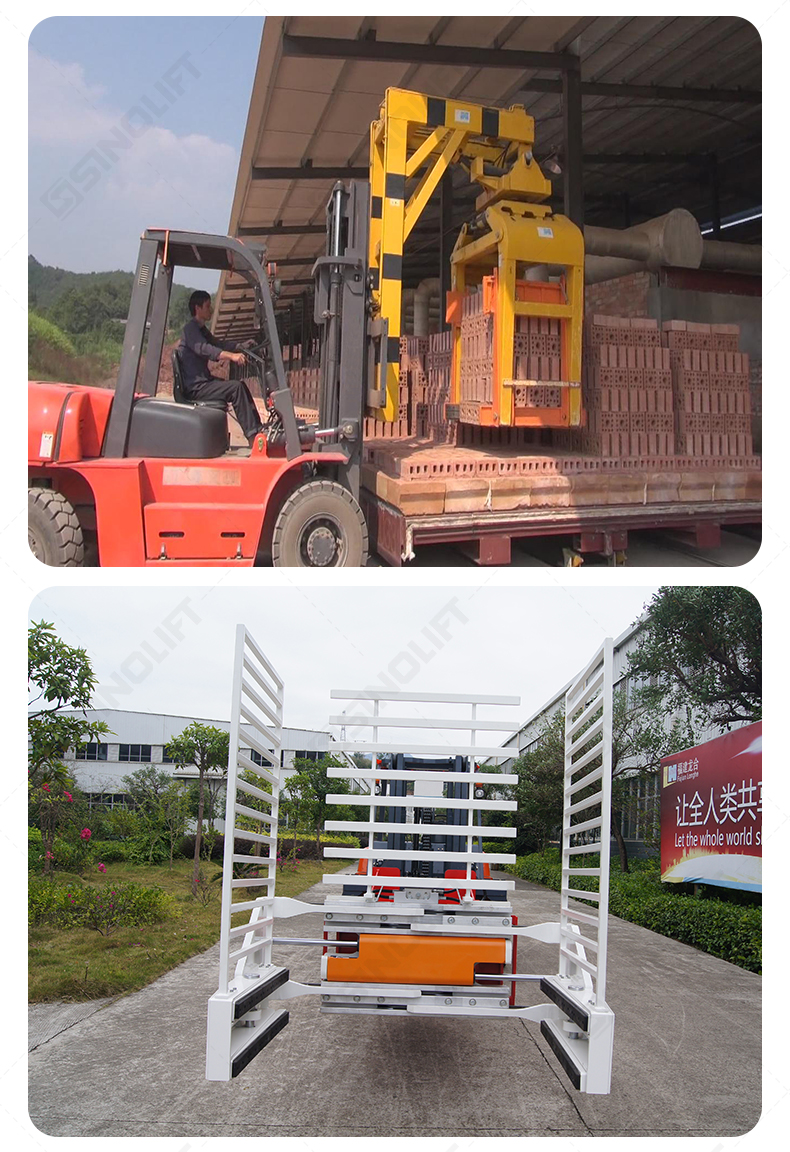

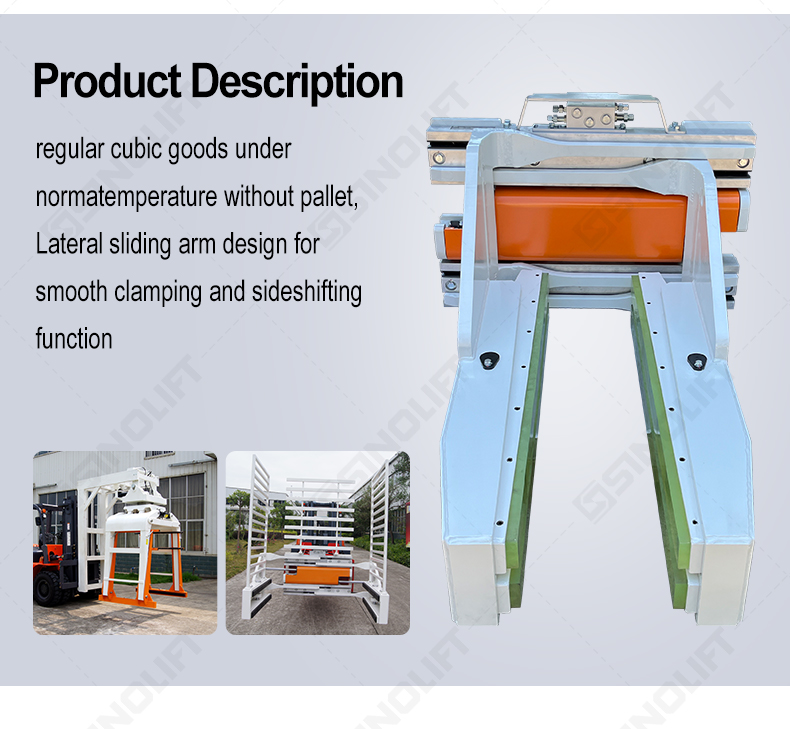

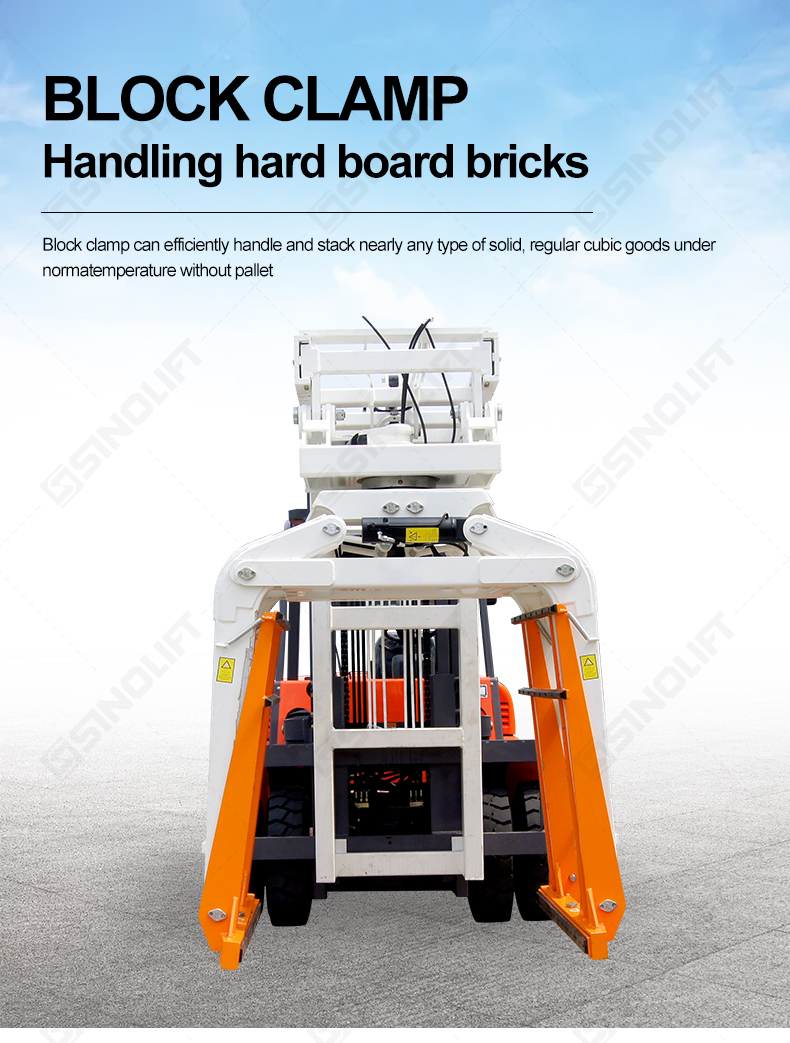

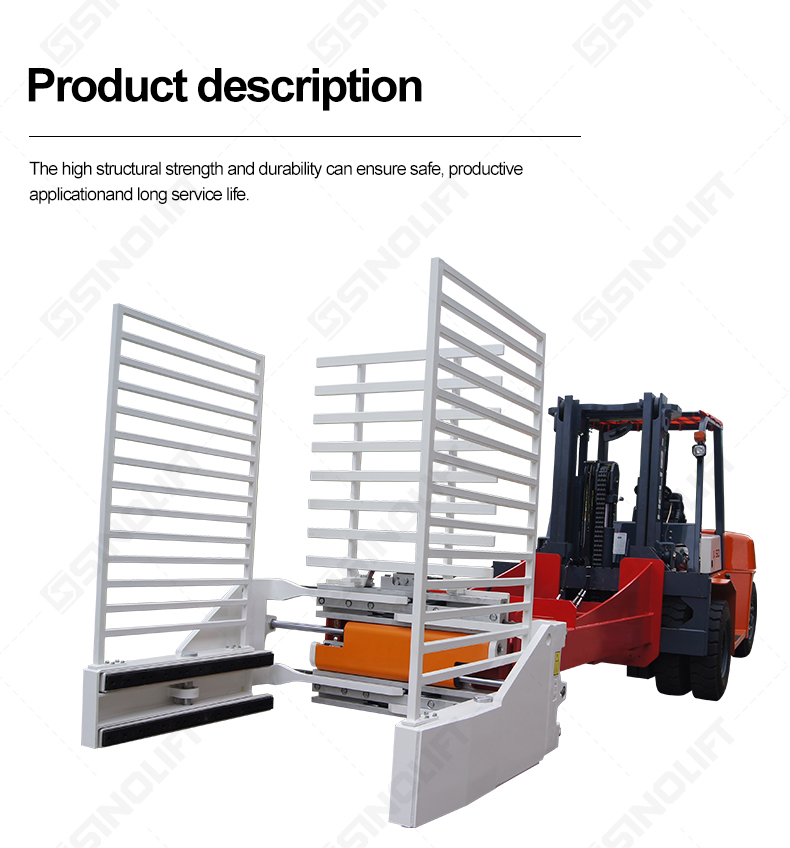

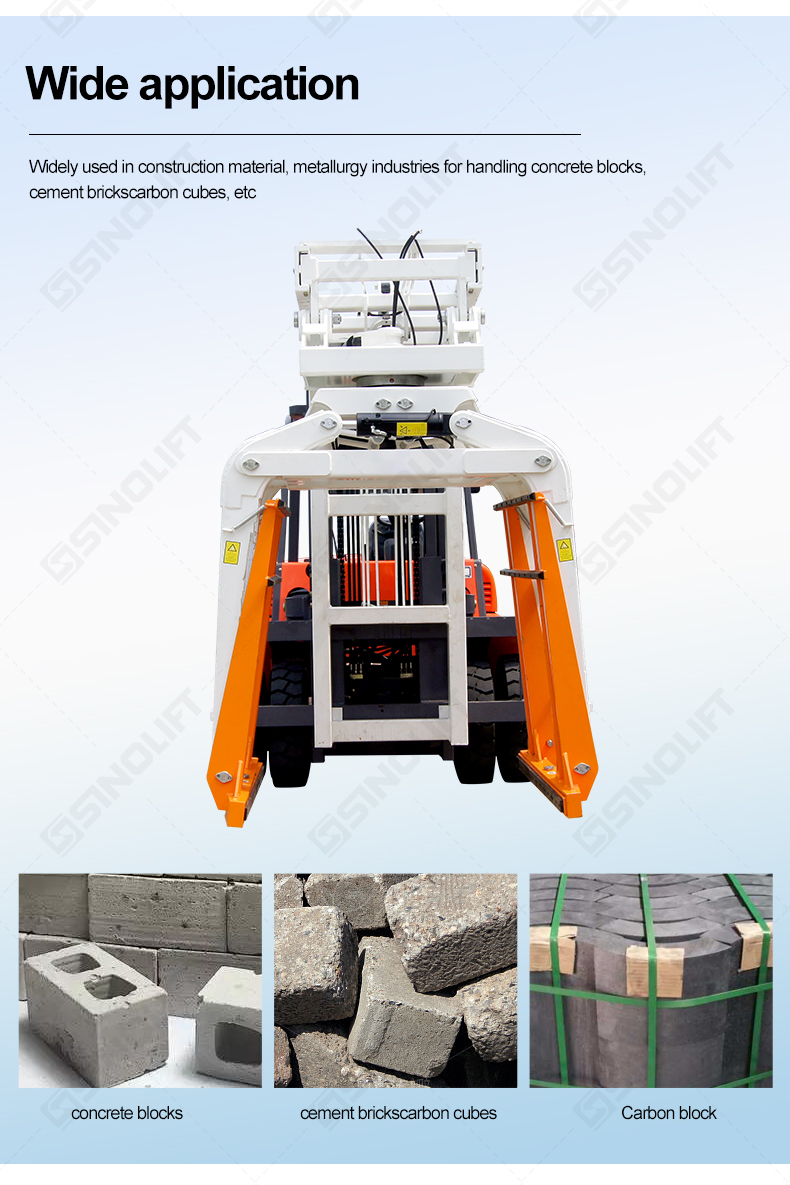

Block clamp can efficiently handle and stack nearly any type of solid, regular cubic goods under normatemperature without pallet, Lateral sliding arm design for smooth clamping and sideshifting function.Widely used in construction material, metallurgy industries for handling concrete blocks, cement brickscarbon cubes, etc. The high structural strength and durability can ensure safe, productive applicationand long service life.
Quantity:
Block clamp can efficiently handle and stack nearly any type of solid, regular cubic goods under normatemperature without pallet, Lateral sliding arm design for smooth clamping and sideshifting function.Widely used in construction material, metallurgy industries for handling concrete blocks, cement brickscarbon cubes, etc. The high structural strength and durability can ensure safe, productive applicationand long service life.

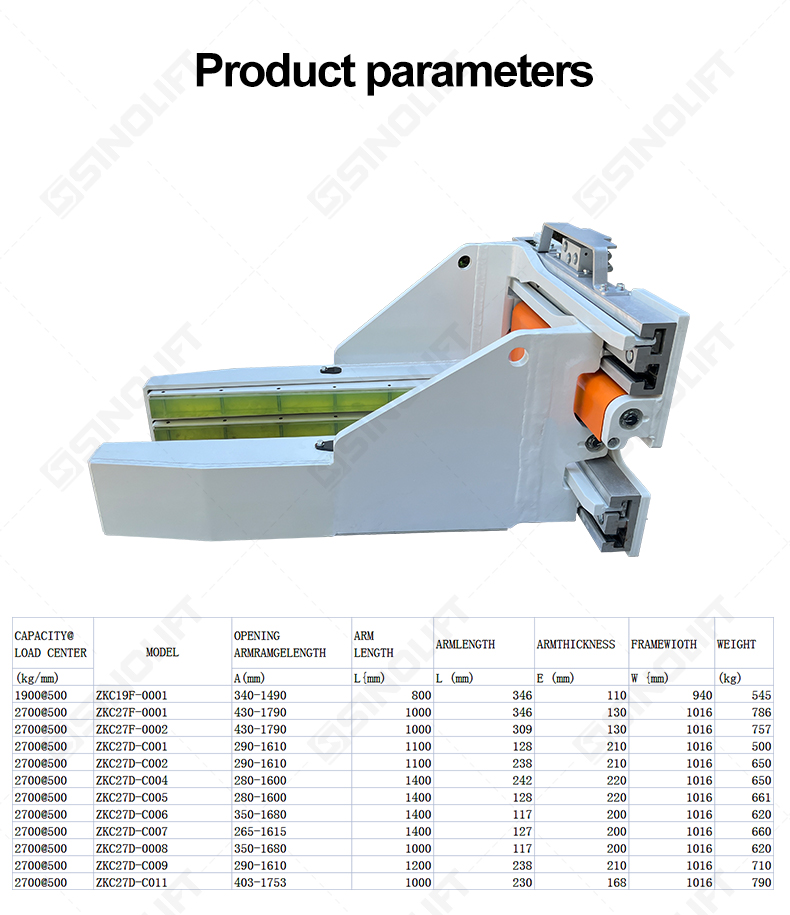

Specifications
CAPACITY@ LOAD CENTER | MODEL | OPENING ARMRAMGELENGTH | ARM LENGTH | ARMLENGTH | ARMTHICKNESS | FRAMEWIOTH | WEIGHT |
| (kg/mm) | A(mm) | L{mm) | L (mm) | E (mm) | W {mm) | (kg) | |
| 1900@500 | ZKC19F-0001 | 340-1490 | 800 | 346 | 110 | 940 | 545 |
| 2700@500 | ZKC27F-0001 | 430-1790 | 1000 | 346 | 130 | 1016 | 786 |
| 2700@500 | ZKC27F-0002 | 430-1790 | 1000 | 309 | 130 | 1016 | 757 |
| 2700@500 | ZKC27D-C001 | 290-1610 | 1100 | 128 | 210 | 1016 | 500 |
| 2700@500 | ZKC27D-C002 | 290-1610 | 1100 | 238 | 210 | 1016 | 650 |
| 2700@500 | ZKC27D-C004 | 280-1600 | 1400 | 242 | 220 | 1016 | 650 |
| 2700@500 | ZKC27D-C005 | 280-1600 | 1400 | 128 | 220 | 1016 | 661 |
| 2700@500 | ZKC27D-C006 | 350-1680 | 1400 | 117 | 200 | 1016 | 620 |
| 2700@500 | ZKC27D-C007 | 265-1615 | 1400 | 127 | 200 | 1016 | 660 |
| 2700@500 | ZKC27D-0008 | 350-1680 | 1000 | 117 | 200 | 1016 | 620 |
| 2700@500 | ZKC27D-C009 | 290-1610 | 1200 | 238 | 210 | 1016 | 710 |
| 2700@500 | ZKC27D-C011 | 403-1753 | 1000 | 230 | 168 | 1016 | 790 |
