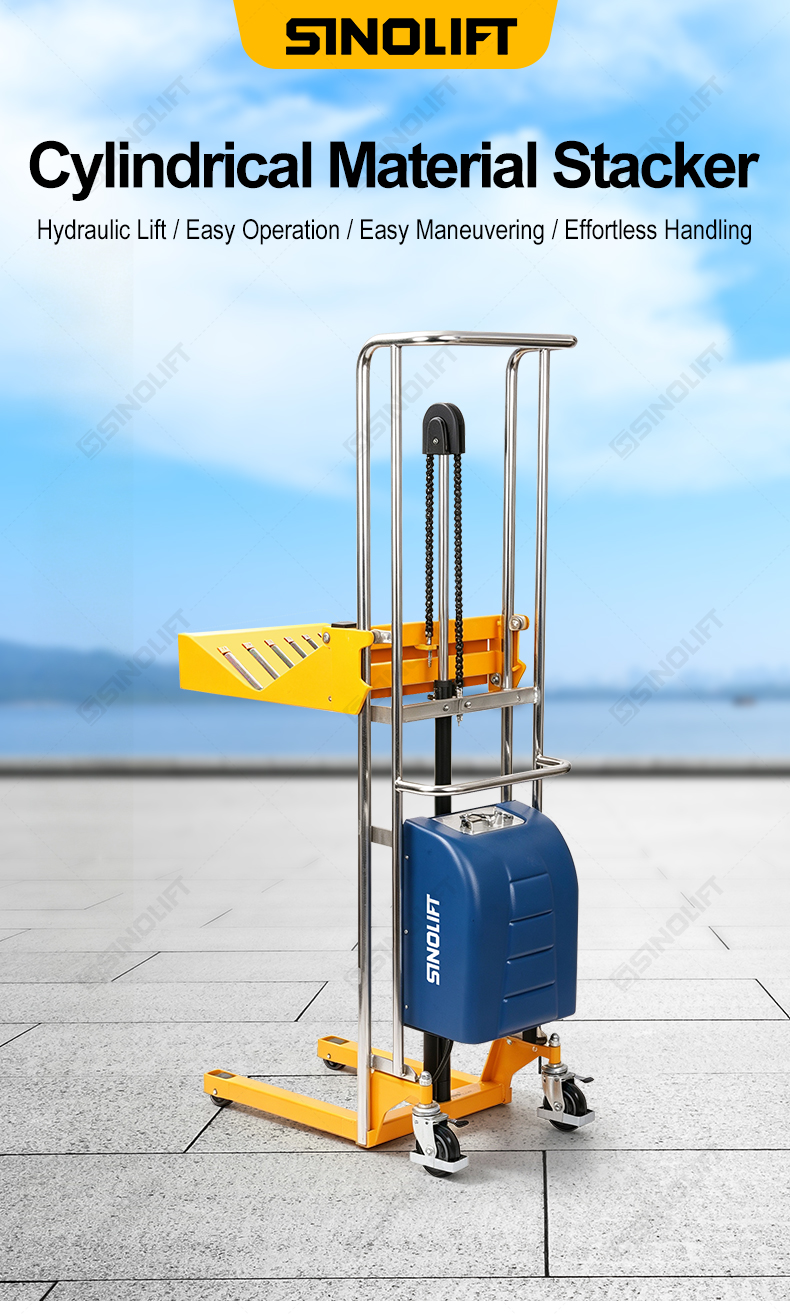

SINOLIFT EPV Semi-Electric Roll Handling Stacker for Paper Rolls, Film Rolls, Reels & Drums
TheEPV Semi-Electric Roll Handling Stacker is a practical material-handling solution developed for paper rolls, film rolls, reels, drums, and other cylindrical loads. Designed for applications where conventional flat-platform equipment cannot provide sufficient load support, the EPV combines a specially designed roll cradle with powered lifting to make roll handling safer, easier, and more efficient.

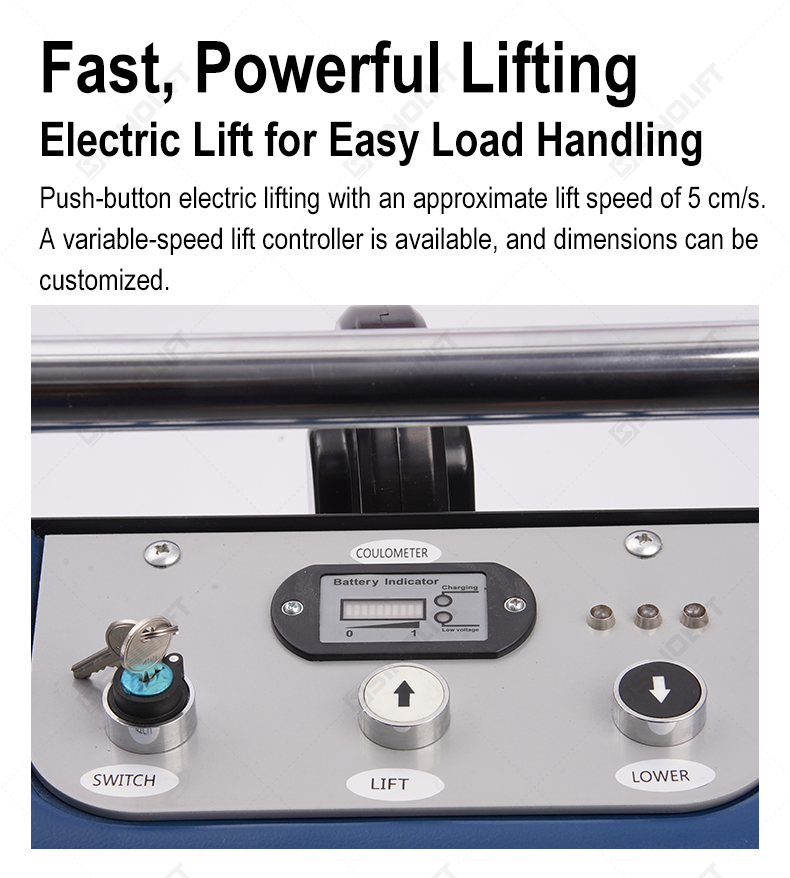

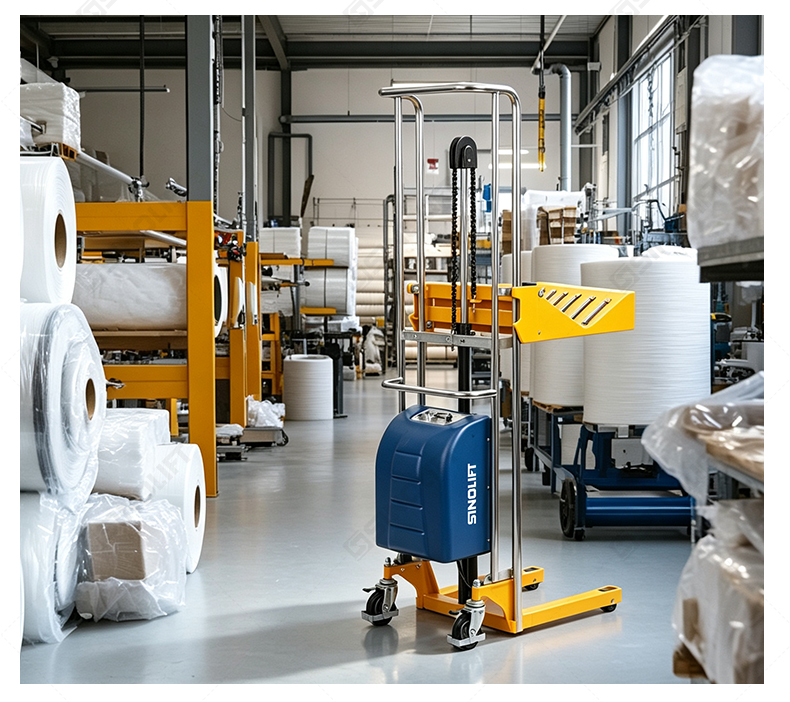

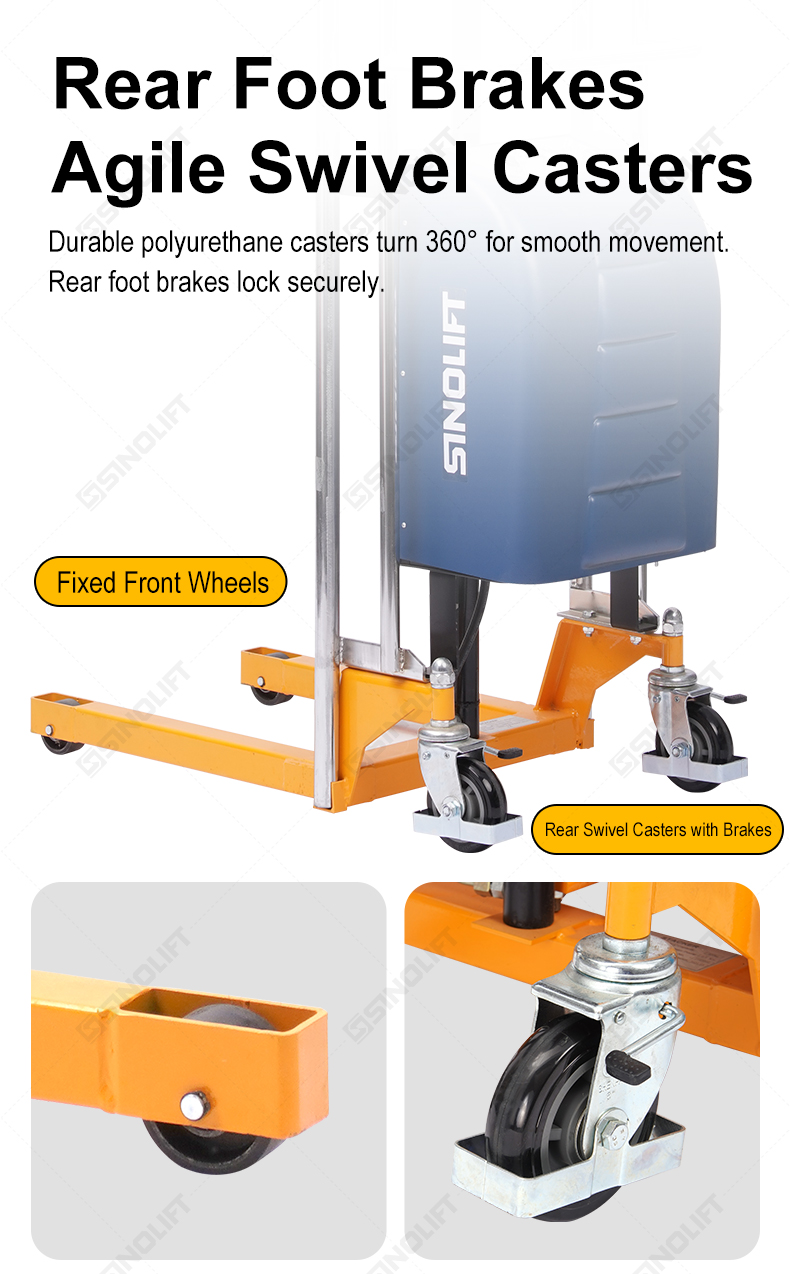

The machine features manual travel and electric lifting, allowing operators to move the stacker freely around the workplace while using push-button controls to raise or lower the load. This semi-electric configuration reduces the physical effort required during repetitive lifting operations without adding the complexity of a fully powered drive system. It is especially suitable for indoor workshops, warehouses, printing facilities, packaging plants, and production lines.

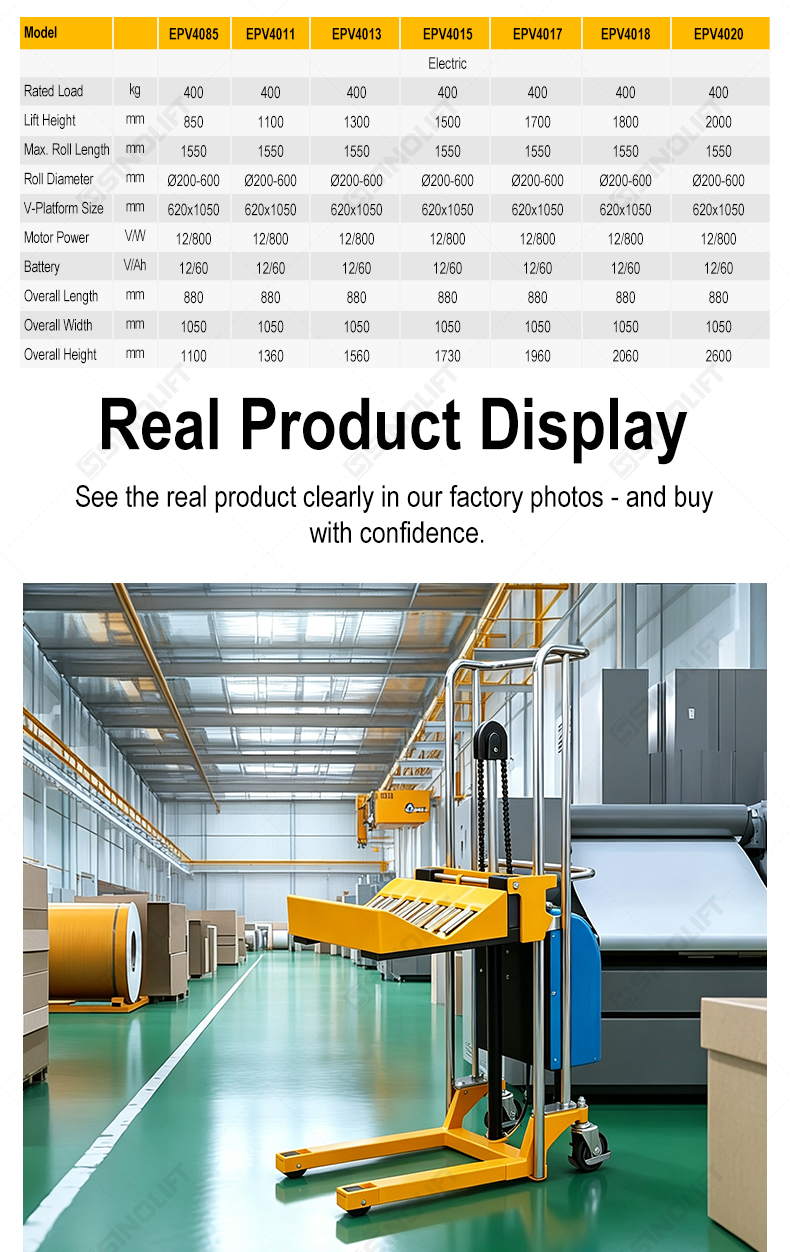

| Model No. | EPV4085 | EPV4011 | EPV4013 | EPV4015 | EPV4017 | EPV4018 | EPV4020 | |
| Operation | Electric | |||||||

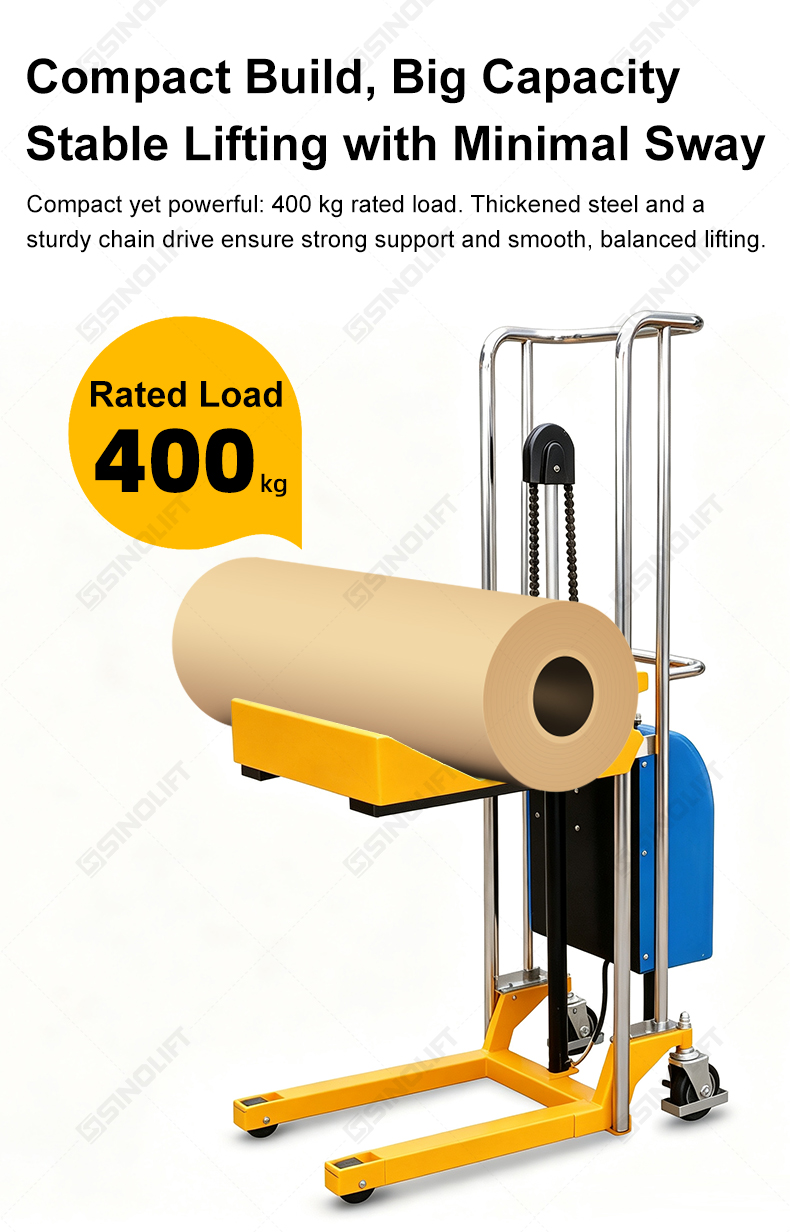

| Load capacity | (kg) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |

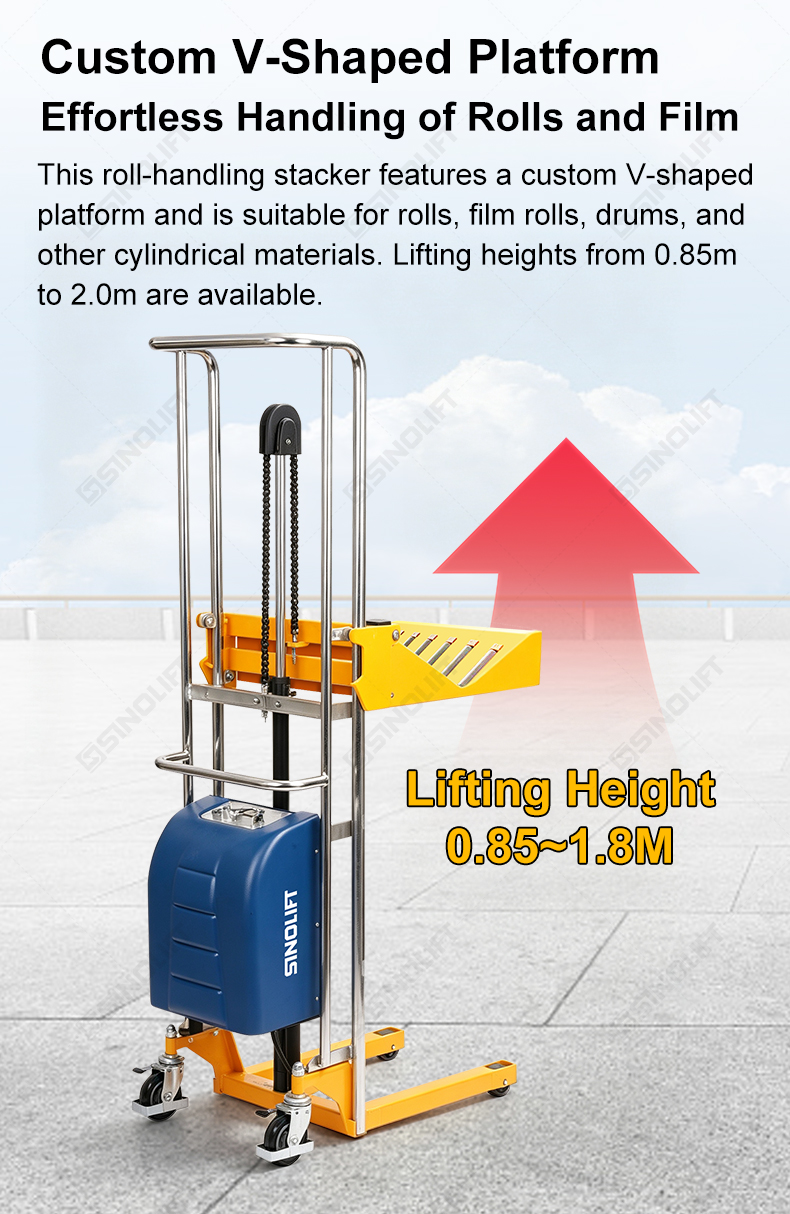

| Lifting Height | (mm) | 850 | 1100 | 1300 | 1500 | 1700 | 1800 | 2000 |
| Max.width of reel/roll | (mm) | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Min.- Max.diameter of reel/roll | (mm) | Ø200-600 | Ø200-600 | Ø200-600 | Ø200-600 | Ø200-600 | Ø200-600 | Ø200-600 |
| Reel V-Tray Wdith x Length | (mm) | 620x1050 | 620x1050 | 620x1050 | 620x1050 | 620x1050 | 620x1050 | 620x1050 |

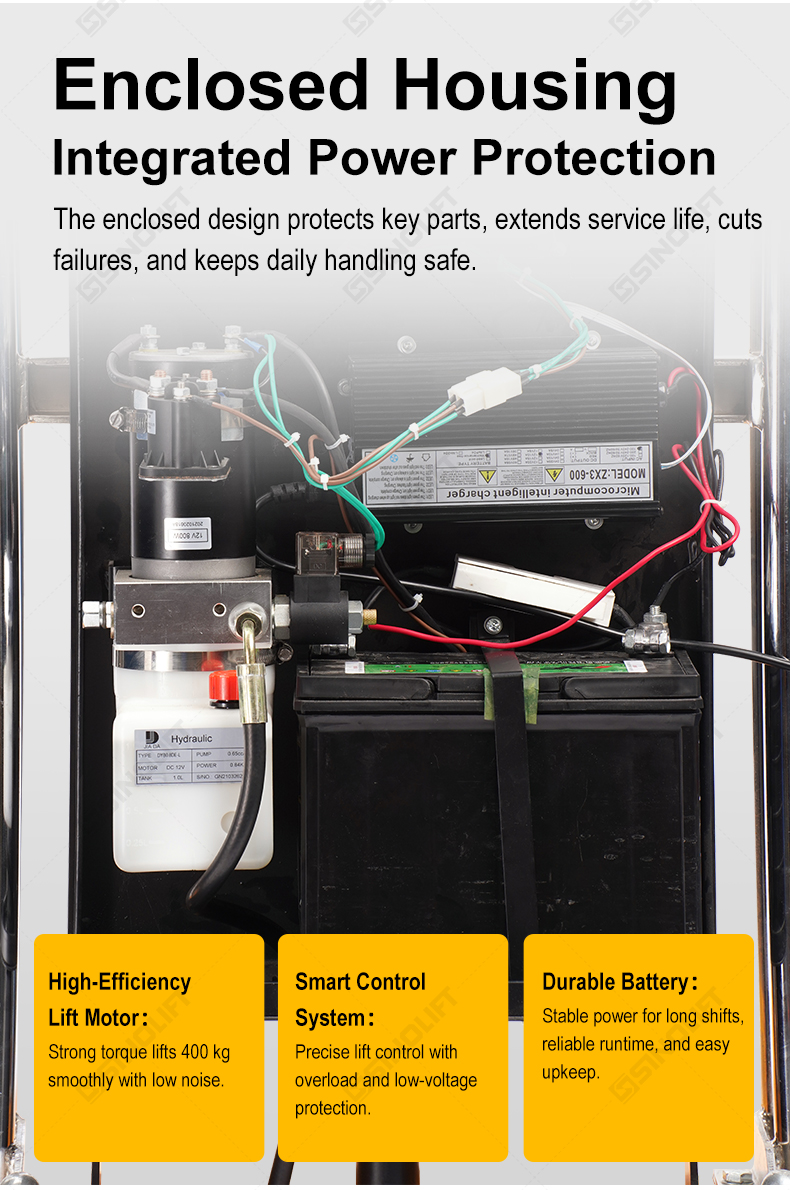

| Power Unit | V/W | 12/800 | 12/800 | 12/800 | 12/800 | 12/800 | 12/800 | 12/800 |
| Battery | V/Ah | 12/60 | 12/60 | 12/60 | 12/60 | 12/60 | 12/60 | 12/60 |
| Overall Length | (mm) | 880 | 880 | 880 | 880 | 880 | 880 | 880 |
| Overall Wdith | (mm) | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Overall Height | (mm) | 1100 | 1360 | 1560 | 1730 | 1960 | 2060 | 2600 |

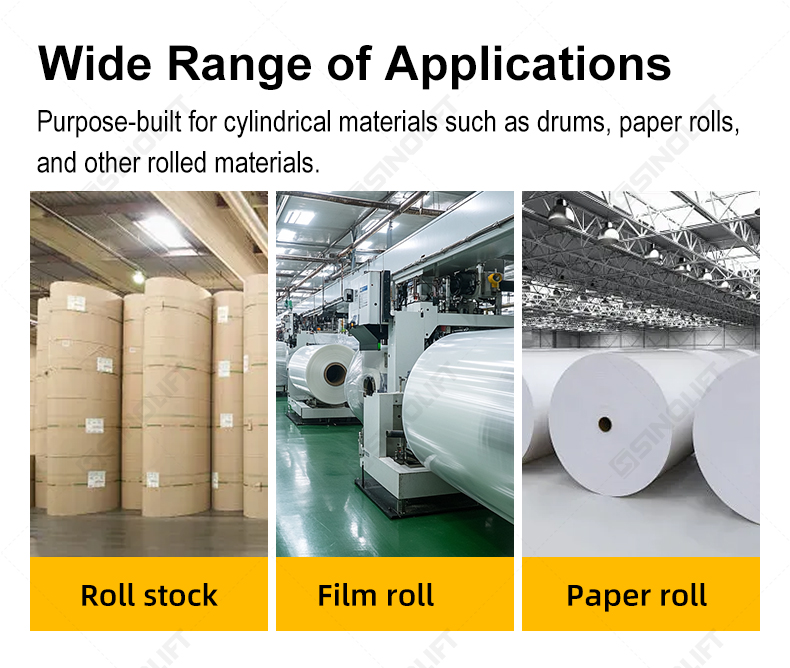

Typical Applications
The EPV Semi-Electric Roll Handling Stacker can be used in a variety of roll-handling environments, including:
- Paper and printing facilities
- Film and flexible packaging production
- Paper converting operations
- Warehouses and storage areas
- Production-line material feeding
- Transfer between floor level and worktables
- Loading rolls into processing equipment
- Handling drums and other cylindrical loads
It is particularly useful where cylindrical materials need to be lifted and positioned repeatedly while minimizing manual handling effort.

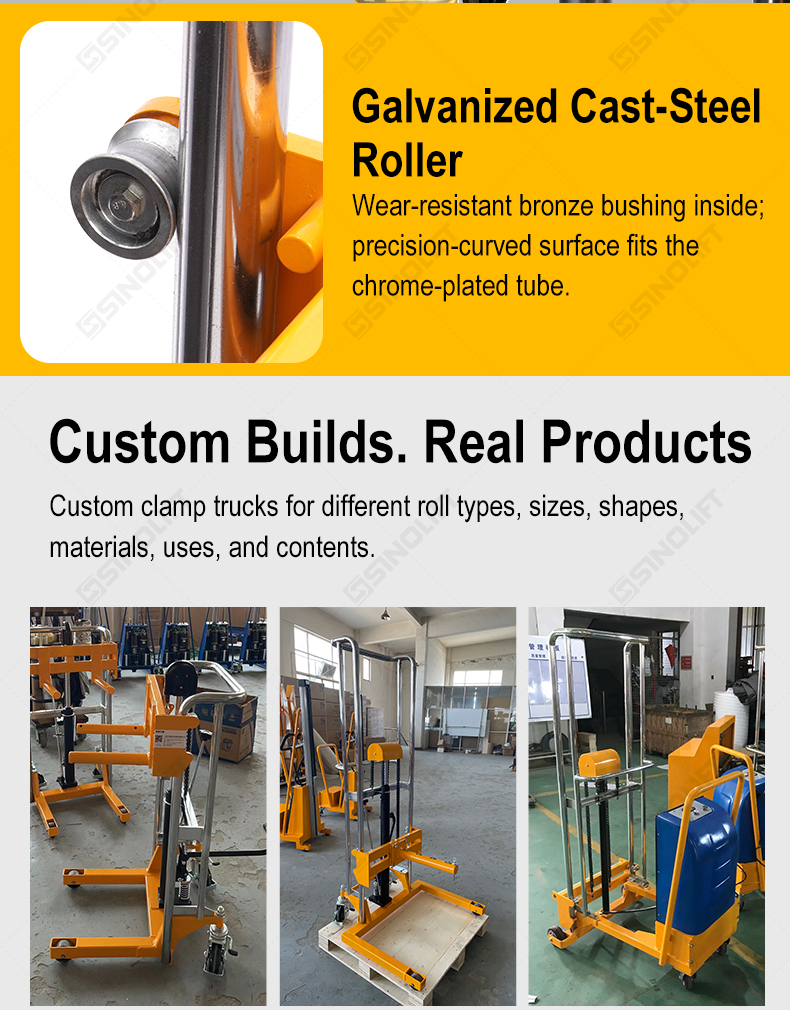

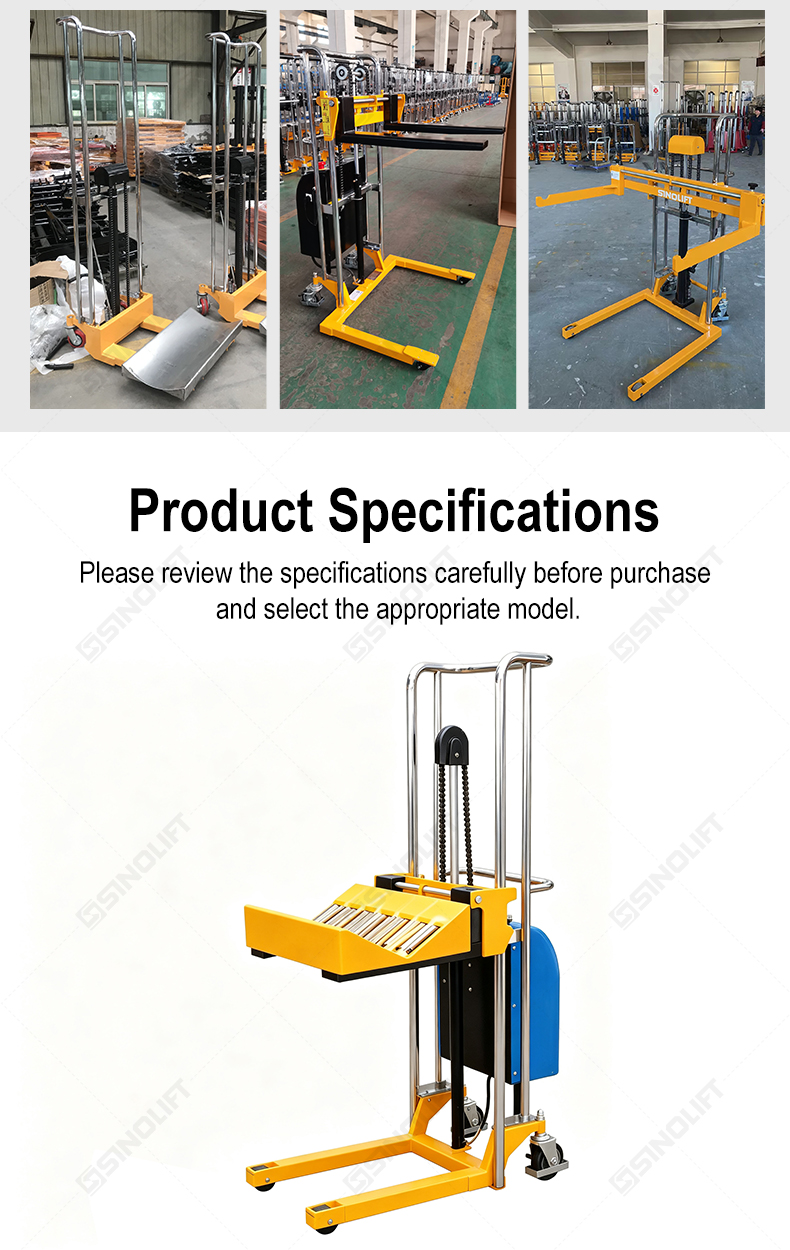

Customized to Your Roll and Workplace
Roll-handling equipment should be selected according to the actual load rather than weight capacity alone.
For a suitable EPV configuration, customers are recommended to provide the maximum roll weight, roll diameter, roll length, required lifting height, and final loading position. Information such as aisle width, doorway dimensions, floor conditions, operating frequency, and special platform requirements can also help determine the most appropriate configuration.

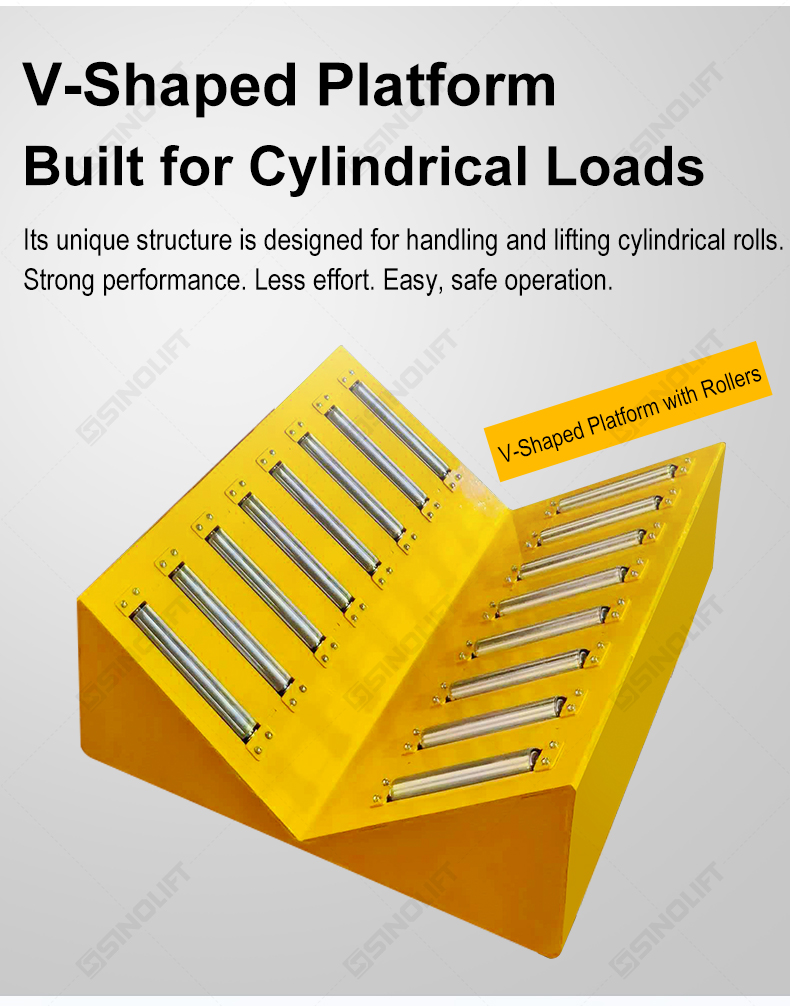

With its combination of electric lifting, manual maneuverability, a V-shaped roll platform, and customizable dimensions, the EPV provides a flexible solution for businesses that need to move and position cylindrical materials efficiently within indoor production and warehouse environments.
