Single-Mast Inclinable Aluminum Alloy Aerial Work Platform

GTWY

Quantity:

Contact Now

add to cart

Compact, Lightweight, and Designed for Maximum Accessibility

TheSingle-Mast Inclinable Aluminum Alloy Aerial Work Platform is a versatile elevated work solution engineered for safe and efficient operation in confined, narrow, and low-clearance environments. Featuring a lightweight aluminum alloy construction and an innovative inclinable mast design, this platform delivers exceptional maneuverability, easy transportation, and reliable performance for a wide range of indoor maintenance and installation applications.

With a maximum working height of up to 12 meters, the platform provides operators with safe access to elevated work areas while maintaining outstanding stability and ease of operation. Its compact footprint allows smooth navigation through standard doorways, aisles, warehouses, and other space-restricted locations where larger aerial lifts cannot operate.

Designed with operator safety and productivity in mind, the platform combines dual-control operation, a high-stability outrigger system, ergonomic access, and convenient battery charging capabilities to meet the demands of modern industrial and commercial workplaces.

Dimensions		Electrical & Hydraulic
Max. Safe Working Height (mm)	12000	Voltage	12V DC
Max. Platform Height (mm)	11000	Lift Motor	12V DC/1.6KW
Overall Machine Length (mm)	1390	Battery	12V /60Ah
Overall Machine Width (mm)	750	Charger	12V DC/15A
Overall Height Tilted (mm)	2650
Overall Storage Height (mm)	2350
Outrigger Extended Length (mm)	2260
Outrigger Extended Width (mm)	2240	Performance
Extension Bracket Extended Width (mm)	2150	Safe Working Load (kg)	136
Platform Length (mm)	680	Max. Occupants (Indoor/Outdoor)	1
Platform Width (mm)	680	Max. Allowable Manual Force (N)	200
Ground Clearance (Folded/Raised) (mm)	55	Raise/Lower Time (s)	26-40
Machine Weight (DC) (kg)	500
Swivel Caster Size (mm)	Φ127*50
Fixed Caster Size (mm)	Φ203*50

Key Features

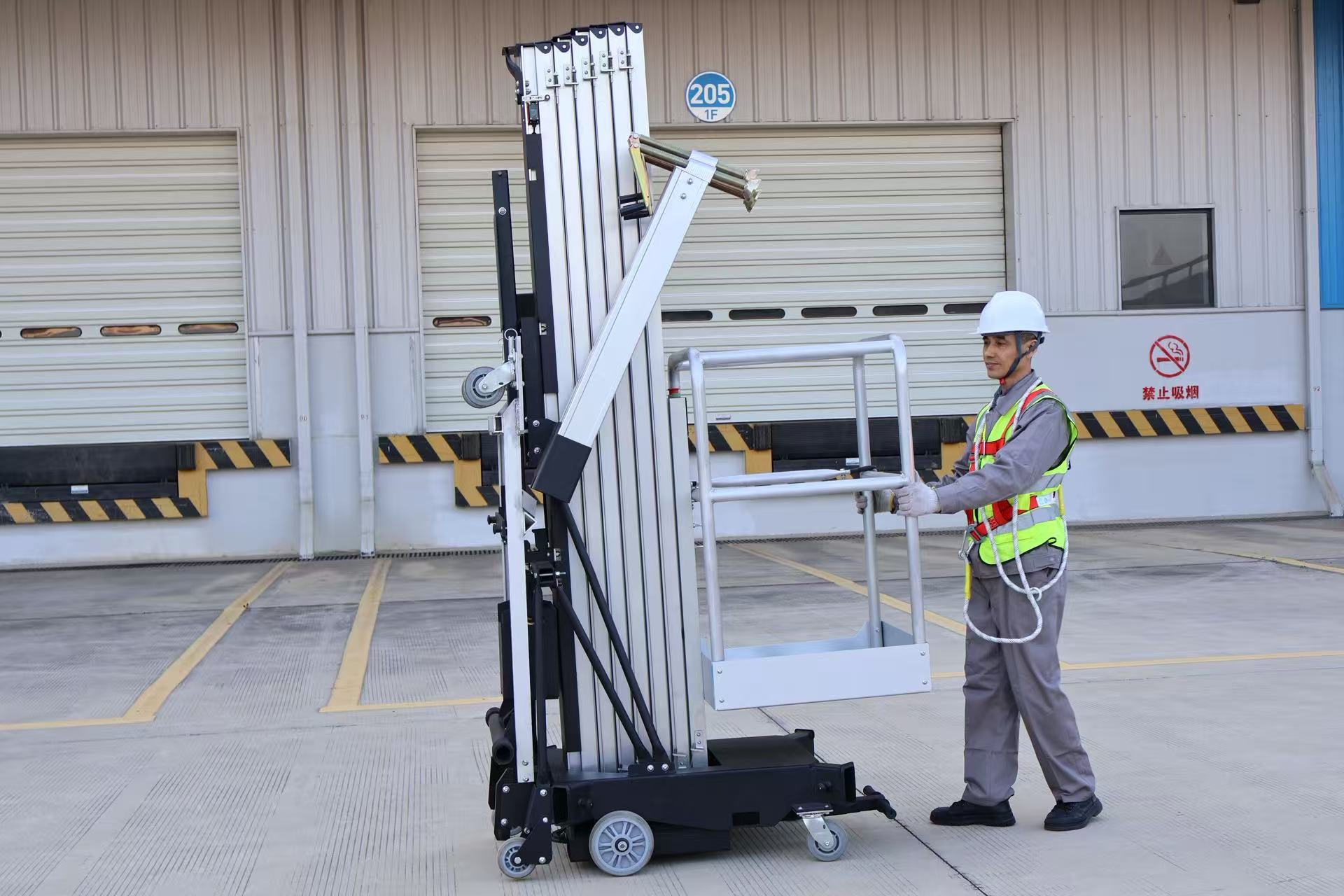

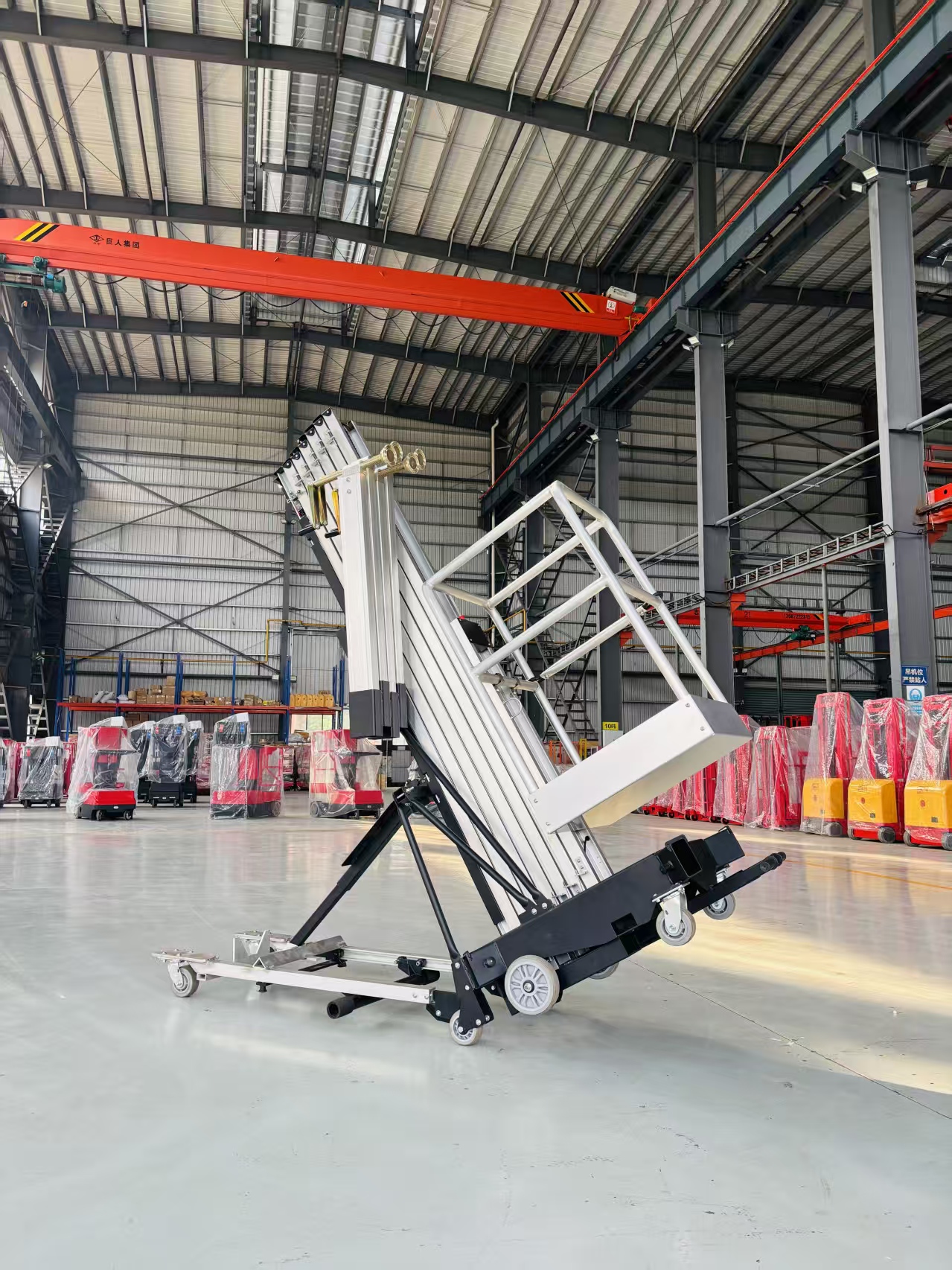

Inclinable Mast Design

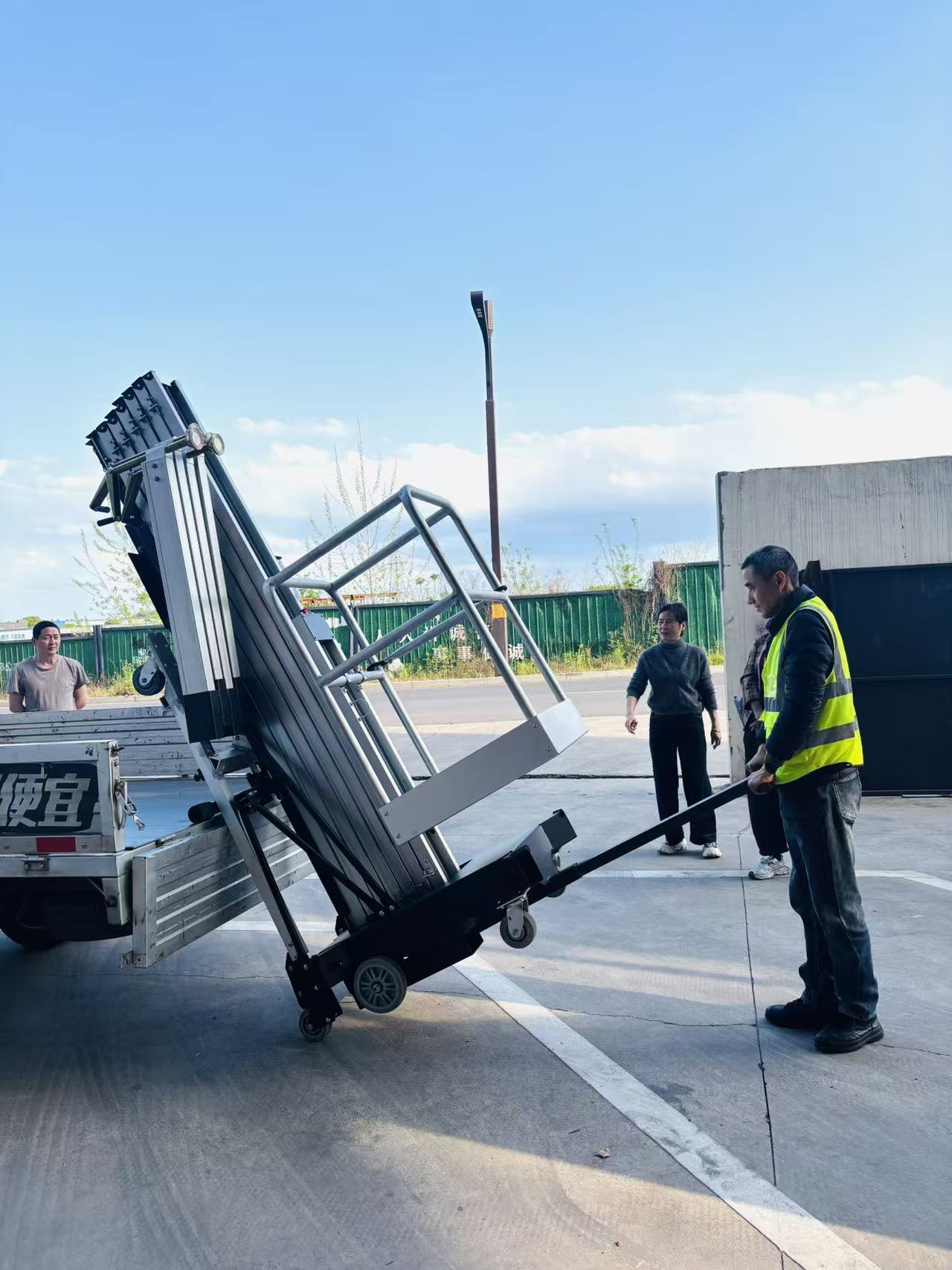

The advanced inclinable mast structure allows the platform to be tilted for easy loading and unloading onto transport vehicles, significantly simplifying transportation between job sites. It also enables access through low-clearance entrances and restricted spaces where conventional aerial work platforms cannot enter.

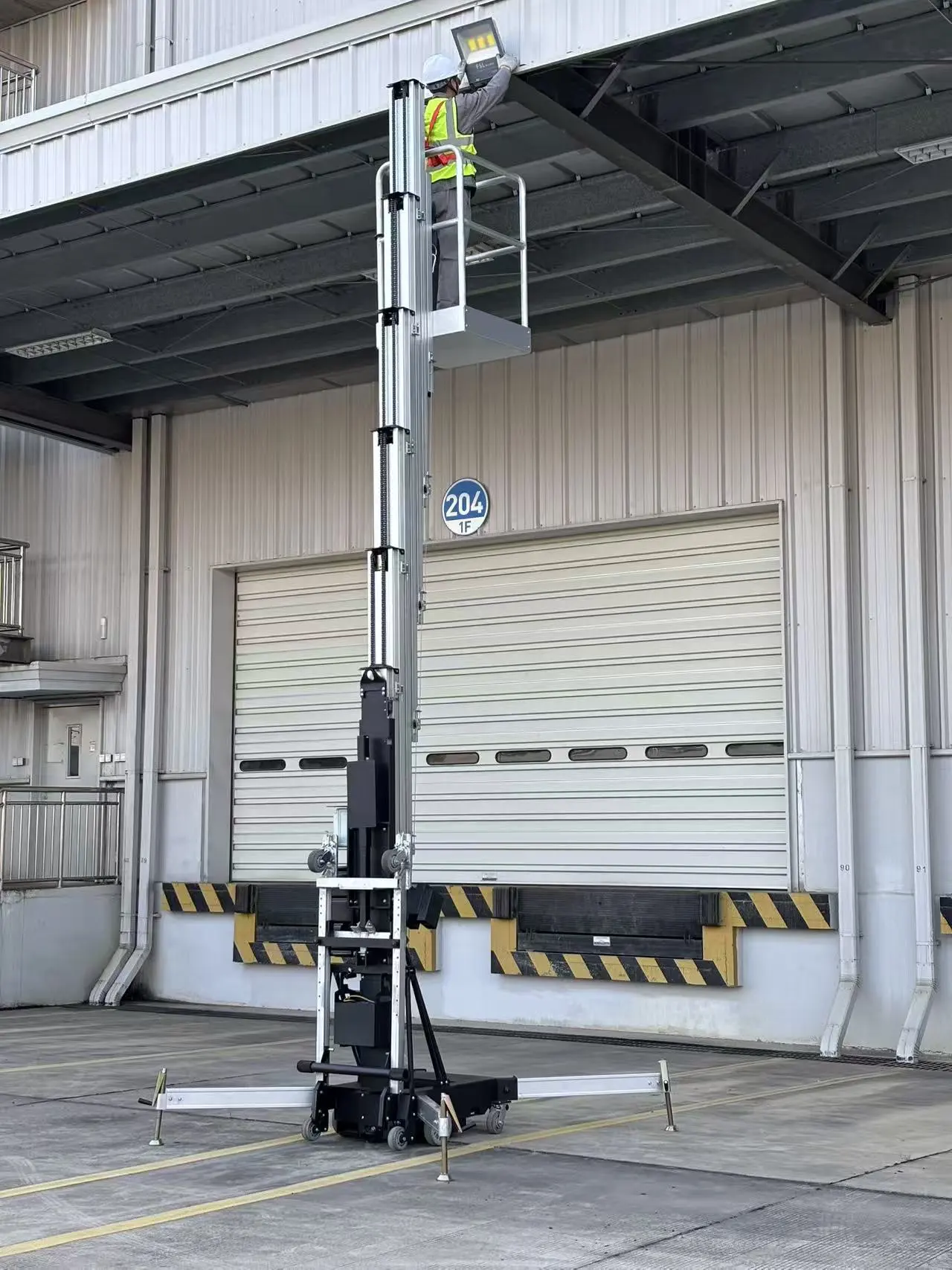

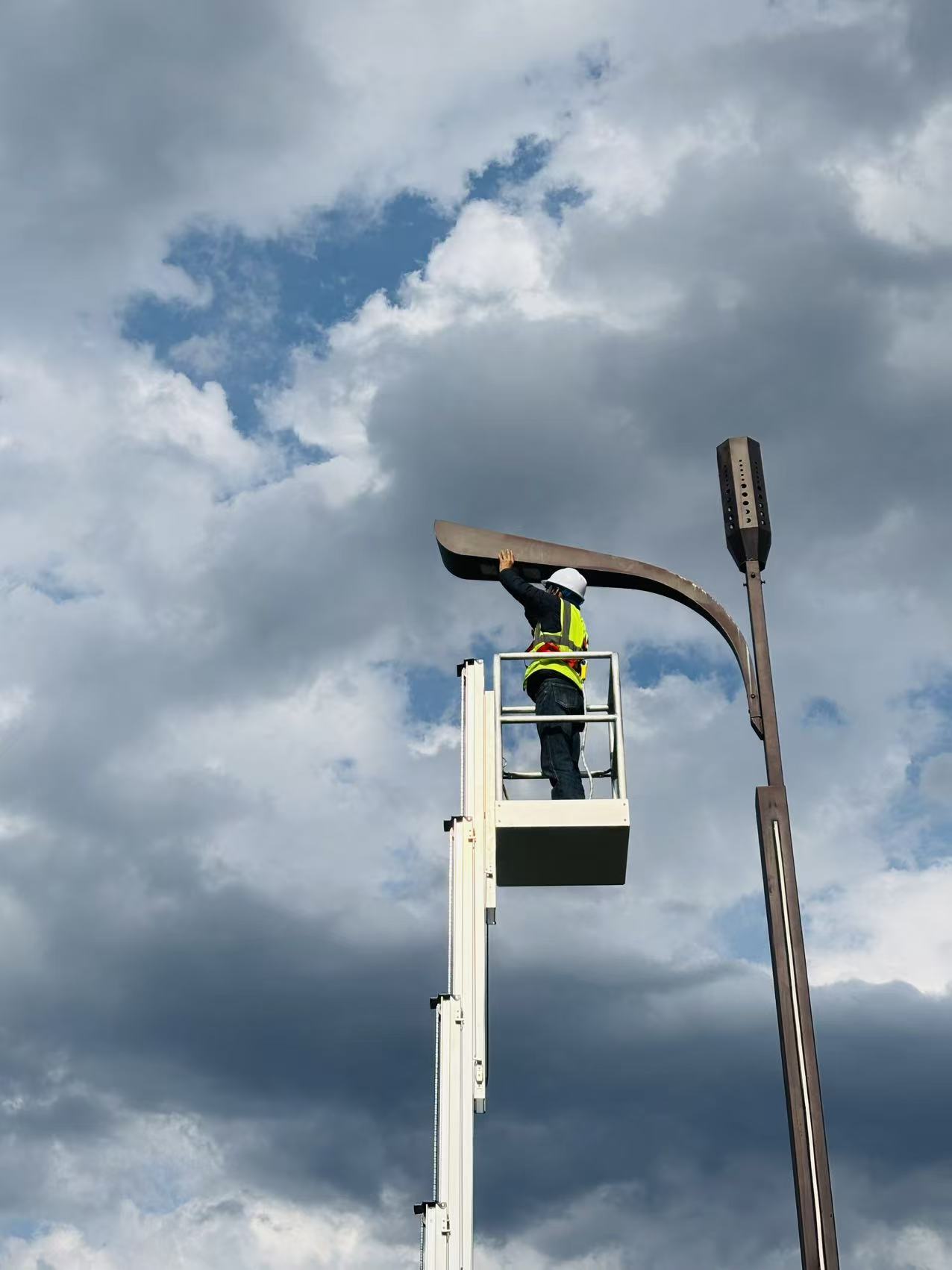

Maximum Working Height up to 12 Meters

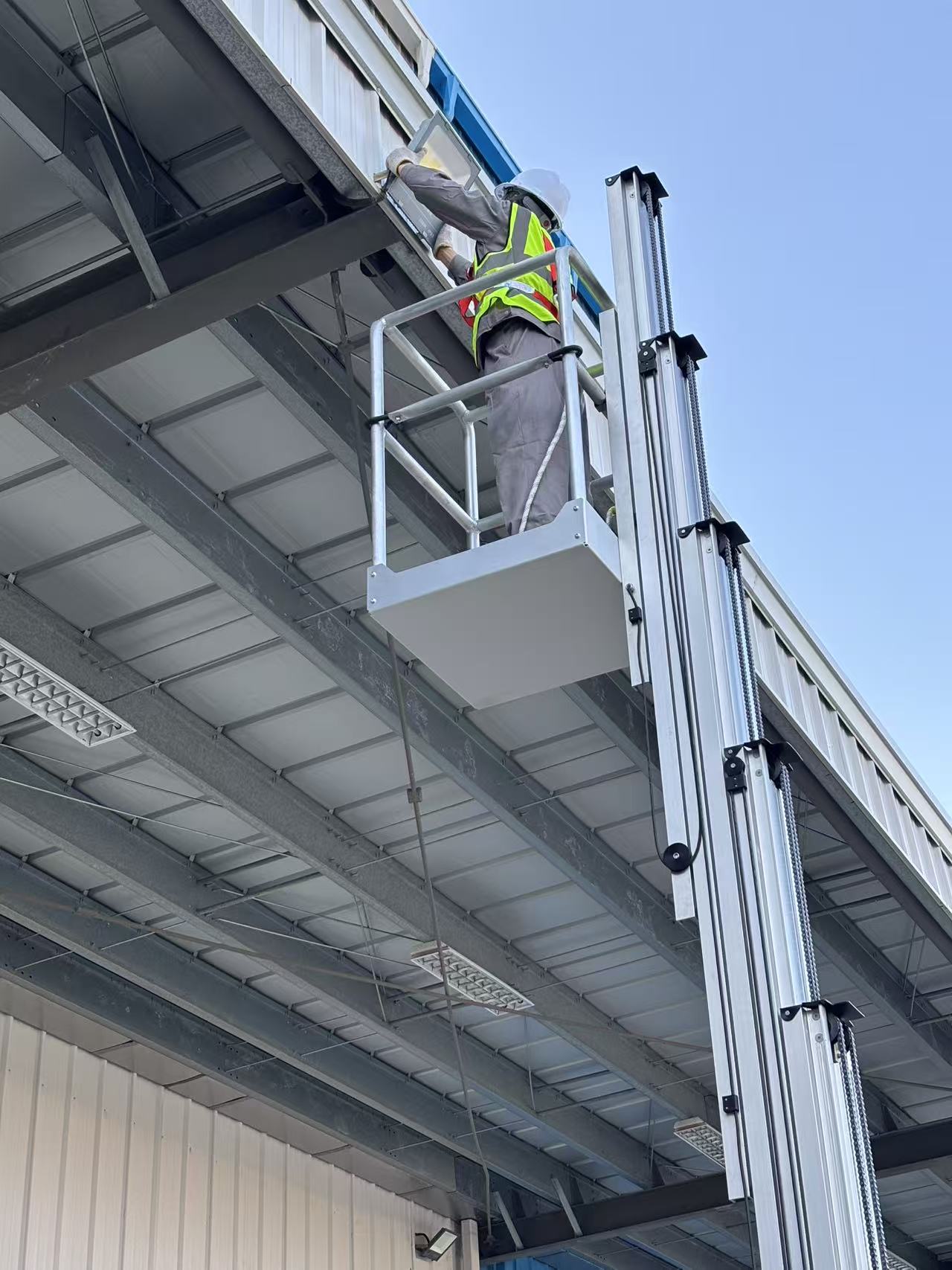

Provides safe and efficient overhead access for maintenance, installation, inspection, and repair work at elevated heights.

Compact and Lightweight Construction

Manufactured from high-strength aluminum alloy, the platform is lightweight, corrosion-resistant, and easy to maneuver manually, making it ideal for indoor applications and confined work environments.

Plug-and-Play Charging System

Equipped with a user-friendly charging system that allows quick battery charging before operation, reducing downtime and improving productivity.

High-Stability Outrigger System

Integrated outriggers provide enhanced stability during lifting operations, ensuring safe operation throughout the entire working height range.

Ergonomic Platform Access

The platform entrance is designed for safe and convenient boarding and exiting, improving operator comfort and workflow efficiency.

Ground-Level Control Panel

The intuitive ground control system allows operators to control platform functions directly from floor level for setup, positioning, and safety monitoring.
