GTWY-1200 Single Mast Aluminum Aerial Work Platform single mast aerial platform aluminum mast aerial work platform aerial mast work platform mast aerial work platform single mast aerial work
GTWY-1200

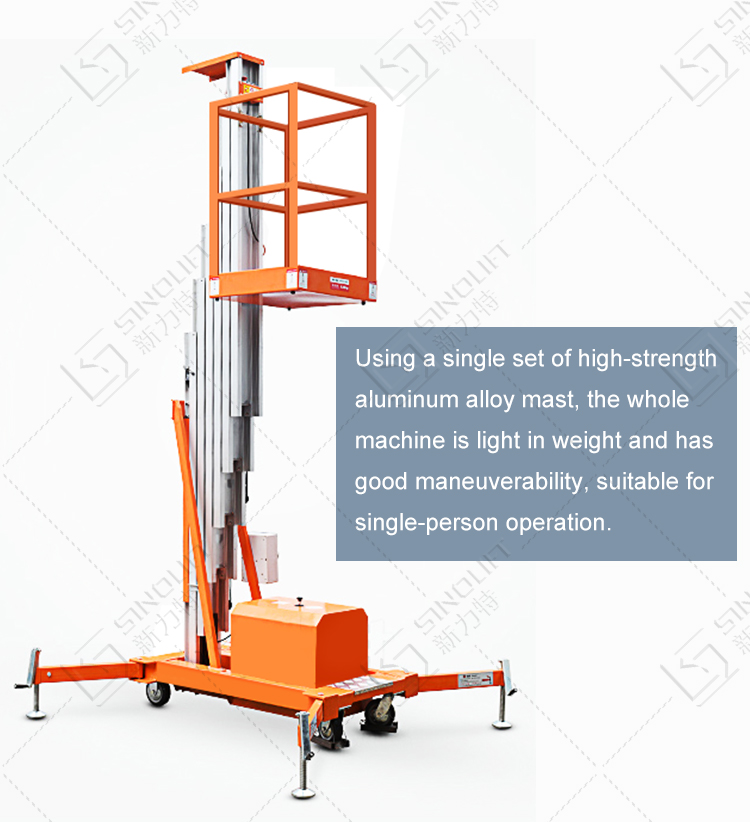

-With high strength aluminum alloy material effective for less deflection and wavering during elevation.
-With imported hydraulic pressure pump valve and electric motors with CE certification of E.U.S table operation and little noise.
-Every product mounted with DC power on basis of customers' requirement.
-Independent electric unit with protection for electric leakage or overloading.
-Solid-state relay, no contact, no sparks, dust-proof, vibration-tolerance.
-With parts convenient for the loading vehicle to better the loading and unloading and the mobile work.
-With imported hydraulic pressure pump valve and electric motors with CE certification of E.U.S table operation and little noise.
-Every product mounted with DC power on basis of customers' requirement.
-Independent electric unit with protection for electric leakage or overloading.
-Solid-state relay, no contact, no sparks, dust-proof, vibration-tolerance.
-With parts convenient for the loading vehicle to better the loading and unloading and the mobile work.
Quantity:
| Model | GTWY6-1200 | GTWY8-1200 | GTWY10-1200 | ||
| Lift Rated Capacity | kg | 150 | 125 | 125 | |
| Max Platform Height | mm | 6000 | 8000 | 10000 | |
| Max Machine Height | mm | 7700 | 9700 | 11700 | |
| Ground Clearance | mm | 80 | 80 | 80 | |
| Platform Size | mm | 650x600 | |||
| Outspread Size | mm | 1930x1770 | |||
| Power | AC | V | 220 | ||
| DC | V | 24 | |||
| Battery | V/Ah | 2x12/60 | |||
| Charger | V | 24/10 | |||
| Lifting Motor | AC | V/KW | 220/0.75 | ||
| DC | V/KW | 24/2.0 | |||
| Overall Length | mm | 1560 | 1560 | 1560 | |
| Overall Width | mm | 800 | 800 | 800 | |
| Overall Height | mm | 1950 | 2050 | 2150 | |
| Overall Weight | AC | kg | 300 | 350 | 400 |
| DC | kg | 330 | 380 | 430 | |
